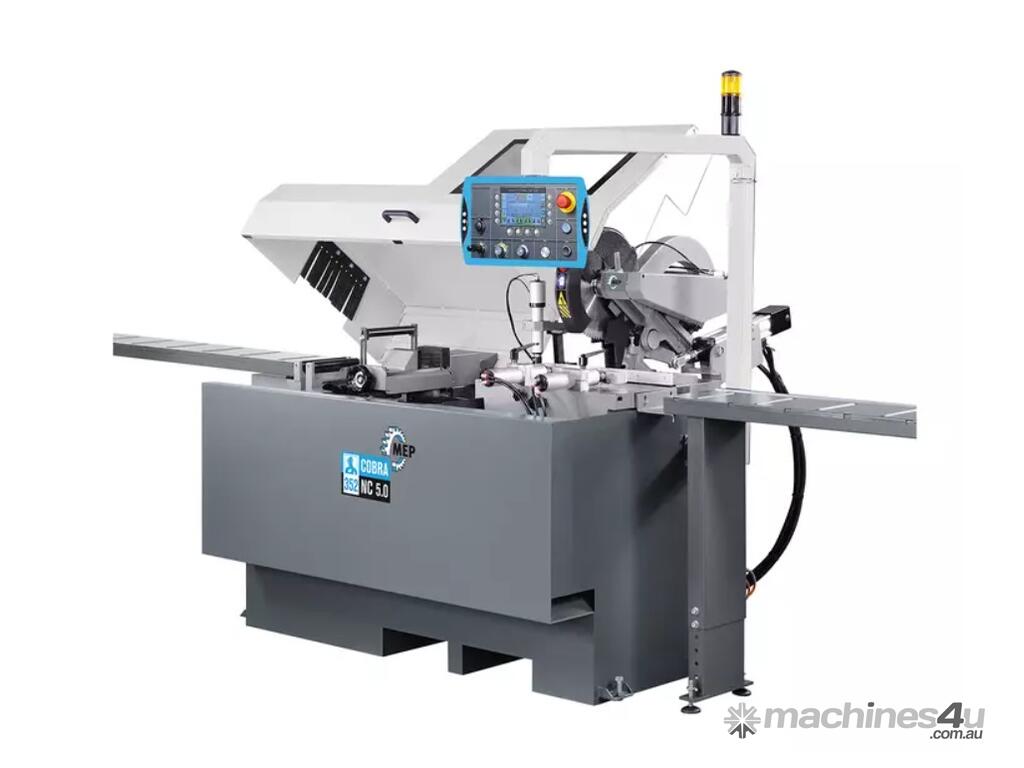

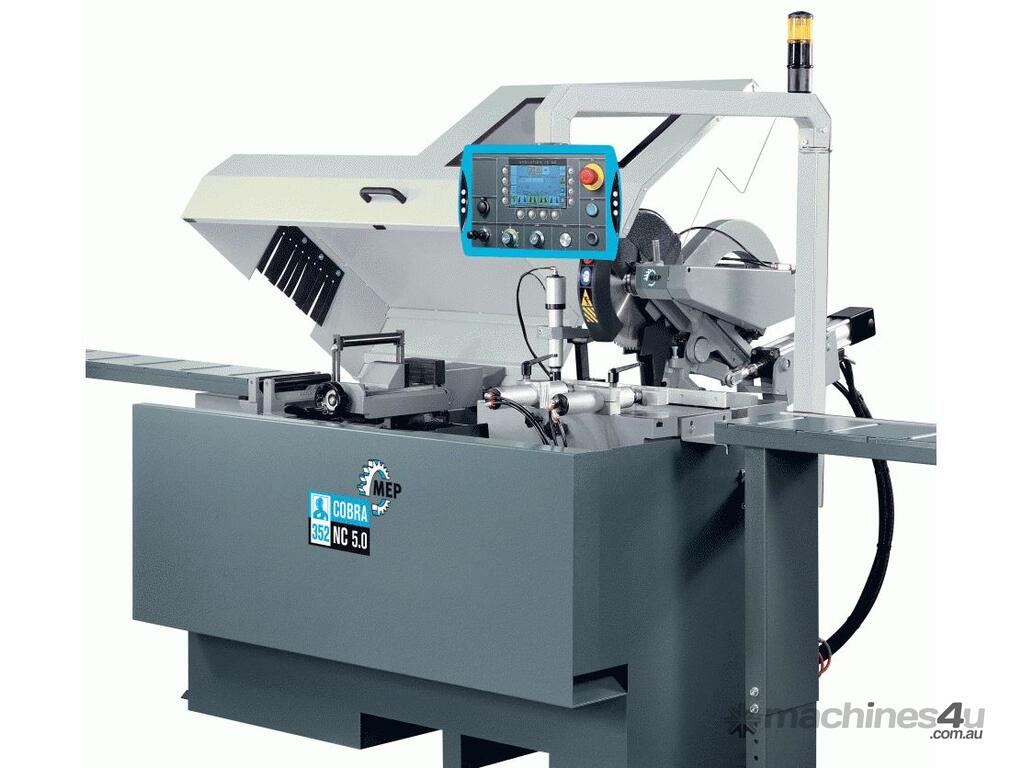

FOR ALUMINIUM & LIGHT ALLOYS - MEP COBRA 352 NC 5.0 Automatic Aluminium Saw

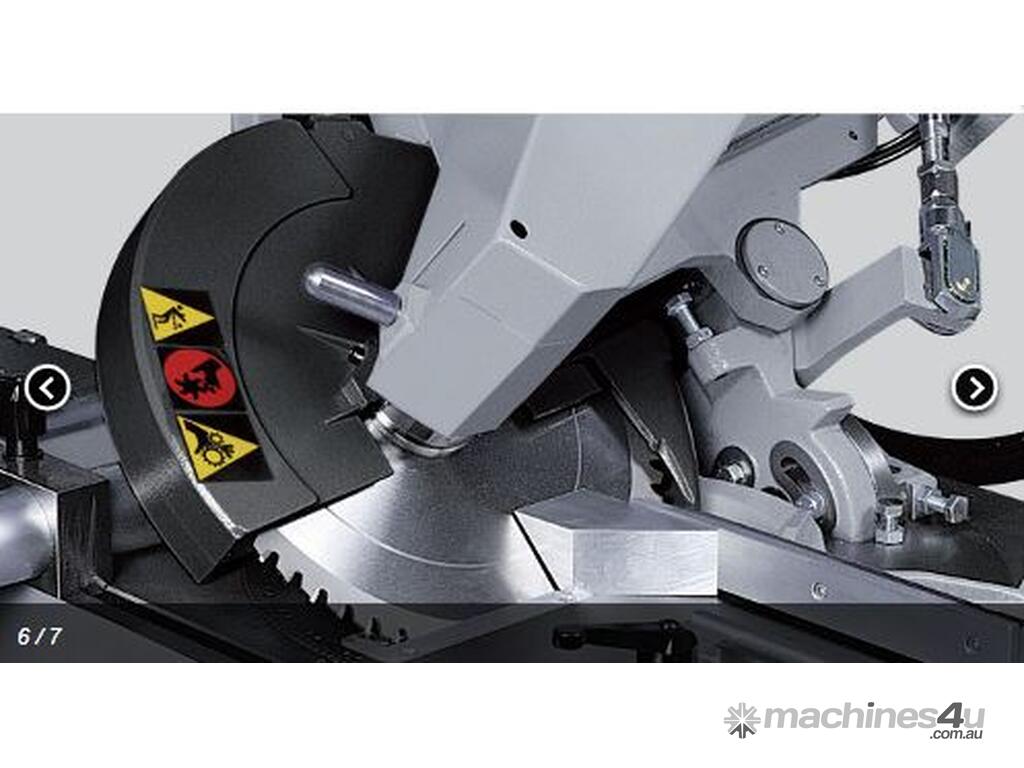

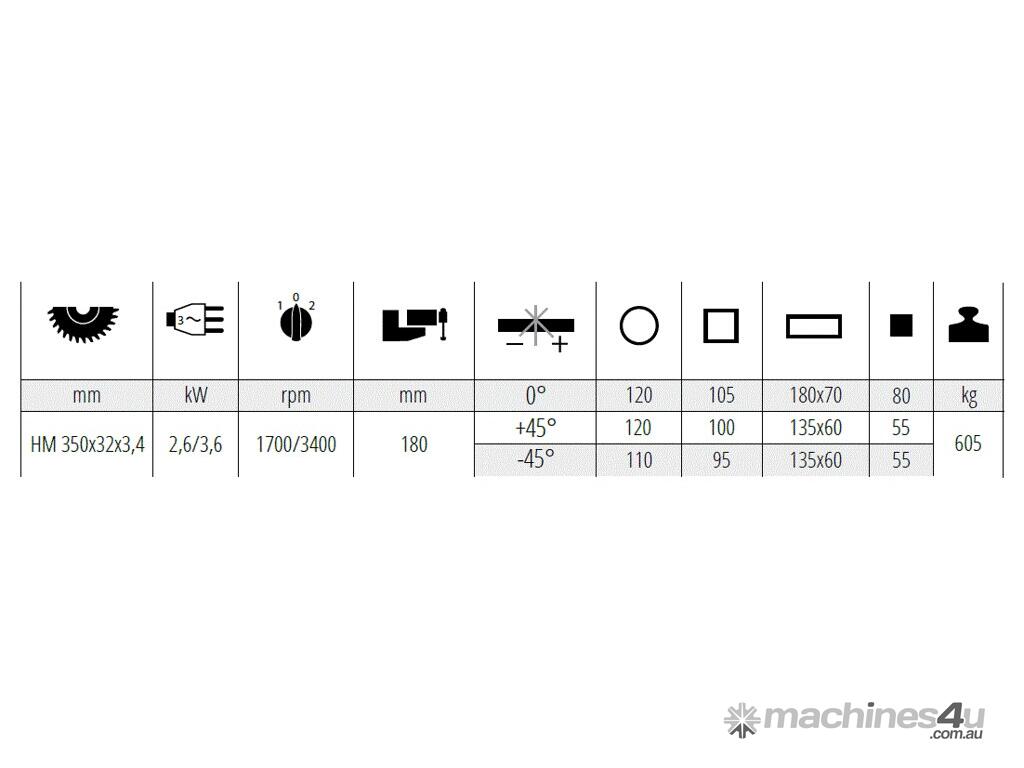

The MEP Cobra 352 NC 5.0 is an automatic hitch feed saw suitable for aluminium and light alloys using a blade with electro-welded hard-metal teeth. Capacity 180 x 70mm

UNIQUE FEATURES

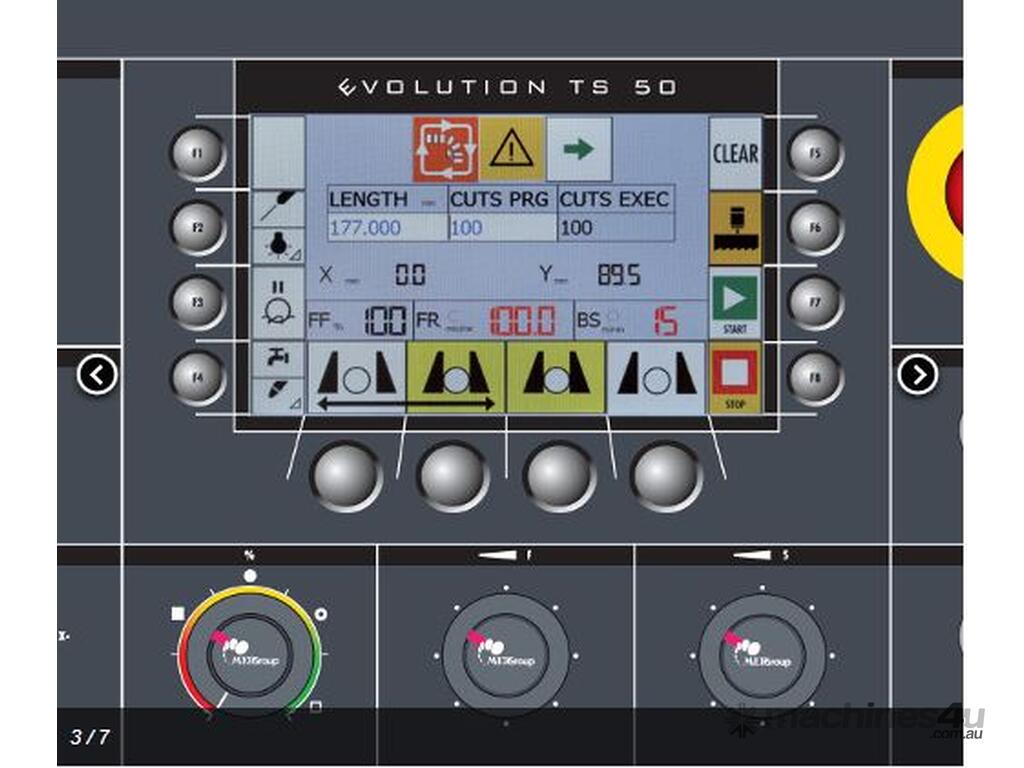

• 7” touch screen display operator interface and push button for all functions of the sawing machine. It is simple, intuitive, guarantees reliable use and controls all cutting parameters in real-time.

• Console with centralized controls, installed on an articulated arm to follow the operator in every operating position with controls and EMERGENCY STOP control.

• Registration of alarms and events with the possibility to visualize the story of occurred events.

• Bar feeder with recirculating ball screw/nuts and stepper motor (feed in length in one stroke 600mm that can be repeated to cut any length).

• Panel with low tension controls: polyester membrane keypad with tactile thermos-shaped buttons that give an acoustic signal when pressed.

• Coaxial cylinder with bypass valve for fast approach and linear transducer for the head position reading.

• Cutting head and feeding vice positioning with a joystick.

• Automatic acquisition of the actual starting point of the cut.

• Rotating table on a center pin with axial bearing which allows higher precision on the cutting angle set.

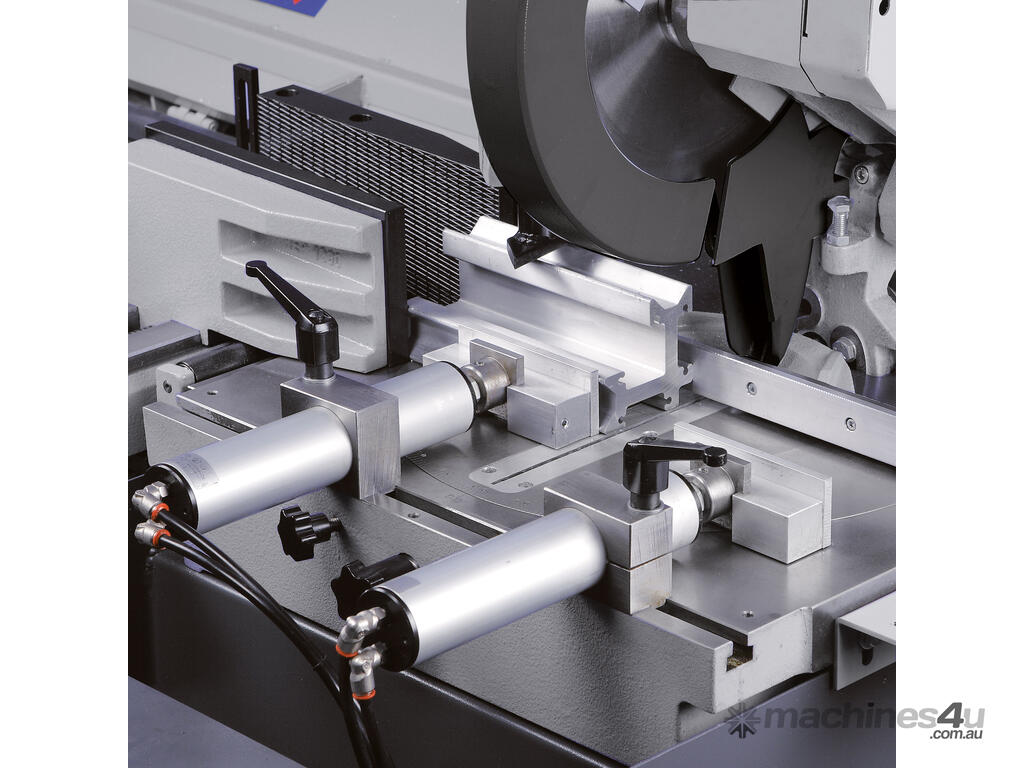

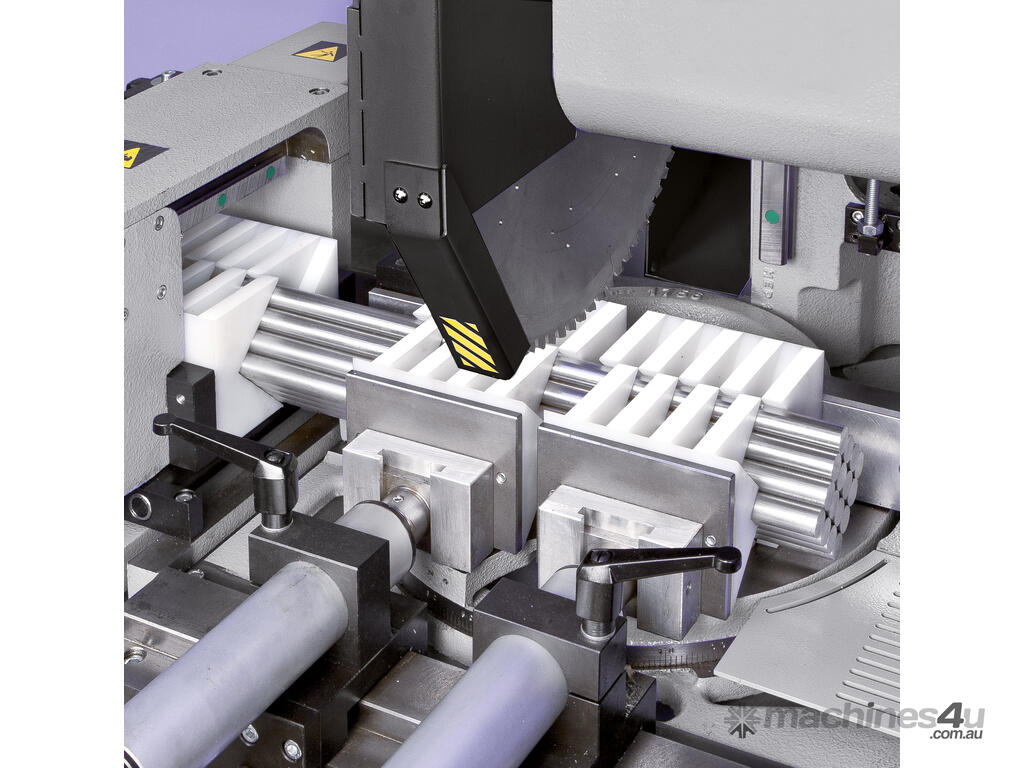

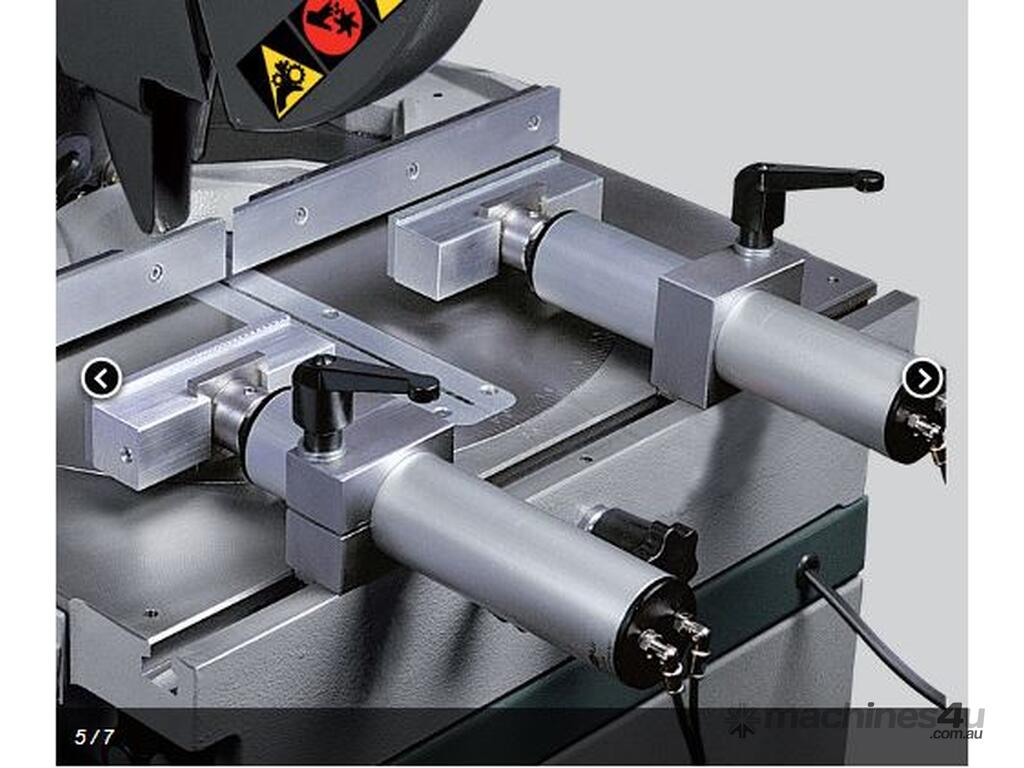

• Pneumatic vertical vice.

• Indicator with flashing light in case cycle is stopped.

• Electric pump for the blade lubrication and cooling.

• Preset equipped with the spray mist system (OPTIONAL) and the standard delivered traditional lubrication with emulsion oil.

• Service keys and instructions manual for maintenance and spare parts list.

DOWNLOAD THE BROCHURE FOR MORE INFORMATION
