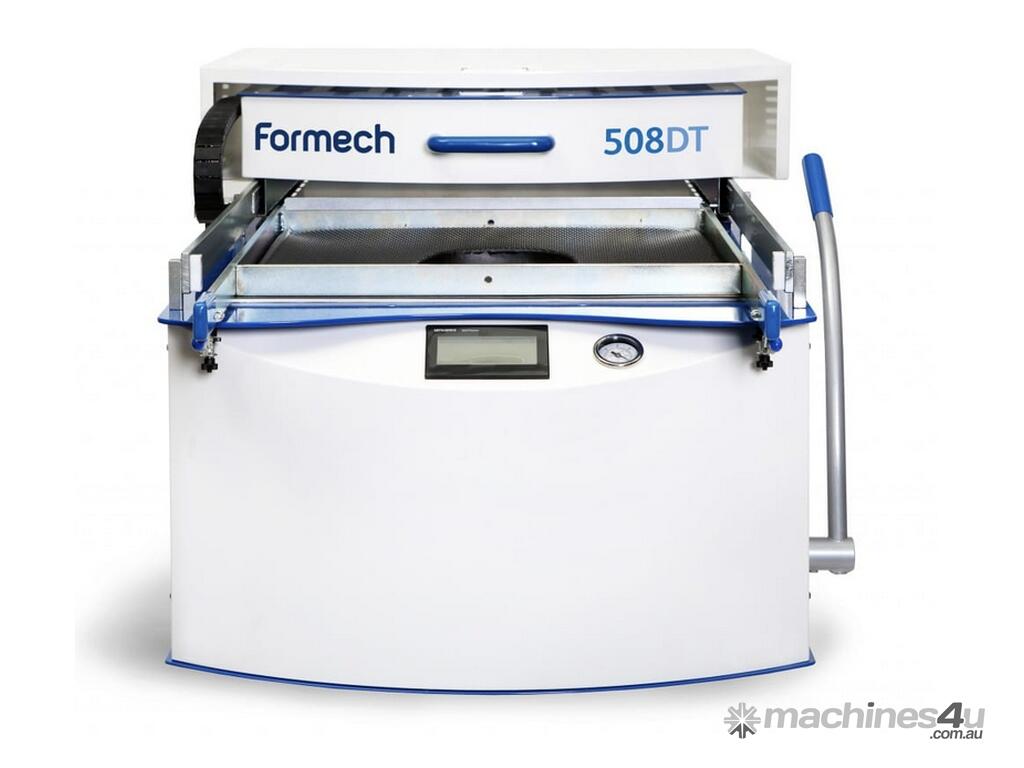

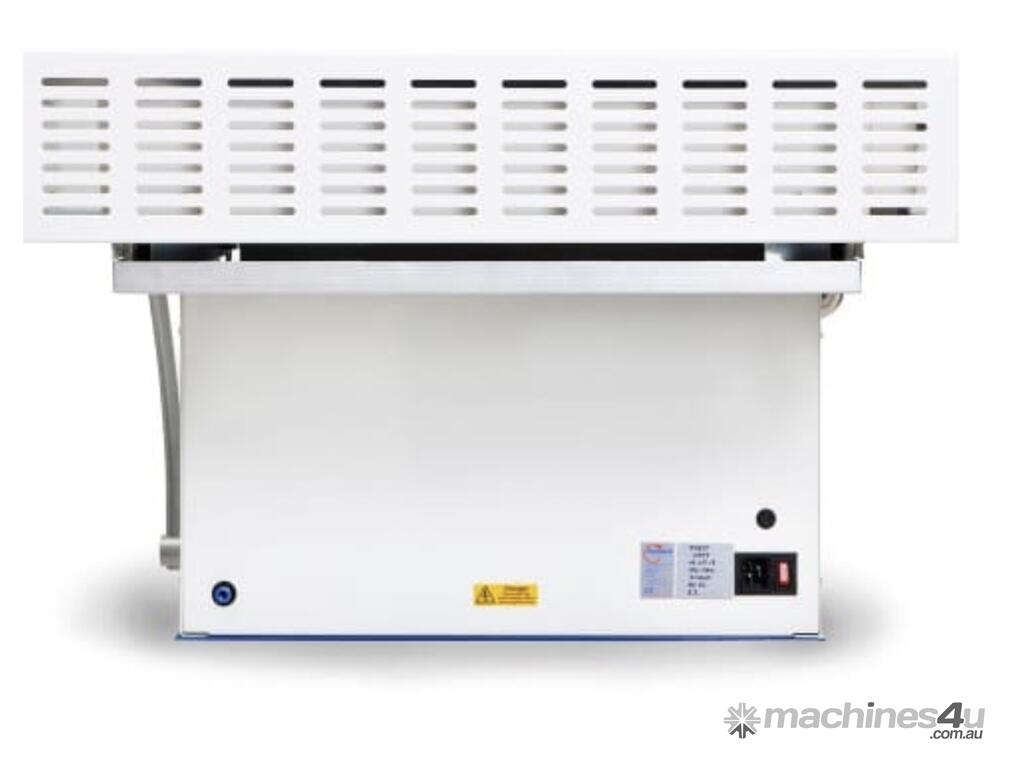

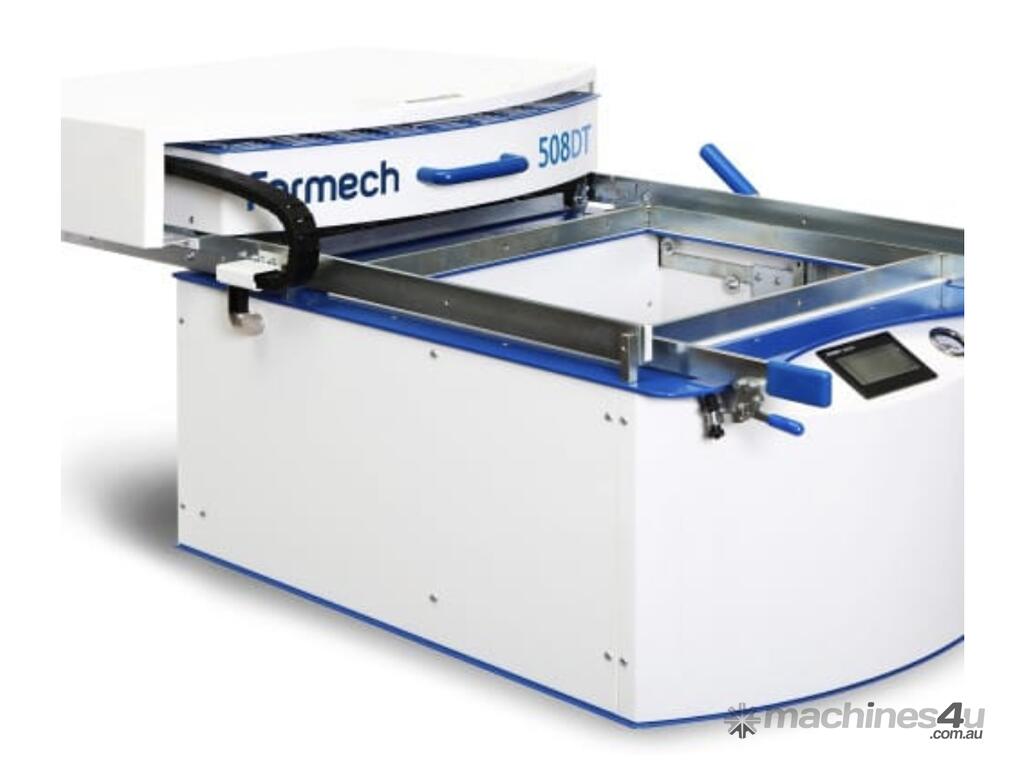

FORMECH 508DT VACUUM FORMING MACHINE

You cannot buy better than the FORMECH 508DT Vacuum Forming Machine.
If you need to form more demanding shapes and materials then this is the machine for you. Rapid and energy efficient quartz heaters means the 508DT is ready to vacuum form in less than 5 minutes, with the power and capability to form more demanding shapes and materials. 20 program memory to recall heater profile and timing settings for each project. A dedicated trolley option provides a minimal footprint with the convenience of portability and optimum working height.

4" Mono HMI /PLC Interface with Memory Function
Mitsubishi integrated PLC/HMI with 4" mono touch screen control and 20 programmable presets.

Quartz Heaters with Variable Standby
Quartz heaters have the benefit of a rapid response and high efficiency resulting in time and energy savings.

Multi-zone heaters
Four heating zones and quartz heaters provide rapid heat response with a greater range of control to form challenging shapes and materials.

Safety Interlock
Mechanical interlock prevents table being raised whilst heaters are in forward position.

Vacuum & Release

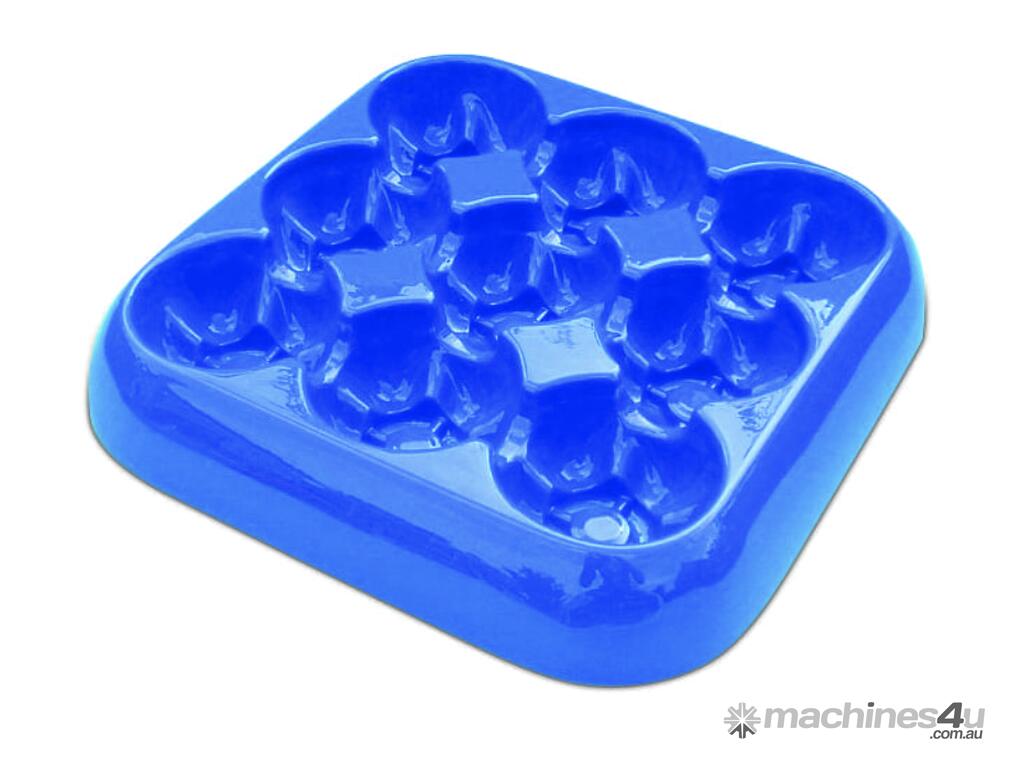

After the formed part has cooled, air is forced between the mould and the sheet to help it release.

Vacuum Gauge
A visual indication of consistent vacuum pressure being applied (pressure in Hg / bar).

TECHNICIAL SPECIFICATIONS:
• Material size: 508 x 457mm / 20 x 18”
• Forming area: 482 x 432mm / 19 x 17”
• Max. depth of draw: 185mm / 7.3”
• Max. material thickness: 6mm / .25”
• Zones: 4
• Heaters: Quartz
• Overall width: 597mm / 23.5”
• Overall height: 560mm / 22”
• Overall depth: 1100mm / 43.3”
• Weight: 100kg / 200lbs

FEATURES

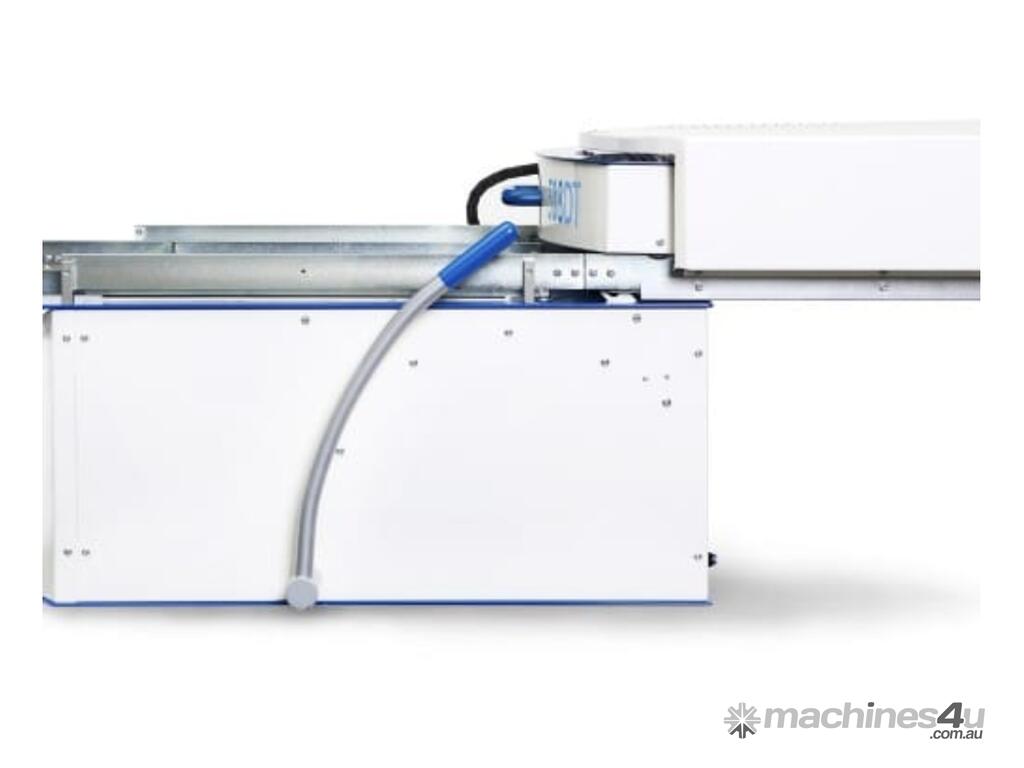

• Heater travel – bearing wheels
• PLC touch screen control
• 12 program memories
• Vacuum gauge
• Interlock
• Pressure outlet
• Diaphragm pump :
1. 25’’ Hg
2. 5.52m3/HR

OPTIONS

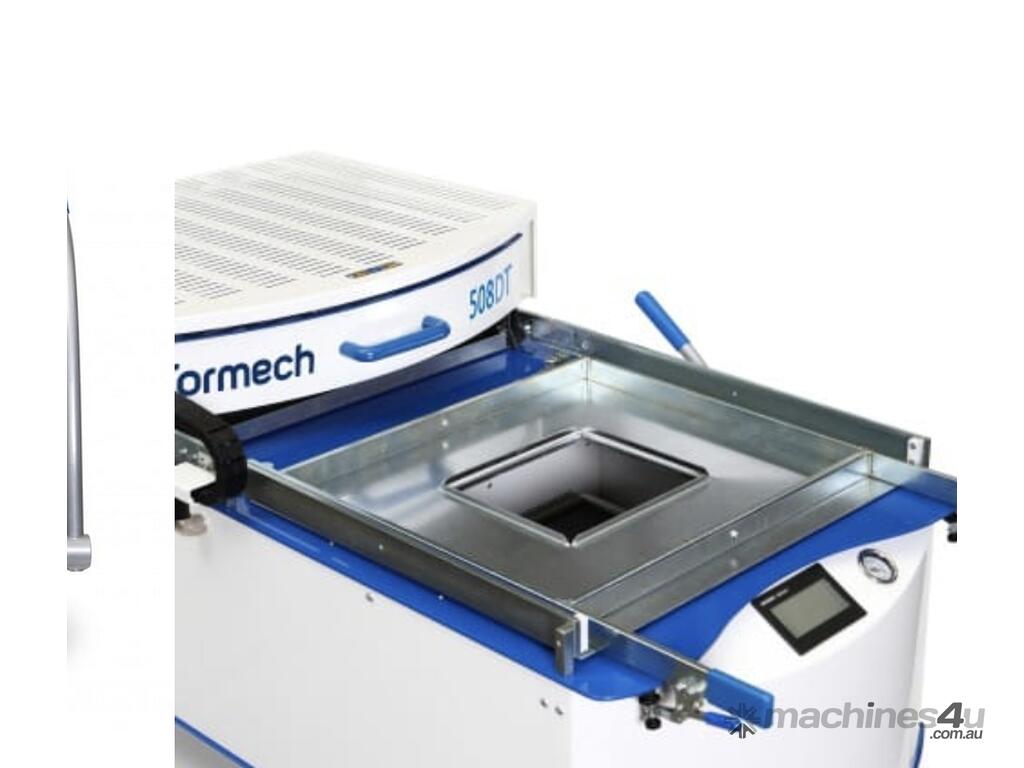

• Reducing windows

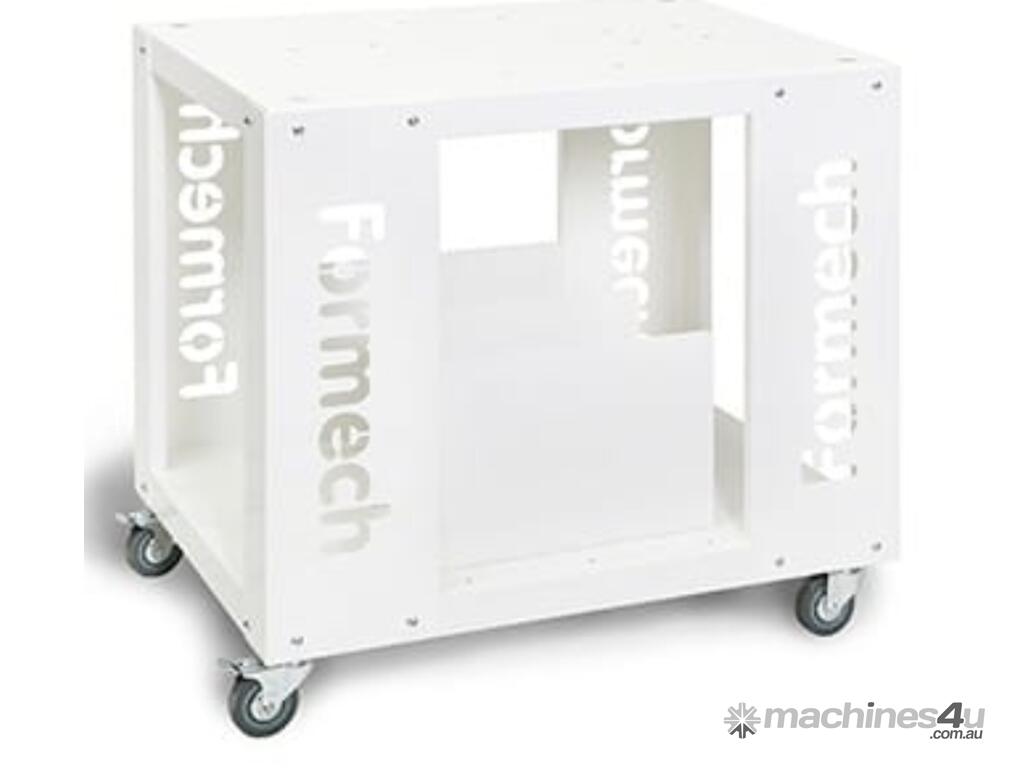

• Trolley

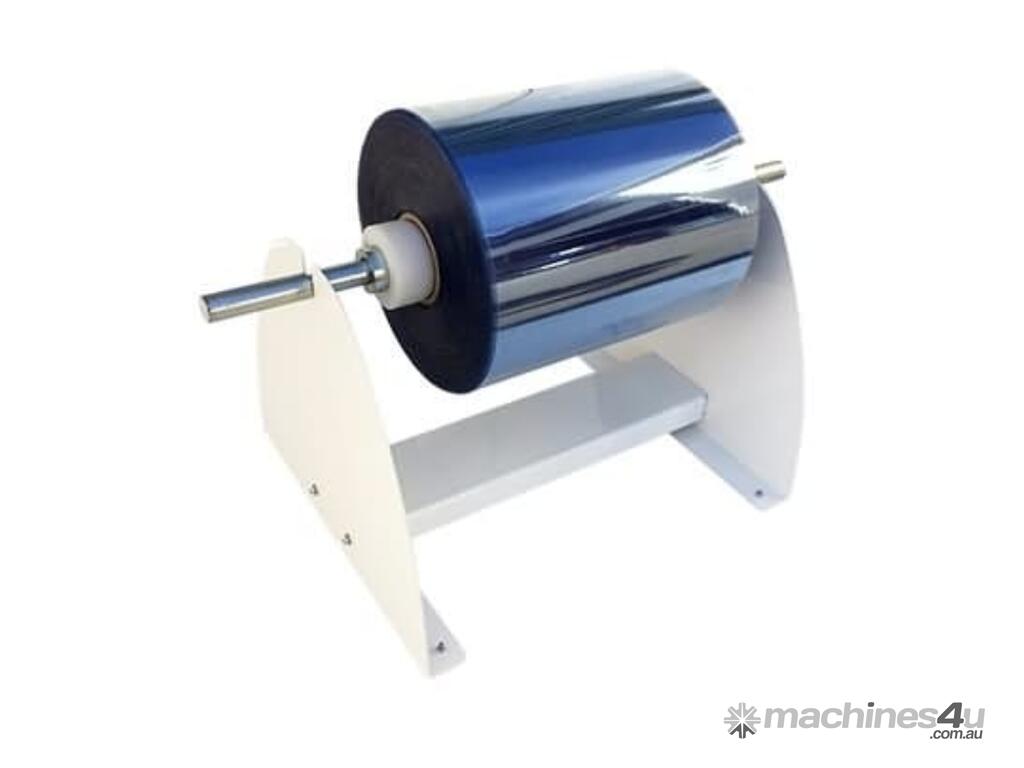

• Reel feed

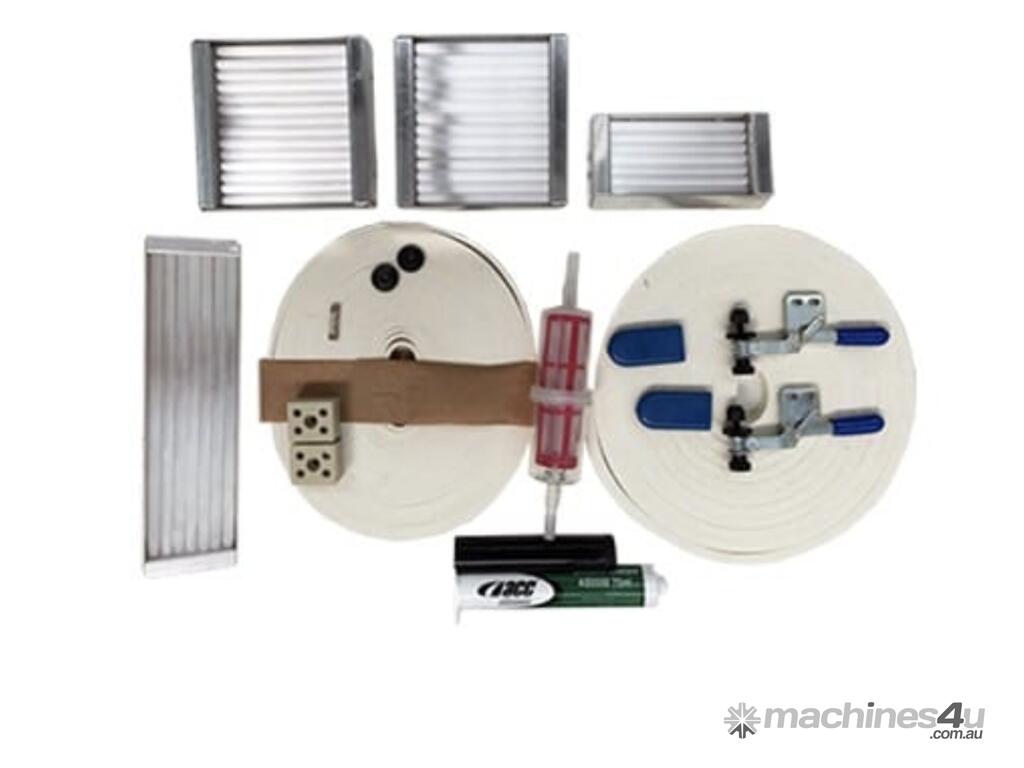

• Spare parts kit
• Trimmer FT10/20

ELECTRICAL SPECIFICATIONS
• 208-240V, 13A, 3.2kW, Single Phase
