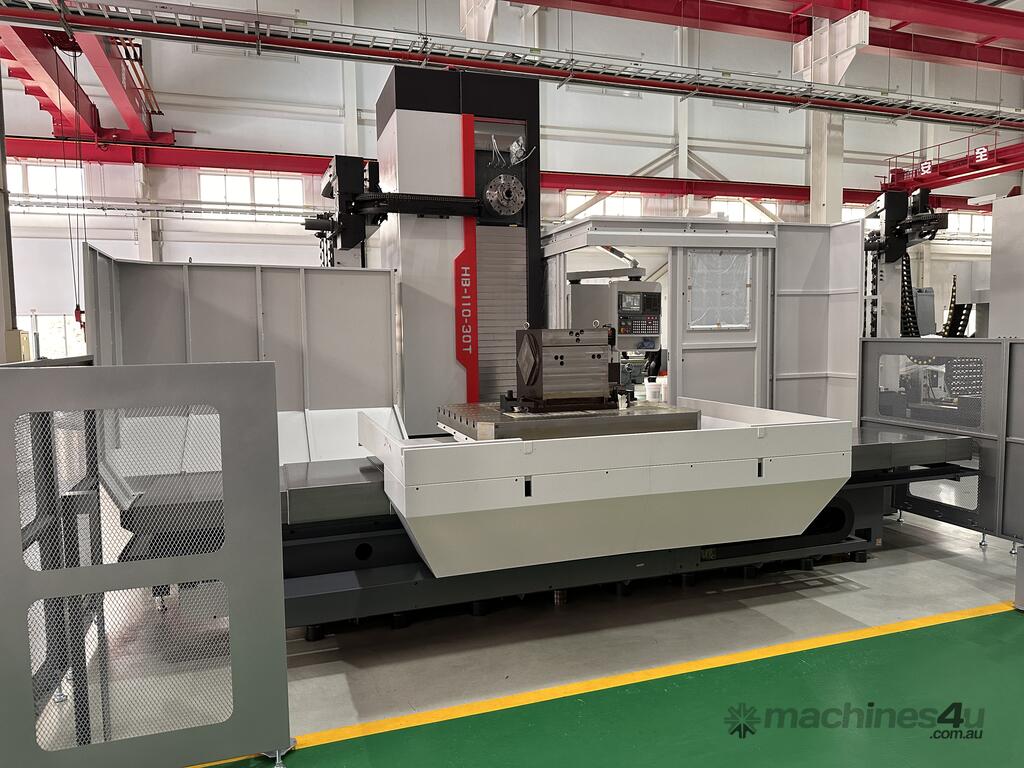

Fortworth HB-110-20T Horizontal CNC Boring & Milling Machine are a high build quality machine manufactured in Taiwan at a very attractive price point. For over 30 years Fortworth machines have been made to the highest standards to ensure accuracy and longevity of the machine.
Complete Machine Tools has a long cooperation with Fortworth over the years and offers the full range of machinery available.

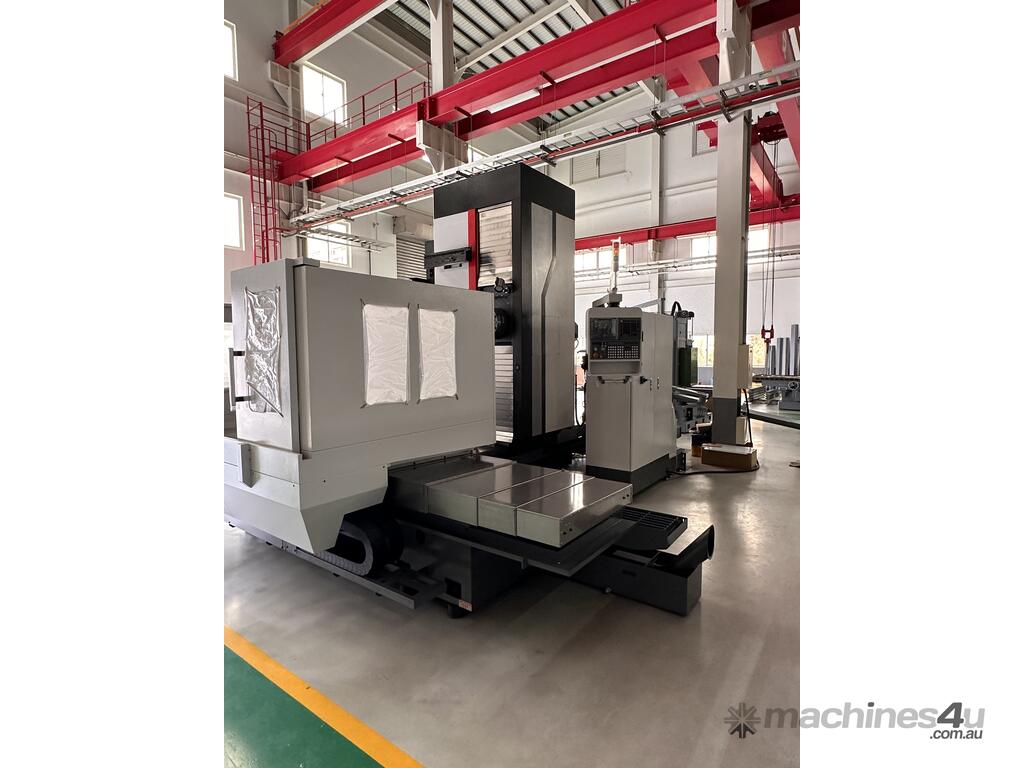

- Movable column

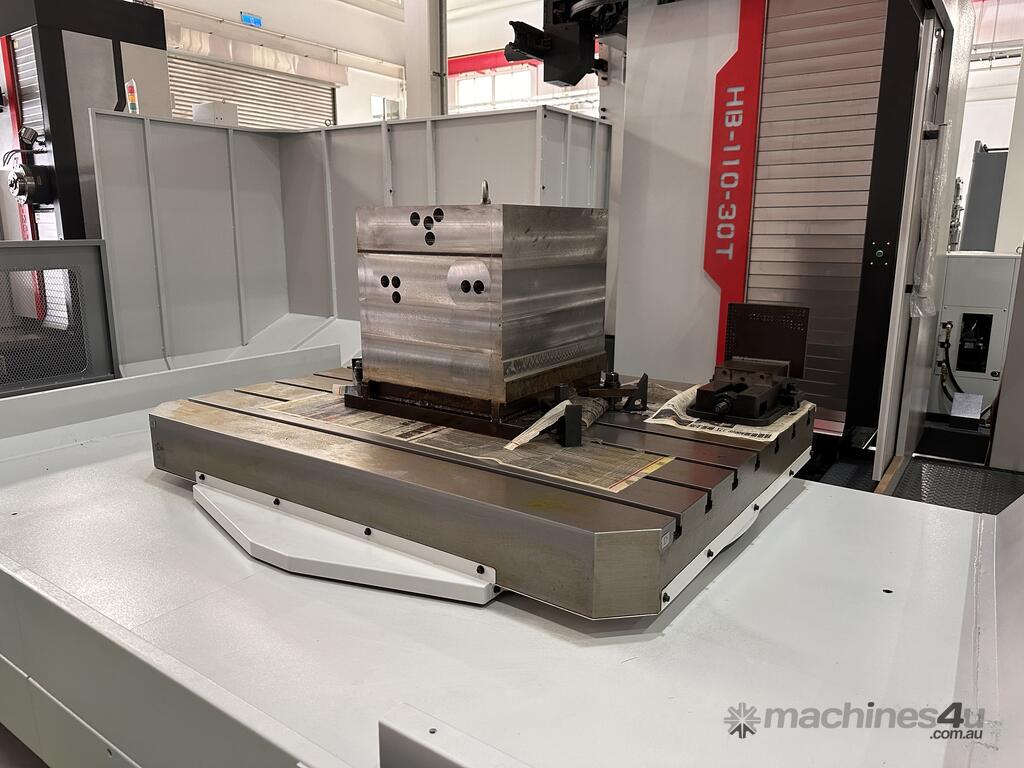

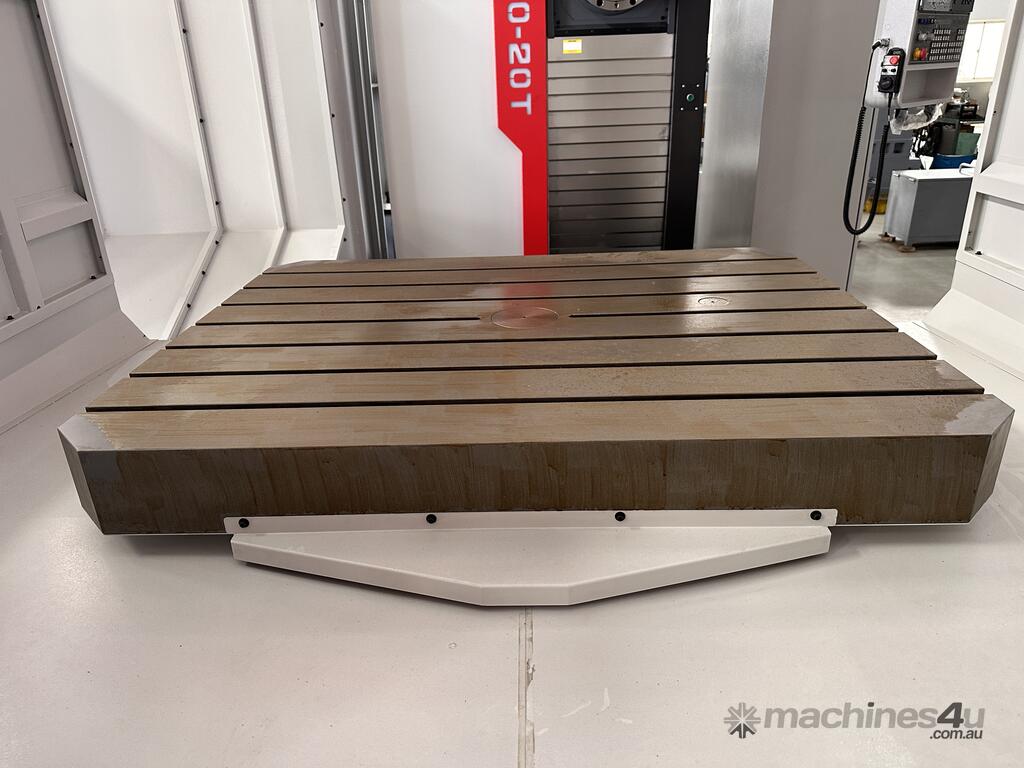

- Indexing table: 1500x1200mm, 0.001º/division
- Travel of X, Y, Z, W: 3000 x 1500 x 1400 x 550mm
- Spindle diameter 110mm

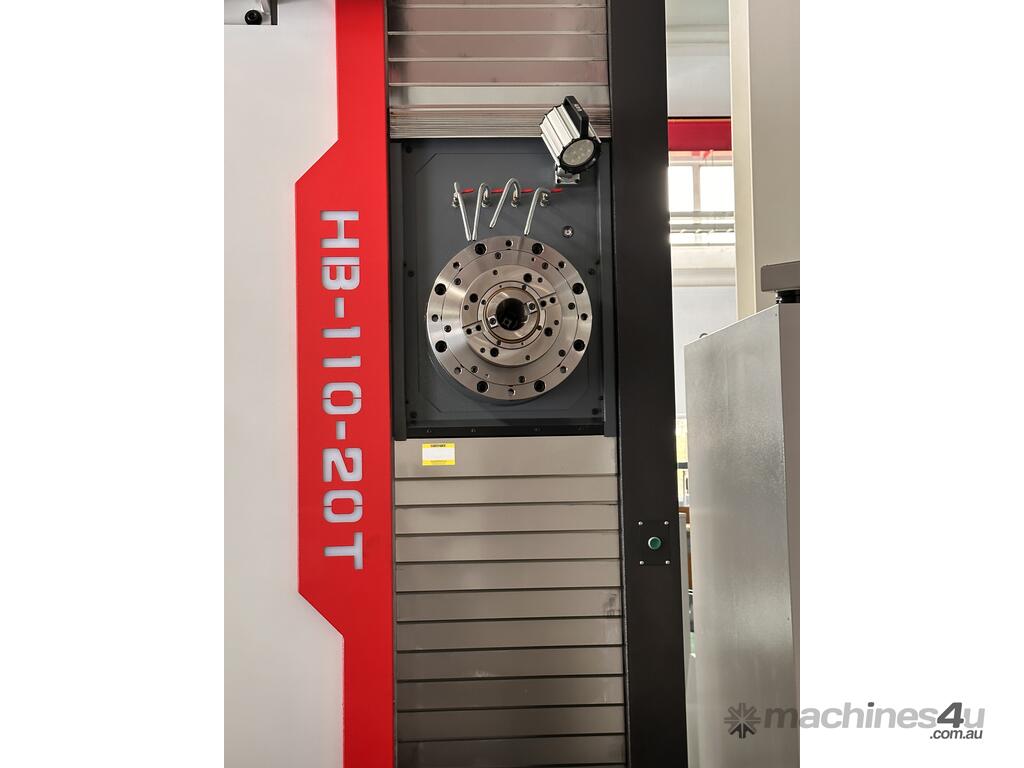

- Spindle BT50, 2500RPM, 2-steps geared head

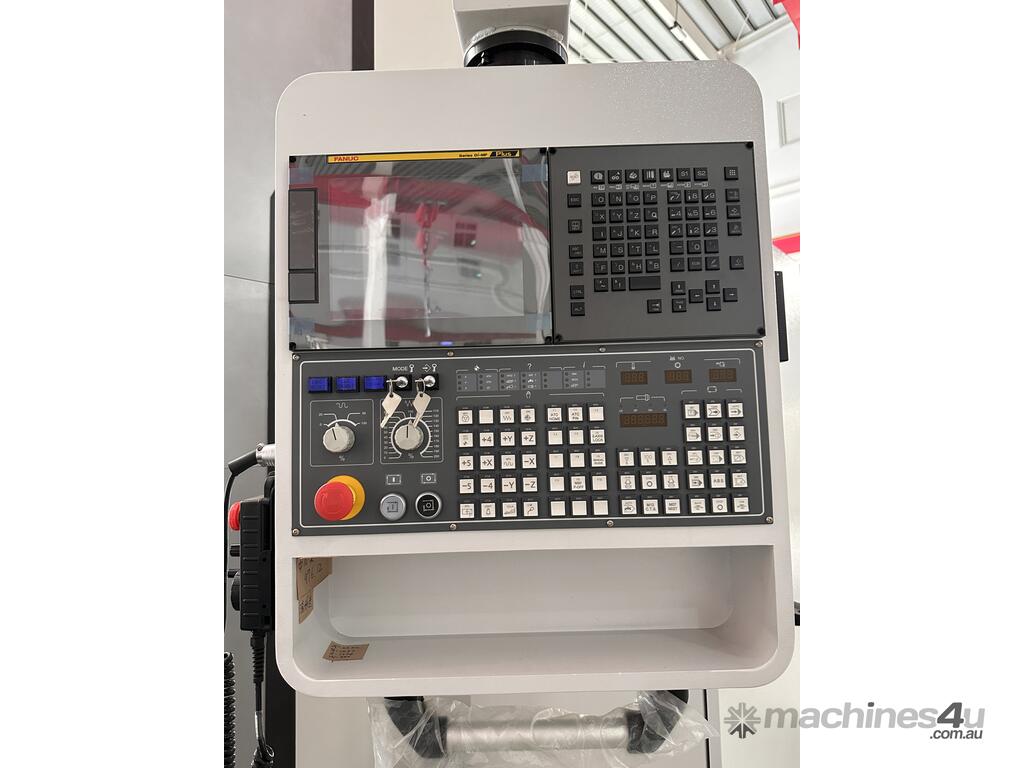

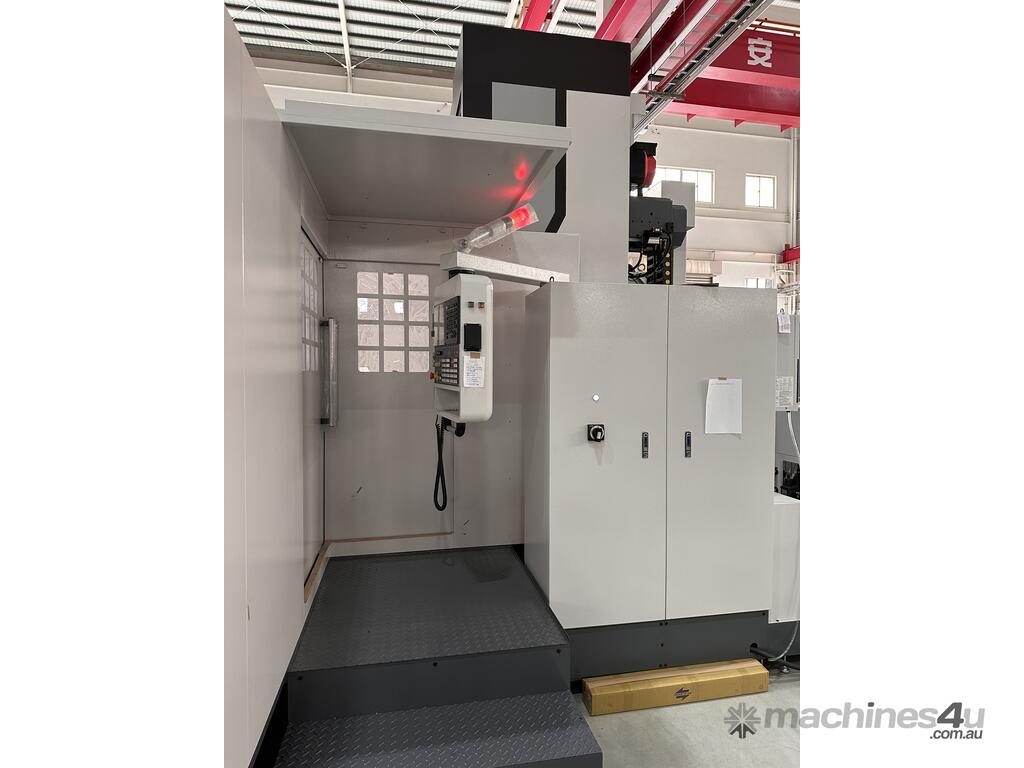

- CNC Control: FANUC Oi-MF with manual guide i
Standard Accessories -
1 - Spindle oil cooler
2 - Centralised auto lubrication system
3 - Coolant system
4 - Spindle air blow
5 - Heat exchanger for cabinet
6 - Working lamp
7 - Screw type chip conveyor -------- Replace with optional chain type conveyor with bucket
8 - M30 automatic power off
9 - Portable MPG hand wheel
10 - Alarm lamp
11 - RS-232 interface port
12 - Tool box with adjustment tools
13 - Levelling blocks and bolts

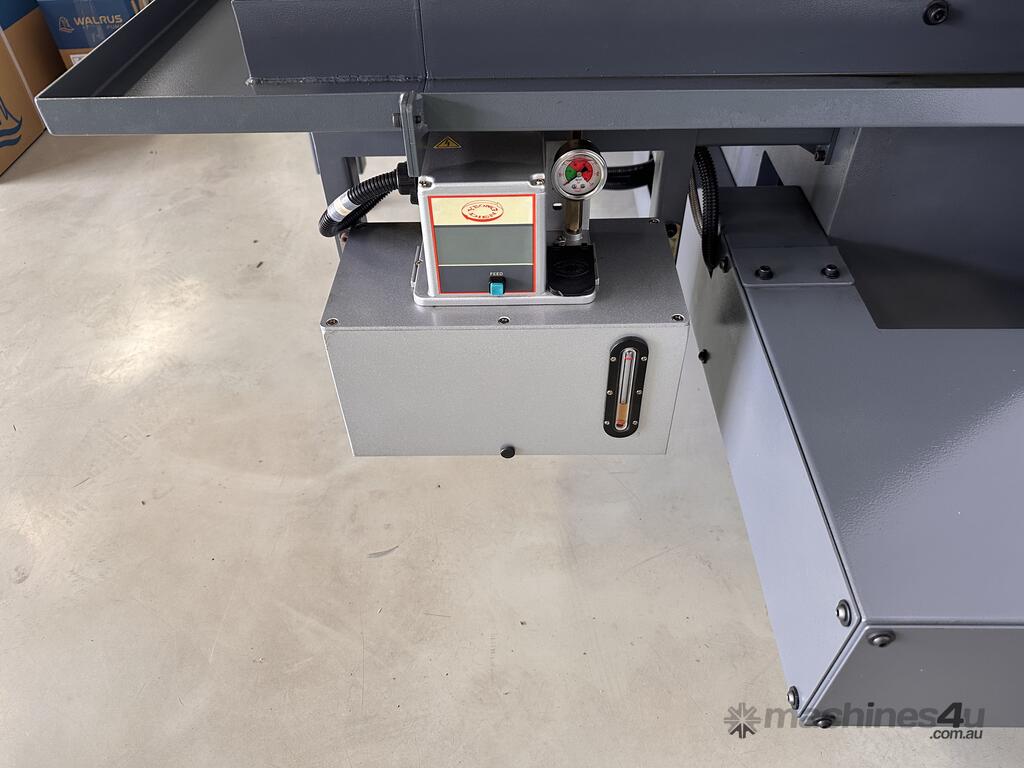

14 - Slideway auto lubrication pump
15 - Heidenhain absolute angle encoder on B axis

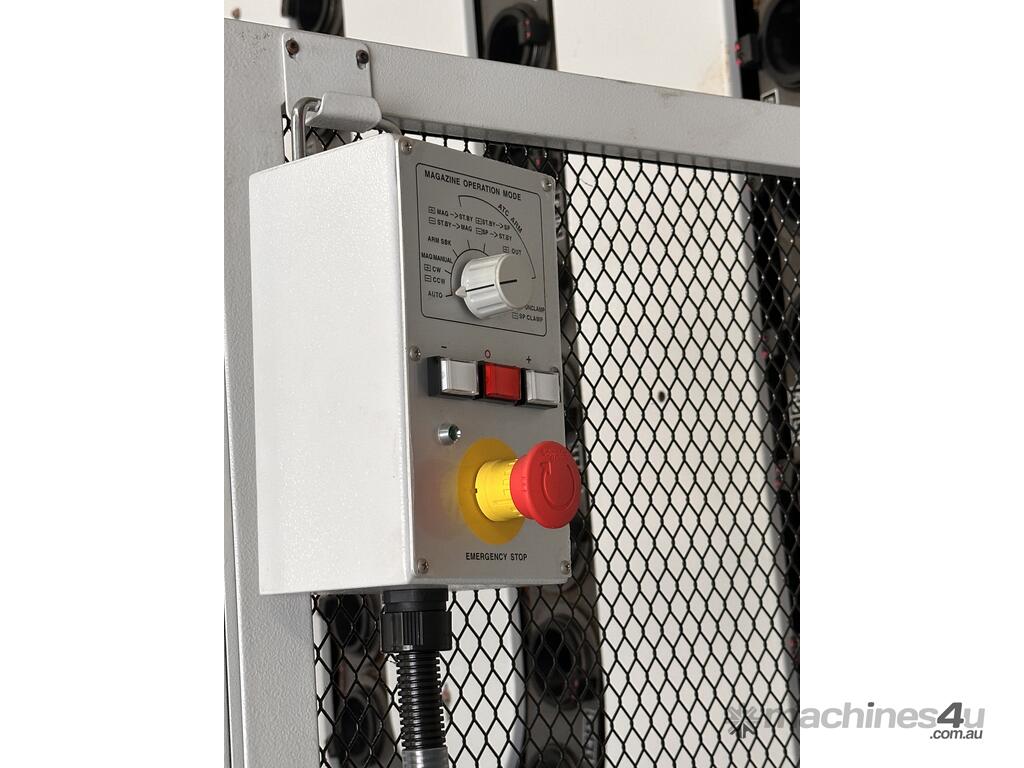

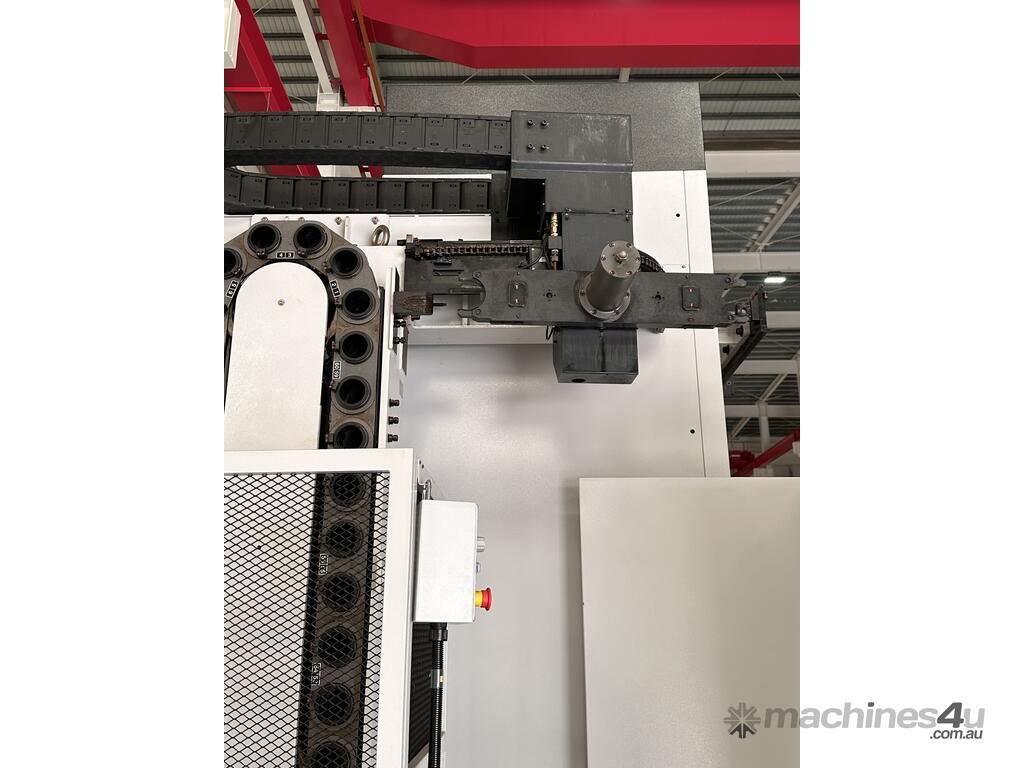

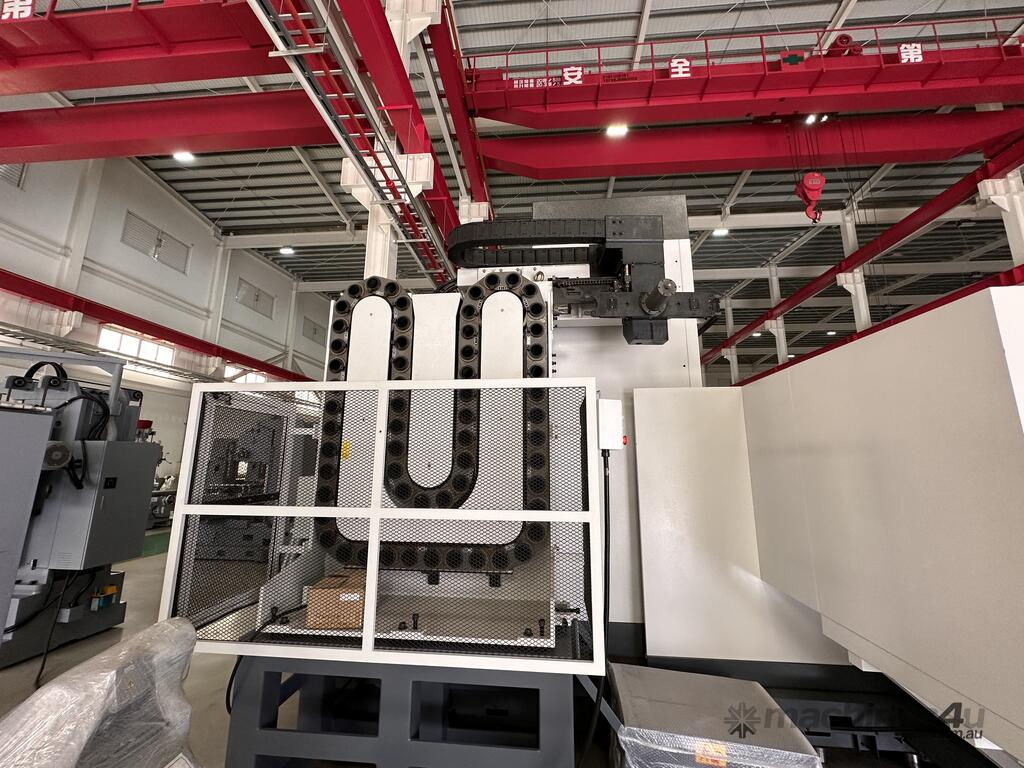

16 - 60 pot tool changer
Operations manual
Spare parts list
Electrical/hydraulic diagrams

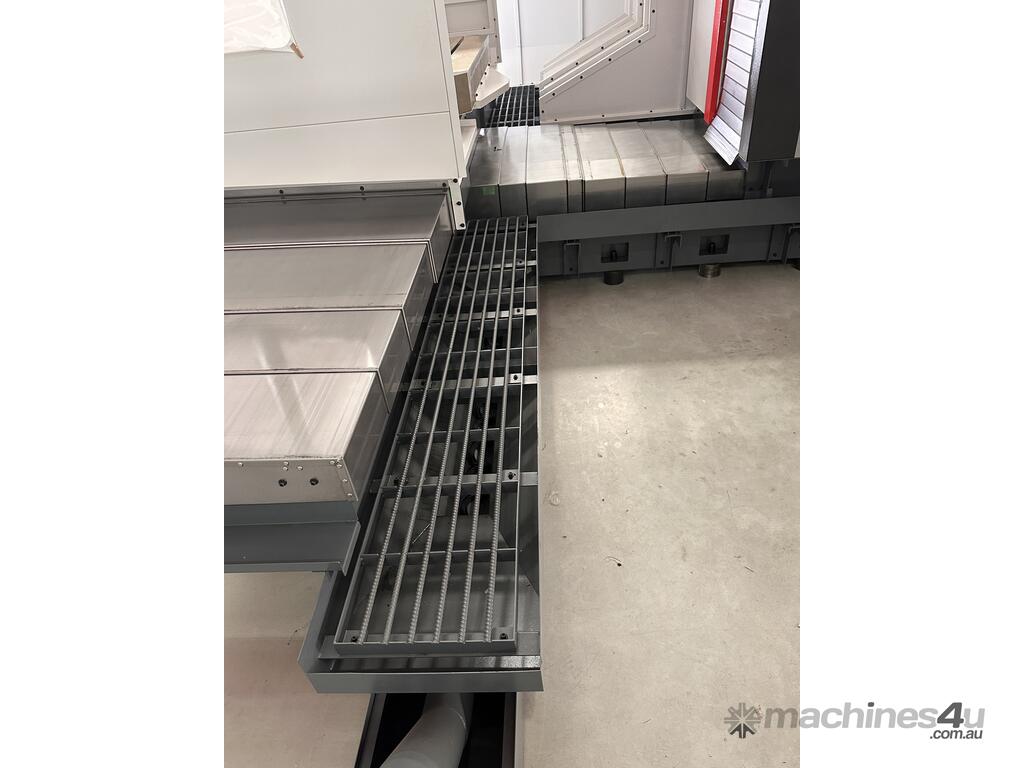

Simple coolant/chip tray around work table
Optional -
+ Coolant thru spindle 20BAR
+ Chain type conveyor with bucket
+ Oil Skimmer
+ Full splash guard around machine
