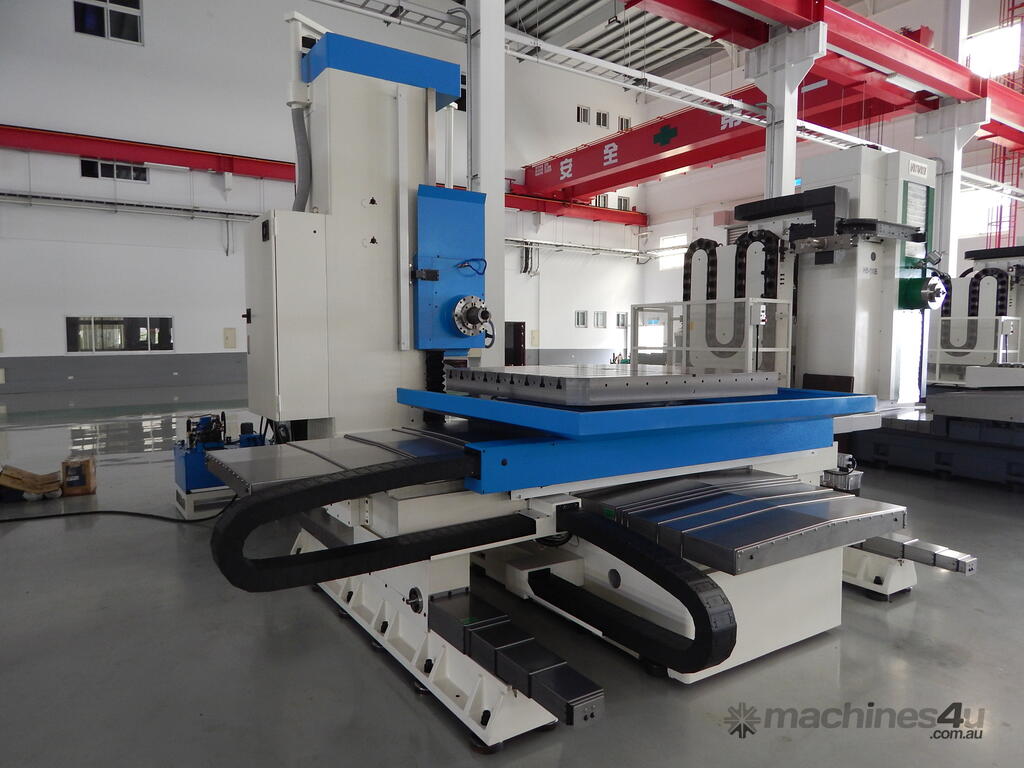

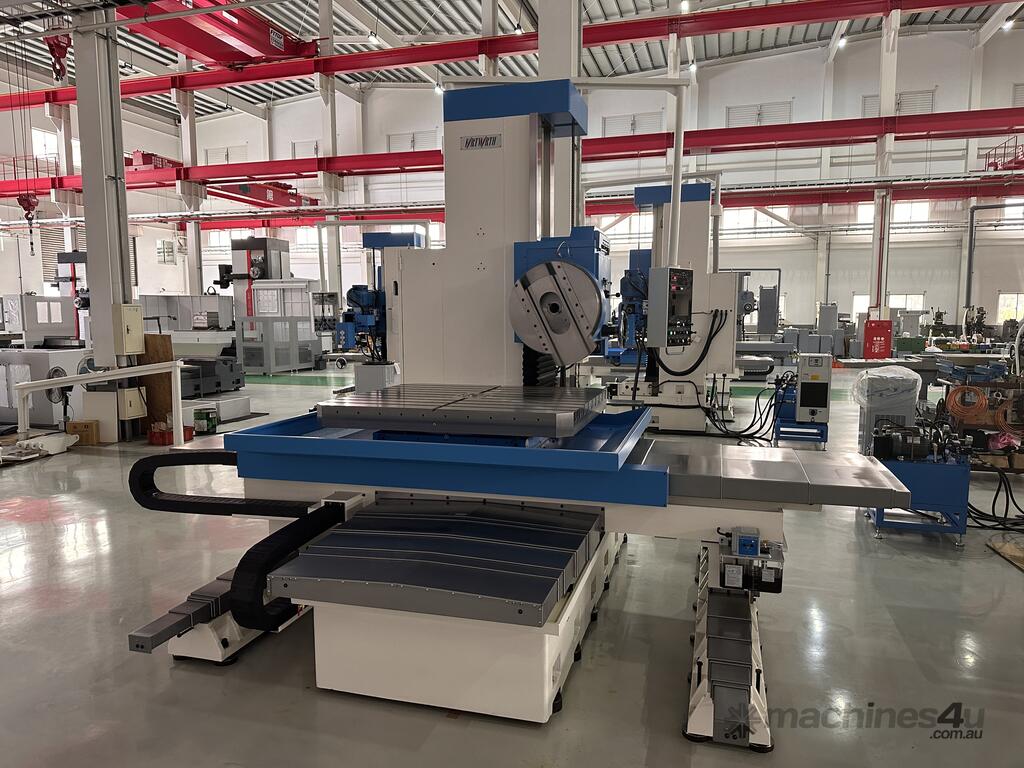

FORTWORTH HMB-110L HORIZONTAL BORER | MANUAL | X-1800MM | (TAIWAN)

The Fortworth HBM series of horizontal manual boring and milling machines manufactured in Taiwan are a great solution for those businesses not needing a CNC boring machine but wanting a heavy duty high quality manual borer. Fortworth specialises in boring machines and is manufactured in Taiwan for those wanting a high quality machine with excellent backup support.

The HBM range offers numerous sizes and options to enhance an already well optioned up machine. Suitable for rough and finished boring and capable of milling large and box type components.

The HBM excels at inner hold boring, cylindrical turning and grooving by radial feed of the face plate. The precision digital readout measurement systems ensures accuracy of coordinates and lineation.

Working spindle quill is mounted on high precision tapered roller bearing, ideal for
heavy duty machining.

Working spindle diameter is 110mm with a 2 steps geared box for the speed ranges variable.

Working spindle stroke (Z axis travel) is 550mm.
Powerful spindle motor 20HP.
Air power draw bar for tool clamping/unclamping.

Wide machining range - wide speed increases flexibility but has no influence on precision.
Increased machining torque - increased torque via reduction ratio
Wide material range - low speed and high torque for hard materials and high speed for soft material.

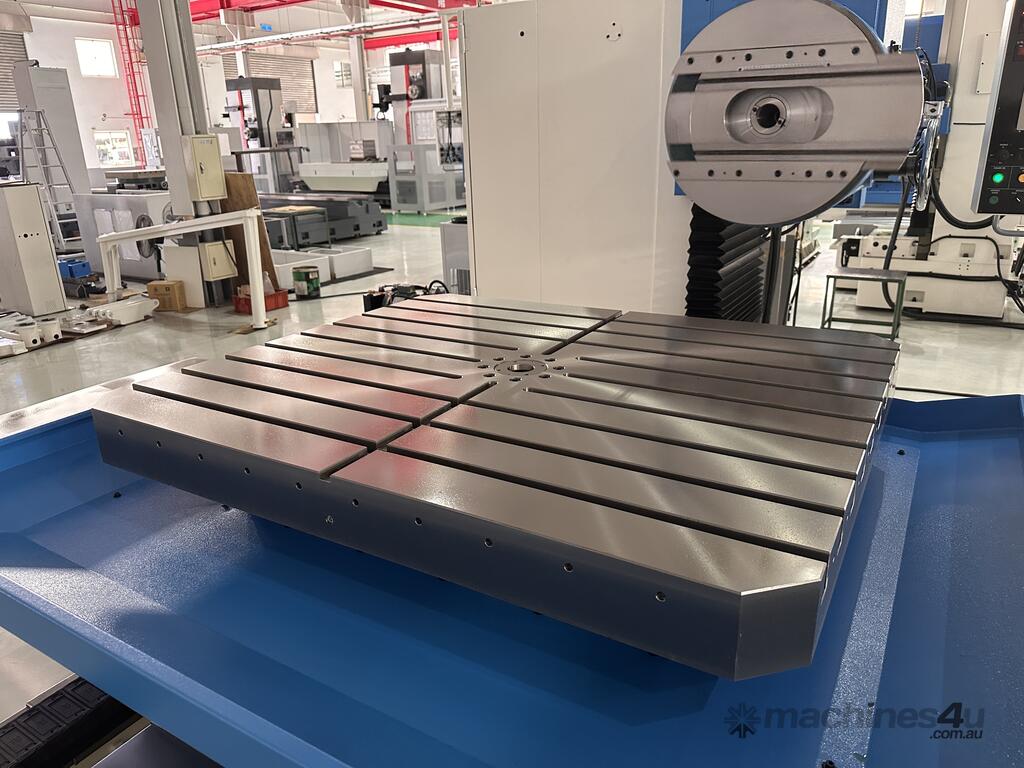

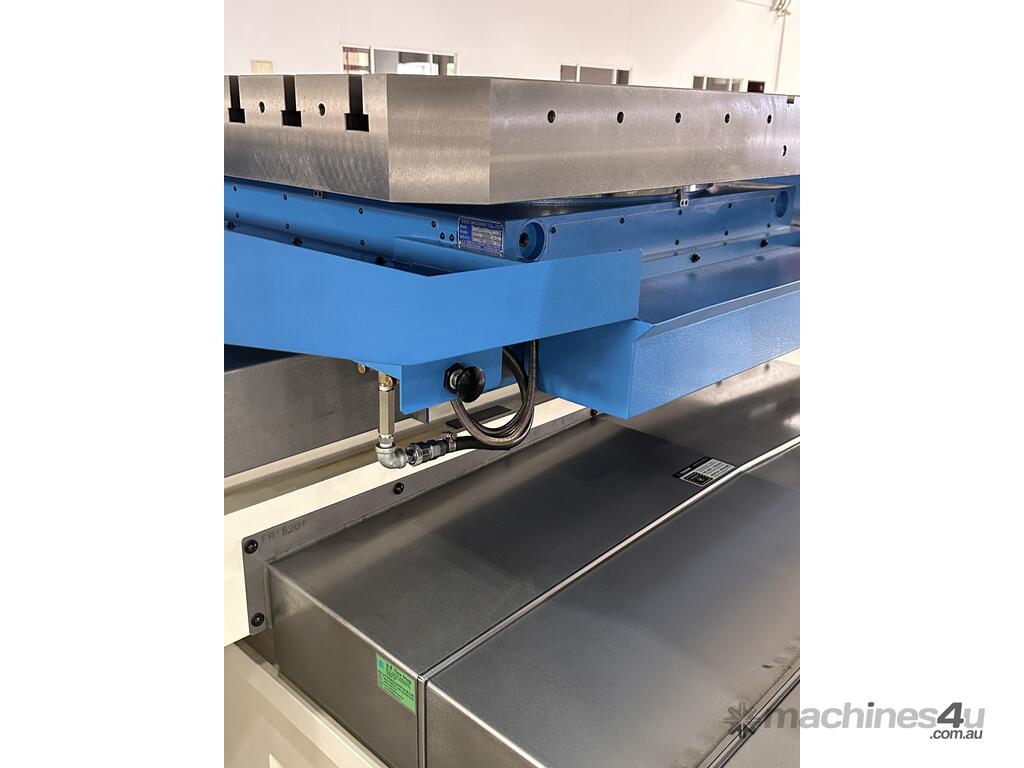

Working Table -

Build in index table
- 1000x800mm (HBM-110)
- 1200x1400mm (HBM-110L)
minimum indexing1 degree, full 360 degree.

Table load capacity maximum
- 2500kg (HBM 110)
- 5000kg (HBM 110L).

Table with pneumatic clamping system.

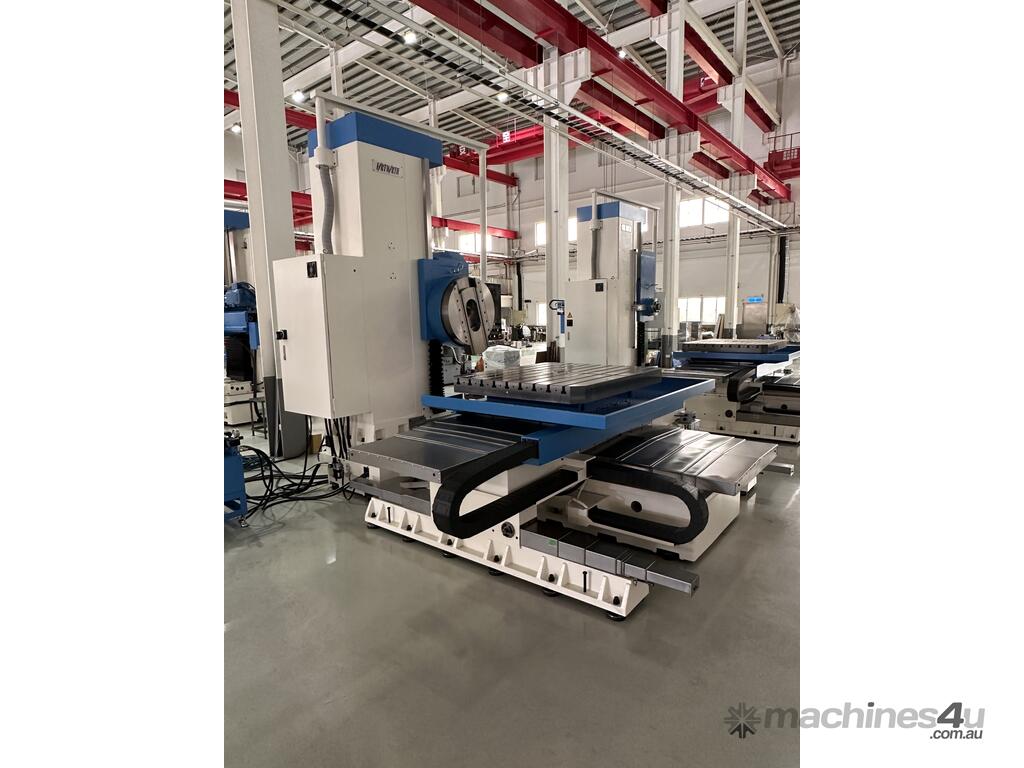

Rigid box-type column

- Column and base features outstanding stability in heavy duty machining.
- All casting are made of high quality cast iron and stress relieved.
- Hardened and precision ground box way construction for X,Y and W axis

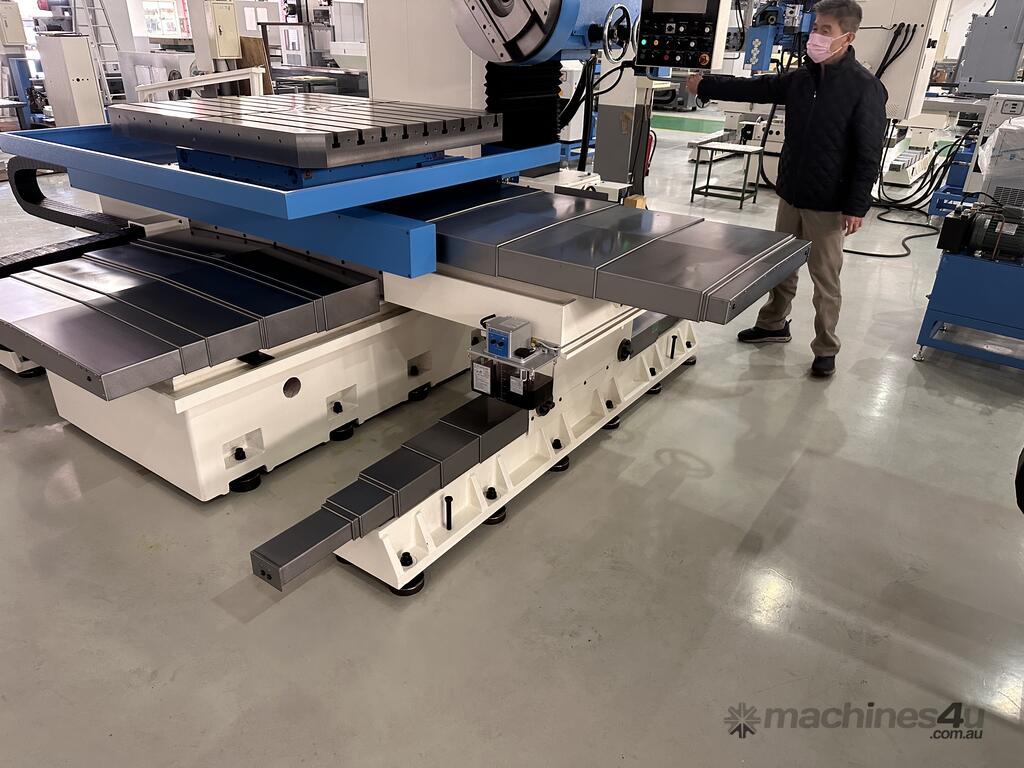

- Telescopic covers for the cross and longitudinal traverses.
- X/Z and W axis with ball screw.

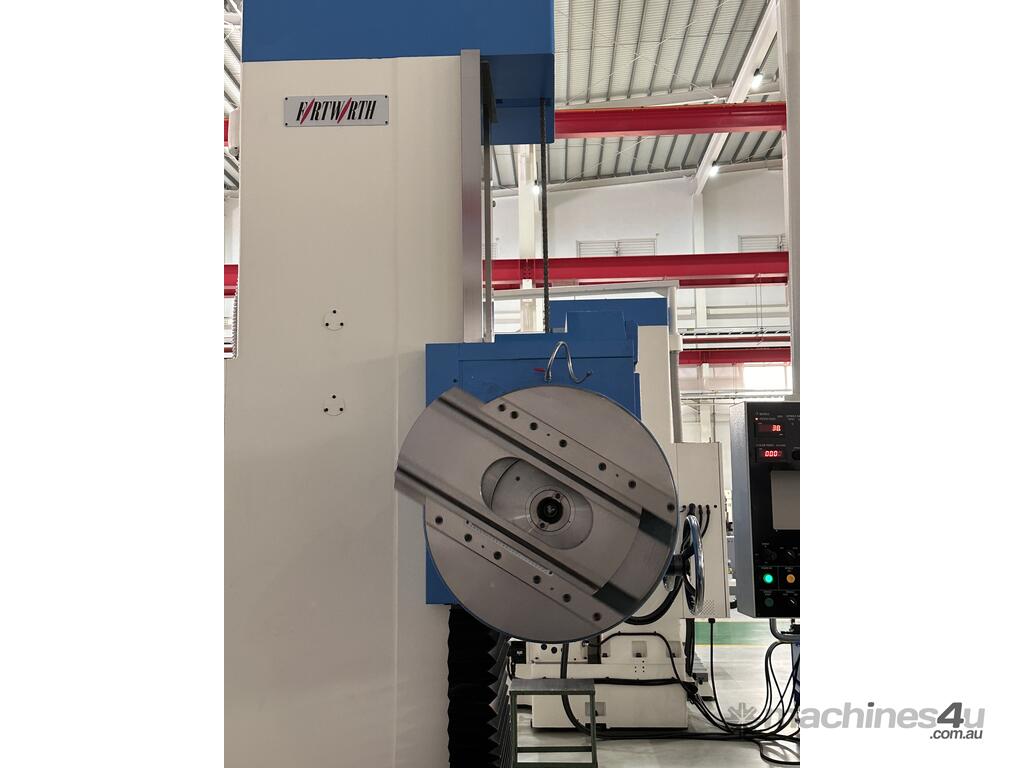

- Spindle headstock balance is accurately taken and a counter weight permits the head to travel
smoothly and to retain its accuracy stability

X/Y/Z axis with hydraulic clamping

Specs -

Spindle diameter - 110mm
Speed range - 20-1500 r/min
Main motor power - 15KW

Worktable dimensions - 1400 x 1200mm
Worktable max load - 5000kgs

Machining Range -

X axis - 1800mm
Y axis - 1400mm
Z axis - 1400mm
W axis - 550mm
B axis - 360 degrees

Rapid traverse feed rate (X/Y/Z) - 2800 mm/min

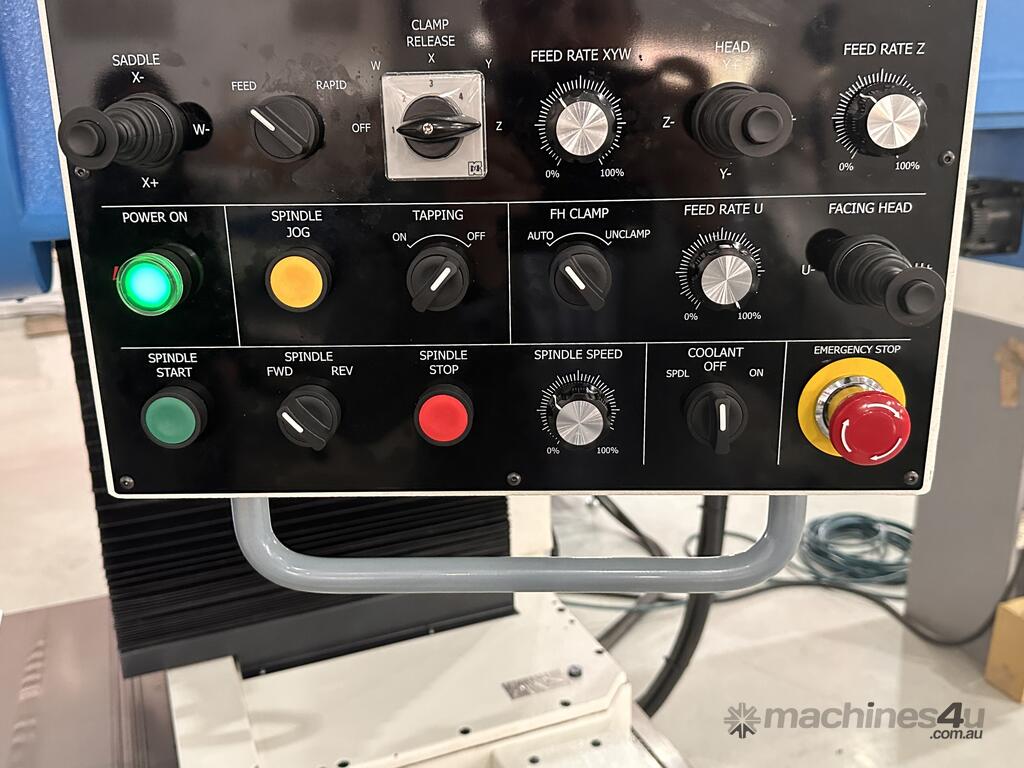

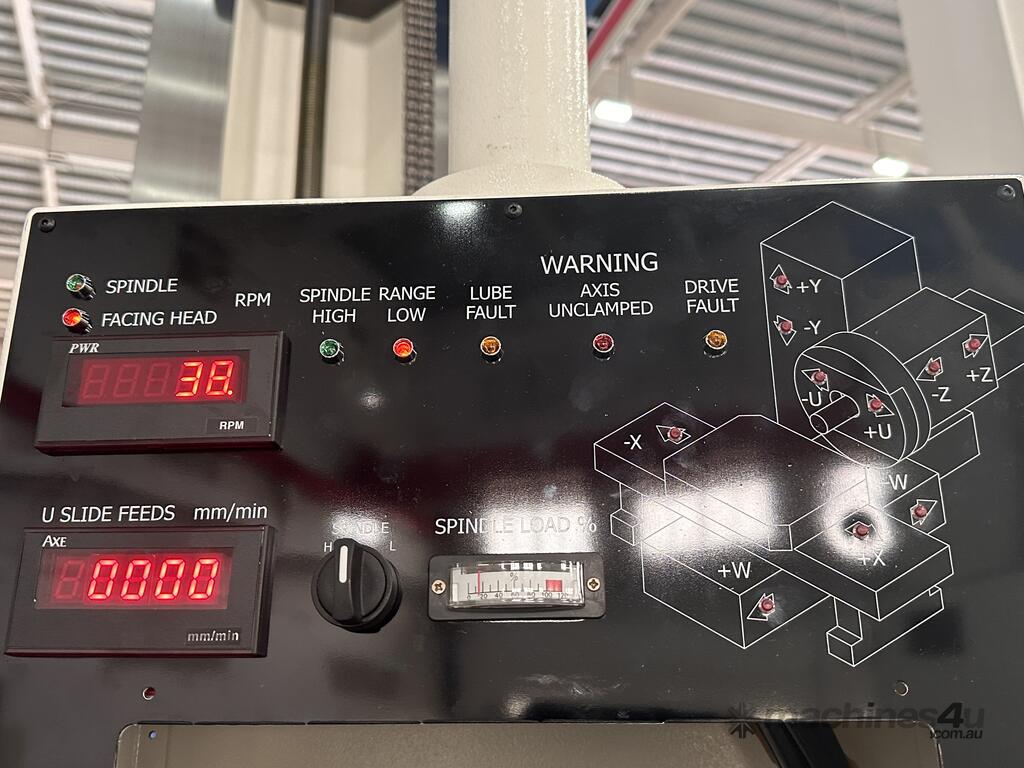

The HMB range comes with a DRO for the X/Y/Z axis
Worktable can increment in 1 degree
Heavy duty high quality machine base casting
Suitable for heavy cutting

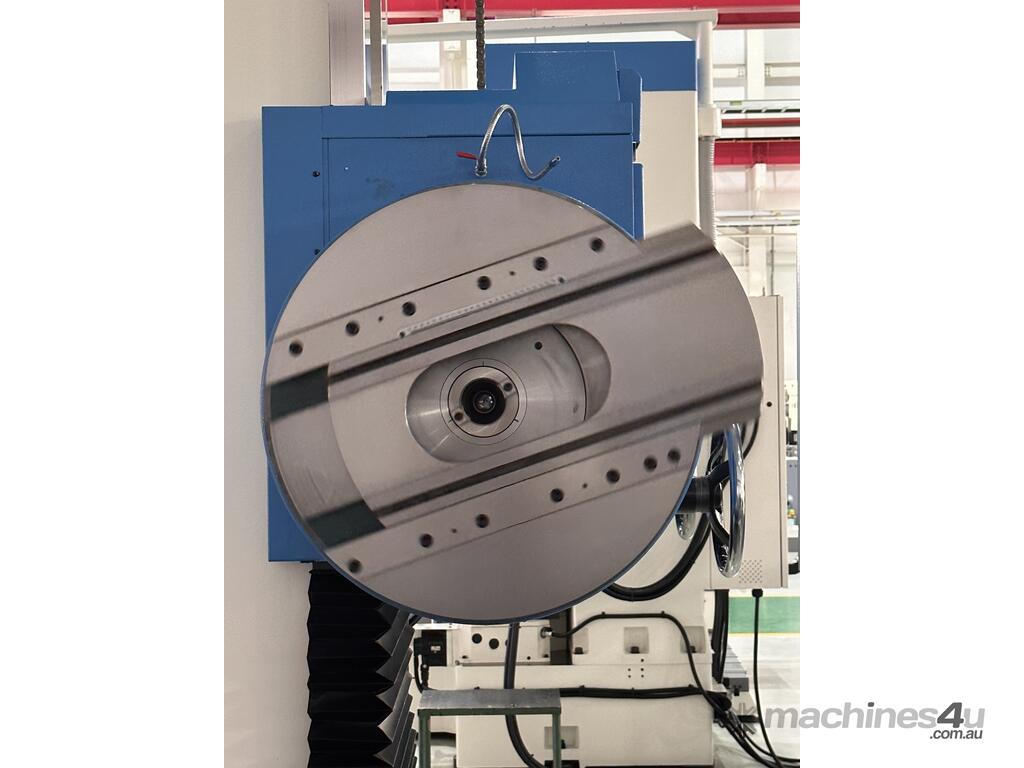

*** Facing head is optional***
