FORWOOD KILNS by CHINAWOOD

FORWOOD drying kilns chamber sizes 50m3 to 200m3 capacity for industrial production, which can be designed specifically for either hardwood or softwood drying requirements. High / Medium temperature steam OR hot oil.

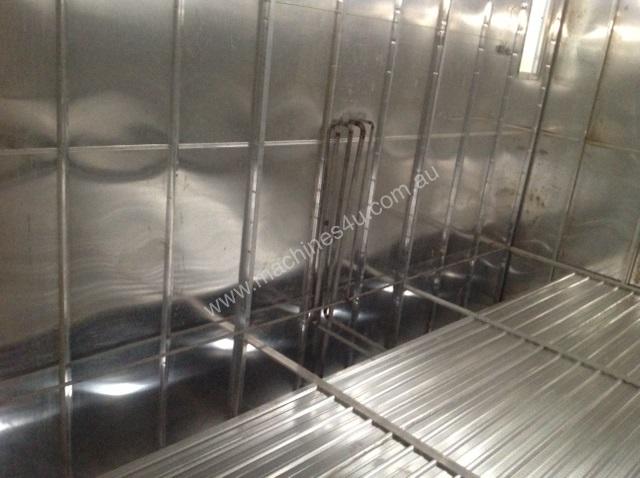

The body of our wood drying kilns consist of inside wall and exterior wall aluminium plates, heat insulating layer, upright post and girder grillage. The plates of inside wall and exterior wall adopt 1.2mm 3003 type high corrosion resistance aluminium alloy plate. The heat insulating material adopts centrifugal glass wool board. The upright post and girder grillage adopt special -shaped aluminium alloy sections. The thickness of the kiln roof is up to 150mm and the wall thickness of the kiln is also
150mm.

A timber drying solution can be offered to suit specific requirements and can range in size from 50m3 to 200m3 capacity, hot oil or steam heating, single or multiple kiln installations, etc… We understand every operation is different and can offer to suit your requirements.

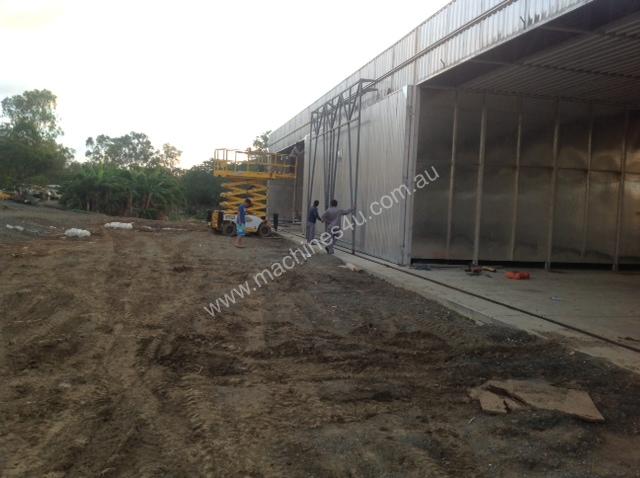

See below brief details of kilns we delivered in January 2014 into Queensland, which included 5 x 150m3 Kilns with;

Configuration:
Kiln Cavity Dimensions:
Depth: 8020mm
Width: 13500mm
Height:6200mm

Stack Dimensions;
Number of Stacks:
Length of a Single Stack: 10000mm
Width of a Single Stack: 6000mm
Height of a Single Stack: 5000mm
Theoretical Timber Capacity: 150M3

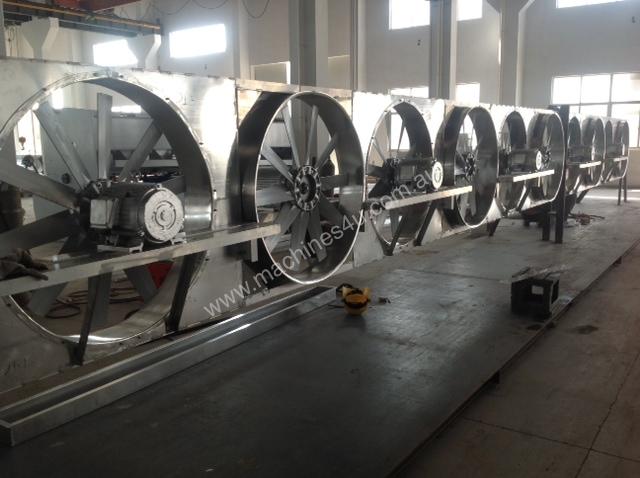

Number of Fans: 10 x 1000mm dia.
