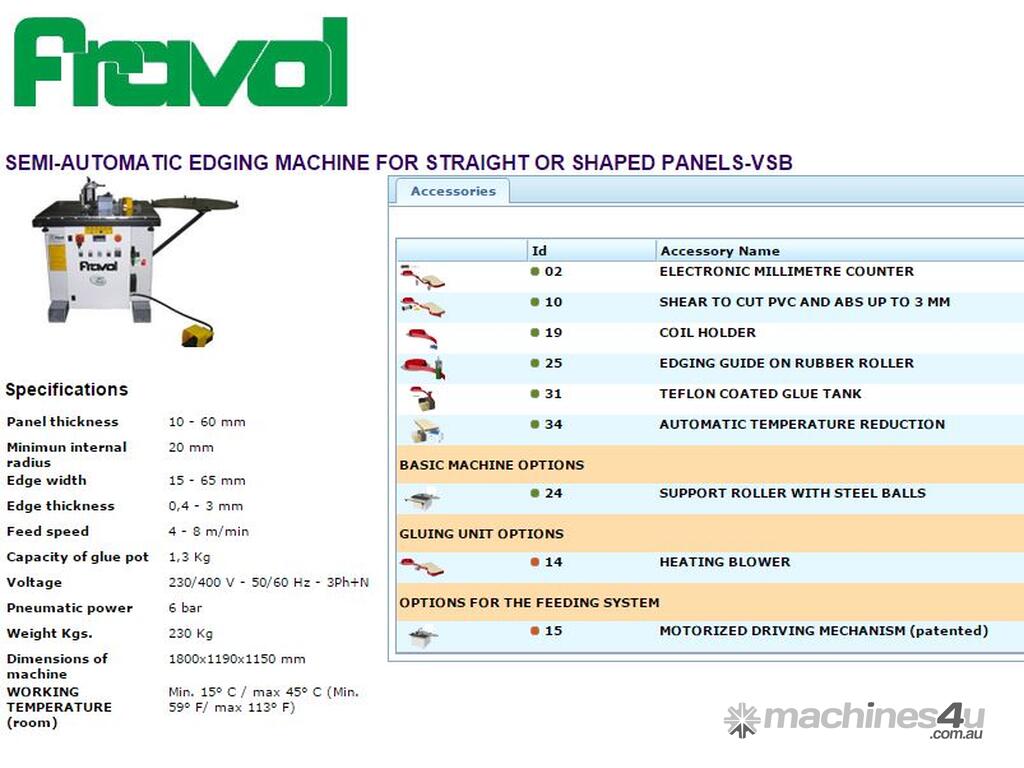

FRAVOL VSB - Contour Edgebander

The VSB is designed for edge banding of straight panels with straight profile, for concave and
convex curves with minimum concave curve radius 20 mm.

Panel thickness 10 - 60 mm
Minimum internal radius 20 mm
Edge width 15 - 65 mm
Edge thickness 0,4 - 3 mm
Feed speed 4 - 8 m/min
Capacity of glue pot 1,3 Kg
Voltage 230/400 V - 50/60 Hz - 3Ph+N
Pneumatic power 6 bar
Weight Kgs. 230 Kg
Dimensions of machine 1800x1190x1150 mm


Farnese are the designers and manufacturers of stone cutting and polishing machinery in
Australia. With an international reputation and decades of combined professional experience and
expertise in both the stone industry and the local stone machinery manufacturing industry, Farnese
are the first choice for stone cutters and continues to dominate this field in Australia and
overseas with precision and innovation.

MasterWood have been producing woodworking machines for more than fifty years, pioneering the
furniture and casing industry with passion and professionalism, providing craftsmen with the best
machinery and service in field.

Together, Farnese Masterwood have a combined history of of over 70 years and the recent merger means
that the synergy of experience and knowledge brought in by each partner brings a lifetime of
expertise to all aspects of the stone and wood cutting industry. Their combined commitment to
their successful legacy in their respective fields brings a new energy to the future of stone
masonry and woodworking in Australia and across the world.

Visit the Farnese MasterWood showroom to view the complete range of professional machines, or
contact us for professional advice and solutions for your stone cutting and woodworking
business.
*Price may very with different delivery and installation cost
