FREE Etching Engraving Head With Every Steeltailor CNC Plsma 1500mm x 3000mm

##CURRENTLY ON SPECIAL AT $26,850.00 + GST##
Plasma CNC – STEELTAILOR LEGEND B52E - 1500mm x 3000mm Table, Engraver Head, Fastcam Software CNC, 10.3” Screen, With Auto Nesting, Torch Height Control (THC), 3 Cutting Heads, No Power Source

Australian supported Fastcam CNC operating system!
Australian supported back up service and parts!

Description
If you have been waiting for the all in one plasma - look no further - No wonder its called the LEGEND B52 - One Machine Works As Two! Cut as thin as 0.5mm and as thick as the power source we hook up to our machine. Your call! Not to mentioned the added etching engraving head (FREE) for all basic numbering, fold lines and more.
Three modes of cutting:

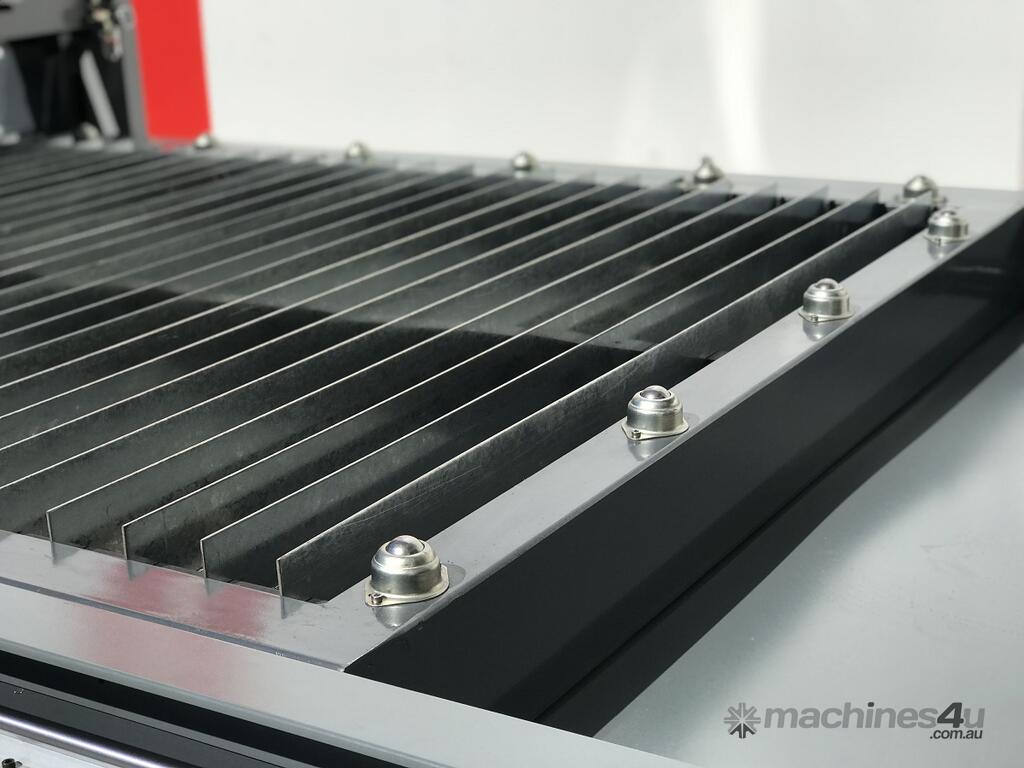

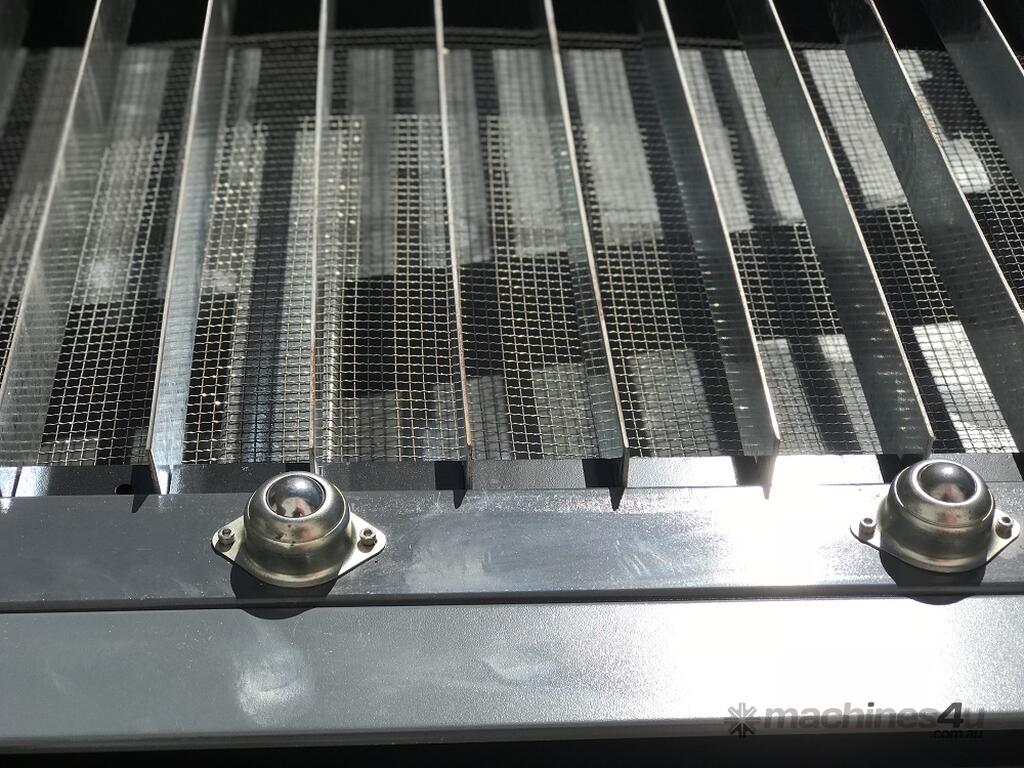

Water jacket, Platen, Arc voltage sensing THC. This Plasma cutting machine table offers ball design, cutting material loading/unloading easier.
Offering Arc voltage sensing THC, fine plasma cutting performance along with simple design, cutting mode switching very easy.

Features
* Power Source Plasma added in additional to this based on customers’ cutting requirements
* 1500mm x 3000mm cutting table

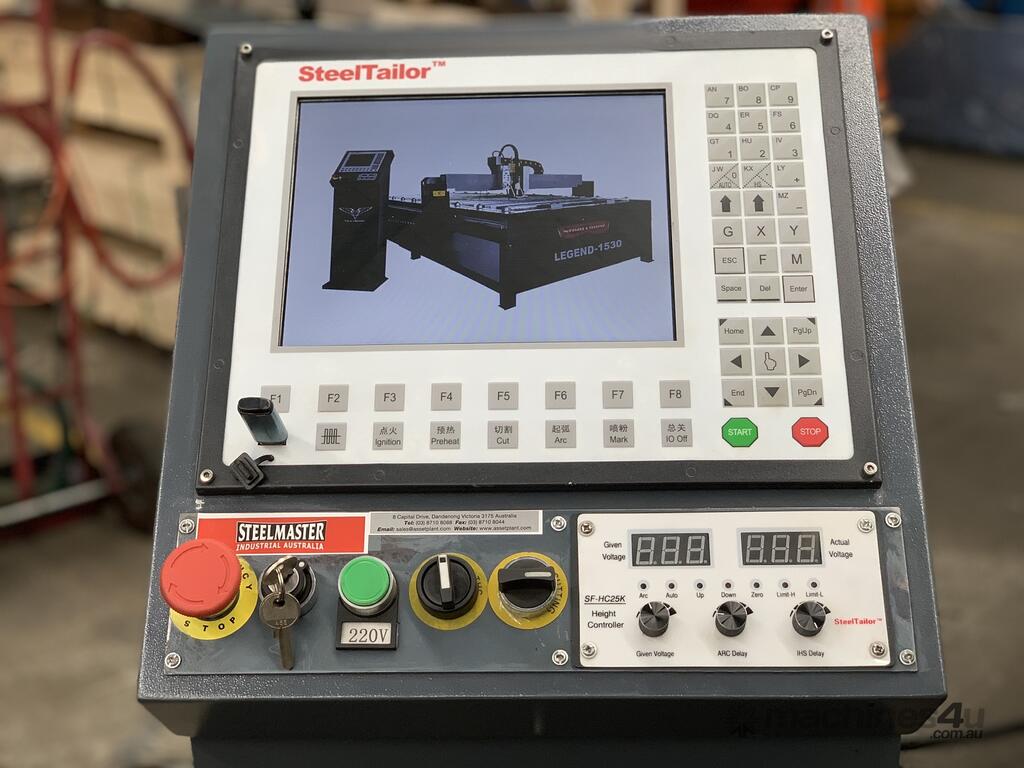

* Large 10.3” LCD Screen

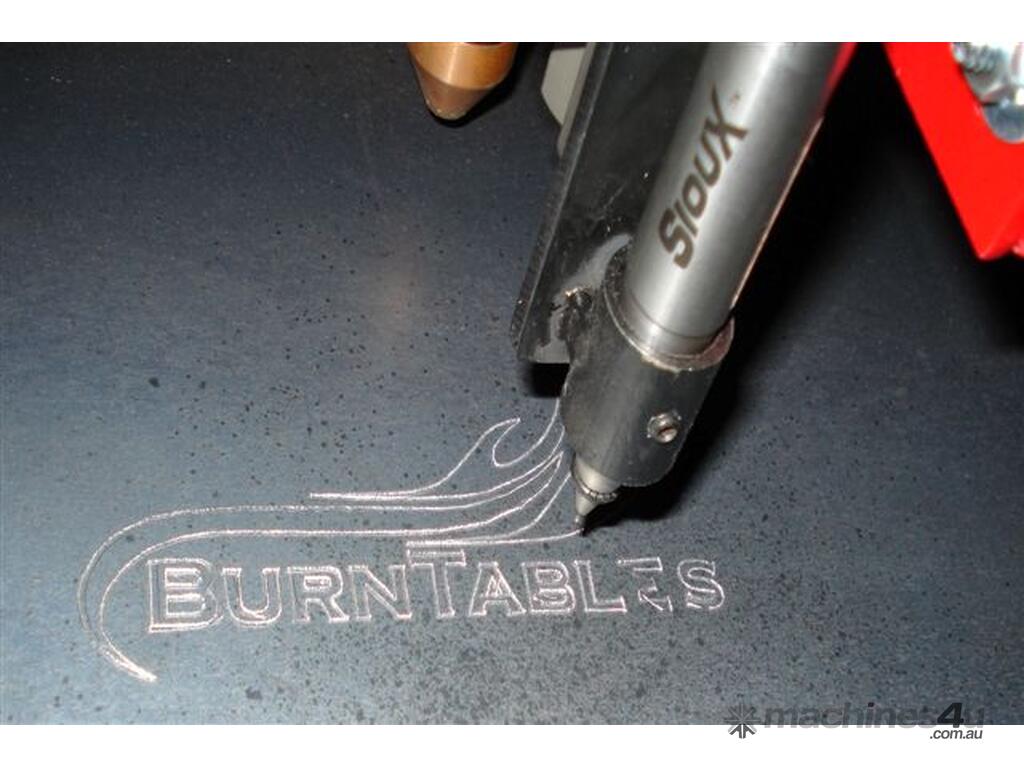

* Etching engraving head fitted

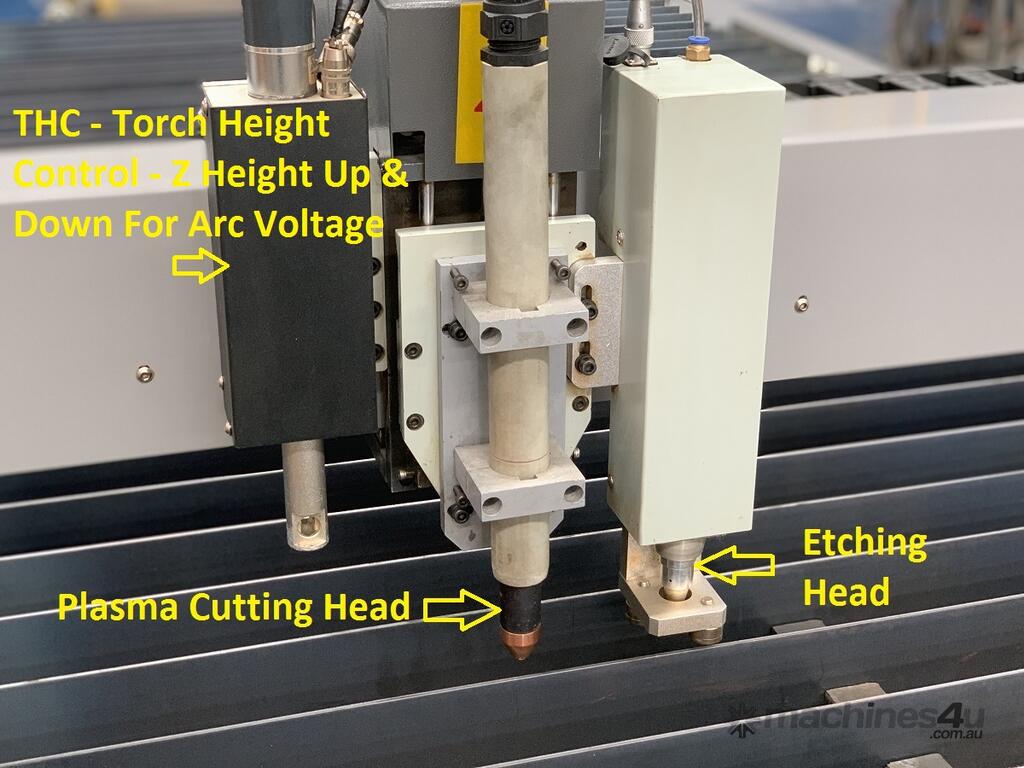

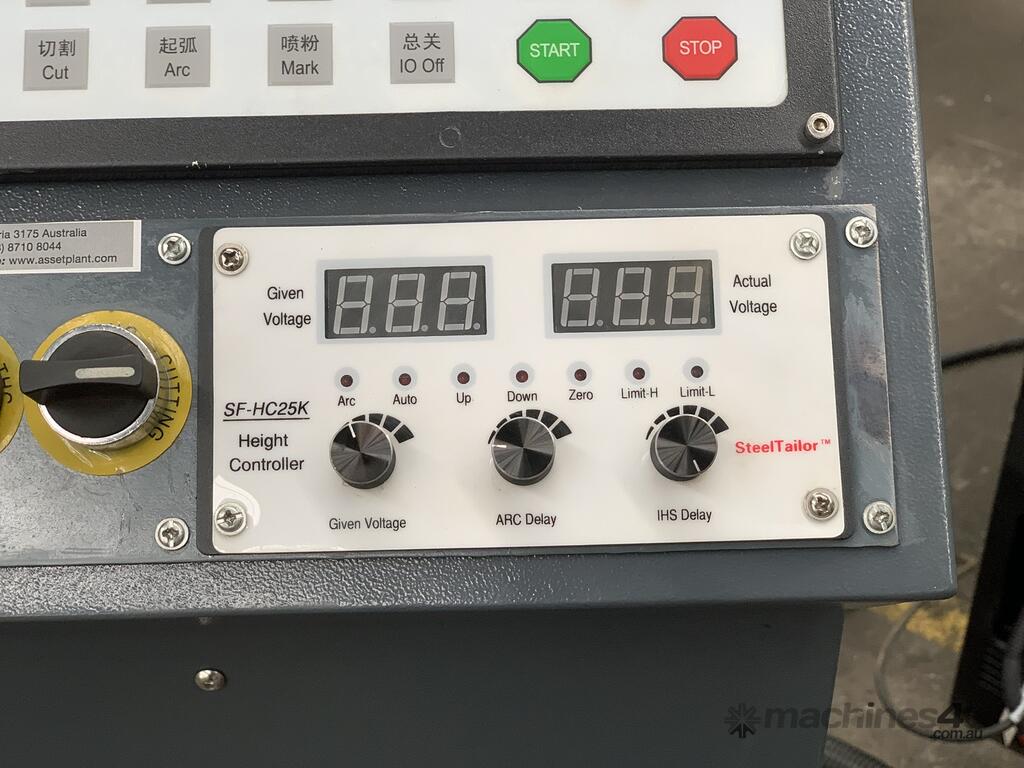

* THC torch height control fitted
* Anti-collision device fitted
* Water jacket supplied also for thin sheet cutting
* superior cut speed, quality and stability
* optimum track speed. even for fine contours and tight radii
* FastCam Professional Offline Software Included FREE with every machine purchase.

Technical data
* cutting area – 1500mm x 3000mm
* bed area – mm x 3300mm
* Z travel - 80mm
* Large 10.3” LCD Screen
* larger engineered tables available to suit thicker plate
* cutting speed - 0 ~ 6000mm / min
* MAX cutting speed – 12,000mm / min
* accuracy – 0.2mm
* dimensions - 3400mm x 1900mm
* crate shipping dimensions - 3600mm x 2100mm x 1600mm x Kg
* weight – 1680Kg
* table power source – 240volt
* plasma power source – 32amp - volt
* 24 month warranty

Programming

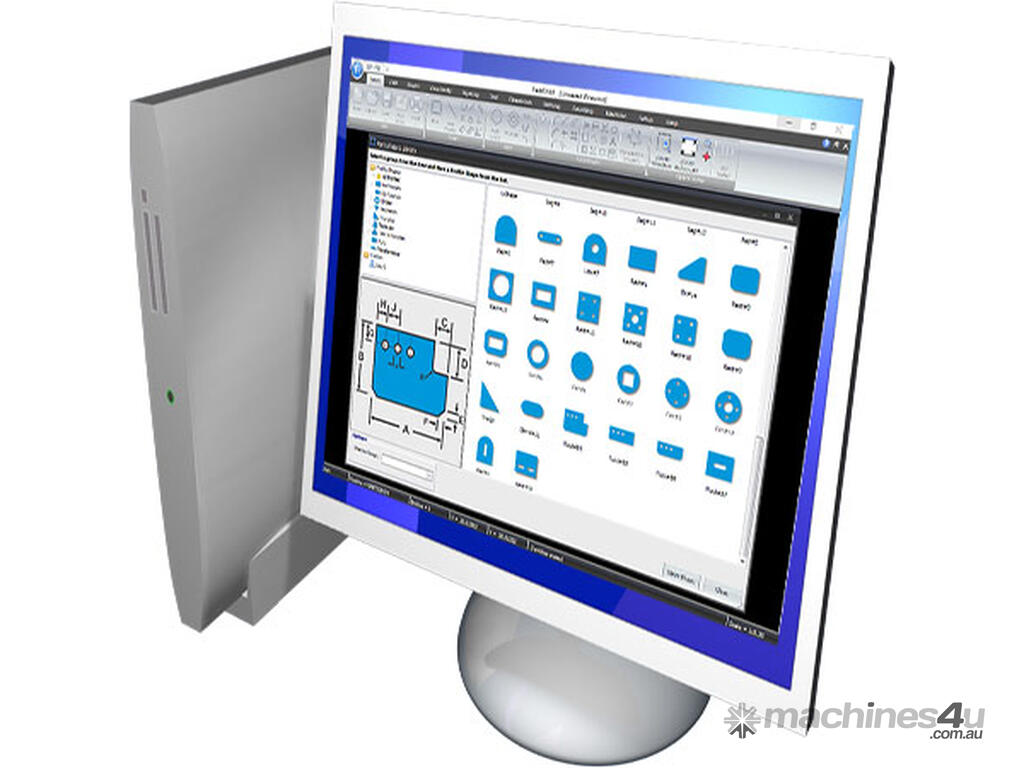

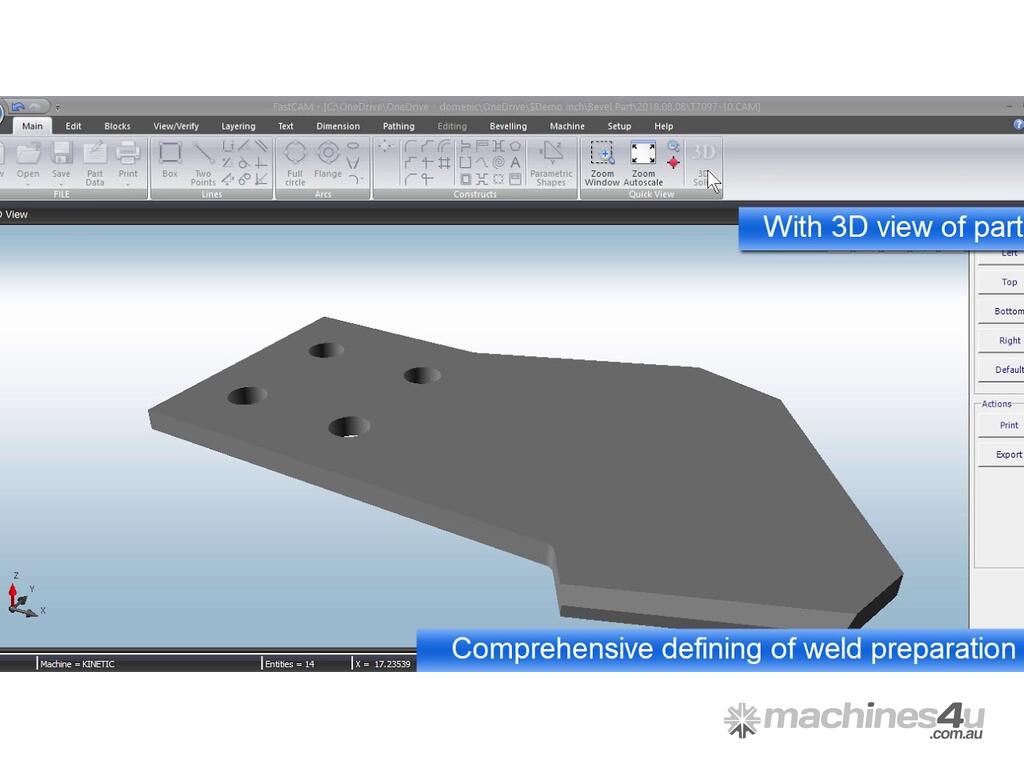

* FAST CAM Professional (drawing & nesting) CNC Cutting software included with machine.
* Click here for Fastcam Overview - response.fastcam/knowledge-base/article/fastcam-information-starter-pack

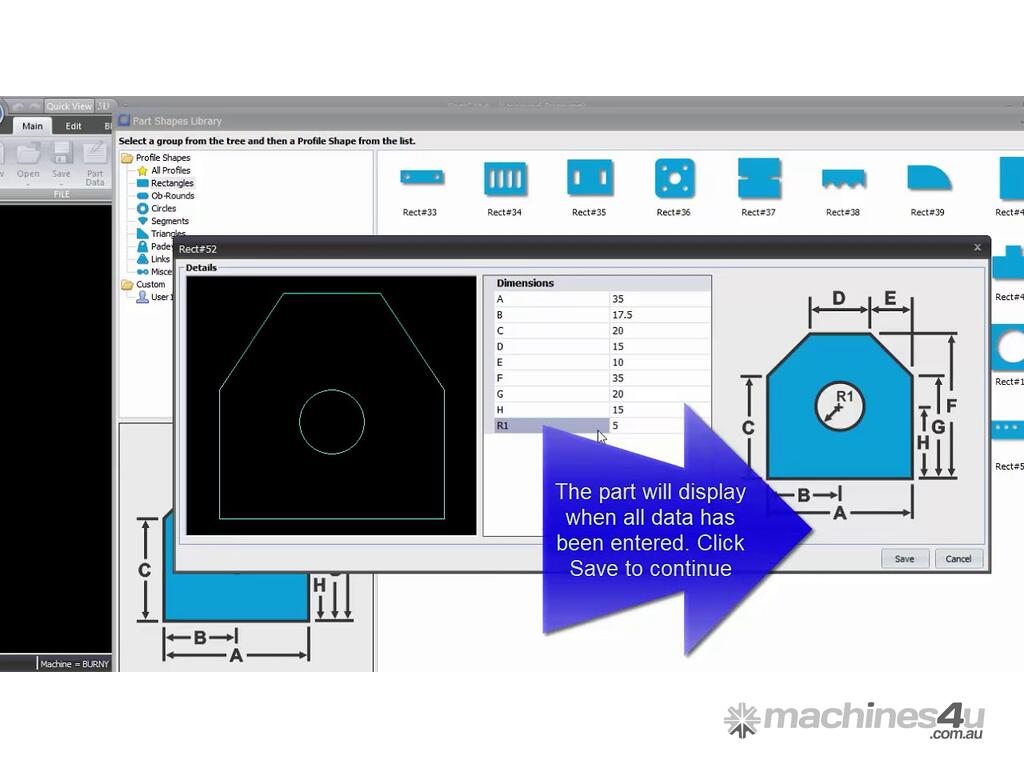

* Machine console is pre-loaded with standard industry templates for quick editing and cutting applications
* Program (nesting shapes), drawing is done by computer in office -
* Save G code into USB
* Program is transferred to G code
* Connect USB with machine controller
* Operate controller ( for this step, no computer is needed)

CNC Software Options
* We offer Fast Cam Professional CNC Cutting software standard on all machines. No hidden add ons!
* Nesting, Drawing Package & More - Visit .fastcam for intro video and inclusion charts - including other add on modules available.

FastCAM 8 Information:
You can read all about the upgrades and changes in FastCAM 8 in the links below, together with the FastCAM 8 Brochure:
fastcamusa/download/FastCAM_v8-0_Update
fastcamusa/download/FastCAMSystem_2018

You can also see the changes in the promotional video here:
* Fastcam 8 - ./watch?v=GHAPFg4PrYA
* Engraving Head - drive./open?id=0Bxjl6-O373yUcDdLR1k0eFlid1U

Services required to be provided by customer
* electrical connection.
* compressed air.
* air dryer, filter and air micron filters highly suggested - Asset stock codes for these are 25-0258, 25+0259 & 25+0258

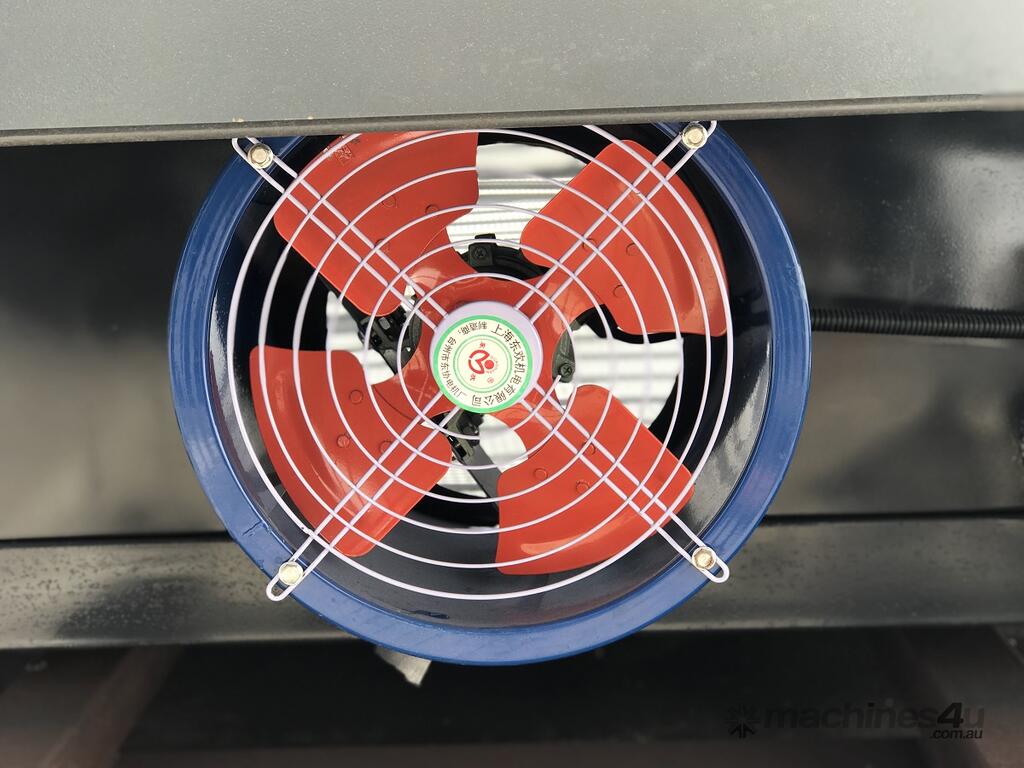

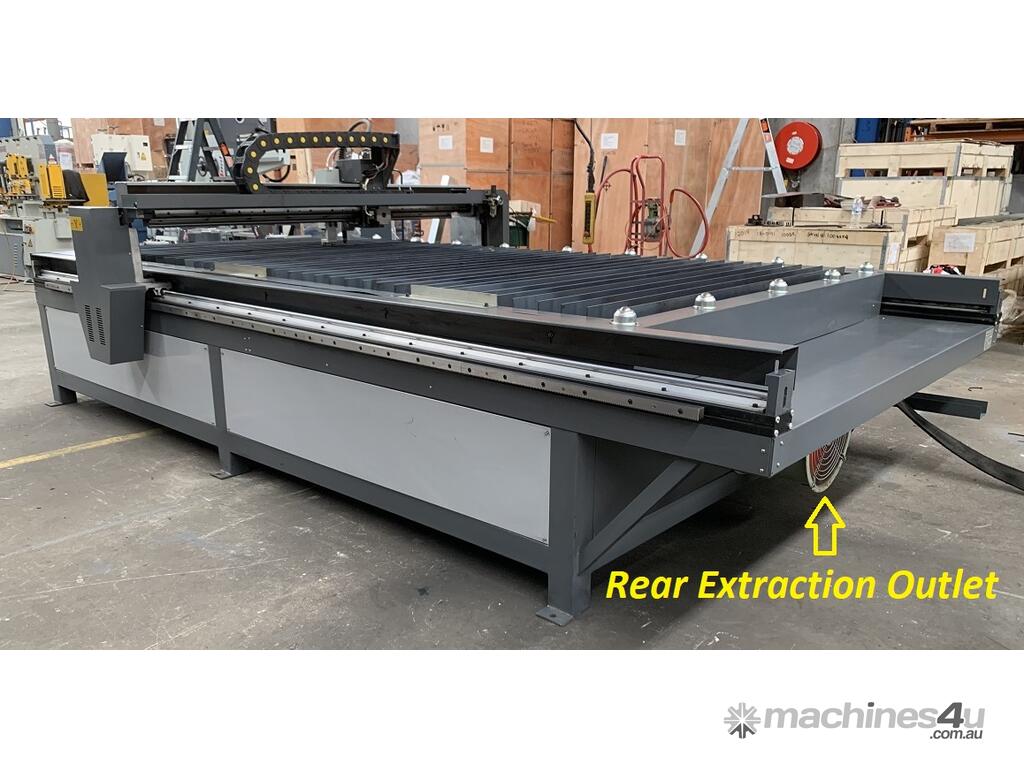

* fume extraction provisions.
* Asset can offer you the above additional items on request.
