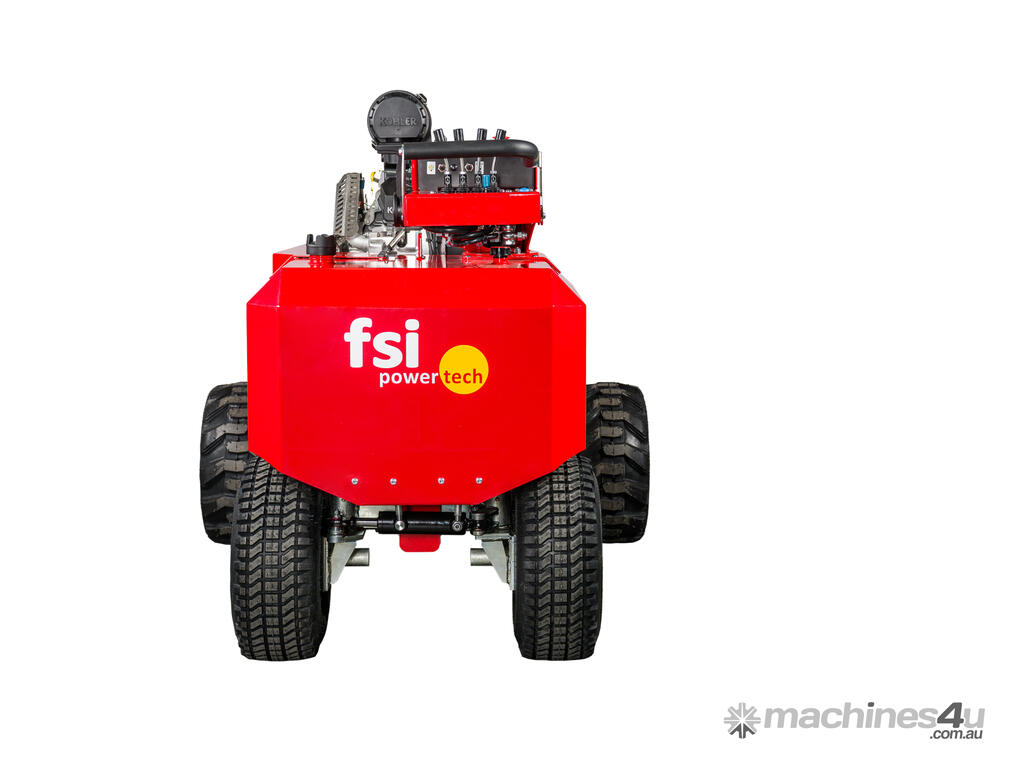

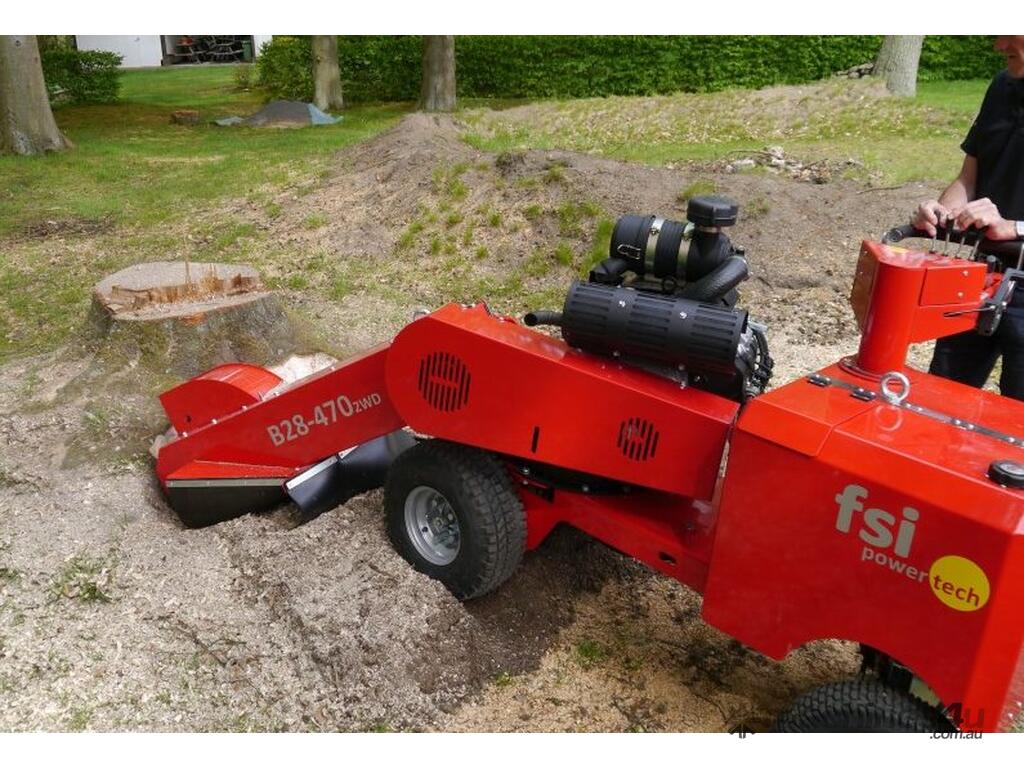

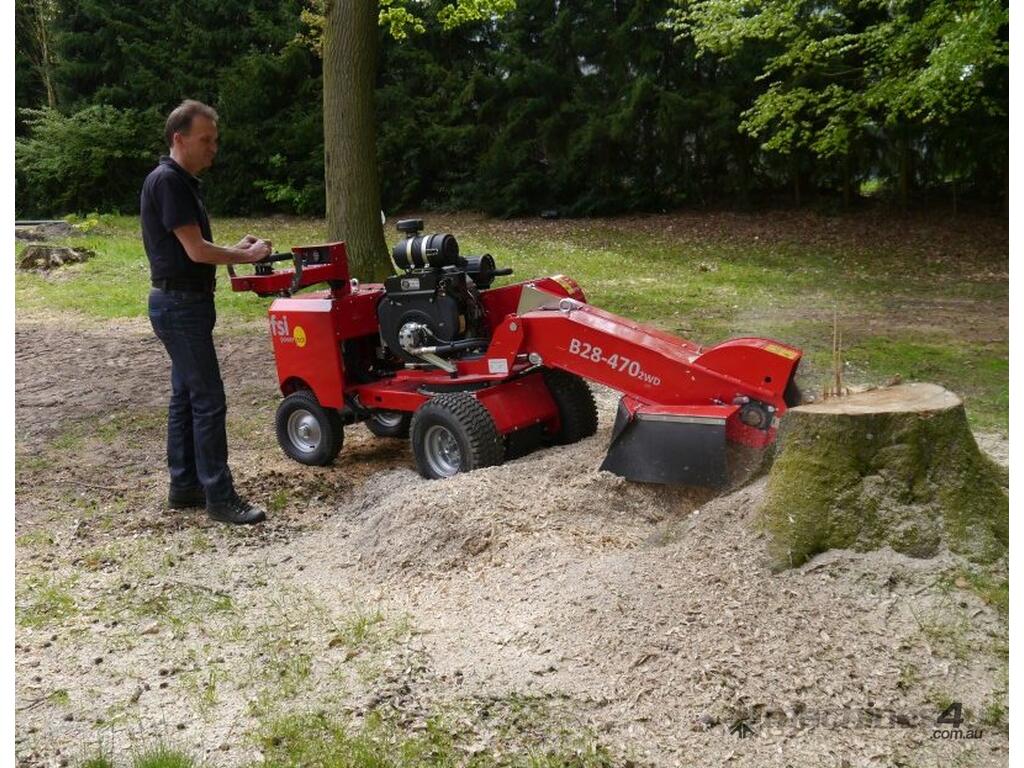

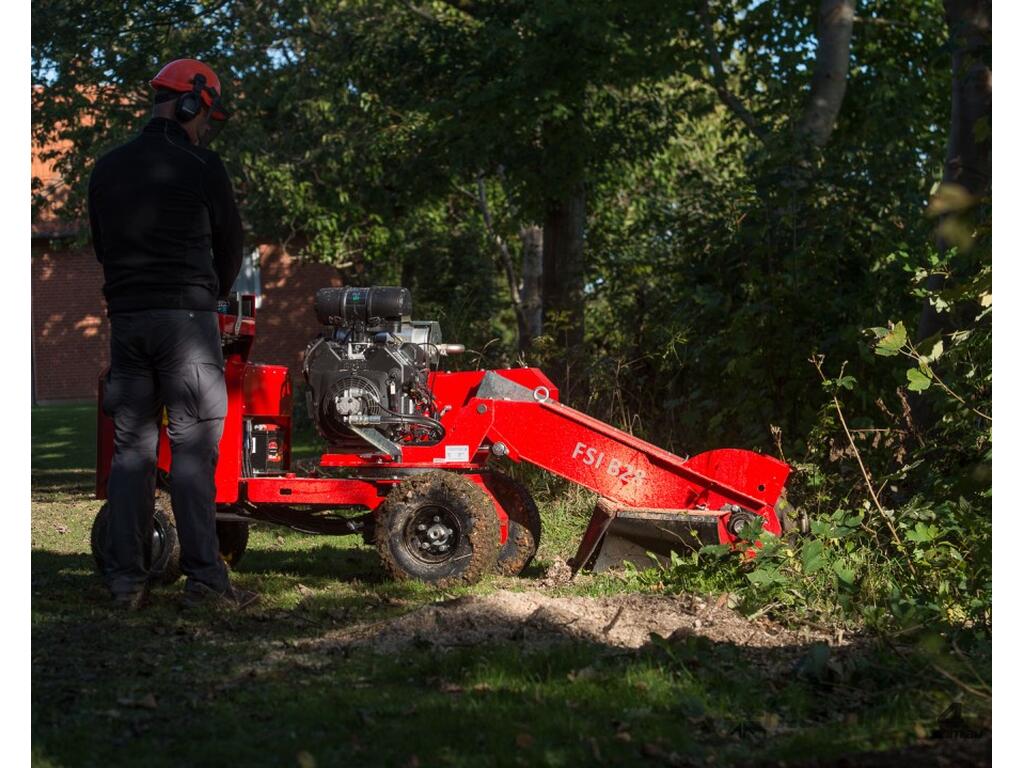

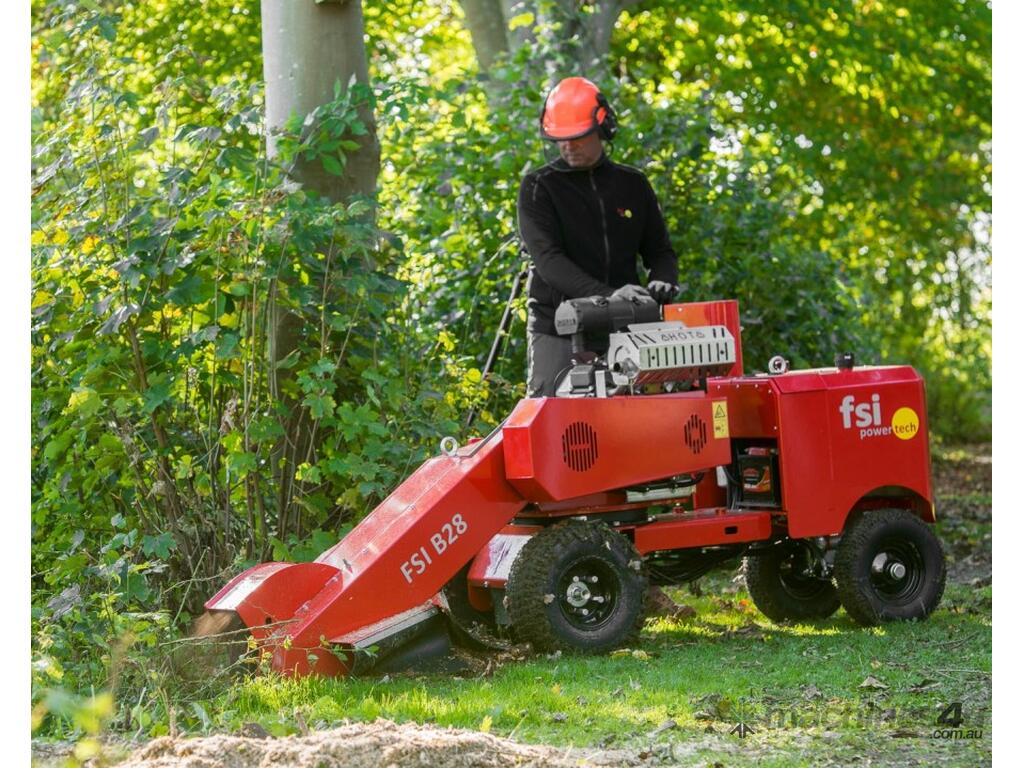

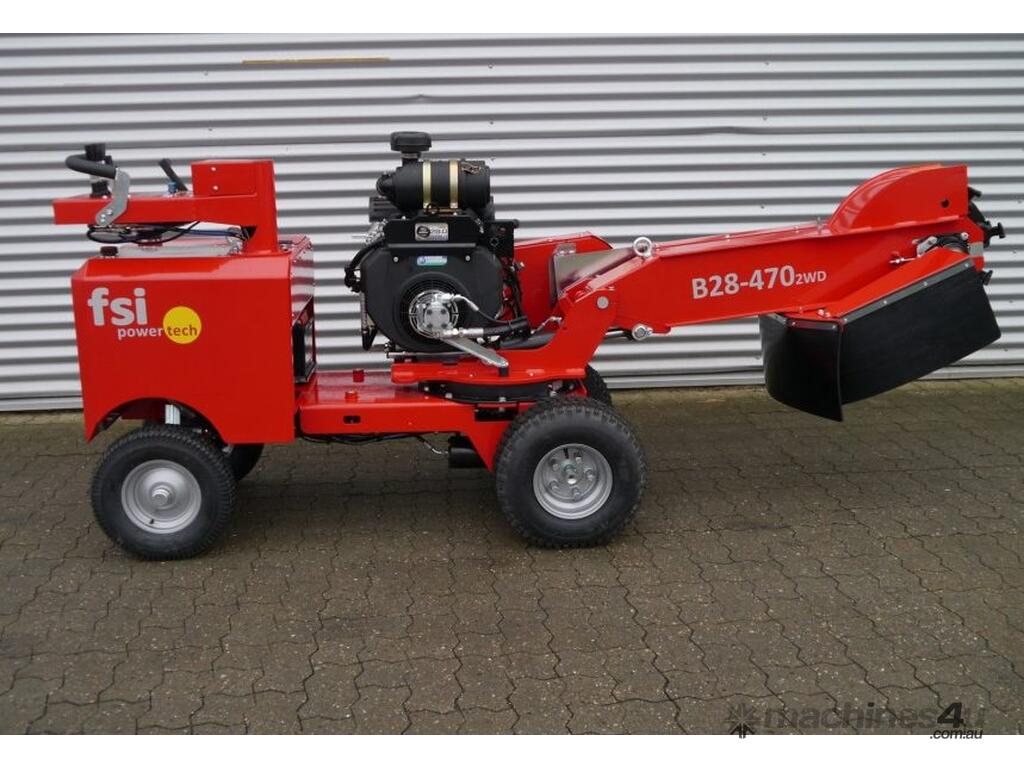

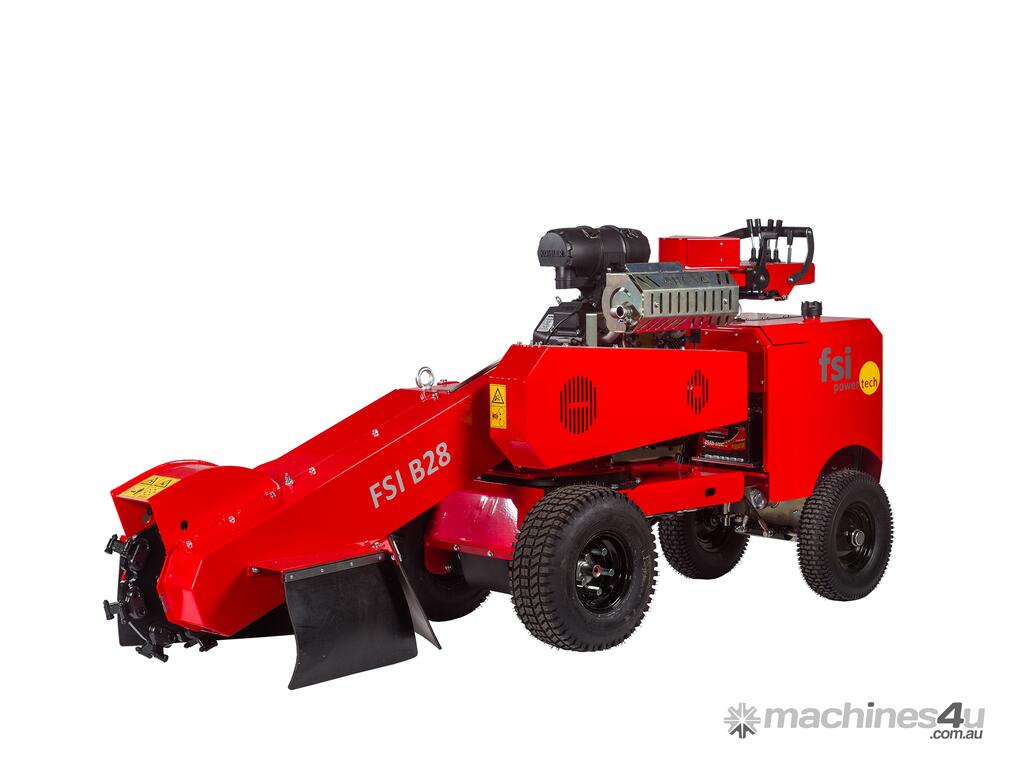

FSI B28 Self Propelled Stump Grinder

FSI B28 Self-propelled Stump Cutter/Grinder with 2WD and Gasoline Engine. Includes twin wheels with grass tires (width + 500mm).

$40,000 + GST

This stump grinder is well suited for professional use. High quality, made in Denmark. Save money by cutting down on time/labour costs at each stump!

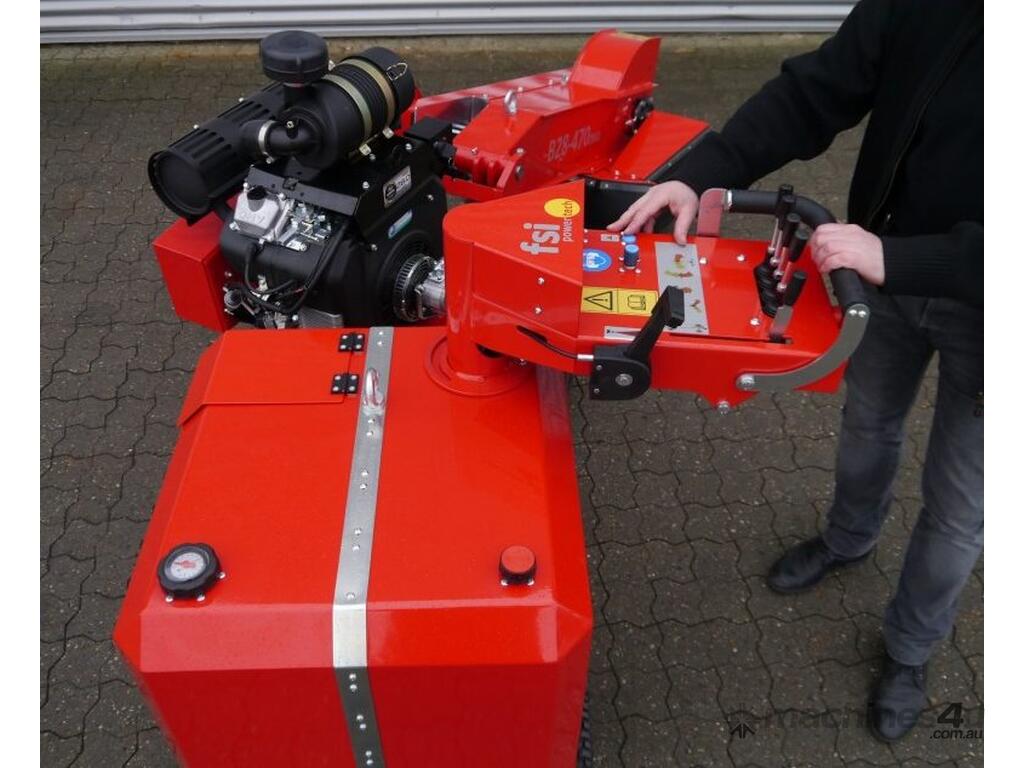

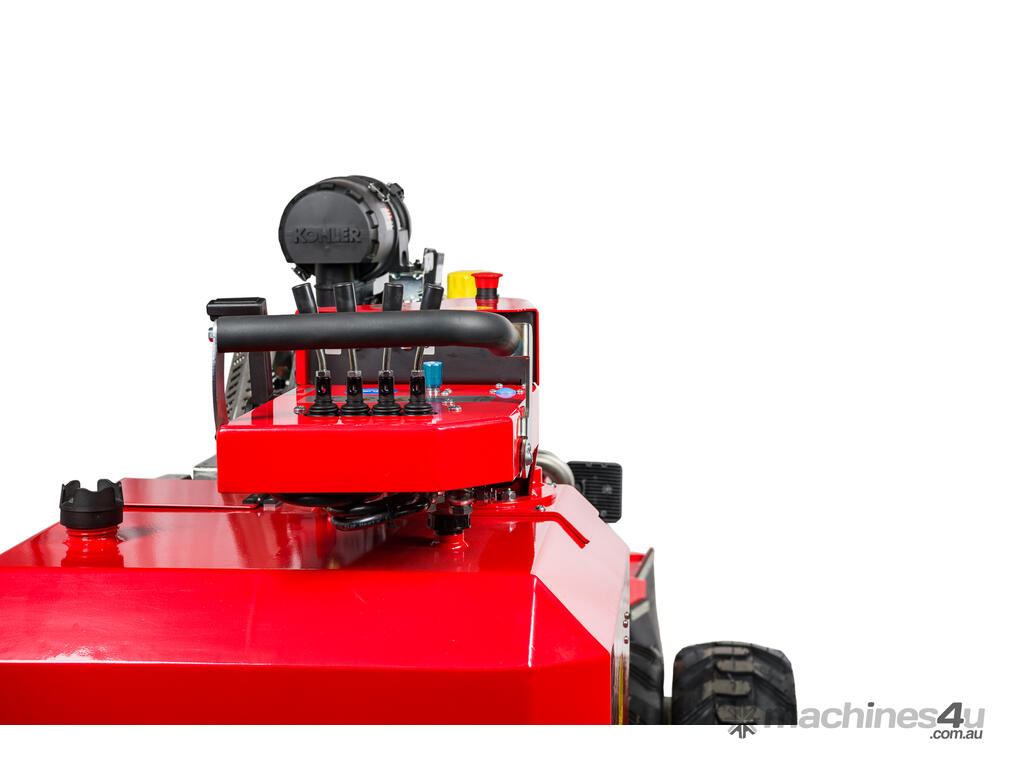

All operations, including travel and stump grinding, are controlled via the integrated control panel. The control panel can be used to engage/disengage the diff lock as well as to adjust the speed of the swing movement.
Safety is a top priority, and the safety handle on the control panel must be enabled to start the grinder head.

Engine:

Engine size: 26.5 hp Kohler
Fuel type: Petrol
Fuel tank: 35 litre
Hours per tank: App. 7 hours

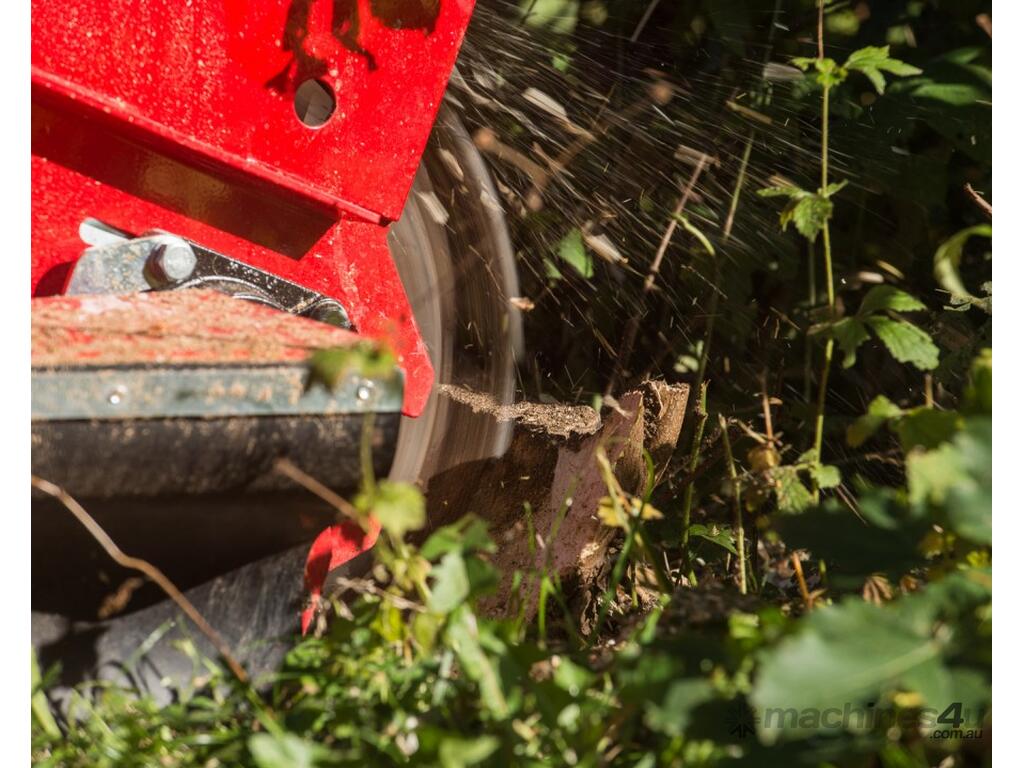

Cutting Head:

Cutting disc diameter: 470 mm
Tooth system: 3 x turn able
Tooth diameter: 20.5 mm
No of teeth: 16
Max cutting depth: 48 mm
Clutch: Electromagnetic with brake
Cutting disc drive: V belt system
Sweep: Hydraulic sweep

Transmission:

Ground drive: 2WD hydrostatic with diff. lock
Traction wheels: 440 x 180, 8 ply
Steering wheels: 410 x 110
Brakes: Automatic

Cutting dimensions:

Cutting height above ground: 800 mm
Cutting depth below ground: 380 mm
Cutting sweep width: 1350 mm
Sweep speed: Adjustable

Operator control:

Control panel: Adjustable on machine

Measurements:

Length: 2700 mm
Width: 800 mm
Height: 1160 mm
Weight: 600 kg

Optional extras:

Twin Wheels with grass tires (width + 550mm) $1,040
Twin Wheels with Tractor profile (width + 614mm) $775
FSI Power-sweep (autopilot) FSI B28 $1300
LED Work Light $470
