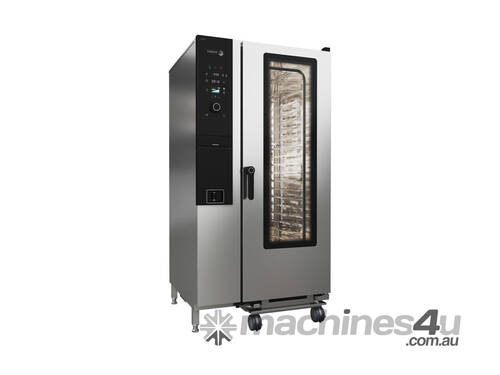

Fagor IKORE Concept 20 Trays Combi Oven CW-201ERSWS

Fagor IKORE Concept 20 Trays Combi Oven CW-201ERSWS

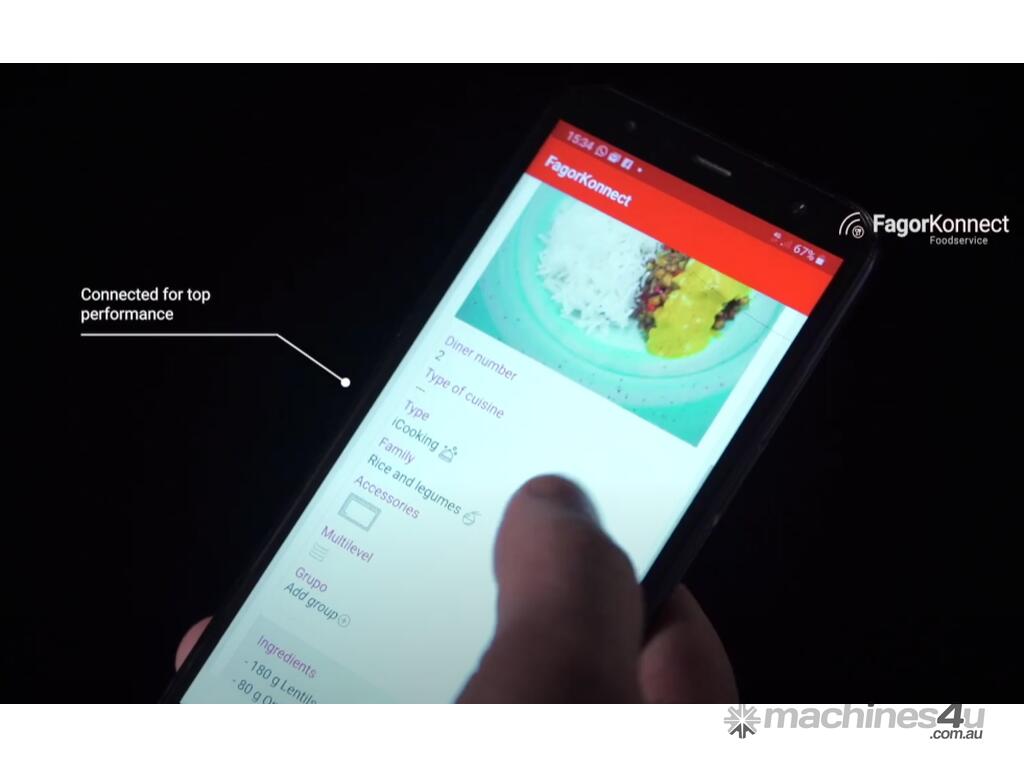

A professional, configurable oven that stands out for its precision in cooking results thanks to its steam saturation system and effective climate management. It certainly marks a before and an after in the way we cook. The iKORE generation is autonomous. It includes a system of intelligent recipes and additional cooking process features, and can even be controlled remotely. And when you have finished, we guarantee maximum hygiene thanks to the innovative washing system.


FUNCTIONS

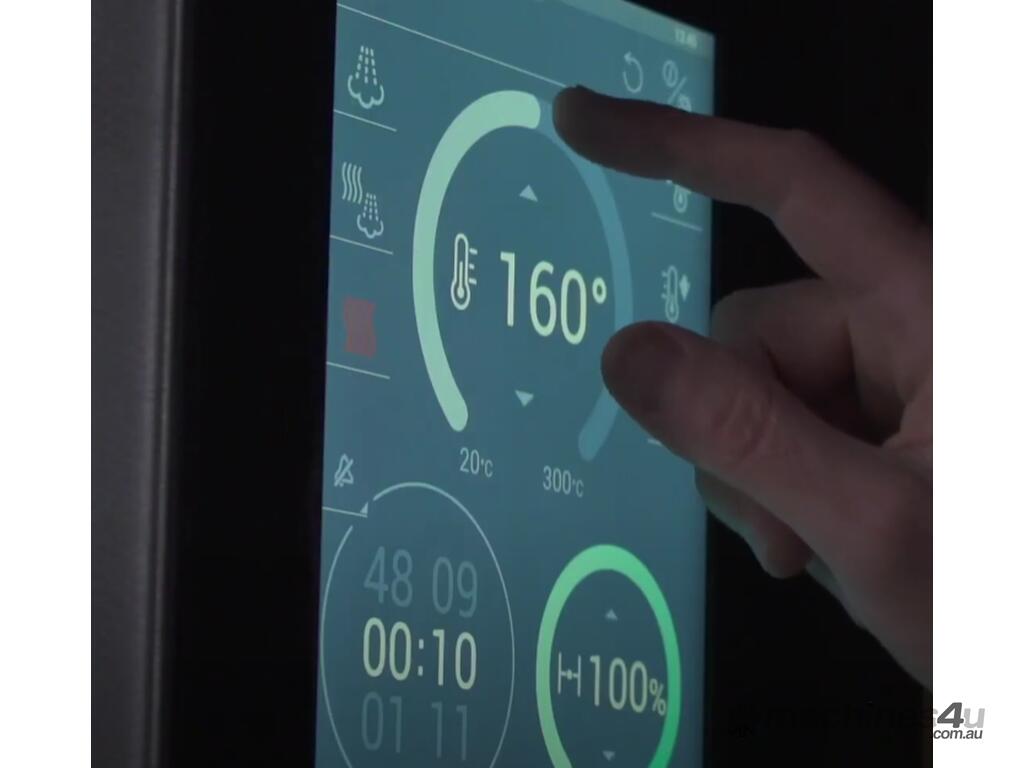

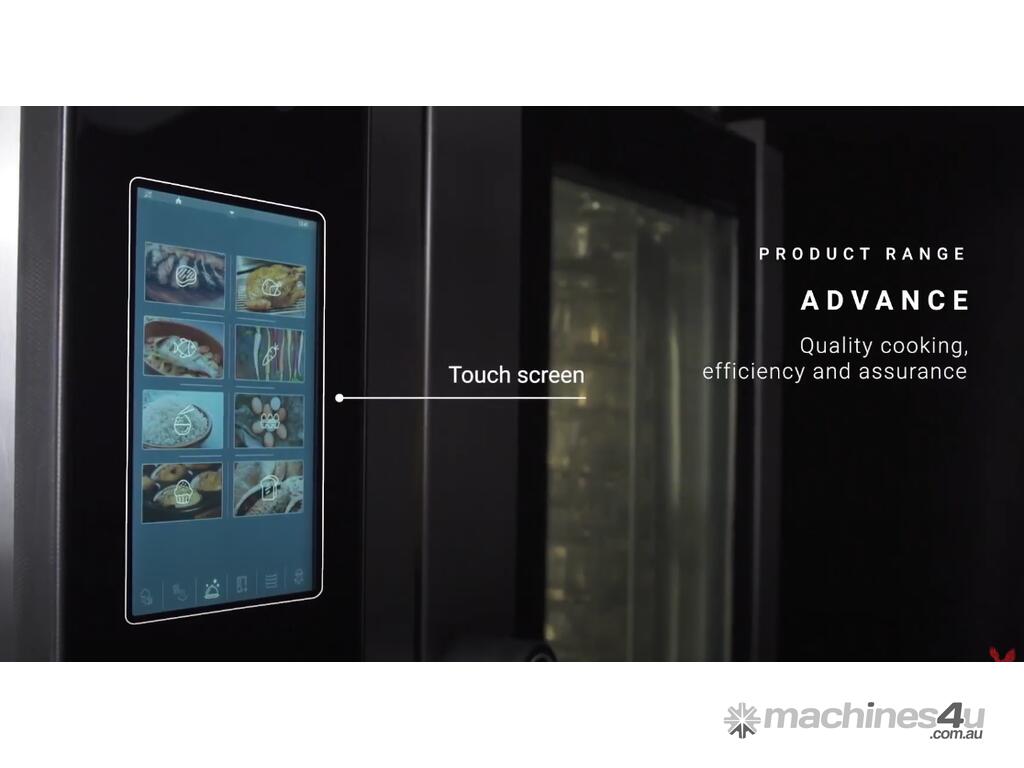

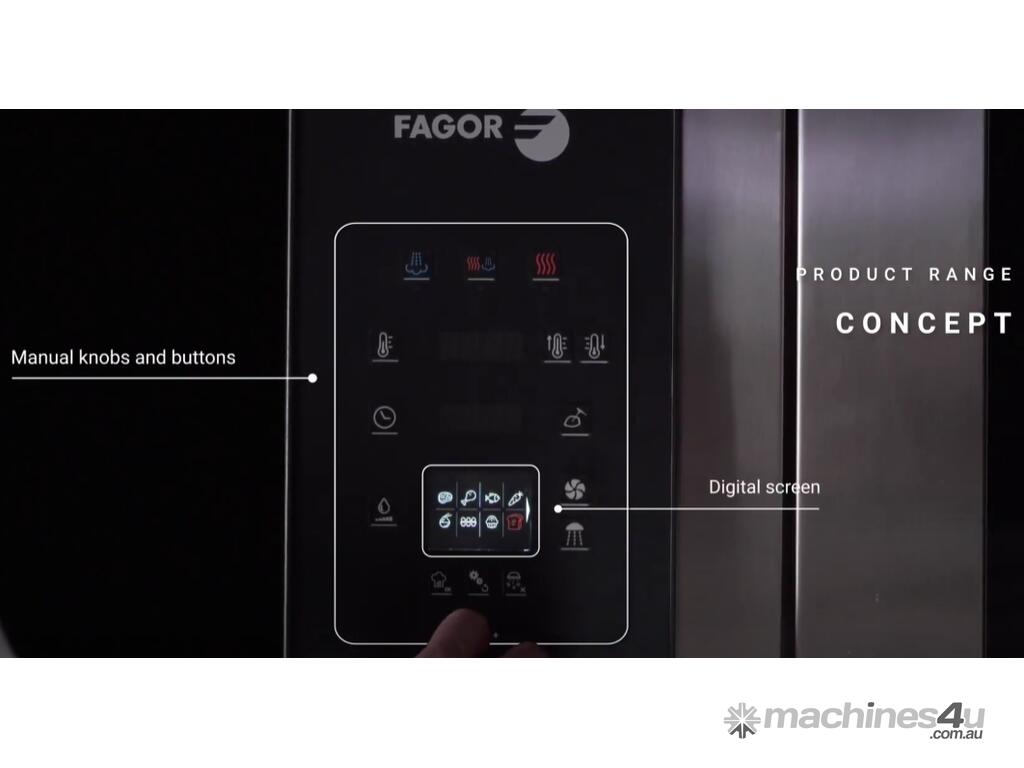

8'' screen with rotary nob and push function for configuring and confirming inputs
iClima: Humidity management and control by means of direct measurement with a humidity sensor.  10% regulation capacity

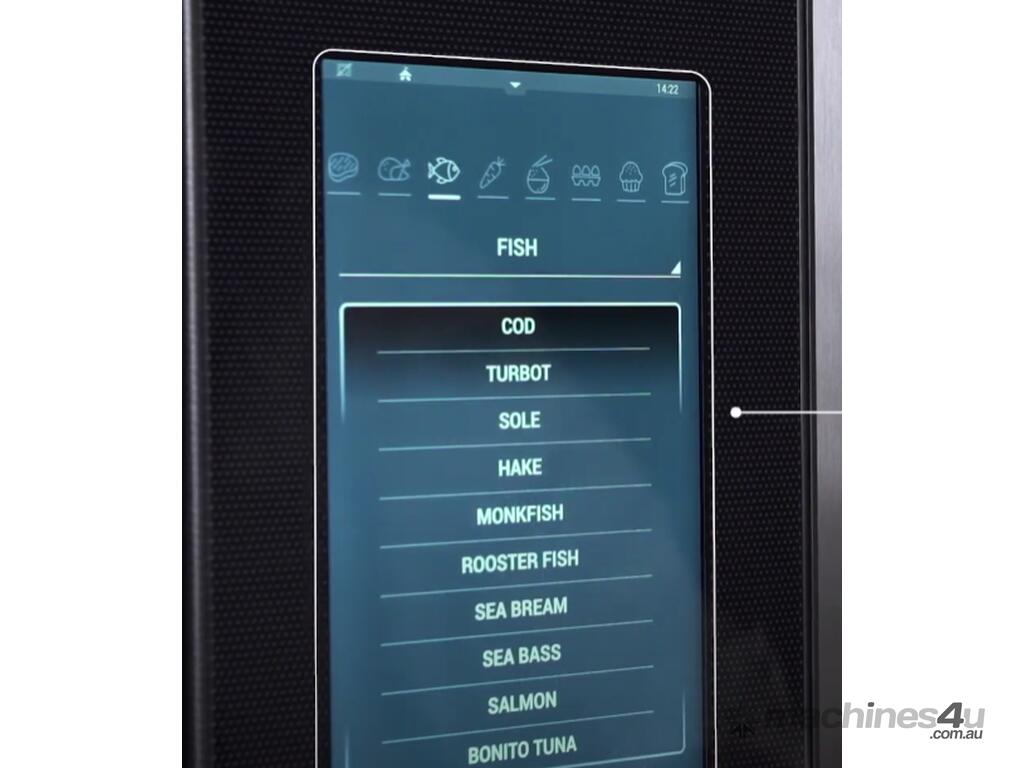

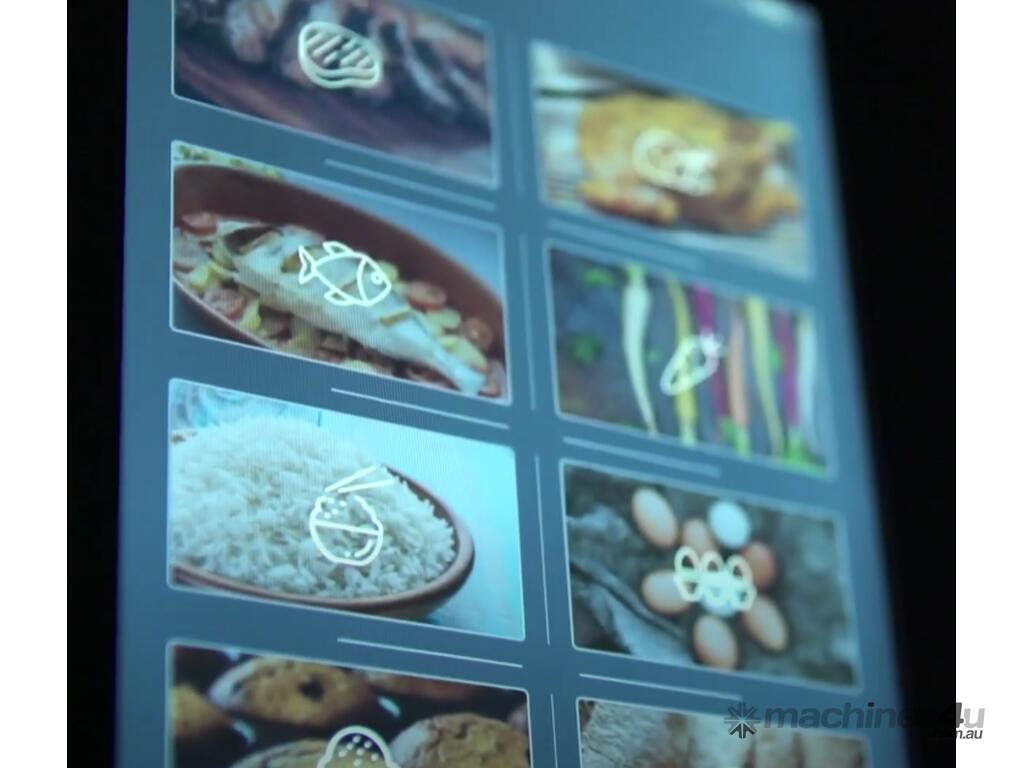

Fagor Recipe Centre: . 100 factory preset and culinary tested recipes. Storage capacity for more than 100 9-stage recipes (come with 100 recipes pre-set)
Air and water cool-down (rapid cabinet cooling function)
Cooking modes: low temperature steam 30-98º, steam 99º, super steam 100- 130º, mixed 30-300º and convection 30-300º
Chamber dehumidification for crispy roasts - Delta cooking

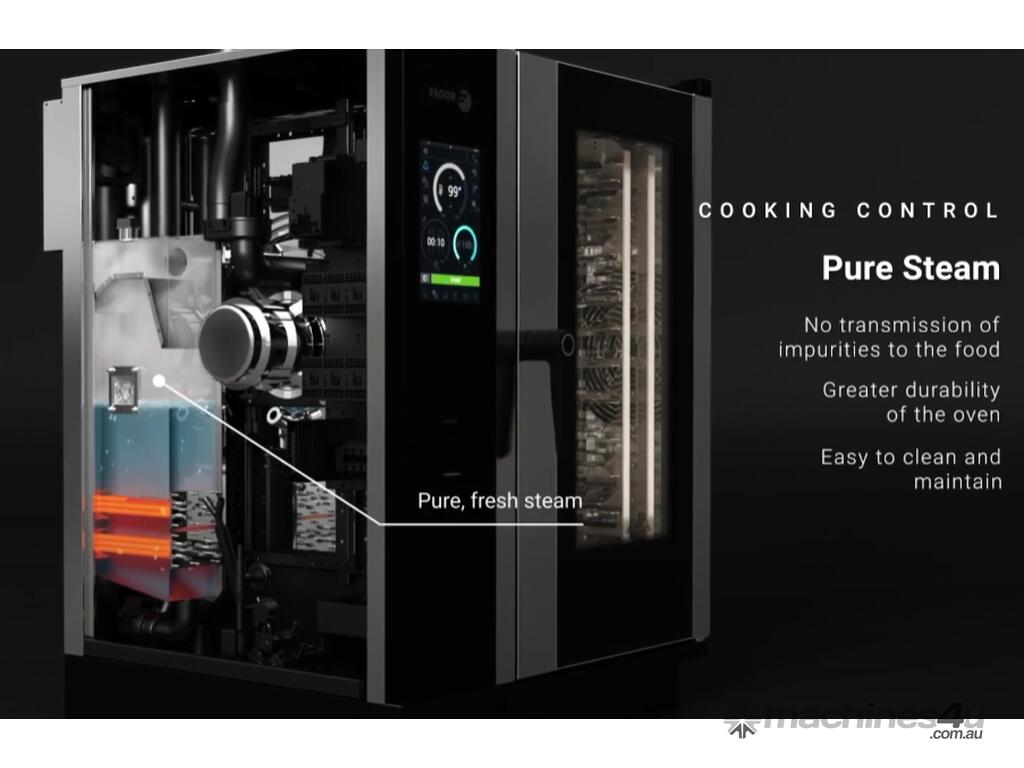

DIRECTSTEAM

Steam generation by injecting water into the turbine, atomizing the water, and converting it into steam.



CONTROLS

Languages: 5
Ability to configure screen tone, volume, and contrast.
Tone: 8
Power, network, language, and system settings.
SAT and Trade fair mode EQUIPMENT FEATURES:
Stop/start function

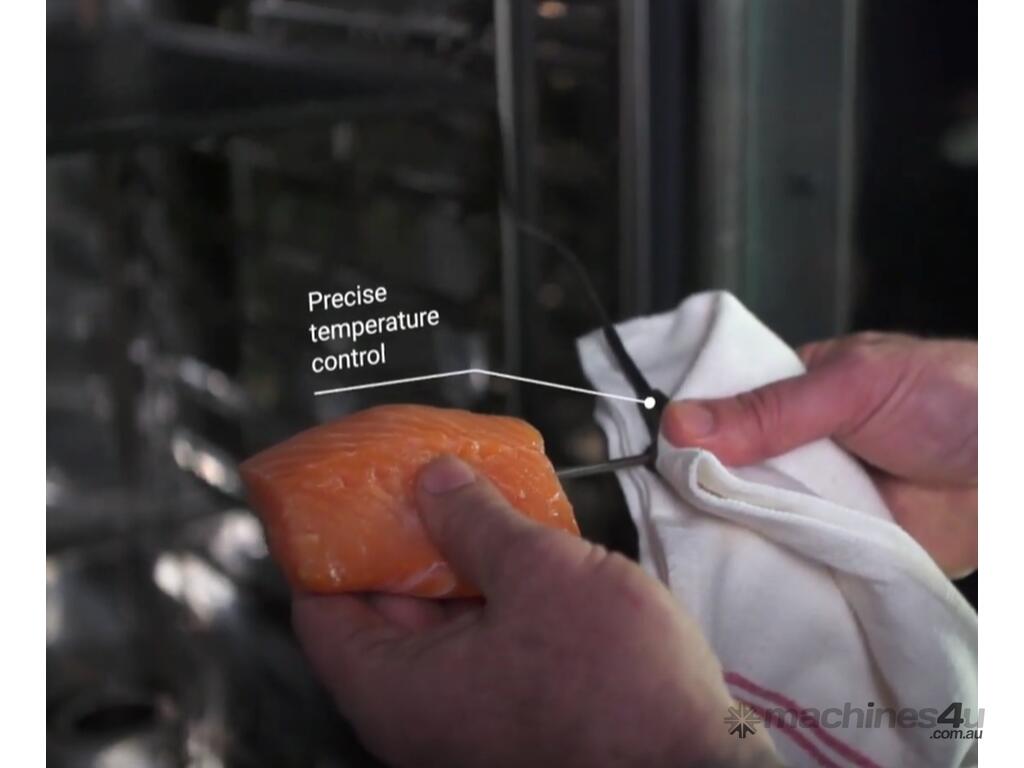

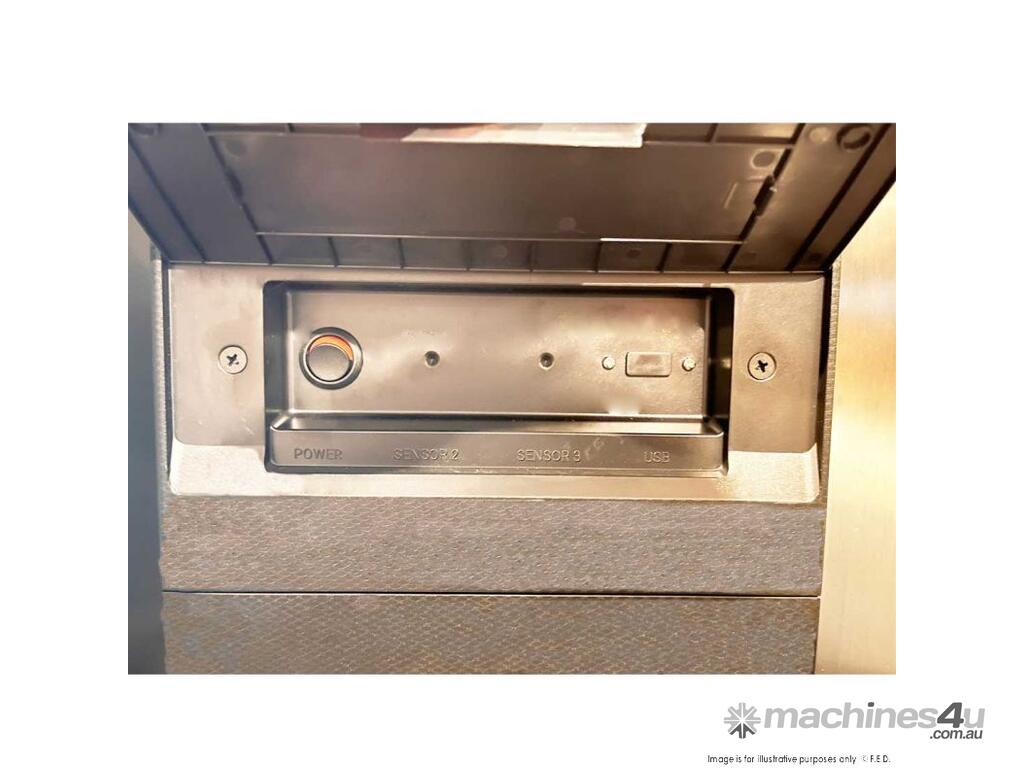

EZ-Sensor. Internal probe with 4 measuring locations
Positioning aid for temperature sensor
Manual steam injection
Automatic humidification system
Variable humidification with 5 levels
6 programmable air circulation speeds (from 1400 rpm to turbine stop)
Option to switch from ºC to ºF
Display of actual values and selected values
Delayed programming
Ability to select 1/2 power
Automatic humidification system
Automatic dehumidification system
Automatic adaptation to the characteristics of the installation site (altitude, etc.) including initial self-testing
Automatic boiling point adjustment

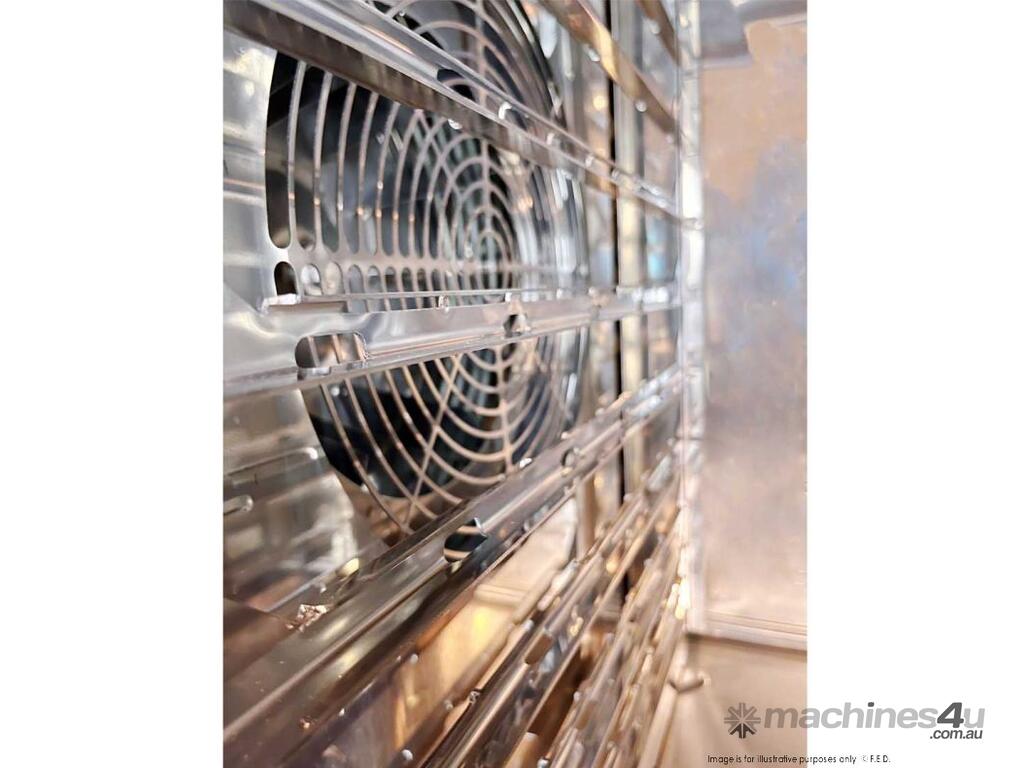

Removable fan cover
Integrated turbine brake for increased safety
HA-Control (indirect combustion, does not pass through the oven chamber)
Auto-reverse system for reversing fan rotation

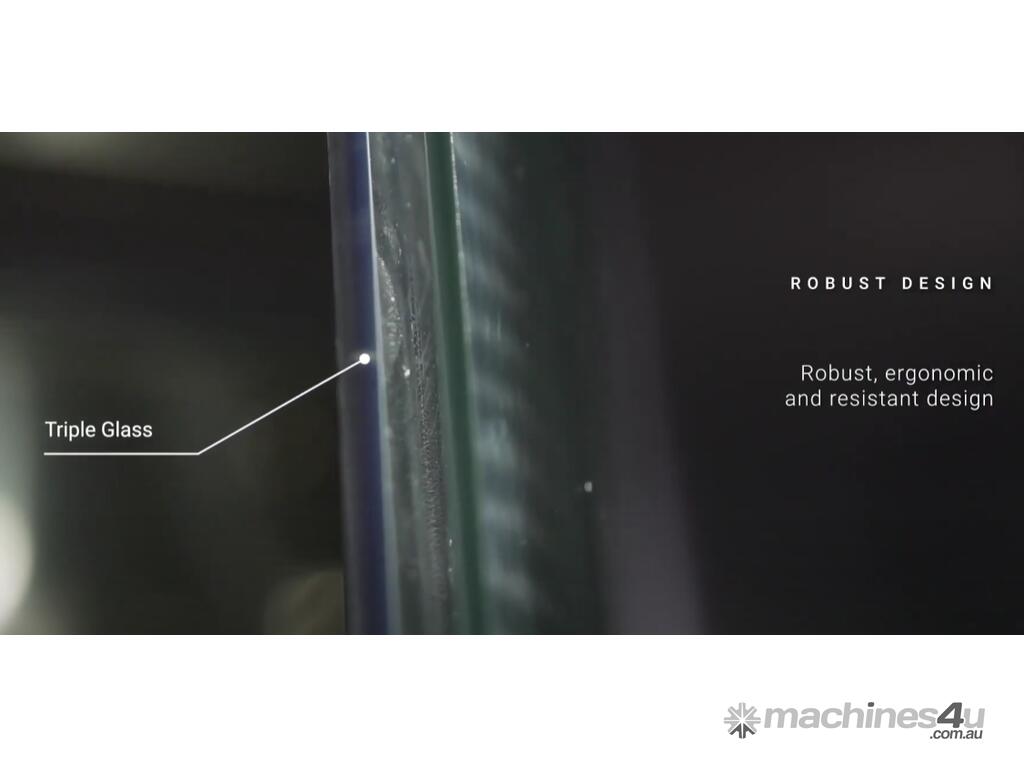

Double-glazed, ventilated cooking chamber door
Special heat-reflective coating and hinged inner panes for easy cleaning
LED lighting in the cooking chamber
HOLD-OPEN DOOR systems (3 locking positions for greater user safety)
Easily replaceable gasket insert - Interior and outer material: AISI 304 stainless steel (interior mirror polished) CERTIFICATION AND INS



TALLATION SYMBOLS

EC declaration of conformity
EC declaration of gas conformity
CB safety
IPX5 protection against splashes and jets of water
Height adjustable equipment feet (all except 0623)

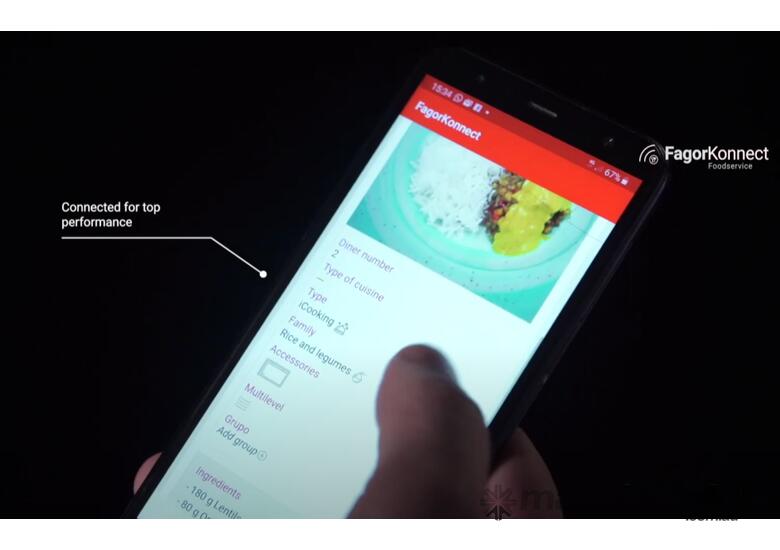

Monitor App & Maintenance App (self-diagnosis of warnings and errors)
Logging App: . Cycle history . Error history



WASHING SYSTEM

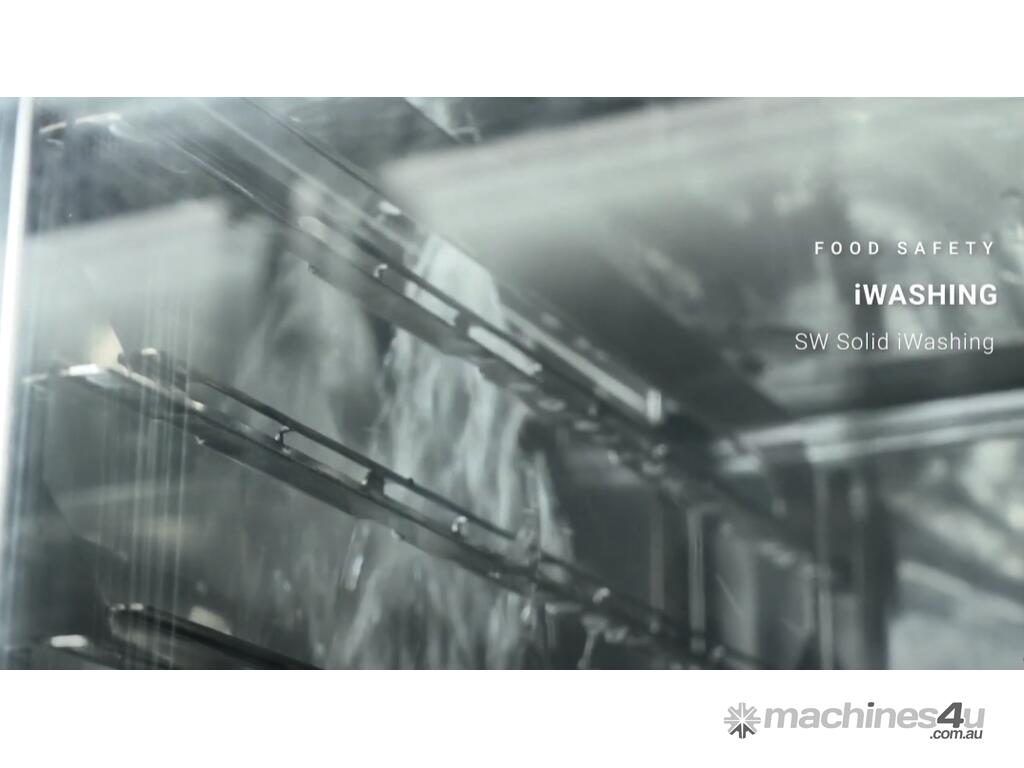

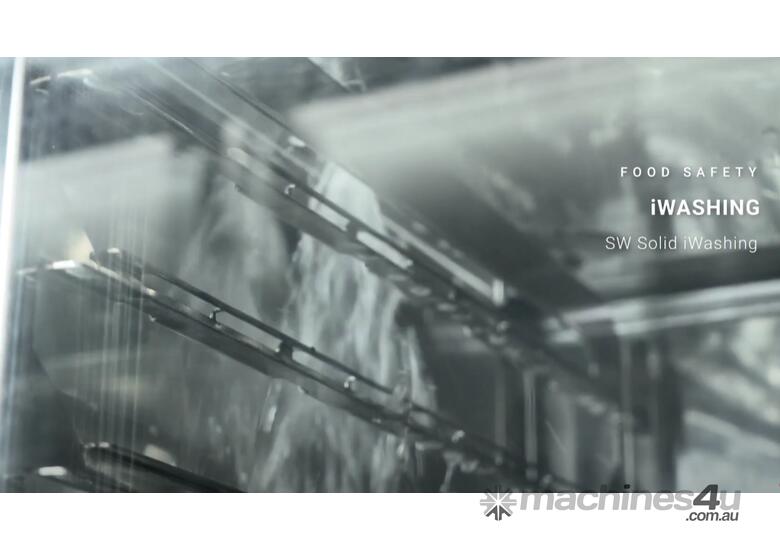

iWashing (environmentally efficient)
Choice of iWashing Solid or iWashing Liquid smart washing systems

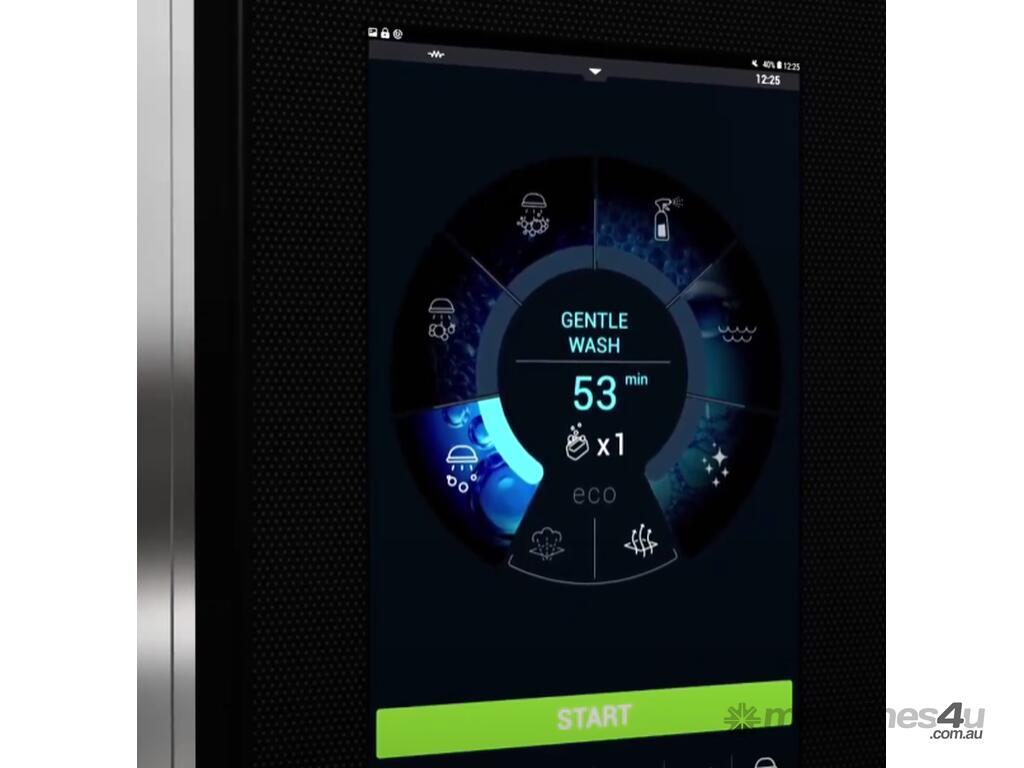

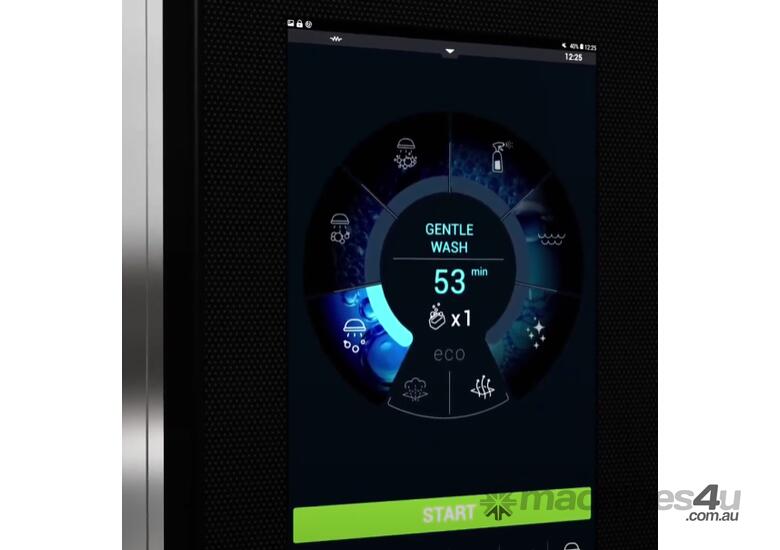

Washing programmes:
 1 basic cleaning programme (spray) . 3 automatic cleaning programs. 1 rinsing programme. 1 polishing programme
Indication of cleaning status and remaining time



2 Years Parts and Labour Warranty

Dimensions: 898.0W x 817D x 1841H mm

Power: 415V/50Hz; 37.2kW;3NNet Weight: 249.0 kg

Chargeable Weight: 575.25 kg
