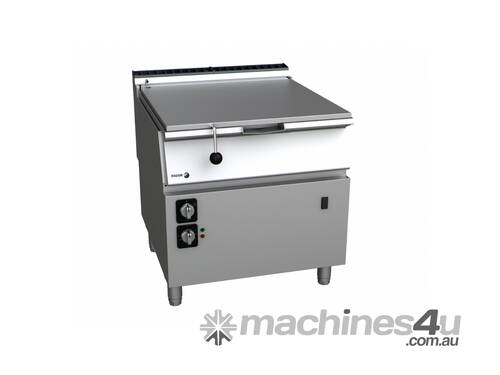

Fagor Kore 900 Series Gas Tilting Bratt Pans SB-G910IM

Fagor Kore 900 Series Gas Tilting Bratt Pans SB-G910IM


Robust, reliable, and of great value, our multipurpose kitchen equipment provides a superior solution for every need and space!
Showcase this premium Gas Tilting Bratt Pan in your kitchen and make your boiling, steaming, stewing, simmering, roasting, poaching, braising, shallow frying, and deep frying a whole lot easier! This is a fast-selling purchase for any prospective restaurant or café owner who operates a medium to large establishment.


Key Features:

Gas tilting Bratt Pan, NG 50Hz, motorized with stainless steel tank of 90 L, 900 range
Laser-cut joints, automatic welding, and polishes. Screws are hidden from view
Pan is designed with rounded corners and no edges, and with a wide opening for unloading, making all cooking and cleaning operations easier
Flange around the perimeter to stop any condensed water from spilling over
The bottom of the wells is very thick (8 mm for iron pans and 10 mm for stainless steel pans), guaranteeing even heat distribution
Pans filled with water by means of an electric valve operated with a switch on the front of the machine. The filling pipe is located at the back of the machine
Double-walled lid with drainer at the back to redirect water of condensation back into the well
Lid balance system by springs. Compensation system to avoid heavy falls. Can be regulated, with the same system for all modules
Micro breaking switch halts heating when the pan is raised
High-temperature enamelled cast iron flue protector
Access to the components from the front
Machines with IPX5 grade water protection
Front access lid handle
The temperature of the bottom of the pan is controlled by a thermostat, between 50 and 310 °C
Stainless steel pan
Electrically heated models use shielded stainless steel heating elements located under the bottom of the pan
The heating by branched burners or electrical heating elements located in the base of the pan itself, together with the high thickness of the bottom of the pan, ensure maximum uniformity of temperature distribution in all cases, guaranteeing even cooking
Motorised or crank-operated elevation systems that can raise the pan until it is vertical, to empty it.



Additional information

Gas Type: Natural Gas
Gas power: 18.00kW
Gas consumption: 1,880 m3/h
Regulated: NG G20/G25/G25.1 20/25/25 mbar
Gas diameter 1: R3/4"
Water inlet diameter: 3/4"



2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration within 14 Days of Invoice


 Dimensions: 800.0W x 930D x 850H mm

Power: 230V - 1N; 0.7A; 50HzNet Weight: 211.0 kg

Chargeable Weight: 255.25 kg
