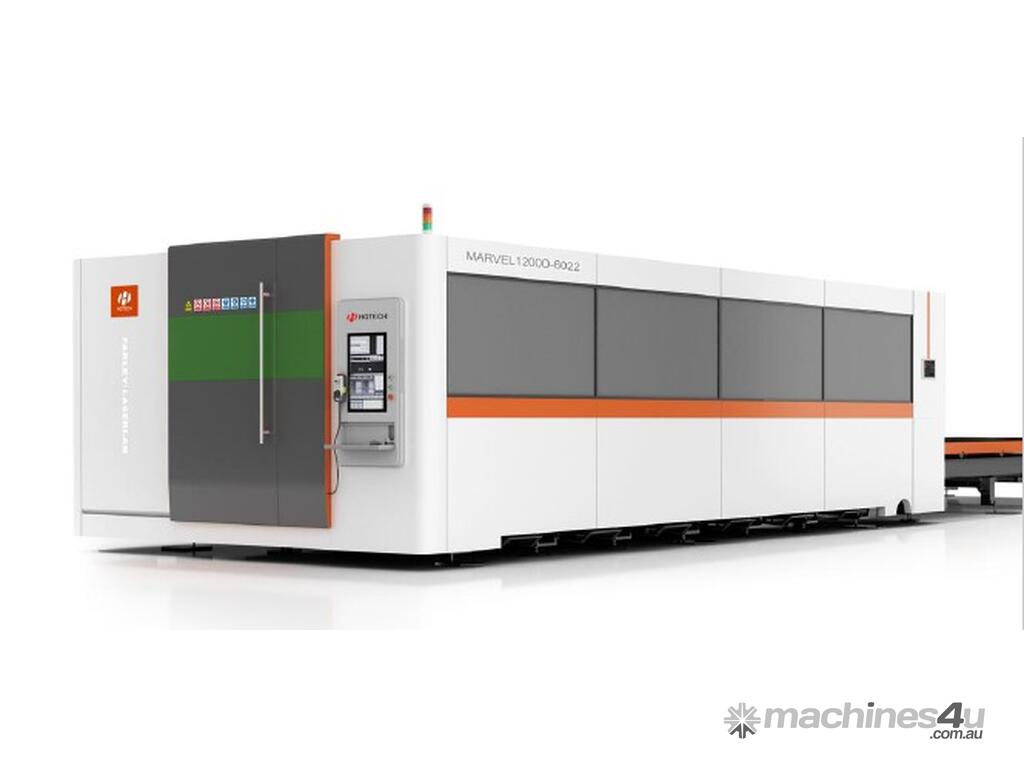

Farley MARVEL 3.0G Acceleration - 20kW Fiber Laser Machine with Australian ANCA Controller

The Marvel Fiber Laser Machine is Farley LaserLab’s most advanced laser product that we make. The Australian ANCA controller is reliable, user friendly and will integrate into any manufacturing environment with high workload and high expectations.

Farley LaserLab's MARVEL Inclusions:
- 1.5m x 3.0m plate Cutting Area with safety enclosure

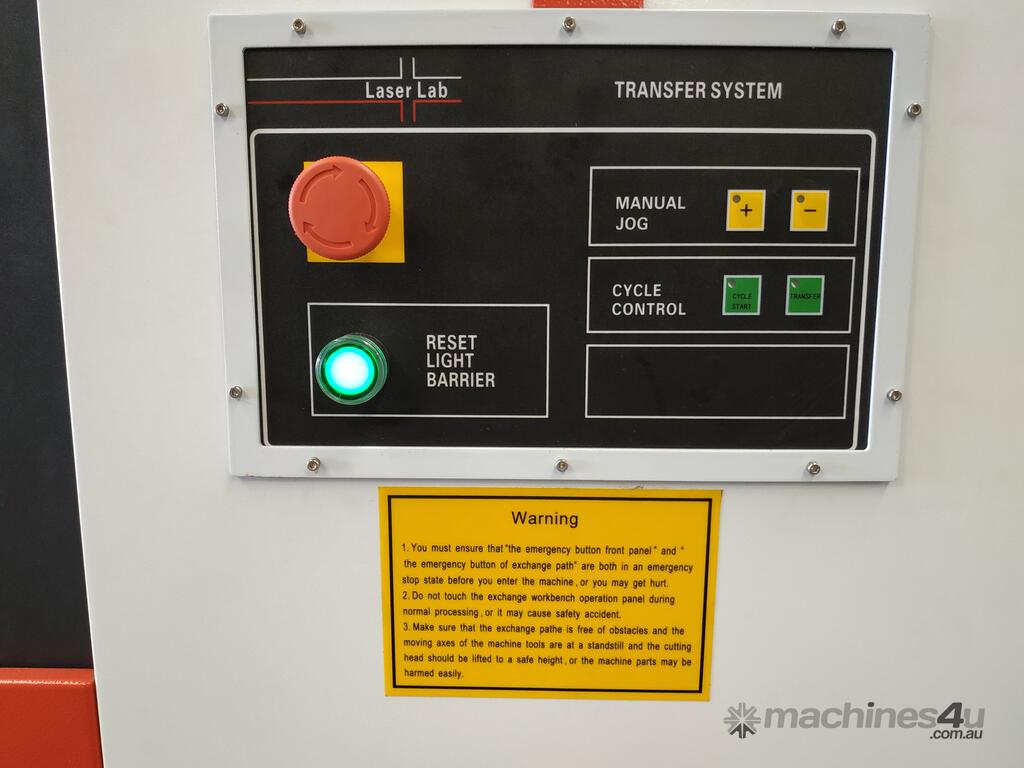

- High Speed Transfer Table
- Australian ANCA CNC Controller – highly stable

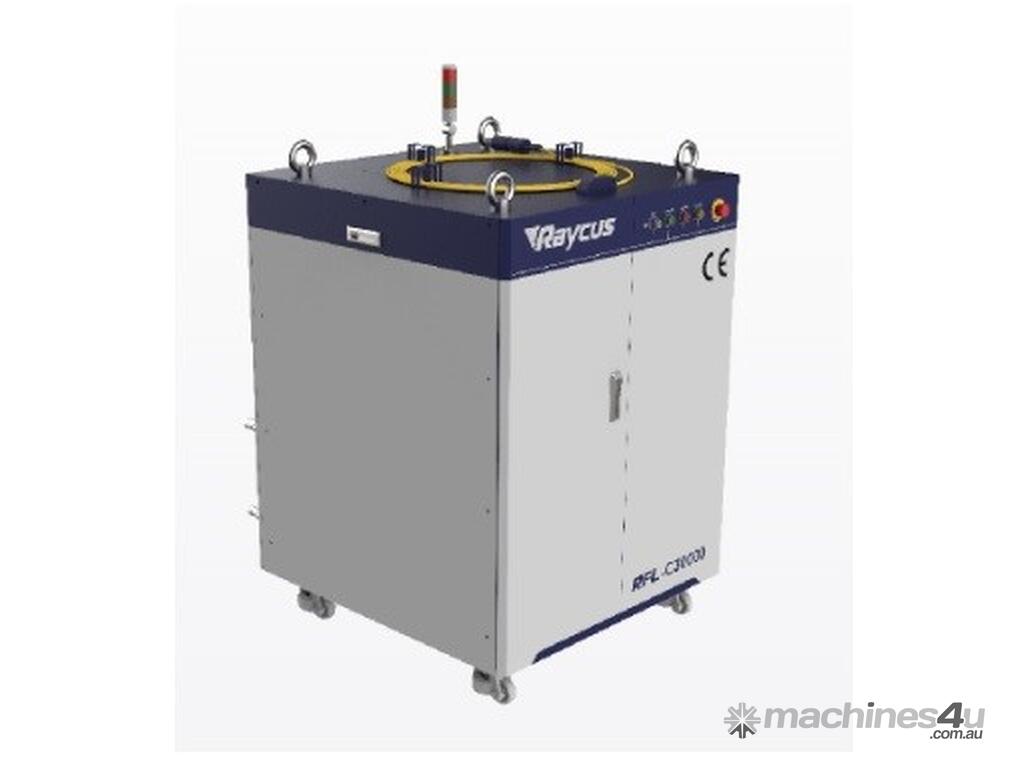

- 20kW Raycus Fiber Laser Power Source

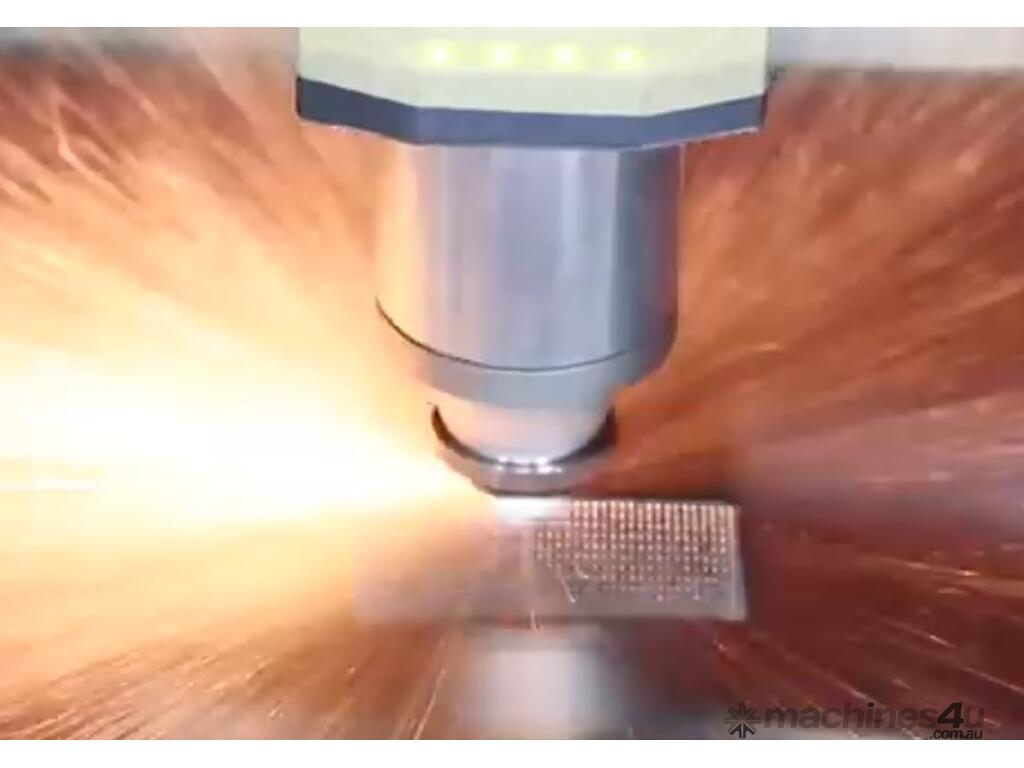

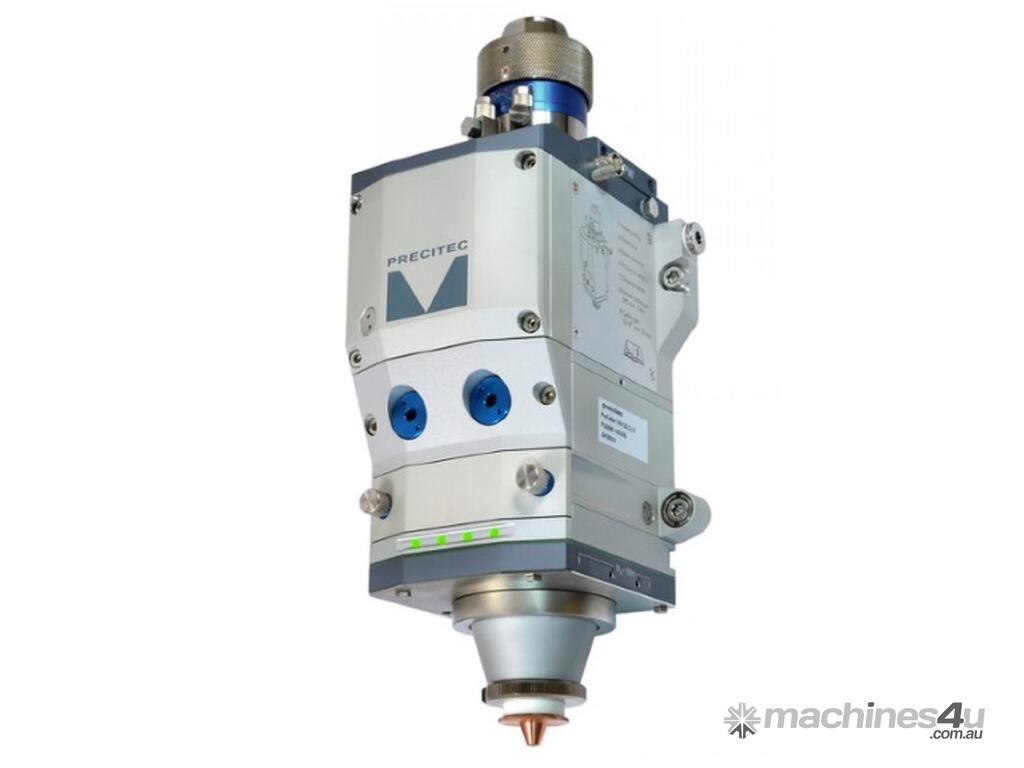

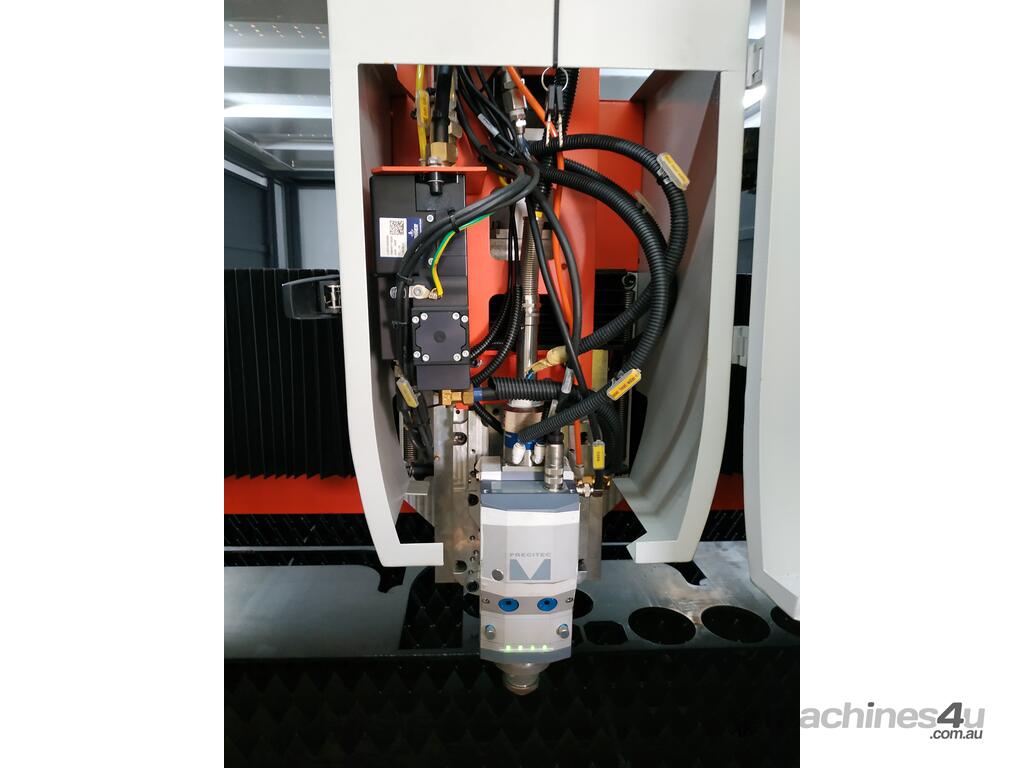

- Precitec ProCutter Auto Focus Cutting Head - V2

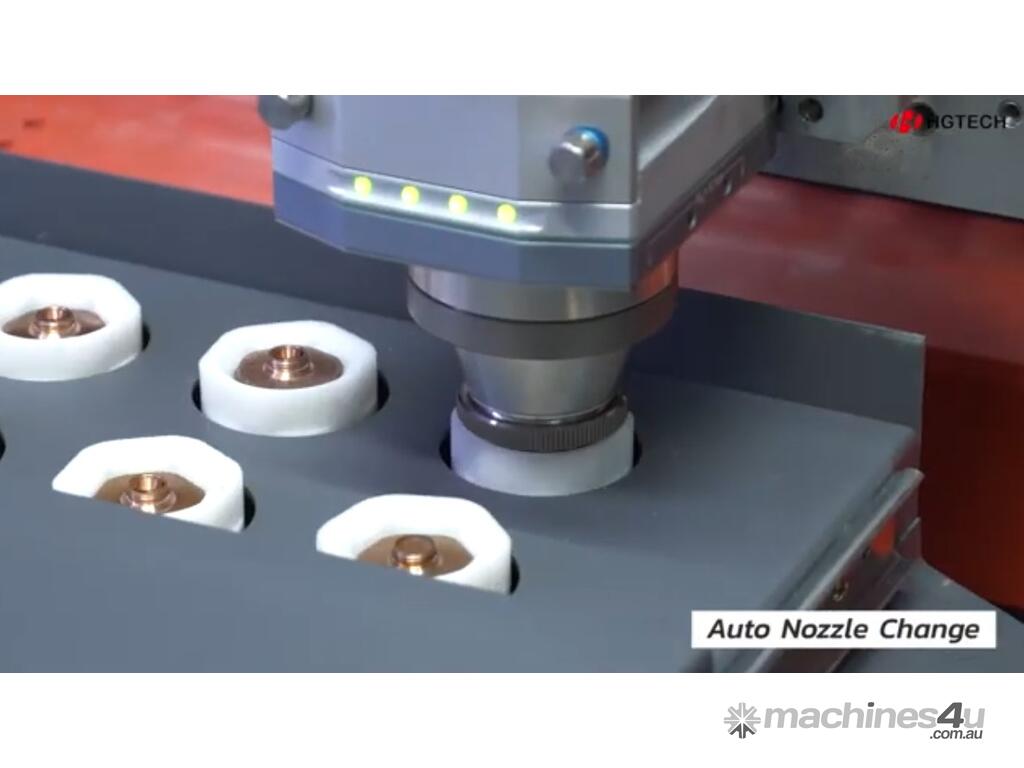

- Auto Nozzle Changing
- Metallix CNC CAD/CAM
- Intelligent Collision Avoidance
- Multi Sheet and Thickness Cutting in 1 program

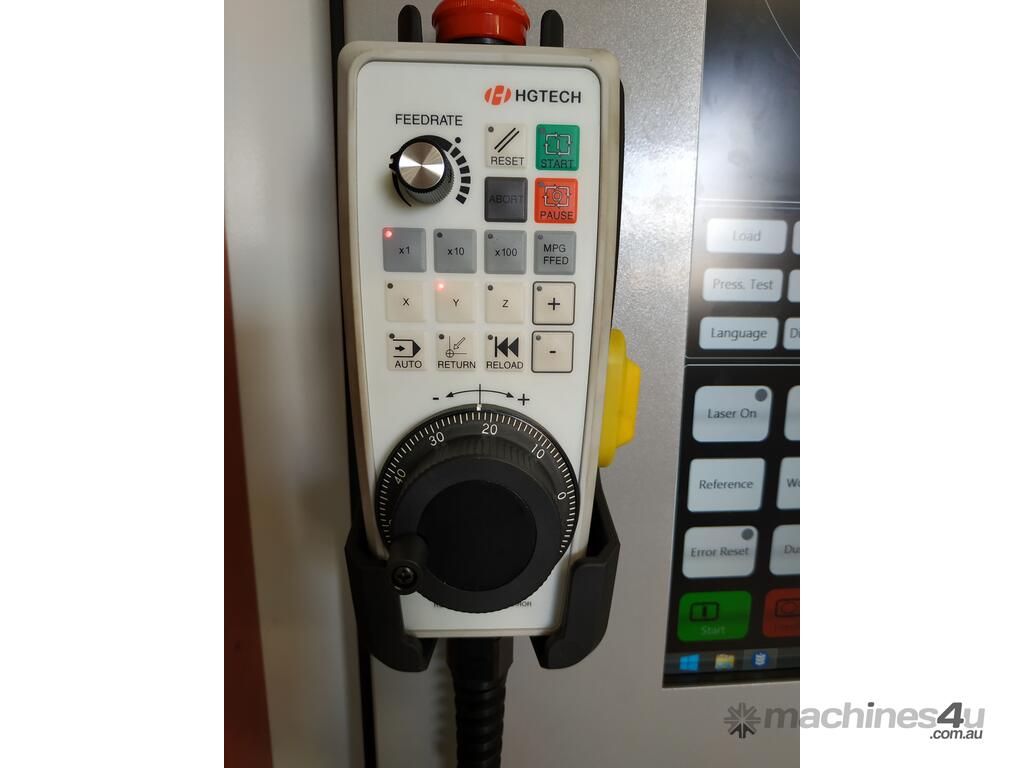

- ANCA remote pendant controller
- Australian ANCA Digital servo system
- High Dynamic performance, Speed 168m/min, Acceleration 3G
- High Speed Cutting up to 600 holes/minute
- Helical rack and pinion drives and Linear Rails
- Automatic 3 gases control, Oxygen, Nitrogen or Air, proportional valves.
- 8 zone downdraft dry table

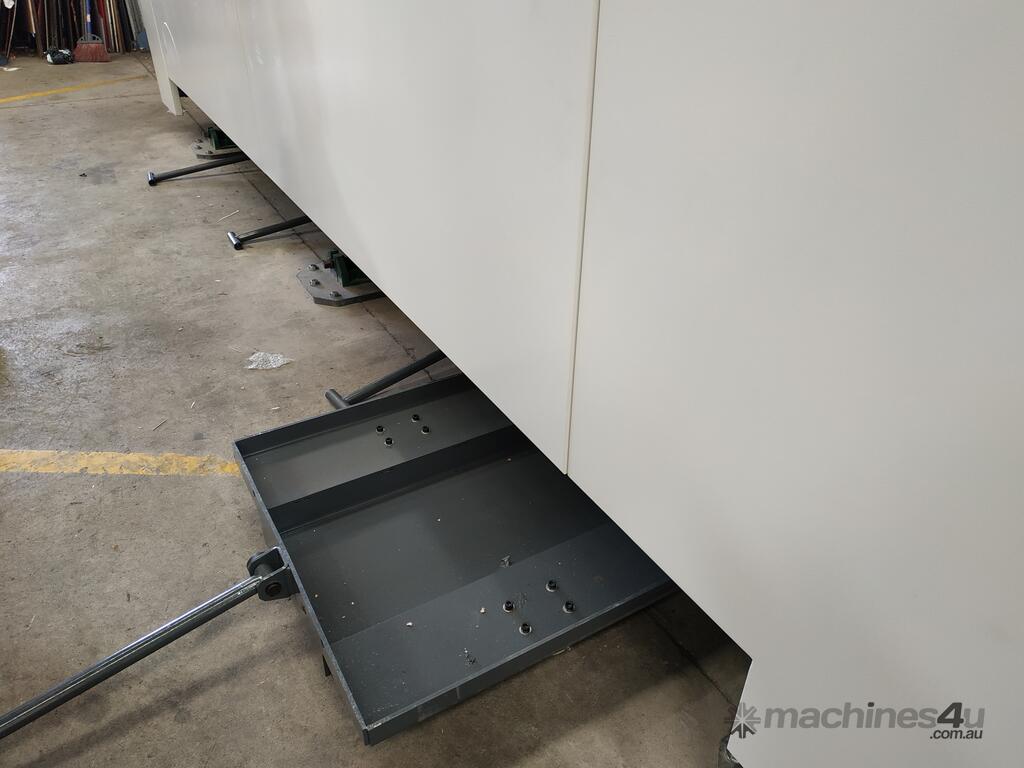

- Roll out collection trays
- Industrial Water Chiller Unit

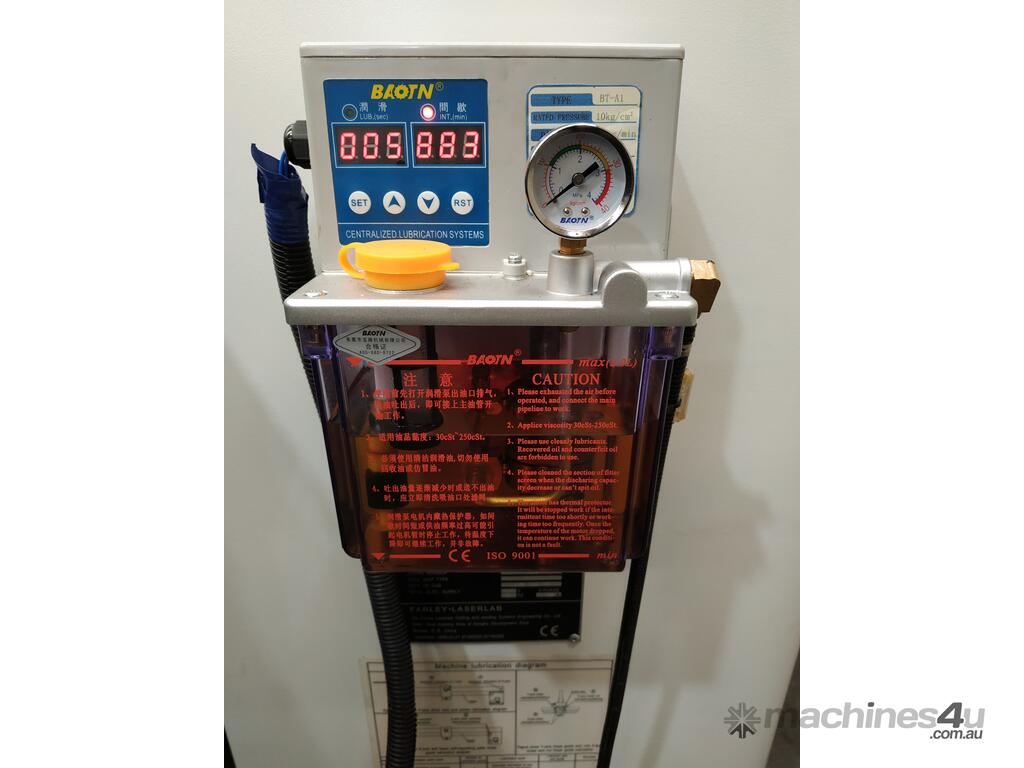

- Automatic lube system for pinions & bearings
- MES Data Interface for integration with material handling system and other systems
- Remote Diagnostics
- OEM support for machine and controller
- Farley Installation, Commissioning and Training (Australia Wide)
- Delivery to Metro Areas, Australia
- Farley lifetime support

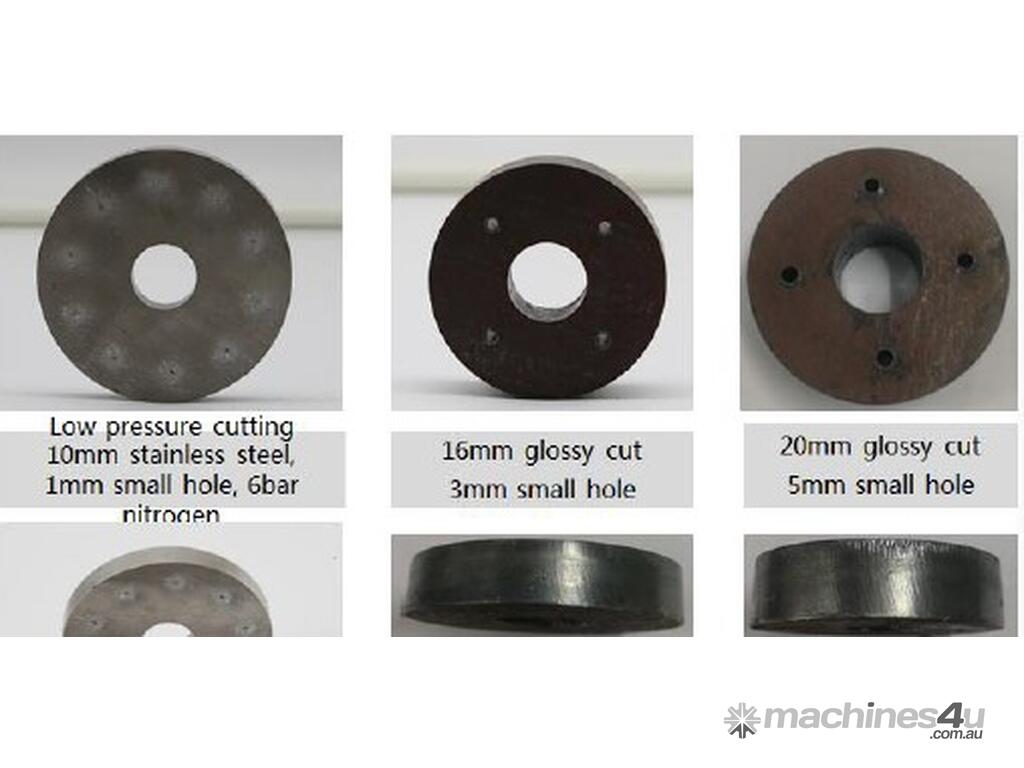

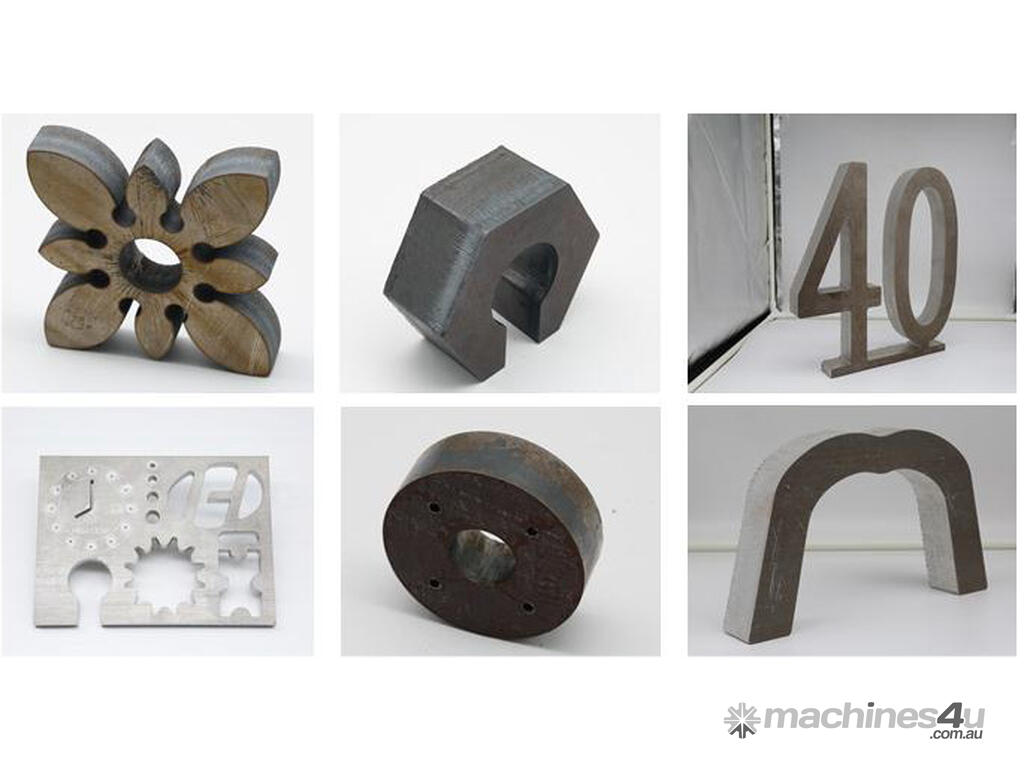

Farley LaserLab's MARVEL, 20KW laser will reliably Production cut:

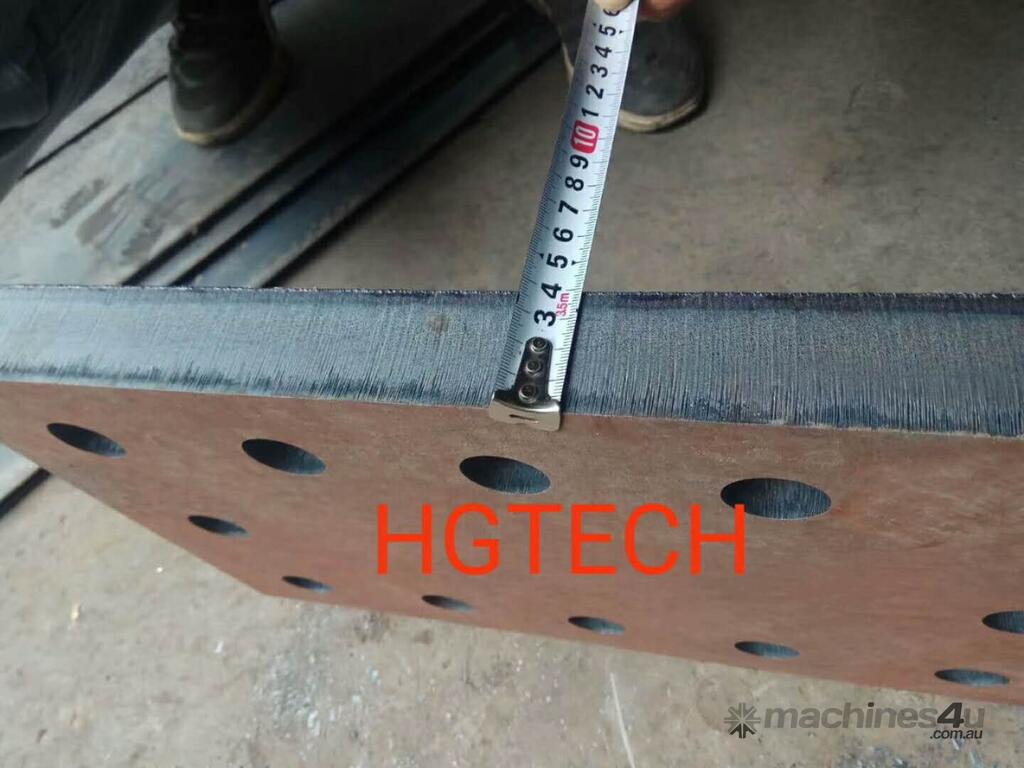

- 40mm Mild Steel
- 40mm Stainless Steel
- 40mm Aluminium
- 20mm Brass

Cutting performance will vary due to configuration, optics, operator experience, material properties & quality

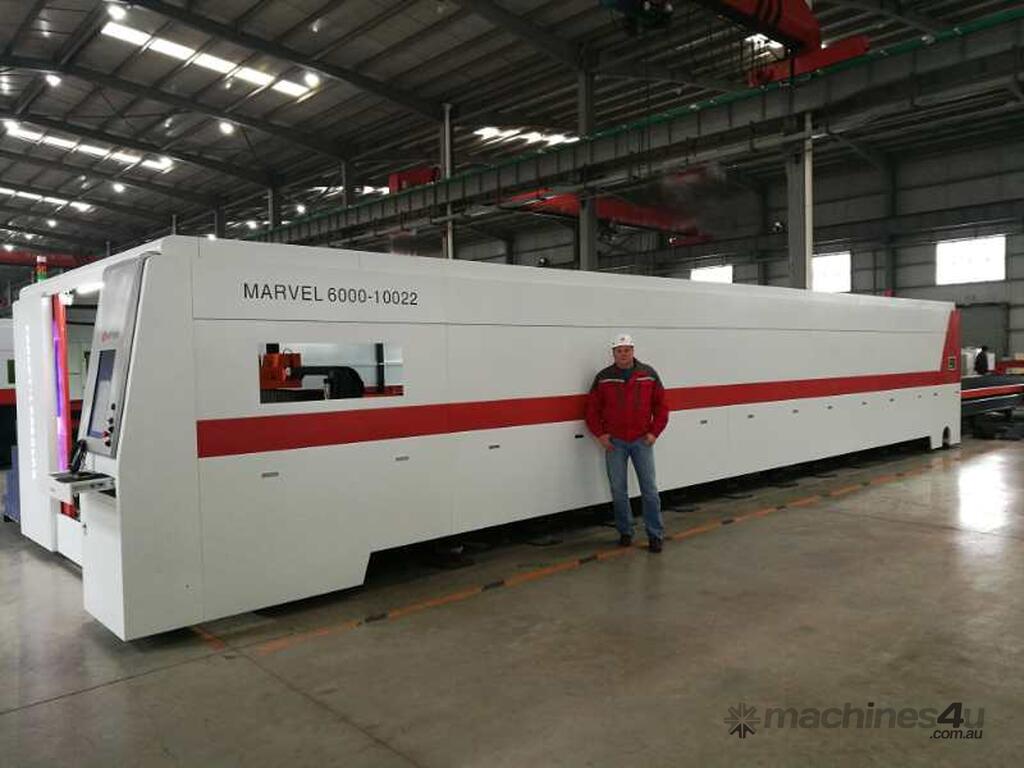

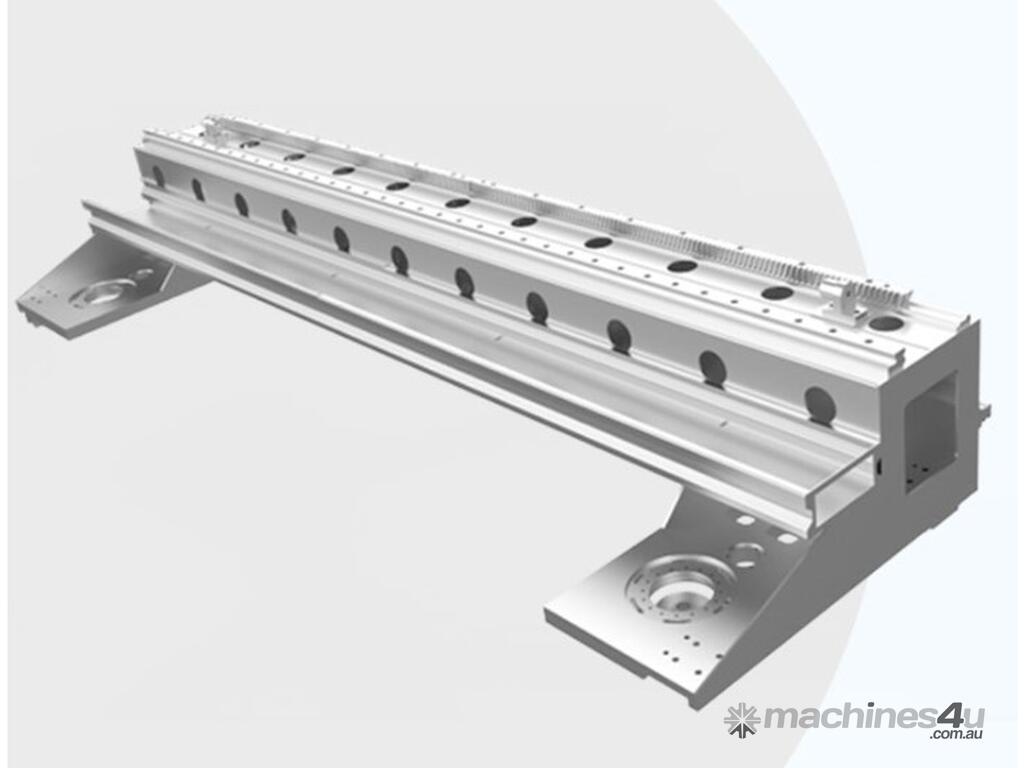

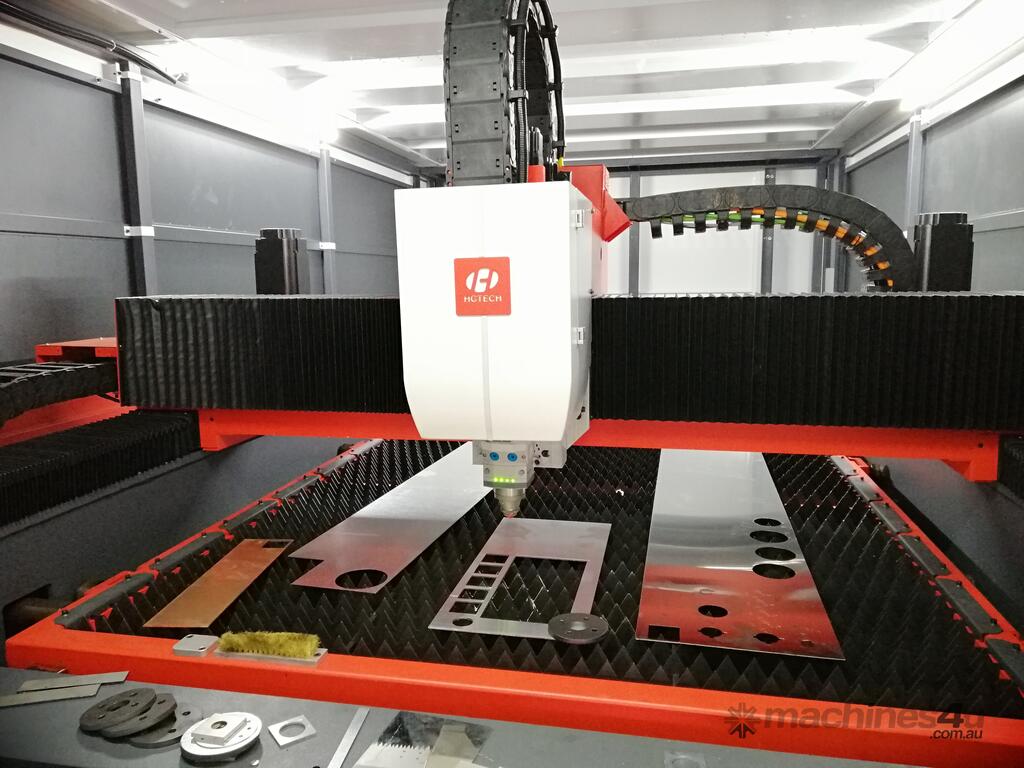

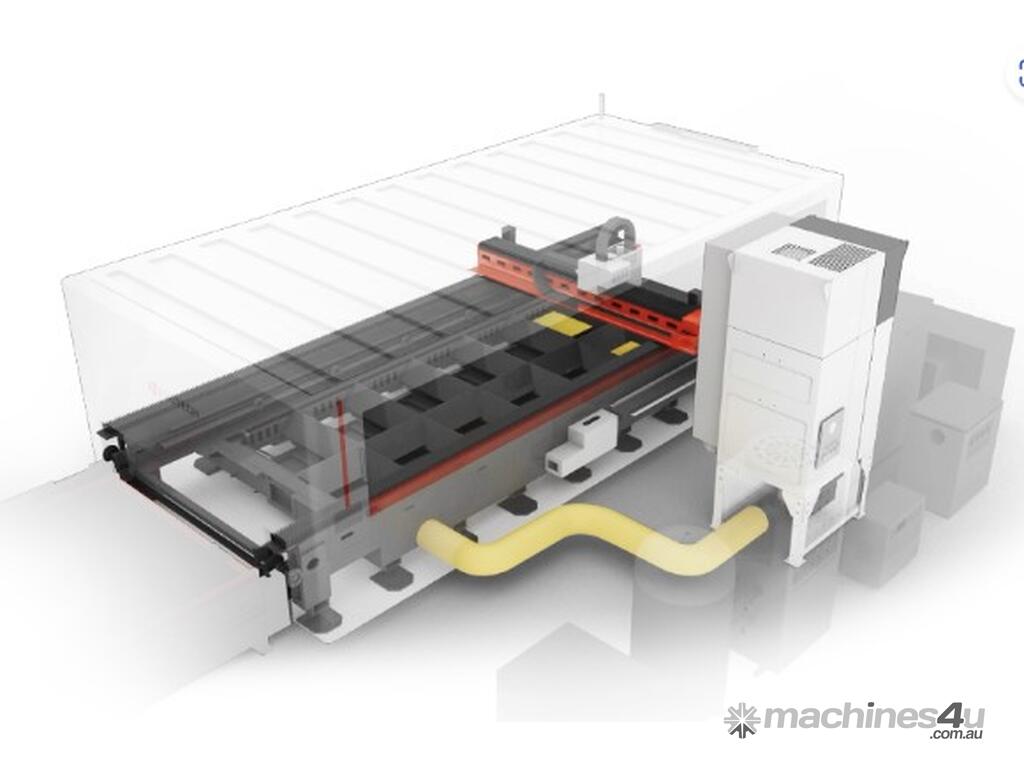

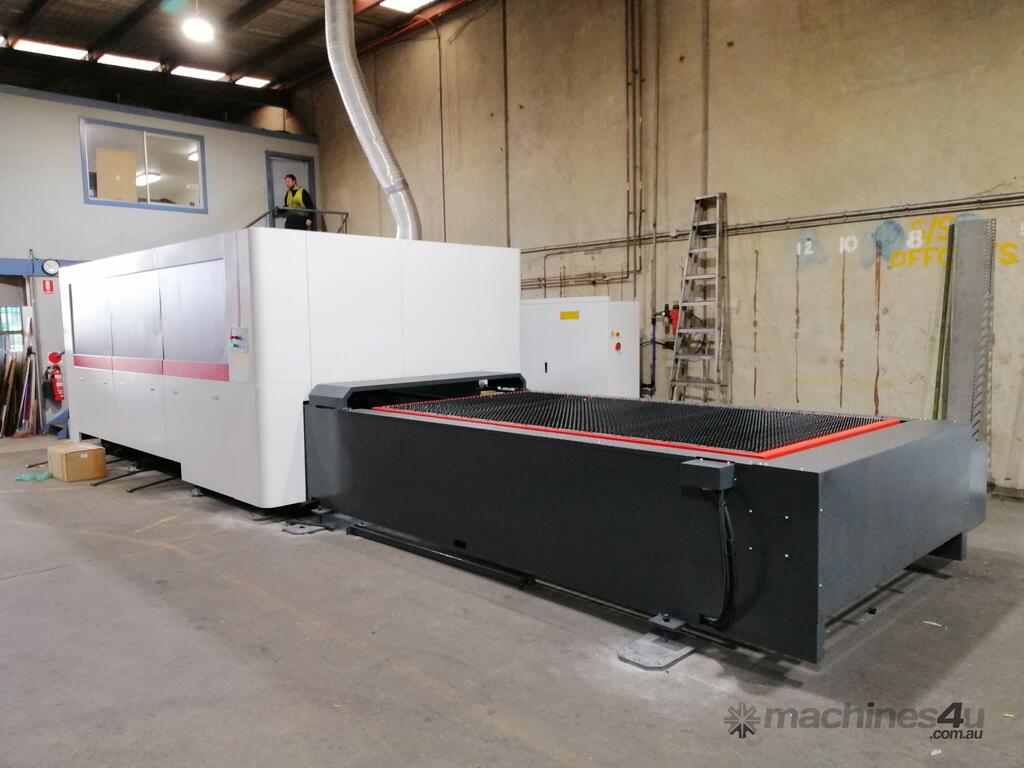

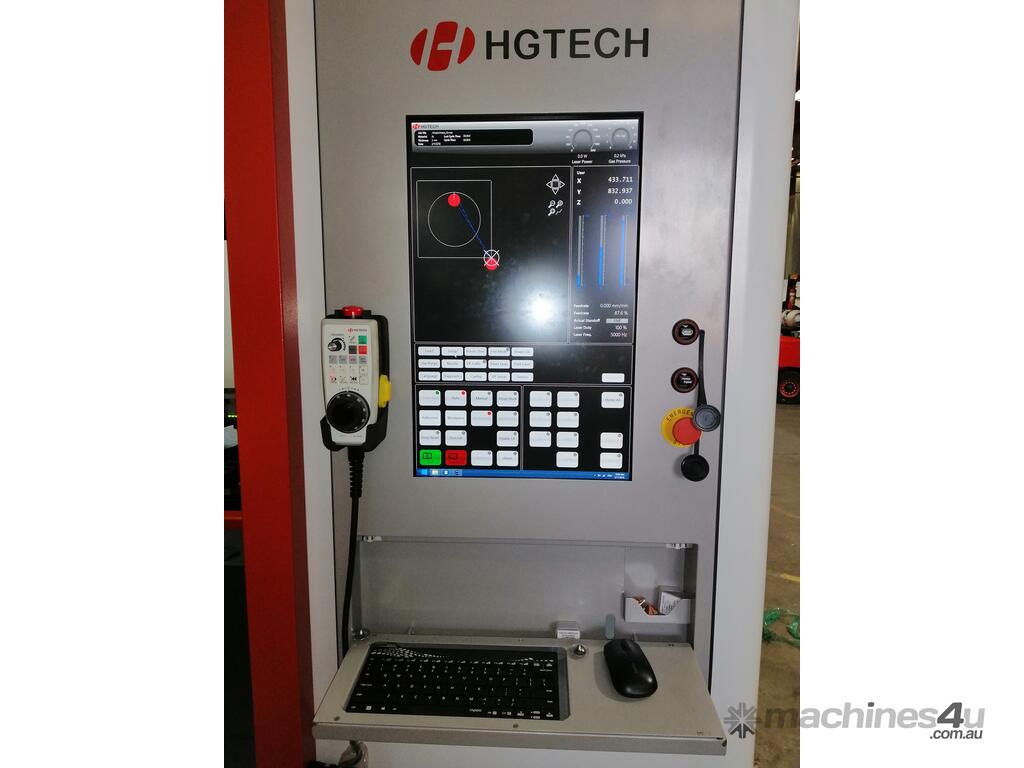

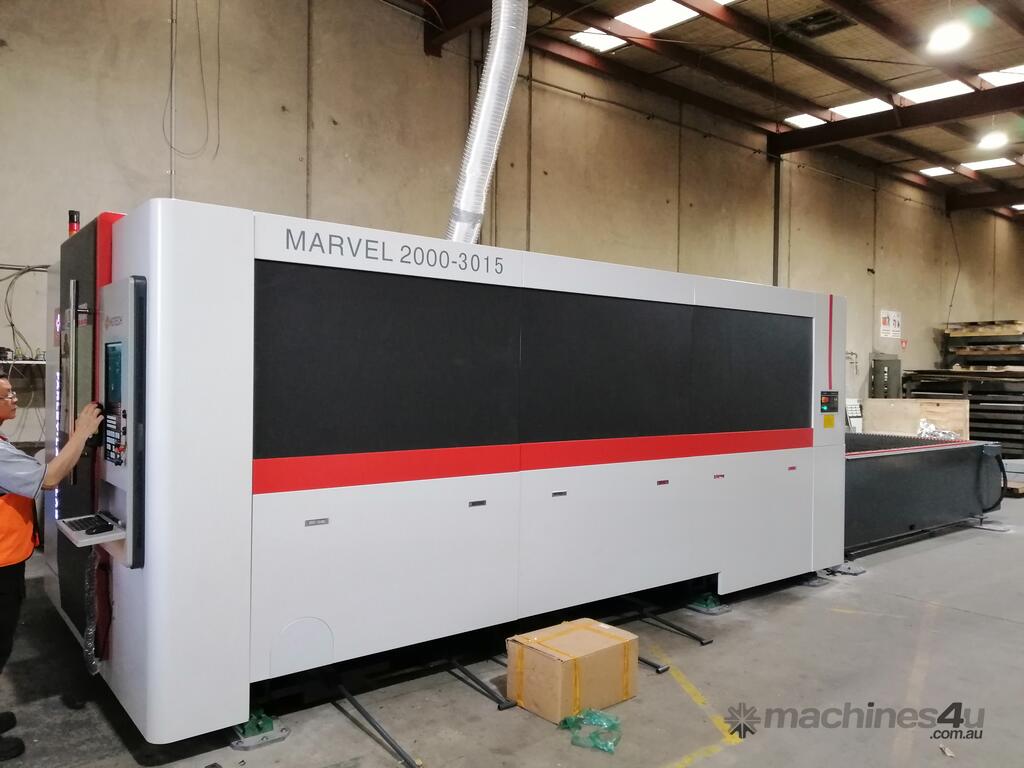

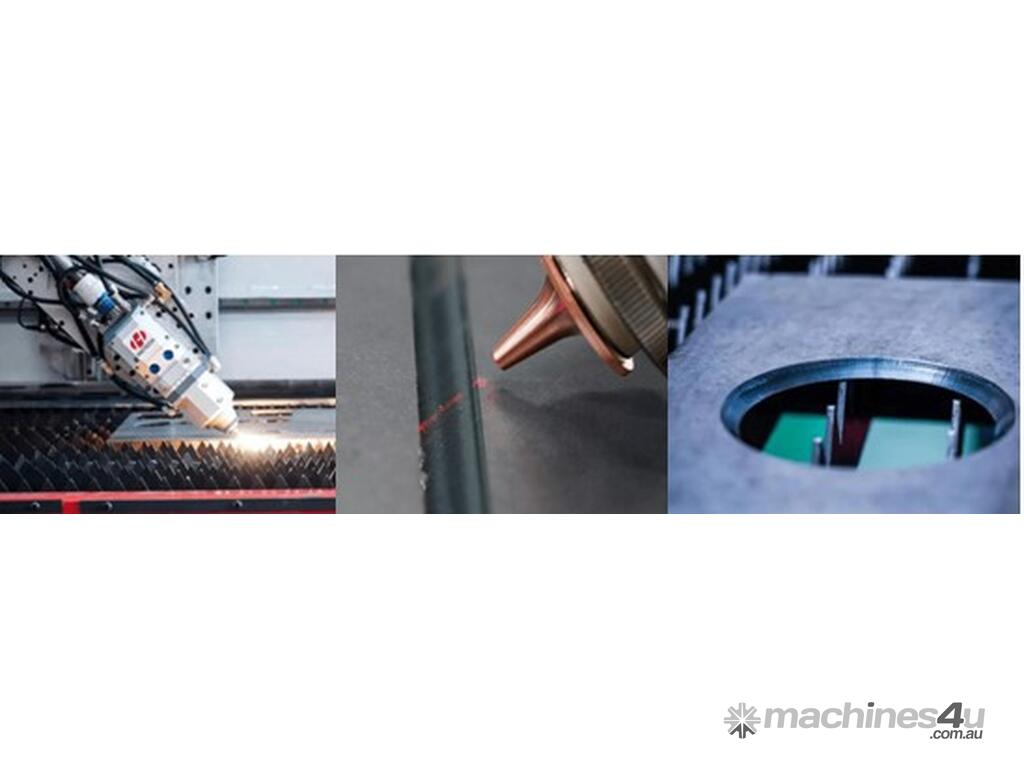

This highly developed Farley LaserLab Mavel Laser cutting machine has a 1.5m x 3m plate cutting area, safety enclosure & an integrated Australian ANCA operator console. The robust Gantry structure and highly stable ANCA digital servo system delivers highly dynamic cutting performance while the base incorporates efficient fume extraction. A high quality Raycus laser power source and Precitec Cutting Head together with precisely controlled gases, deliver reliable cutting. The integrated high speed transfer table is built for heavy duty cutting and significantly increases efficiency by maximising cutting time. The robust ANCA control and Metallix software, have many powerful and user friendly functions to please the operator, together with MES interface for integration with material handling and other systems. The Marvel’s ultimate reliability & performance will dramatically increase productivity to guarantee fast payback of capital, while reducing component lead time & outsourcing. A worthy investment in a demanding workplace!

Options available:
- Larger cutting area
- Laser source 3-60kw
- Bevel cutting head
- Hydraulic Transfer table – for heavy plate
- Fume extraction unit
- Compressed air system
- Gas regulators

Why Buy from Farley LaserLab?

- We are the manufacture and proudly provide lifetime support for our products.
- We have in house engineers and service technicians to support you.
- ANCA Motion local OEM support
- Stock of consumables.
- Inventory of the correct spare parts, laser power source & cutting heads.
- National service agent for repairs of Raycus power source.
- Farley LaserLab has 30+ Years experience in the industry.
- Pay for machine when in Australian Port not before it leaves China (improve cash flow).
- Low Machine Deposit.
- Based in Melbourne with staff on hand here & in Brisbane.
- We understand your needs and are here to help you

Contact Farley LaserLab for more information.
