Farley Press Brake 6m W - 175Tonne - 6+1 Axis - DA66T (Entry Special)

Farley LaserLab offer an advanced range of Servo Driven Press Brake Machines to complement any engineering shop and our range of plasma, laser and water jet machines. A one stop shop for cutting and pressing equipment.

Farley LaserLab’s Press Brake inclusions:

- Farley Smart SSP Press Brake, 6m Wide – 175 Tonne capacity

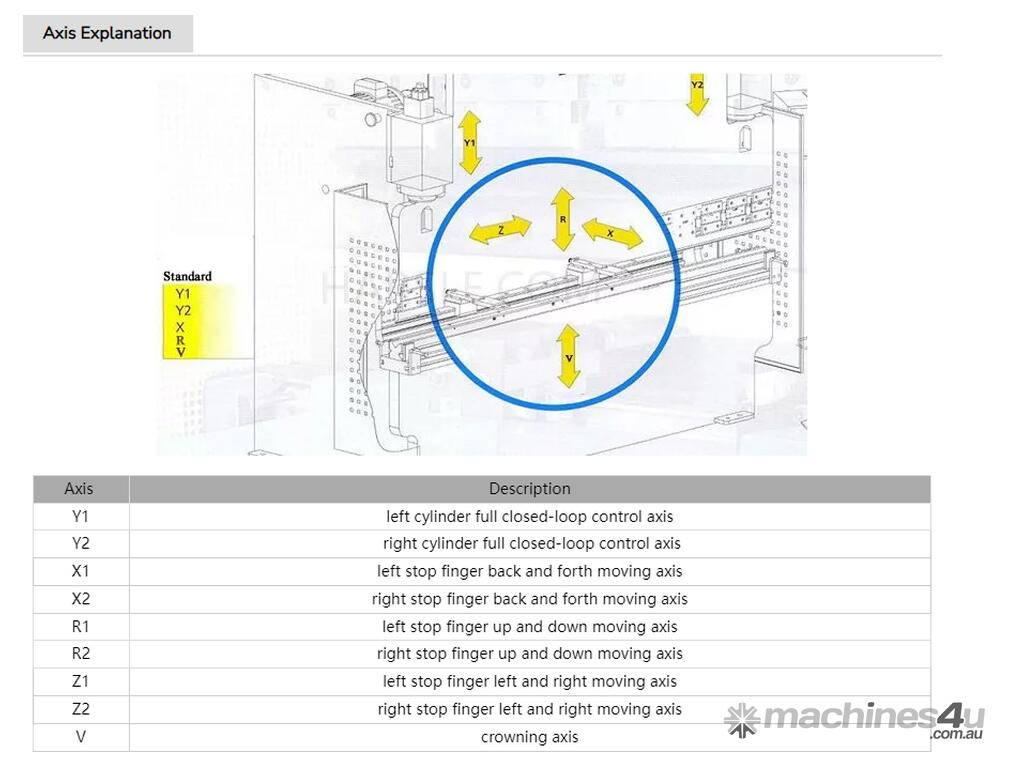

- Servo Axis 6 +1 (Y1, Y2, X, R, Z1, Z2 + V Axis)
- Opening Height: 420mm
- Throat Depth: 400mm

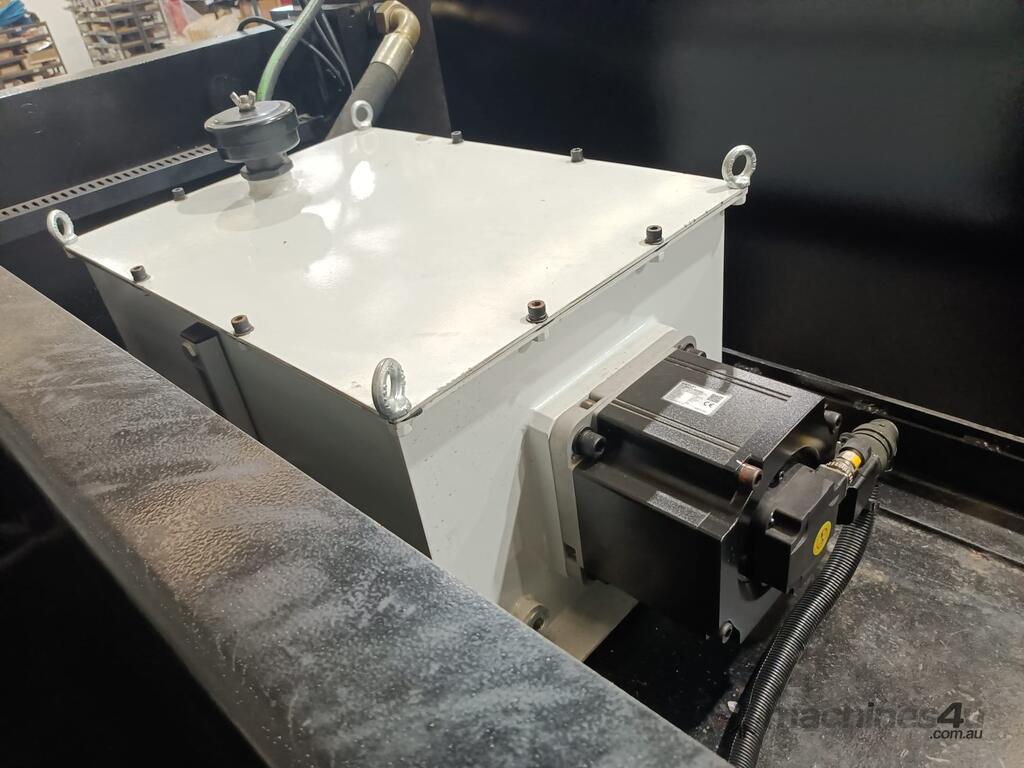

- Dual Hydraulic system with Servo Motors – up to 90% energy savings

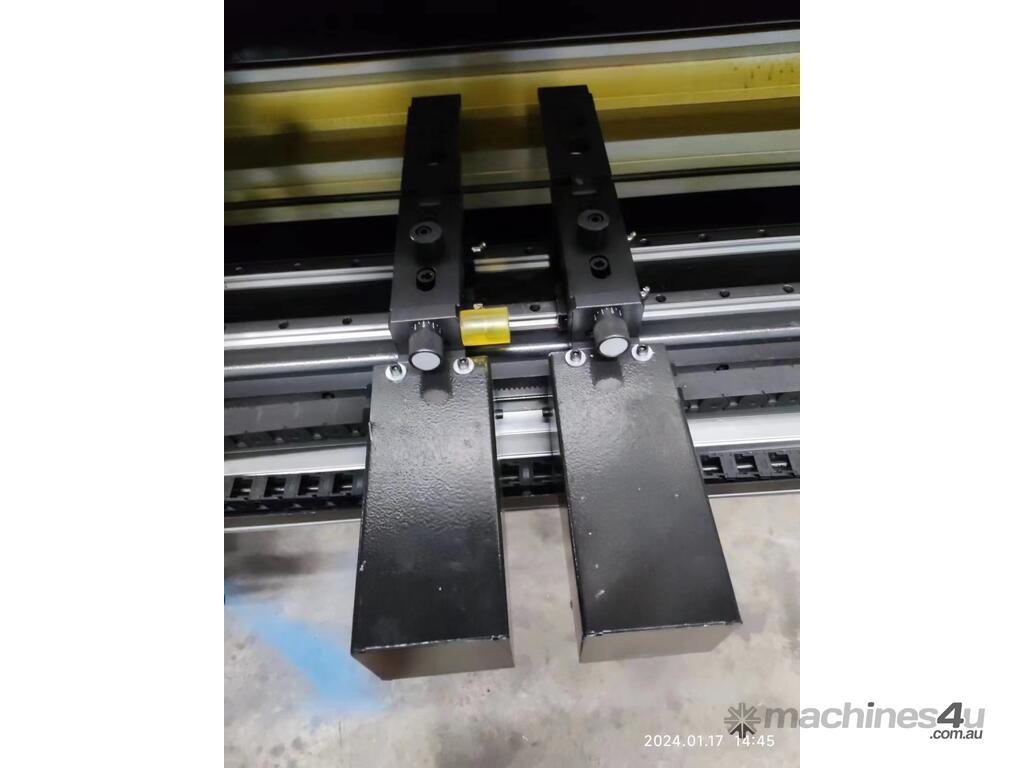

- Back gauge Fingers - 2 fully auto + 2 semi auto, servo controlled
- Auto Crown adjustment
- 2 adjustable Front Sheet Supports

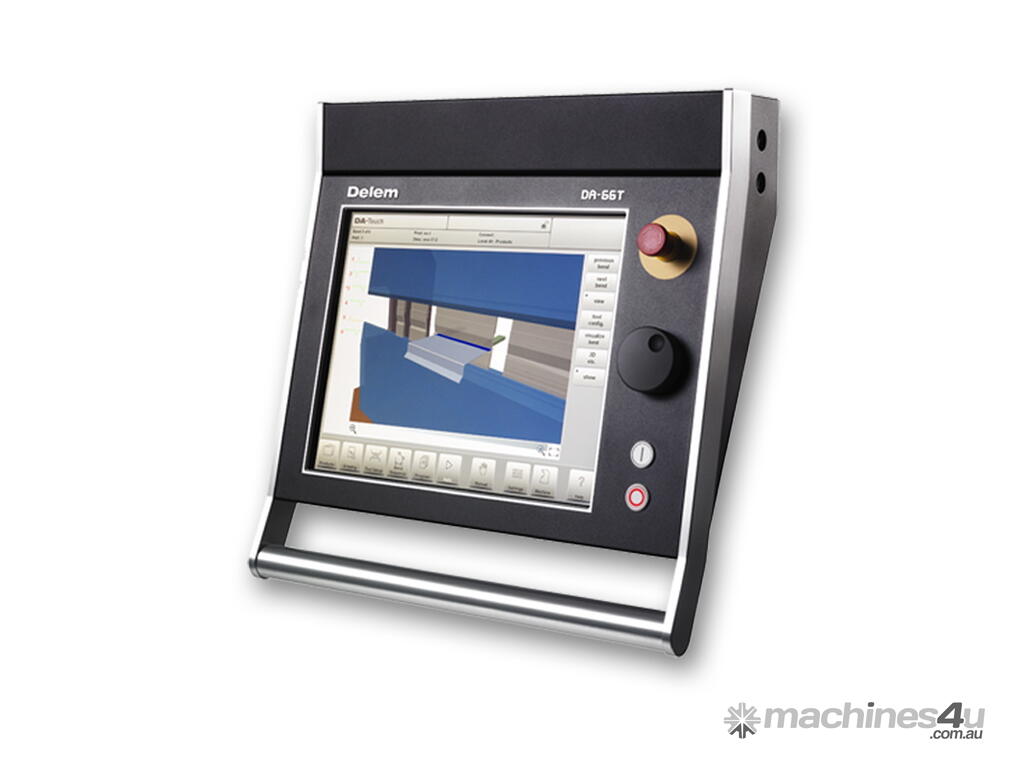

- Delem DA66T CNC Control System and touch screen + remote programming from PC

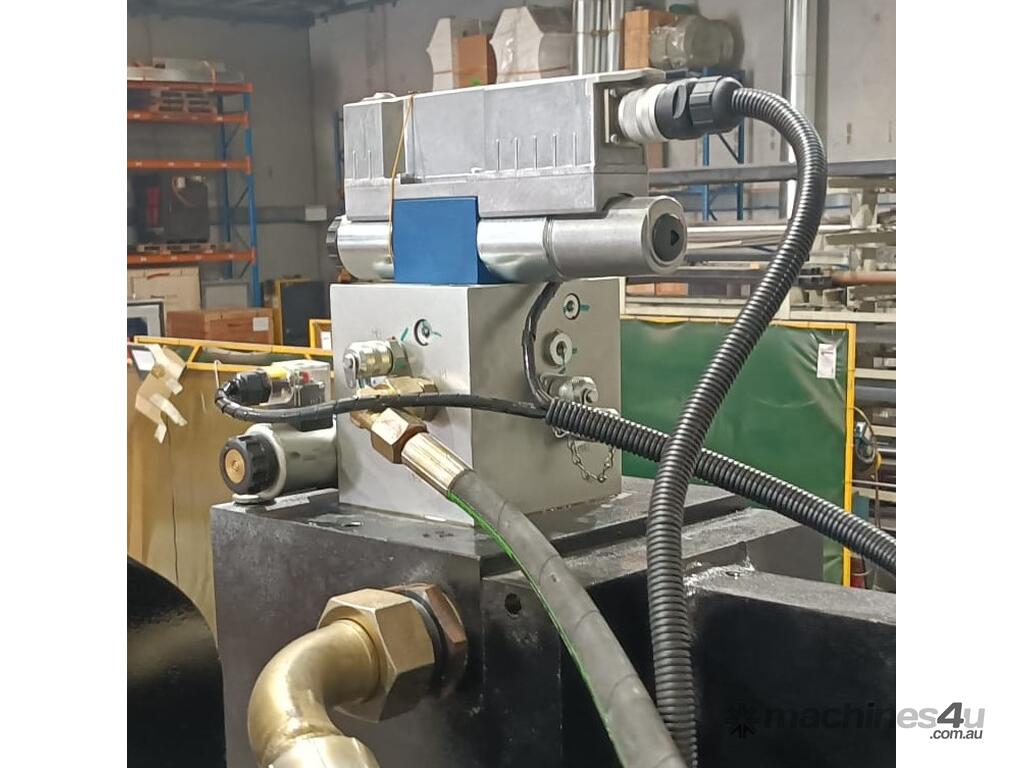

- Bosch Rexroth Hydraulic Valves
- Sunny USA Oil Pump

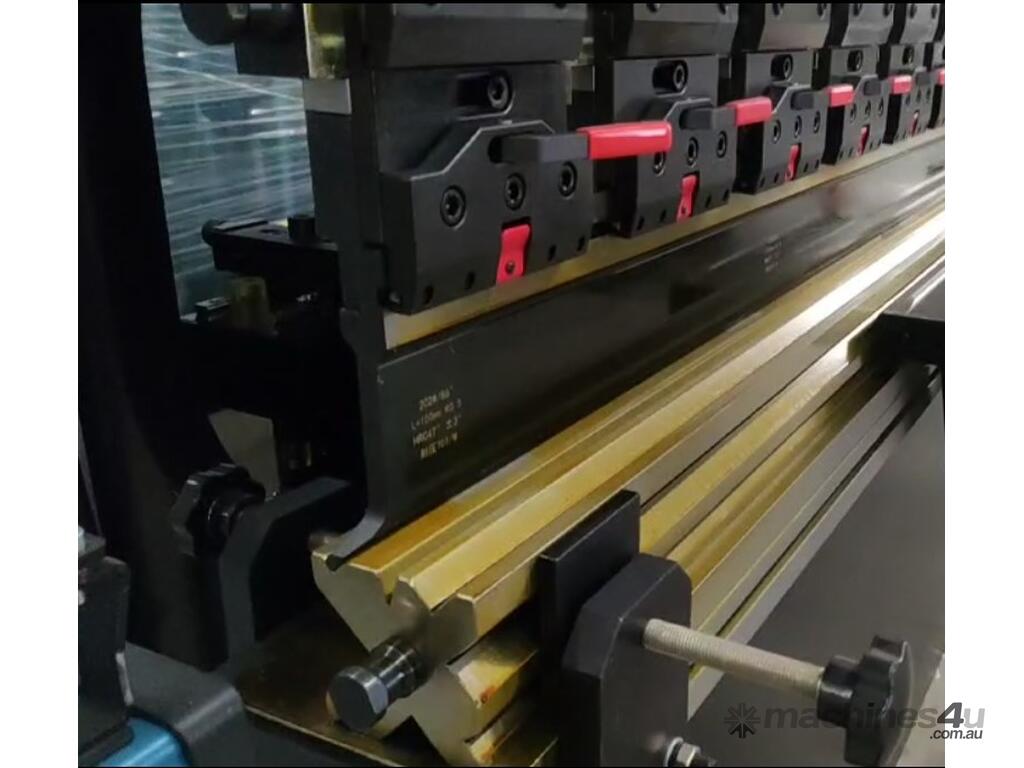

- Kyokko Quick Clip Clamps
- Fagor Linear Scale
- Hiwin Linear Guide Rails and Ball screws

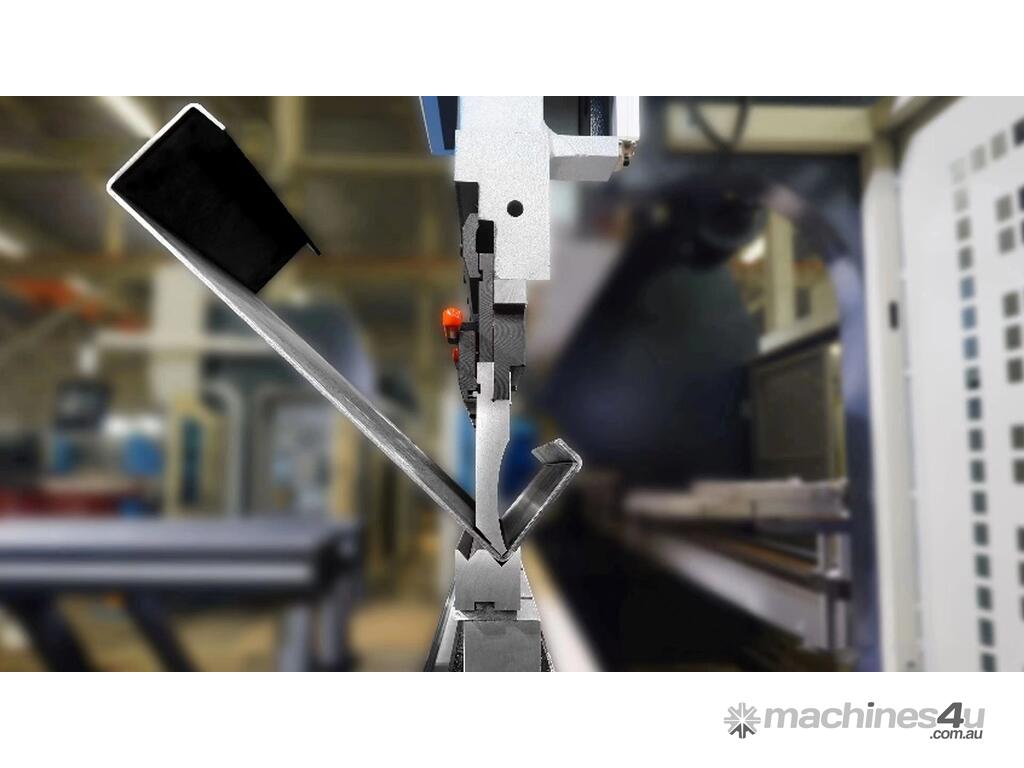

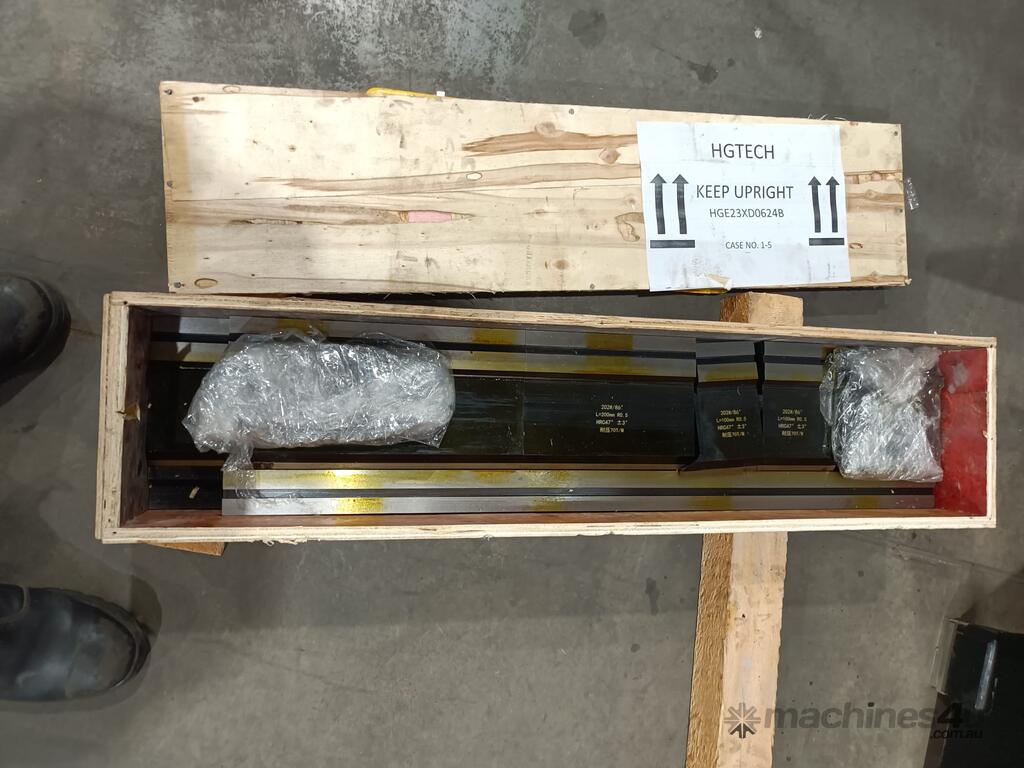

- Punch Standard 120mm high, 86 Degree, Radius 0.5mm, 3.2m in various segments

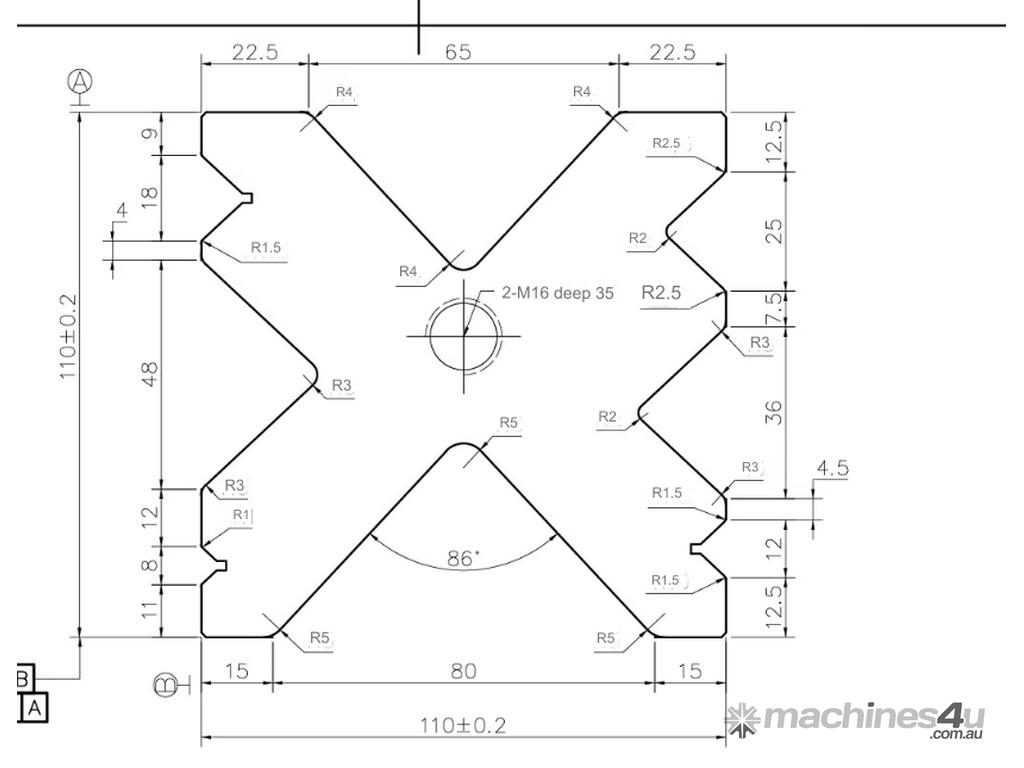

- Die 110 square x 3.2m long, Multi V – 8, 12, 18, 25, 36, 48, 65, 80mm

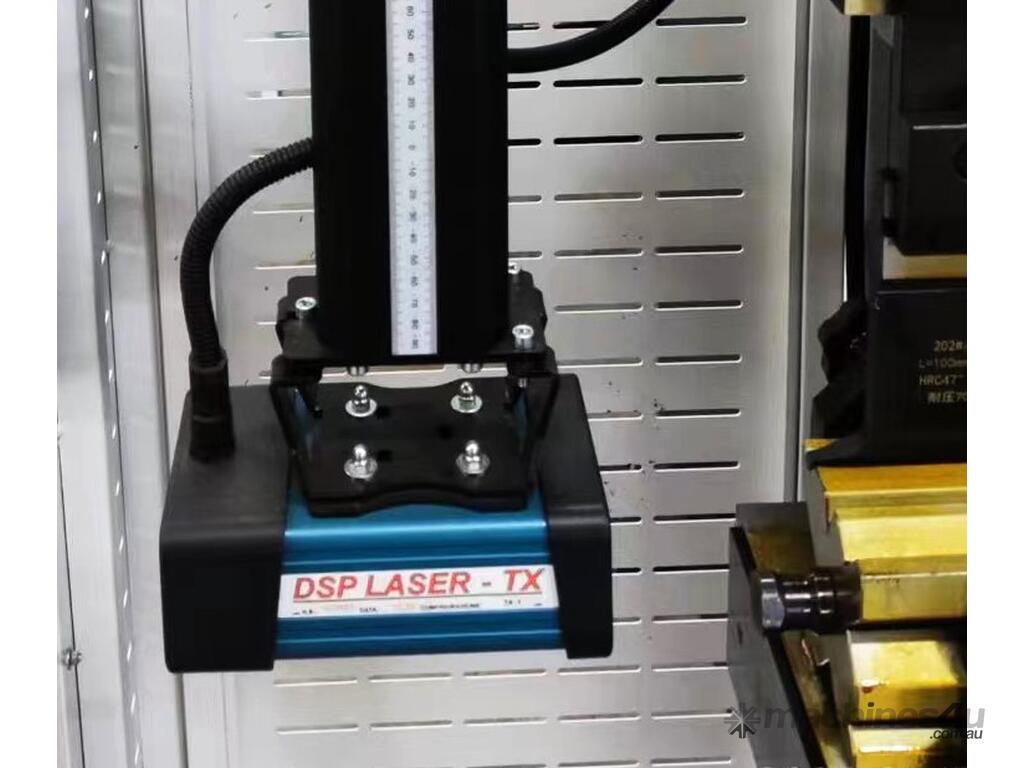

- DSP Laser - Operator Safety Protection Curtain

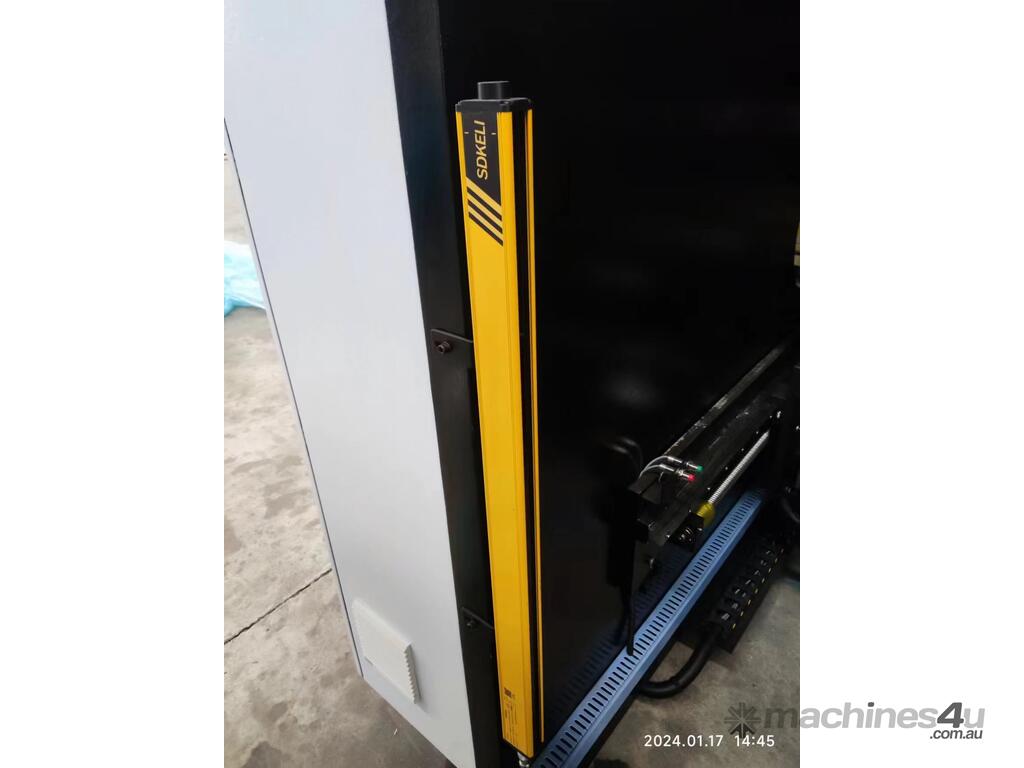

- Rear Safety light curtain
- Farley Installation, Commissioning, Training and 12 month warranty
- Container Delivered to Local Port (Delivery to site and unloading extra)
- Farley lifetime support

Options available:
- Press Capacity 50, 135, 175, 210, 250, 300, 400 up to 2000 Tonnes
- Width 1.6m, 3.2m, 4m, 5m, 6m
- Larger Throat Depth & Opening
- Servo Axis: 4+1 / 6+1 / 8+1
- Controller Delem 53T, 58T, 66T or 69T
- DXF and 3D file import
- Customized tooling as required
- Laser Angle Measurement
- Hydraulic Clamping System for tooling
- Auto Sheet Following Arm

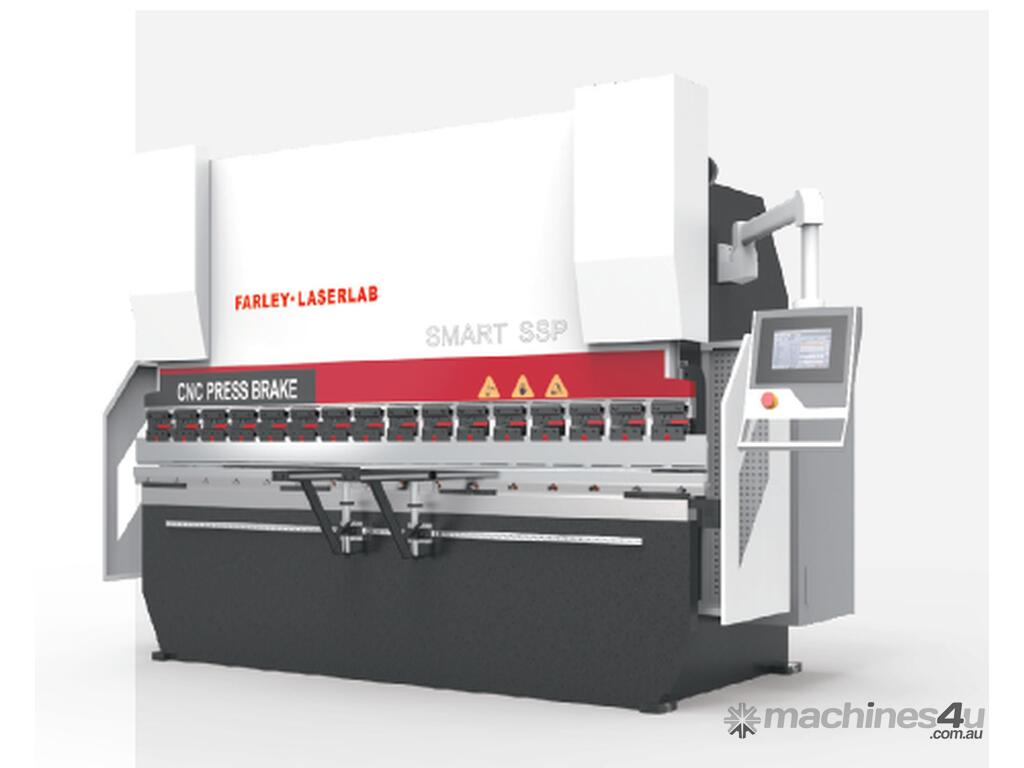

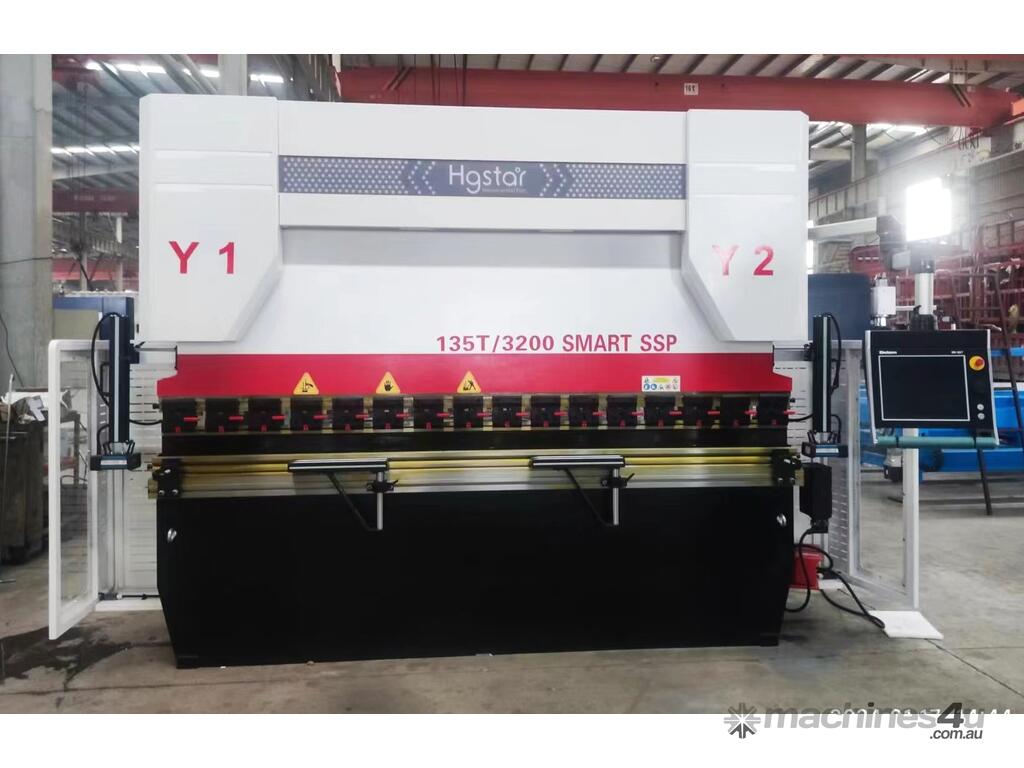

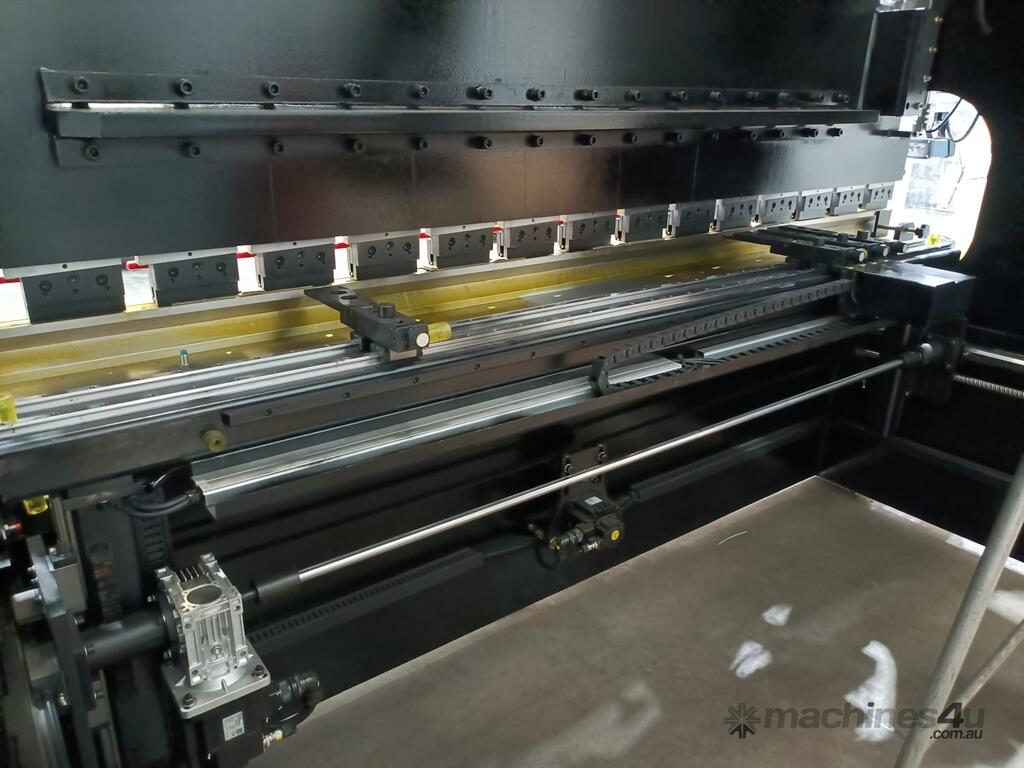

Farley LaserLab presents the Smart SSP Press Brake machine. This is the latest in modern Press Brake equipment. The servo controlled Smart Press Brake is extremely power efficient and quiet. The Smart Press delivers accurate, reliable & repeatable bending with increased efficiency. The Servo driven machine will increase productivity and provide high returns.

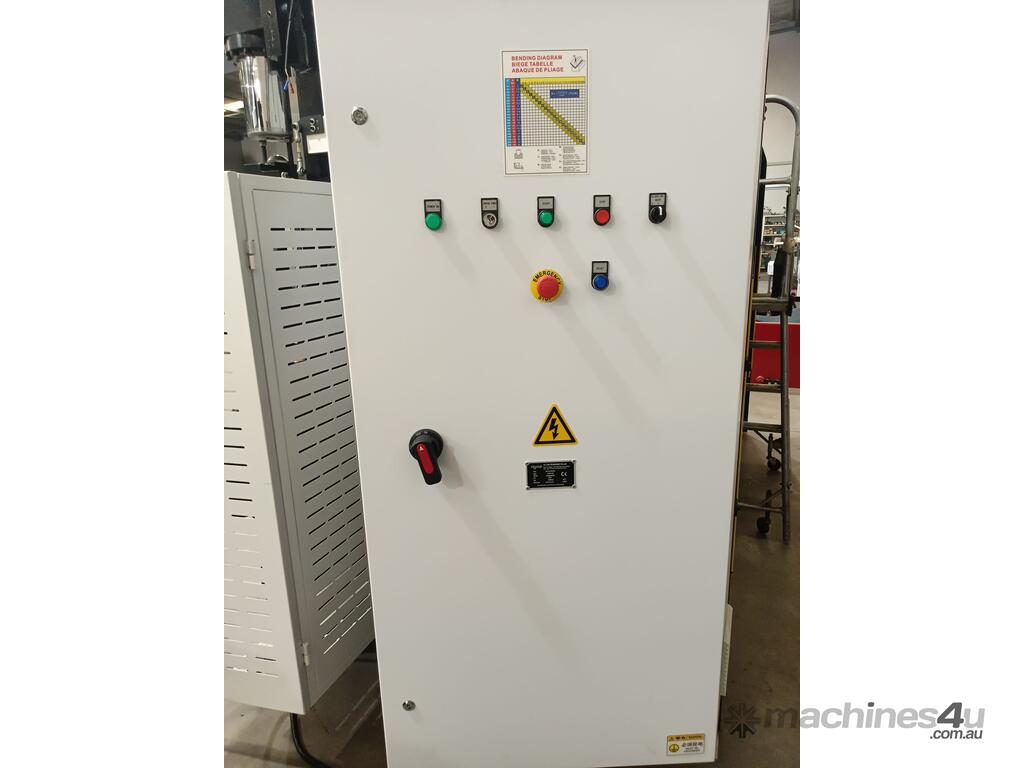

This Smart SSP Press Brake machine is one module containing the sturdy press structure, hydraulics system, control cabinet, operator console and front and rear laser safety curtains. The digital servo system independently controls the hydraulic rams, auxiliary axis for the finger stops and crown compensation. The Delem CNC control encompasses part programming, material properties, tool definition and machine parameters with, easy to follow menus and graphical tools. The Delem CNC computes all the machine movements and parameters which are displayed and can be tested or adjusted by the operator. Precise bending simplified!

Why Buy from Farley LaserLab?

- We are a manufacture and proudly provide lifetime support for our products.
- We have in house engineers and service technicians to support you.
- Access to wide range of tooling
- Inventory of the correct spare parts.
- Farley LaserLab has 30+ Years experience in the industry.
- Pay for machine when in Australian Port not before it leaves China (improve cash flow).
- Low Machine Deposit.
- Based in Melbourne with staff on hand here & in Brisbane.
- We understand your needs and are here to help you

Contact Farley LaserLab for more information.
