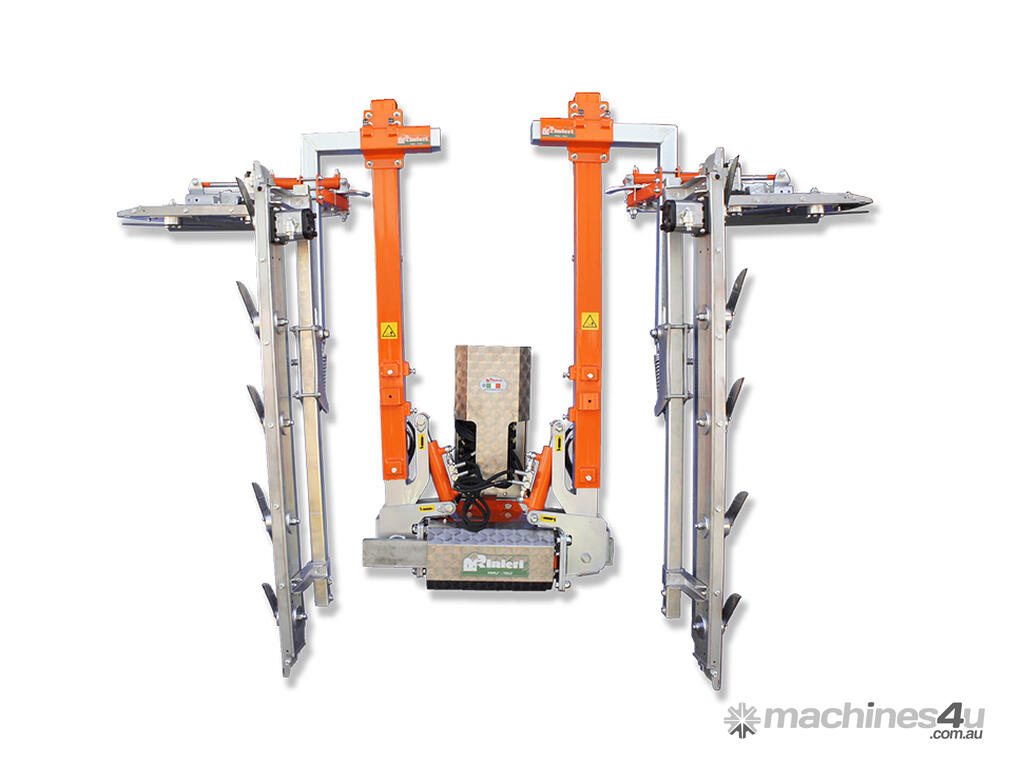

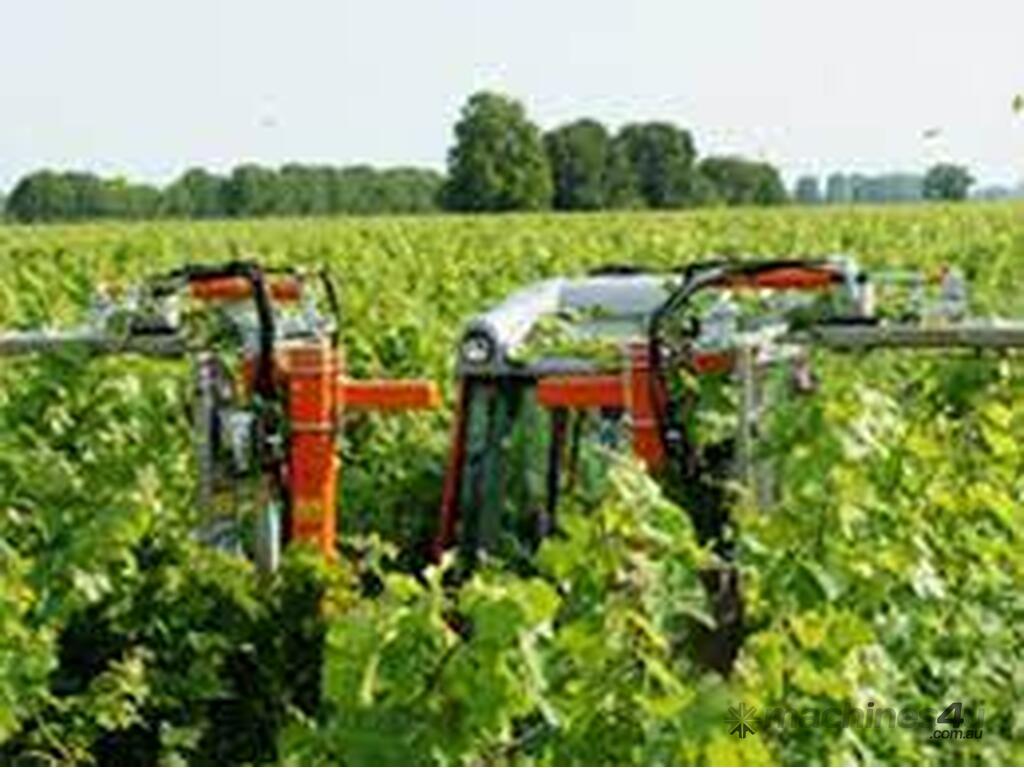

The CRV Vision-2 pruning trimmers are characterised by better front visibility, heavy-duty side shift on bearings and better performing inclination of vertical bars, which makes them suitable for use in hilly terrain. With independent lift adjustment of the two cutting bars, the CRV-Vision 2 will perfectly match the needs of plants situated on slope sides making it ideal for pruning and trimming vineyards. Italian made by Rinieri company; a specialist pruner manufacturer.
- Left and right vertical cutter bars each with a topping cutter bar is powered by hydraulic motors.
- Two vertical posts create clear central vision of the vineyard row for the operator.
- Electro-hydraulic valve block controls all hydraulic functions with 7+1 function joystick in the cabin.
- From a single joystick, control the 7 cylinder functions and the on and off of the cutterbars.
- Independently raise / lower each cutterbar 60cm by hydraulic cylinder controlled from joystick.
- Independently angle each vertical cutterbar +/- 15 degrees by hydraulic cylinder controlled from joystick.
- Independently angle each topping cutterbar +/- 15 degrees by hydraulic cylinder controlled from joystick.
- Hydraulic side shift entire trimmer 25cm by hydraulic cylinder controlled from joystick.
- Additional manual side shift of 20cm.
- Hydraulically remove trimmer from the tractor front hitch and put onto the parking stand.
- Cutterbar hydraulic motors have over pressure protection
N.B. Pricing and specifications subject to change without notice. Dealer delivery chargers apply. E&OE.
