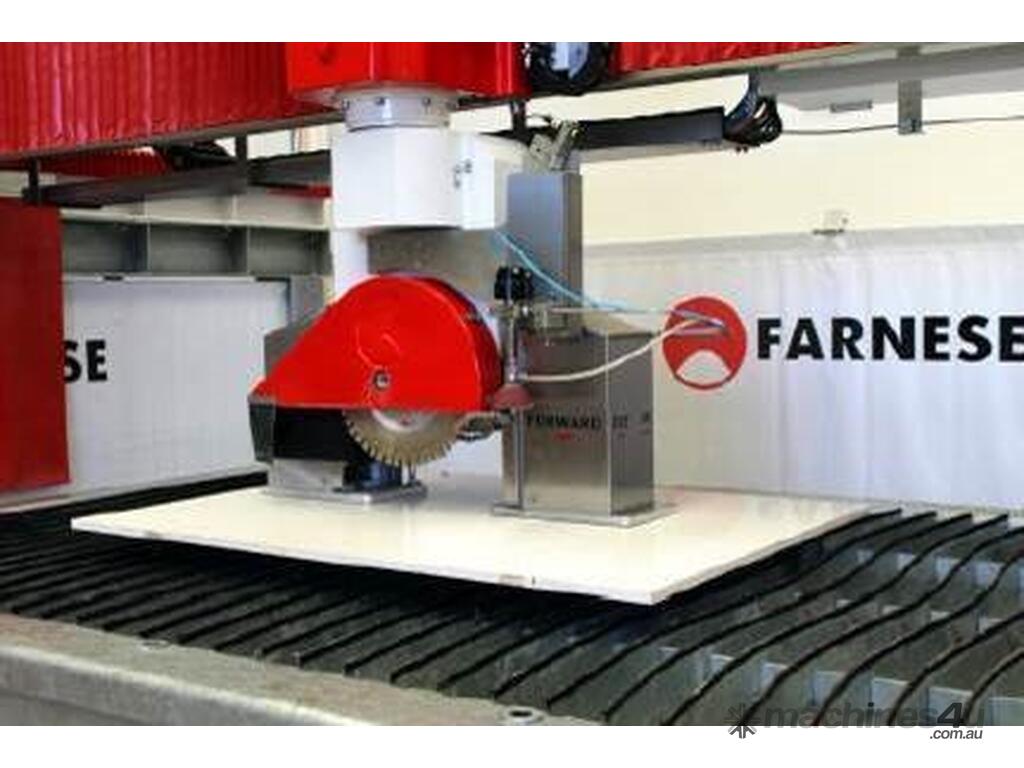

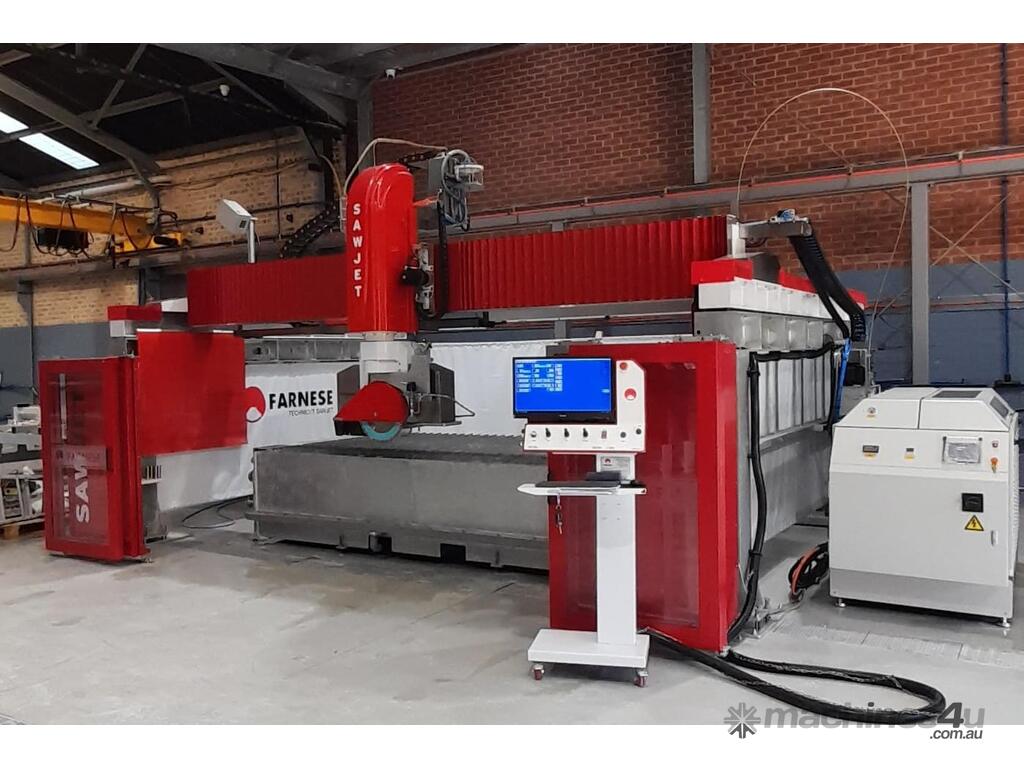

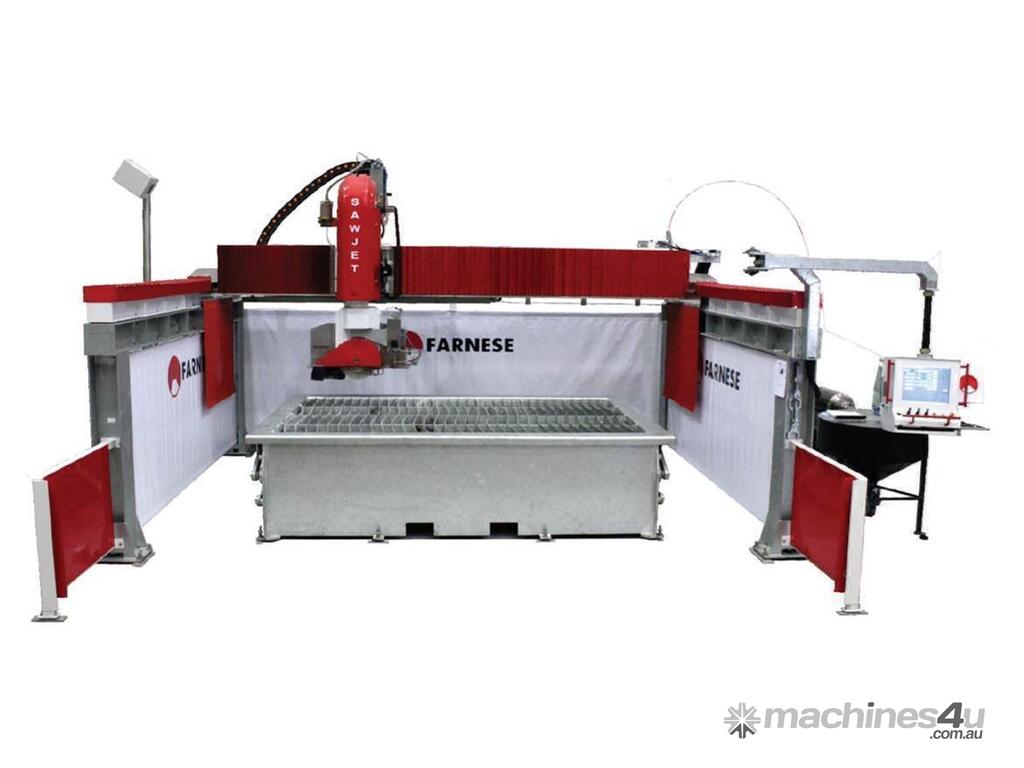

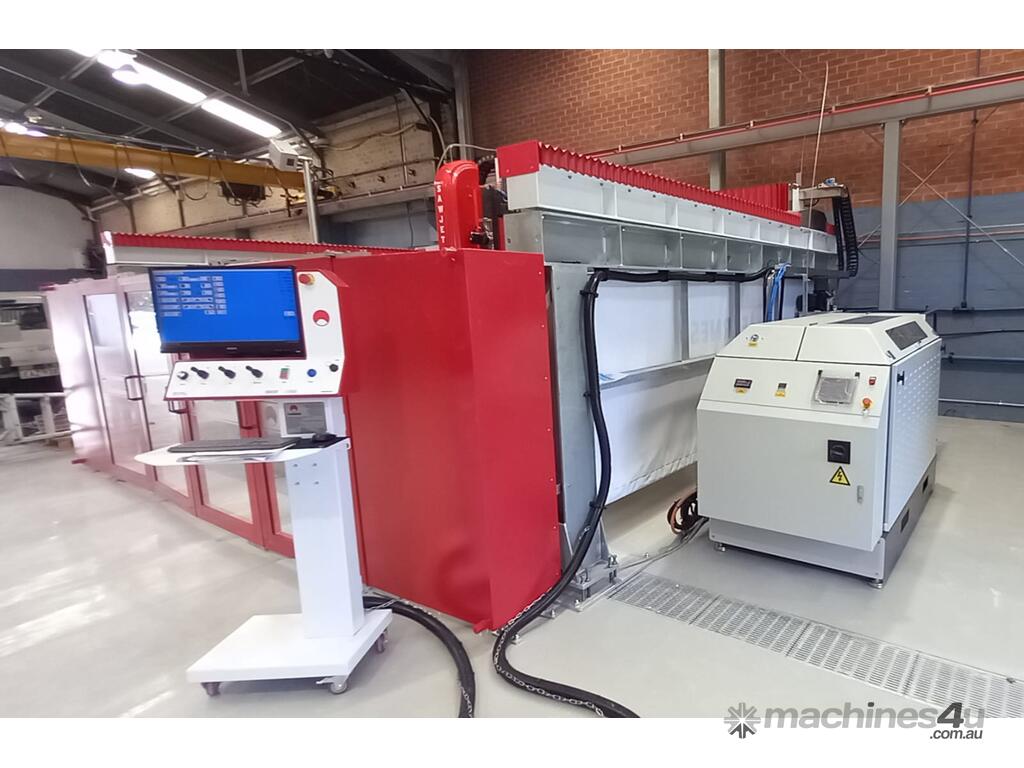

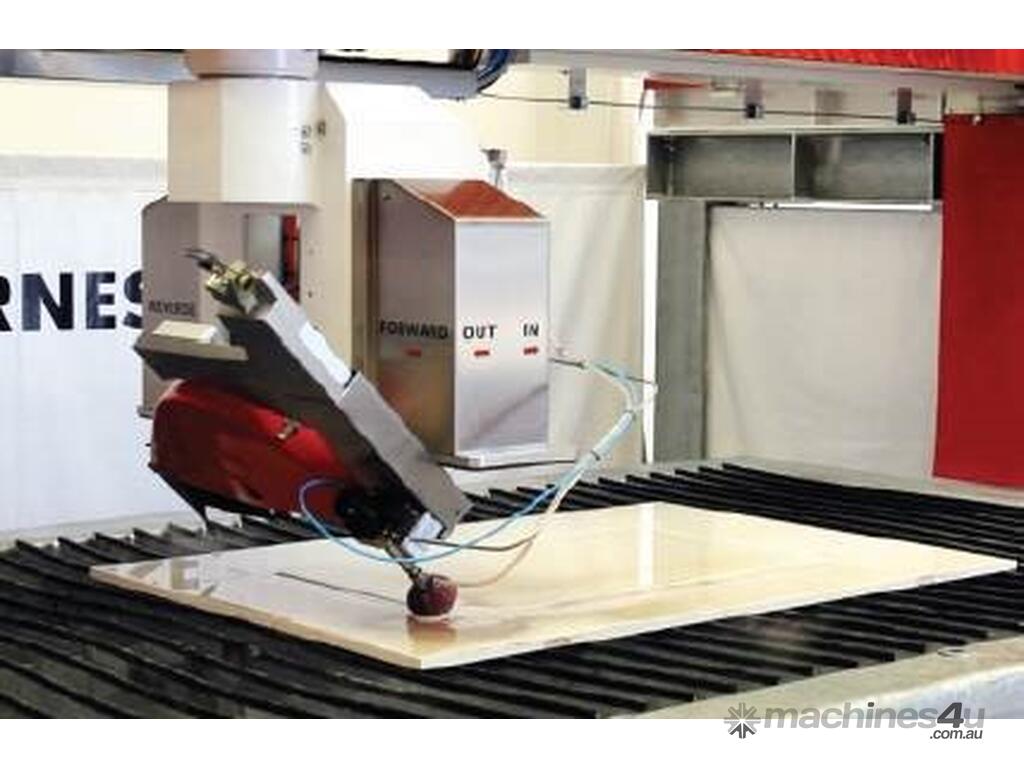

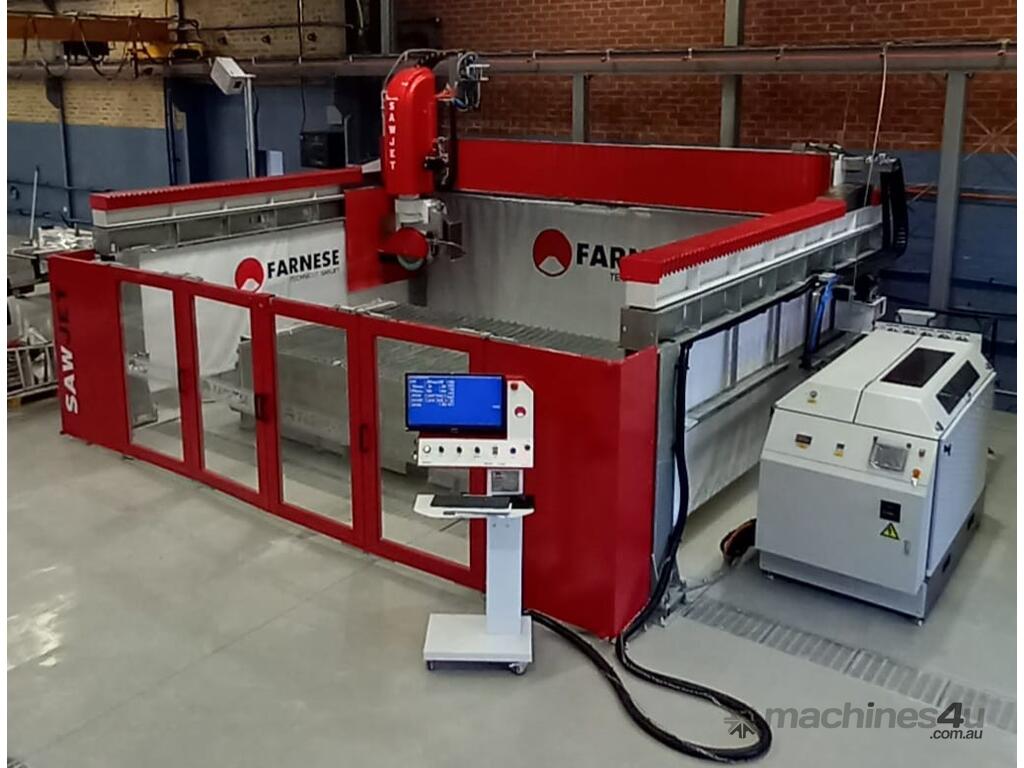

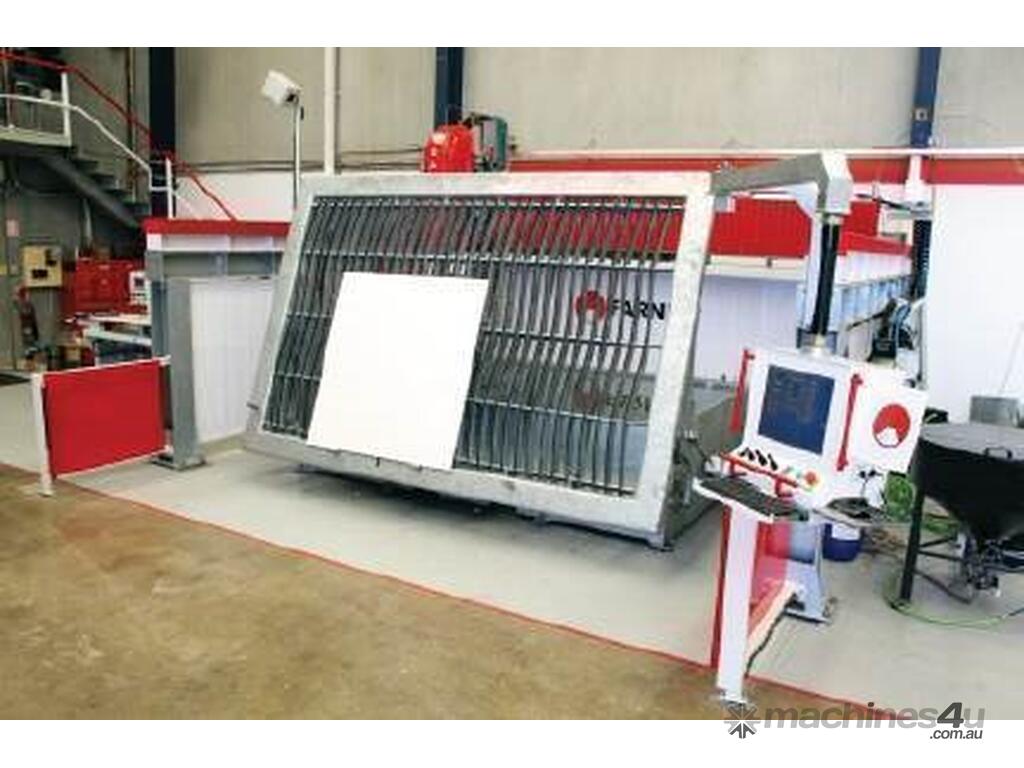

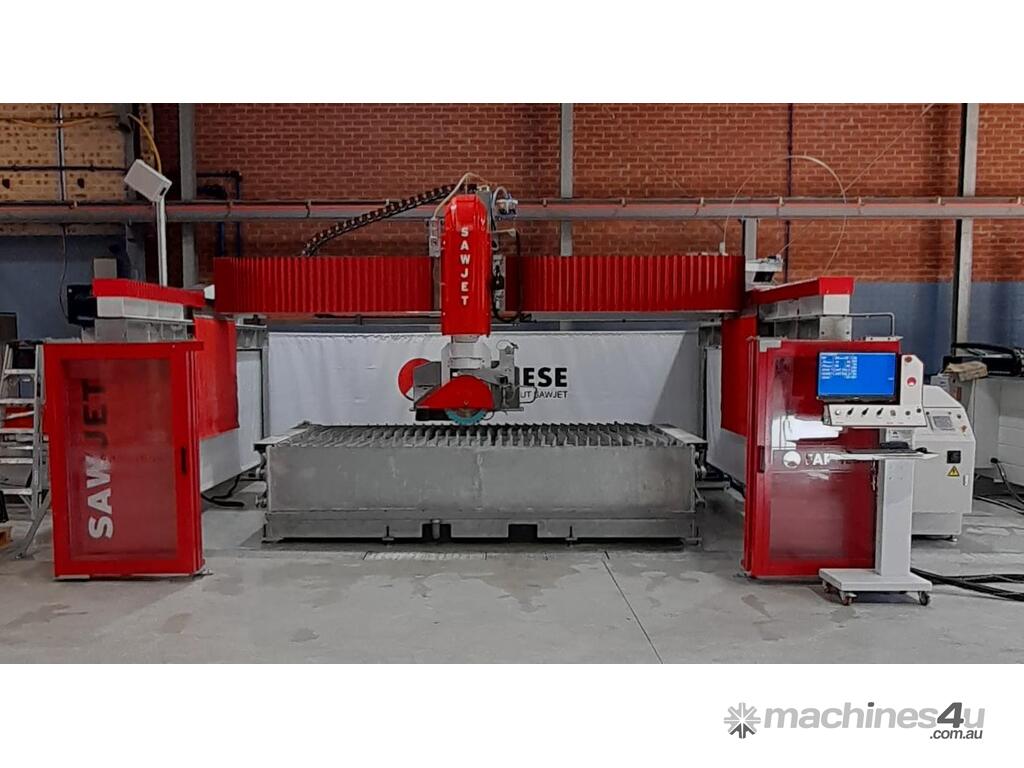

The TECHNICUT CNC Sawjet is the latest in Top Bridge Saw Design plus
waterjet cutting capability. It is a full 5 axis CNC controlled saw/ waterjet
fitted with side vacuum manipulators for ease of movement of the material
with thickness measuring probe.
Even though it is a full CNC controlled 5 axis machine, the operator can still
use the machine manually as if it was a simple standard bridge saw. The
machine is fitted with a separate pendant station that allows the operator
movement in order to use the machine for quick manual cuts. It can also
work in a Semi-Automatic Program in which the operator can quickly and
easily program all the cuts in the X and Y axis allowing for quick trimming
and rectangle production. The CAD/CAM system supplied with the
machine allows any 2D shapes to be produced including vacuum moves.
You can also perform simple or complicated cuts using the vacuum
manipulator whenever you have blind or curved cuts. The waterjet
capability empower you to deal with more complicated and curved shapes
in a new range of materials.
With the ability to connect to the internet it is possible to log into
the machine remotely from our office to help trouble shoot any issue or
provide further online training.
