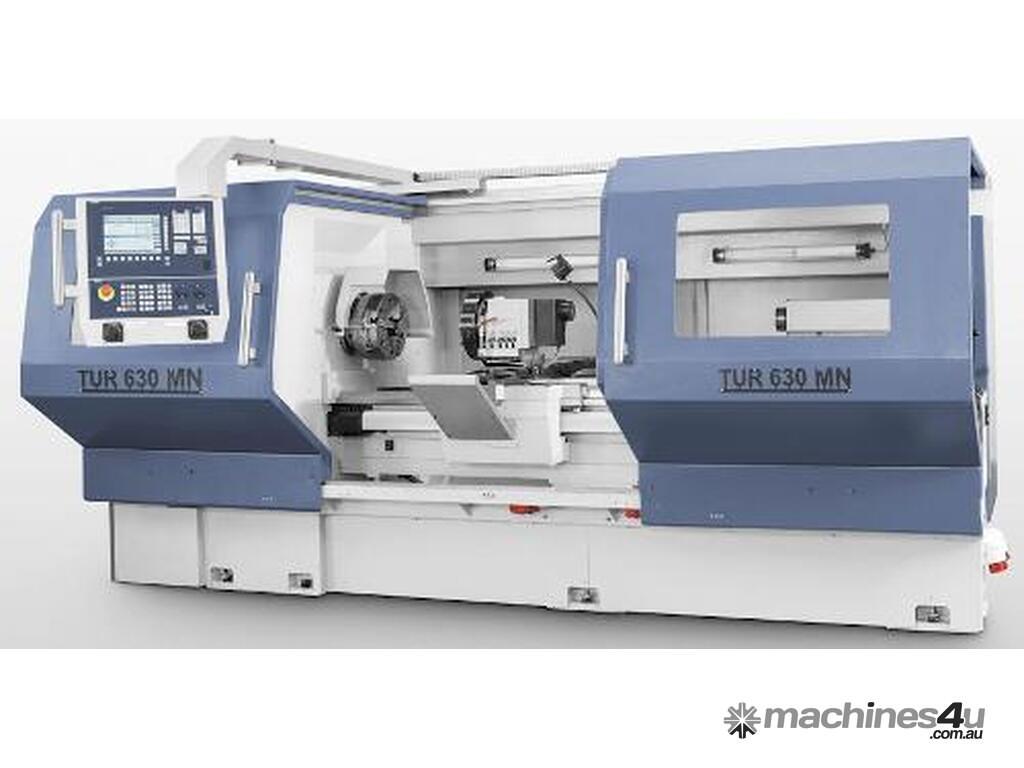

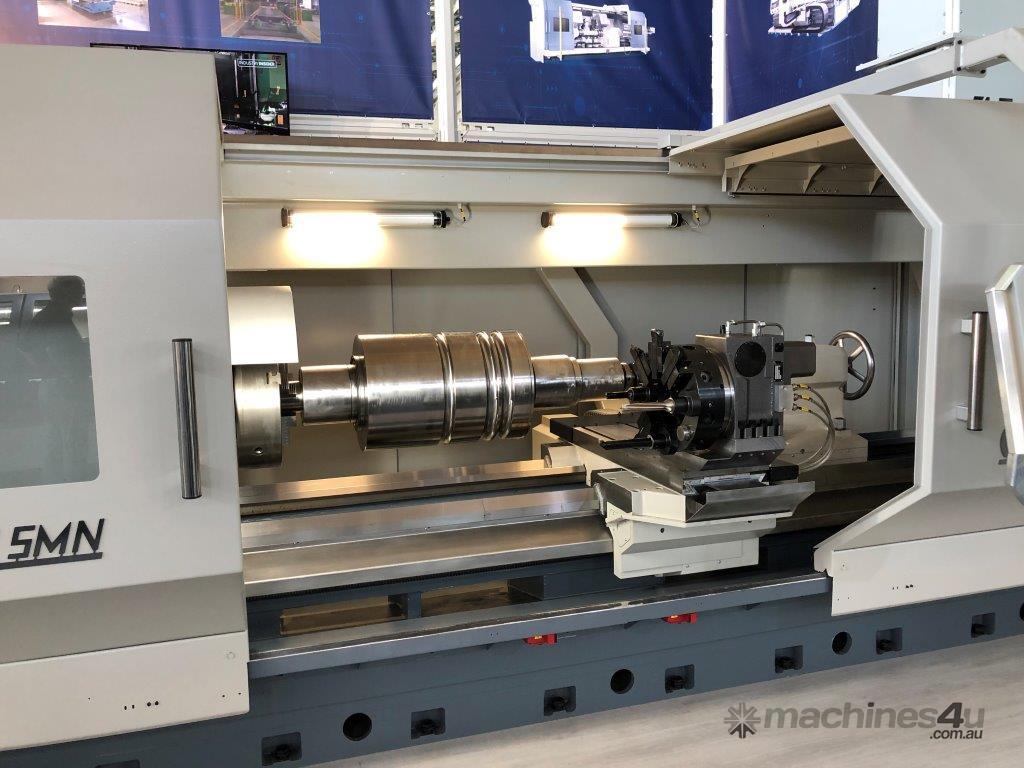

Fat TUR MN 630 CNC Lathe

FAT TUR MN 630 ~ 710 Manual / CNC Lathe

European Lathes so simple to use that anyone can operate them!
Specifications
Chuck size (mm): Manual 315 / 400 (Hydraulic opt)
Max turning diameter (mm): 630 / 710
Swing over bed (mm): 630 / 710
Swing over carriage (mm): 370 / 450
Max turning length (mm): 1000 / 2000 / 3000 / 4000
Max bar capacity (mm): 105 / 140
Spindle speed (rpm): 2500 / 1850
Gearbox: 2 speed
Width of bed (mm): 433
Motor (kW): 18.5

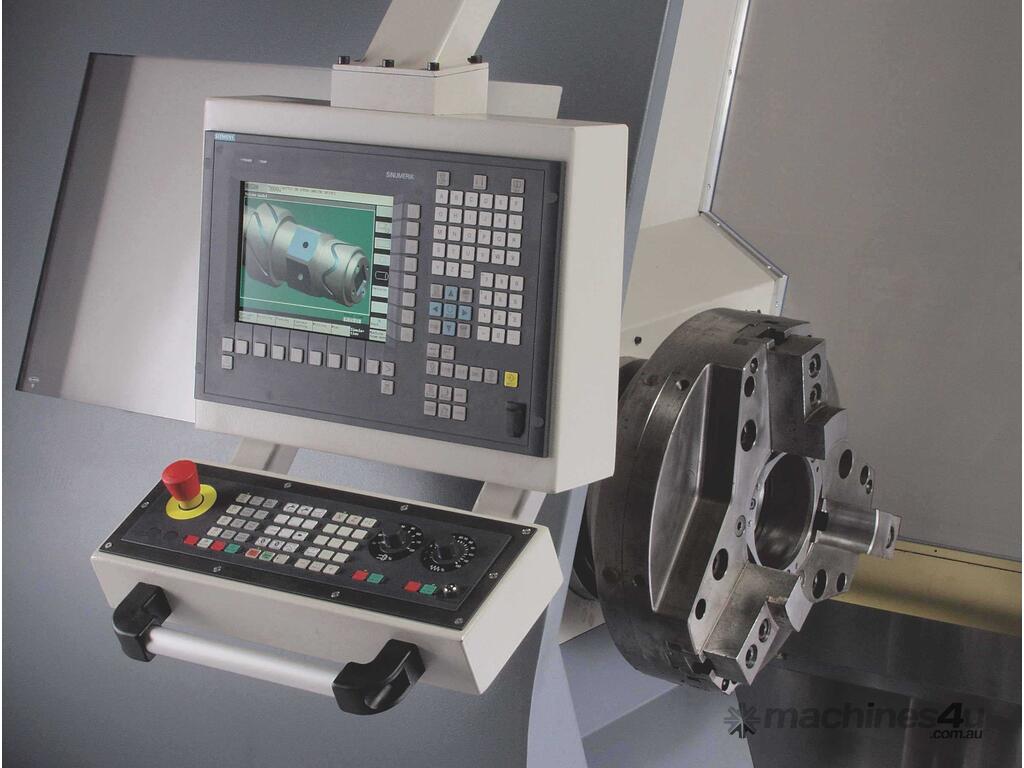

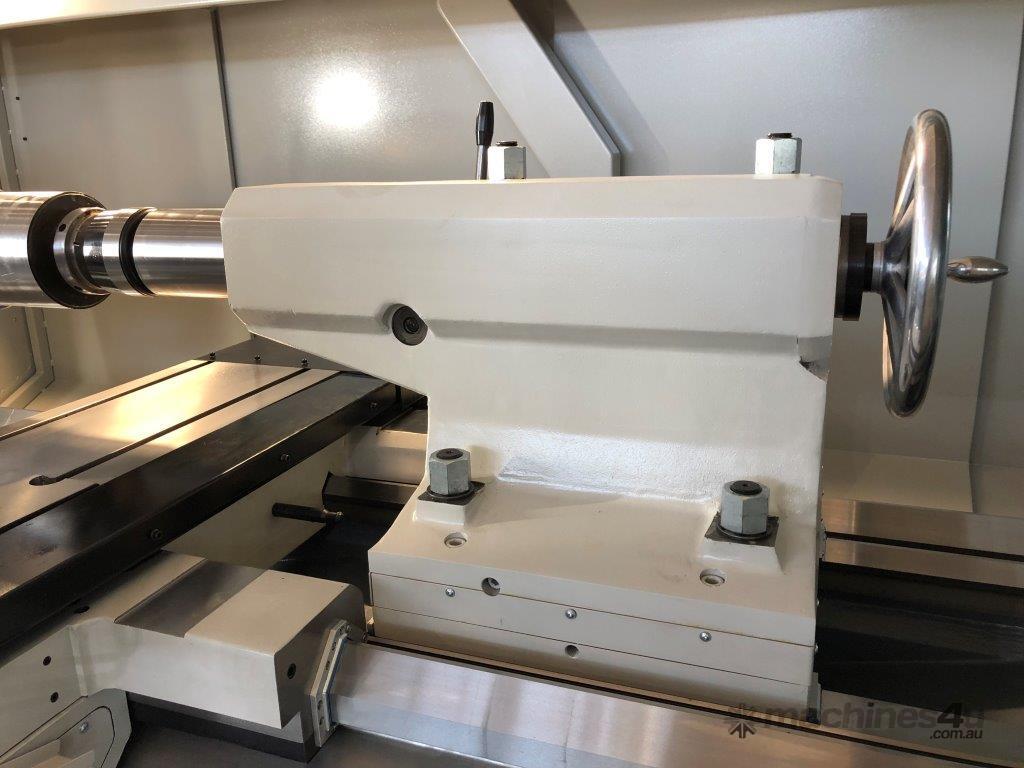

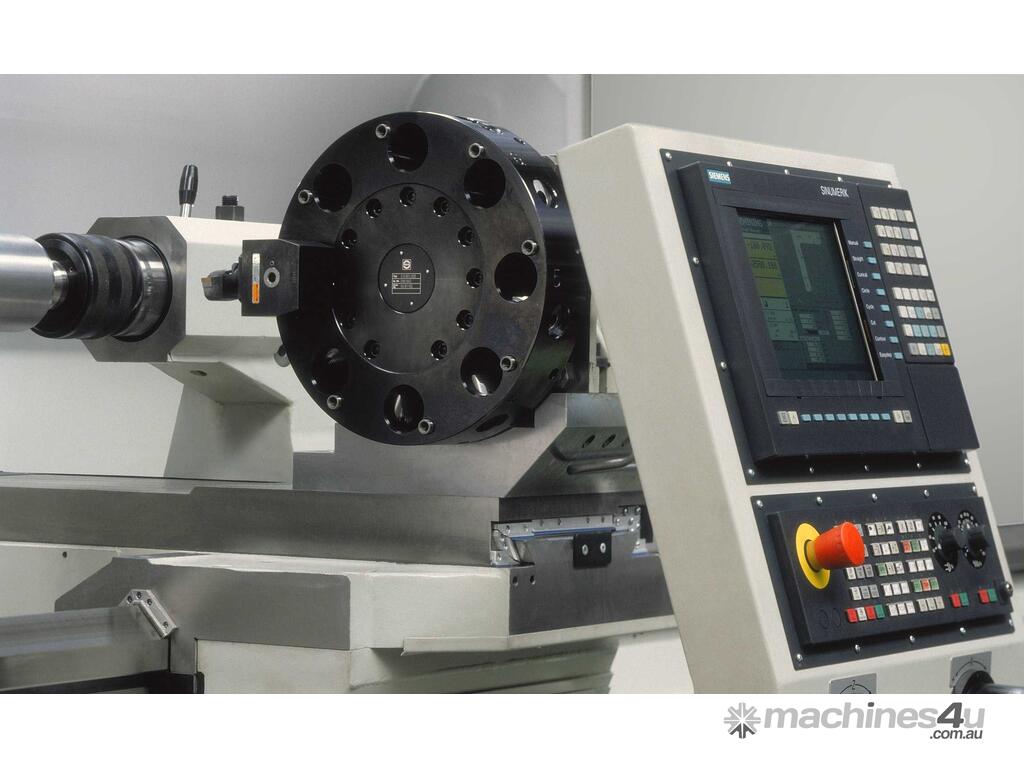

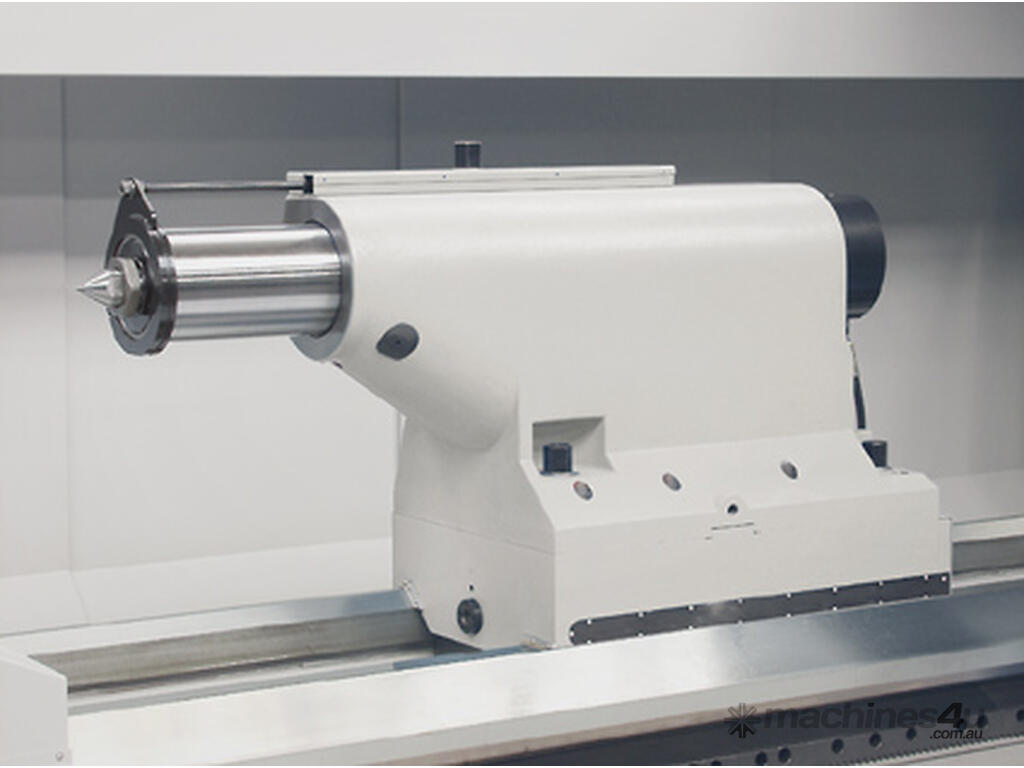

C/w Siemens 840DSL with ShopTurn User Friendly Conversational Programming System, Sauter 8 Position VDI-40 Auto Turret or Quick Change Tool Post, Steady Rest, Tailstock.

FAT are a European manufacturer of high quality flatbed CNC Lathes ranging from Ø630mm ~ 1,550mm swing over the bed. A long-established history, close affiliation with the German market and more than 55,000 lathes produced to date are what make these lathes one of the best available lathes on the market today!

Designed to replace conventional lathes, the user friendly control is powerful yet very simple to use, even operators with no CNC experience can be easily trained. Whether you have 1 or 1000 work pieces to produce the FAT TUR MN Series offers an affordable alternative for CNC turning especially when it comes to larger size work pieces. There is a TUR MN lathe to fit most budgets, with pricing starting from A$125,000 + GST and many optional accessories available so lathes can be specified in a more manual configuration or fully automated for a production application.
