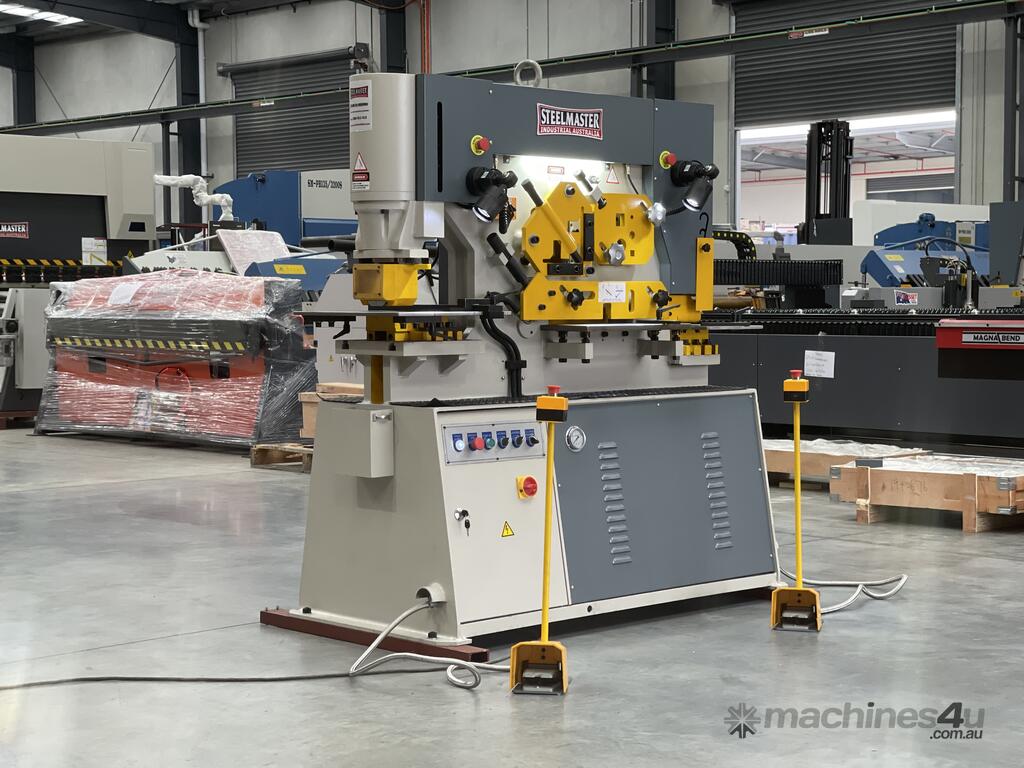

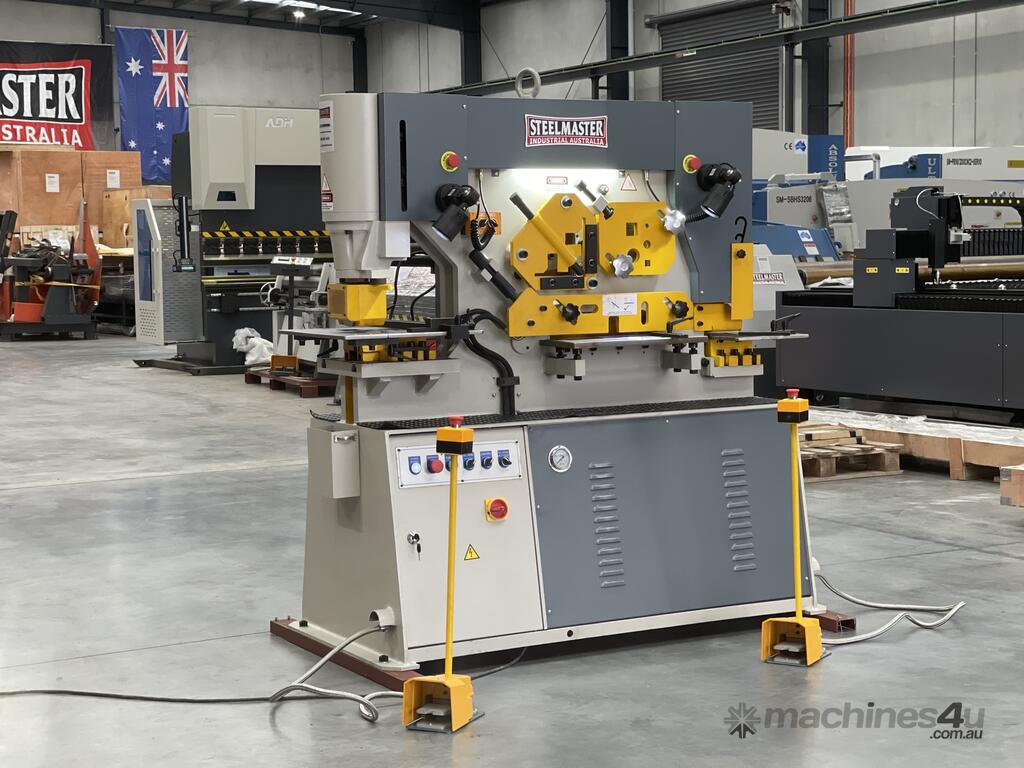

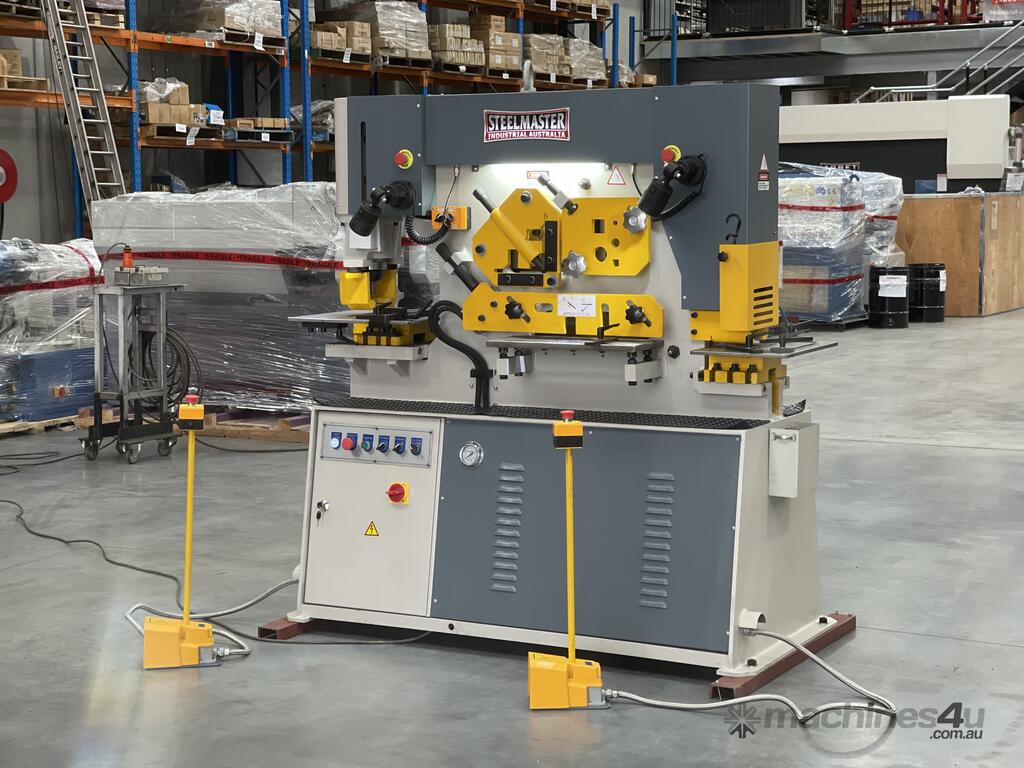

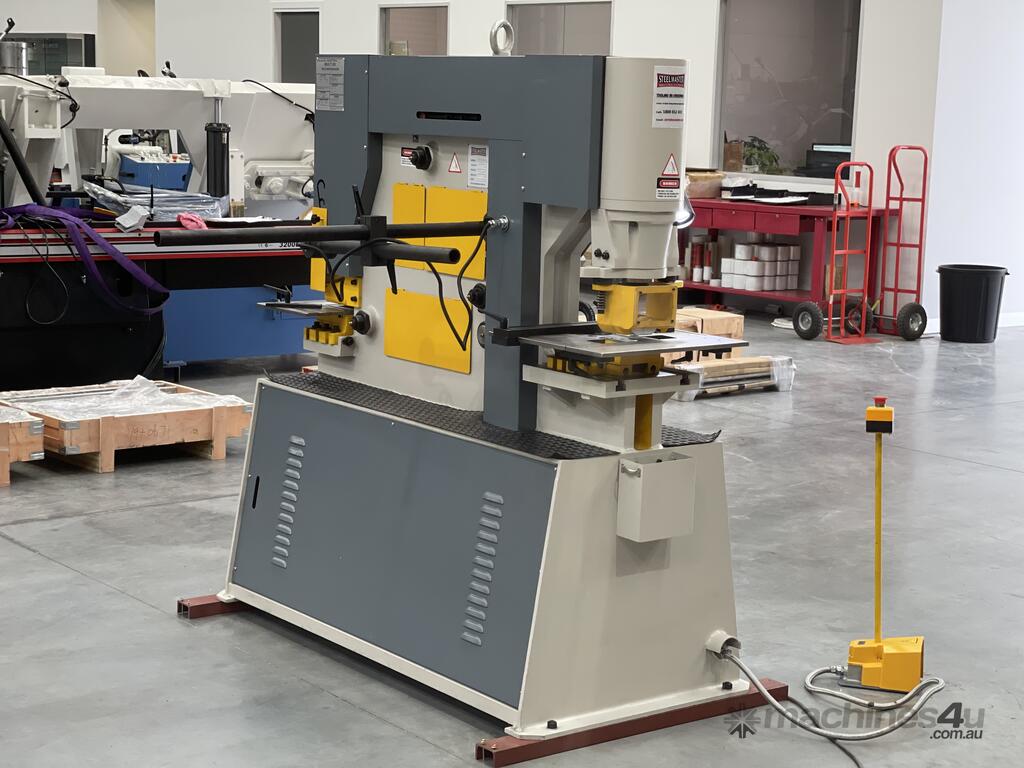

Feature Packed 60Ton Twin Cylinder Hydraulic Punch & Shear, Hydraulic Plat & Electric Touch & Cut

##SPECIAL PRICE LISTED WHILE CURRENT STOCK LASTS##

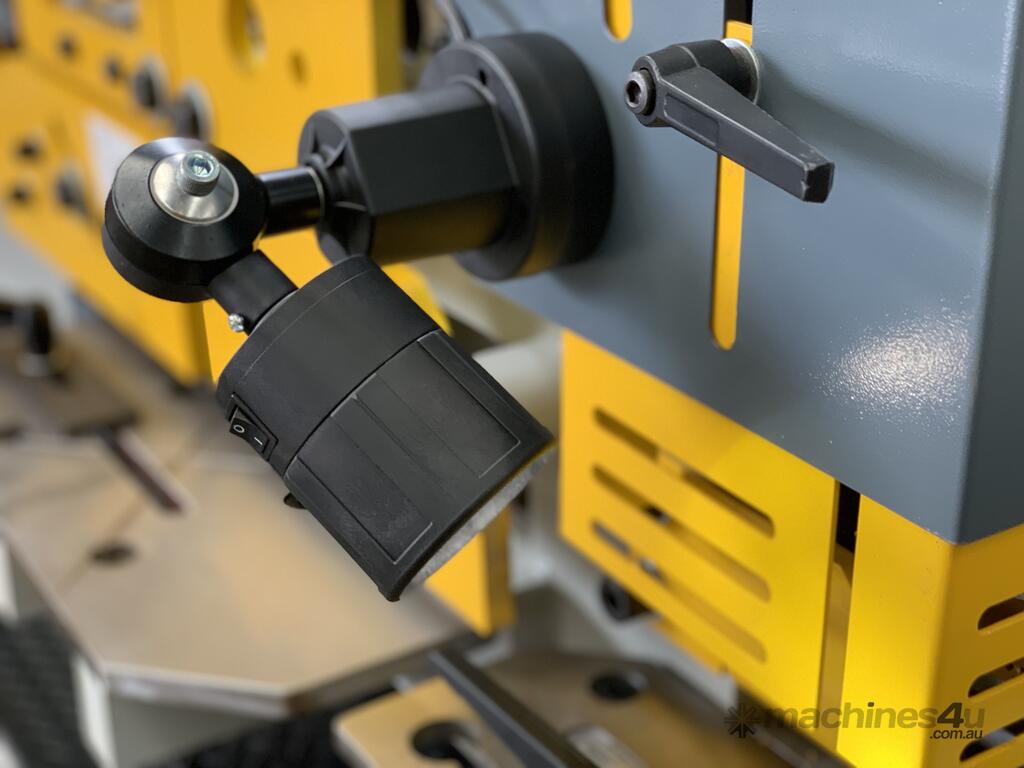

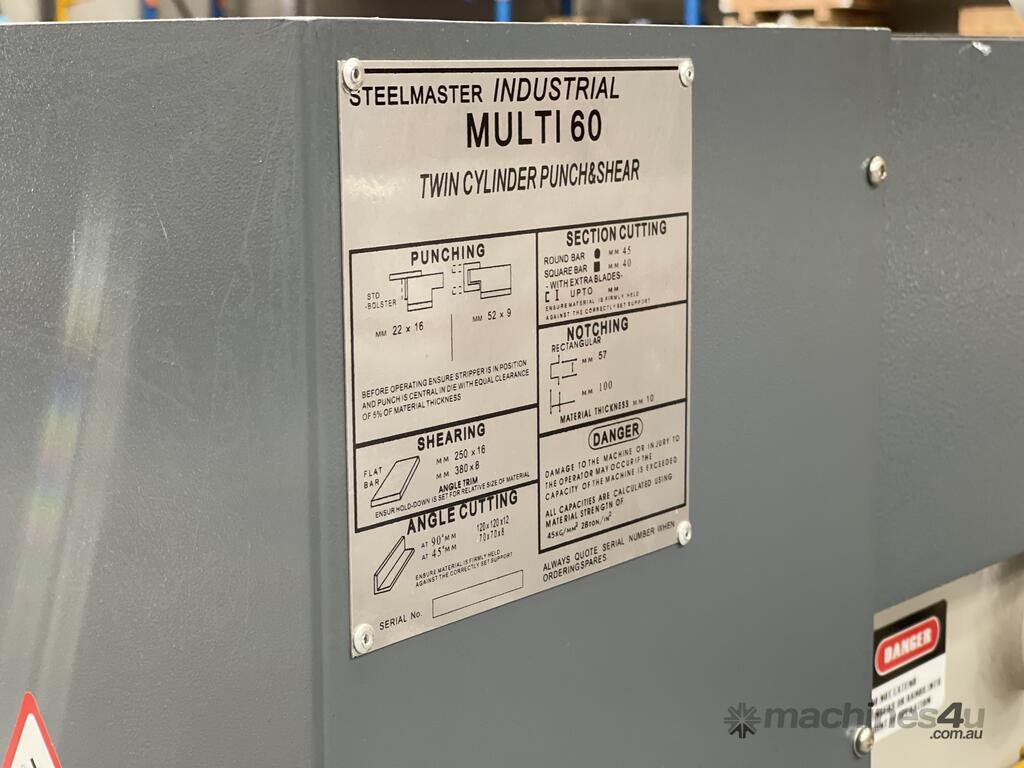

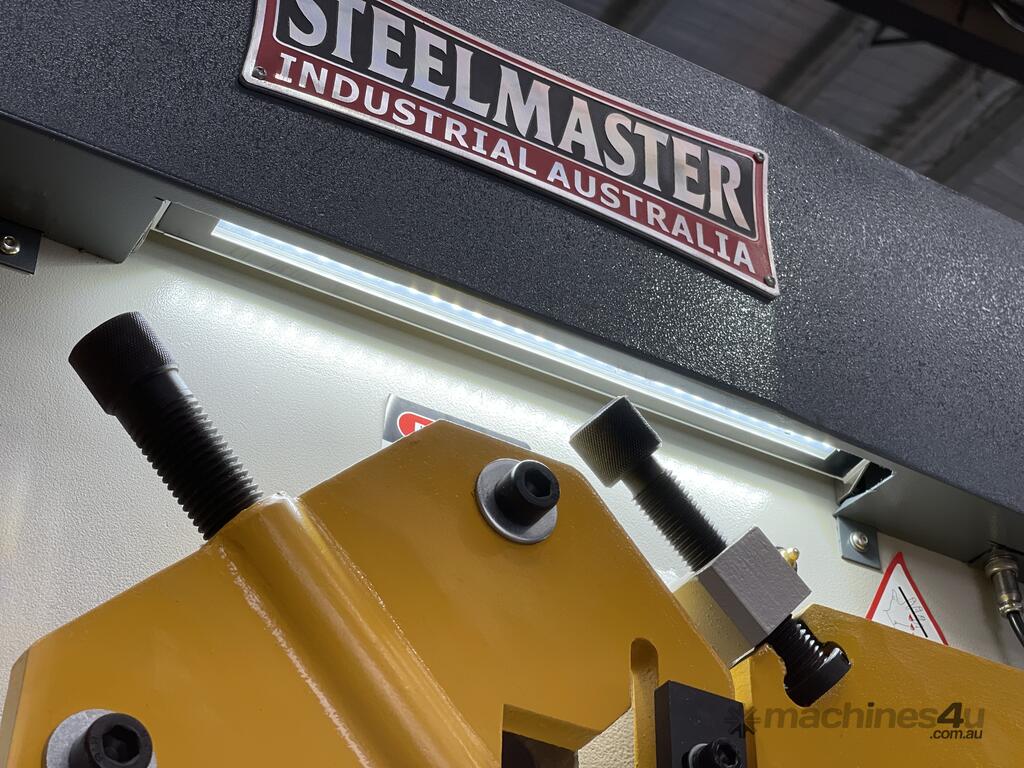

MULTI 60. Punch & Shear. Steelmaster 60Ton Hydraulic Double Cylinder, Punch, Shear. Crop & Notch Angle Cropping, 6 Sets Tools, 305mm Deep Throat, 1000mm Touch & Cut. LED Work light,

Description
This true Industrial strength Ironworker is your perfect partner in metalworking fabrication.
If you fabricate with steel, you’ll want one of these Punch & Shears working for you.
With five independent stations for punching, flat bar shearing, notching, angle cutting and section cutting, you’ll appreciate the convenience and labour savings over traditional methods.

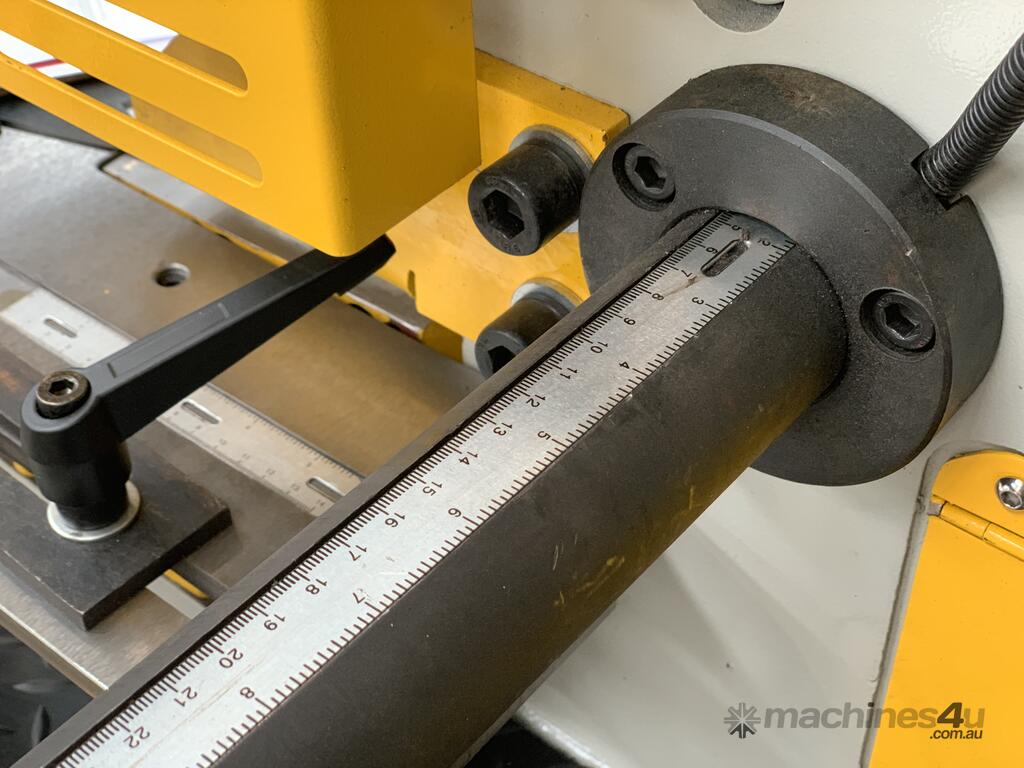

A work auto cut length stop is included for cutting uniform parts to length and a safety foot pedal makes operation extremely easy. Six sets standard Kingsland round punch and dies included.

Features
? double cylinder hydraulic punch & shear machine

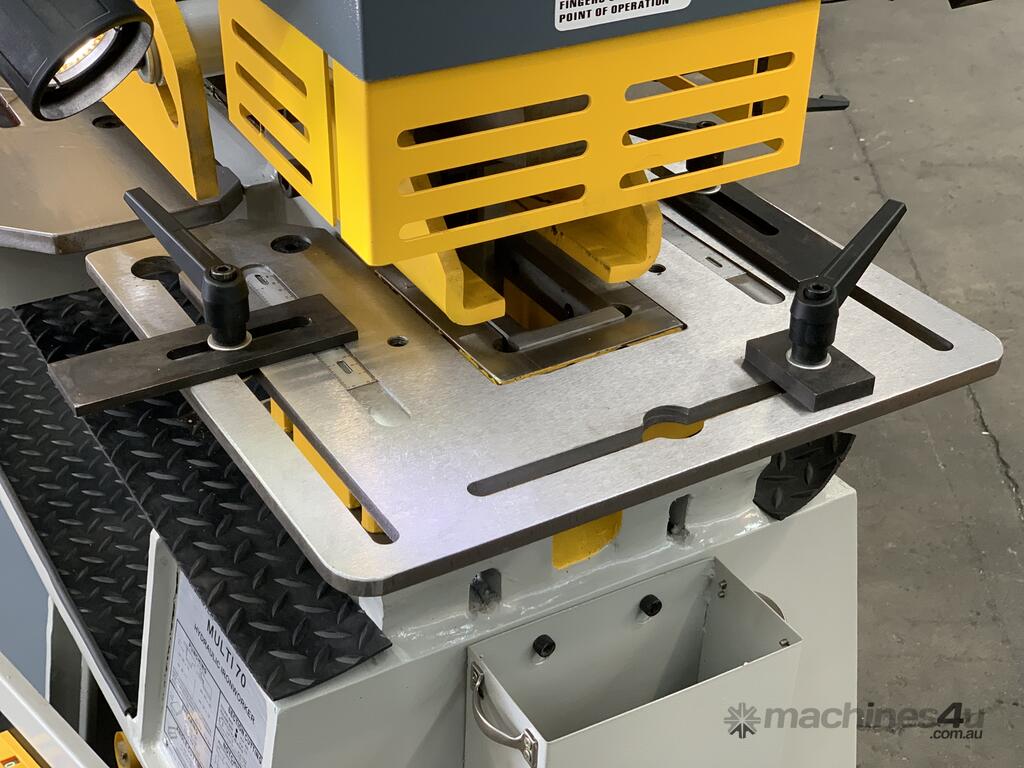

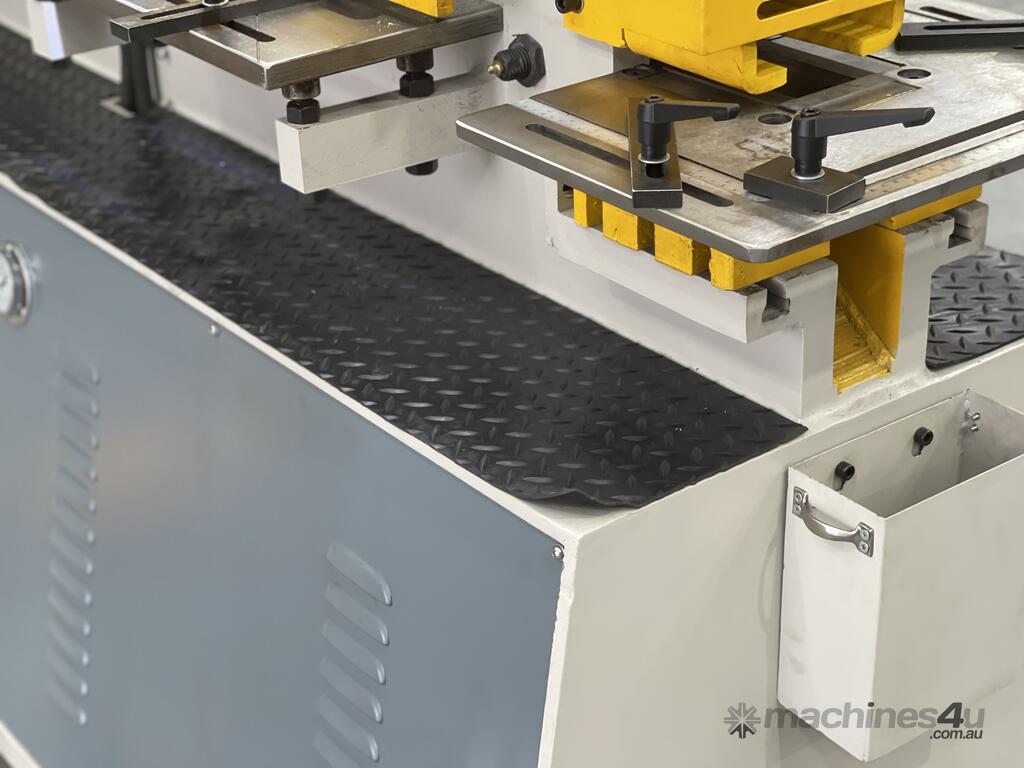

? large punch table with multi-purpose bolster, removable table block for overhang channel / joist flange punching applications
? quick action tool change system

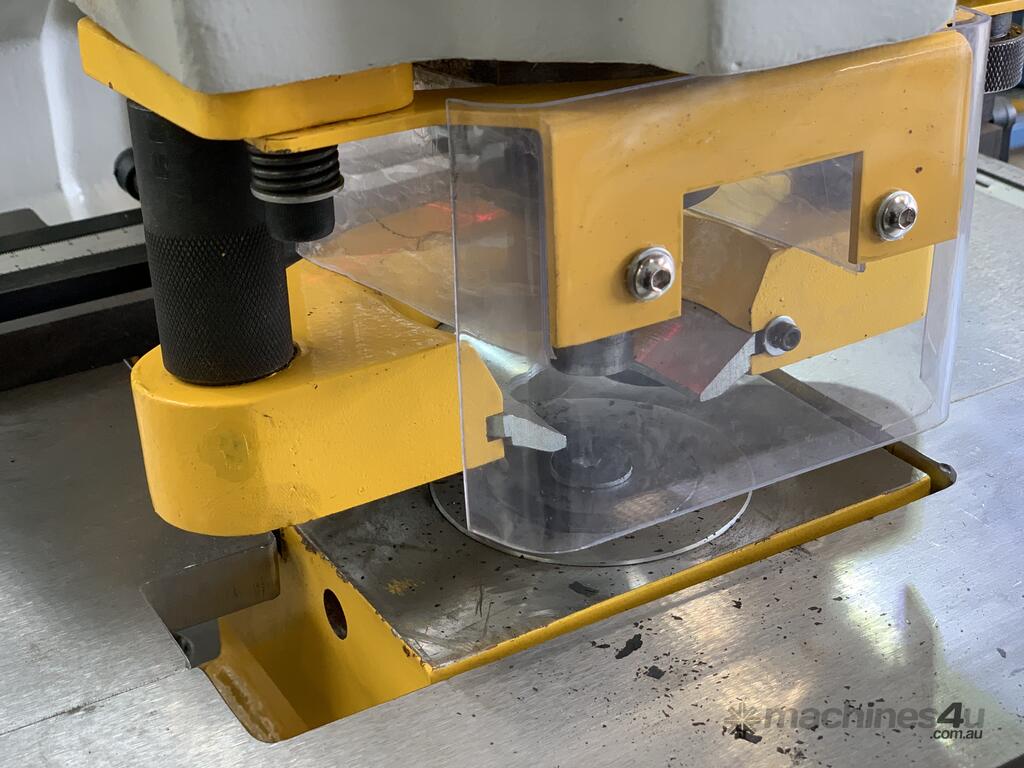

? swing-away punch-stripper unit
? two universal bottom die holders included
? hydraulic clamp assist flat plate shearing station with square & angle guides
? angle cropping station
? solid round and square cropping station
? rear notching station
? 1000mm electric touch and cut feature
? 6 sets of standard Kingsland type punch and die tooling included
? low power inching and adjustable stroke at punch station
? overload relief on the hydraulic system

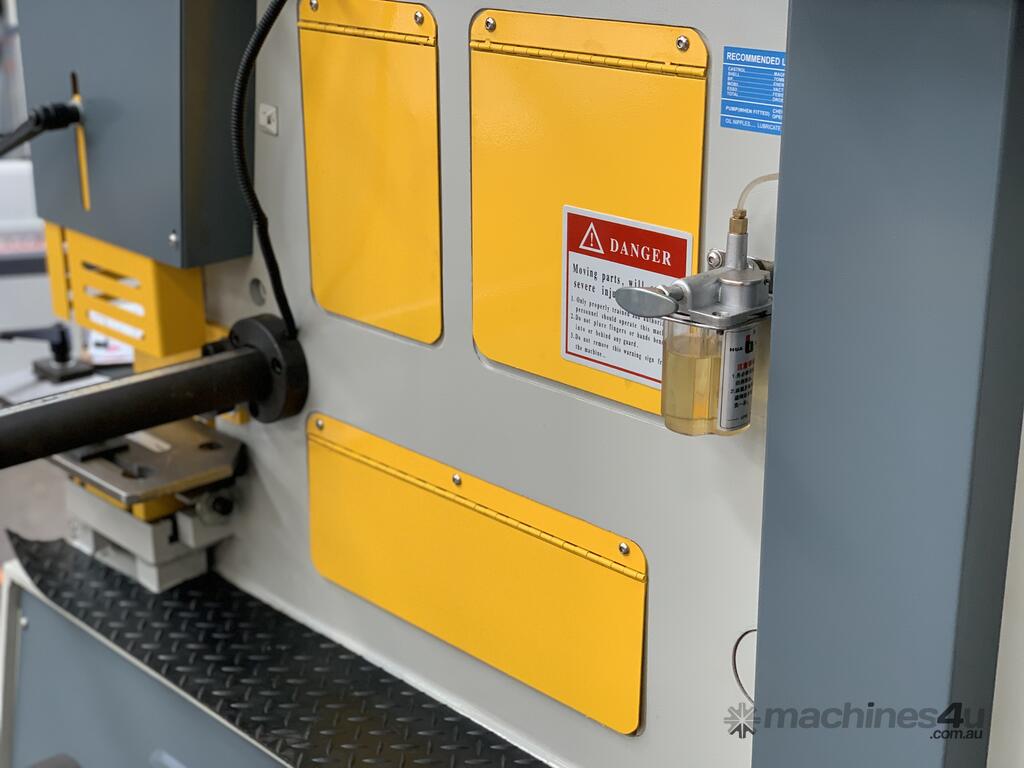

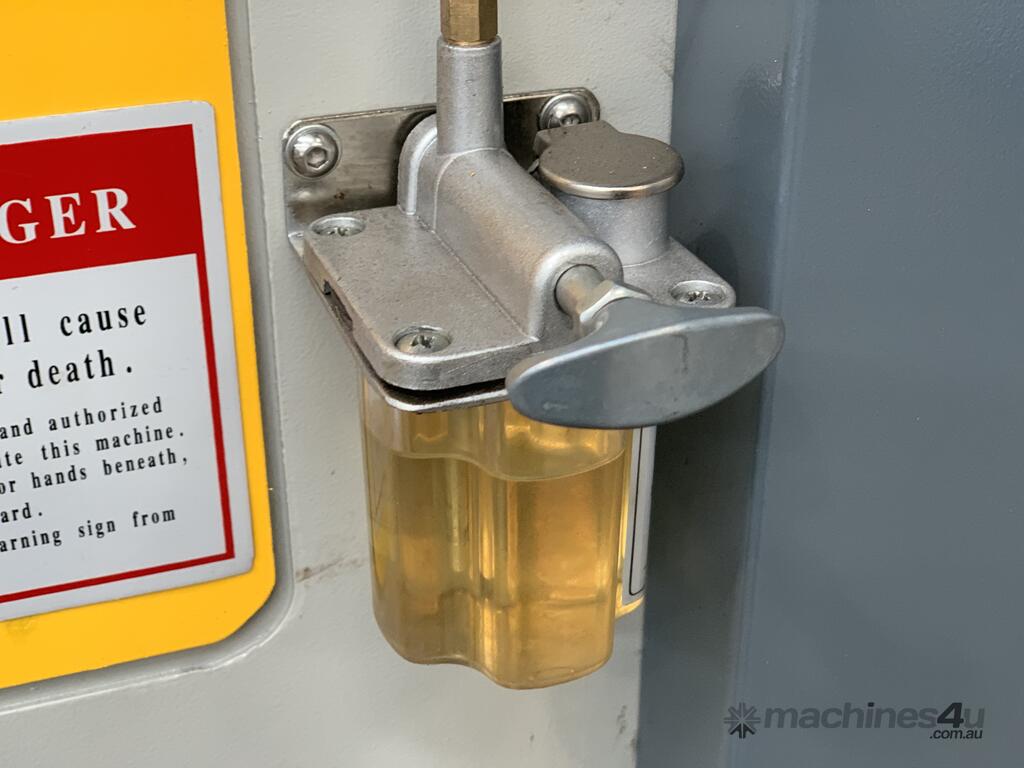

? centralised pressure lubrication system

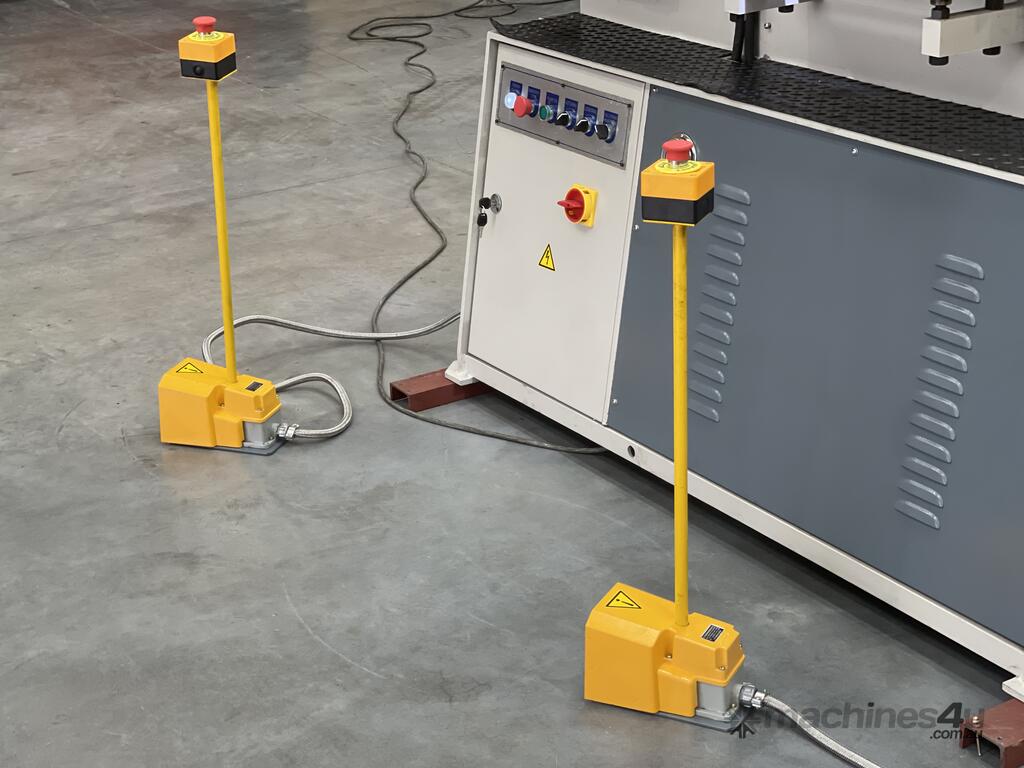

? roving foot pedal operation
? emergency stops
? machine manual
? service toolkit
? hydraulic oil supplied
?CE compliant

Technical Data Snap-Shot
?60Ton Dual Cylinder Capacity
?25mm hole in 16mm plate (optional 52mm x 9mm)
?80mm stroke length
?1100mm working height
?305mm deep punch throat depth –
?250mm x 16mm flat plate shear / also 400mm x 8mm
?120mm x 120mm x 12mm angle crop also 70mm x 8mm at 45 degrees.
?45mm Round & 40mm x 40mm Square Cropping Station
?100mm x 57mm x 10mm rear notch
?shipping dimensions - 1650mm x 800mm x 1780mm
?weight - Kg
?power - V 4Kw

Accessories Included
?6 sets round punch & die / short series punches (9001)
?9001 Series Top Tooling – 12mm, 14mm, 16nmm, 18mm, 20mm, 22mm
?9023 Series Bottom Tooling – 12.7mm, 14.7mm, 16.7nmm, 18.7mm, 20.7mm, 22.7mm
?Quick release punch station with 3 x stripper inserts supplied.
?We carry these in stock 3mm ~ 34mm in 0.5mm increments.
?electric touch & cut feature
?toolbox & manual

Recommended Add On Accessories
?16+0134 - 20 piece Tooling Kit 9001 Punches / 9023 Dies = 8, 10, 12, 14 , 16, 18, 20, 22, 24 & 26m
?15+0290 – Roller Stands.52mm x 400mm Adjustable Height. 650 - 1080 High 200kg load capacity
?15+0291 – Roller Stands. Heavy Duty 52mm x 125mm V - Type Adjustable Height 580 - 970 high 200kg capacity
?15+0057 - Gravity Roller Conveyor Kit. 360mm x 3000mm. Complete with Adjustable Height Legs
?Full Range, Round Punch & Dies in Stock from 3mm ~ 34mm in 0.5mm Increments also Slotted, Square, Offset & Many More
?15+0183 - XDP 905 Performance Cutting, Punching, Tapping Spray - Improves Tool Life 5 Times
