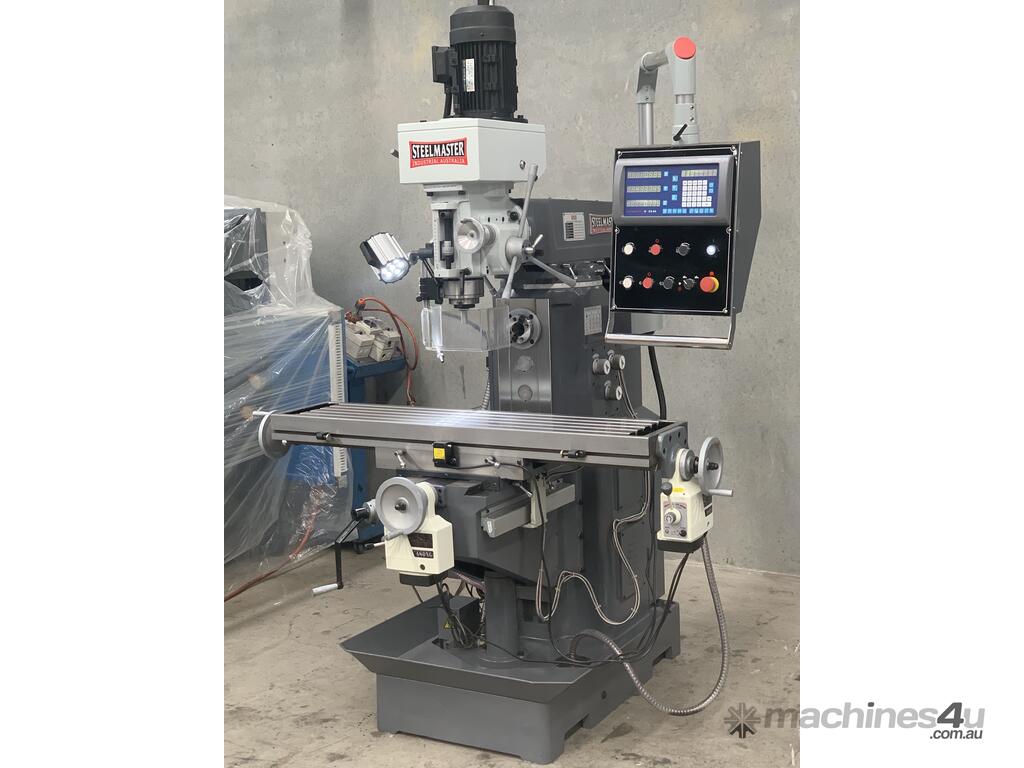

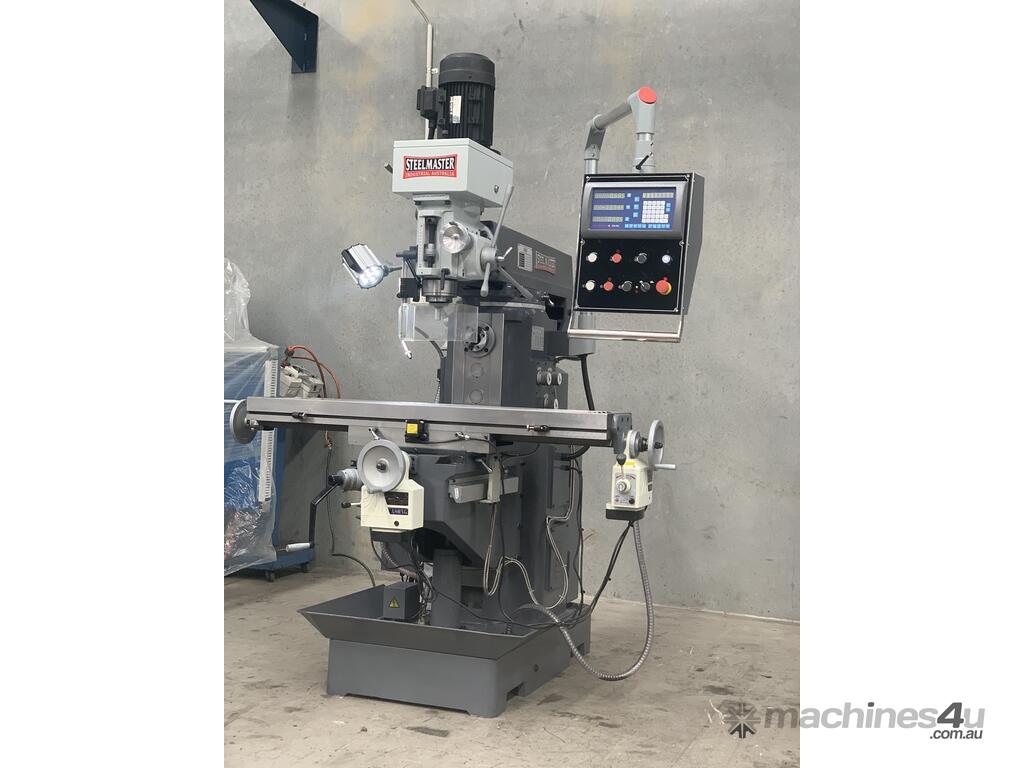

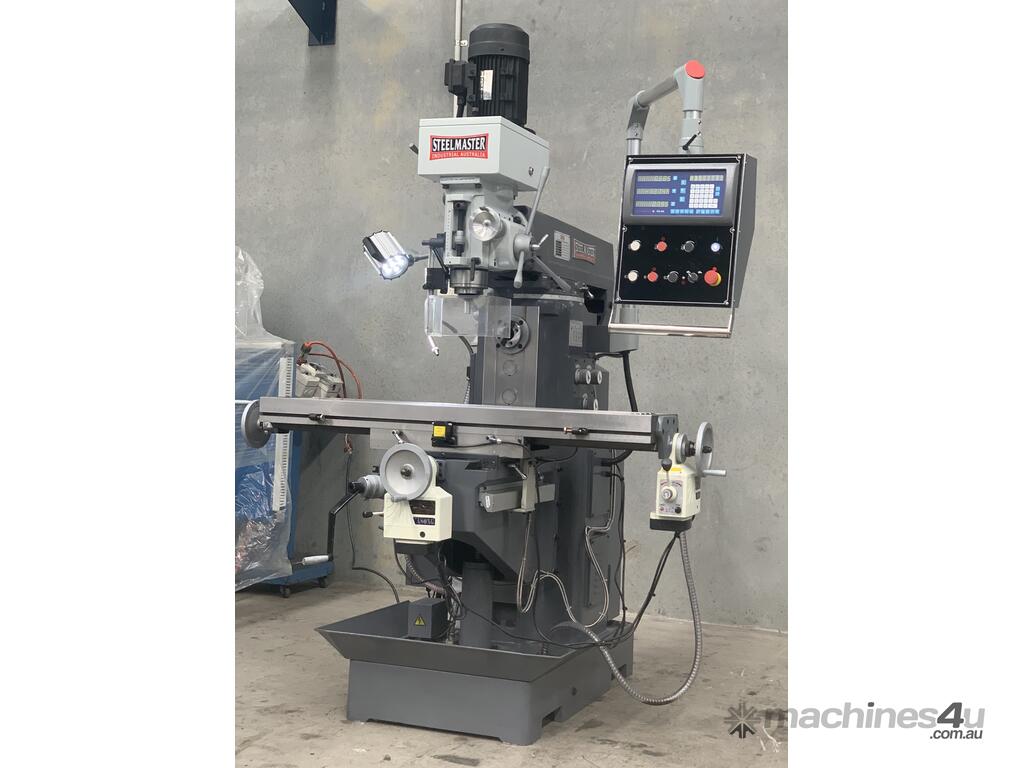

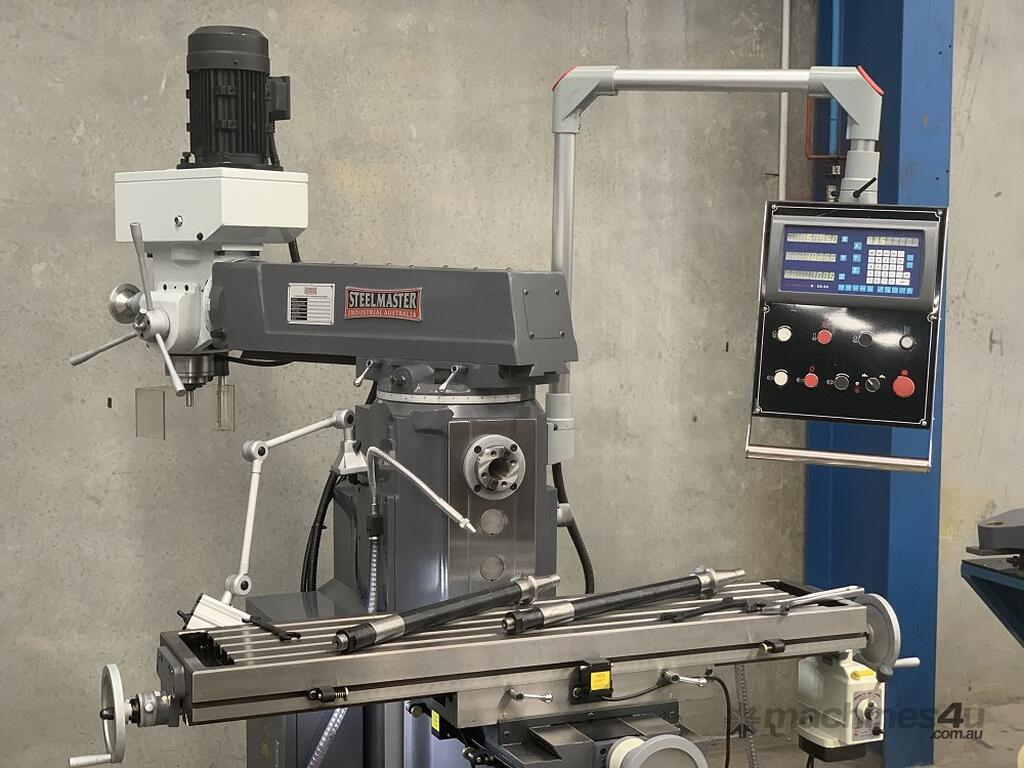

Feature Packed Vertical & Horizontal Mill, Z Feed Huge 1250mm x 280mm Table - ISO 40 Spindle

SM-MGH757Z. Universal Mill Steelmaster. Gear Head Drive with Easson 3 Axis Digital Readout Power Quill Feed, 2 Axis Power Feed, 1270mm X 280mm Table, LED Light. V 2.2Kw
Description
At last! A Universal Milling Machine With The Lot! – X,Y & Z Axis Power Feeds! Huge Tee-Slotted 280mm x 1270mm table. It has all the features that larger mills have like power table feeds and a long quill travel with power feed with a calibrated stop adjuster. The very heavy castings and large slide surfaces will give incredible performance and stability. And with the turret type head, its capacities are quite large. All this combined with the flexibility of a Horizontal Arbour and strong Volt operation makes this your best partner. Shop around, won't find this kind of value in a mill of this type and size.

Features
compact and practical milling machine manufactured from vibration dampening cast iron
swivelling head to 90°& table to 45°

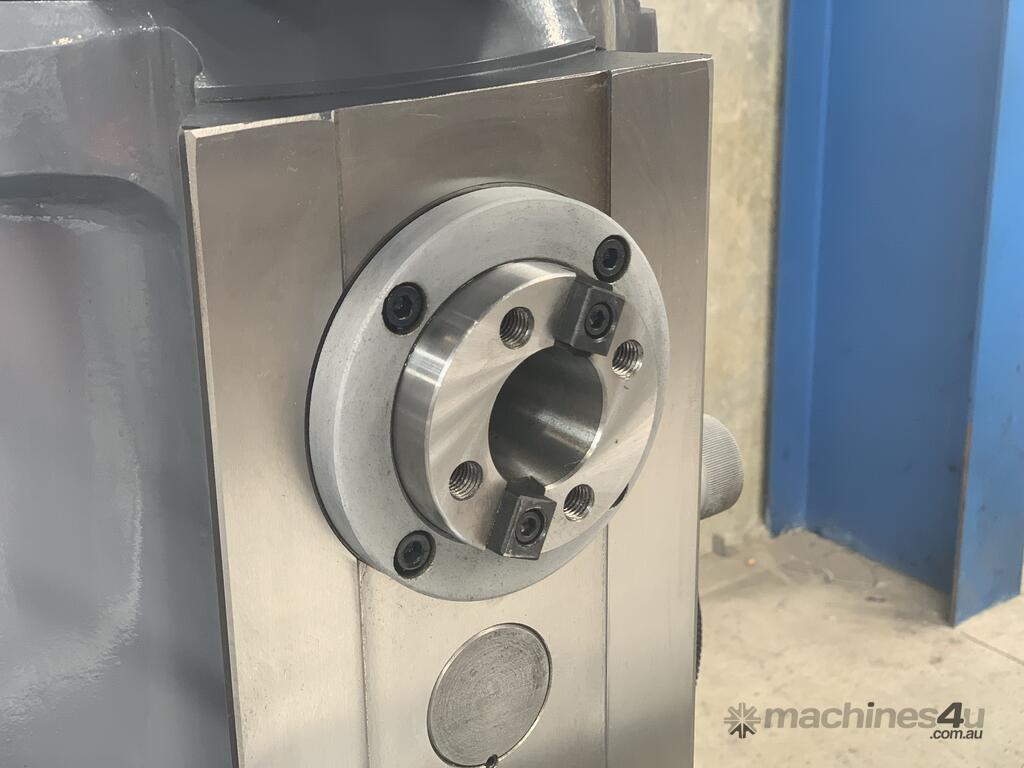

40 ISO horizontal and vertical spindles are hardened and ground
precision-machined dovetail slide ways and table
forward and reverse on/off switch

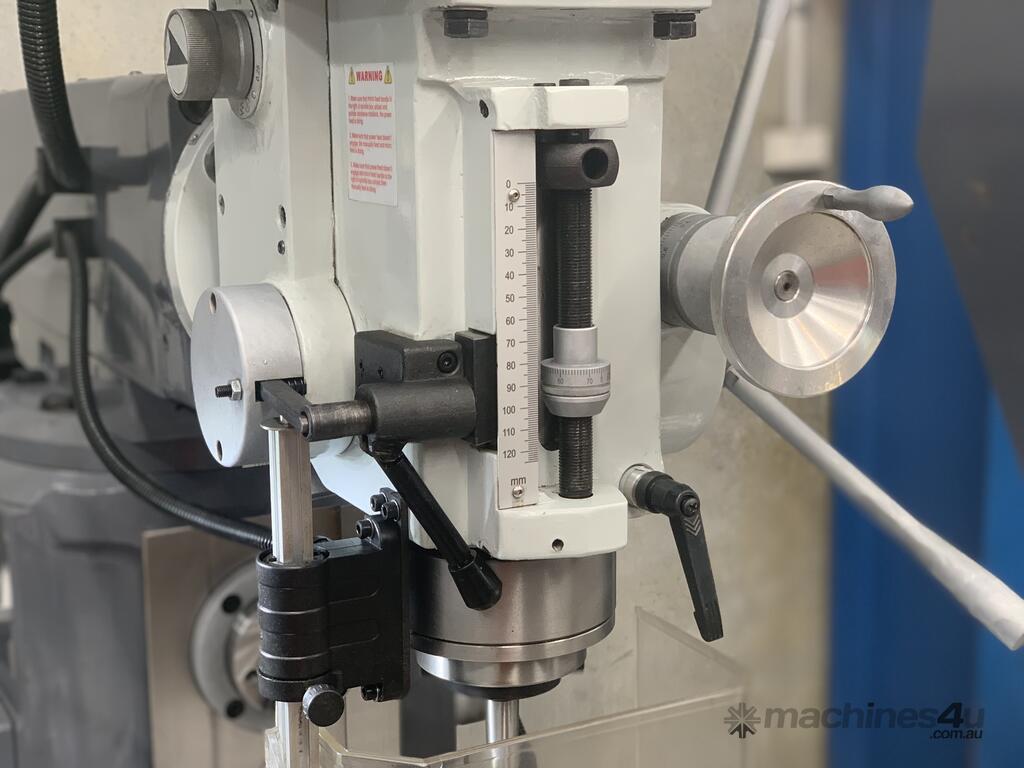

fine hand wheel operated quill feed

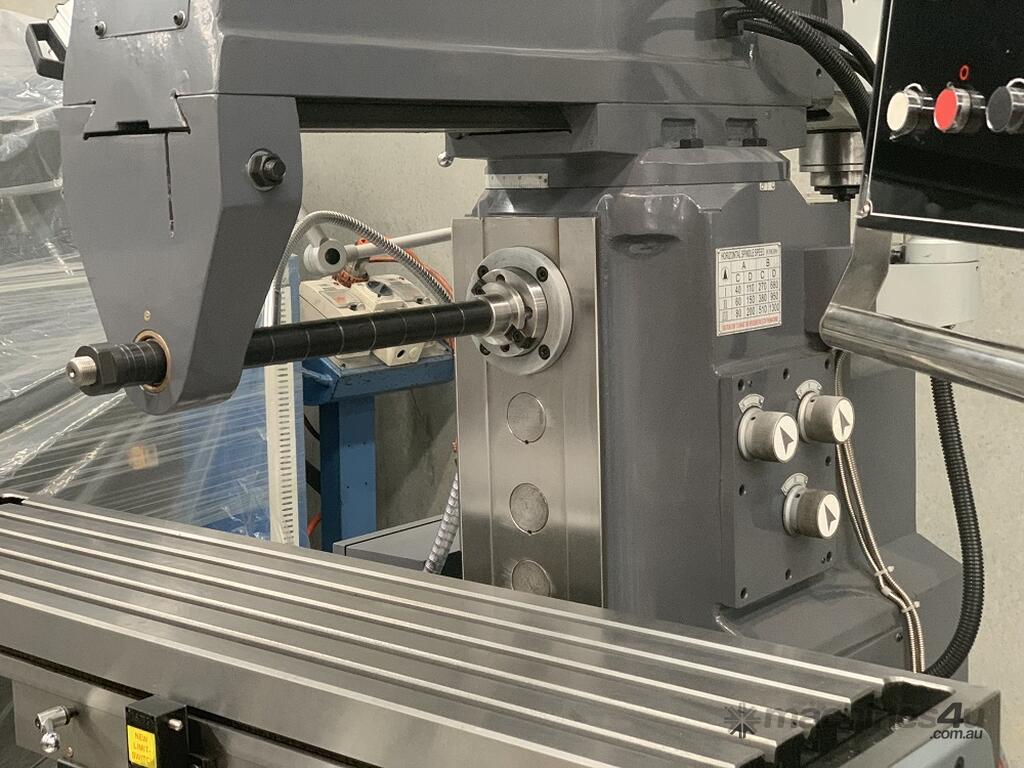

two arbours for the horizontal spindle.
calibrated hand wheels fitted on all movement directions
height adjustment of worktable through ergonomically designed crank handle. all 3 axis are fitted with clamping devices
2 axis power table feeds

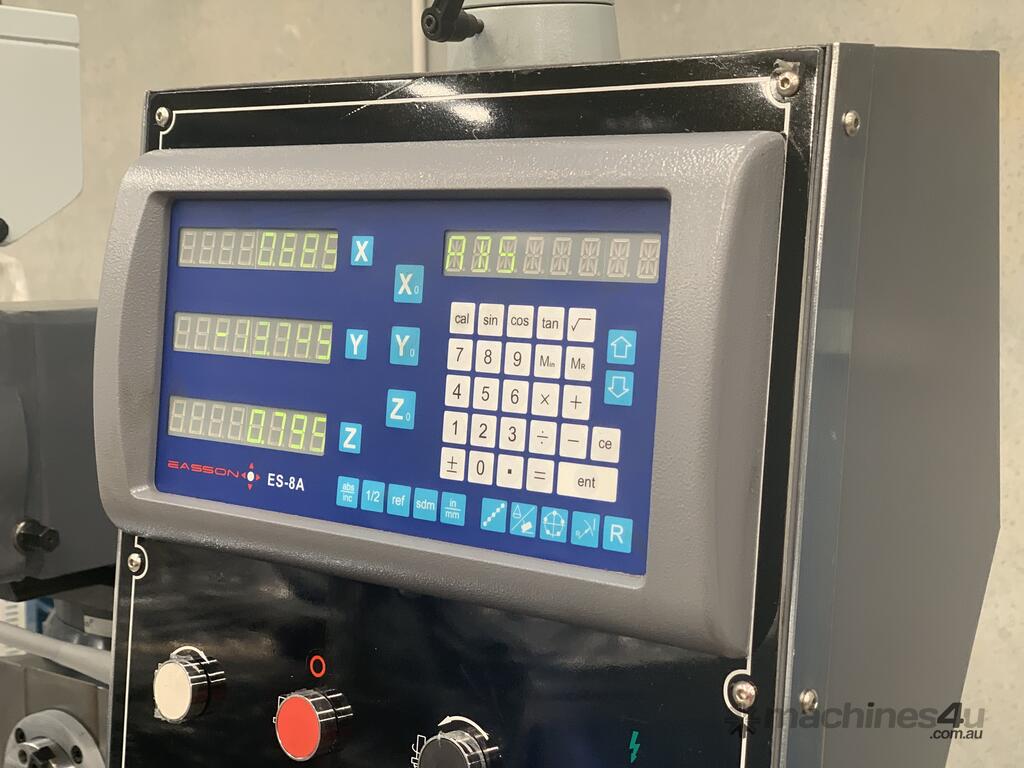

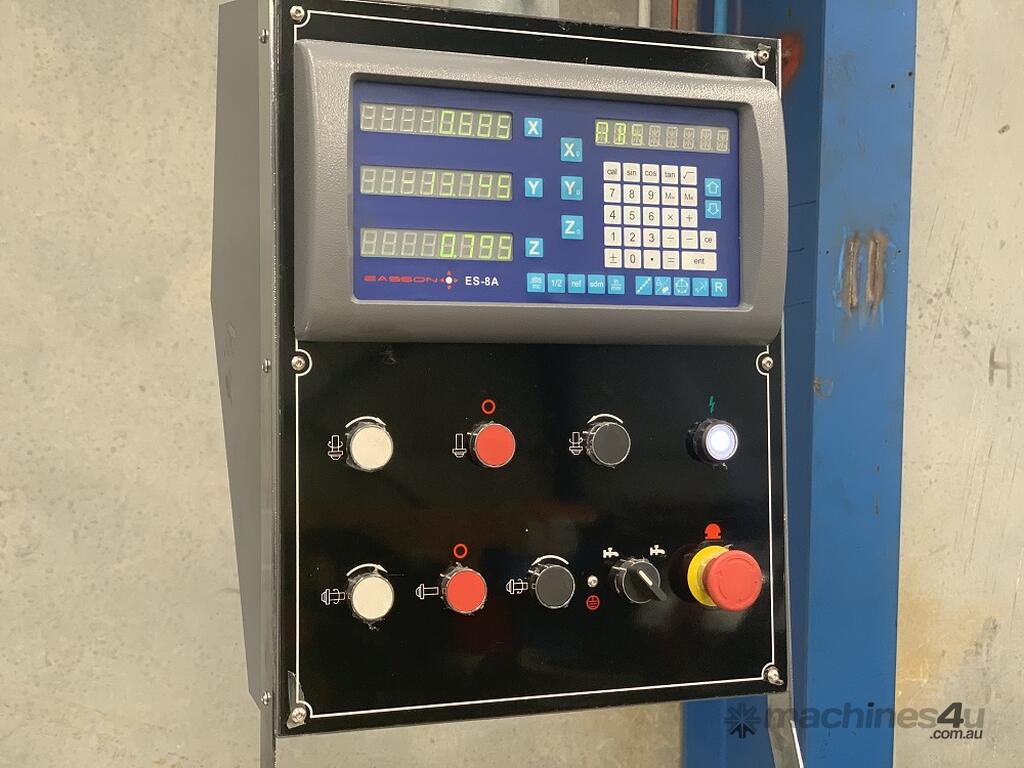

3 axis DRO fitted
Volt operation

Technical Data - Snap Shot
table size - 1270mm x 280mm
?X travel - 750mm manual feed / 730mm power feed
?Y travel - 260mm

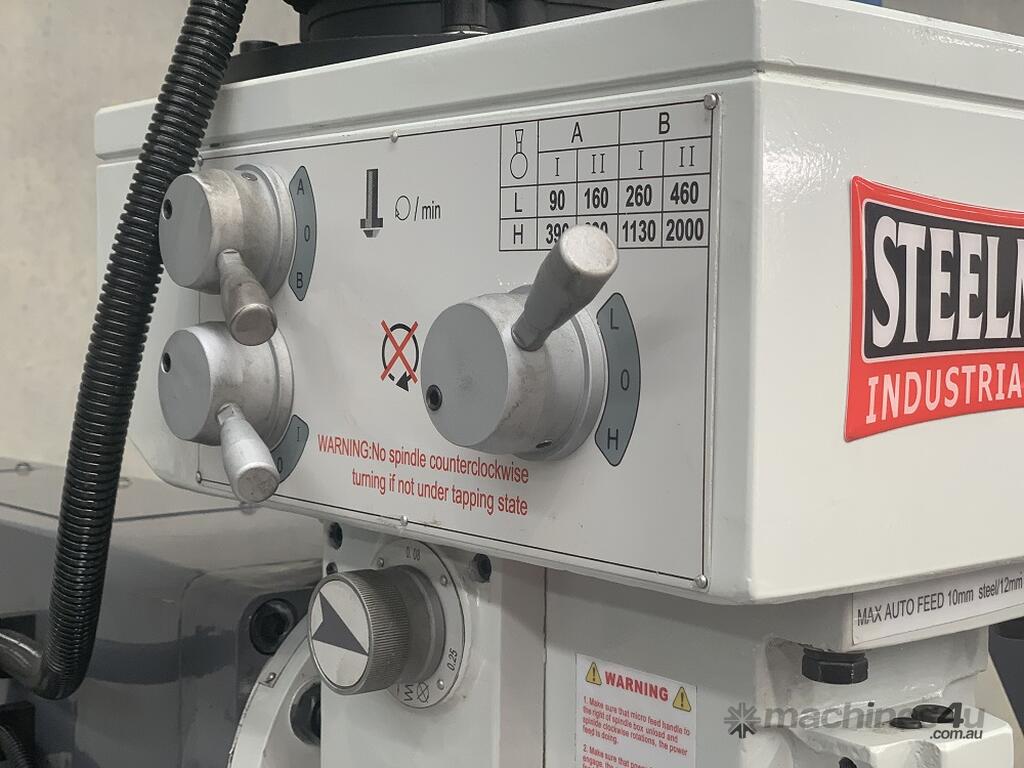

?vertical speeds - 90 ~ 2000 (8)
?horizontal speeds - 40 ~ 1300 (12)
?spindle fixture - ISO 40
?motor capacity – 2.2Kw (3H.P) motors (2 off)
?crate - 1550mm x 1450mm x 2250mm H
?approx weight: 1550kg
?same machine builder at Grizzly model G0757

Includes

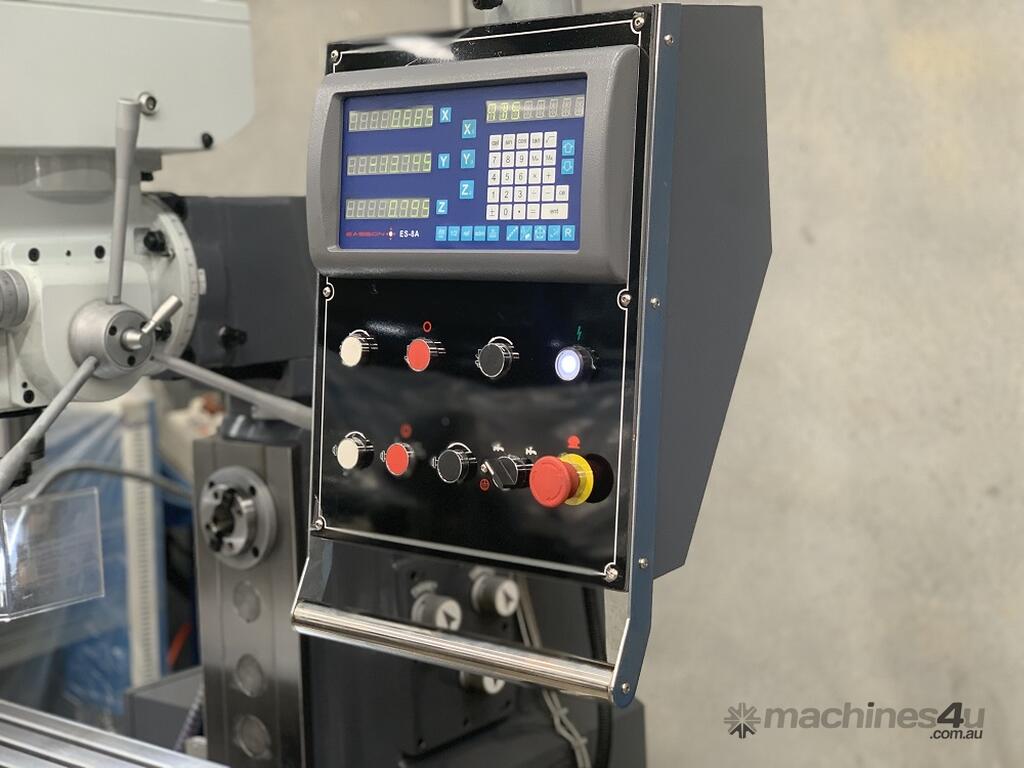

? 3 Axis digital readout system
? Z Axis quill feed
? X & Y Axis power-feeds
? 45 degree swivel table - left & right
? safety cutter guard

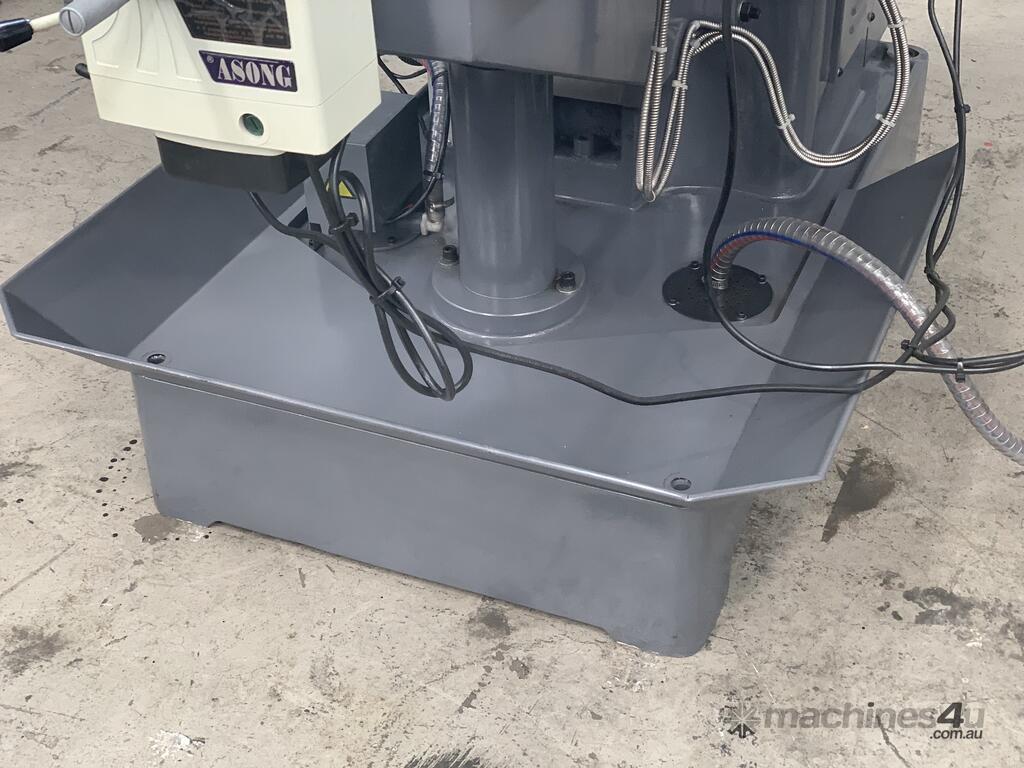

? swarf tray
? coolant system
? drill chuck & arbor

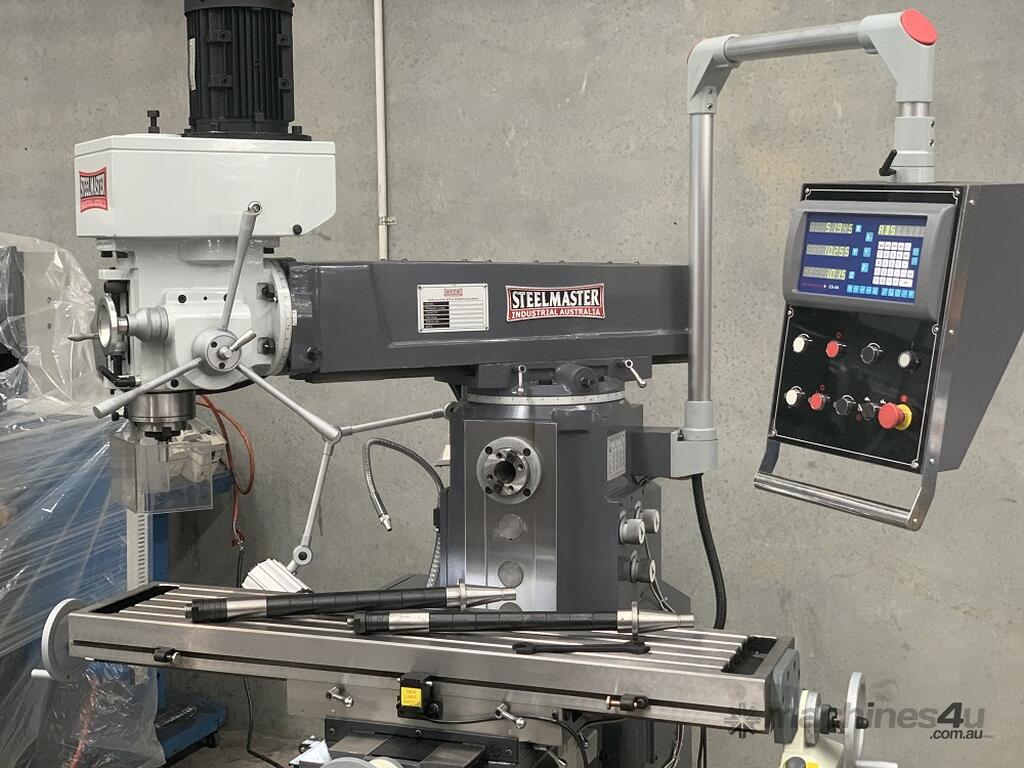

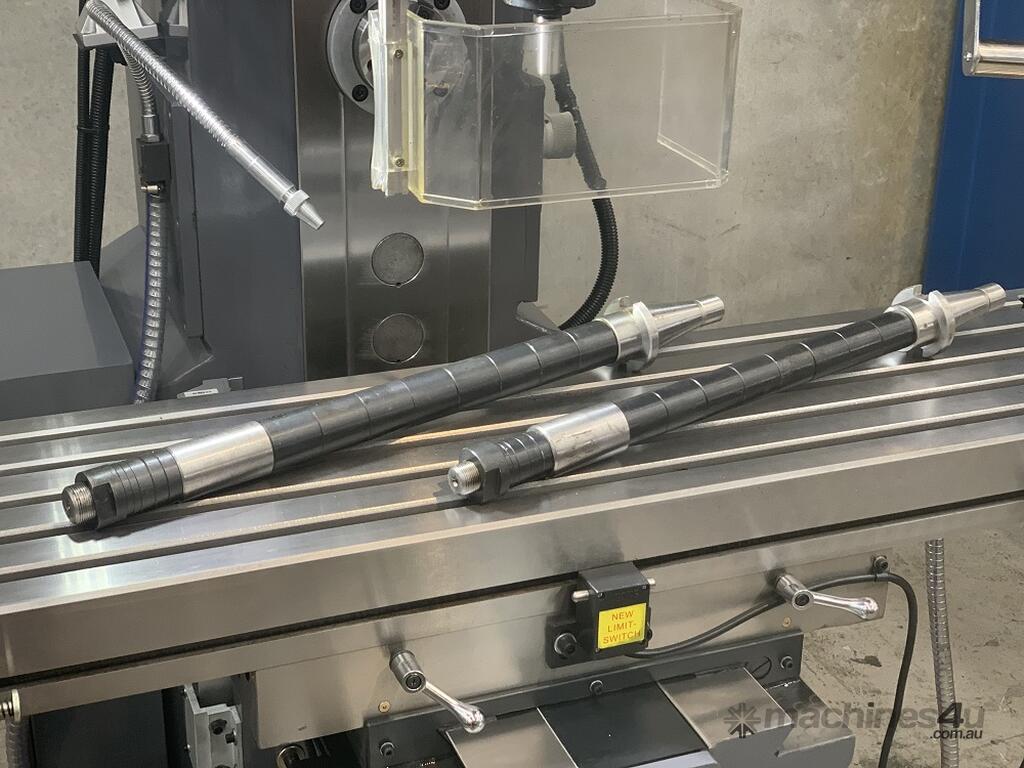

? 2 x horizontal arbors
? 2 x NT40 (ISO 40) to 2 & 3MT adaptors
? NEW LED lamp
SHIPPING: Can be arranged Australia wide to business addresses where powered unloading is available Monday - Friday
