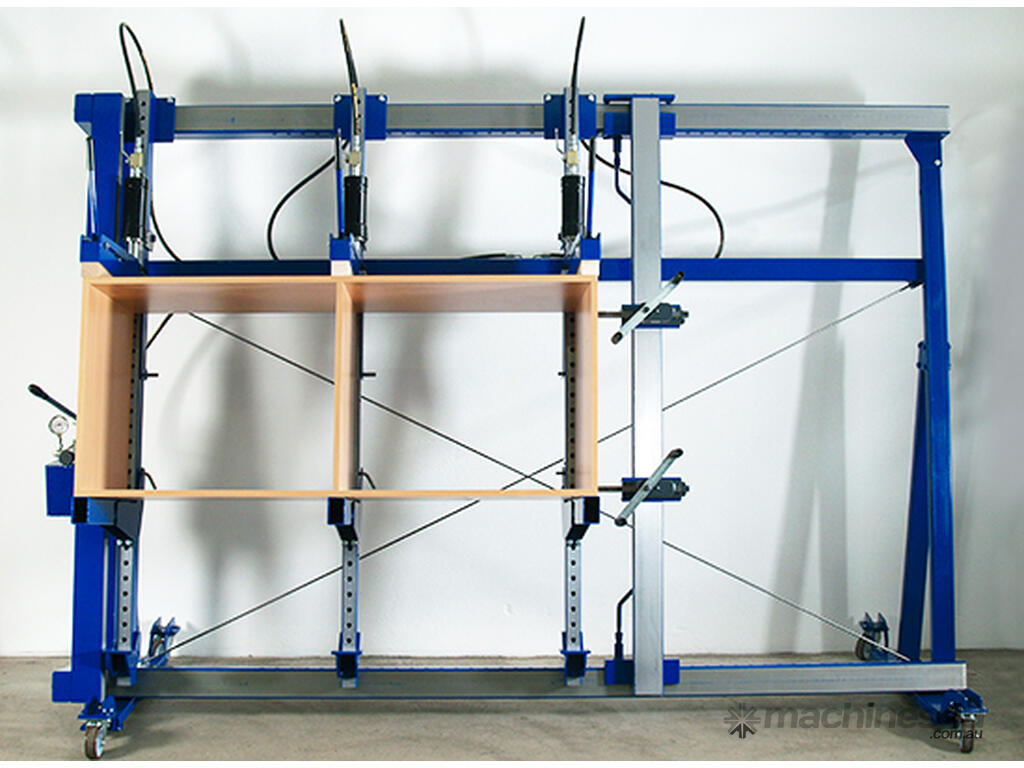

A frame press with a very stable base frame made of thick-walled hollow profiles, press units zinc galvanised, all components are bolted so that the press can be set up anywhere. The base frame has a high construction, the angular accuracy is guaranteed by a cross-bracing. The press units are ball bearing guided and have a 50mm precision hole pattern. Stable cylinders with 40mm piston diameter serve as pressure units, every cylinder has a shut-off valve, the pressure per cylinder is 2.5 ton and 90mm way. The press is universally applicable for frames, plates, stair steps, stair stringers and as a workpiece press. The press has a central manual hydraulics but is also possible with electro-hydraulics.
Clamping dimension: (HxW) 1600 x 2900 mm - at frames 1600 x 2600 mm
Machine Dimensions (LxW) 3050 x 750 mm - Height with chassis 2120 mm
Basic equipment:
4 Press units with central hand hydraulics on the left side, 90 degrees stop.
Accessories:
Lateral Press with 2 rack-an-pinion gears
Hold down clamp
