AF22 portabel dust extractor - dust collection system

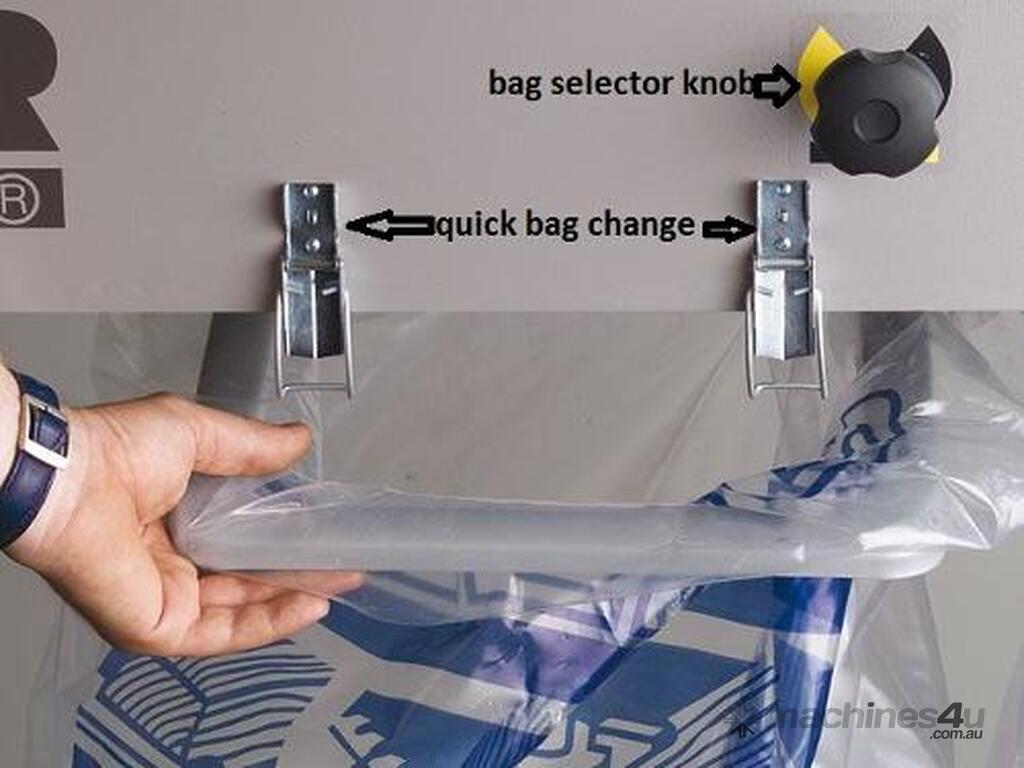

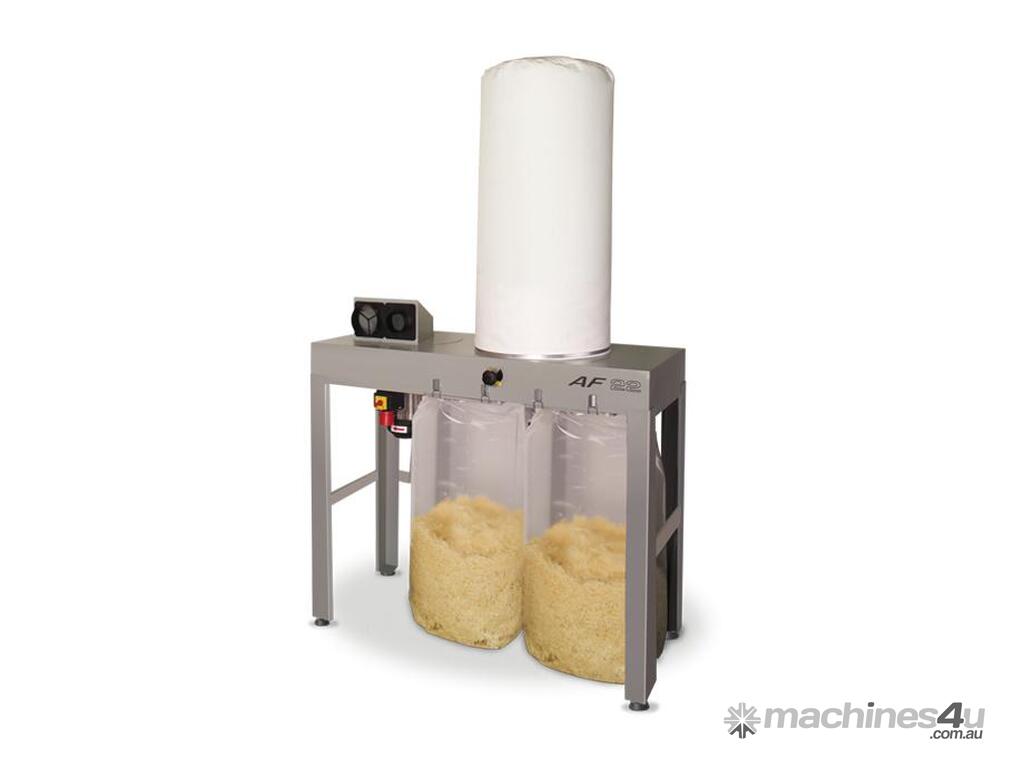

The AF 22 is the top seller among the standard extraction units and is available as a mobile or stationary model. With a footprint of only 1300 x 580 mm, the AF 22 is a real space-saver. Its vacuum power measures an exceptional 3100 m³/h, which means the AF 22 is unmatched in this price/performance class. The two chip bags can hold up to 400 litres and are especially easy to change thanks to the chip double-bag system. The AF 22 can be ordered for a vacuum hose or vacuum pipe connection as required
Max. airflow m³/h 3100
Max. depression Pa 2510
Dimensions mm (L x W x H) 1300 x 580 x 2150

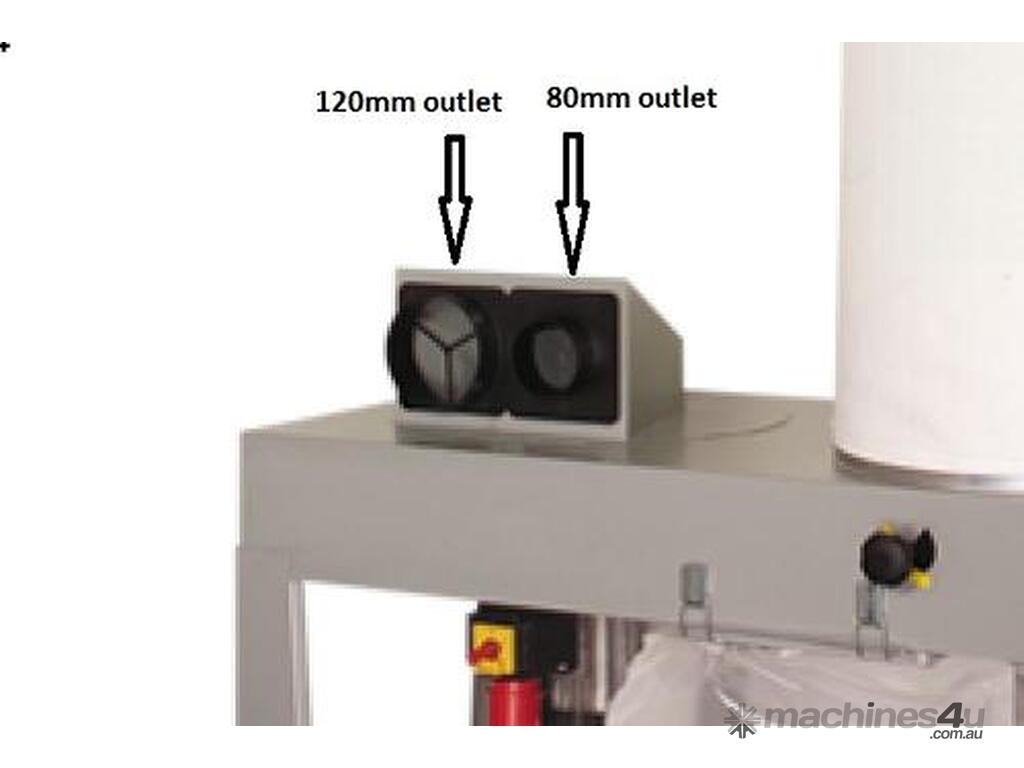

Extraction connector Ø in mm 120 + 80
Special filter material to maximise airflow S
Chip bag capacity litres 400
Note: Other non-mobile models shown are cheaper.
Polyster drum pleated filter also available.
disposable bags are also available in various sizes

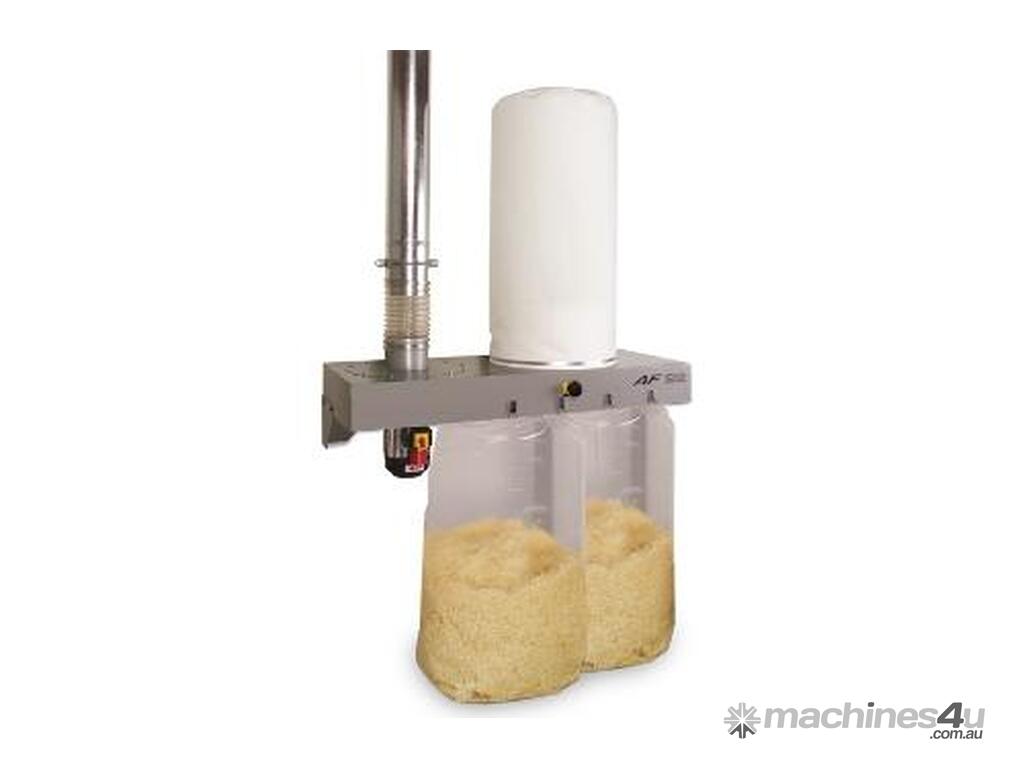

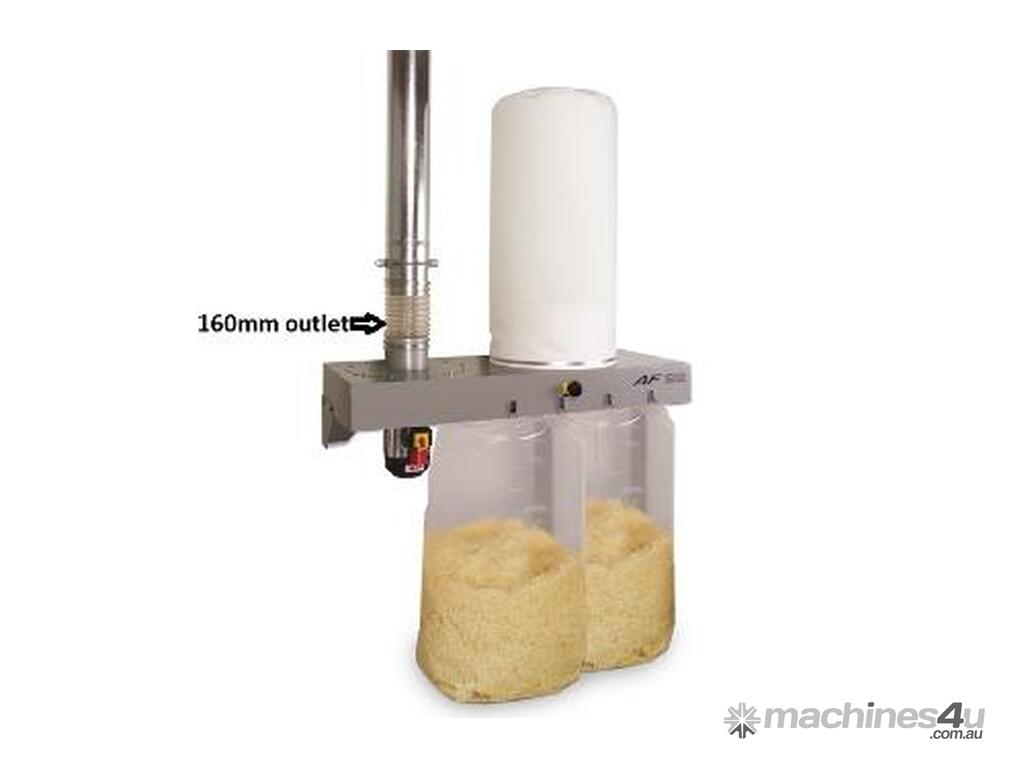

This is a very strong efficient unit. It can be used as mobile or fixed on wall or legs with 2 outlets or one single 160mm outlets. Please see pictures
