Felder Dual 51 Thicknesser

FORMAT-4 Planer / Thicknesser - See and feel the sensational planing results


Please download PDF sheet for available machine options


Comes standard with SILENT POWER SPIRAL CUTTER HEAD

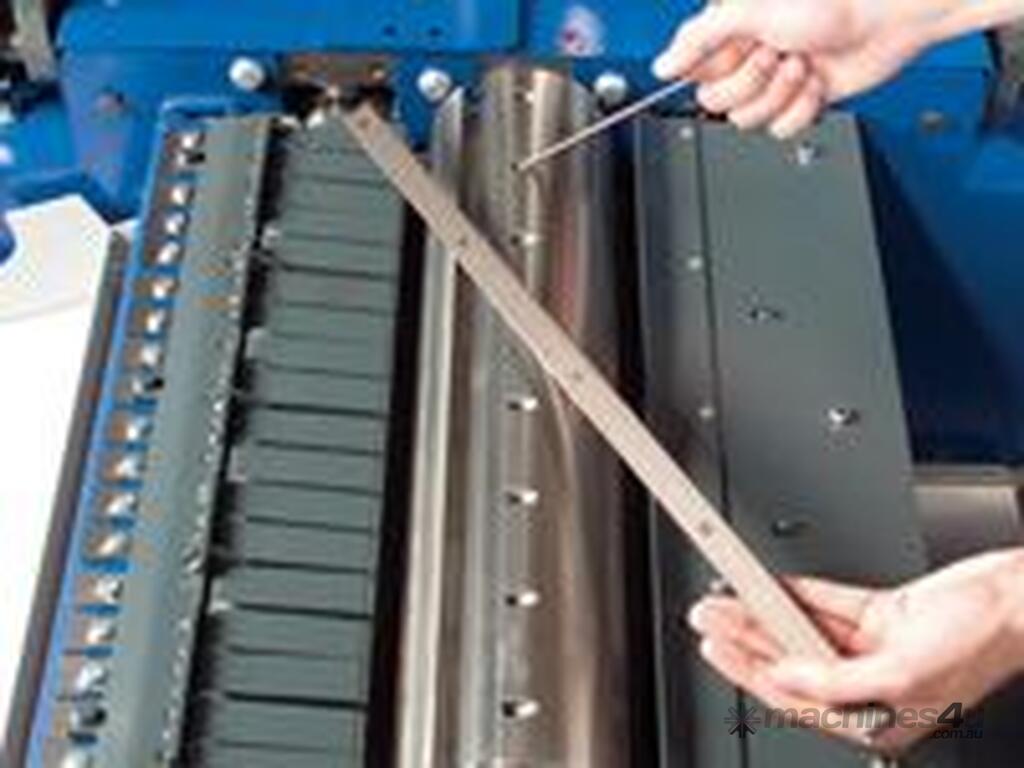

Planer knife adjustment without tools to an accuracy of one tenth of a millimetre, standard with your Format-4!

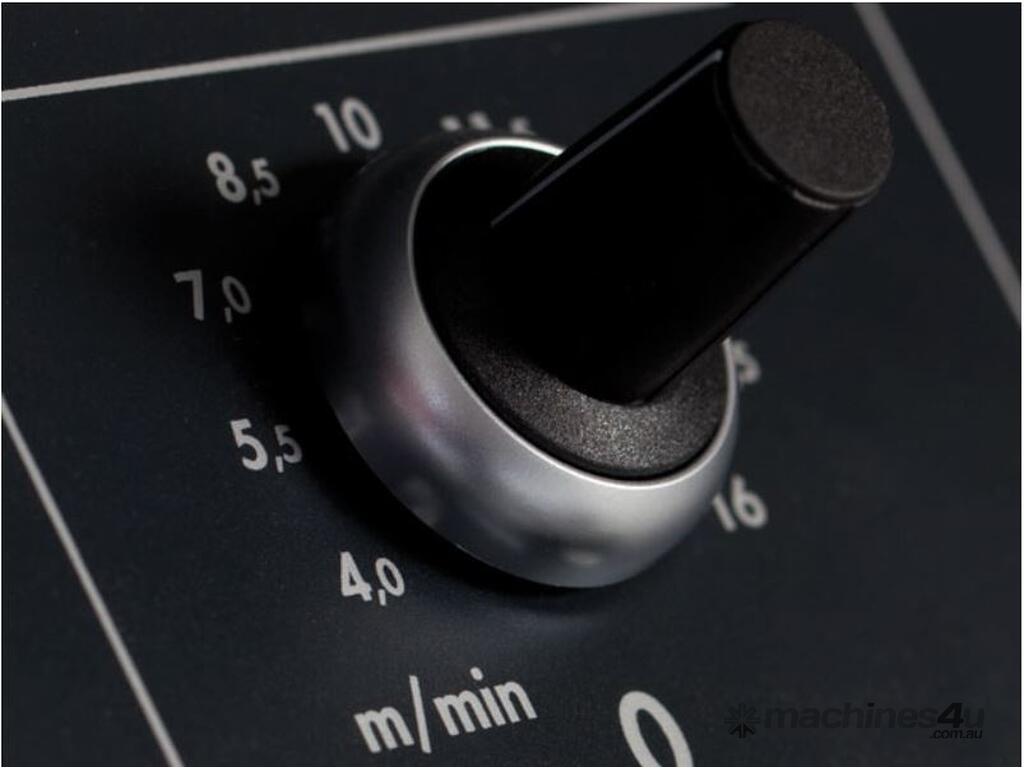

Our heavy duty planer thicknesser with its massive dual lift table (easy lift - naturally) comes standard with all the following great features. These include infinitely variable in-feed on the thicknesser 4m/min - 16m/min.

Surface plaining width in mm 510
Total planer table length in mm 2250 (can easily be extended by up to 2000mm)
Infeed planer table length in mm 1100
Maximum depth of cut in mm 8

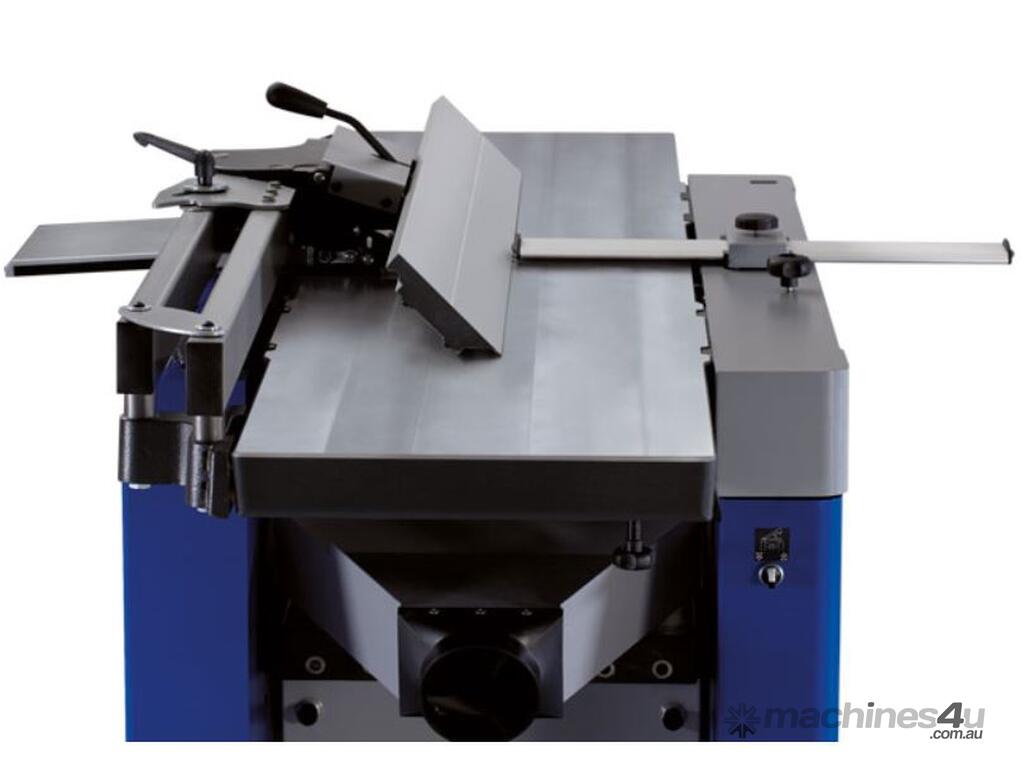

Professional planer fence, dimensions 1300 x 170 mm
Planer guard EURO “Standard”

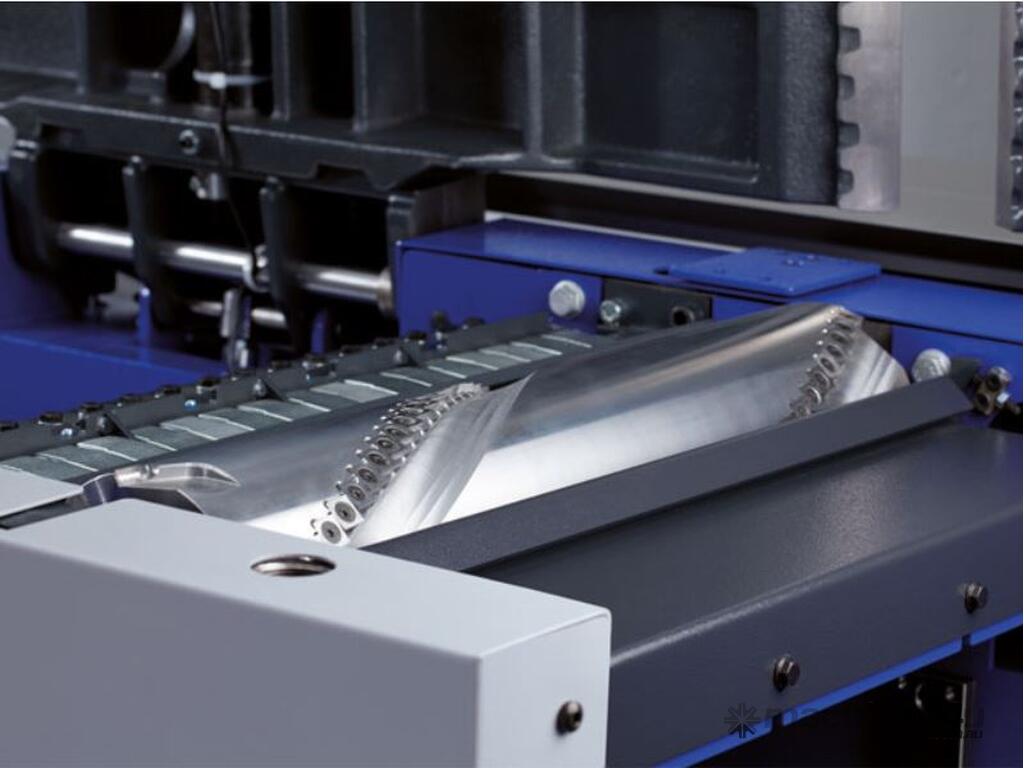

Silent Power Spiral Cutter Head

Thicknesser and Feed Drive
Thickness planing width in mm 504
Maximum cutting depth in mm 8

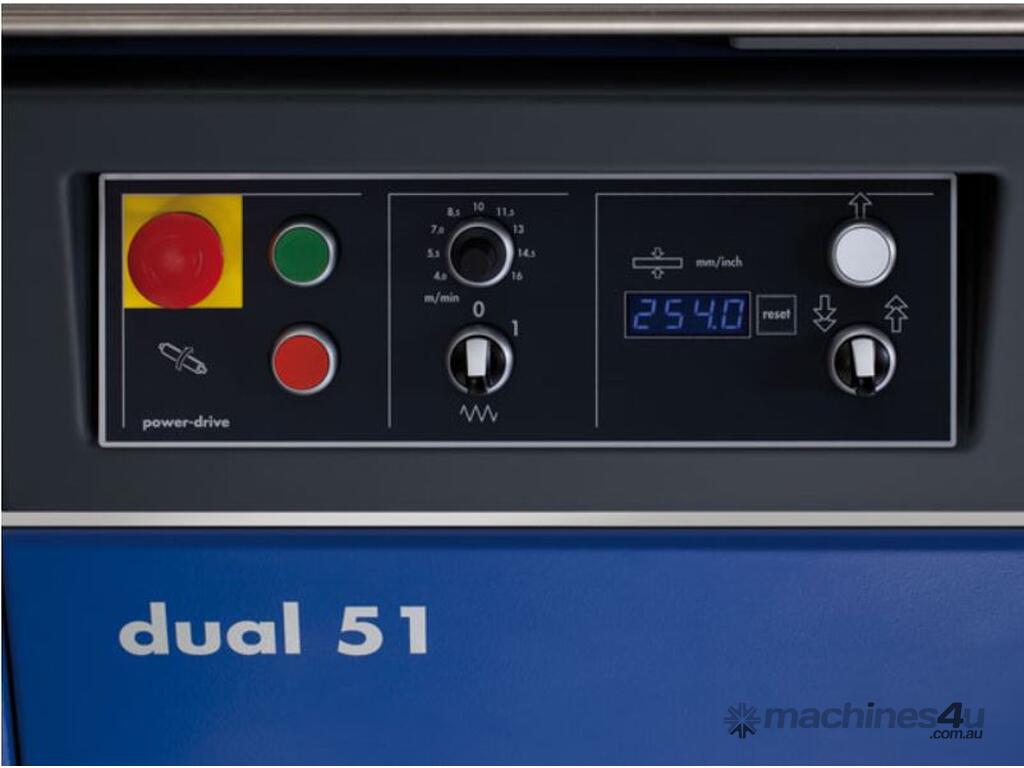

Electrical thicknesser table height control as Standard

Motor: 5.5HP 3x400v (S1) with electronic braking
We do offer the optional 7.5HP and 10 HP motors

Contact your local dealer for further information on these machines
