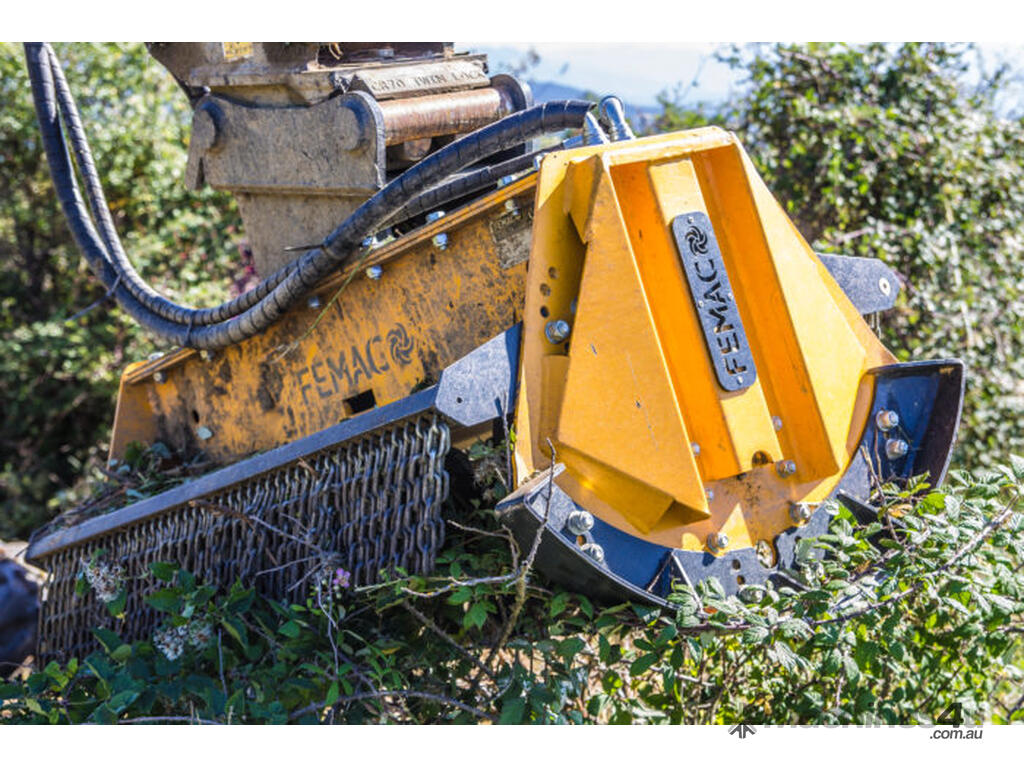

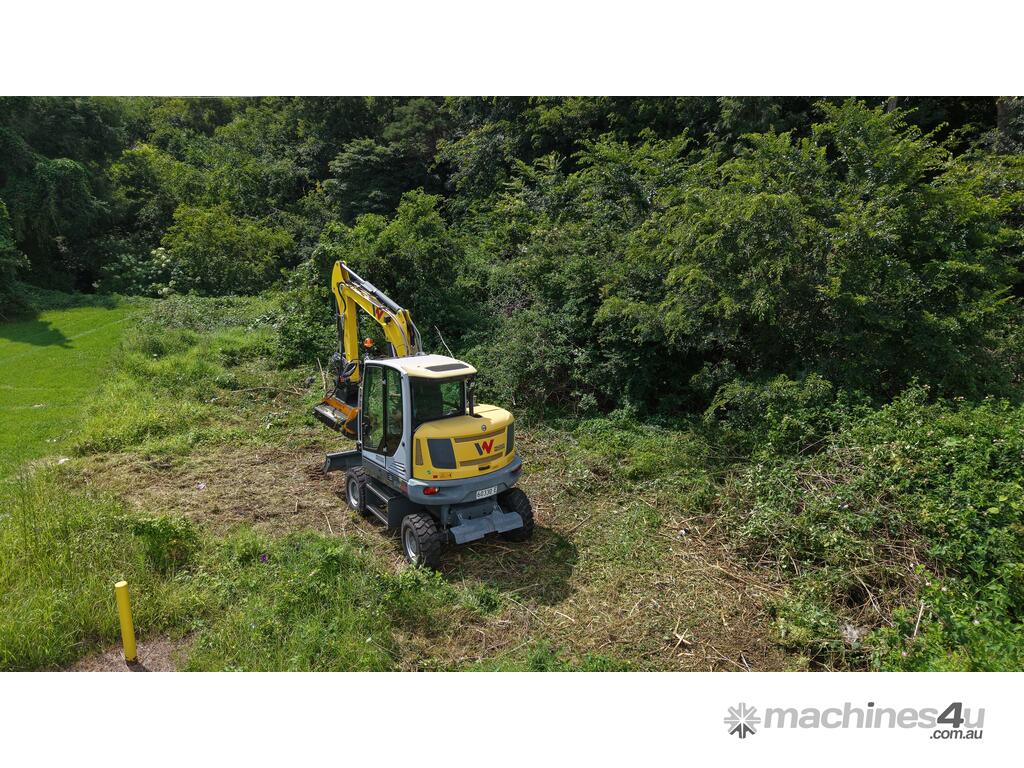

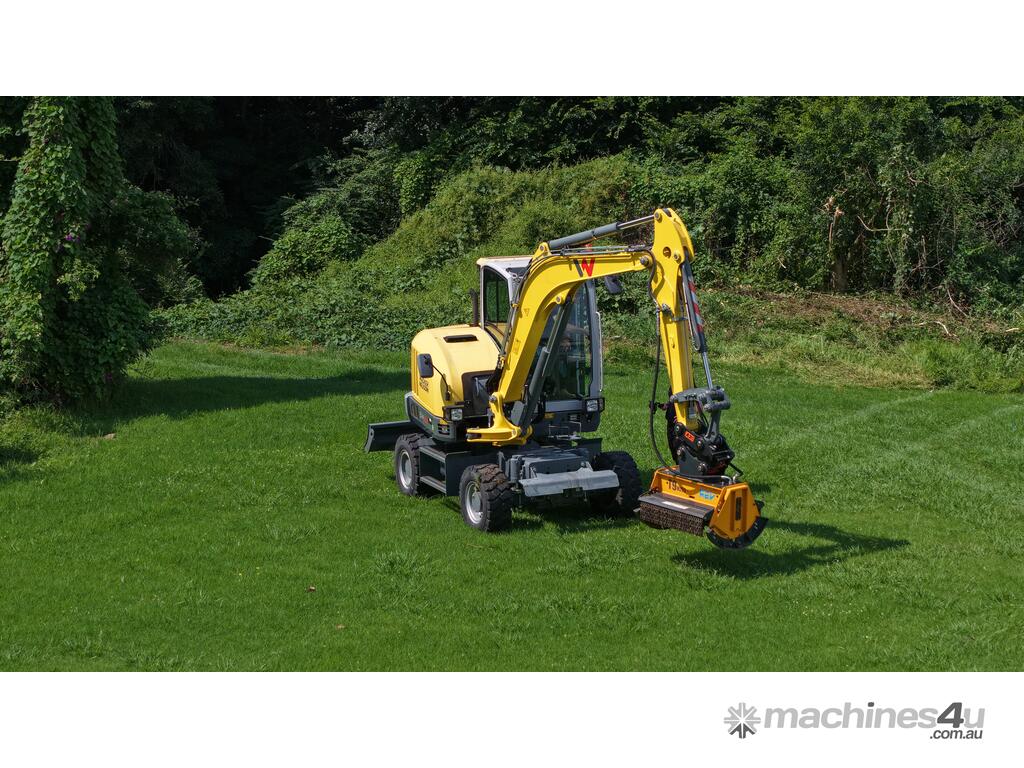

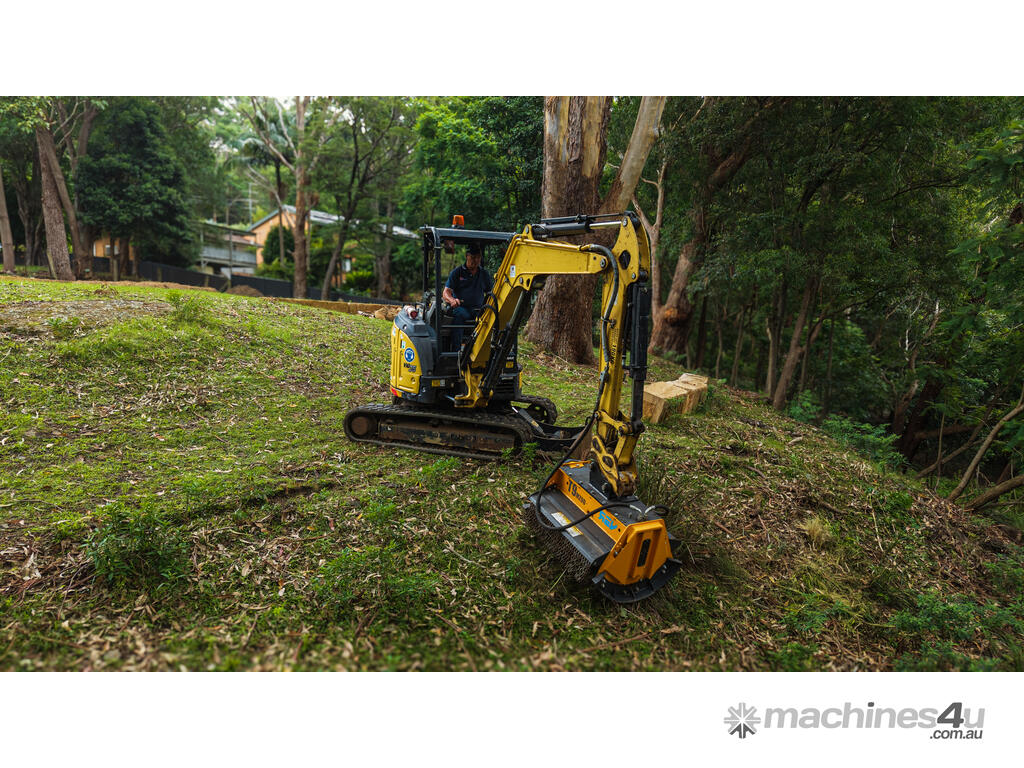

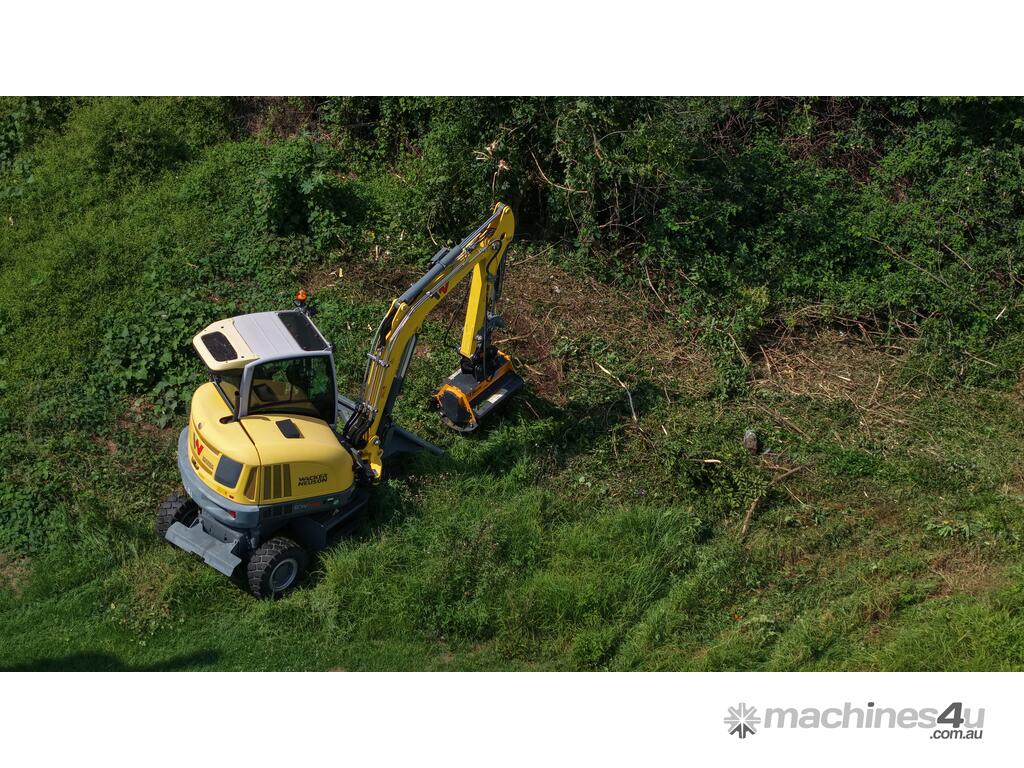

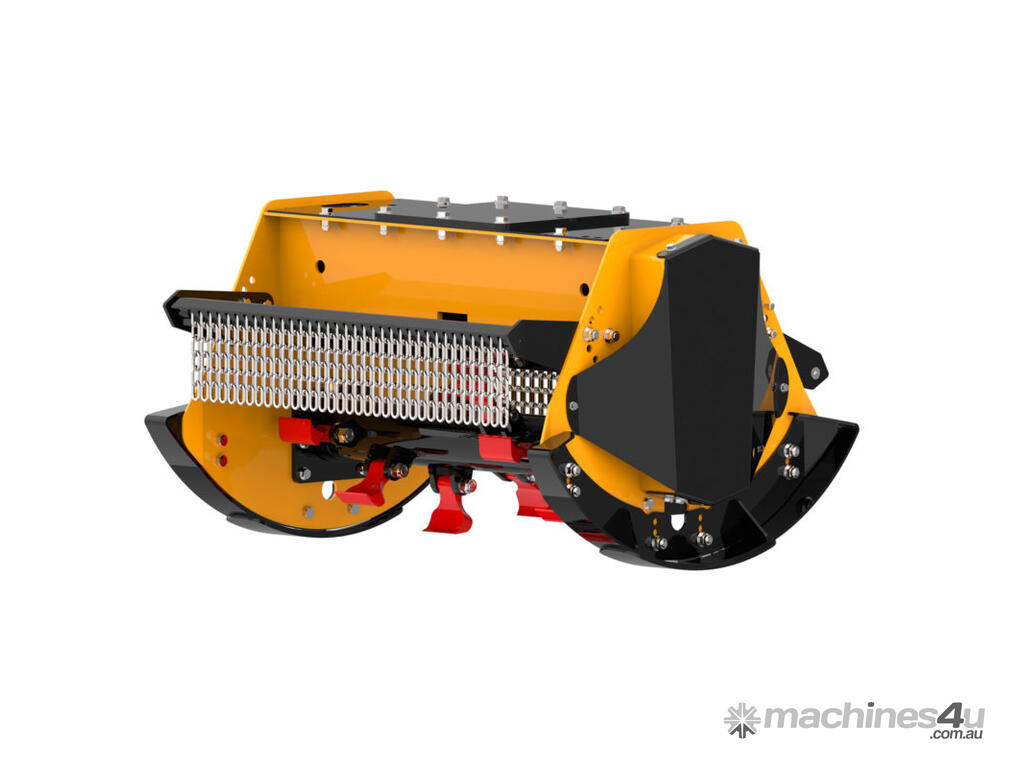

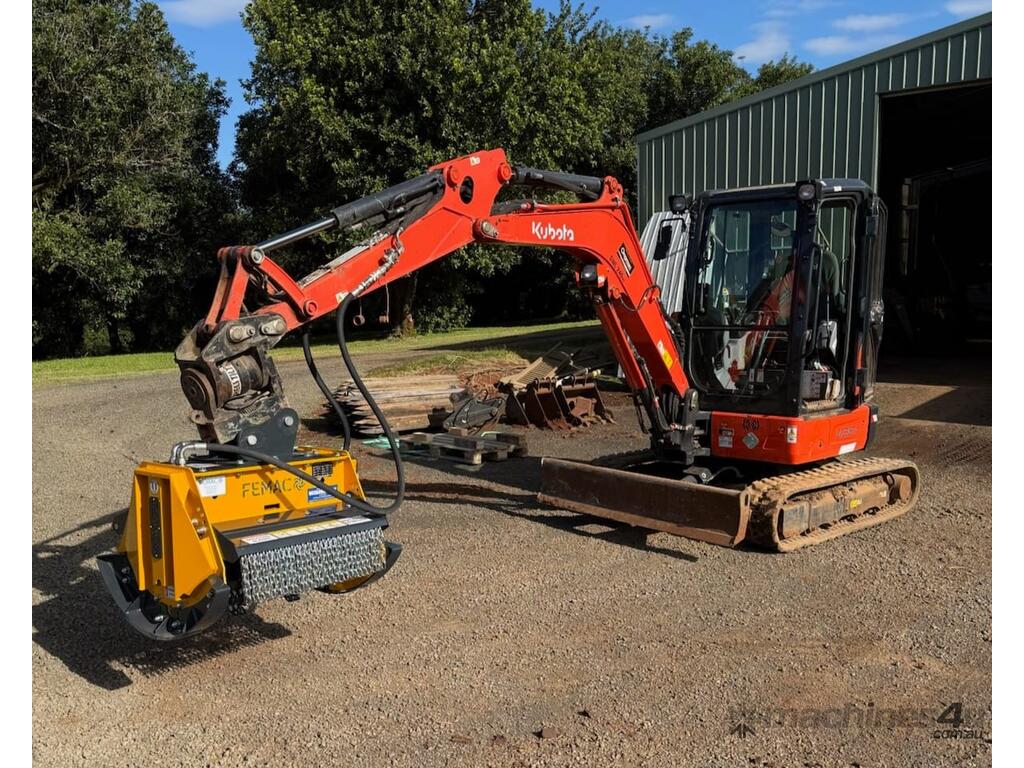

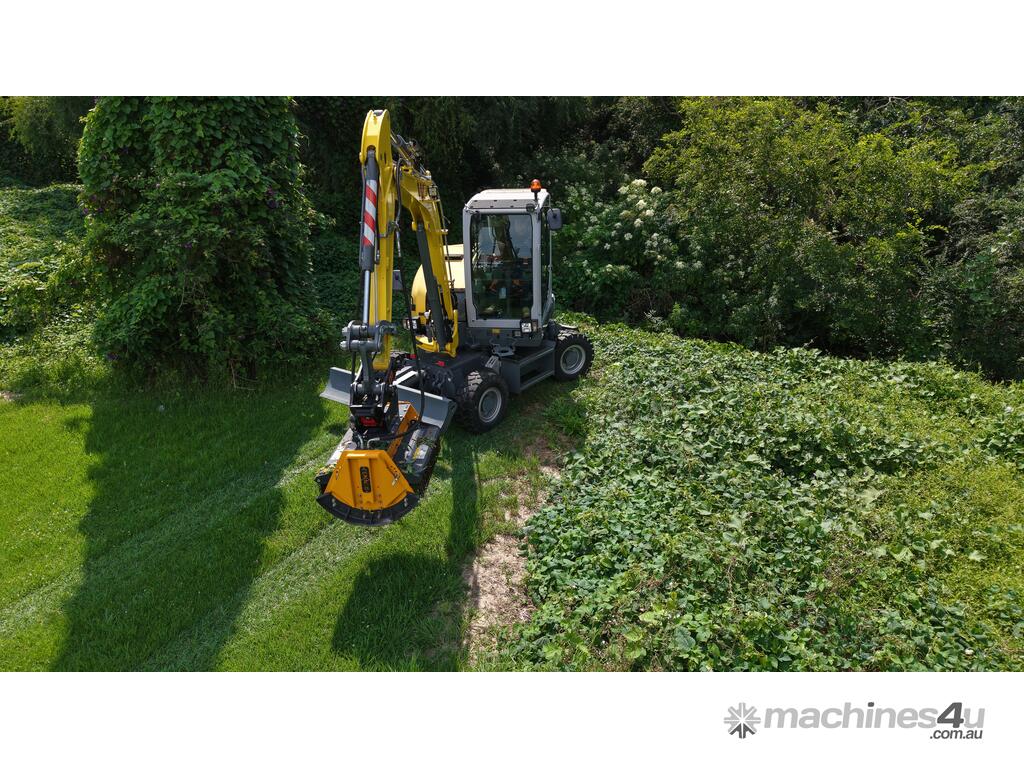

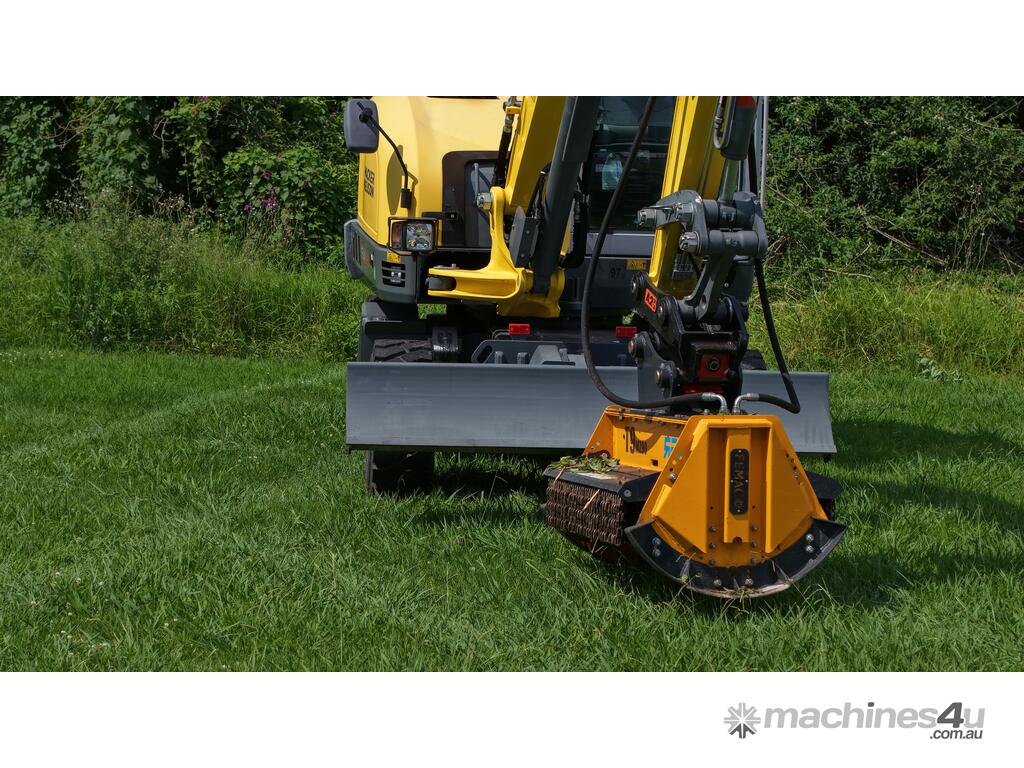

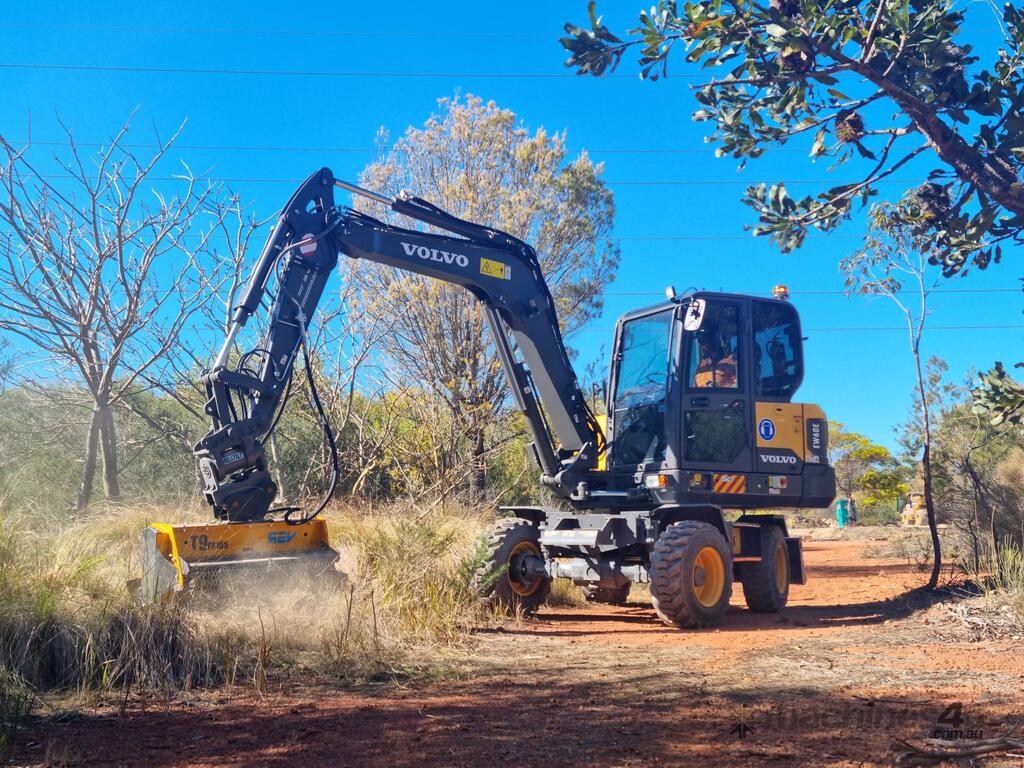

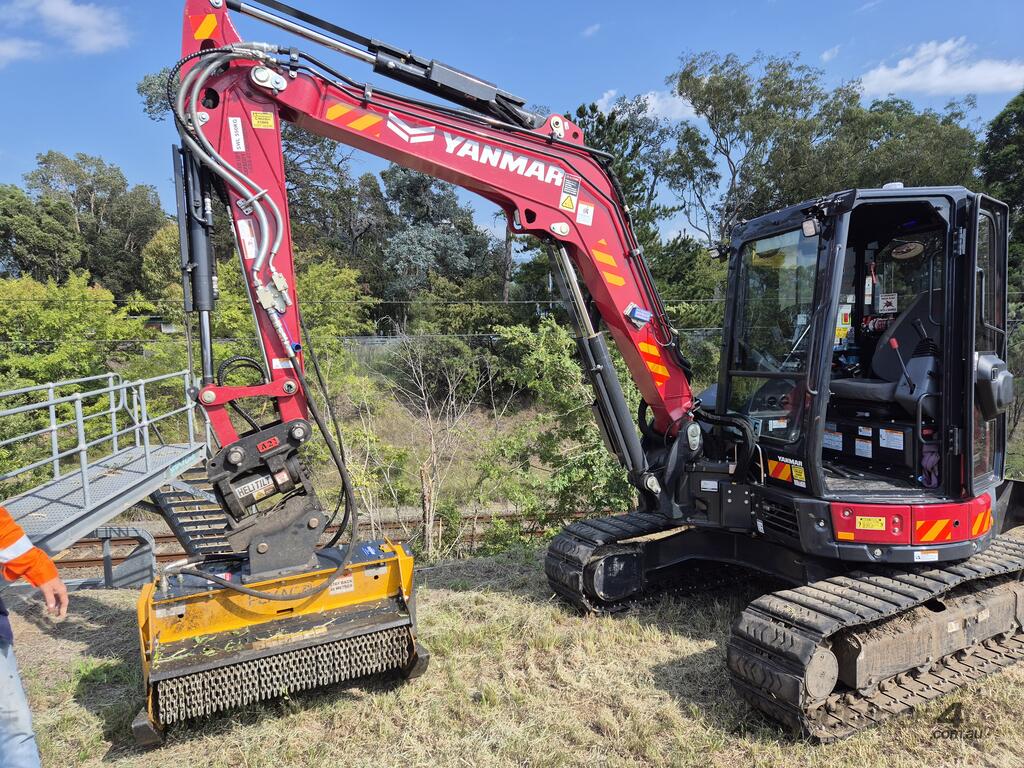

The Femac T9 MZ90 REV Hydraulic Flail Mower/Mulcher is a high quality, Italian built, flail mower attachment with a 900mm cutting length for excavators from 4.0 - 8.0 tonne. Suitable for drainage work, land clearance and mulching.
Available with blade flails that cut up to 60mm and hammer flails that cut up to 80mm diameter branches. The flail mower attachment unit utilises a 2 belt drive system for high transmission of power from the motor to the rotor.

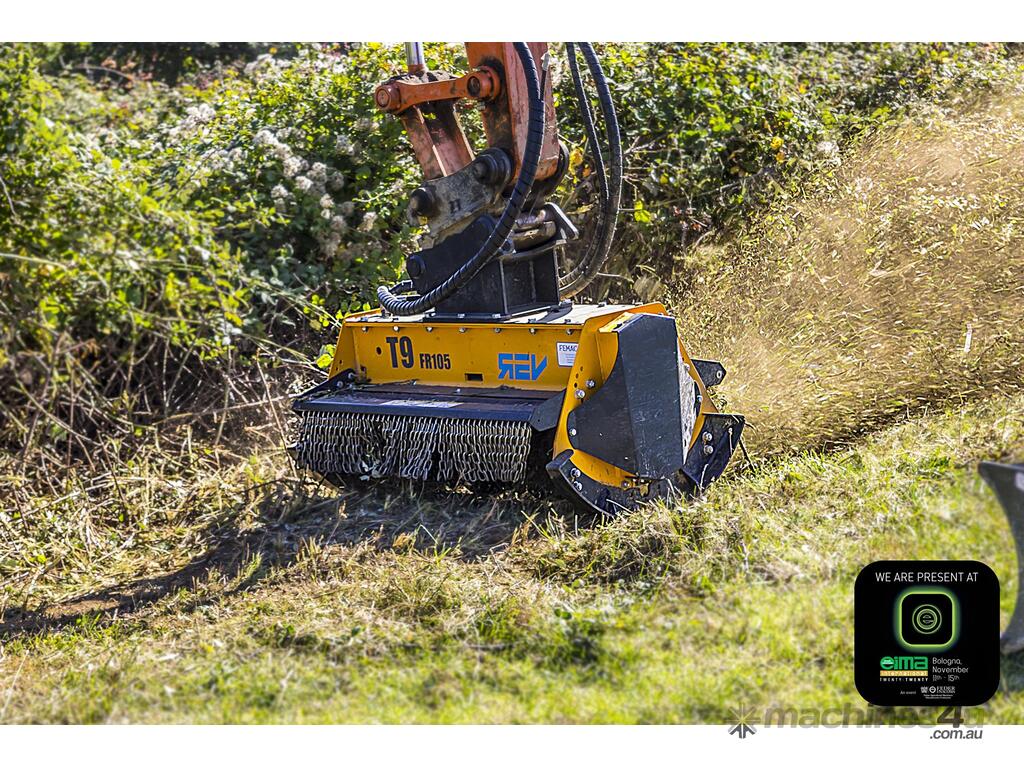

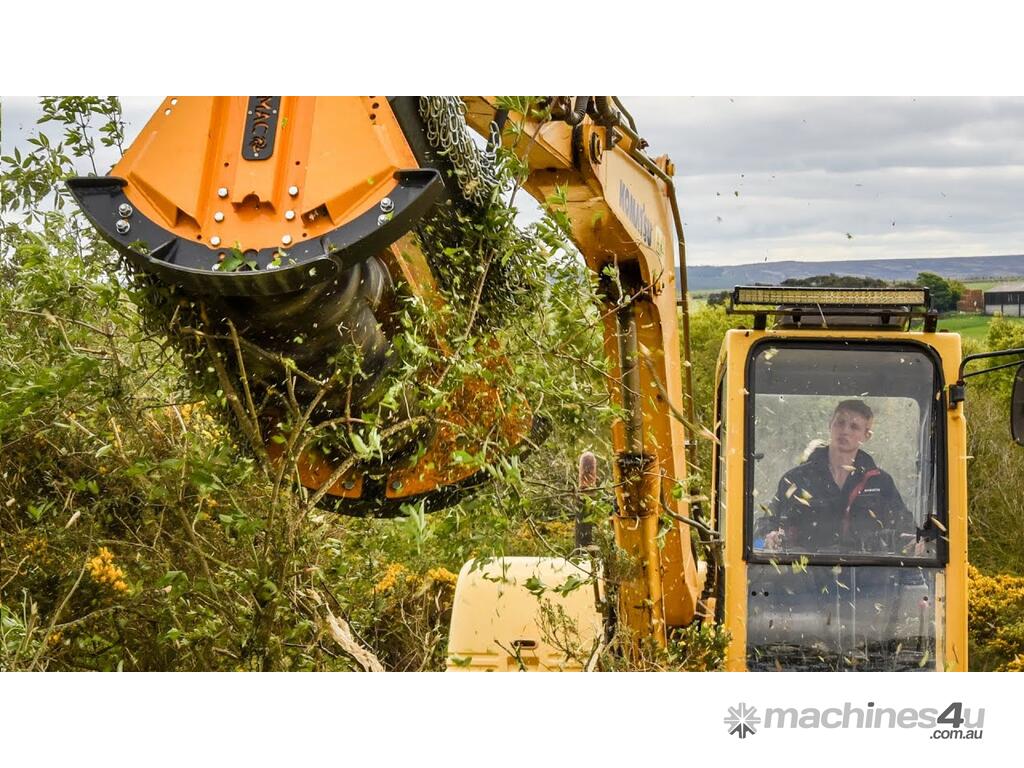

The REV stands for reversible and the unit can be swept back and forth continuously cutting without lifting of the ground.
This unit comes ready to use, including a hitch, hydraulic hoses and couplings.
Made in Italy by FEMAC Slr.
Specifications
- 900mm cutting width
- 22cc hydraulic motor, required oil flow 40L/min
- Hammer teeth
- Hitch, hydraulic hoses & couplings included

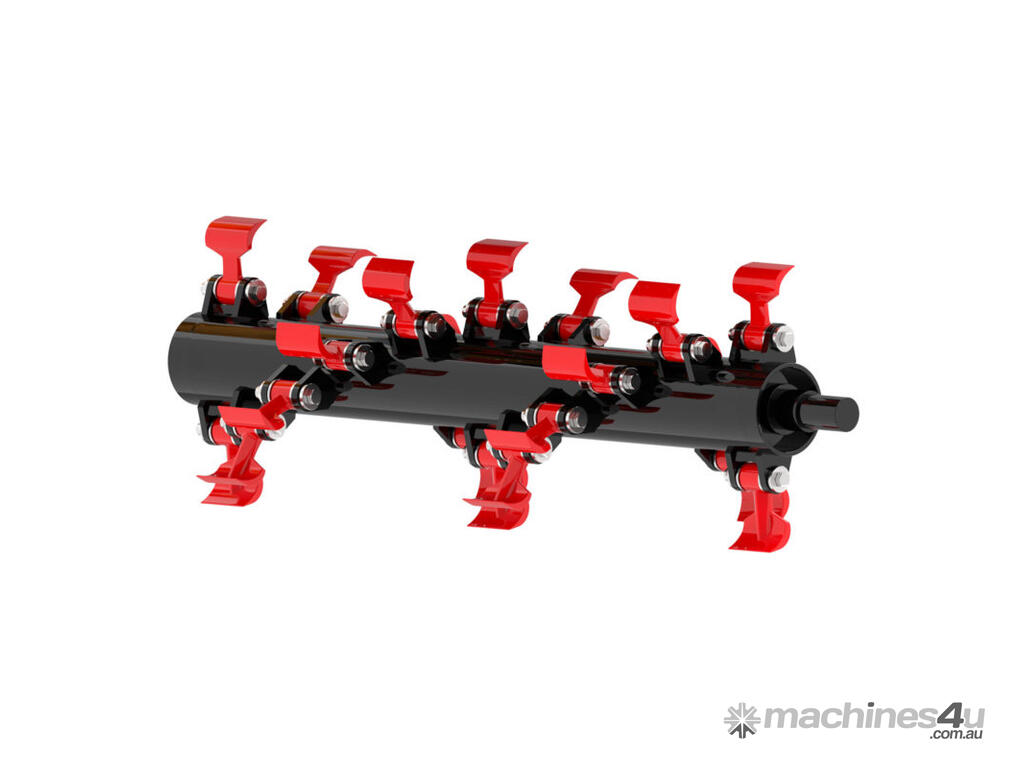

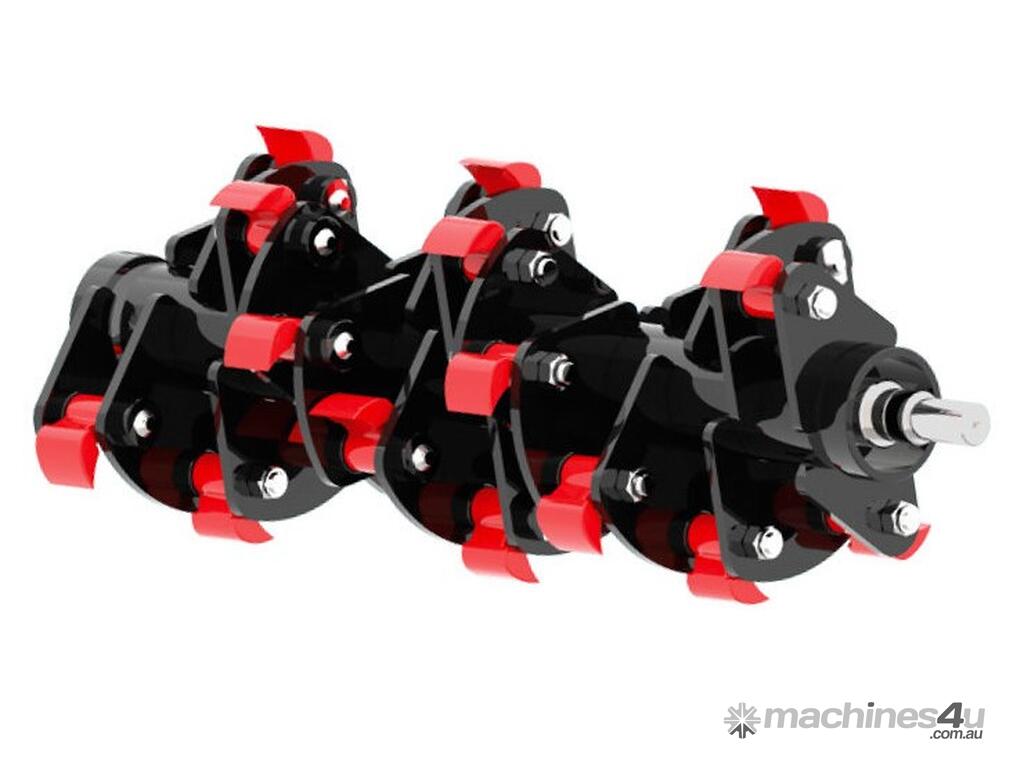

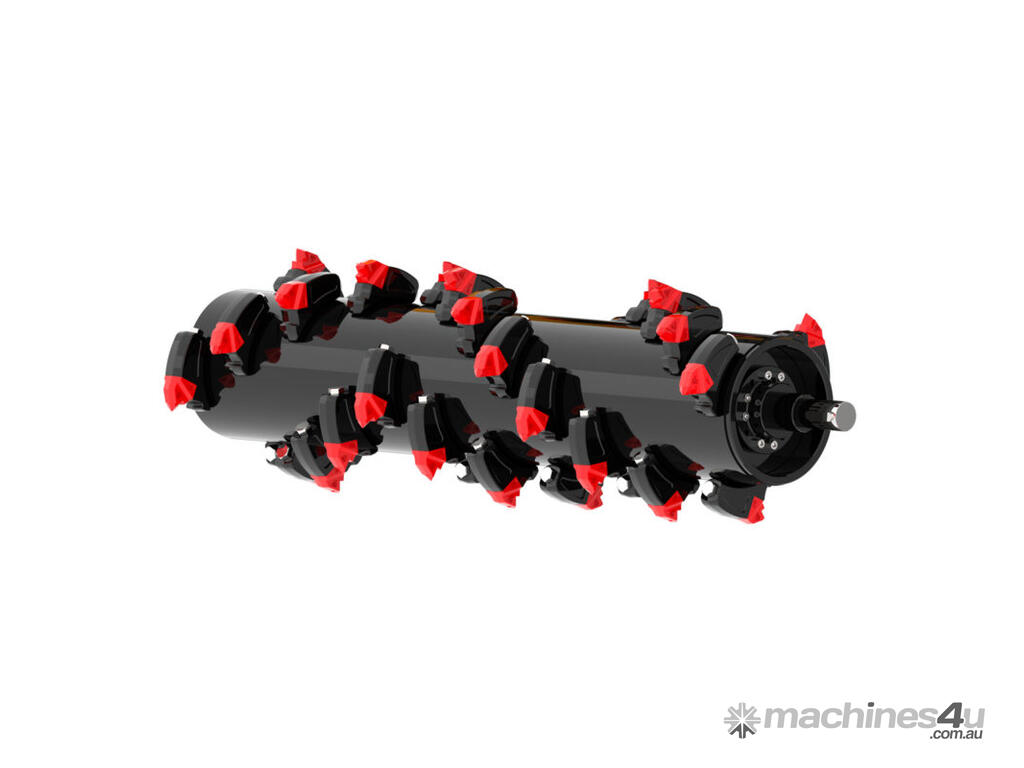

- MZ helicoidal rotor with austempered hammers and cutting interchangeable blade
- Toothed high-performance v-belts transmission
- Internally reinforced double-case body with interspace
- Protective belts cover
- Symmetric shearing head, for a faster cut with the rotation of the excavator
- Input and output mouths completely identical, adjustable
- Adjustable hood, fully openable for higher cutting capacity
- Side skids adjustable on 3 positions to change the height of the cut
- Inside rotor supports with ”labyrinth” for the protection of the bearings from the impurities
- Double row spherical adjustable bearings of 1st quality
- Valves block complete with priority valve for adjusting oil flow, anti-shock valve (pressure relief valve), anti-cavitation
- Cast iron gear motor
- Accident prevention chains protections according to EC directives
