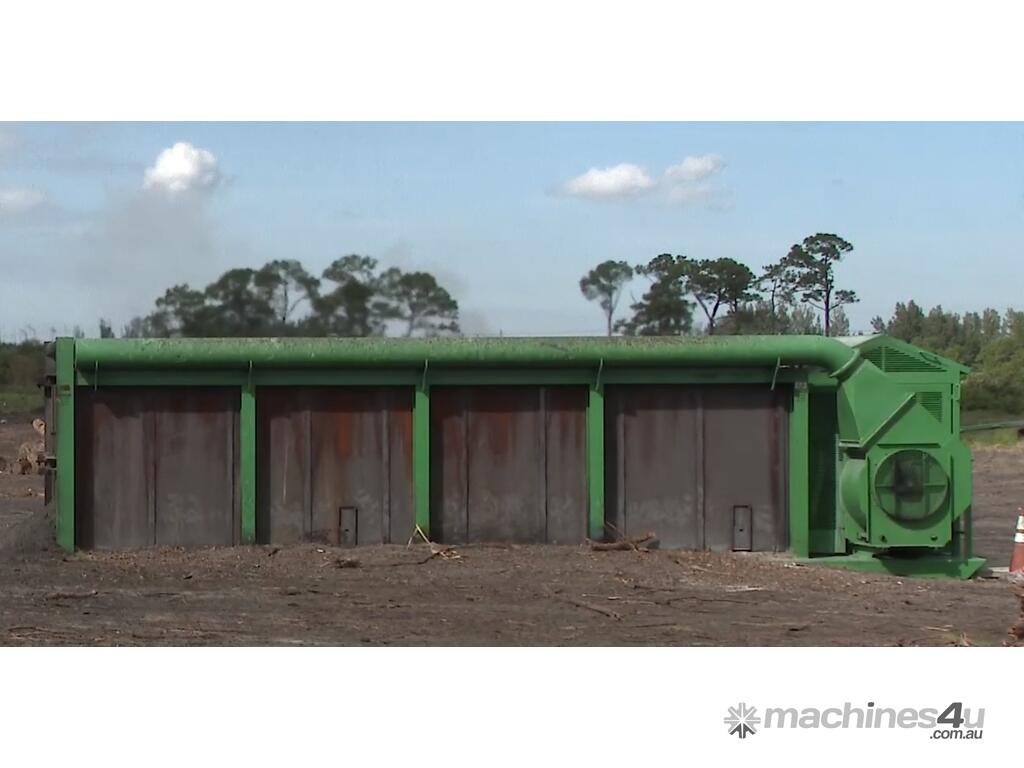

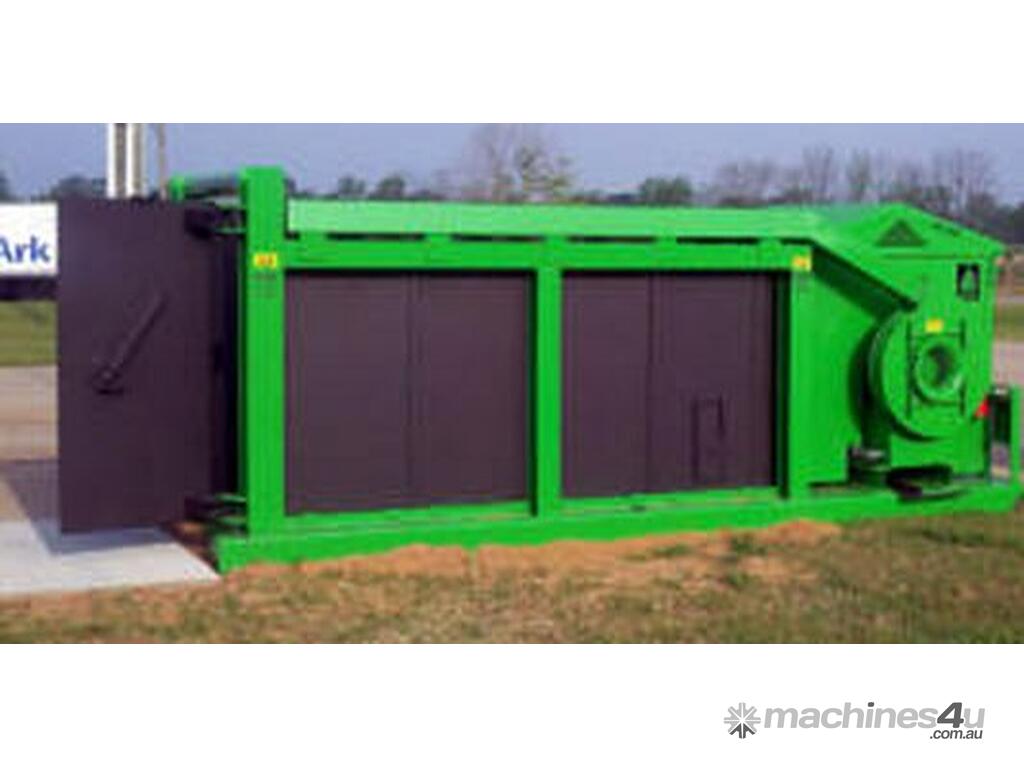

The 100 Series units are our smallest Fire Boxes. We currently manufacture two models the S-111, S-116 and the S-119. These units are differentiated by their manifold lengths.
The S-119 has an 19 foot long fire box and manifoldS116 has an 16 foot long fire box and manifold and the S-111 has an 11 foot long fire box and manifold. The exterior color is standard Air Burners green.
The 300 Series units are approximately 12 feet wide by 12 feet high, whereas the 200 Series units are approximately 8 feet wide and 8 feet high, and the 100 Series approximately 6 feet wide and 6 feet high.
The S-111, S-116 and S-119 FireBoxes have been designed to fit into a 40 FT HC ocean cargo shipping container.

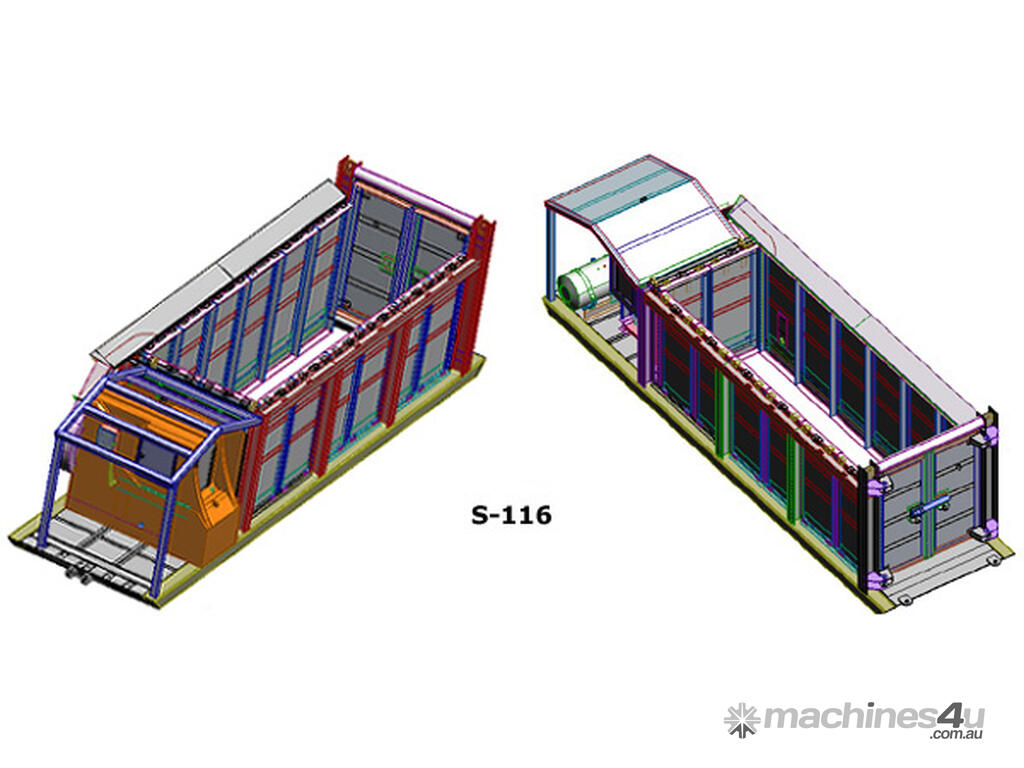

The CAD drawings below are generally representative of the S-119, S-116 and S-111, except that all S-100 Series units are now fitted standard with the steel security enclosure for the front deck.
Detail Specifications: S-116 and S-111. The S-119 is a stretched S-116.

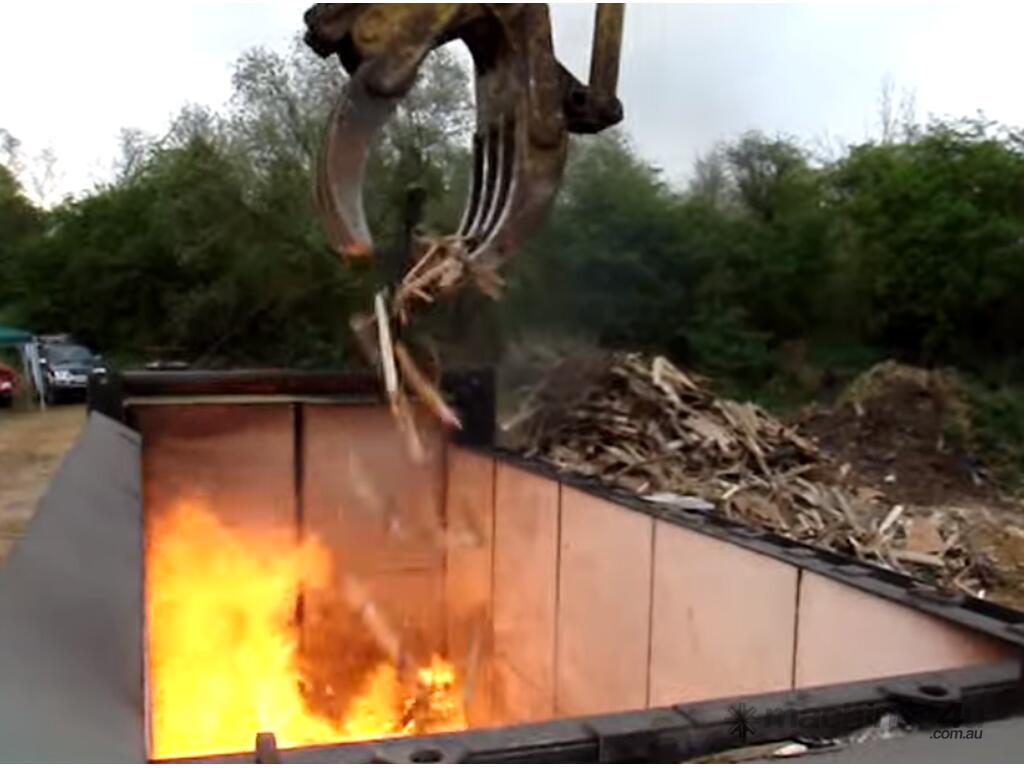

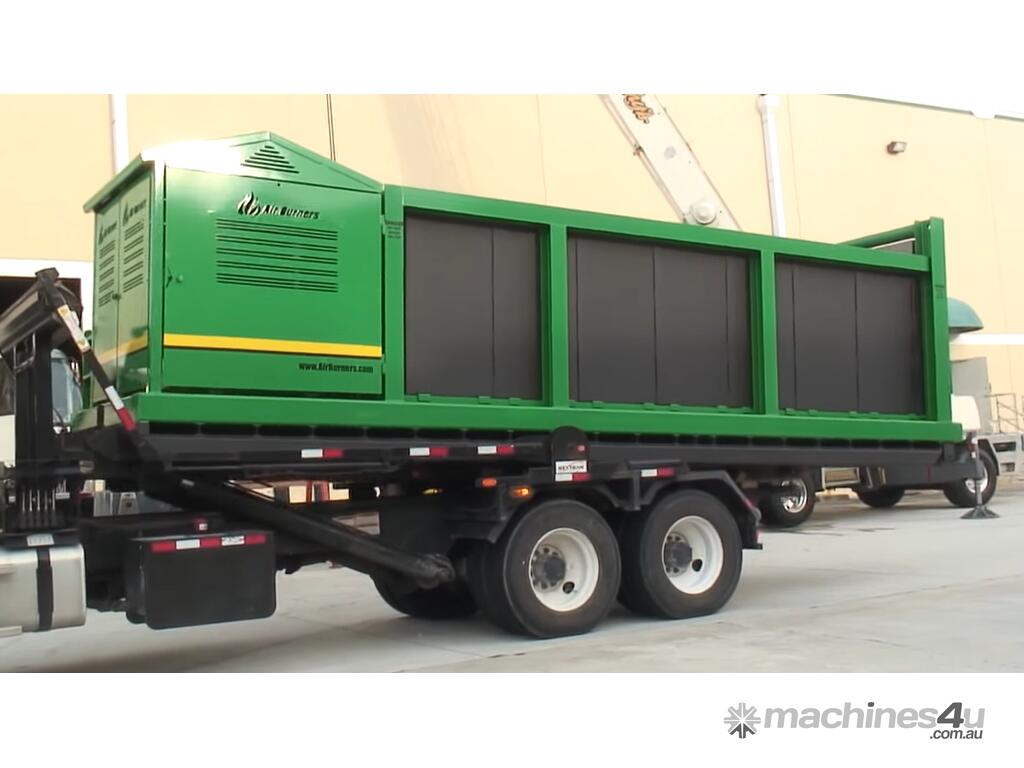

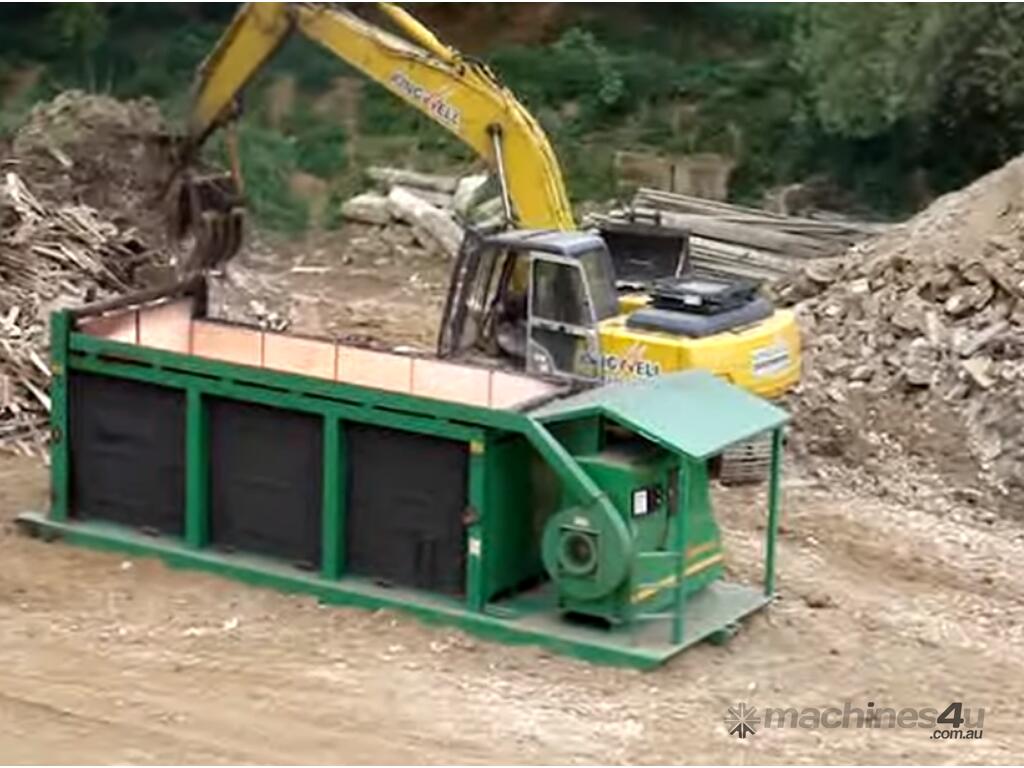

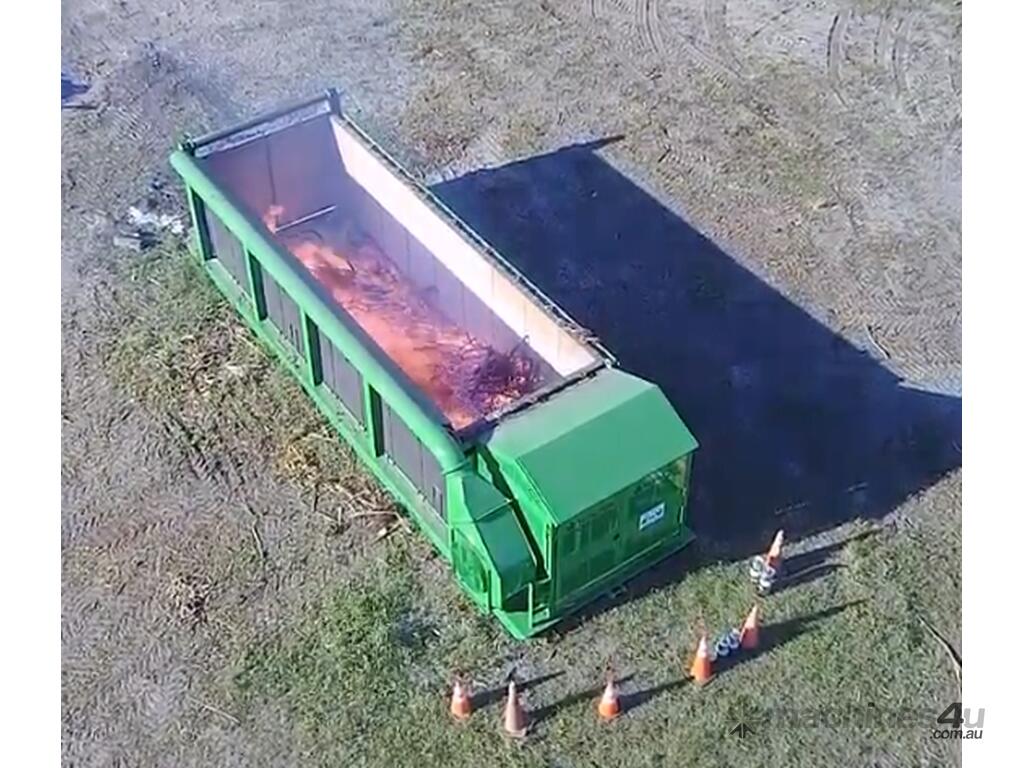

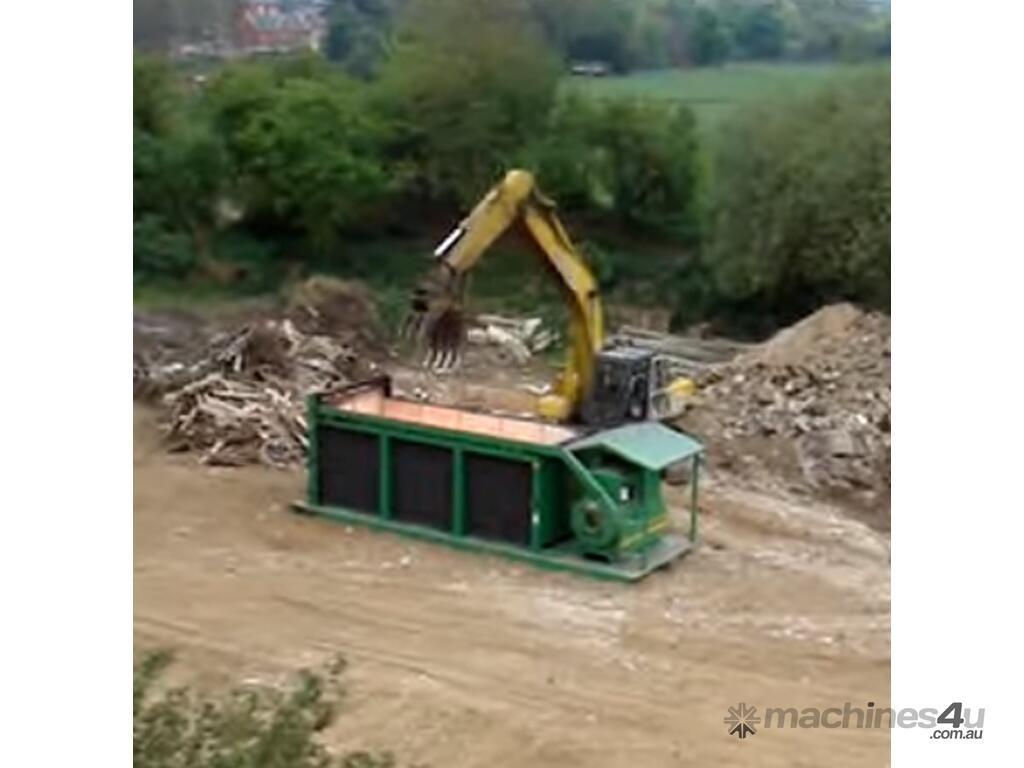

The Fire Boxes are the skid-mounted S-Series machines. They are used as both permanent (stationary) units at landfills or transfer stations or as portable units, for example, in the land clearing or forest industries. The S-Series machines come in three sizes.
The 300 Series units have a cross sectional area of approximately 12 feet wide by 12 feet high.
The 200 Series units have a cross sectional area of approximately 8 feet wide by 8 feet high.
The 100 Series units have a cross sectional area of approximately 6 feet wide by 6 feet high.
