Fixed speed rotary screw compressor 2 - 7.5 kW

CompAir L02 - L06

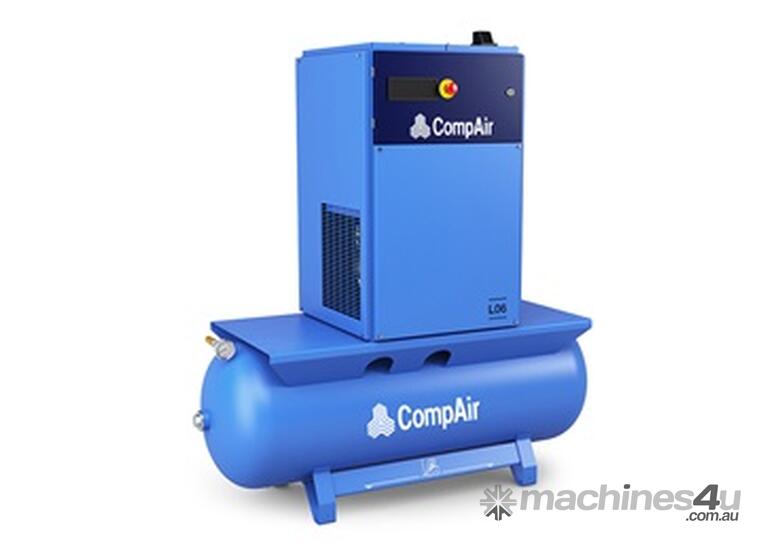

L02 - L06, Flow: 0.18 to 0.89 m³/min, 10 bar low-noise compressors, receiver mounted with refrigerant dryer options available.

To meet the requirements of the individual customer demands the range of compressors can be combined with numerous options to provide everything from a stand alone compressor, receiver mounted or complete Airstation including refrigerant dryer.

New Range - New Benefits
In addition to the existing benefits of the previous 2 to 5 kW range, the new models offer the following improvements based on extensive research and development combined with customer feedback from the field:

Auto tensioning of the drive belt
New C-Pro1.0+ Controller
Improved servicing capability with new canopy design
Extended models with integrated after cooler
Motor overload protection
Airend protection
New 7.5 kW variant
New group of dryers (our own downstream equipment)
New airstation design with AD 2000 receivers as standard

New Range - Optimised Design
Designed with the minimum number of moving parts, these compressors are reliable, robust and capable of continuous running for numerous applications. They are easy to use, easy to install and fully ready for plug and play. With fully removable side panels the compressor is quick and easy to maintain and service, minimising downtime and maximising reliability.

Thanks to the fully removable side panels, these compressors can be serviced quickly and easily, which minimizes downtime and maximizes availability.

The range has been expanded up to 7.5 kW, with a new lower cost variant at 7.5 kW, the controller offers improved visibility to see at a glance the compressor outputs. It also has better connectivity for sequencing with other air compressors - when it's run in conjunction with another model to provide more air when needed.

The new canopy design gives easy access to speed up and improve machine servicing, the air dryers are built and manufactured in house giving you the same expert level of manufacturing and quality with the dryer that you have come to expect from your CompAir compressor.

NEW C-Pro1.0+ fitted as standard
The Controller has been completely redesigned with the following new features and improvements:

Better display that shows pressure, oil temperature and compressor's status (load / unload) at the same time.
Communication port RS485 instead of RS232 (supports Modbus)
Integrated sequencer to easily control 2 compressors
Better appearance and plastic box for improved protection covering
Fitted as standard in all models
Auto restart after power failure
Password to protect access
Air & oil filter replacement indicator
Separator filter replacement & oil change indicator
Pressure setting easily adjusted
Unload timer for both *DOL & SDS configurations
*DOL - Direct On Line,
SDS - Star Delta Starter
