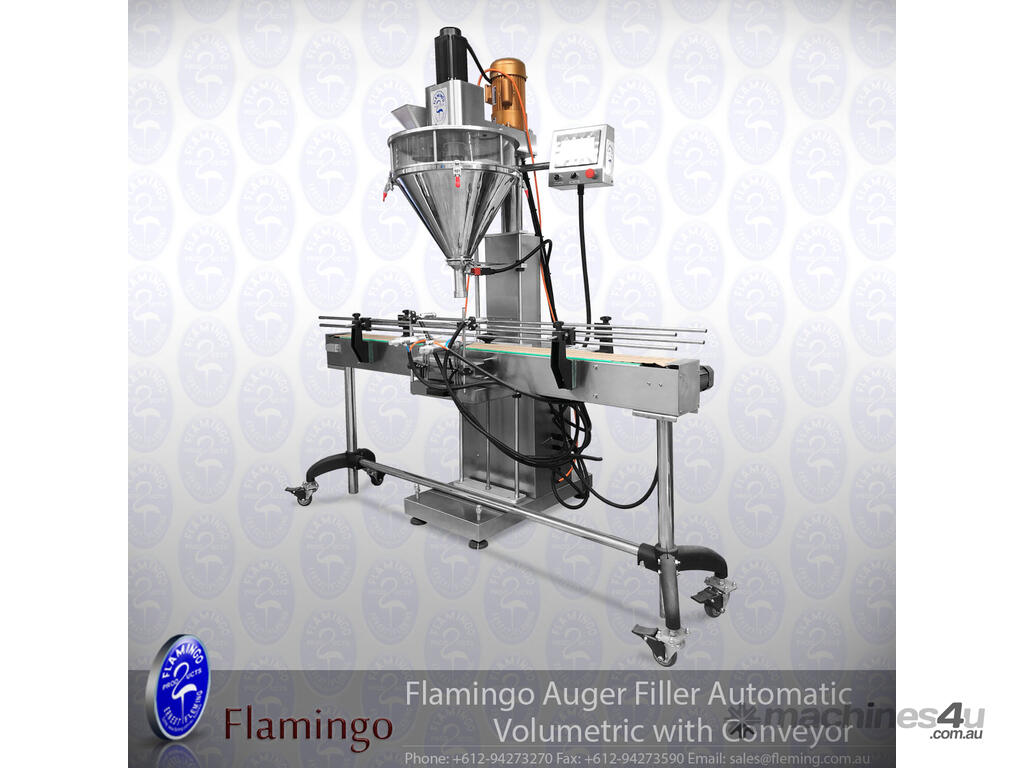

Auger Powder Filling Equipment Fully Automatic
Stainless Steel Grade 304 and Synthetic Material contact parts: conforming to the GMP suitable for food, pharmaceutical or chemical applications,
PLC touch screen and interface: Filling is volumetric and is precise provided the product is consistent, The Volume can be set up relative to the weight of the product.
Convenient and easy to operate. Servo motor-driven: giving a high precision, high torque and adjustable rotational (dispersion) speed. Standard machine is 240 Volt 50 Hz.
The Auger Filler can be upgraded to fill by Weight if required

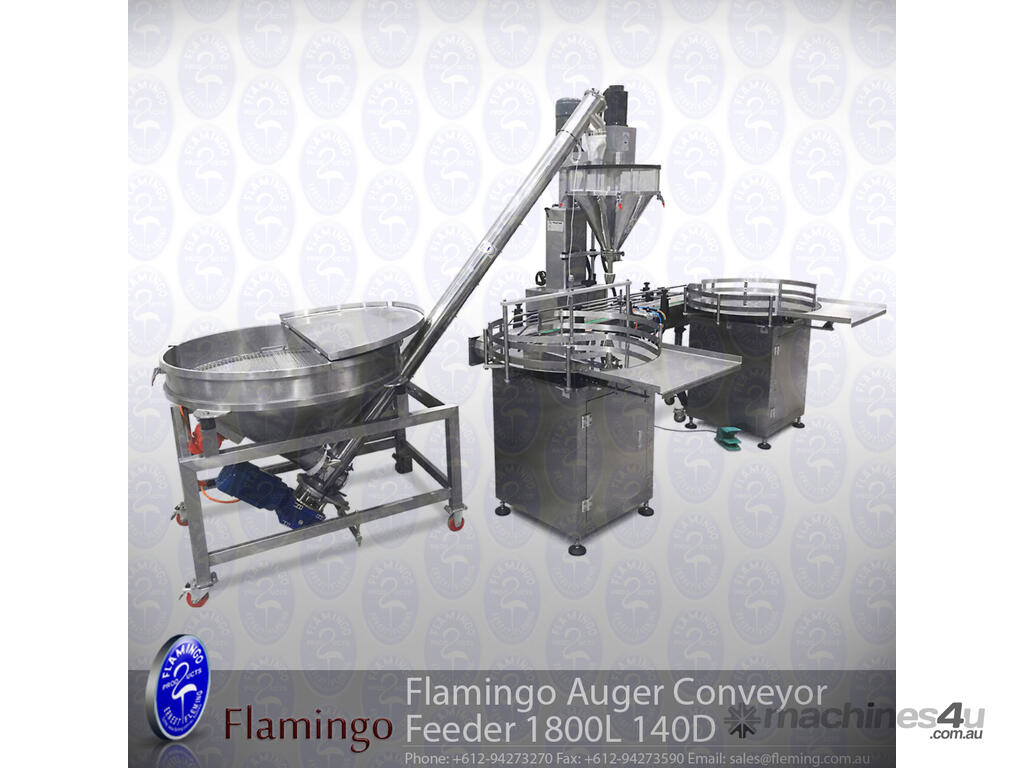

Can also be supplied as a fully Automatic Volumetric Filling Line
Easy cleaning
Engineered and supplied in accordance to Australian operator safety.
Drop-out hopper arrangement for easy wash down/ changeover
Easy to adjust and select desired filling volume
Machine is completely S.S #304 contact
Memory setting for up to 20 presets desired filling weights.
Operator friendly Digital Touchscreen PLC interface
Foodstuff, pharmaceutical and agricultural products etc.
Depending on filling volume you will fill approximately 30-40 per minute
Packing volume: 2g-5000g (this unit is also suitable for up-too 25kg)
Packing speed: depending on operator speed and filling volume,
packing accuracy: +/- 1%. Speed and accuracy depend on size of the Auger used.
voltage: AC240V requires air
weight: 180kg
FEATURES
The EFAFA Auger Filler also includes:
Speed Control: low noise, ease of use.
Packaging volume easily adjusted or re-programmed.
Can be modified to a Weigh Filler controlling the Auger Filler by weight.
10 Program parameters for product can be stored for later use.
With automatic feeding the level in feed hopper can be controlled.
By changing the Auger for different product and volume a wide range of products can be handled.
