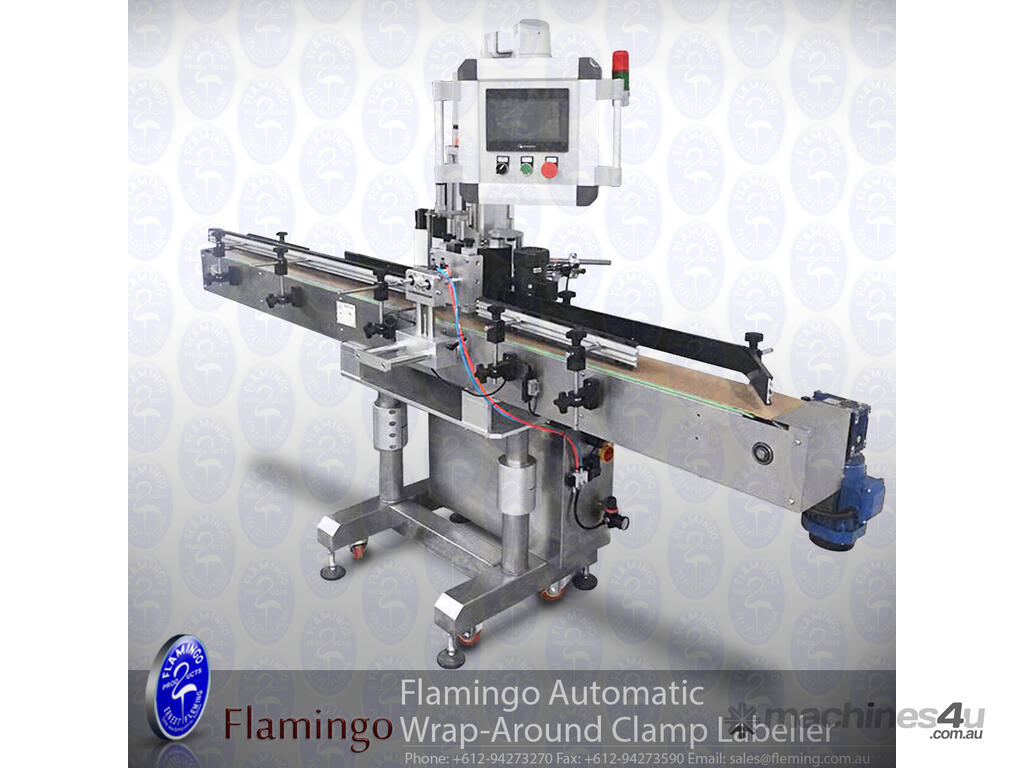

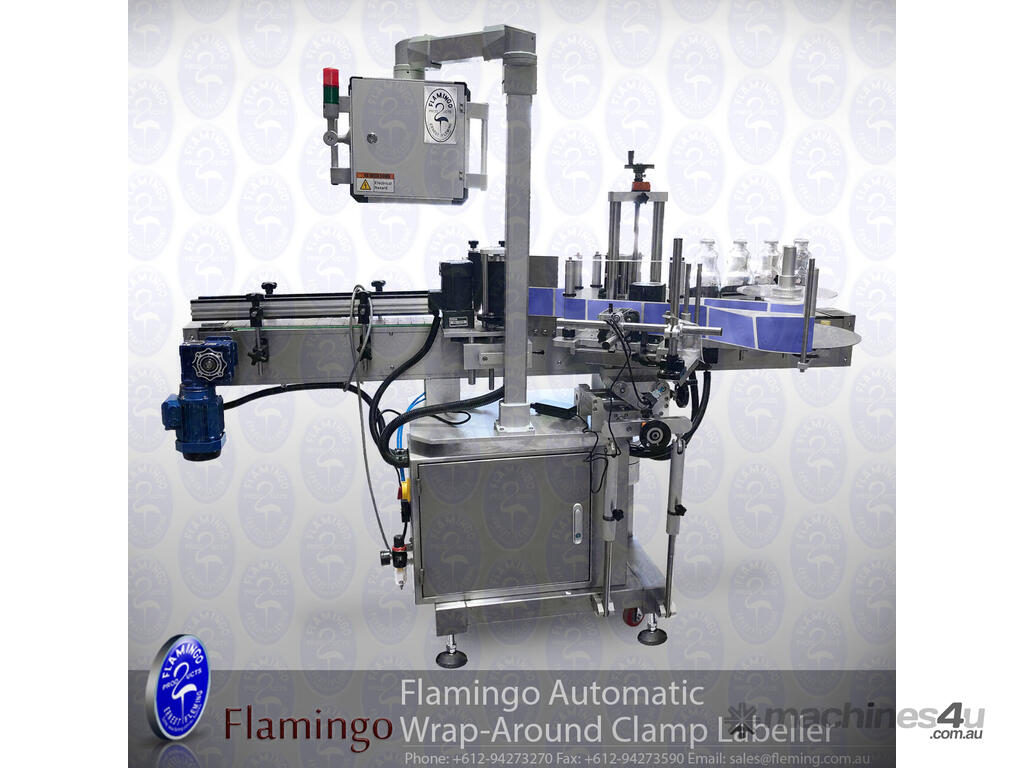

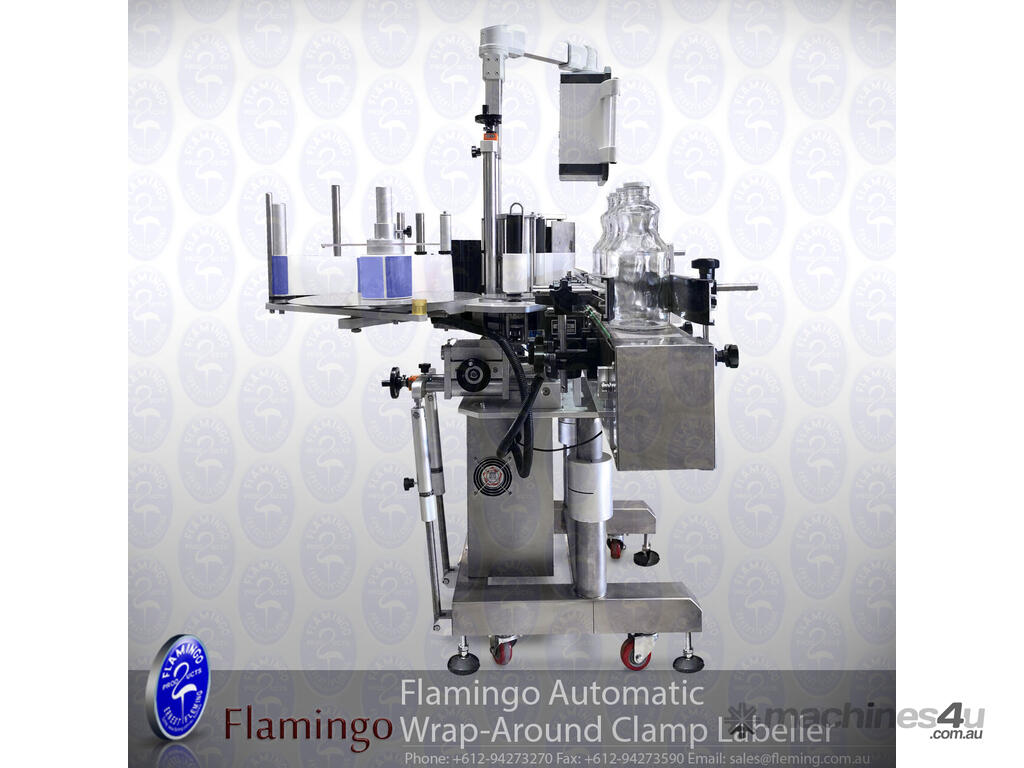

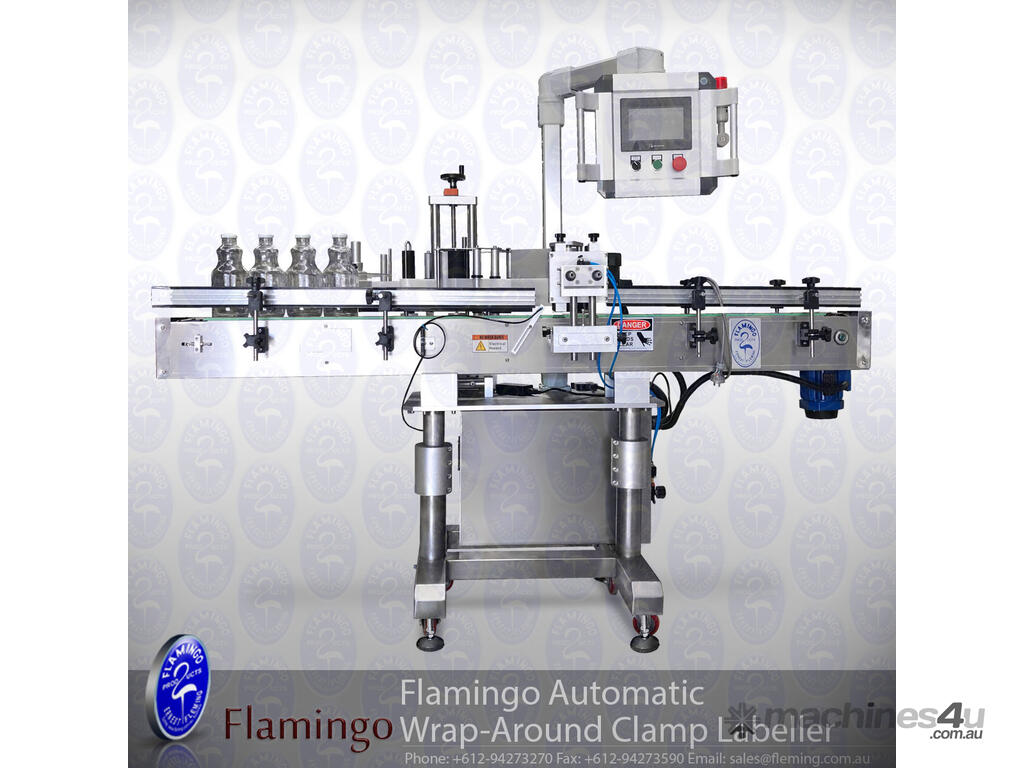

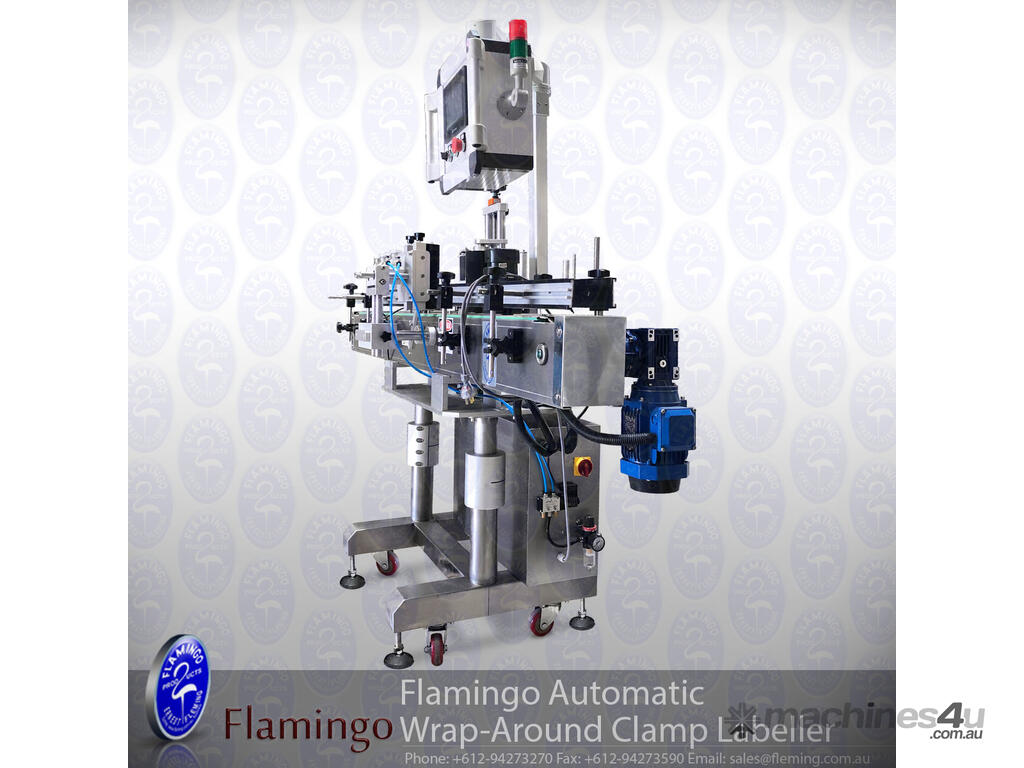

Flamingo Automatic Wrap Around Clamp Labeller (High Precision / Easy to Use!)

The Flamingo Automatic Wrap-Around Clamp Labeller is a fully automatic labelling solution designed for applying precision wrap-around labels on round containers and bottles. Ideal for a variety of industries, including food and beverage, pharmaceuticals, and cosmetics, this labeller ensures consistent, professional-quality labelling with ease.

Key Benefits and Advantages
• High-Precision Label Application:
Equipped with a servo-motor-driven label application head, the Labeller guarantees accurate label positioning, ensuring every label is applied perfectly every time.

• Versatile Labelling Options:
Capable of applying both partial and full wrap-around labels, this machine handles pressure-sensitive (self-adhesive) labels, accommodating a wide range of cylindrical containers including plastic, metal, glass, and composite materials.

• User-Friendly Operation:
Designed for simplicity, the Labeller allows for easy bottle and label set-up, making changeovers quick and efficient, which is essential for dynamic production environments.

A Complete Labelling Solution

• Integrated Container Separation Module:
Features an adjustable module that ensures precise bottle timing, optimizing the labelling process for high throughput.

• Advanced Sensing Technology:
Equipped with optical sensors, the Labeller efficiently detects both opaque and printed labels, ensuring accurate application on various surfaces.

• MITSUBISHI PLC and Touchscreen HMI:
The intuitive control system provides easy navigation and adjustments, enhancing operational efficiency.

• Speed-Adjustable Wrap-Around Module:
This feature allows for 360° perimeter application, accommodating various container sizes and shapes.

• Durable Construction:
Made with a stainless steel and anodized aluminium body, the Labeller is built to withstand rigorous use while ensuring long-term reliability.

• Stable Container Movement:
The machine includes a 2.4-meter speed-adjustable conveyor with a rust-proof plastic flat-top chain, ensuring smooth and stable movement of containers through the labelling process.

• Adjustable Guide Rails:
Easily adjustable guide rails enhance setup flexibility for different container sizes.

• Remote Machine Status Monitoring:
Equipped with dual-colour light signals, operators can easily monitor machine status from a distance.



Specification:

• Label Width: 10-150 mm
• Label Length: 10-200 mm
• Labelling Speed : Up to 6000 bottles/hour
• Labelling Accuracy: ±1 mm
• Bottle Diameter: Up to 100 mm
• Power Source: 450W, 220V, 50Hz/60Hz
• Label Reel Inner Diameter: 75 mm
• Label Reel Outer Diameter: 360 mm
• Weight: 80 kg
• Dimensions: 1200×800×550mm
• Control System: Japanese Mitsubishi PLC

Optional Batch Coder / Printer can be integrated!

Contact Us Today!

For customized solutions and more information on our Flamingo Labelling Machines! reach out to our team. We’re here to help you find the perfect filling solution tailored to your specific requirements!
