Flat Deck Vibratory, Brand: Mogensen, Model: C024
Unit is a steel vibratory 2 deck screener sizer machine.

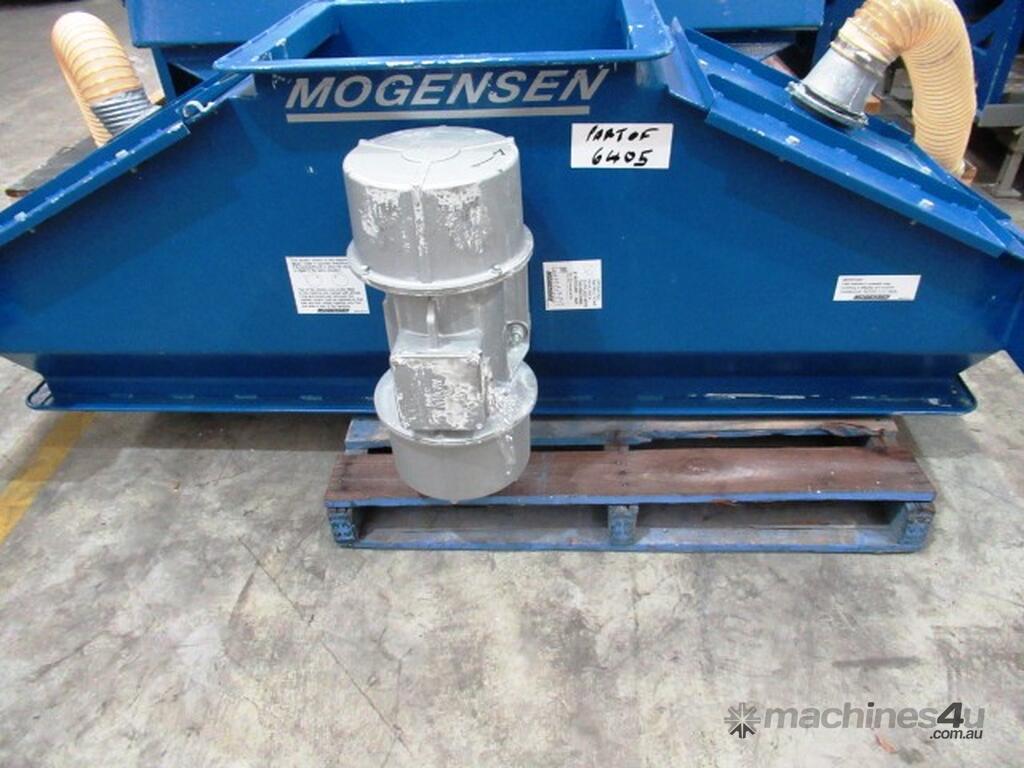

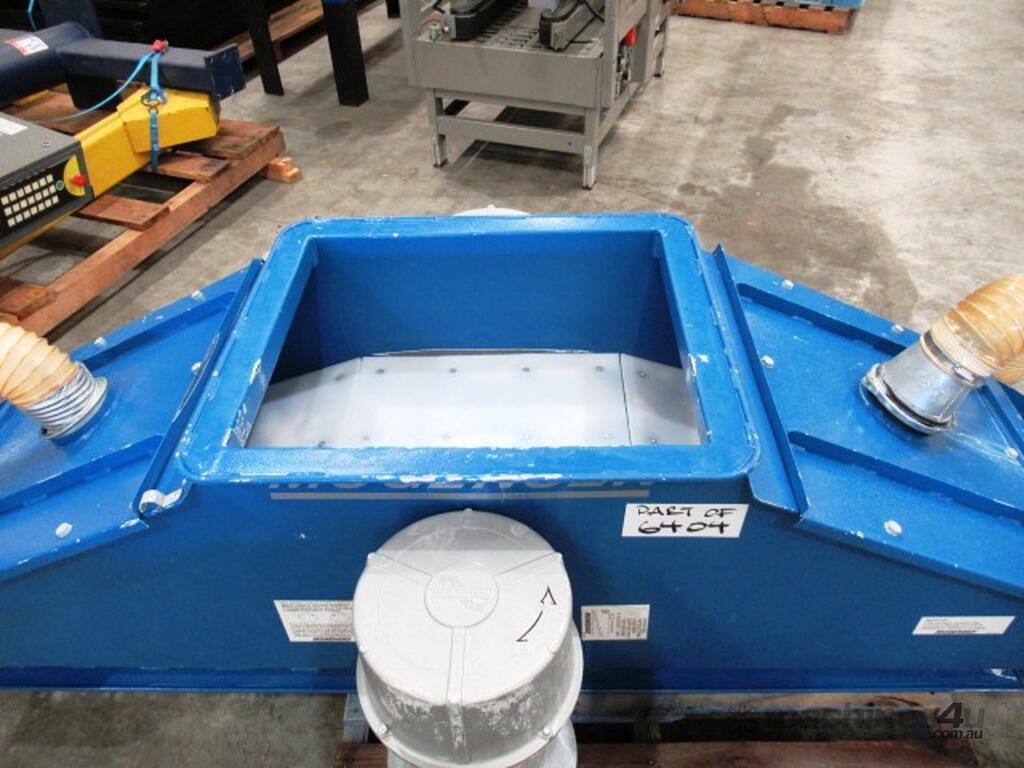

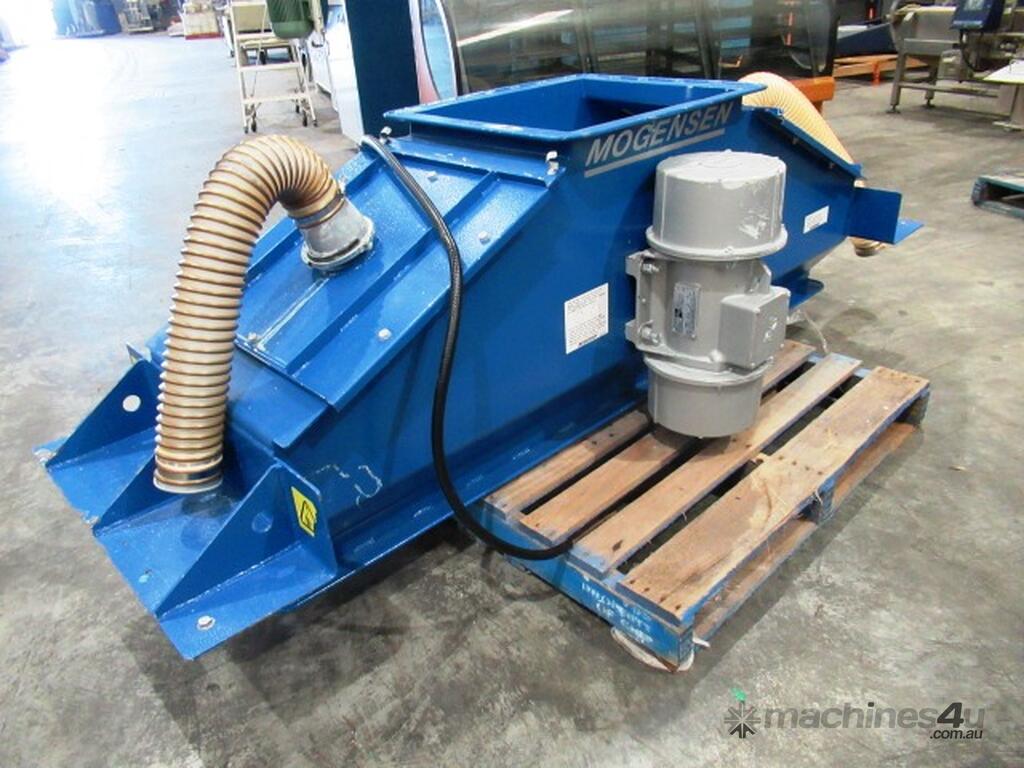

The system consists of 1 x Mogensen vibratory product feeder, model No. F2005C.
The feeder is driven by 2 x 900 Watt 960 RPM,415V Invicta vibrators.
Force: 13734(N).
Infeed Inlet: 600mm L x 500mm W.

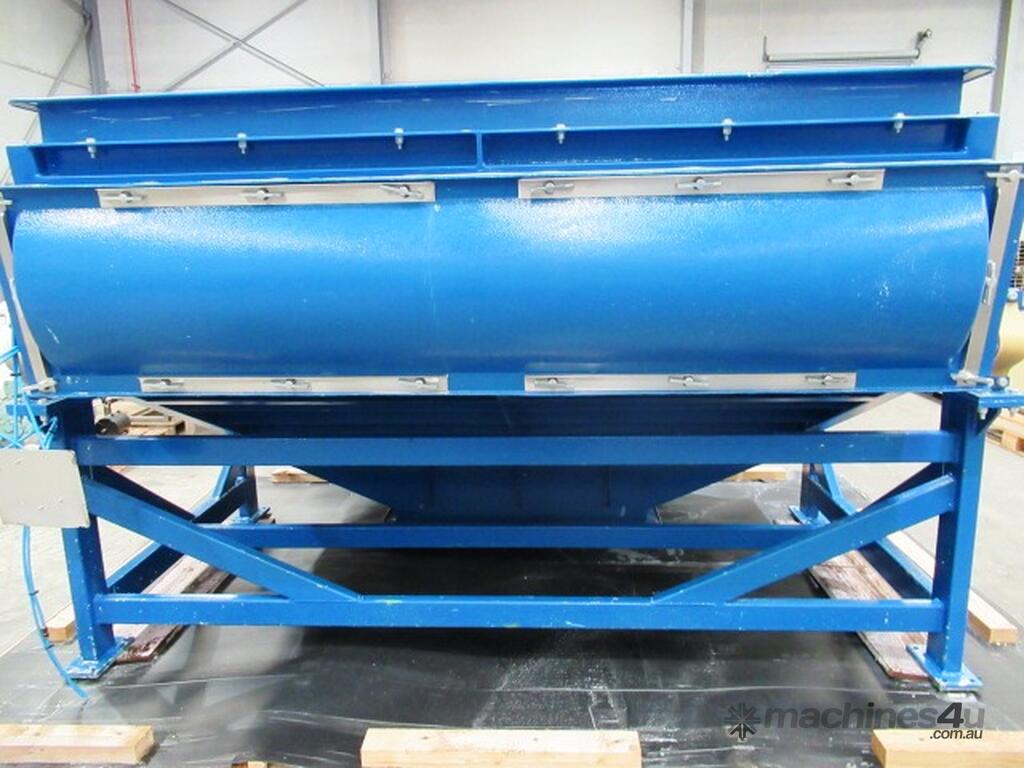

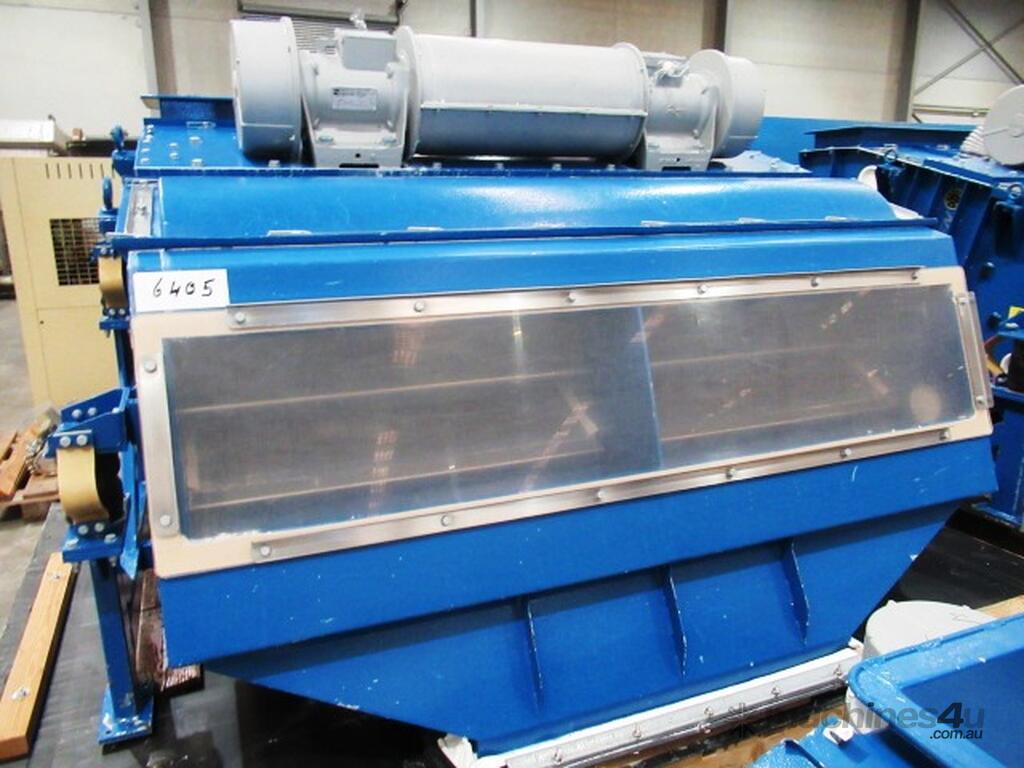

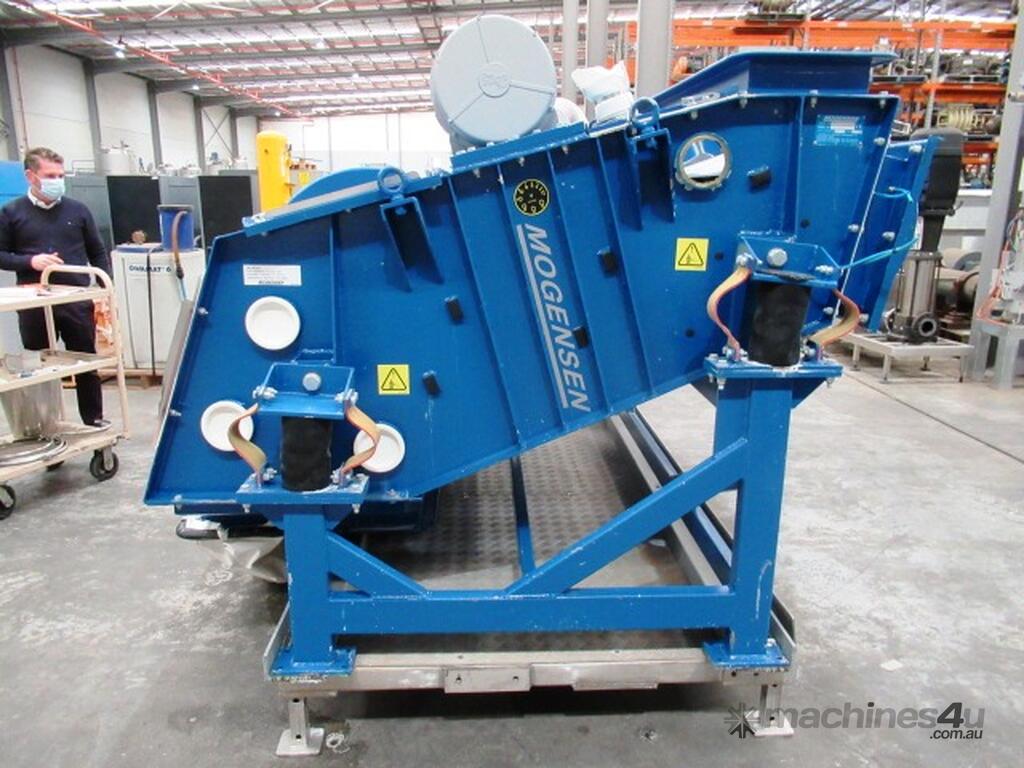

Mogensen 2 Deck Screener.
Material of Frame: Steel.

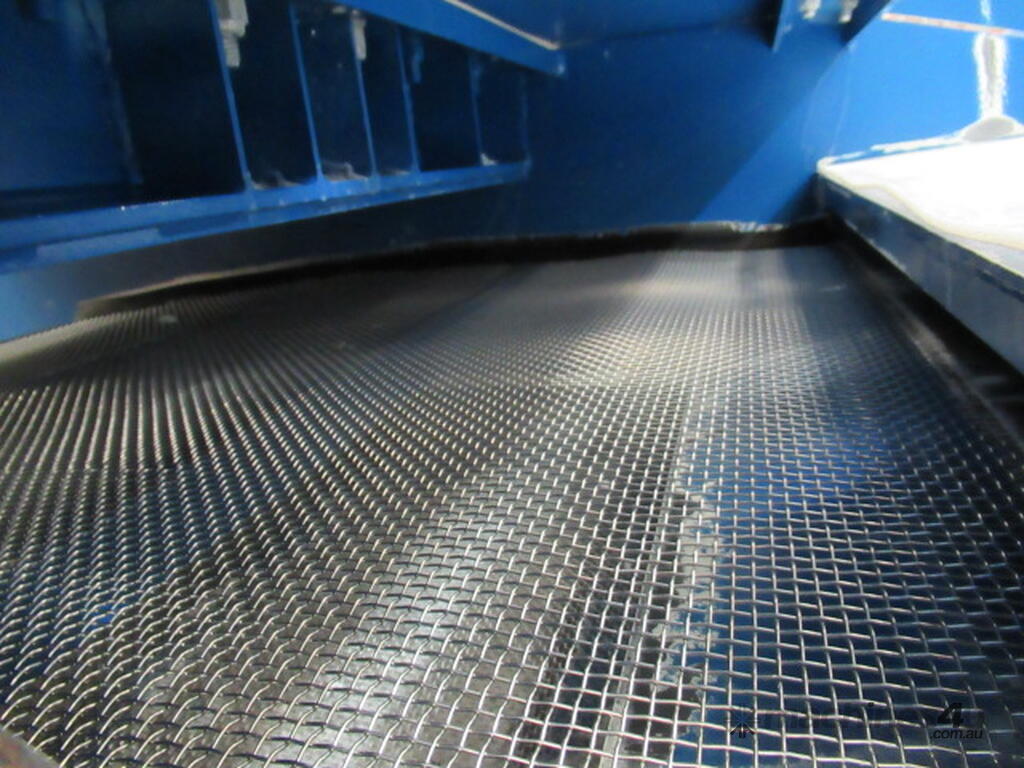

Material of Screens: Stainless Steel.

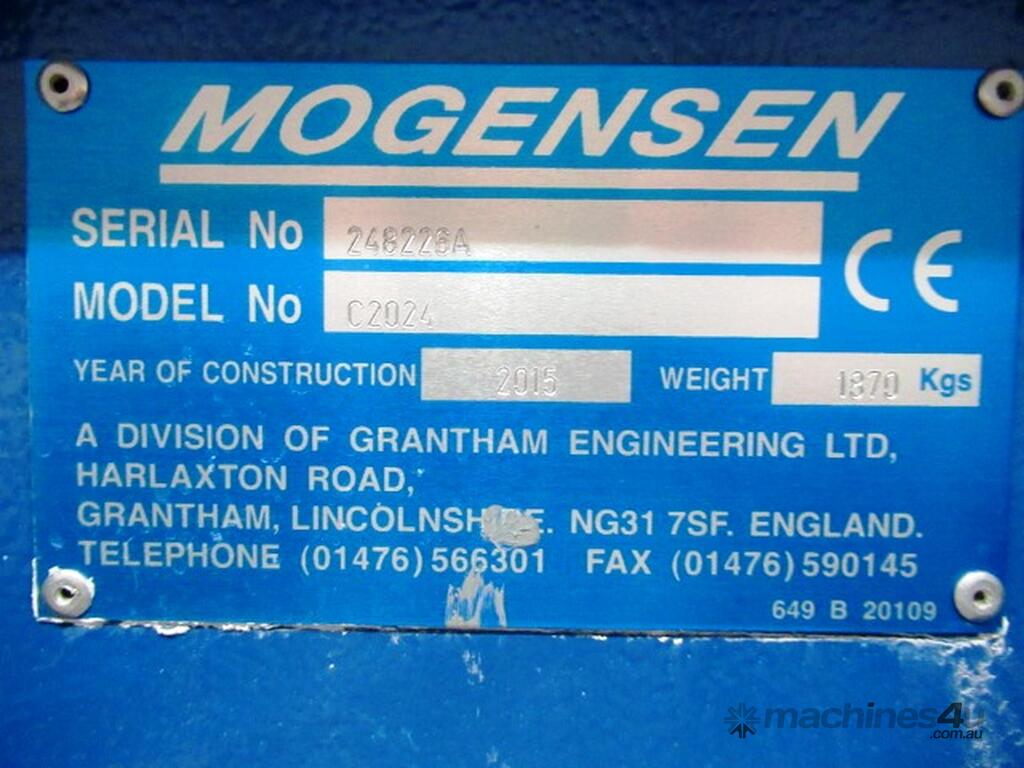

Model No. C024.
Unit is driven by a 2 x 1800 Watt 1440 RPM, 415V Invicta vibrators.
Force: 34335(N).
The machine is currently fitted with approx:
1 x approx 5mm aperture.
1 x approx 3.5 aperture.
Year of Machines: 2015.
Overall footprint of screener: 2550mm L x 2350mm W x 1650mm H.
Overall footprint of vibratory feeder: 2550mm L x 1030mm W x 770mm H.
