Flatbed CNC Machine 2800x1230mm - Opt. Label, Load, Unload

Wood Tech. Aus Owned and Operated. Local Parts and Service in 5 Locations. Download Brochure Now.

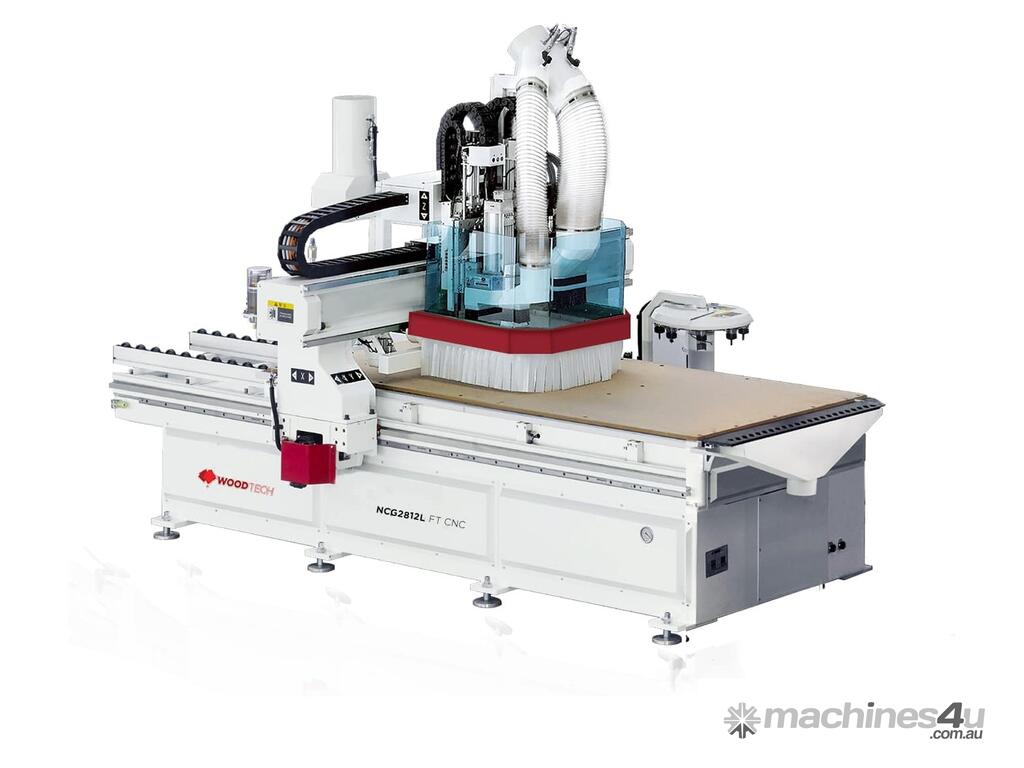

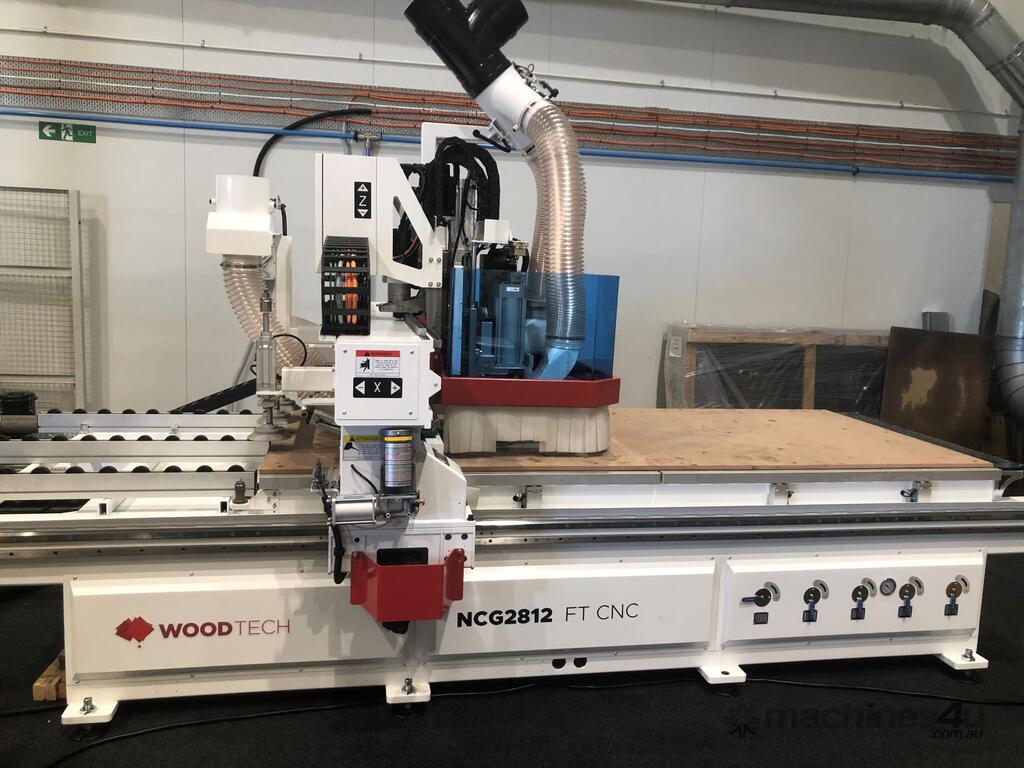

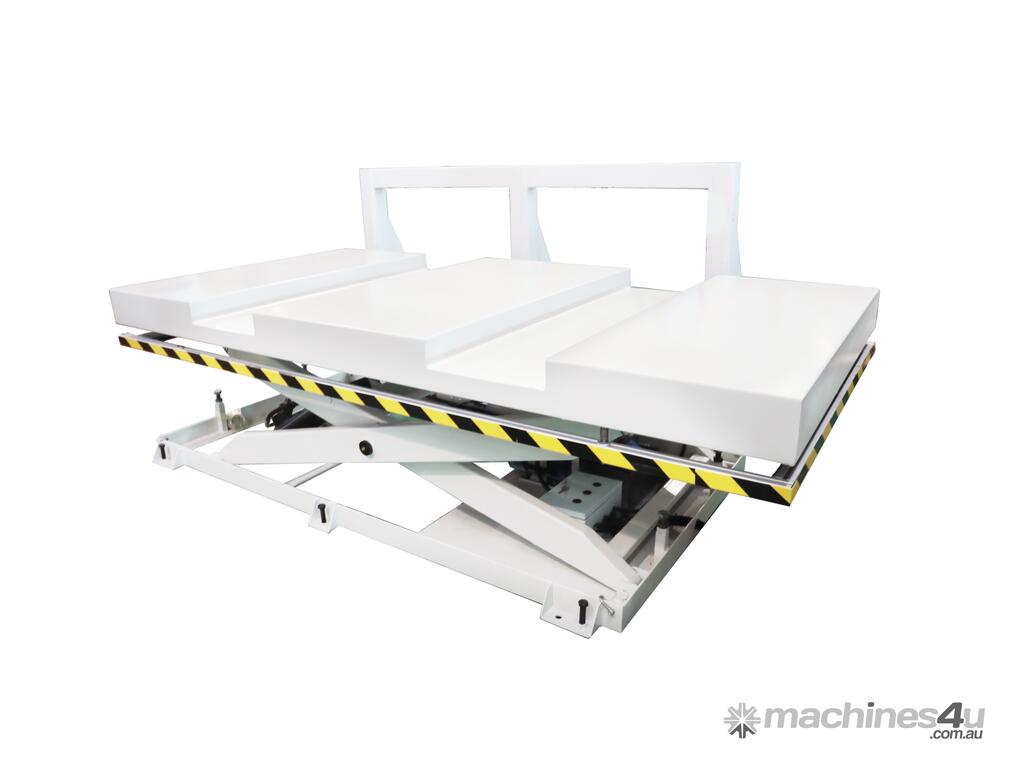

For both medium volume and customised orders, the Wood Tech NCG2812 Flatbed CNC Machine offers flexibility for precise cutting and boring. Coupled with automation and intelligence, top side boring and grooving, plus panel cutting and shaping.This CNC machine can be kitted with optional load/unload and an auto labelling line.

• 12 slot auto tool changer
• Powerful vacuum mount to reduce table dust
• Open port for third party software integration


DISTINCTIVE FEATURES

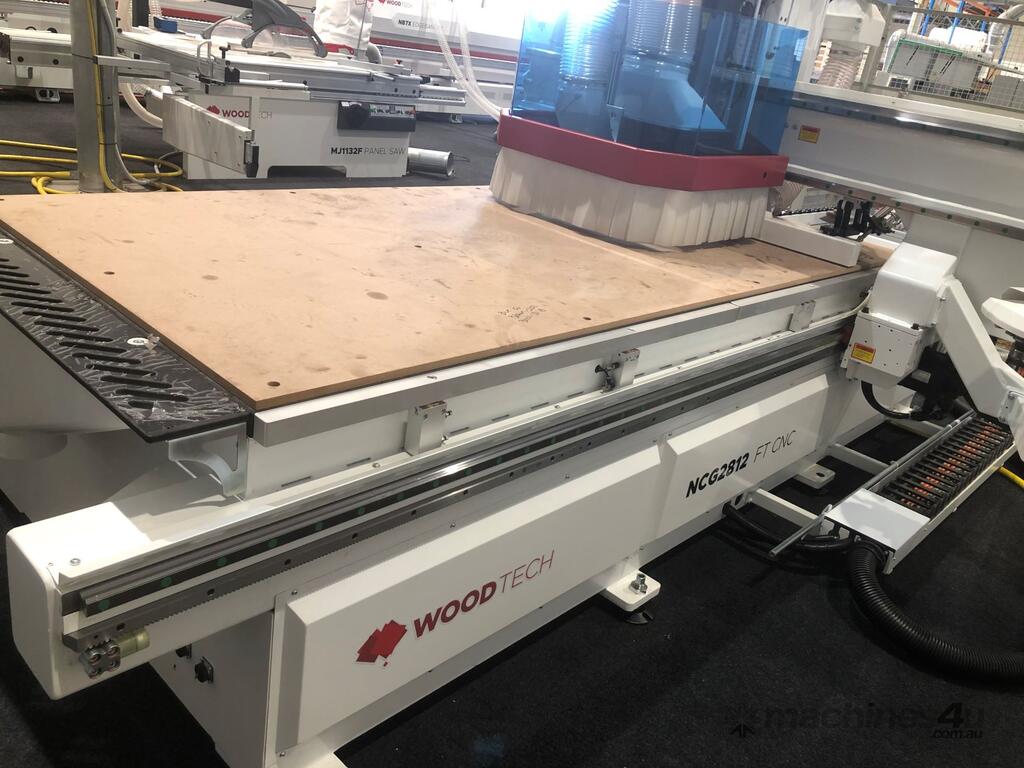

TABLE SIZE
• 2,800mm** x 1230mm (**Also available with 3700mm table - ask us about NCG3718)
• The table-top material is a hard phenolic with matrix system & vacuum suction holes


STRUCTURE
All the machine structural components have been designed using a CAD product for solid modelling which allows to determine the possible structural distortions caused by static and dynamic loads.
The machine base consists of a single component made up of thick heavy gauge steel and is machined to the highest tolerances to give maximum rigidity and too minimize vibration. The X, Y is driven by high precision “direct drive” rack and pinion and the Z axis by high precision industrial recirculating ball screws allowing for smoother and faster processing.

GUIDES OF CONTROLLED AXES
All axes use linear guides in tempered and ground steel with preloaded bearings. A sliding gasket protects the guides from any chips or dust. The dimensions and the great center distance between the guides grant precision and optimum finish even if the operating unit performs a great travel along Y.

MOTORISATION OF CONTROLLED AXES

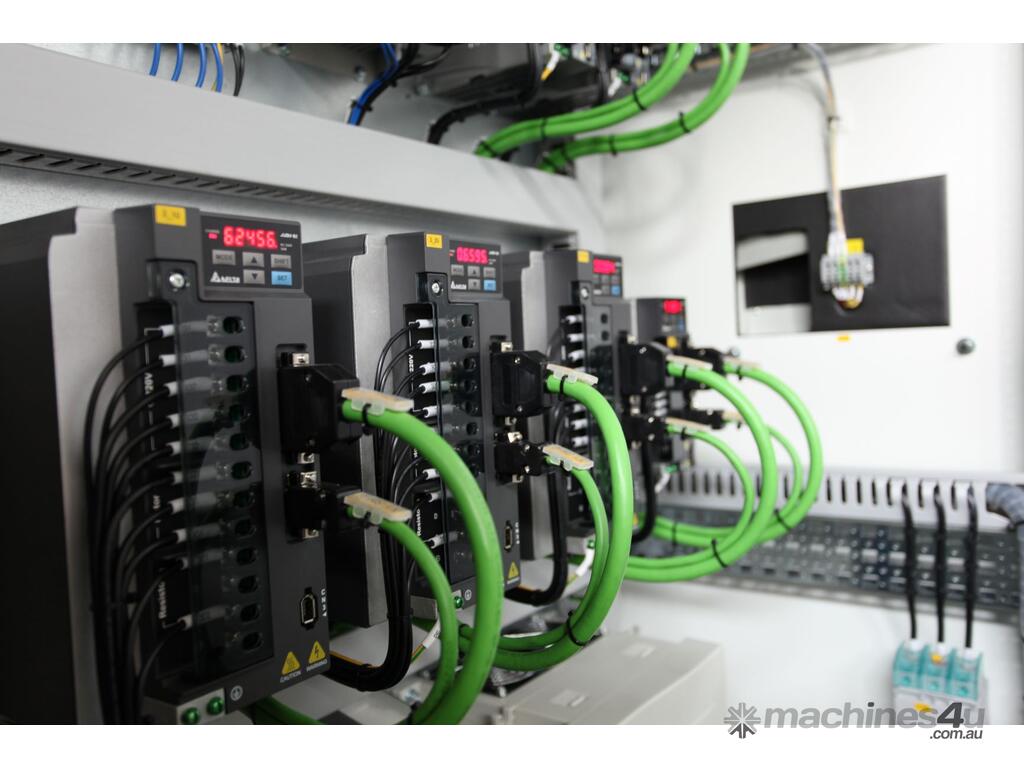

The machine uses Brushless motors, controlled by digital drives. DIGITAL interface between numerical control and axes drives. The digital system grants:
• Greater machining speed, since the tool route is partly controlled by the drive instead of the numerical control.
• High working precision, thanks to faster data processing.
• High reliability, thanks to a reduced wiring system which eliminates electrical interferences typical of analogic systems.
• Reduced machine stops and downtime, thanks to the error diagnostics with explanatory messages displayed on the control.

AUXILIARY VACUUM SYSTEM
It allows the locking of pieces through special jigs - 5 Vacuum Work Zones.
At the end of the work cycle only the worked piece is released. The jig remains locked to the vacuum modules and a new piece can be loaded.

WORKING STROKE
• X: 3100mm
• Y: 1350mm
• Z: 200mm

AXIS SPEEDS
• X = 80m/min
• X = 80m/min
• Z = 20m/min

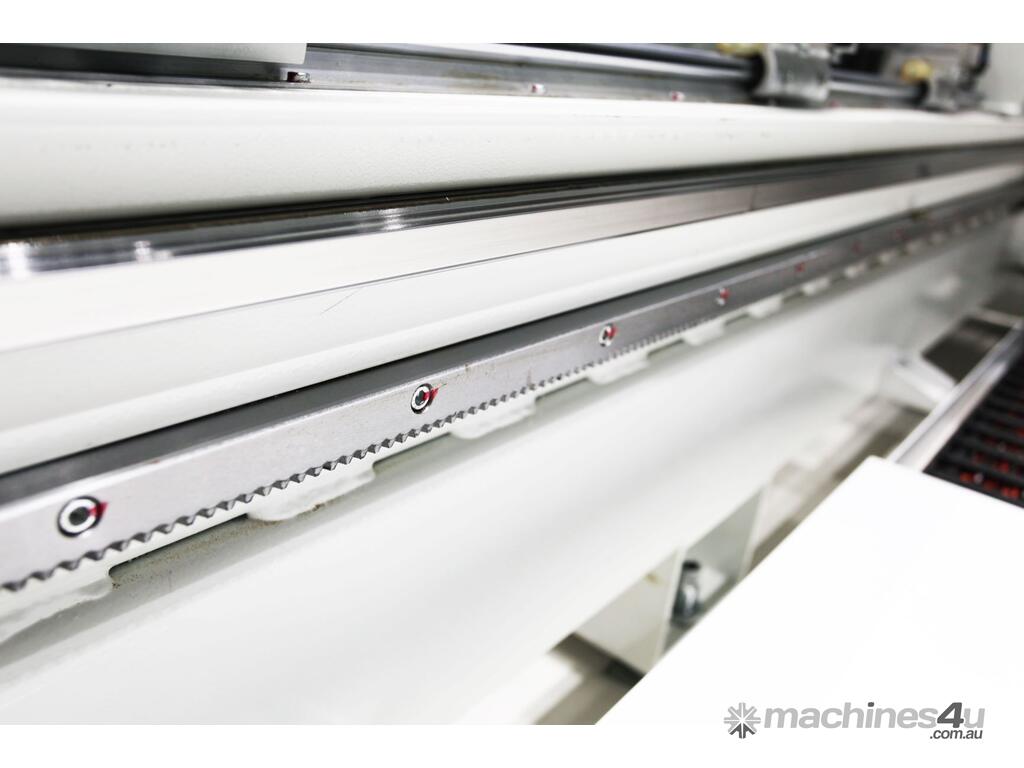

• X: Helical Rack and pinion system with two servo motors controlled.
• Y: Helical Rack and pinion system with servo motor controlled.

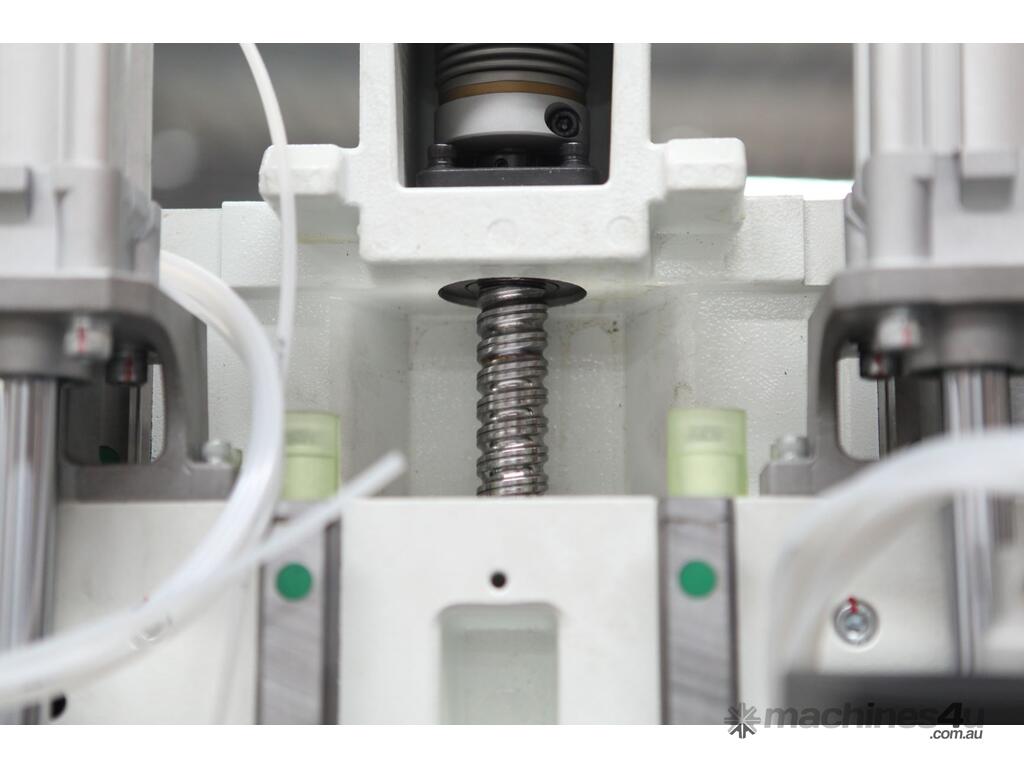

• Z: Ball screw system with servo motor controlled.

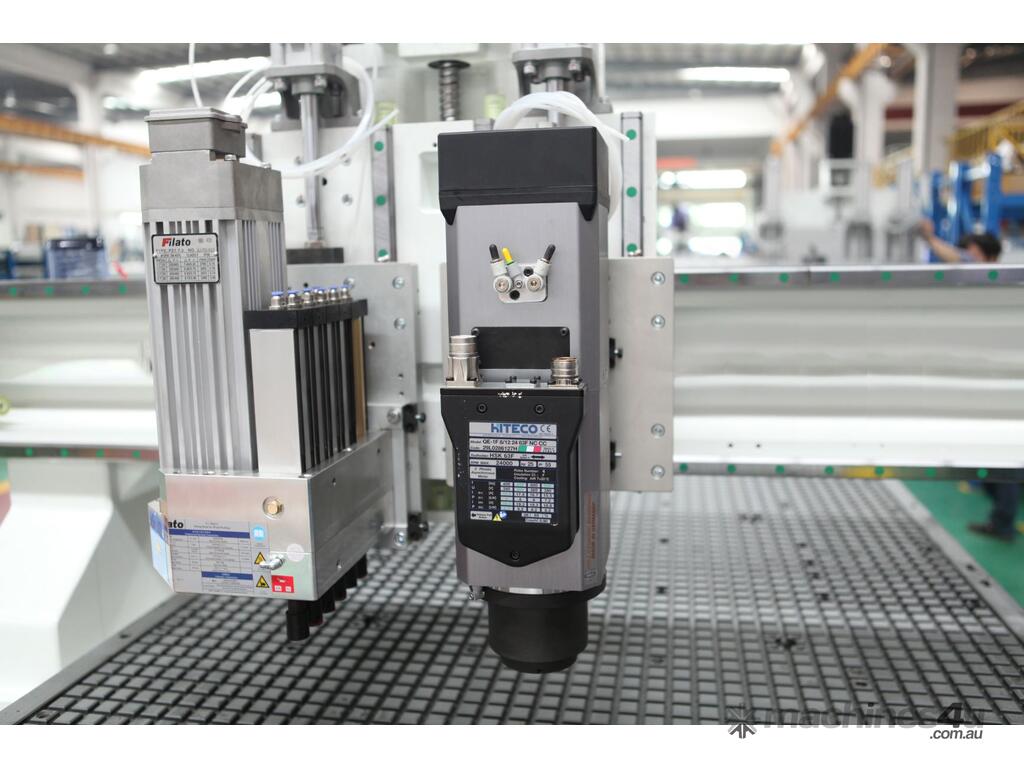

WORKING SPINDLE
#1:
• 1 x 16Hp HSK air cooled spindle with ceramic bearings
• RH and LH rotation
• Rotation speed from 1,000 to 24,000 RPM, programmable by N.C
• Air nozzle for spindle is a standard feature
• Optimized dust extraction device for spindle is included
• Full table coverage with spindle

#2
• 10 vertical boring head (6 in X, 5 in Y) as a group or individually.
• Optimized Dust extraction device for drill head is included
• Full table coverage with all drills

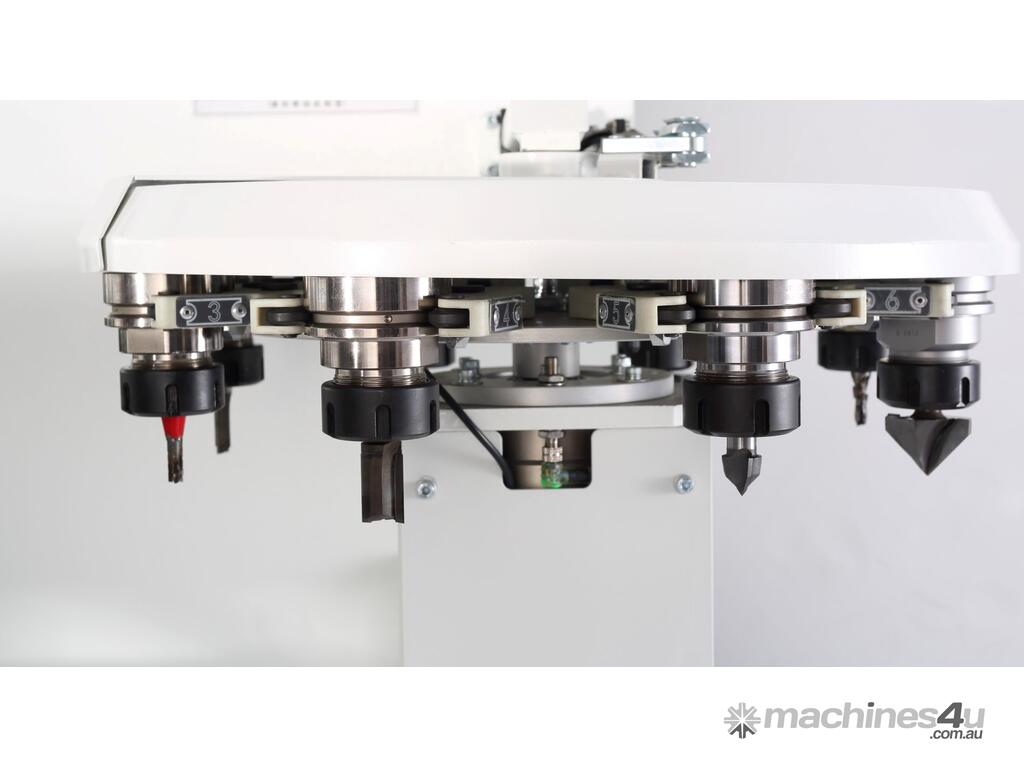

12 POSITION AUTOMATIC TOOL CHANGER

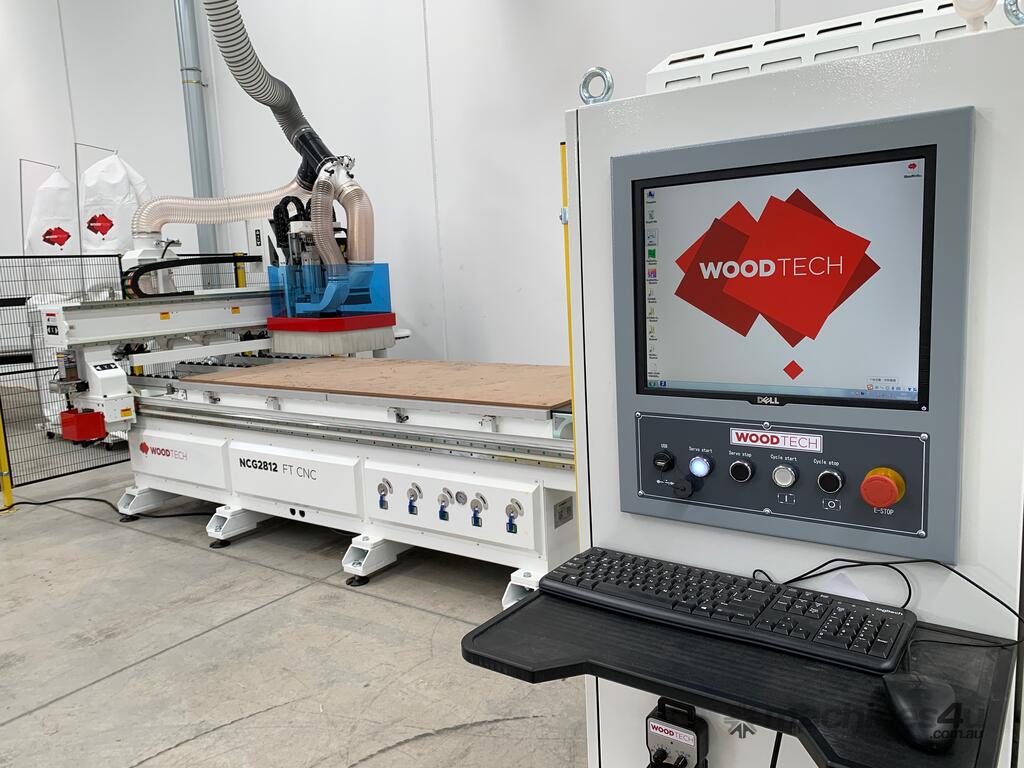

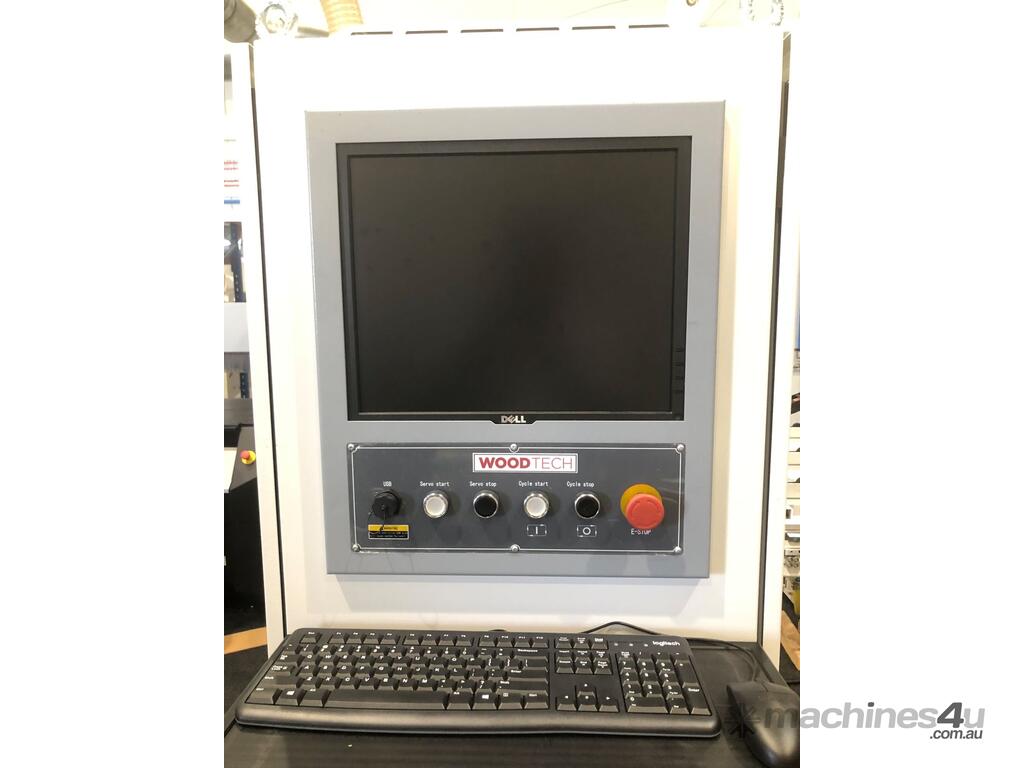

CONTROLLER / NC
• IPC with Windows operating system; DELL display; USB port.
• SYNTEC CNC Controller with PC front end feature.
• Control / electrical cabinet in one with keyboard & mouse.

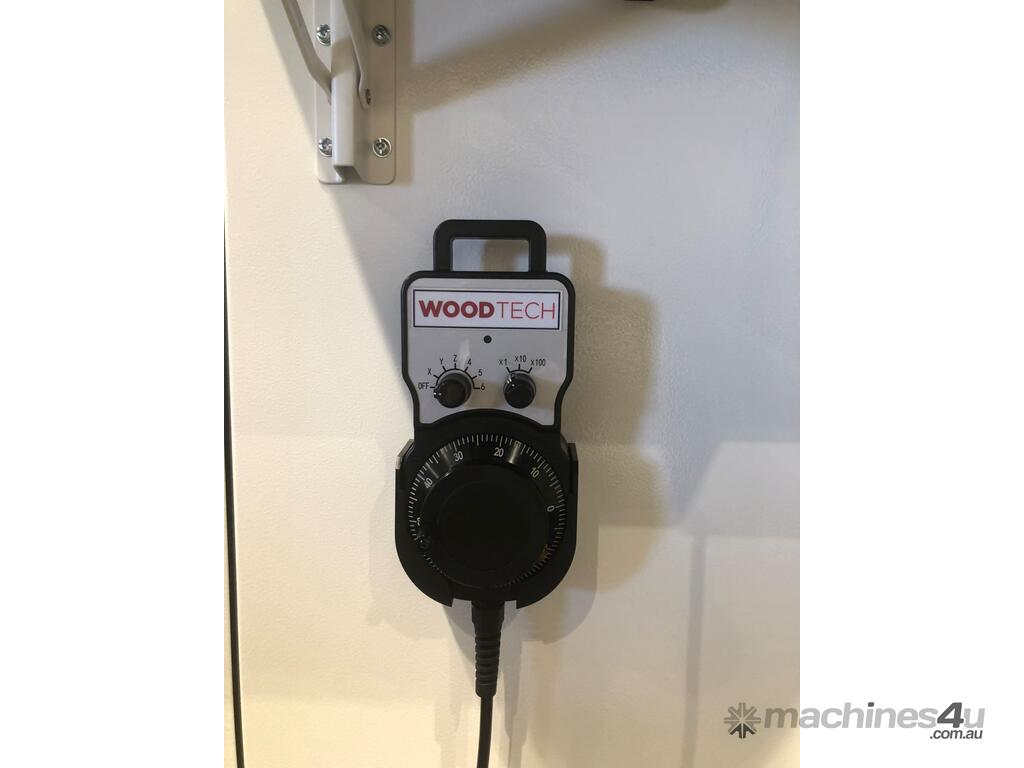

• The remote device is a standard feature
• Standard industrial Xml Interface

ELECTRIC CABINET COOLING
Air conditioner for electric cabinet It allows:
The perfect working of all the electronic components included in the electric cabinet at temperatures up to 40°C (104°F), a dust-free environment, since there are no aeration fans.

APPLICATION SOFTWARE
• FinSoft Editor included
• FinSoft Worklist optimizer

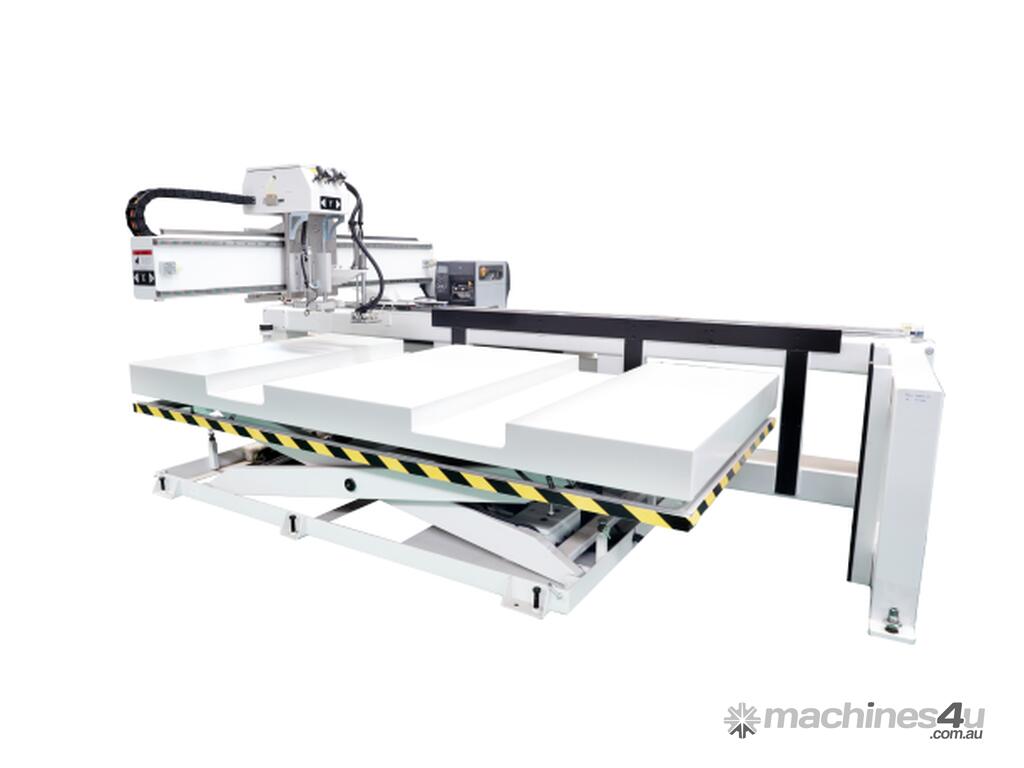

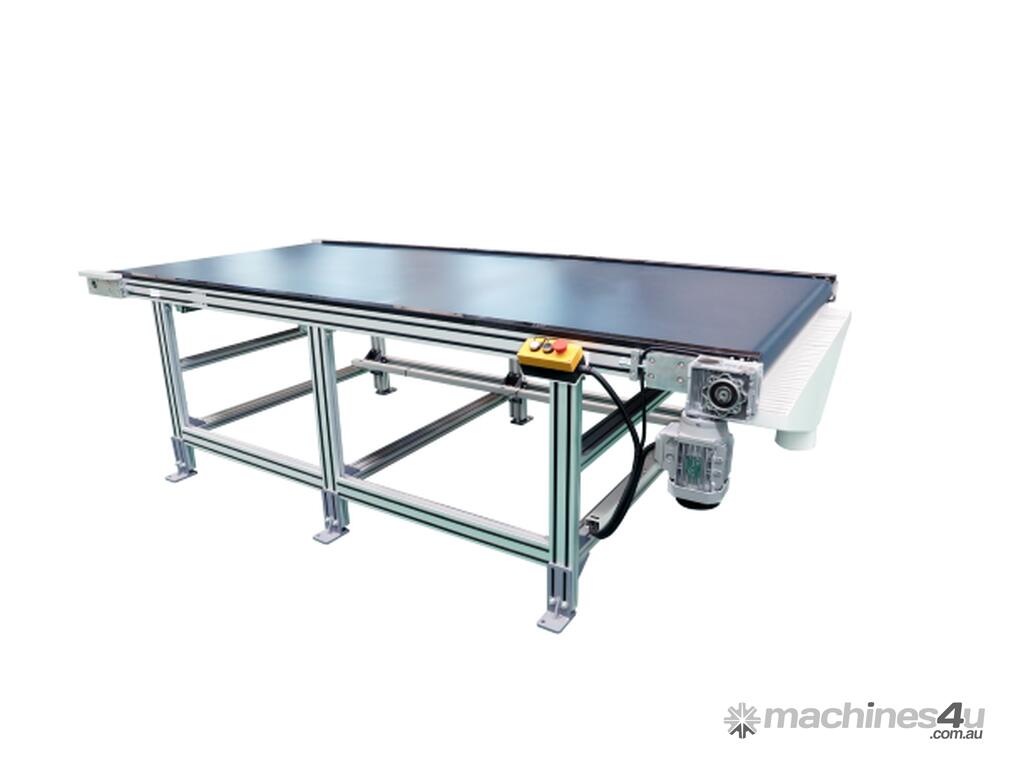

UNLOADING SYSTEM
This system consists of an unloading system which unloads the pieces after the cycle has been completed. The arm is fixed onto the Y axis beam and moves pneumatically in Z.
The pieces during the unloading cycle are guided by linear bars positioned on the front and back stops.
The system includes:
• Panel unloading arm
• Top connection to the dust extraction system for the sweeping arm
• Special back stops, with linear bars, to guide the unloading of the processed pieces
• Special front stops, with linear bars and respective pneumatic system, to guide the unloading of the processed pieces

TOOL TOUCHOFF FUNCTION
Device for contact measurement of tool length.The device is fixed to the machine base which it checks the length of the tool and it updates the values in the tool table of the numerical control.

SAFETY DEVICES
• Safety light barriers with control unit providing safety measures.
• back and side fencing.
• Sound-absorbing cover for the operating unit, made up of structural and protective plates, overlapping plastic strips, and a transparent panel in crushproof polycarbonate allowing operators to work in total safety.
• emergency button positioned on the control.
• emergency button positioned on the remote keyboard.
• the controls included in the remote-control panel allow operators to work with the machine in total safety (emergency stop, tool feed speed adjustment).

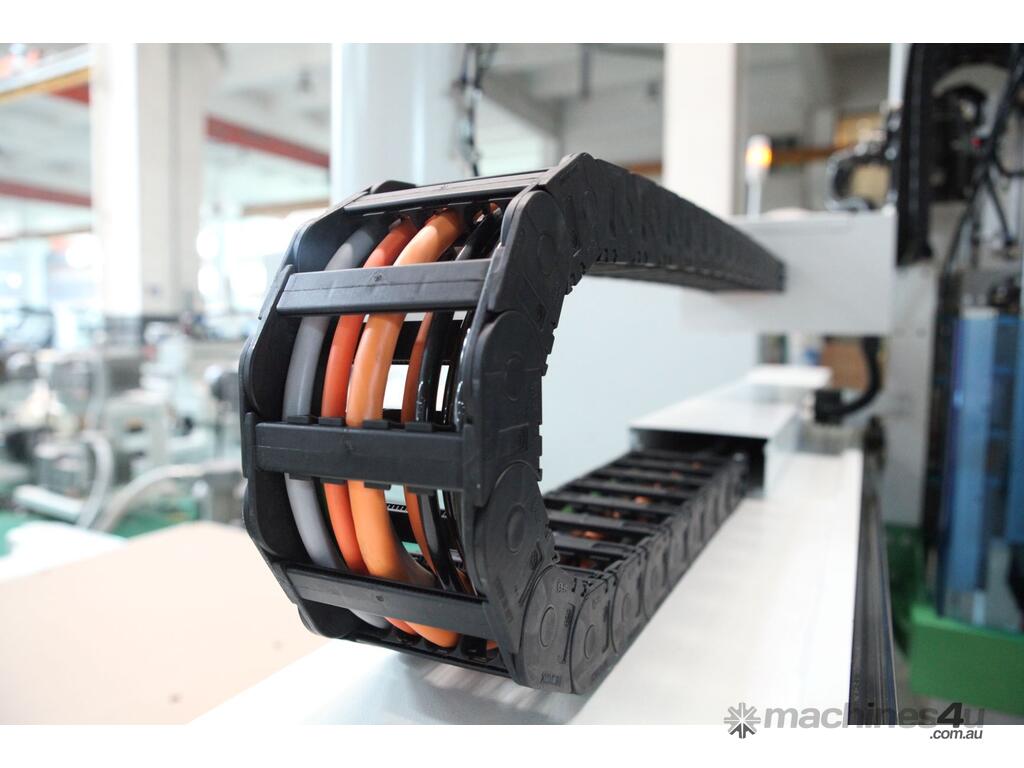

ENERGY CHAIN
High-quality energy chain used to drag and protect electric wires and air tubes during movement of each axis for longer service life.

STATUS LIGHT
Operation indicating light makes the machine operation status be known at a distance.

LUBRICATION SYSTEM
At each time interval, programmable through the control, the pump automatically sends the lubricant to the following machine components, with no machine downtime and no operator's intervention:
• X axis: Sliding blocks of the linear guides
• Y axis: Sliding blocks of the linear guides
• Z axis: Sliding blocks of the linear guides and ball screw
• Spindle: Sliding blocks of the linear guide or ball screw nut if the setting axis is present.

VACUUM CLAMP SYSTEM

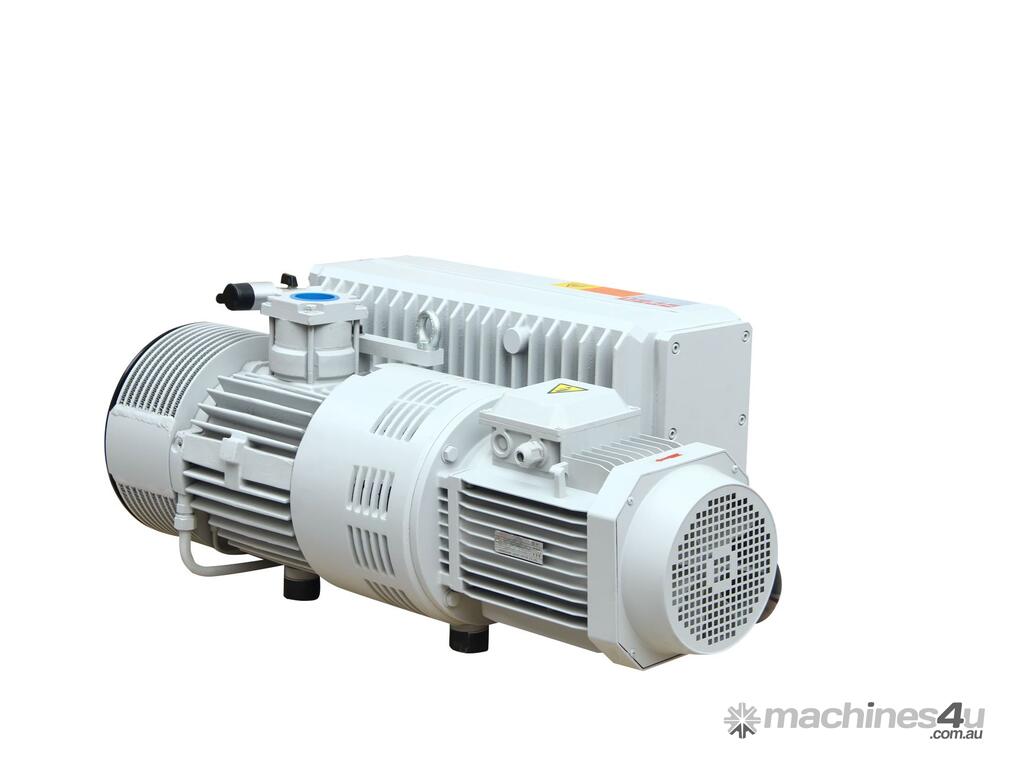

1 x 7.5KkW 300m3/h oil cooled vacuum pump with heavy ducted pipes ensuring total clamp down of small components with 300m3/h capacity.

MAINTENANCE EQUIPMENT
• Device for locking and unlocking tools from toolholders
• Set of wrenches
• Grease for the lubrication of ball bushings
• Grease for the lubrication of boring head

USER DOCUMENTATION
• Installation instructions
• Pneumatic and wiring diagrams
• Spare parts catalogue


Dust extraction
Outlet: ?200 mm ?125mm*3
Speed required: 28 m/s

Air supply
Air pressure required: 6~7 kg/cm2

Power supply
Voltage: 3-phase
Frequency: 50 Hz



*Price advertised is for standalone machine, ex-Melbourne factory, excluding delivery and commissioning.
