Flextool - Double Beam Screed

Double Beam Screed Petrol System
Engine: Honda GX160 5.5HP.

Operating weight: 37kg.

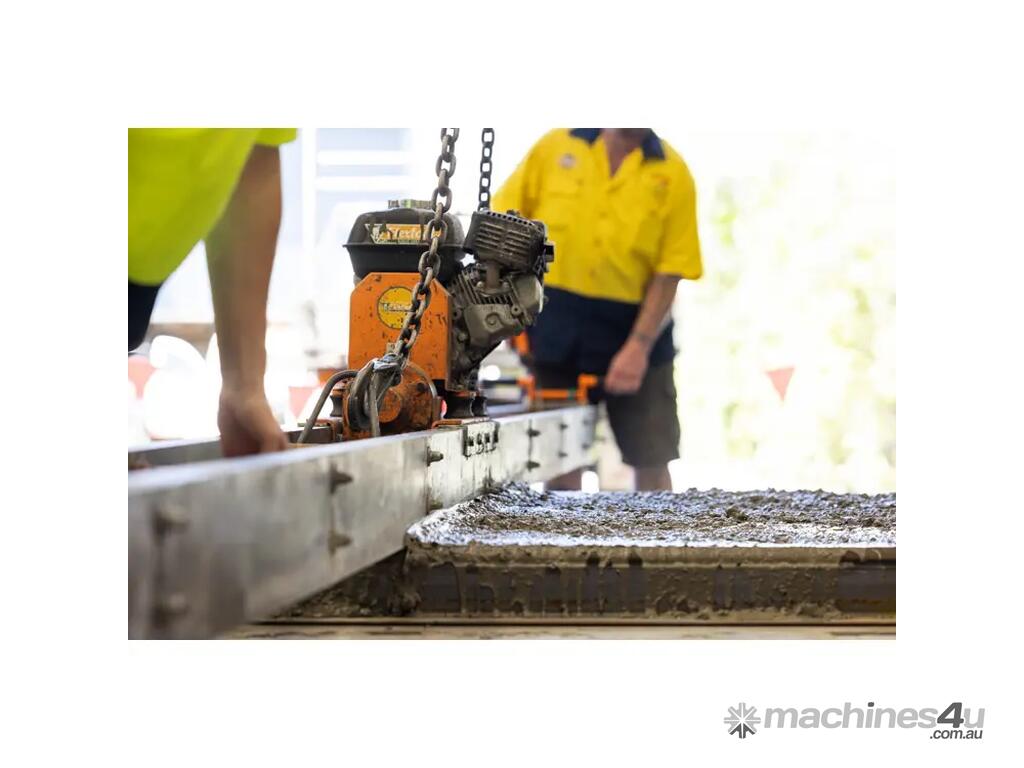

The Double Beam Screeds are an efficient means of levelling and compacting large areas of concrete. Contractors can save labour and increase placement rates as a vibrating screed strikes and compacts concrete in one pass.

Applications:
Roadways
Airport aprons
Tilt & Precast panels
Warehouse floors
Rail construction
Bridge decks

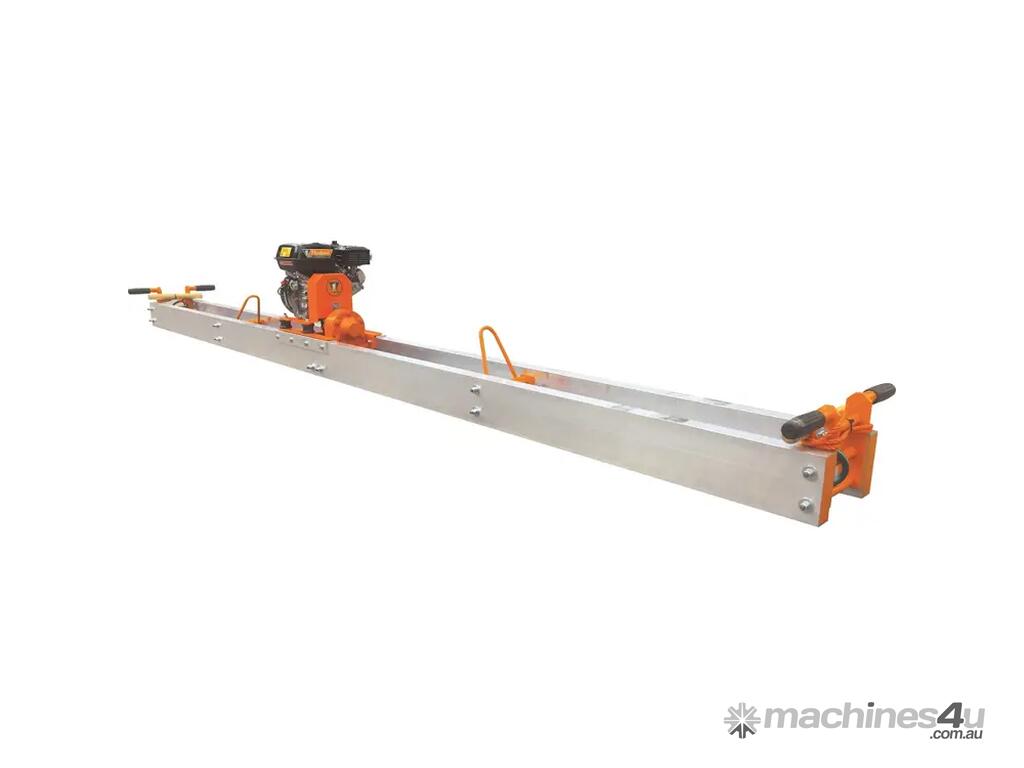

Double Beam Screeds
Flextool Double Beam Screeds are an efficient means of levelling and compacting large areas of concrete. Contractors can save labour and increase placement rates as a vibrating screed strikes and compacts concrete in one pass. The vibratory motion of the beams imparts a self-propelling motion to the screed assisting it to travel over the concrete. Pre-tensioned beams on both 6.5m and 8.2m models allow the surface flatness to be controlled by adjusting beam pretension and are recommended for precision finishing. Pull ropes & handles are provided for directional control along with two lifting eyes to facilitate safe and easy onsite handling.

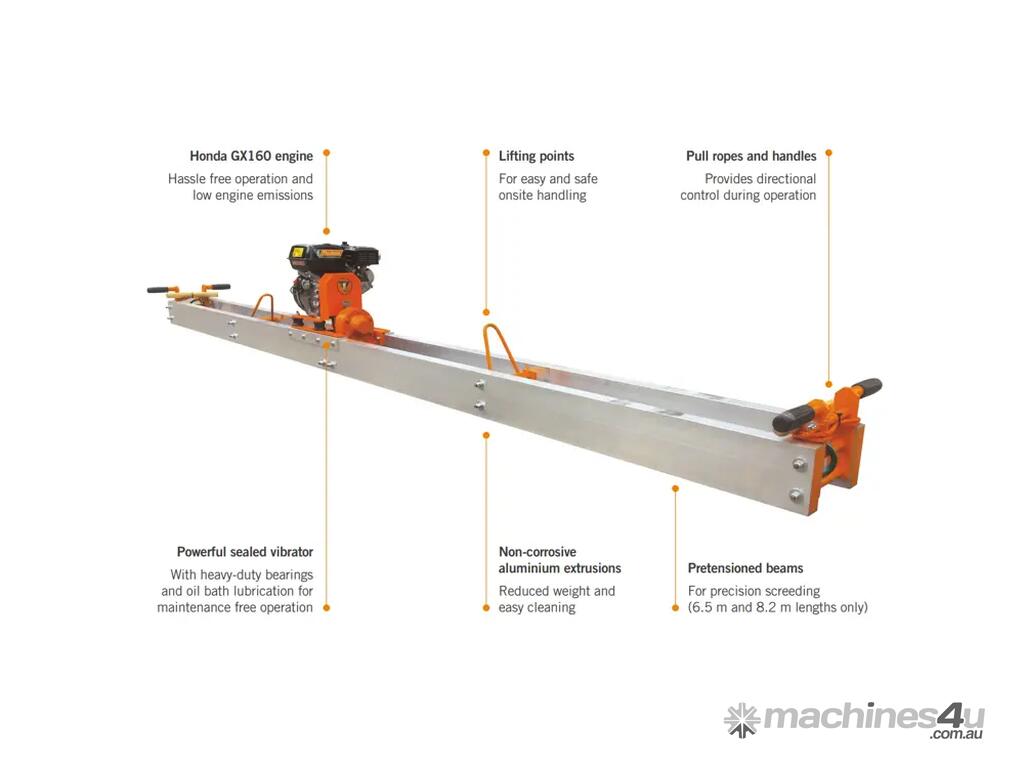

Features
Pretensioned beams for precision finishing (6.5 & 8.2m only)
Honda GX160 Engine for reliability

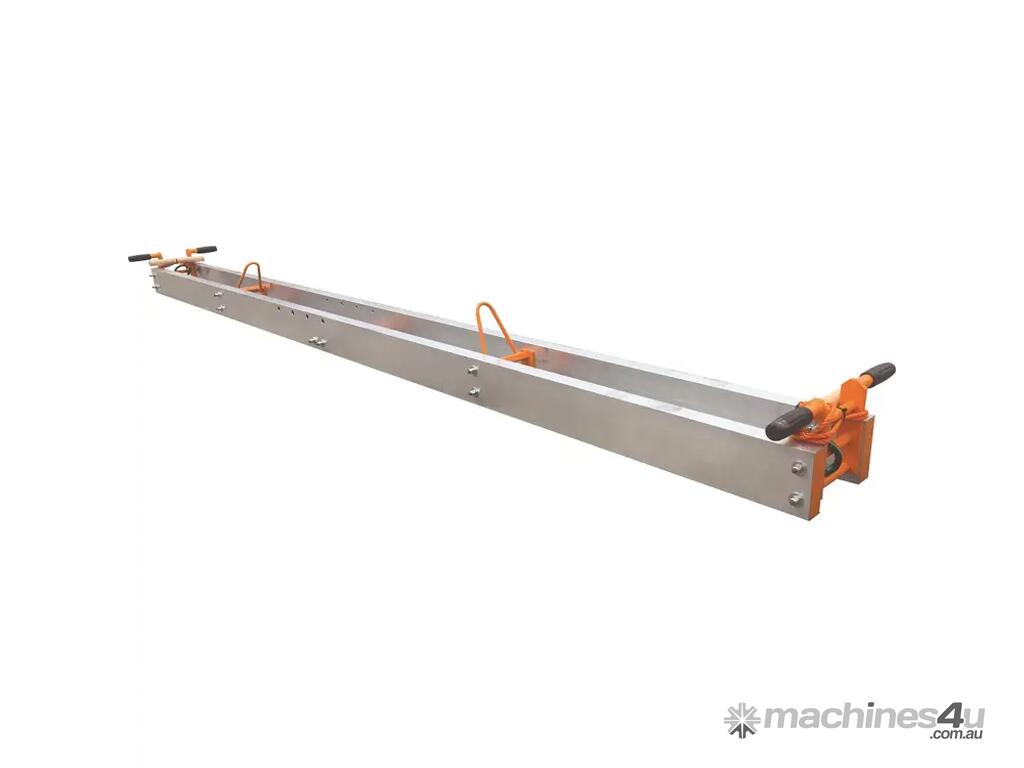

Non-corrosive aluminium beams for reduced weight and easy cleaning
Vibration depth to 200mm
Lifting / crane points for safe and easy onsite handling.

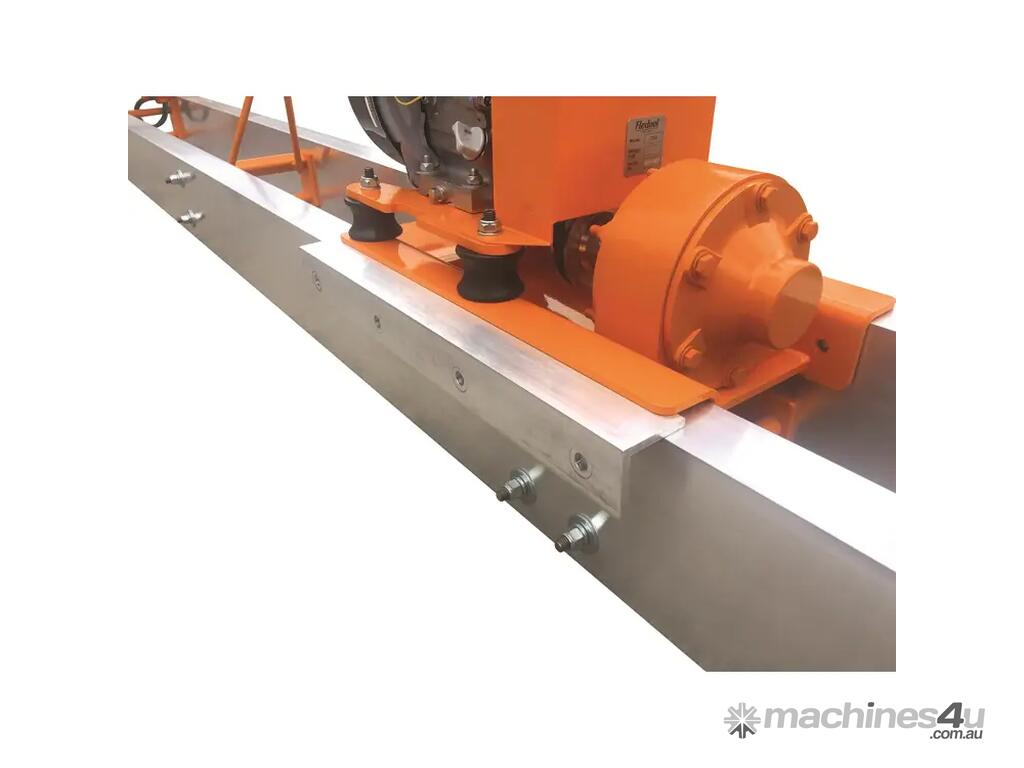

Powerful sealed vibrator with heavy duty bearings and oil bath lubrication for maintenance free operation.
