WiNGTRAX is the big and high rigidity boring and milling machine equipped with Ø160/Ø180 boring spindle with 800/1000mm travel! Max spindle speed at 1500rpm which can provide maximum torque output at 2400 Nm.

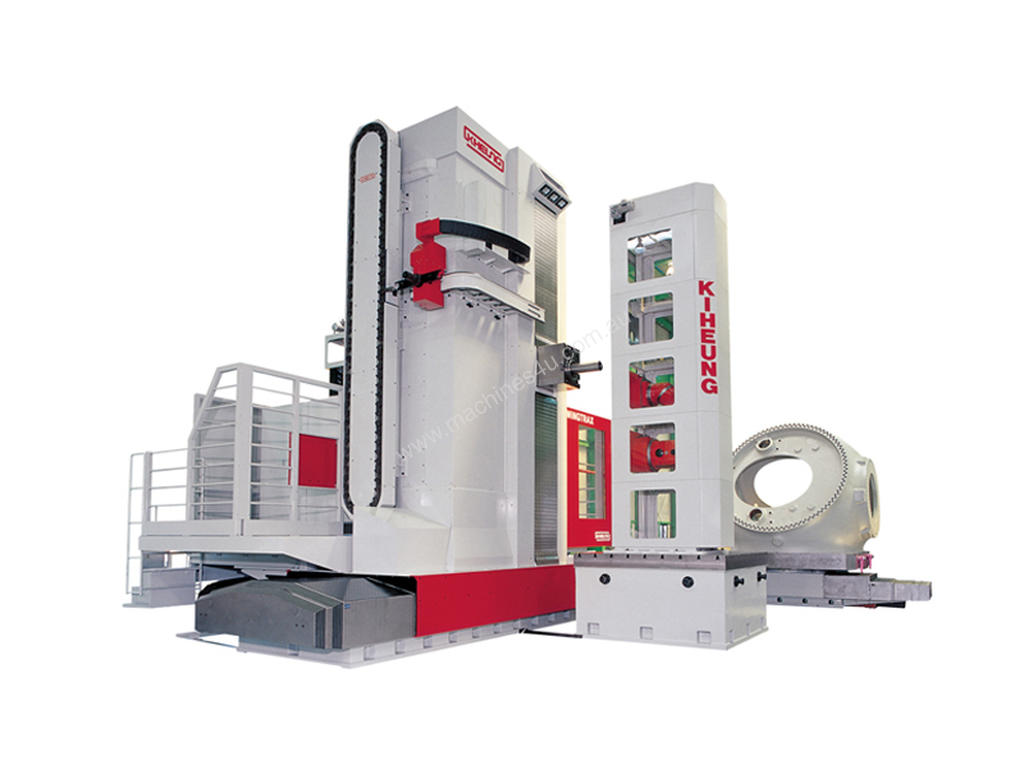

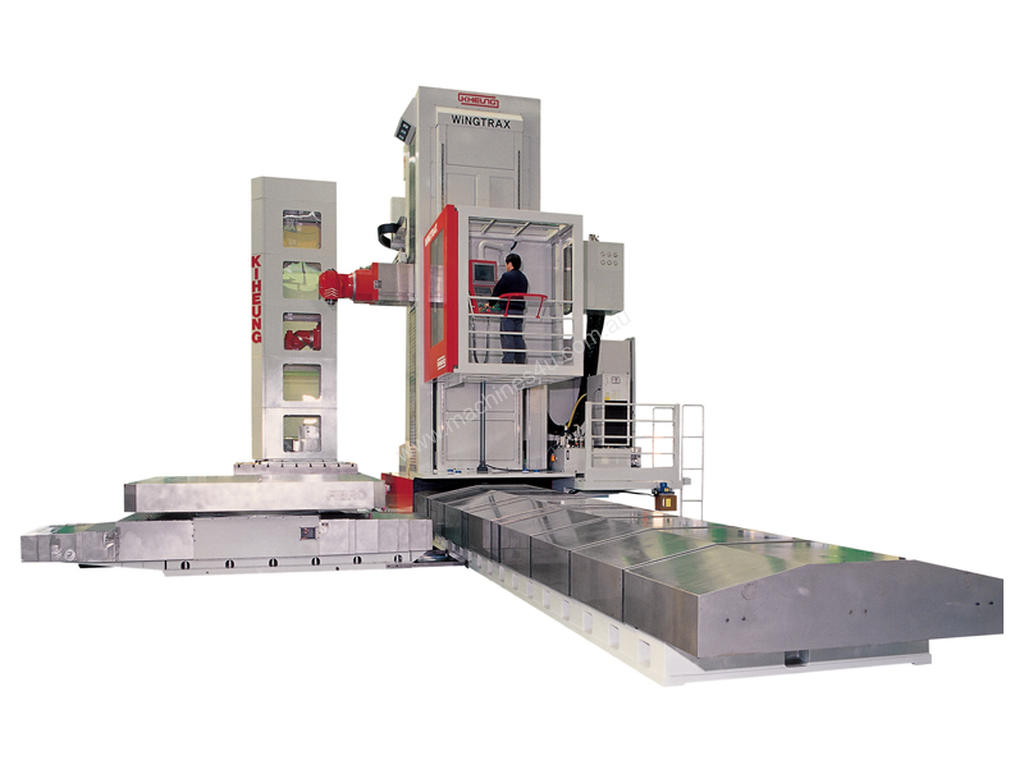

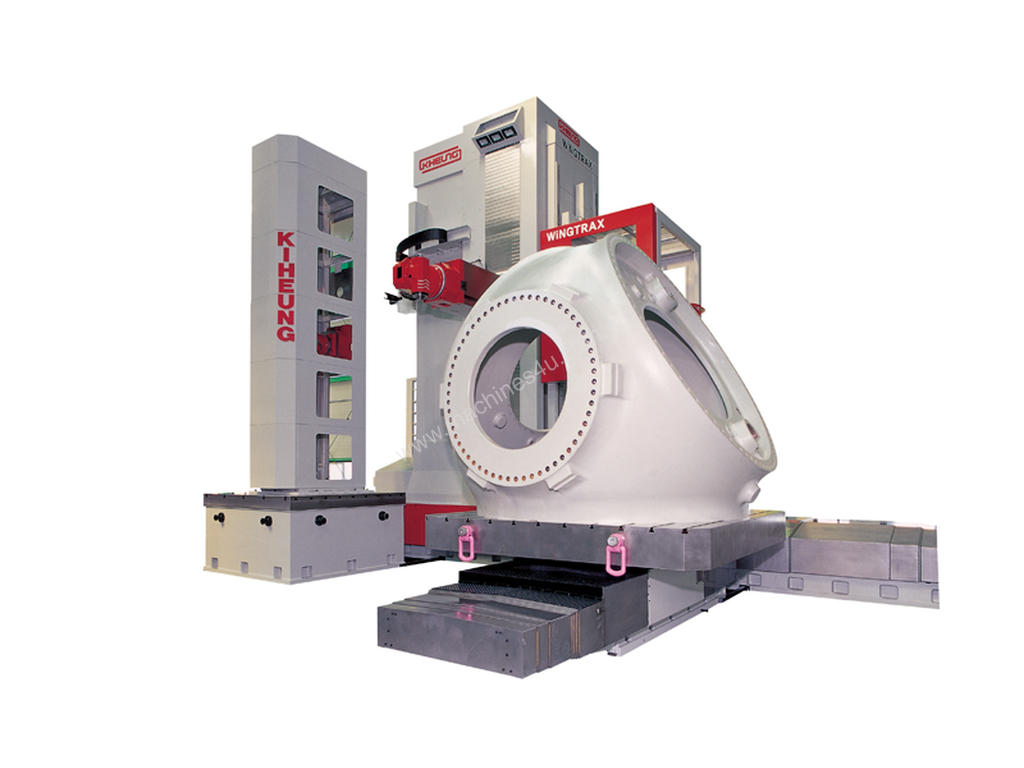

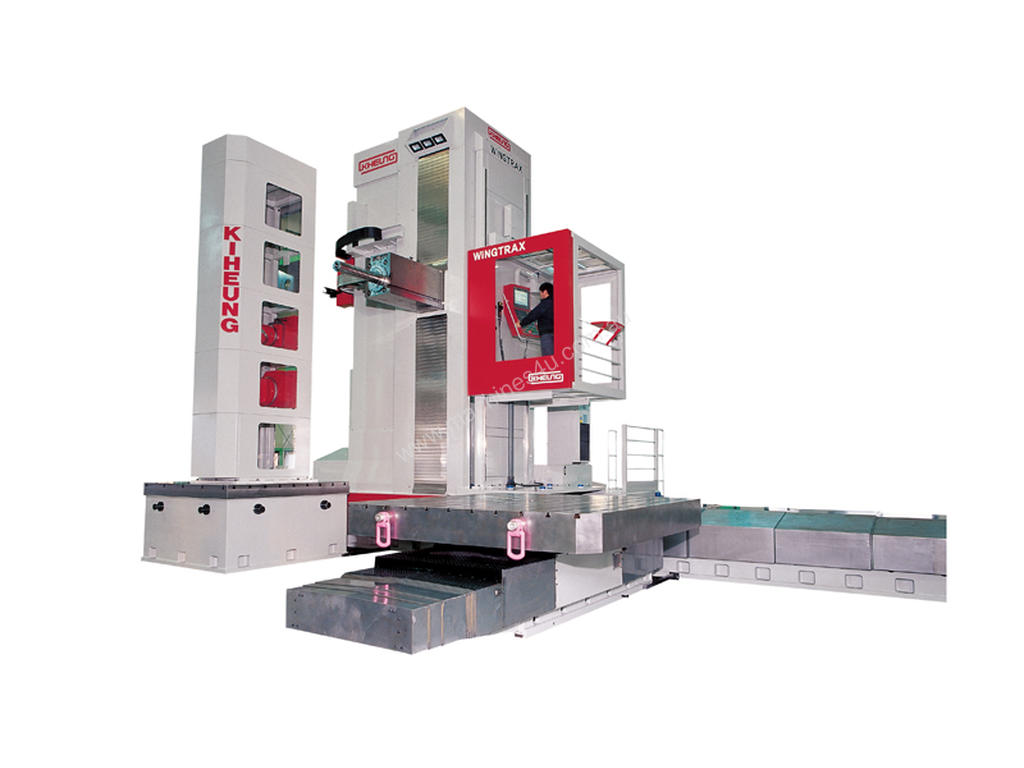

Elevating platform with large window in safety glass and user friendly, which is supplied as standard, enables the operator to stay at the ideal working position.

A wide range of configurations on multiple axes and X-axis movement with Twin-Drive system is composed of preloaded rack and pinion system with 2 servo motors for “dynamic movement”.

One is actual driving, while the other is braking for “backlash free”. Also the moving column system with high rigidity INA LM linear guide ways for heavy cutting, fast movement and low abrasion capabilities makes WiNGTRAX has the high precision.

Suitable solutions for Effective real time saving and associated cost saving for end users who require high flexibility and a wide variety of optional features and accessories such as different milling-heads, head change station, automatic tool change, floor plates, angle plates, auxiliary tables, rotary table, travelling rotary tables and many other special options thanks to its structure.

The machine is ideal for roughing and finishing operation on all parts and can be installed in mould and die operations, aeronautic and power generation industry as well as in general job shops.

This multitasking machine can satisfy the most customer needs thanks to this wonderful system of the ram, quil spindle, orthogonal head, high axial forces, excellent circular interpolation accuracy and high precision of the additional CNC rotary table etc.. and, can complete all operations in as single setup-milling, boring, drilling, tapping on very intricate parts for industries such as the aeronautical, energy and precision engineering for easy and serial production.


Machine specification WiNGTRAX
TRAVEL
Longitudinal mm 6000~20000 (each 2000mm)
Cross(Ram) mm 1200/1500
Cross(Quil) mm 800(Ø160)/1000(Ø180)
Vertical mm 4000~6500
FEED
Axis mm/min 10000(X,Y,Z), 8000(W)
Rapid mm/min 18000(X,Y,Z), 10000(W)
Drive motor Nm 115x2(X), 27(Y), 50(Z)
SPINDLE
Taper ISO50
Speed rpm 2000 (2 step : 1~750, 751~2000)
Drive motor kW 60/84
WEIGHT kg 40000~90000
