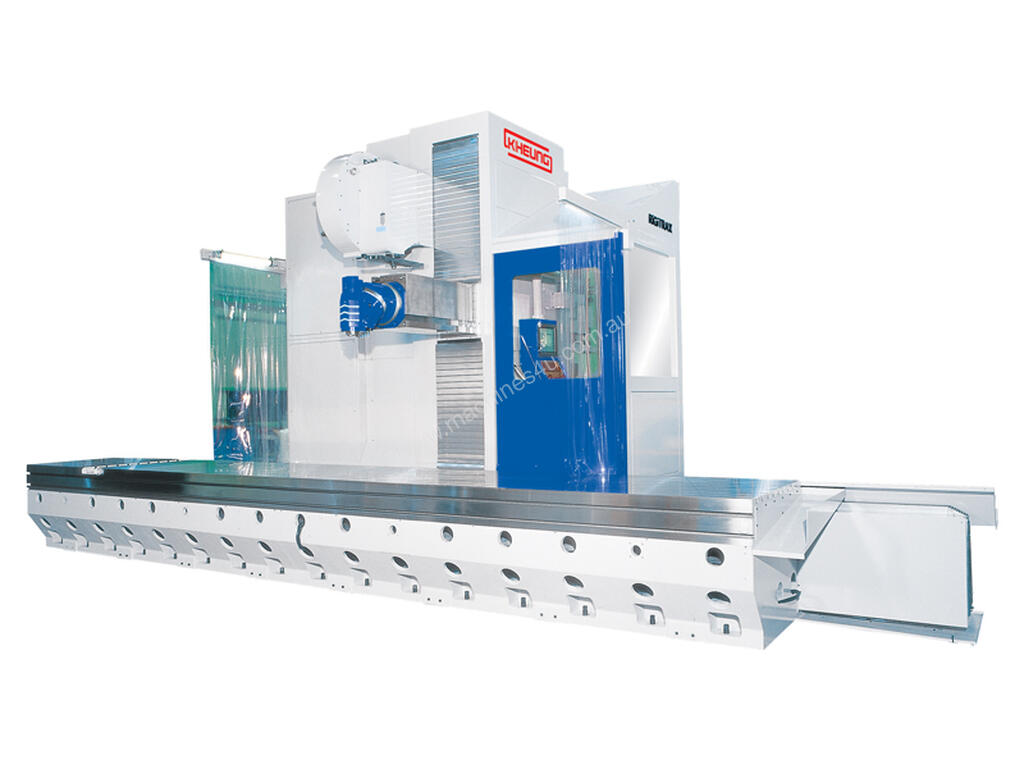

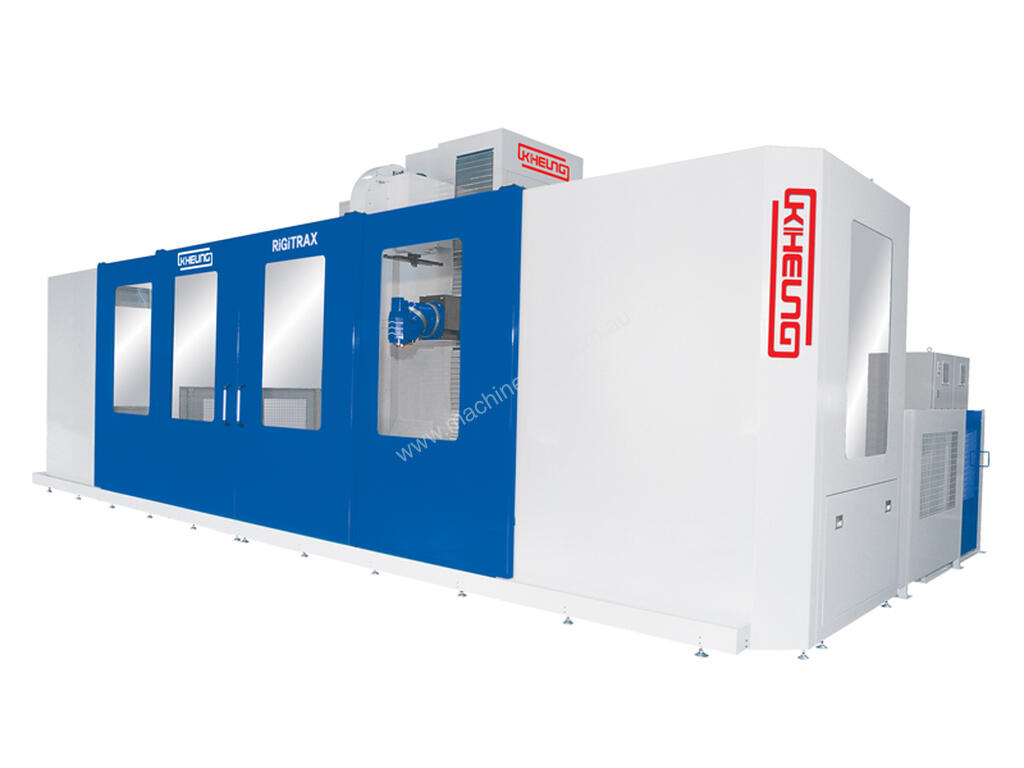

Floor type milling center RiGiTRAX
It is designed for heavy duty machining with moving column longitudinal for shuttle operation! It can support work piece up to 15,000kg and milling performances, power 42kW and torque 1636Nm.

A wide range of configurations on multiple axes and X-axis movement with Twin-Drive system is composed of preloaded rack and pinion system with 2 servo motors for “dynamic movement”.

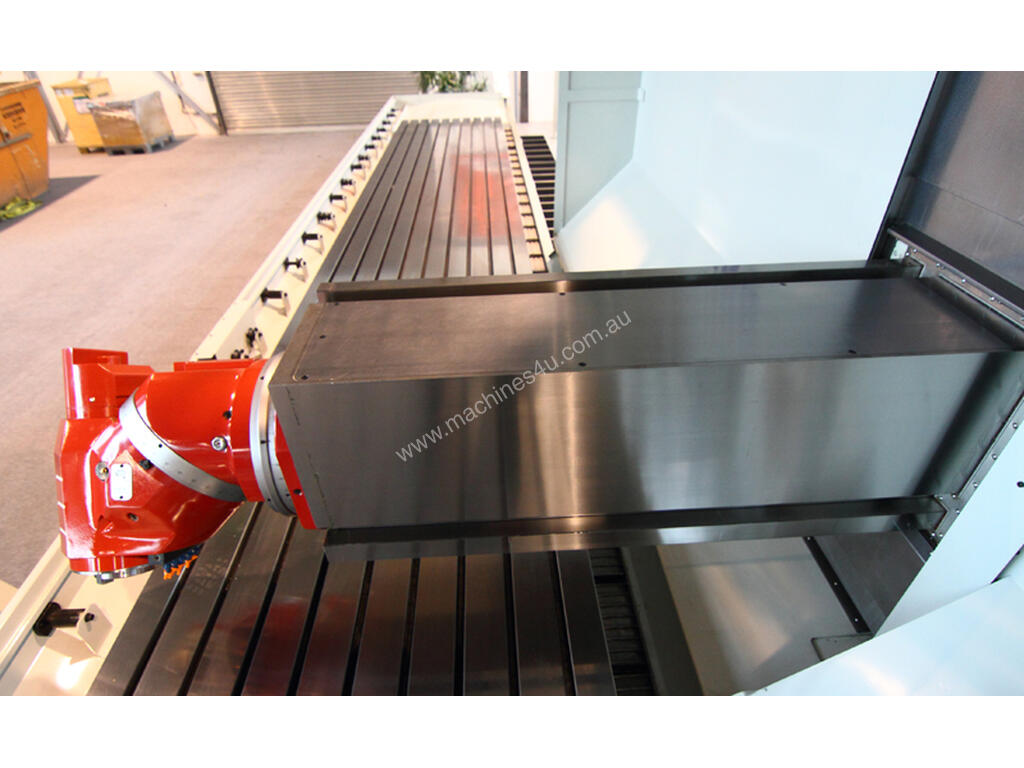

One is actual driving, while the other is braking for “backlash free”. Double work scope due to column cross and ram cross movement and moving column performs 2 work-spaces.

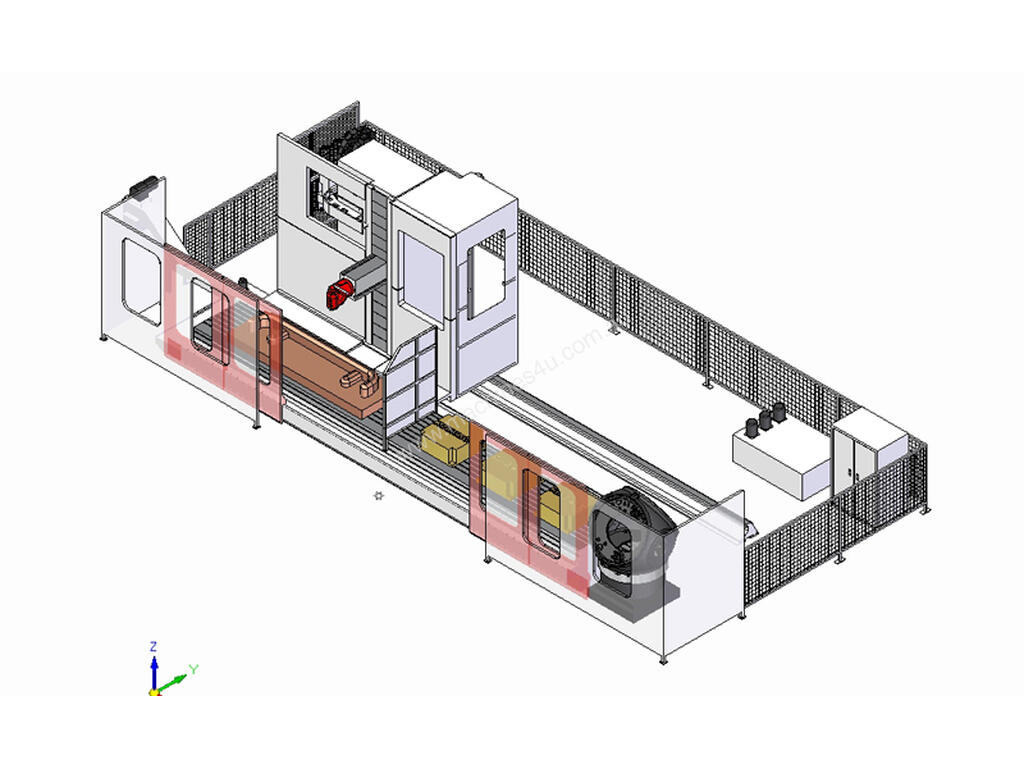

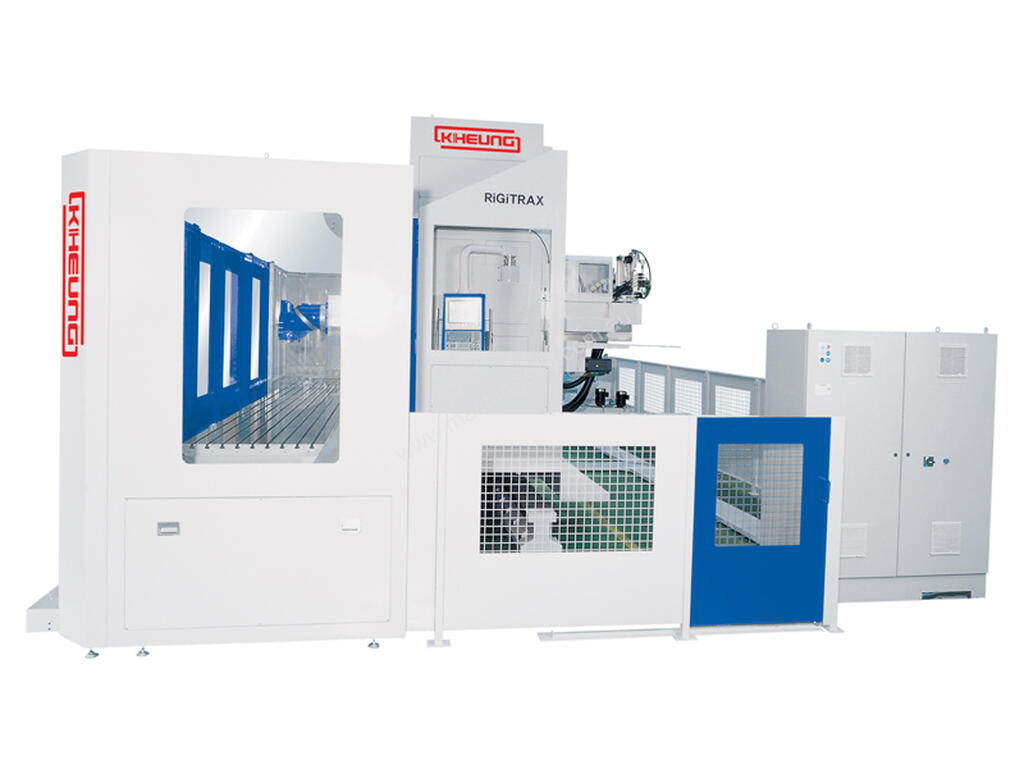

One work-space for machining, the other work-space for setting. Using the quickly installed work-space partition, the work piece can be divided easily for shuttle operation.

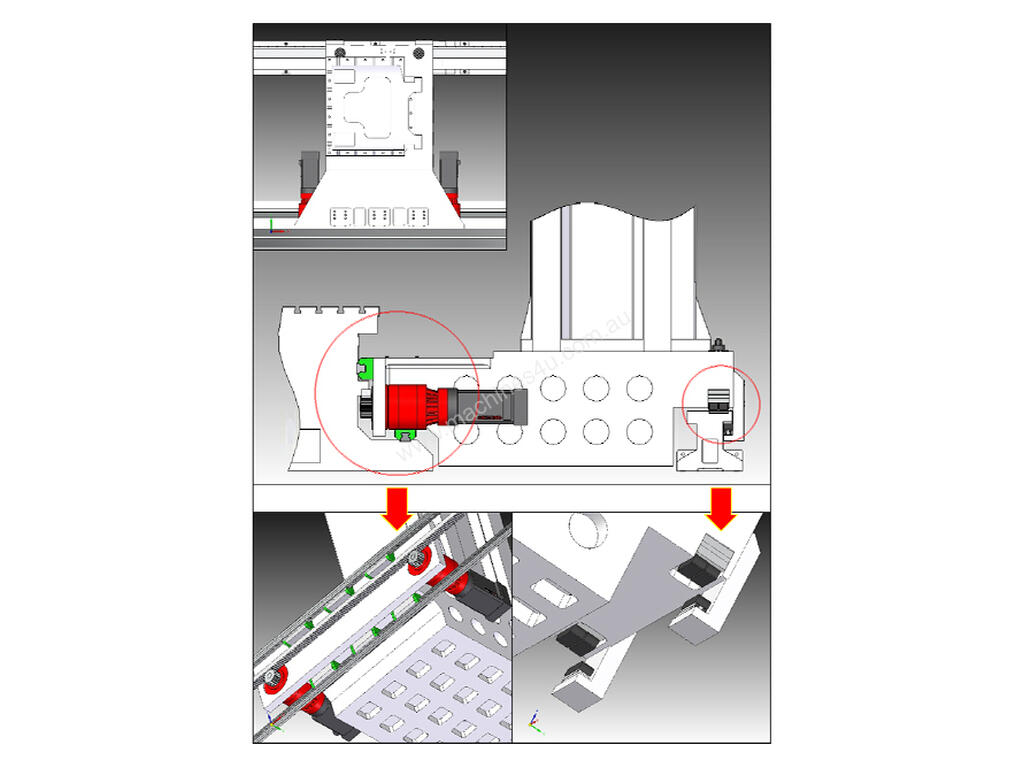

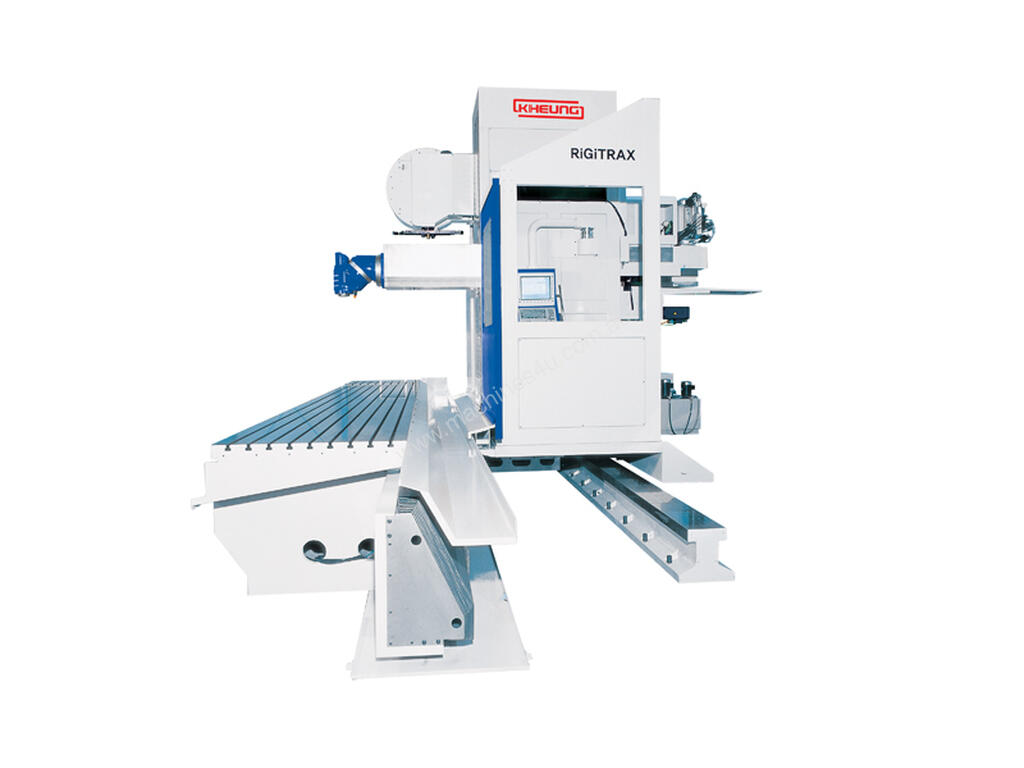

Column base with 6 INA roller shoes (4 on the rail, 2 below the rail) and center, below-embedded INA steel in the rail performs “high geometric accuracy” and ‘Stick-Slip free’ movement. Also 230mm wide rail support holds to the heavy column strongly.


Machine specification RiGiTRAX
TABLE
Length mm 6000/8000/10000/12000
Width mm 1150/1300
T-slot/Width/Distance mm 9/22/125
Max permissible load kg/? 3500
TRAVEL
Longitudinal mm 4000/6000/8000/10000
Cross mm 1350/1500
Vertical mm 1600/2000
FEED
Axis mm/min 8000
Rapid mm/min 16000(X,Y,Z)
Drive motor Nm 70x2(X), 27(Y), 50(Z)
SPINDLE
Taper ISO50
Speed rpm 4000 (2 step : 0~1000, 1001~4000)
Drive motor kW 28/42
WEIGHT kg 46000/50000/54000/58000
