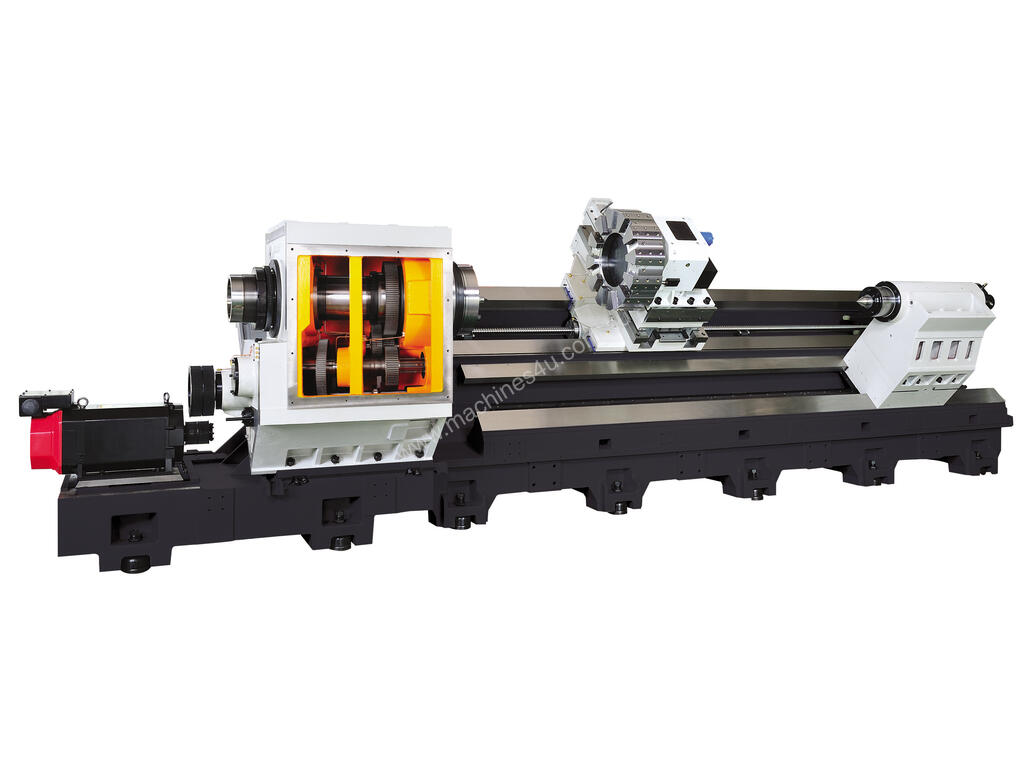

Focus Heavy Duty Slant bed CNC Lathe

FBL-530/540 Z axis ball screw support maintains high precision and stability.
Standard MT6 rotary quill. Increases rigidity for heavy loading and makes optional live centers unnecessary.
Upgraded ø200mm quill offers heavy loading.
Hydraulically driven tailstock improves machining efficiency.

45 Degree Slant Bed One Piece Casting

High rigidity bed design, swing 1030mm, width 1160mm. Box guideway width 130mm x height 80mm, high performance for max workpiece diameter 940mm.
Slant bed structure with low center of gravity, easy access and workpiece changeovers. Improved chip removal helps prevent thermal deformation.
High torque 7118NM at low speeds.
