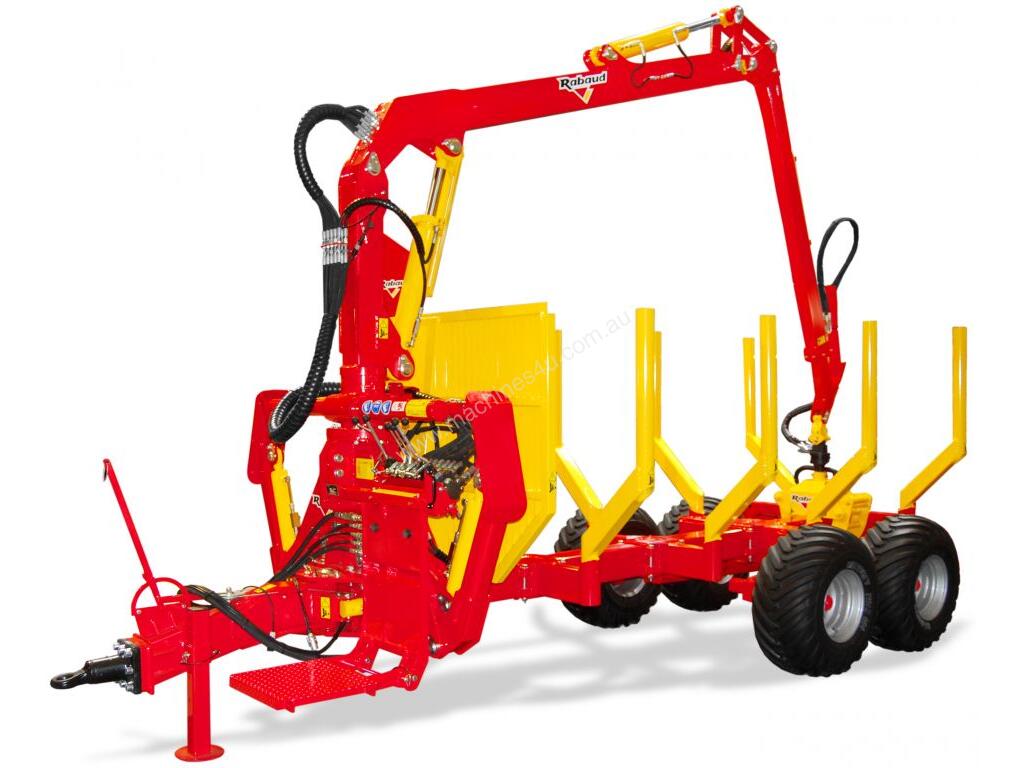

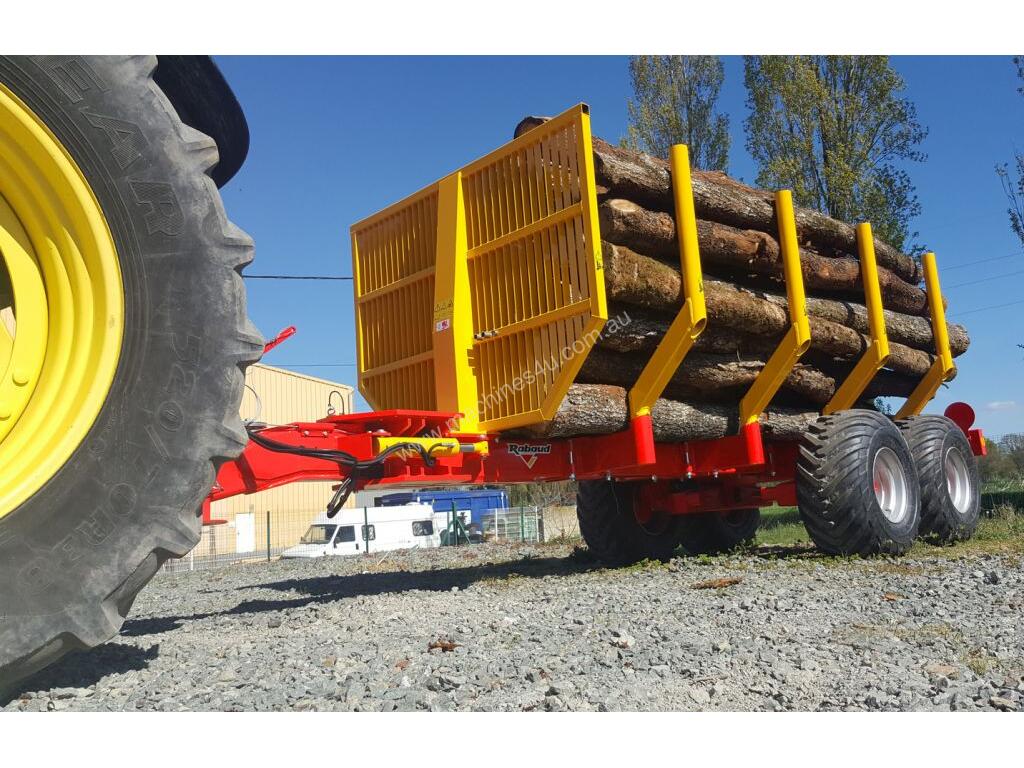

Forestry Trailer XYLOTRAIL

Forestry Trailer with overall weight of 11 ton and 25km/h road approval.

General Characteristics:

Road approval frame 25 Km/h with overall weight of 11 ton.

Walking beam axle, bolted and ajustable for better load distribution.

Hydraulic brake on all wheels.

Wiring harness and parking brake are inside the main beam for better protection and difficult access area.

8 mobile bolsters, better life expactancy.

Wide-size protection grid helps placing properly logs in the trailer safely.

No operation needed for built-in lighting signs.

Raised footbridge for crane operator : better visibility of the load and safety.

Articulated drawbar +/- 32? with 2 hydraulic cylinders.
Bolted ring or ball hitch.

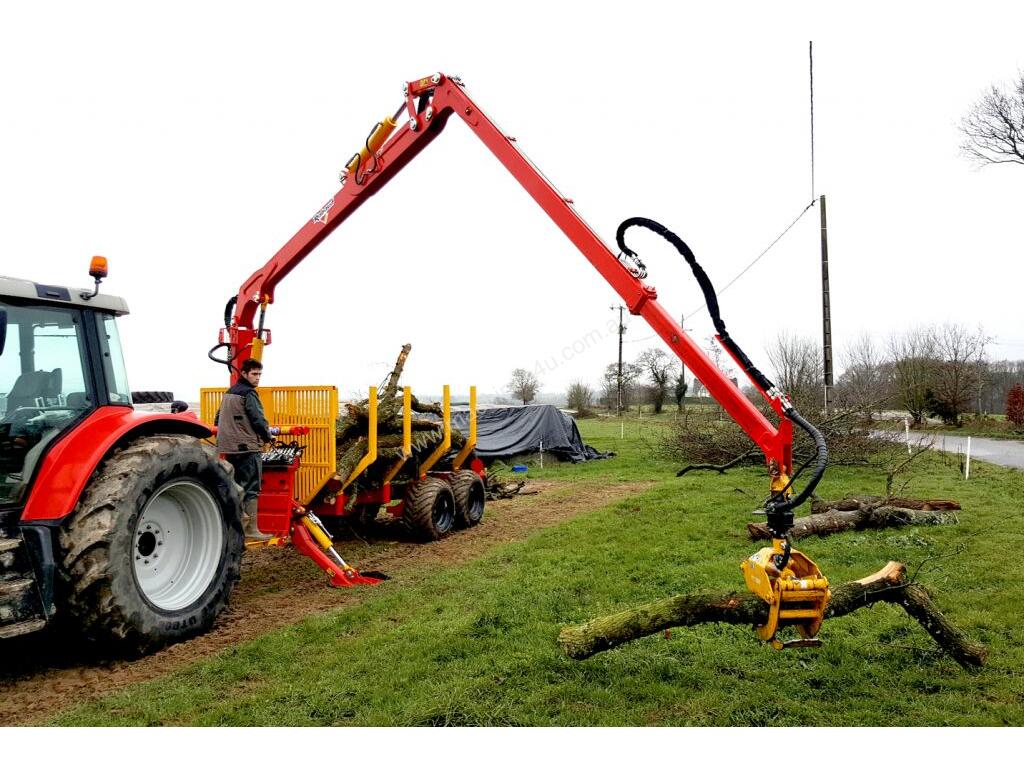

Forest crane 6,75 or 8 m in option. With stabilization stand “flap down” type and multi-command controls.
