Forklift Accessory: Chain Sensor System: Accurate

Increased Accuracy. Load Cell Fitted As A Replacement Link In The Forklift Lifting Chains

ABOUT THE “CHAIN LOAD CELL SYSTEM”

The ‘CHAIN LOAD CELL SYSTEM’ is a simple and versatile scale that is suitable for most forklifts, reach trucks, stock
pickers and side loaders.

The system is capable of sensing weight with an amazing ±0.5% accuracy of machine capacity. This information is displayed on your choice of indicator:

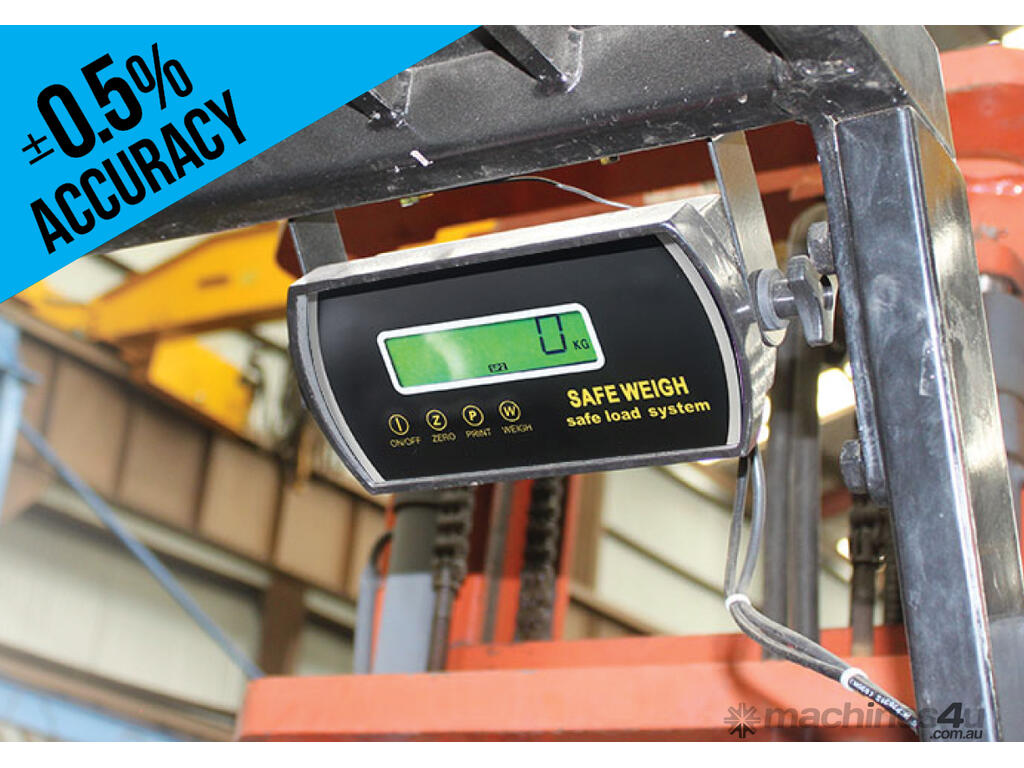

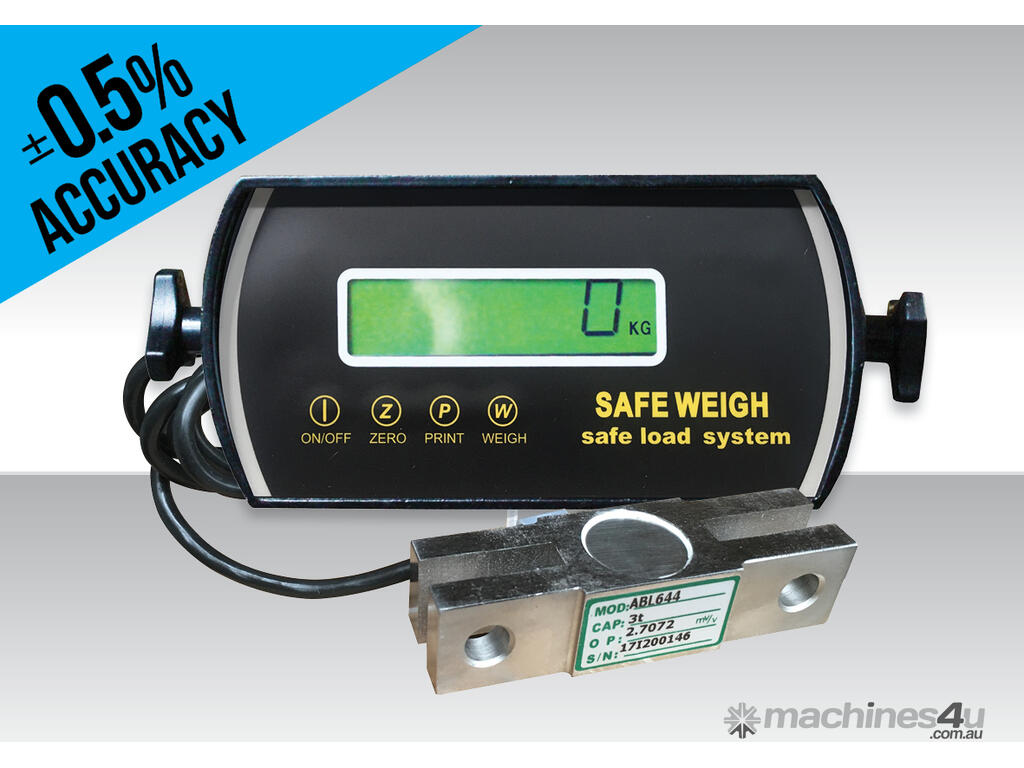

- Safe Weigh Indicator - our entry level digital indicator with basic functionality
- Weight Master Totaliser - our premium digital indicator with numerous functions such as add in, subtract out, total
and auto add

With this scale fitted to your machines, the operator
can get an instant weight reading of any lifted load,meaning no need to deviate from their working path to weigh loads on a platform scale or weighbridge.

The ‘Chain Sensor System’ is compatible with a range of peripheral devices such as printers and safety devices including alarms and lock-out devices to help improve safe operation in the workplace.

Enjoy the benefits of installing the ‘Chain Sensor System’ to your machines, including:
- Improved safety and adhere to CoR & SOLAS standards
- Quicker and more efficient materials handling
- Eliminate overload fines on loaded trucks
- Check consignment weights and incoming/ outgoing goods
- Avoid trips to the weighbridge or platform scales
- Prevent machinery and racking overloading

FEATURES & BENEFITS
- ± 0.5% accuracy of machine capacity
- No loss of lifting capacity
- Rubber-mounted bracket
- Rugged electronic design
- Australian designed and manufactured
- Digital backlit display
- Internal reeving kits included

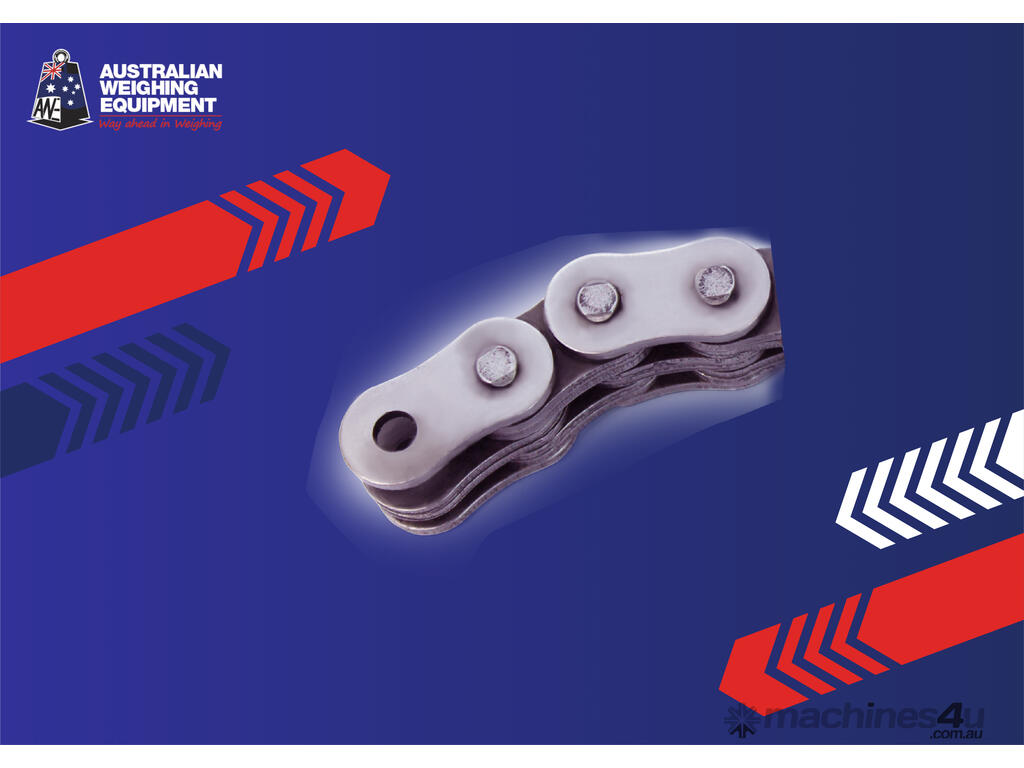

- Suits most chain types, and custom designs are available
- Weatherproof housing
- Continuous weight read-out
- Proof loaded to 300% of capacity
- Compatible with ‘Weight Master Totaliser’ and ‘Safe Weigh’ indicators
- Wide range power supply designed for mobile equipment 9VDC to 70VDC

HOW THE CHAIN LOAD CELL SYSTEM WORKS

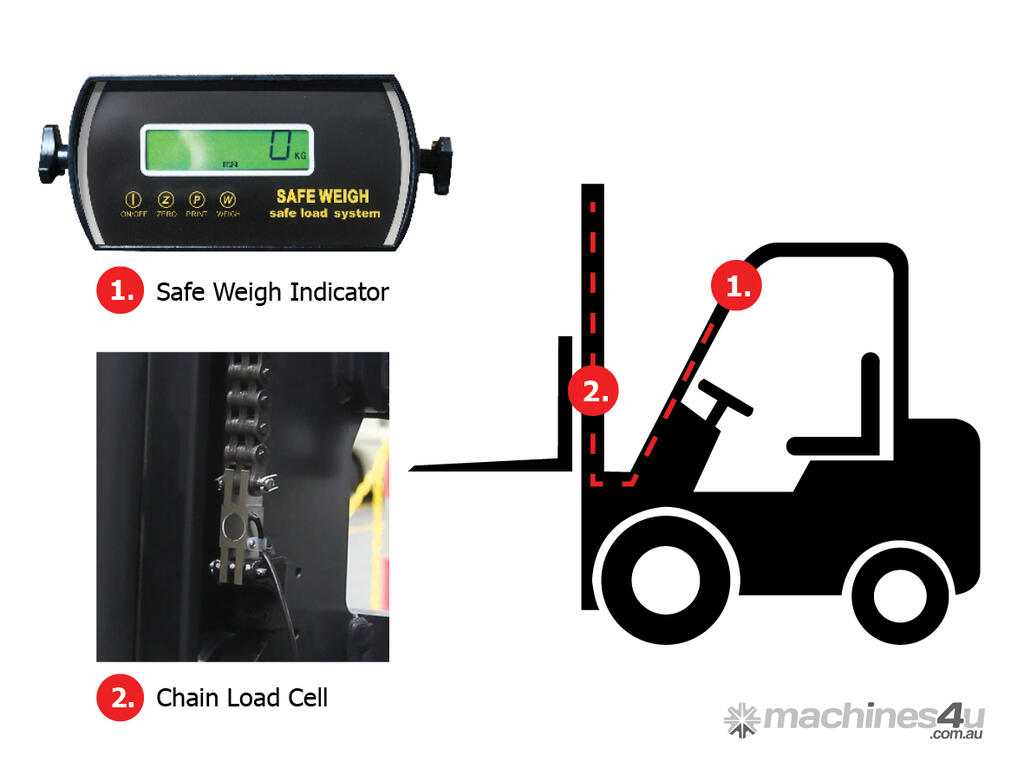

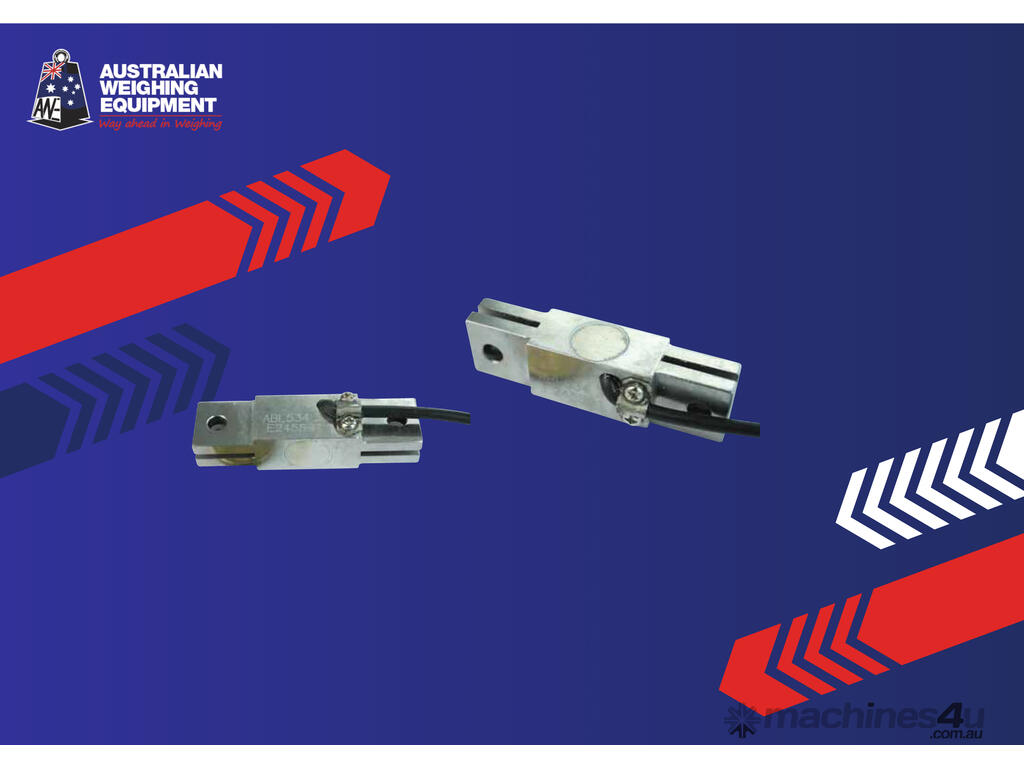

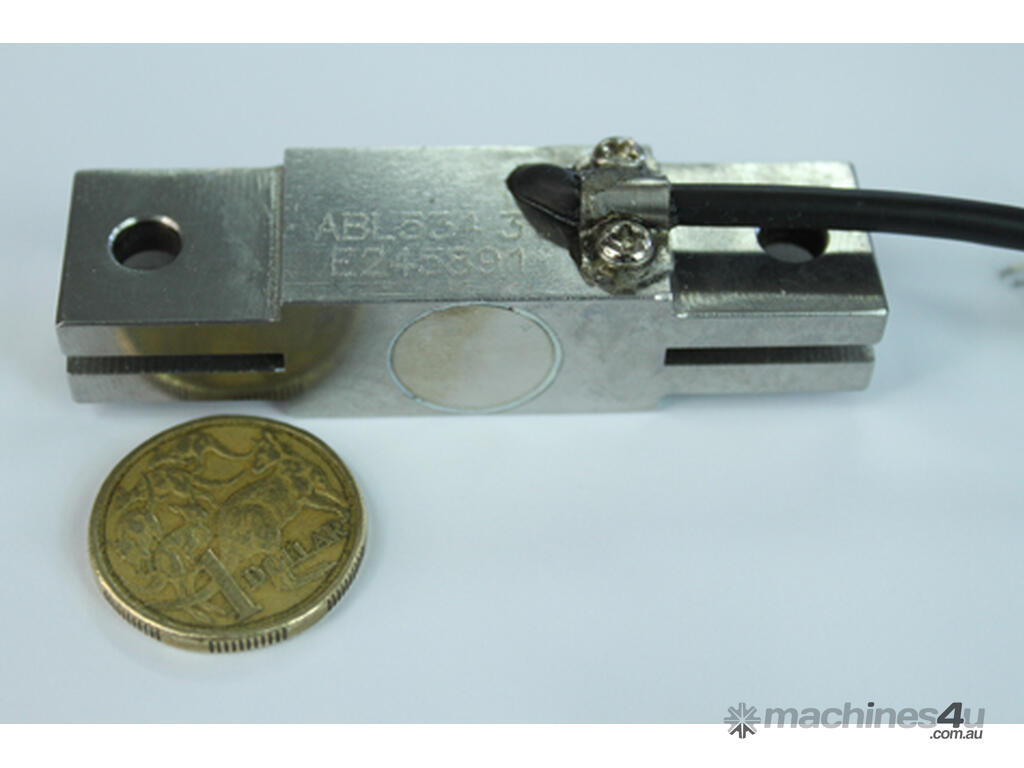

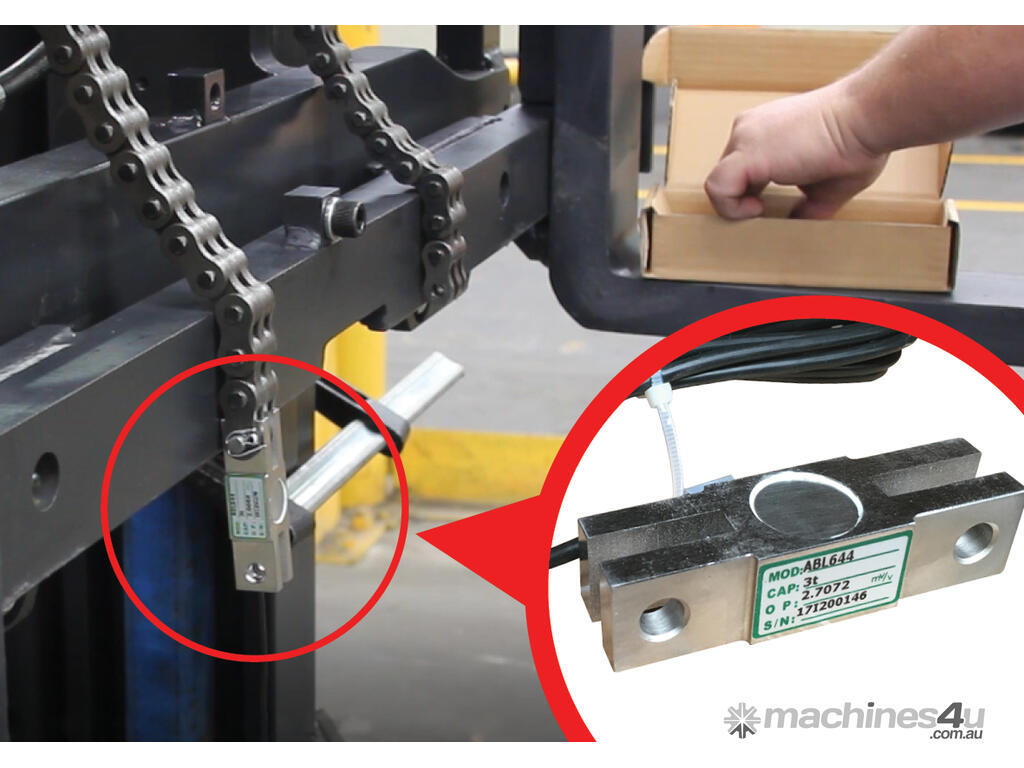

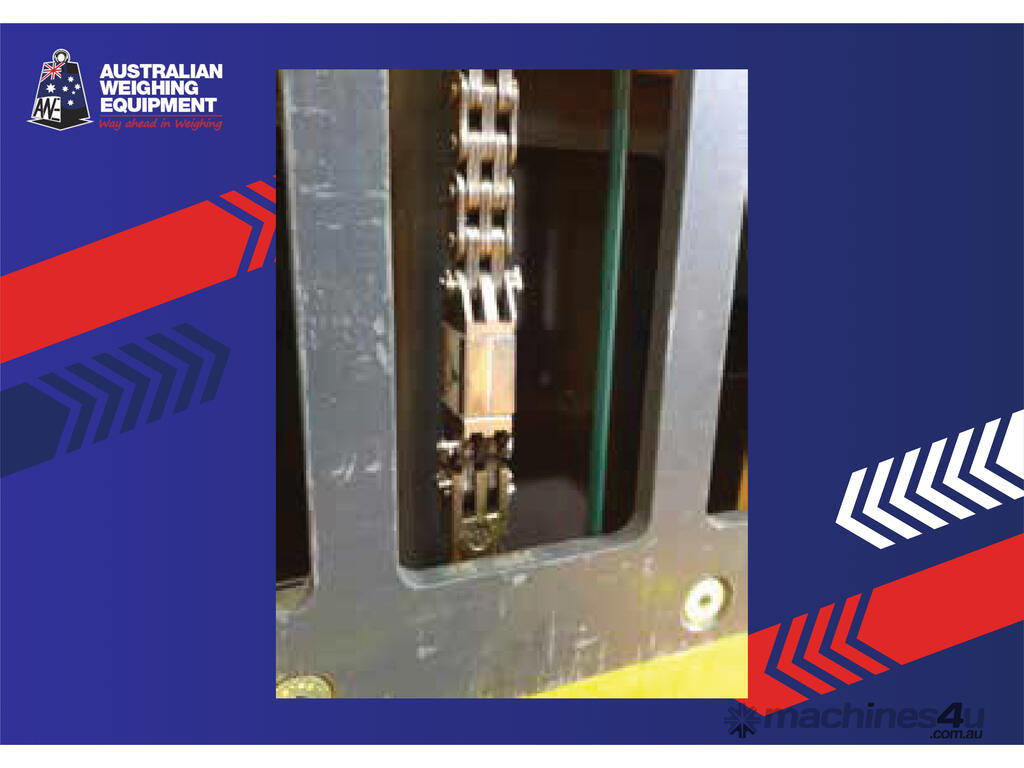

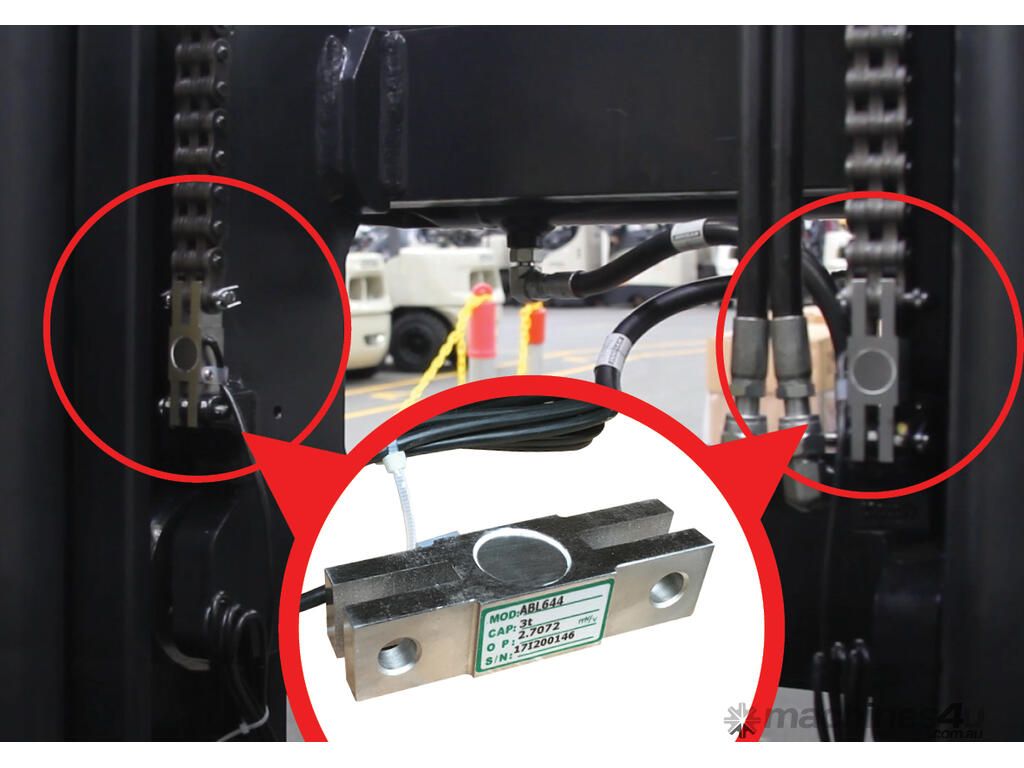

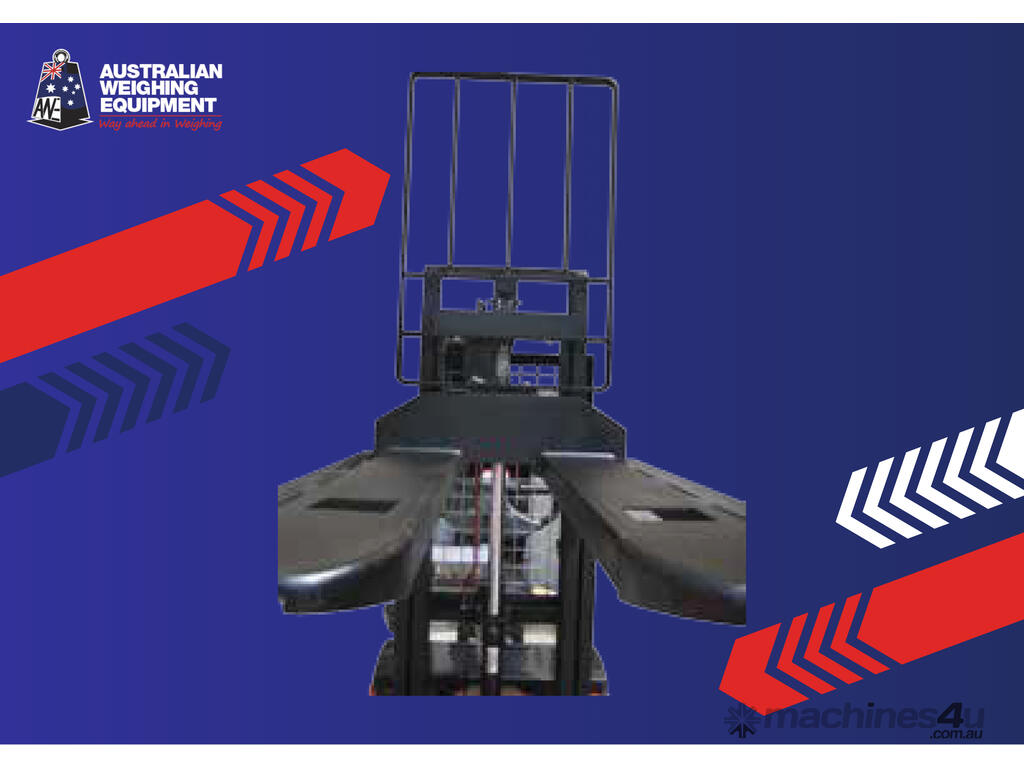

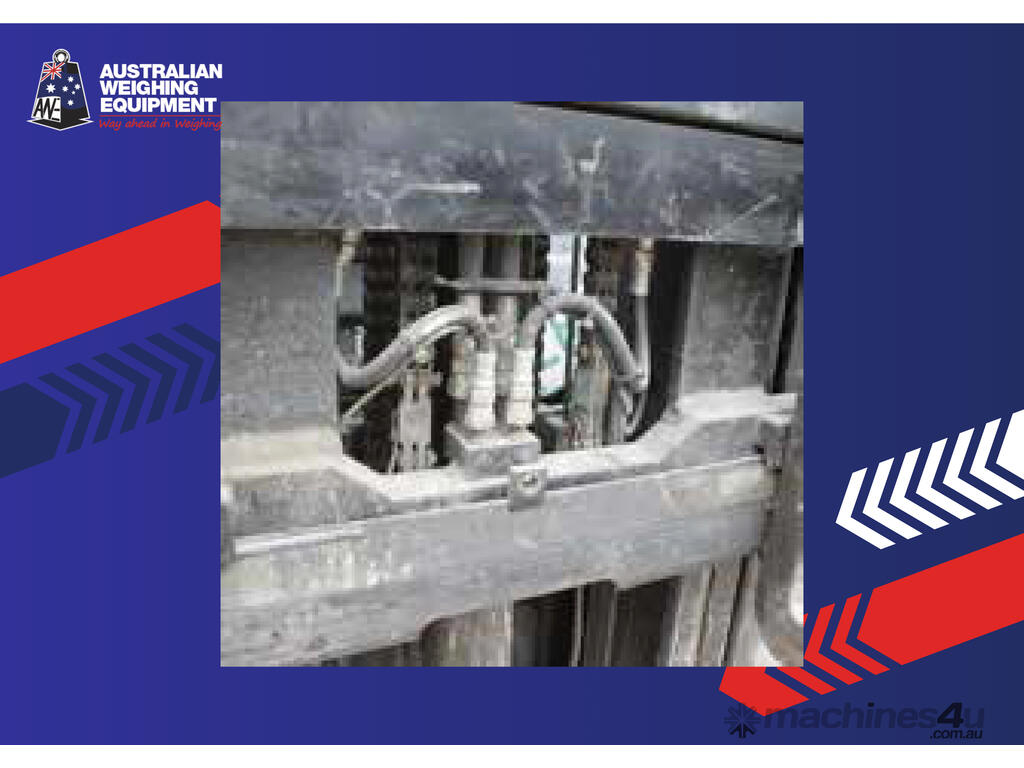

The ‘Chain Sensor System’ load cell is fitted as a replacement link in the lifting chains of the forklift. When a load is lifted, the load cell senses the tension in the chain and sends data to the indicator mounted near the controls. A weight reading is then displayed on the indicator for the operator to view.

This system can be paired with either a “Safe Weigh” indicator or a “Weight Master Totaliser” indicator.

PRINTER AND ALARM OPTIONS
AWE offers a range of additional accessories which can be paired with the Safe Weigh instrument. These accessories help customise your scale to better suit your workplace applications. Our safety accessories are a great solution to prevent machinery overloading by operators - an event which can have serious consequences to machinery and operators.

Blue Tongue 2.0 Printer
Produce hard copies of your weight readings with this compact printer. Comes with a swivel mount allowing easy
mounting in your cabin. It ishardwired to your machine so no need to ever change batteries.

Hydraulic Bypass
The ultimate safeguard against overloading you forklift. When a lifted load exceeds the forklifts capacity, the forklift will stop lifting - only allowing the load to be lowered. The capacity ratings are adjusted based on load centre principles.

Red Light / Overload Alarm
A red light and/or audible alarm can be fitted to your scale as an extra safety device. These features are activated when the forklift exceeds the safe working load to alert an operator.

SPECIFICATIONS

Type: Digital load cell technology with microprocessor control

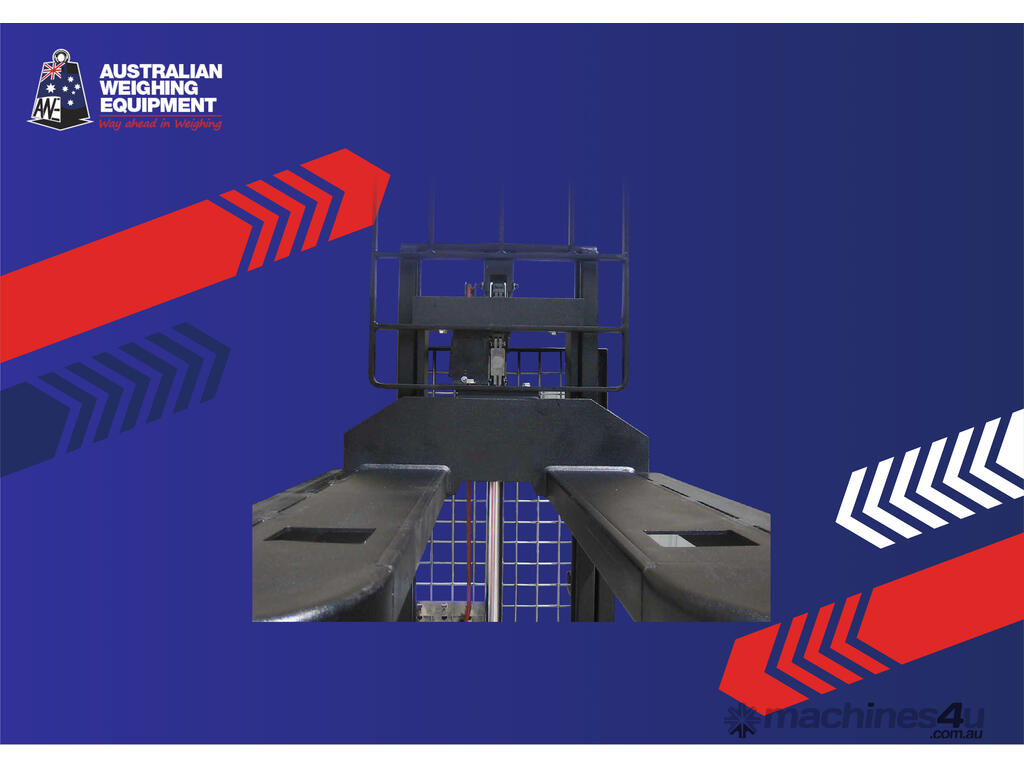

Applications: Suitable for most forklifts, reach trucks, stock pickers and side loaders

Accuracy: ±0.5% of capacity (e.g if lift capacity is 1000kg then an accuracy of worst case ±5kg)

Dimension (mm)
Safe Weigh:
260 (W) x 140 (H) x 90 (D) including bracket
215 (W) x 106 (H) x 90 (D) instrument only

Weight Master:
250 (W) x 150 (H) x 125 (D)

Resolution:
1
2
5
10
20
50
100
200 (selectable to suit installation)

Temperature: 0°C to 40°C operating range

Supply voltage: 9VDC to 70VDC standard

Supply current: Less than 200mA

Housing rating: Weatherproof (IP65)

Display
Safe Weigh: 20mm (H) x 6 digits LCD extended temperature range. Plain message prompting


Weight Master: 10mm (H) x 32 digits supertwist alphanumeric LCD with extended temperature range


Backlight: LED fibre optic

Warranty: 12 months on instrument and sensors

Fitting time: Typically four hours

Recalibration: Six monthly (recommended) 12 monthly (standard)

Printer (optional): 60mm plain paper

Characters:20 per line

Supply:
12VDC
16 to 60v with optional adapter

Current:
200mA standby
1A peak printing

Fields:
-Weight
-Date
-Time
-Gross weight

Pressure diversion system (When fitted):Hydraulic pressure diversion system suitable for interlocking into main lift ram to stop forklift lifting and only lowering to ground when in overload status

Other Options: Height sensor,
-Height switch
-Audible alarm
-Red light alarm
