Forklift Scale - Fork Tyne Weigher

Highest 0.1% Accuracy Of Machine Capacity

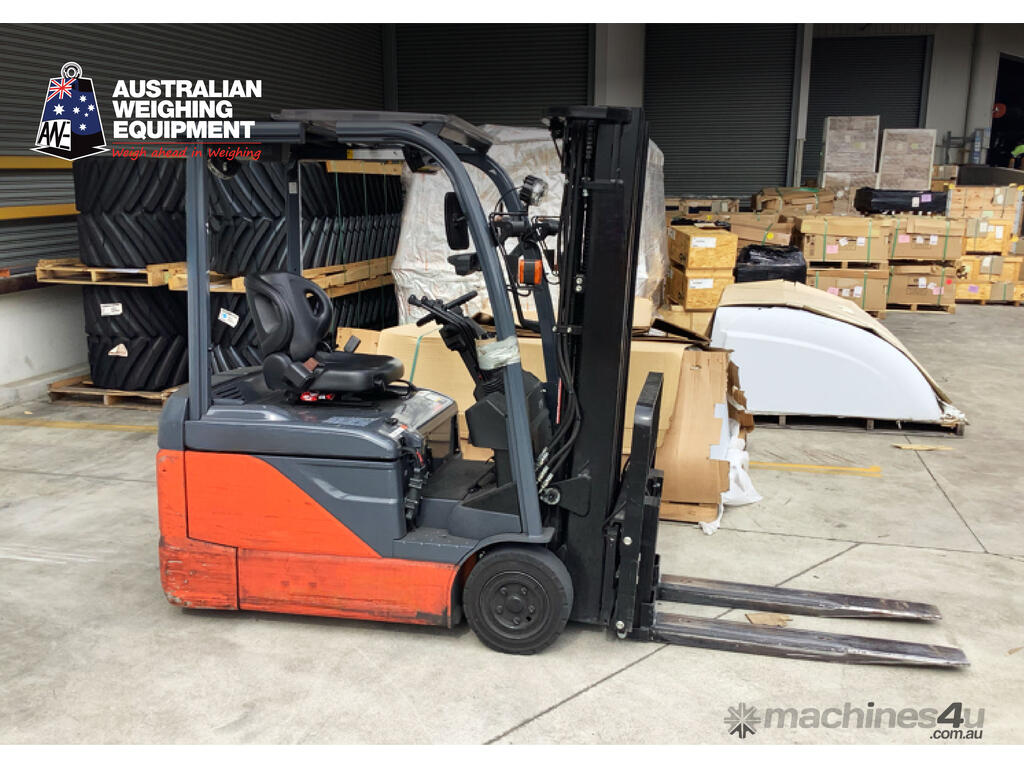

The ‘Fork Tyne Weigher System’ is our low cost alternative to the Precision Weigher. It offers the same high accuracy of +/-0.1% of machine capacity with a simple design, making it easy to install and is suited for use with forklifts and reach trucks.

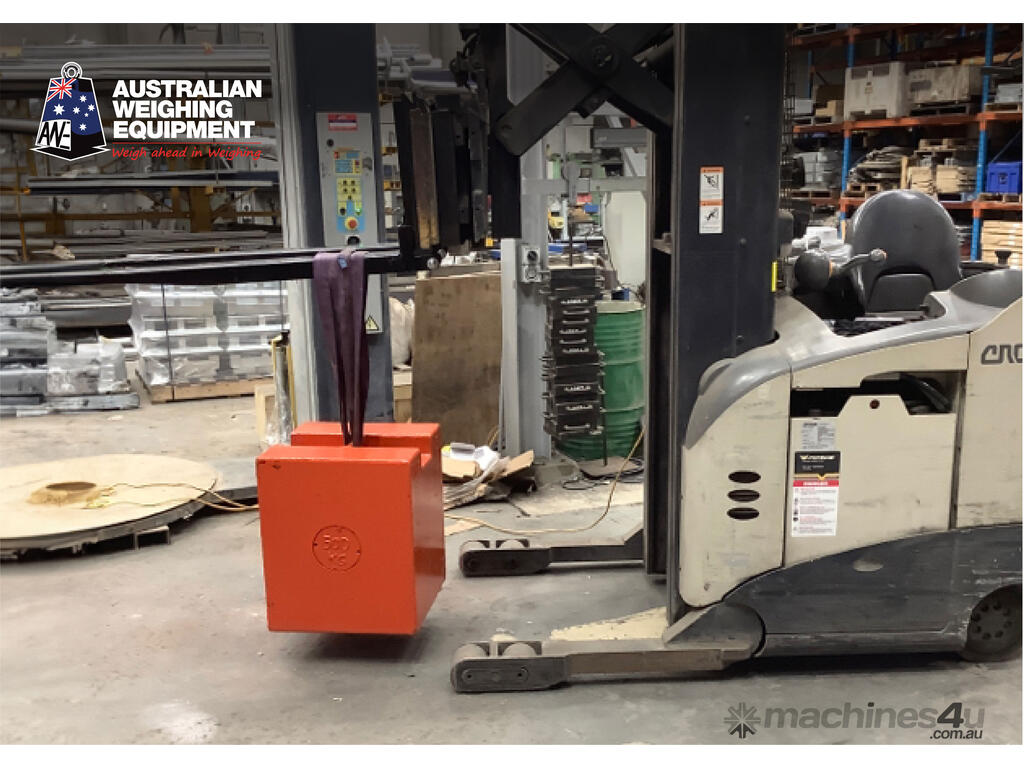

Designed with accuracy and speed in mind, this system enables the operator to capture the weight of any given pallet or load picked up on the spot without having to deviate from their normal loading or unloading course. You can capture weights as you unload from a truck and select a suitable position on the warehouse racking. Now that’s smart.

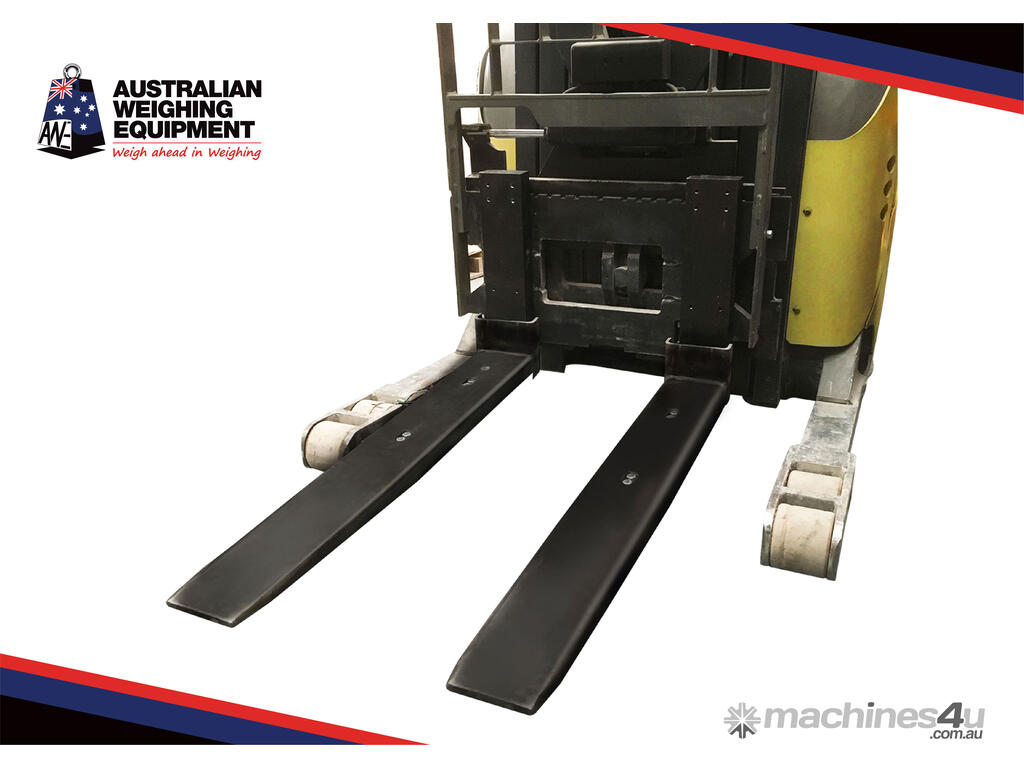

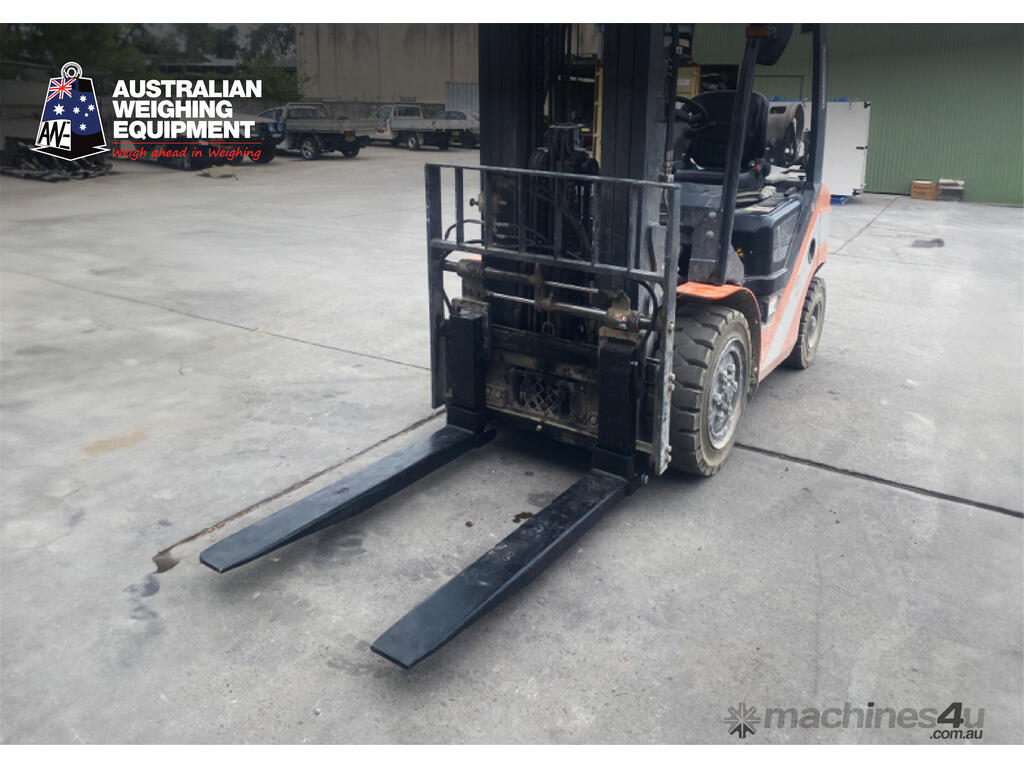

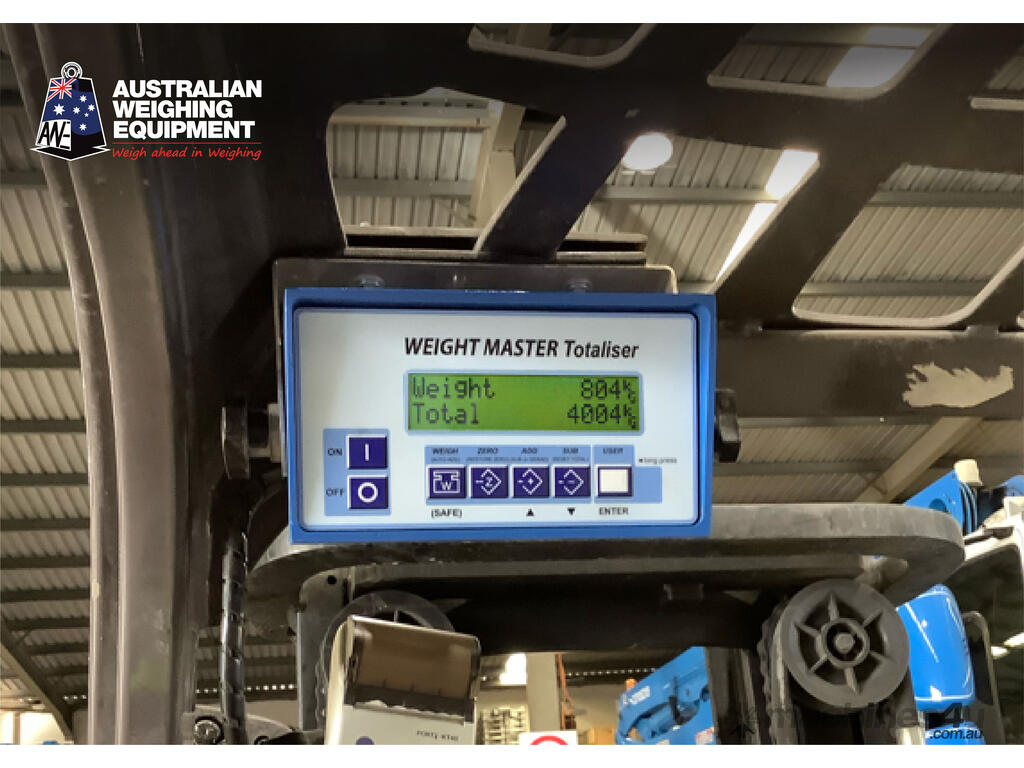

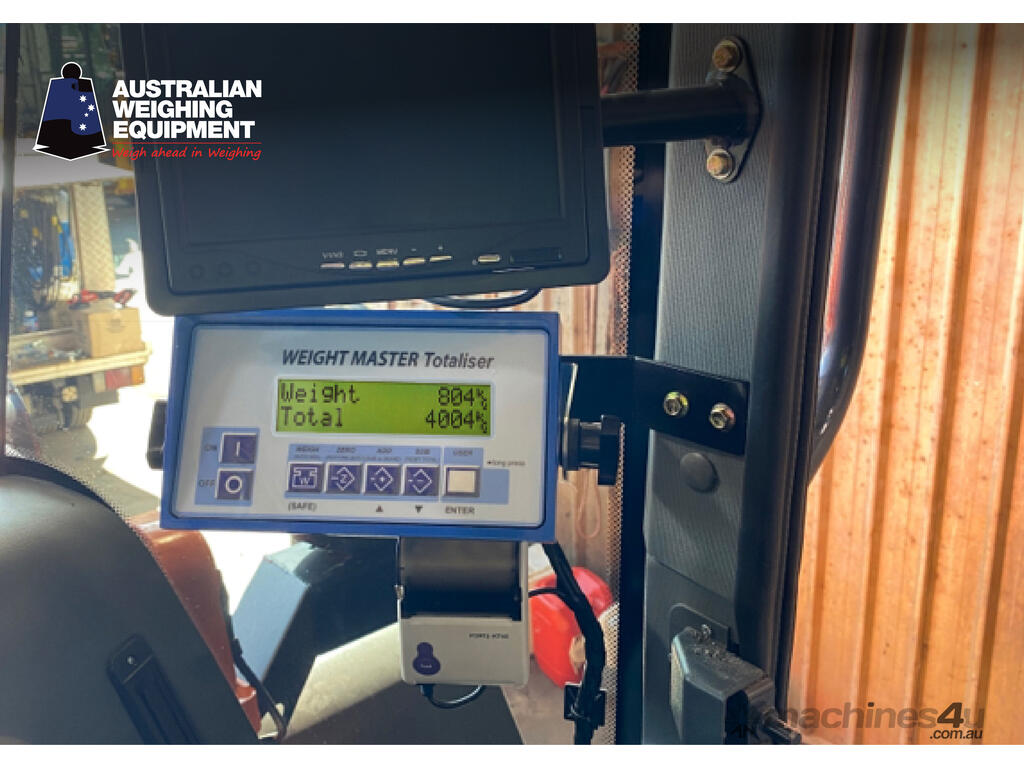

Installation is quick and easy - simply remove the existing tynes and fit the new fork tyne weigher to the fork carriage.A ‘Weightmaster Totaliser’ indicator is then mounted in the forklift cabin within easy reach and sight of the operator. Our solid state design is virtually maintenance-free with no moving parts or hydraulic devices to service.

FEATURES:
- High accuracy
- Bluetooth link direct to indicator
- Ultra-low power
- High resistance load cells
- Multiple choices of instruments available depending on complexity of task required
- No loss of forklift lifting capacity
- Shock burst technology
- Compact and robust design
- Fits all makes of forklift trucks
- Max capacity: 2500/3000/5000kg
- Runs on batteries or can be wired direct to a power source

BENEFITS:
- Improved efficiency and safety
- Ability to weigh and record data in one swift and clean motion
- Check incoming/outgoing goods
- Avoid fines for overloading trucks and utes
- No loss of lifting capacity

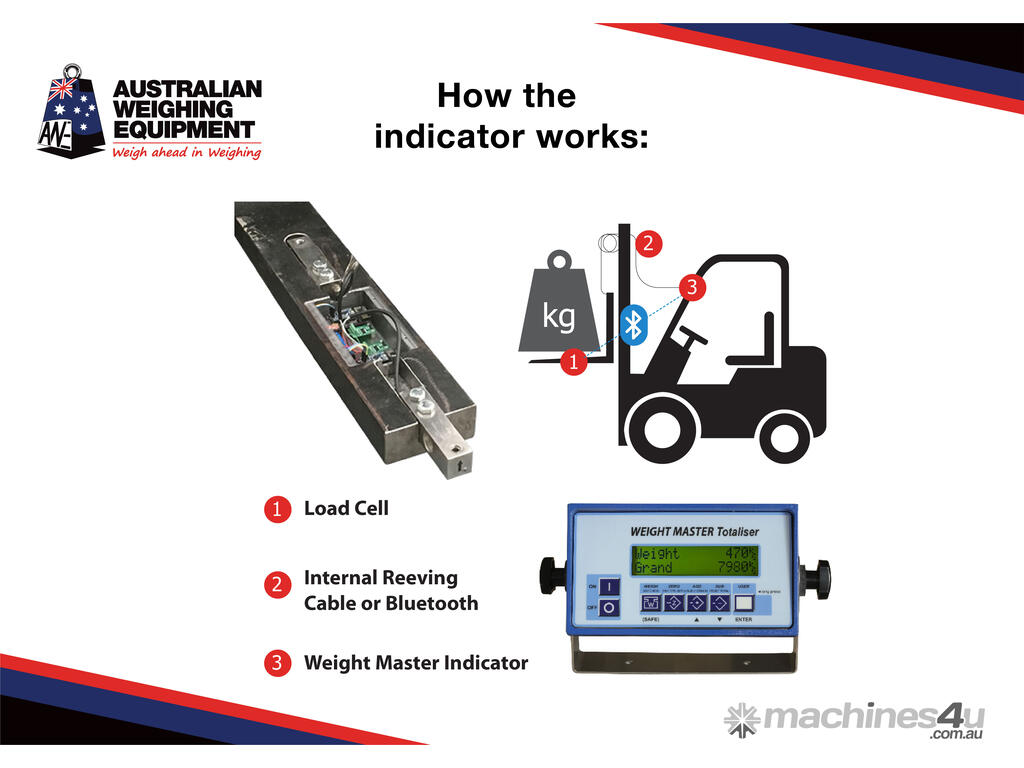

HOW THE FORK TYNE WEIGHER WORKS:

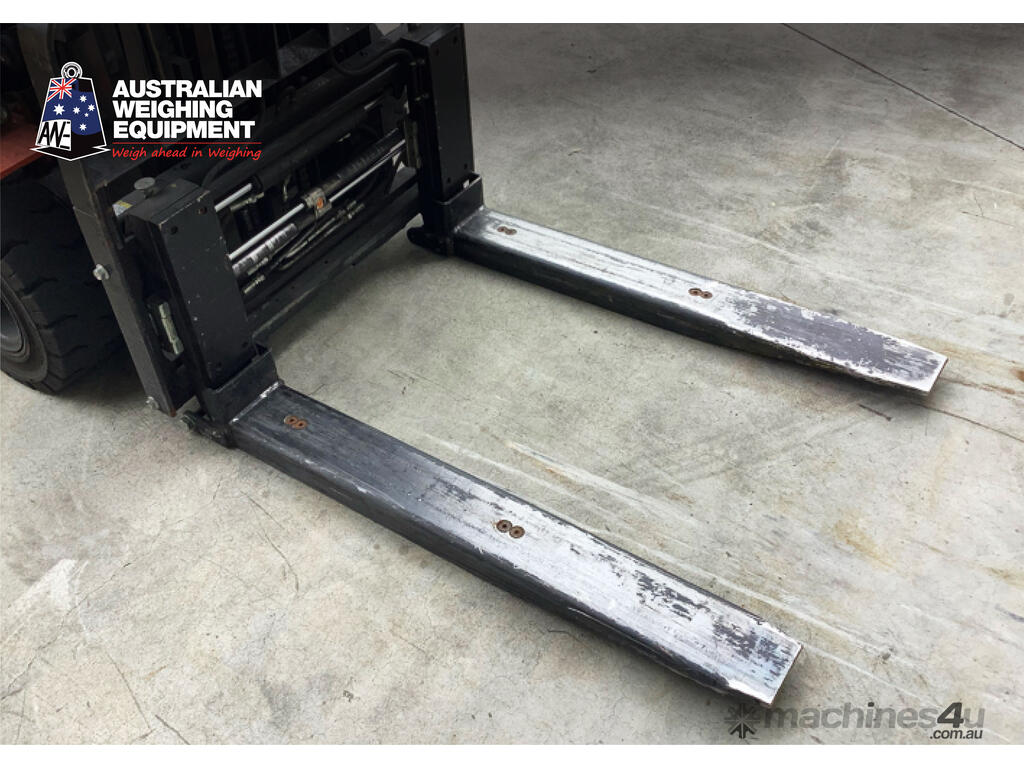

The ‘Fork Tyne Weigher’ has four high-quality AGX load cells built into the tynes. These tynes fit to the forklift carriage with no need for custom work. When a load is lifted on the tynes, the pressure is sensed on the load cells and the data is sent wirelessly or via internally reeved cable to the digital indicator inside the cabin.


SPECIFICATIONS:
Capacities:
- 2500kg
- 3000kg
- 5000kg

Graduation:
-1/2kg
-Multi-range 1/2kg
-Multi-range 2/5kg

System tolerance 0.1% of the load lifted

Overload protection 200%

Protection class IP65

Cabling: Spiral cable

Power supply: Batteries or hardwired
