Formula S 440P Bandsaw

The S 440P is a globally popular Italian designed and manufactured machine and is also is considered THE bandsaw to use for the most discriminating professionals and hobbyists alike. Powerful single-phase motors (4.8hp), heavy-duty large cast-iron balanced wheels and robust cast iron and steel components with easy to use controls and unparalleled safety features make this the bandsaw of choice for thousands!

-Cast-iron squaring fence for maximum stability and cutting repeatability
-Rack and pinion lifting system of the guide unit for a fast and safe setup
-Saw blade tensioning indicator that guarantees immediate and continuous control of the value
-Cast-iron work table with lapped surface for maximum smoothness of the piece

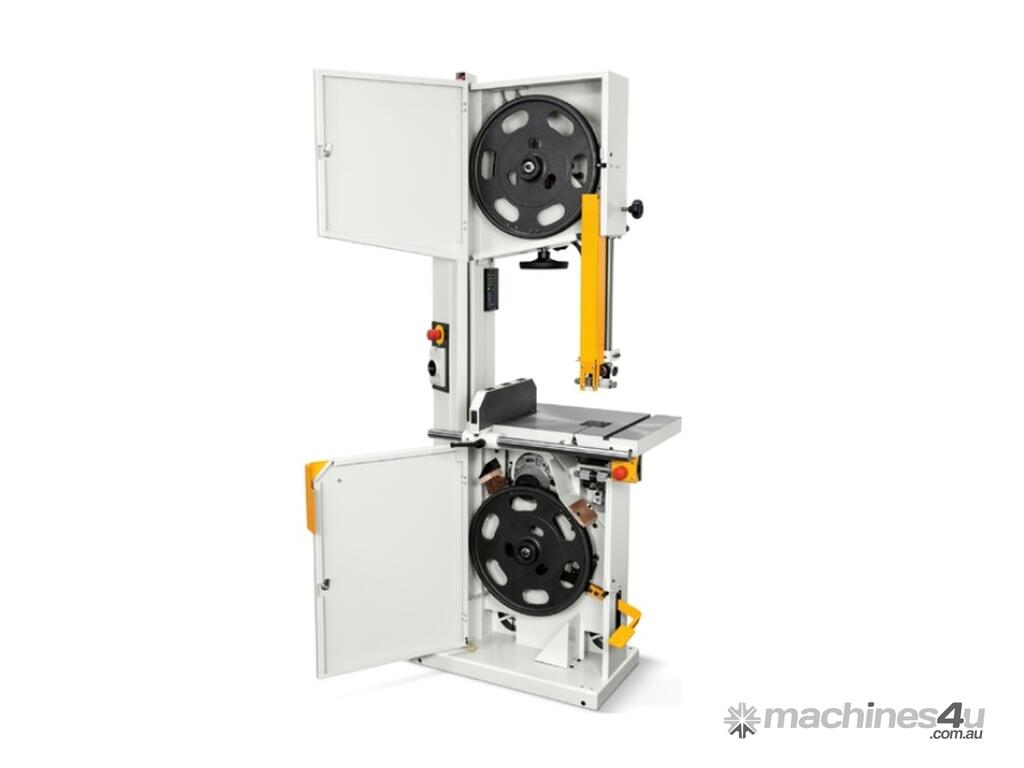

-Full disc cast iron wheels to keep the blade speed constant during machining
-Top and bottom blade guide with ball bearings to minimize lateral movements of the blade and therefore increase the precision of the cut
-Cleaning brush on bottom wheel to reduce the wheel wear

Additional Information
Solidity and sturdiness
Very thick, cast iron wheels, as well as the worktable, running on sealed for life ball bearings.

Safety first
Total safety machining with telescopic protections with rackwork to the blade.

Perfect results
A perfect cut result is assured by the top and bottom high precision blade guides. Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.

TECHNICAL DATA
Worktable dimensions mm 420 x 578
Cast iron saw wheels diam. mm 440
Saw wheels width mm 33
Max. cutting height (inches) mm 440 (18?”)
Max. cutting width mm 425
Worktable tilting (CE) 0° ÷ 45° (20°)
Longueur max. lame mm 3950
Standard single-phase motor
S1 240V 50Hz 3,6kW 4,8hp
Exhaust outlet diameter mm N° 2 x 120
