Four Shaft Shredder - IBC's, Light Guage Steel, Mattresses, etc

New to the Australian market, Soyu is a JV between 3E of China and ISVE of Italy. Specialising in single, double and quad shaft shredders, these machines are produced at a quality level other Chinese manufacturers cannot match.

ReSource, a recycling business located in Melbourne, is pleased to bring these machines to the Australian market for the first time. Unlike other dealers however, our primary business is operating the equipment ourselves, giving you the opportunity to see how the equipment stands up in real-world operations. We also offer clients the opportunity to test their products in our equipment should we have similar machinery on site.

DONT PAY DOUBLE THE PRICE FOR GENOX or 3E SHREDDERS - we take lower margins, offer the same or better quality quality, provide local service and advice as an operating company, and sell wear parts at a fraction of the cost of other local dealers. We also work with our clients to design custom solutions to meet their needs with add-ons including conveyors, magnets, eddy currents, hydraulic pushers, etc.

Below is one of the 18 models of four shaft shredders we have on offer from Soyu ranging from 22kw up to 170kw for plastics, paper/cardboard, film, organic waste, wood pallets/scraps, e-waste (circuit boards, chips, etc), light metals (aluminium cans/profile, tin cans, etc) and solid waste (MSW, RDF, etc).

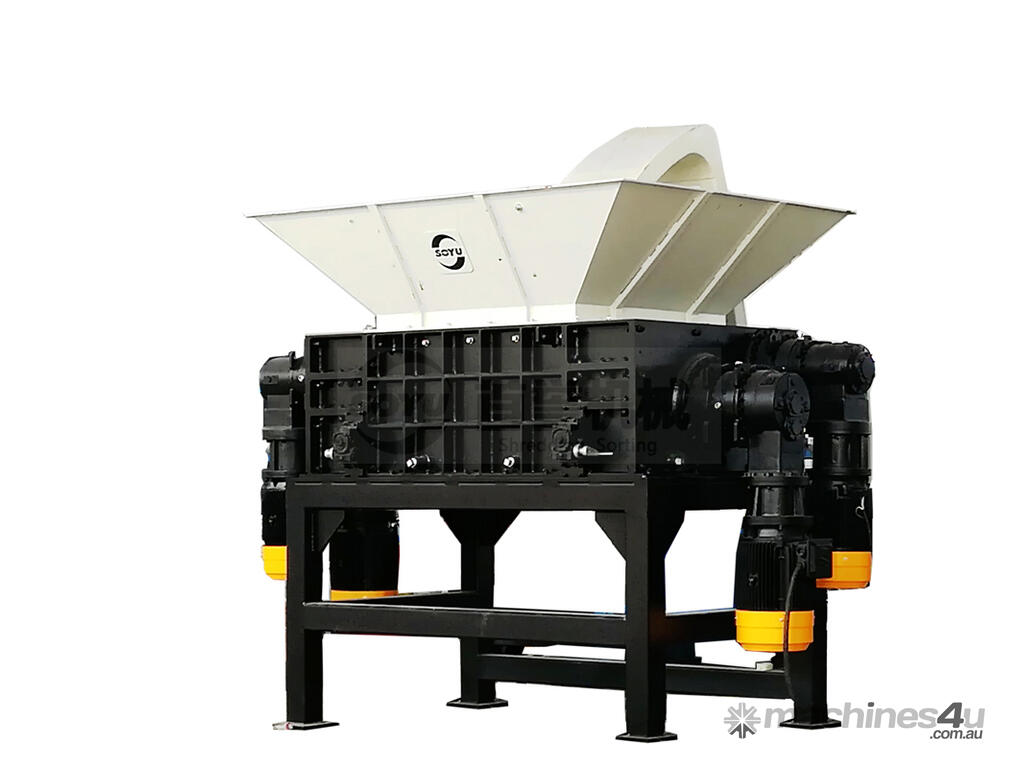

Soyu FS130140 Four Shaft Shredder.

Features and inclusions:

- Main motor power: 2 x 15kw + 2 x 37kw
- Main shaft rev: 10-15rpm
- Main blade diameter: 430mm
- Main blade thickness: 50mm
- Number of blades: 28
- Main blade material: 60Si2Mn
- Assist blade material: 42CrMo
- Screen diameter: 60mm (customisable)
- Cutting chamber size: 1300 x 1400mm
- Discharge height: 1328mm
- Dimension(LxWxH): 3850 x 2000 x 3100mm
- Weight: Approx. 13,500kg
- Machine voltage: 3 phase,415V/50Hz
- Motor brand: Siemens
- Gearbox brand: Bonfiglioli
- Bearing brand: ZWZ
- Electrical control: Siemens (overload, auto-reverse, etc)
- Electrical component: Schneider or ABB

Available with pushers, infeed & outfeed conveyors, magnets, etc.
