Four Shaft Shredder - Light NF/Wood/Paper/e-Waste

Name: Four Shaft Shredder - Light NF Wood Paper e-Waste
Brand: Soyu
SKU: 630209
Price: 96000 AUD
Availability: InStock

DERRIMUT, VIC

Play Video

$96,000 AUD($105,600 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$334.39
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Shaft Shredder

Make:

SOYU

Model:

FS90100

Year:

2020

Member Since: Jul 2020

Bronze Member

Listings: 16

Description

New to the Australian market, Soyu is a JV between 3E of China and ISVE of Italy. Specialising in single, double and quad shaft shredders, these machines are produced at a quality level other Chinese manufacturers cannot match.

ReSource, a recycling business located in Melbourne, is pleased to bring these machines to the Australian market for the first time. Unlike other dealers however, our primary business is operating the equipment ourselves, giving you the opportunity to see how the equipment stands up in real-world operations. We also offer clients the opportunity to test their products in our equipment should we have similar machinery on site.

DONT PAY DOUBLE THE PRICE FOR GENOX or 3E SHREDDERS - we take lower margins, offer the same or better quality quality, provide local service and advice as an operating company, and sell wear parts at a fraction of the cost of other local dealers. We also work with our clients to design custom solutions to meet their needs with add-ons including conveyors, magnets, eddy currents, hydraulic pushers, etc.

Below is one of the 18 models of four shaft shredders we have on offer from Soyu ranging from 22kw up to 170kw for plastics, paper/cardboard, film, organic waste, wood pallets/scraps, e-waste (circuit boards, chips, etc), light metals (aluminum cans/profile, tin cans, etc) and solid waste (MSW, RDF, etc).

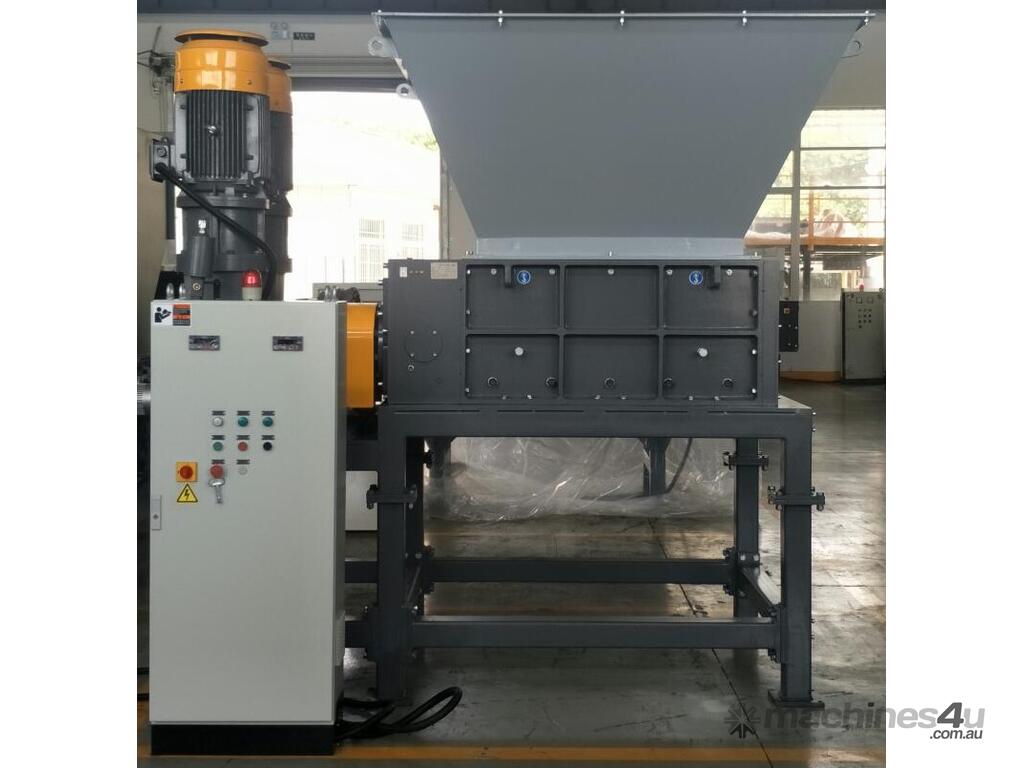

Soyu FS90100 Four Shaft Shredder.

Features and inclusions:

- Main motor power: 2 x 18.5kw
- Main shaft rev: 16-25rpm
- Main blade diameter: 290mm
- Main blade thickness: 25mm (customisable)
- Number of blades: 40
- Main blade material: 60Si2Mn
- Assist blade material: 42CrMo
- Screen diameter: 40mm (customisable)
- Cutting chamber size: 900 x 1000mm
- Discharge height: 985mm
- Dimension(LxWxH): 2890 x 1450 x 2450mm
- Weight: Approx. 4200kg
- Machine voltage: 3 phase,415V/50Hz
- Motor brand: Siemens
- Gearbox brand: Bonfiglioli
- Bearing brand: ZWZ
- Electrical control: Siemens (overload, auto-reverse, etc)
- Electrical component: Schneider or ABB
