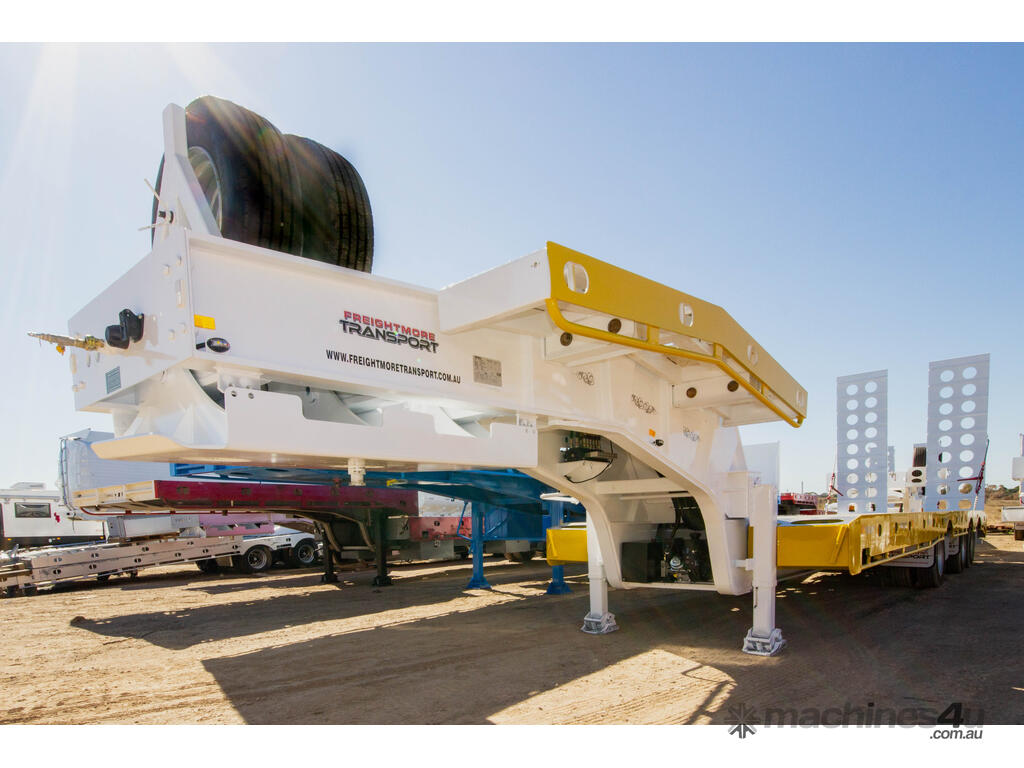

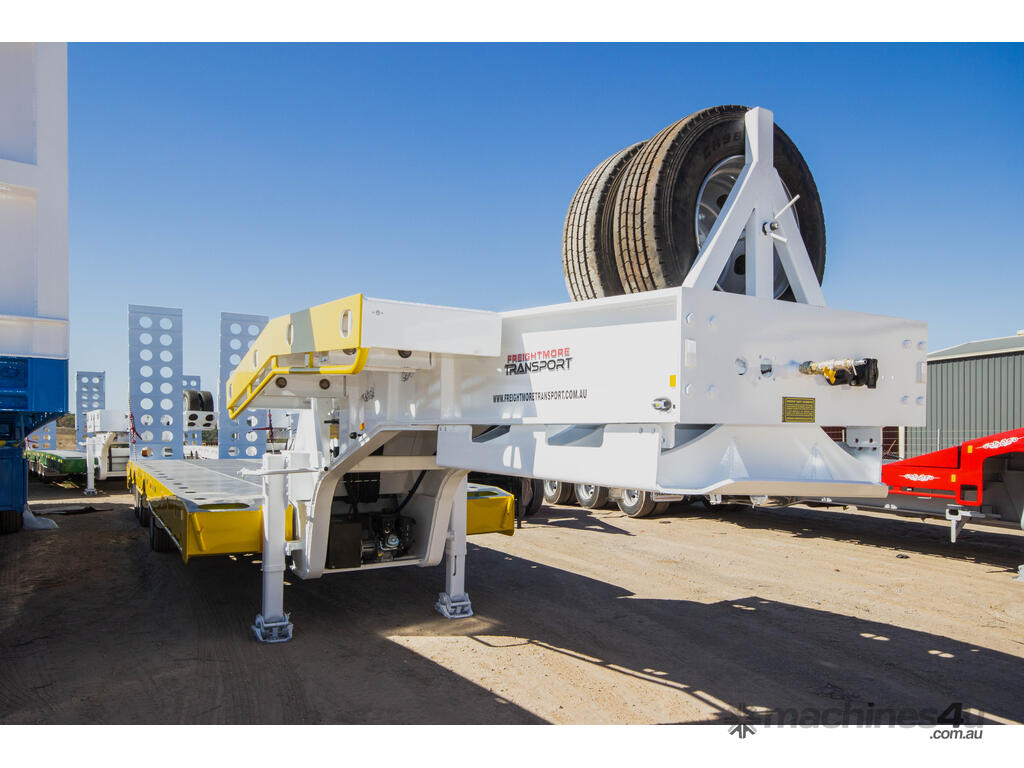

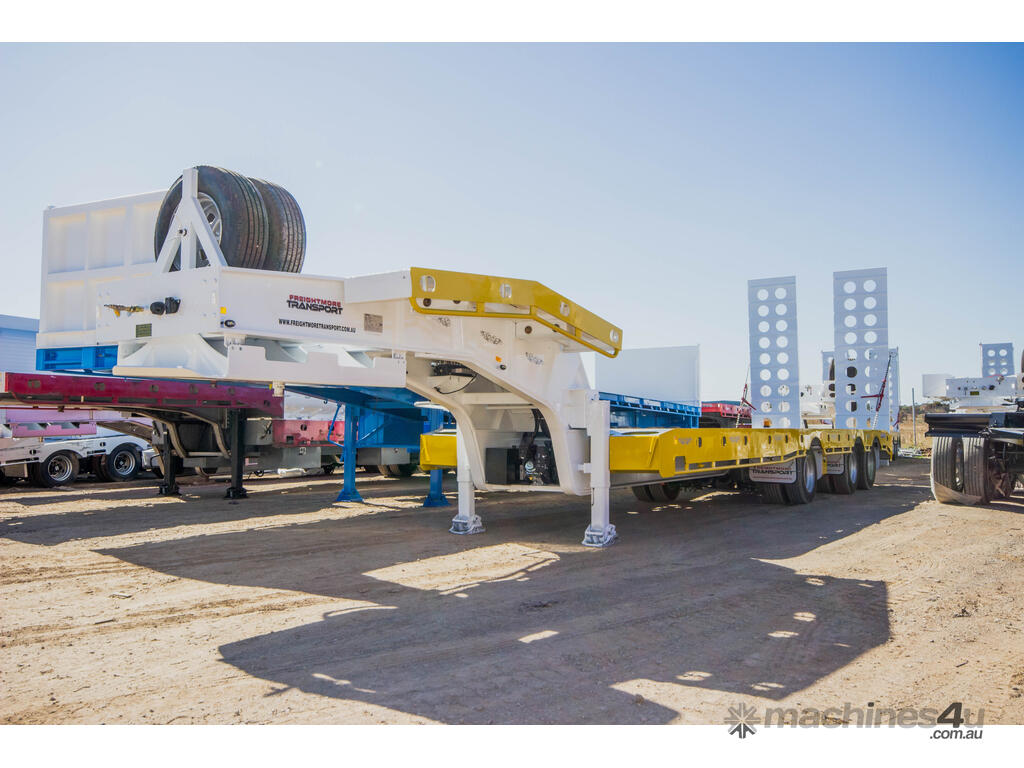

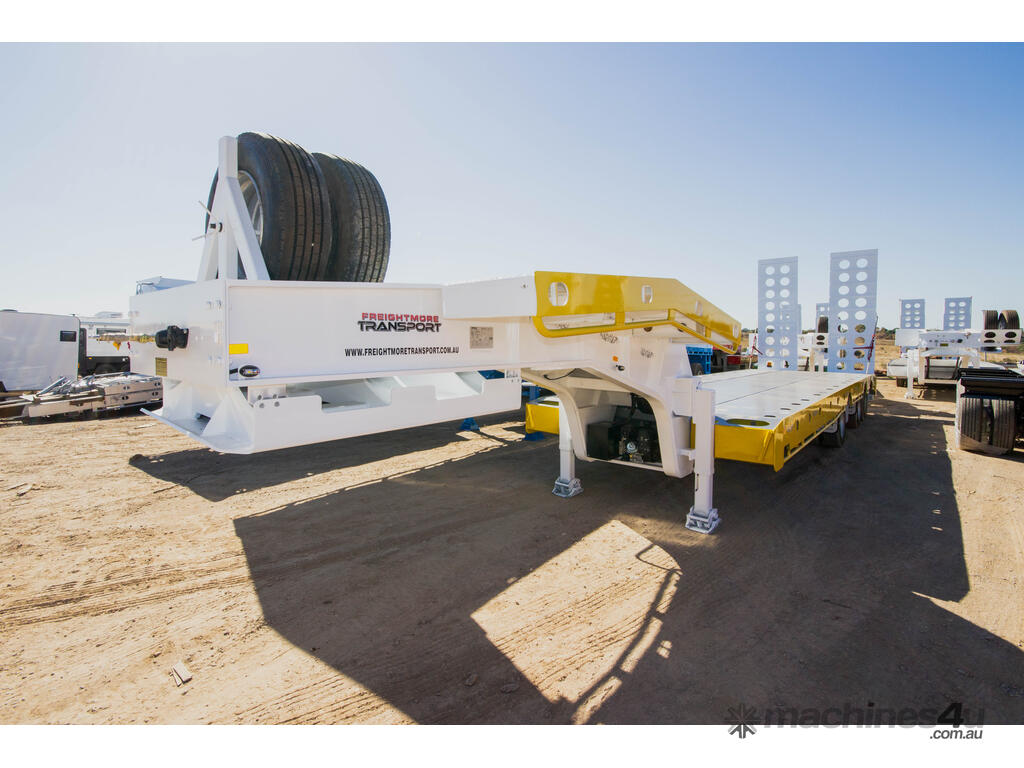

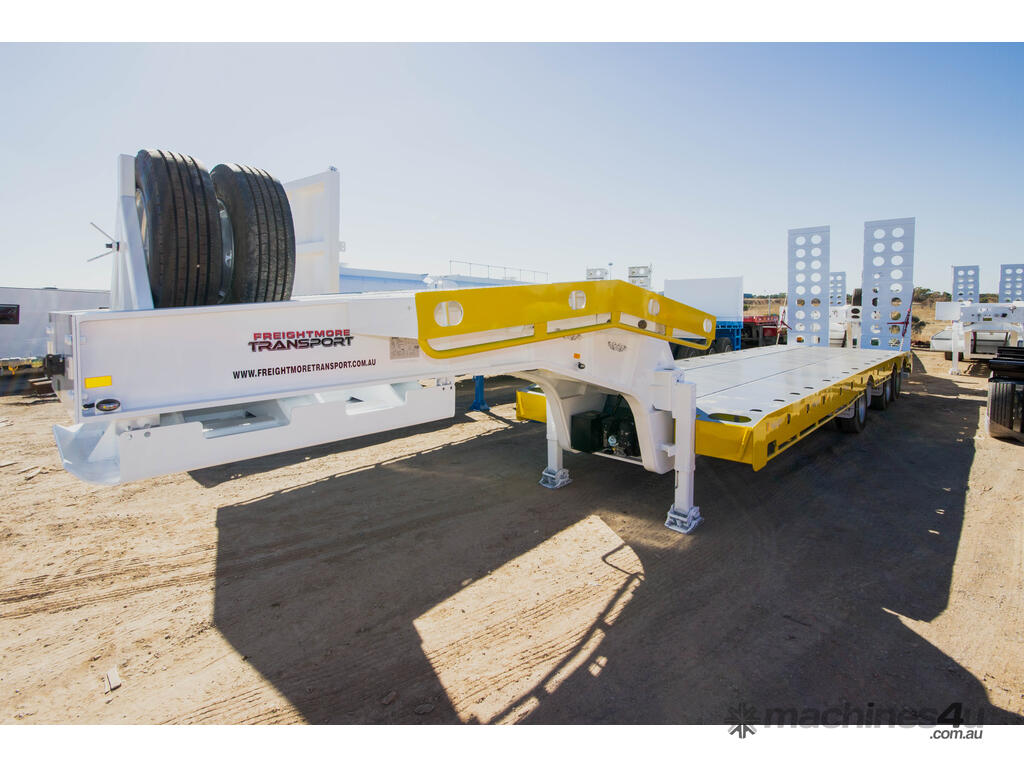

Freightmore transport 45 FT Triaxle Low Loader semi-trailers

Triaxle Low Loader semi-trailers.

FEATURES & BENEFITS

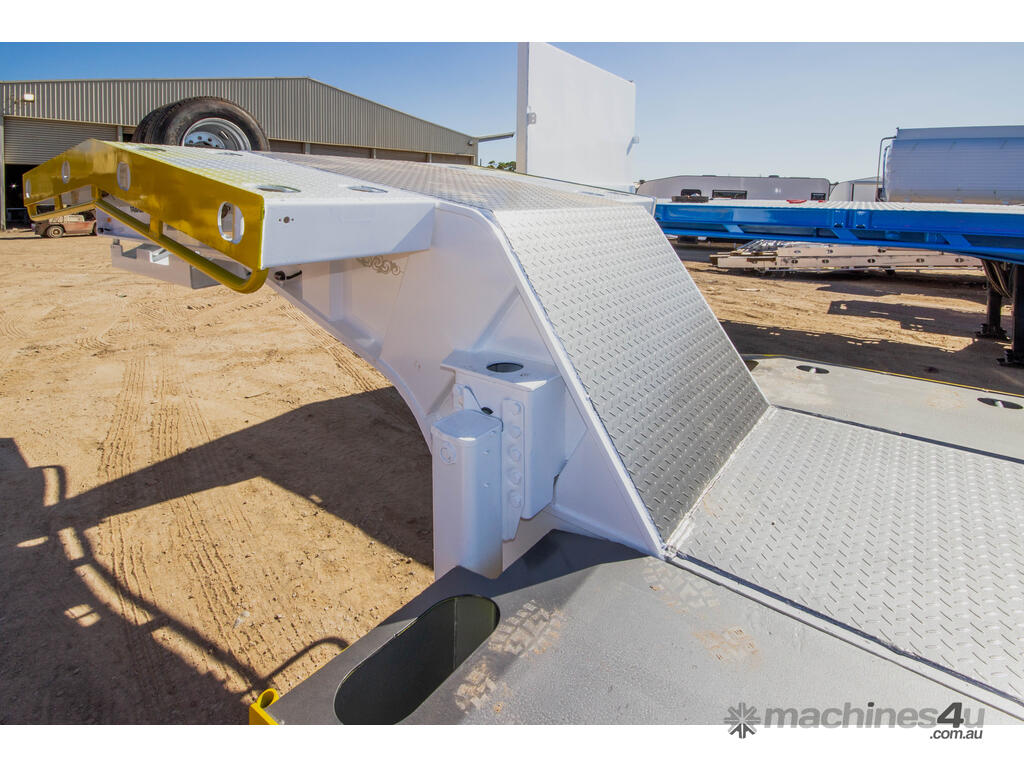

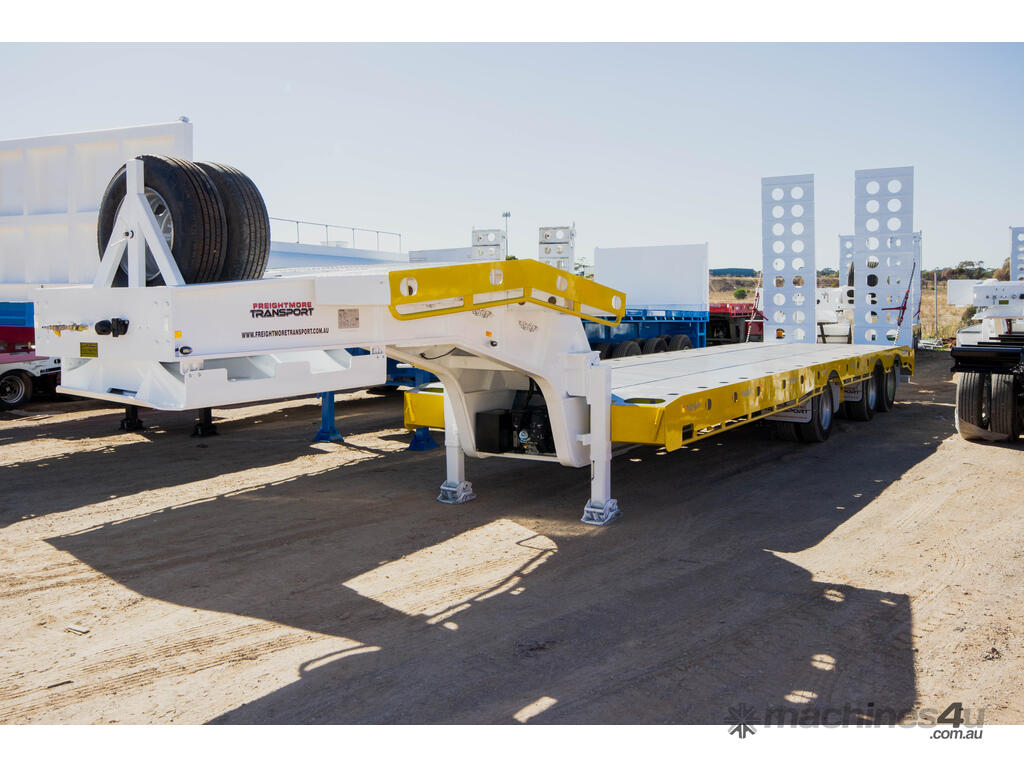

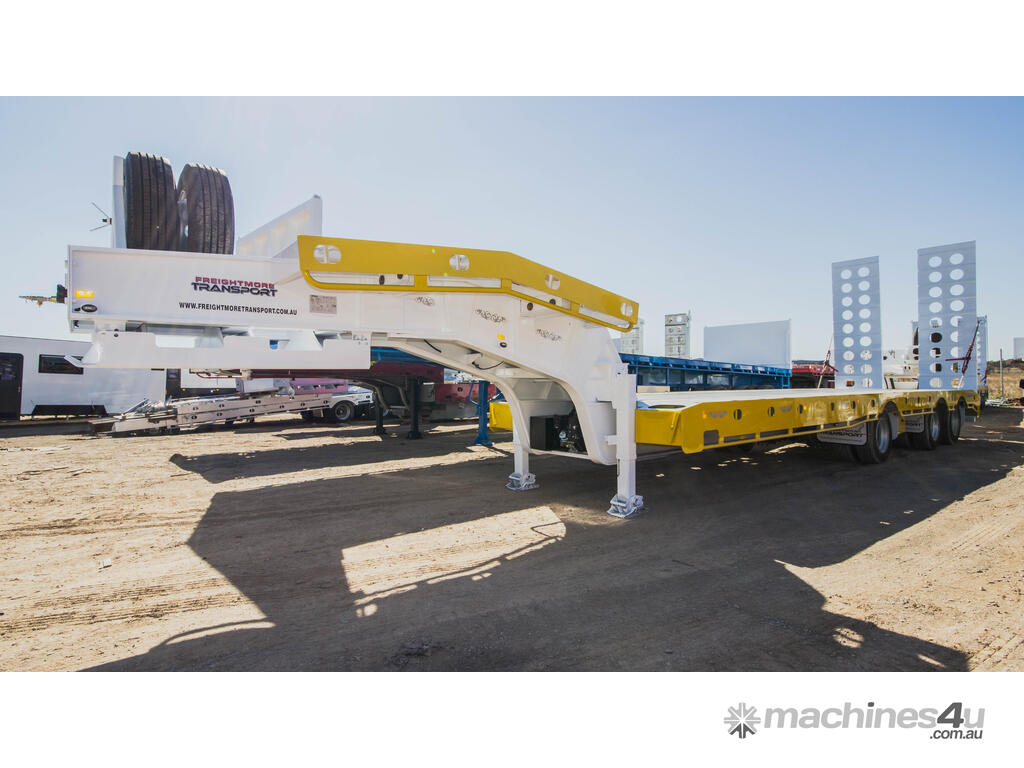

Standard float gooseneck type construction, Low-Loader classification.
These units allow extra payloads compared to standard Tri-Axle units.
Main purpose of these units is for carting earthmoving machinery.

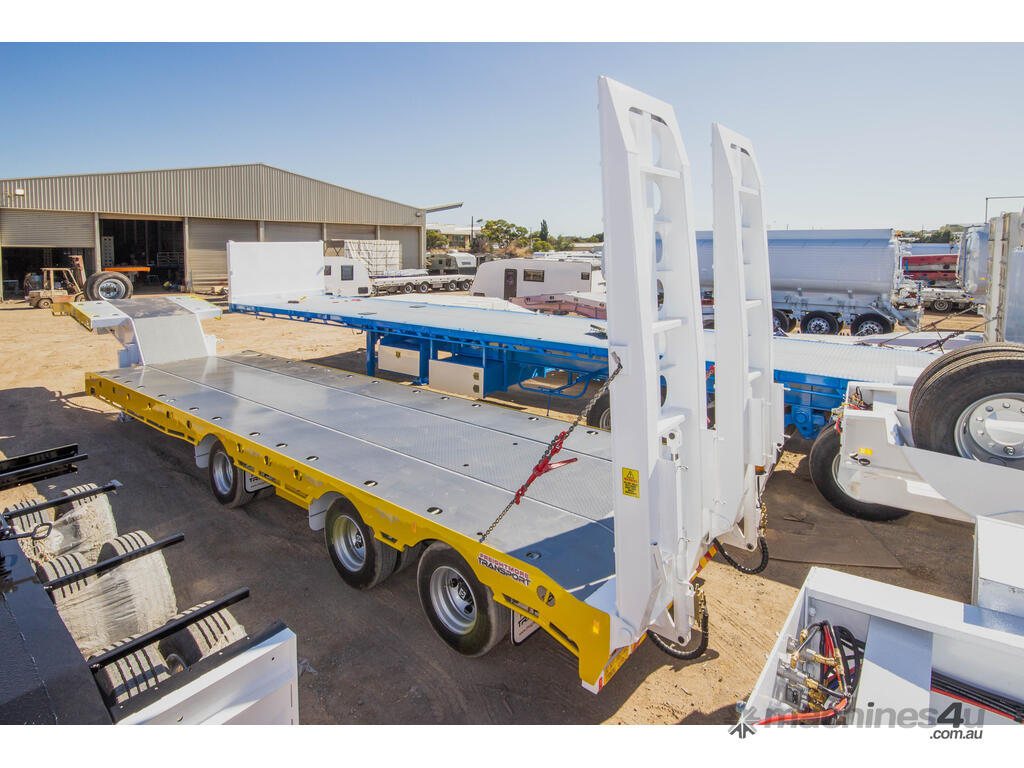

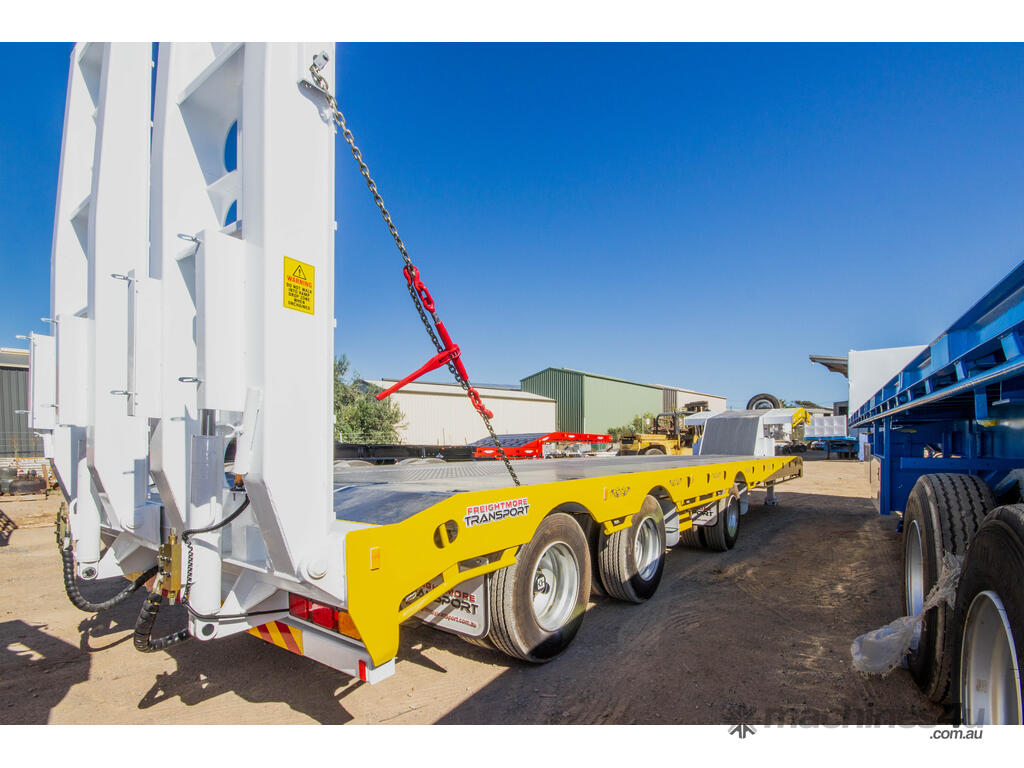

Ultra heavy-duty Bi-fold ramps are standard.

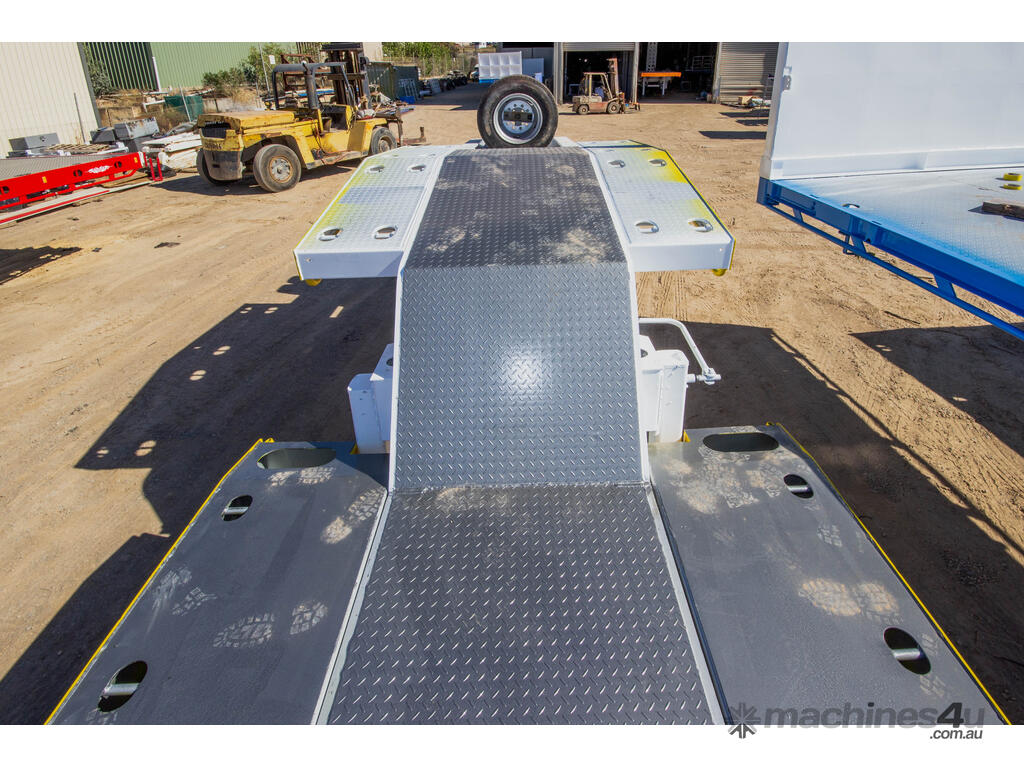

Deck widens from 2.5m to 3.5m
Low deck height of 920mm allows you to load taller machinery.


SPECIFICATIONS
GENERAL
Length Usable Deck Length: 9,500mm

Width Closed: 2500mm
Fully Widened: 3500mm

Height
Deck Height: 920mm (On Low-Loader Axles)
ATM: 45 Tonnes
Tare Weight 12 Tonnes

HYDRAULICS
4 X Deck Widening Cylinders (50mm Wide Chrome Centre)

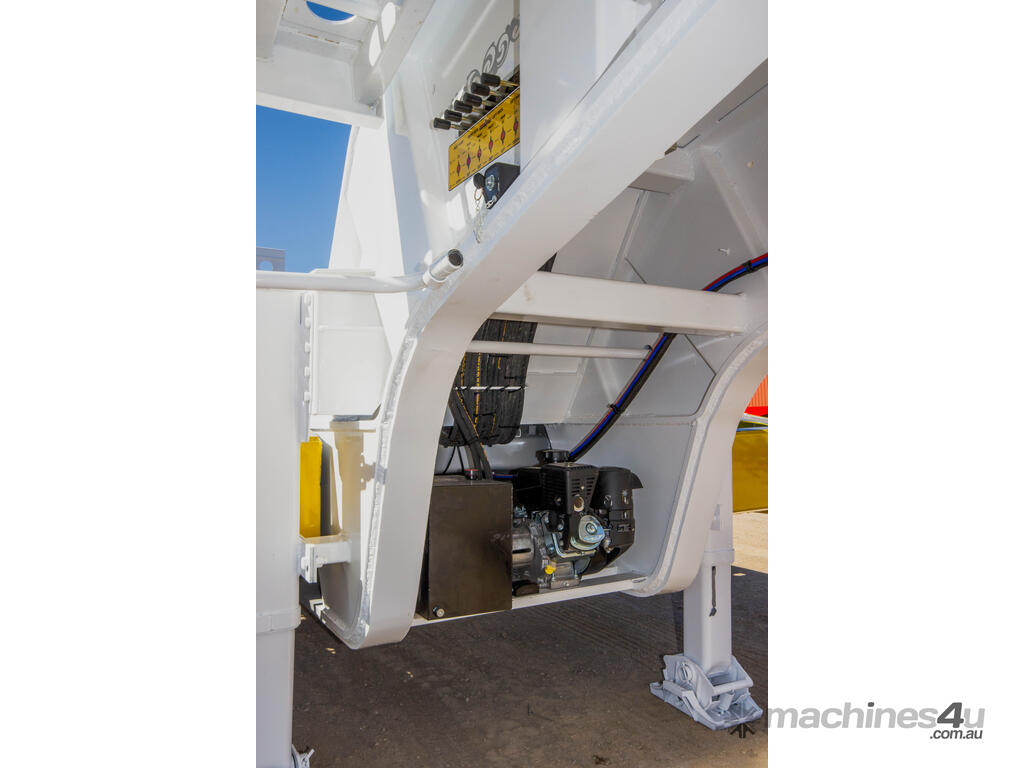

Petrol Power-Pack Is Standard (Diesel Upgrade Optional). Kohler Brand Supplied.
Unit Features Italian Made Spool Valve, All Hoses Are R4 And R2 Type, Fittings Are Generally BSB Thread.

UNDERFRAME
Chassis Beams
I-Beam Construction: 25mm Thick Flange Plates (350mPa), 8mm Webbing Plate (450mPa) – Half The Chassis Webbing Is Double Plated For Heavy Duty Construction.

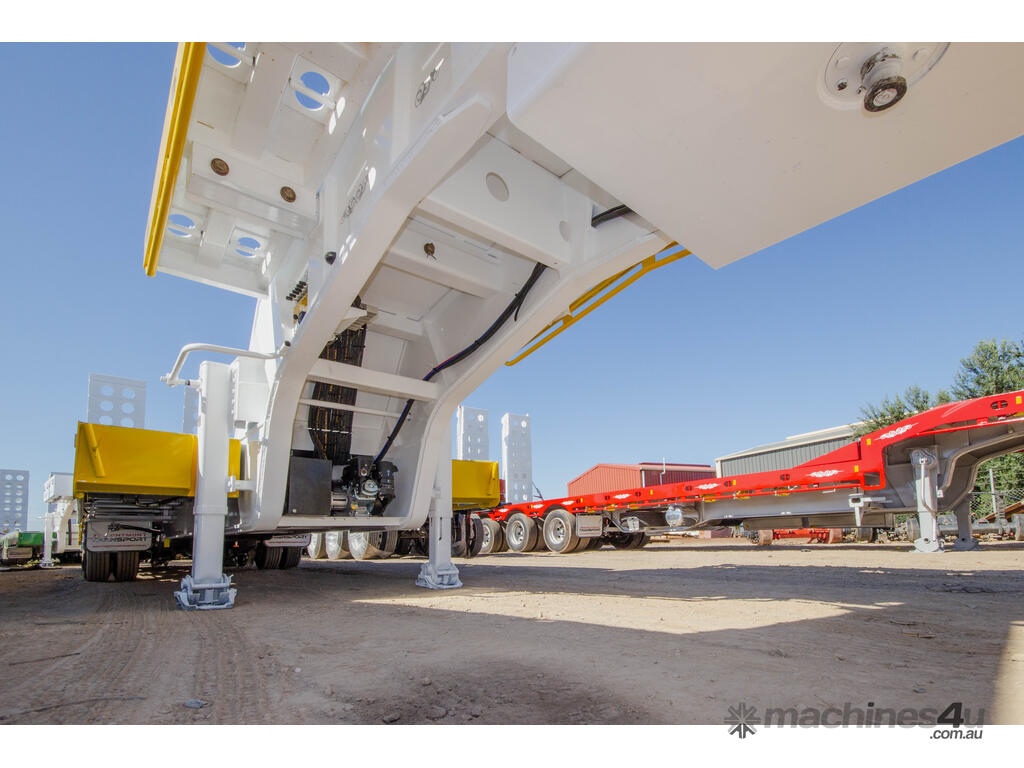

Landing Gear
JOST A400 Landing Gear (JOST E100 Also Used).
King-Pin
JOST 50mm Or 90mm Available.


Why rent a trailer when you can be the proud owner of a Liberty Freightmore Semi Trailer.
No Big forms to fill out, No running through confusing hoops and loops and NO BANKERS!!

We deliver OZwide

Disclaimer: Features and other details are accurate at the time of posting Please check if any changes occurred prior to ordering
