Fuho Vertical Bandsaw - VBS-3612

Name: Fuho Vertical Bandsaw - VBS-3612
Brand: Fuho
SKU: 825918
Price: 20950 AUD
Availability: InStock

BAYSWATER, VIC - Delivers Nationally

Play Video

$20,950 AUD($23,045 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$72.97
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Vertical Bandsaws

Make:

FUHO

Model:

VBS-3612

Year:

2022

Member Since: Aug 2022

Silver Member

Listings: 215

Description

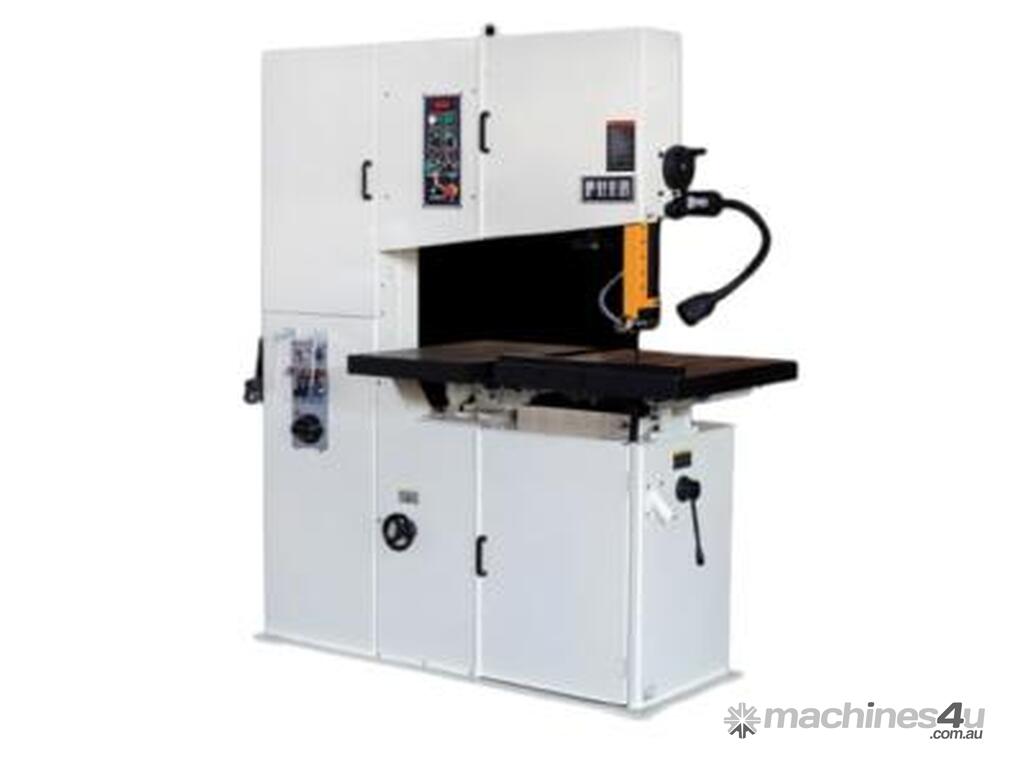

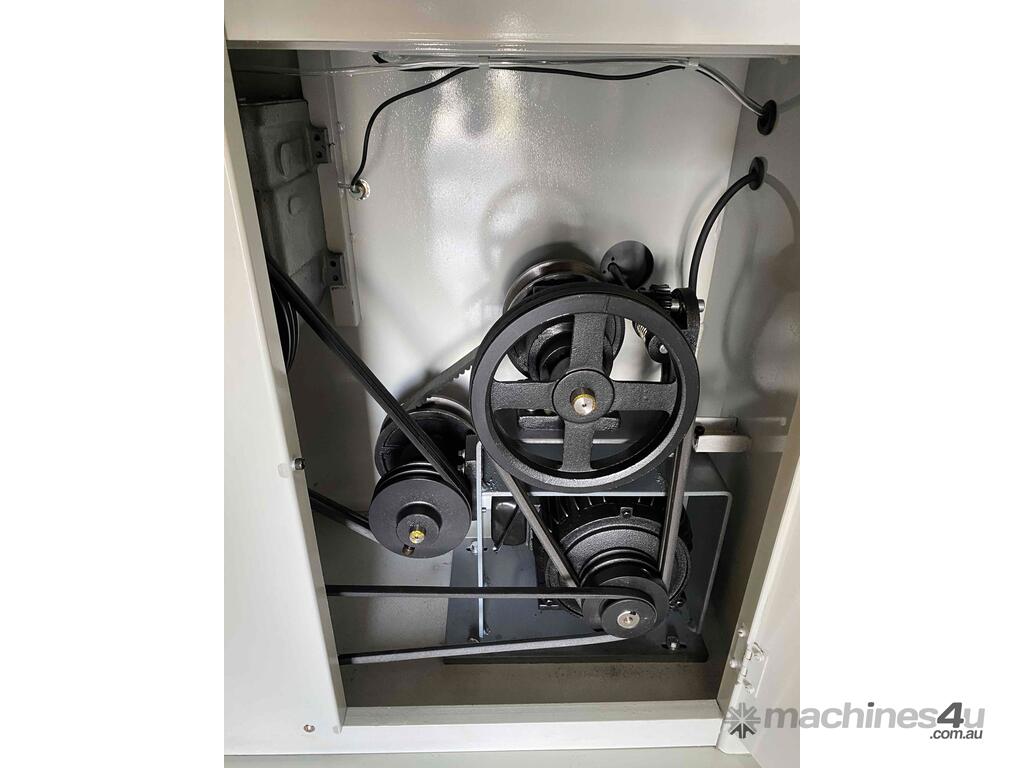

The 36” high speed vertical bandsaw is designed for volume production. Equipped with variable disk driven gear-belt, the generator enables this model to function at speeds from 15 to 1500m/min.

Max Throat Capacity – 915mm
Max Work Height – 305mm
Blade Speed

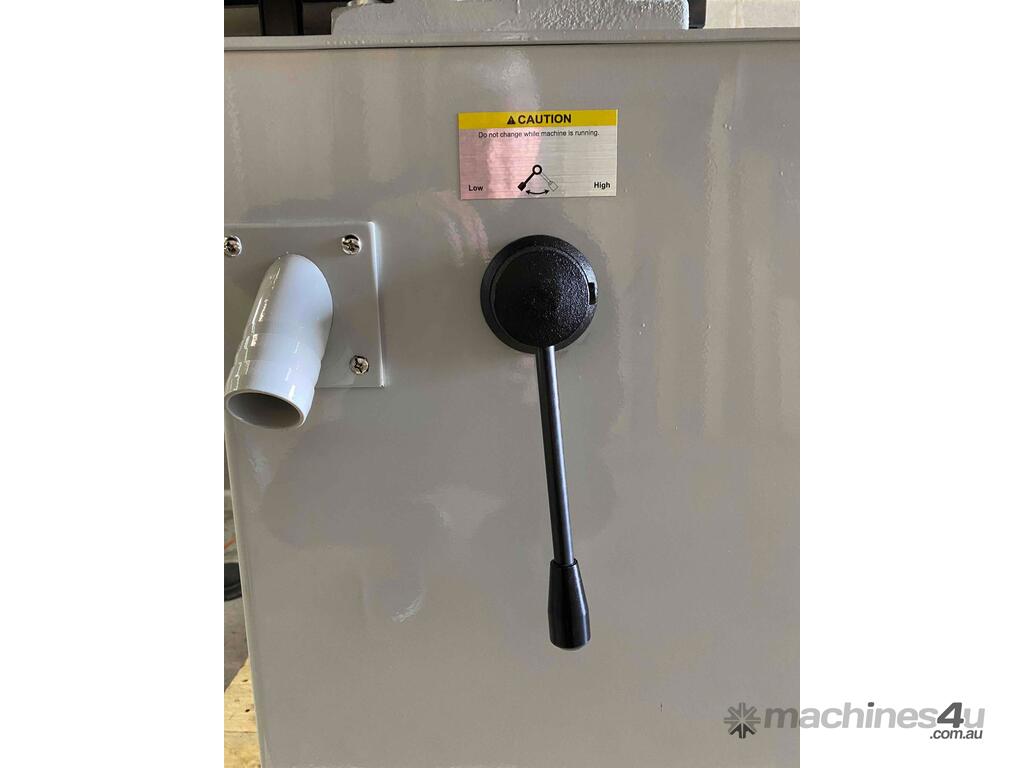

60HZ – Low 15-125, HI 165-1500 M/min
50HZ – Low 50-415, HI 550-5000 F/min
Table Size – 600mm x 700mm, 450 x 700 mm

VBS-3612 is designed for volume production. All the advanced features and the wide speed range provides an easy operation to cut every kind of metal and some non-metal materials.

Model
VBS-3612

MAX. THROAT CAPACITY 915 mm ; 36 inch

MAX. WORK HEIGHT 305 mm ; 12 inch

WHEEL DIAMETER 515 mm x 2 ; 20-1/4 inch x 2 368 mm x 1 ; 14-1/4 inch x 1

BLADE SPEED 50 Hz Low 15-125 , HI 165-1500 M/min Low 50-415 , HI 550-5000 F/min

MAIN DRIVE MOTOR 3 HP ; 2.2 KW x 3 PH

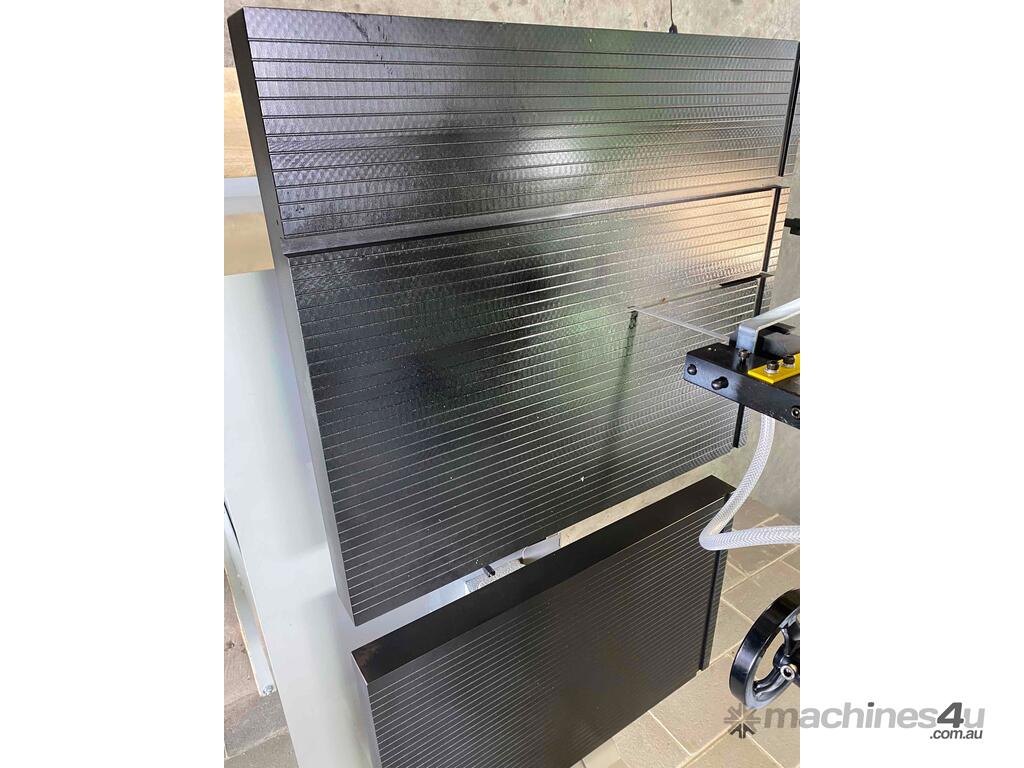

TABLE SIZE 600 x 700 mm ; 23-1/2 x 27-1/2 inch 450 x 700 mm ; 17-1/2 x 27-1/2 inch

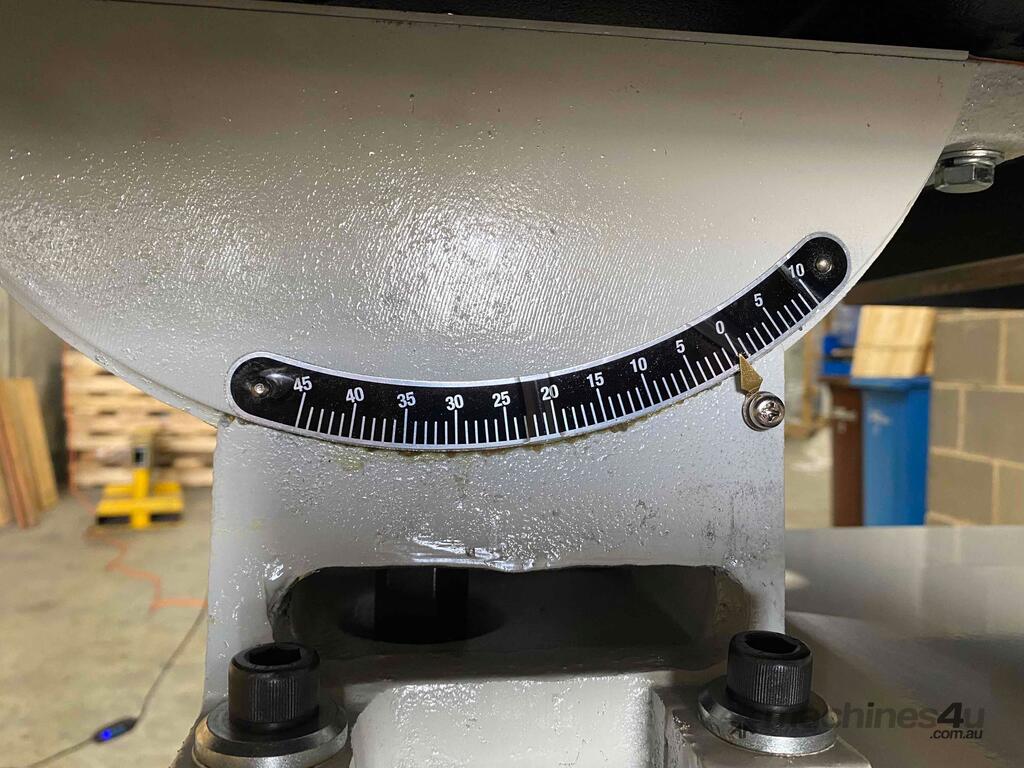

TABLE TILT R-45°, L-10°

TABLE HEIGHT 1016 mm ; 40 inch

MAX. BLADE LENGTH 5030 mm ; 198 inch

MAX. BLADE WIDTH 27 mm ; 1 inch

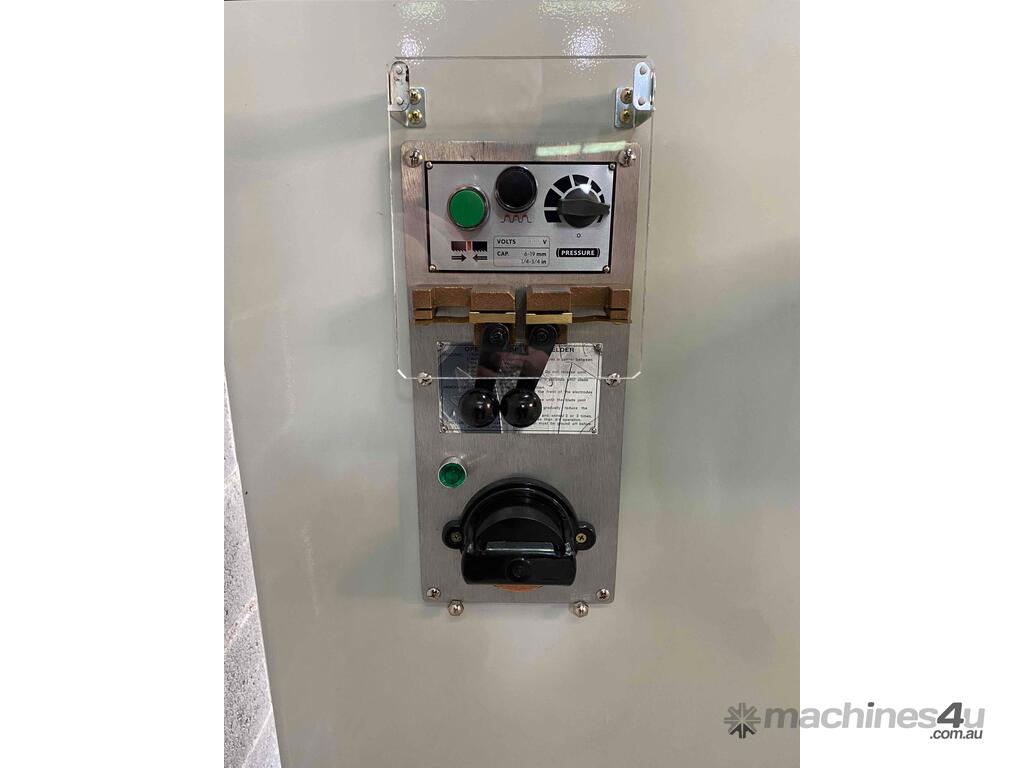

WELDER CAPACITY 19 mm ; 3/4 inch

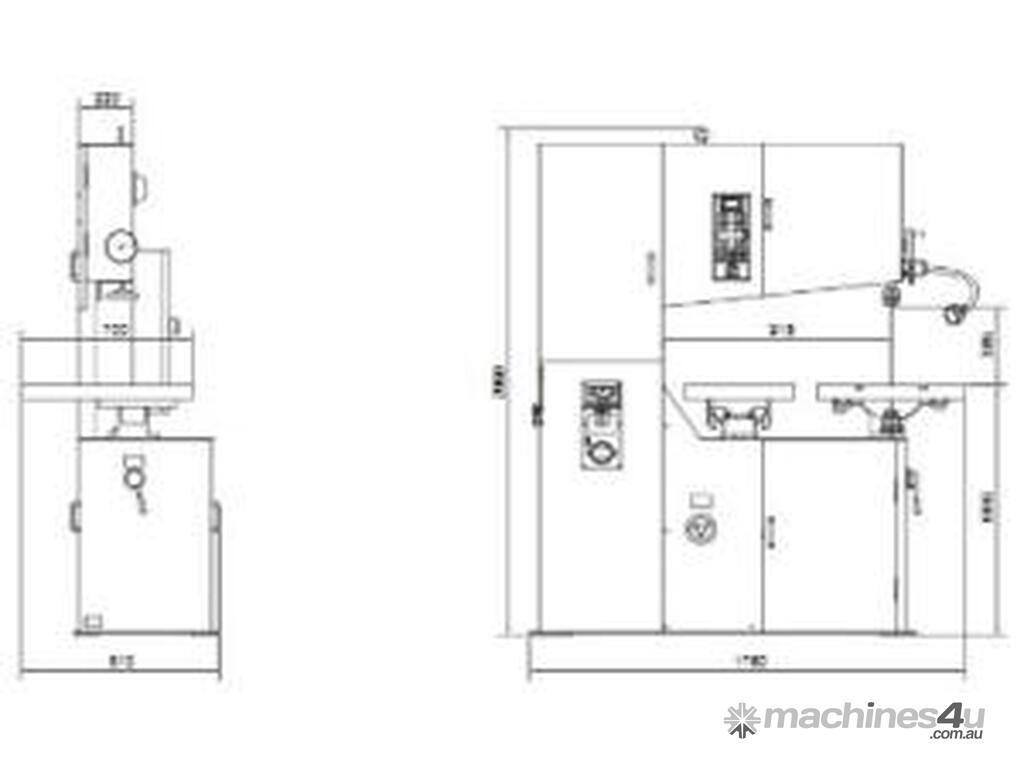

MEASUREMENT 1760 x 810 x 2060 mm 69 x 32 x 81 inch

NET WEIGHT 800 kgs

TABLE FEED POWER 80 kgcm, 110V

TABLE STROKE 300 mm; 12 inch
