Fuho Vertical Bandsaw - VBS2012CE

The Fuho 20” has a larger capacity with more advanced features, rigid frame and wider speed selection. It is designed for basic production use.
Max Throat Capacity – 508mm
Max Work Height – 305mm
Blade Speed
60HZ – Low 20-180, Hi 120-1000 M/min
50HZ – Low 65-585, Hi 390-3280 F/min
Table Size – 600mm x 560mm

VBS-2021 has a larger capacity with more advanced feature, rigid frame and speed selection. it is designed for basic production use. The dual range transmission and vartable speed pulleys provide high torque with supertor speed control.

Model
VBS-2012
MAX. THROAT CAPACITY
508 mm ; 20 inch
MAX. WORK HEIGHT
305 mm ; 12 inch
WHEEL DIAMETER
515 mm ; 20-1/2 inch
BLADE SPEED 50/60 Hz
Low 20-180 , HI 120-1000 M/min
Low 65-585 , HI 390-3200 M/min
MAIN DRIVE MOTOR
2 HP ; 1.5 KW x 3 PH
TABLE SIZE
600 x 560 mm
24 x 22-1/2 inch
TABLE TILT
15° EACH L&R; 8° FLAT F&B
TABLE HEIGHT
1000 mm ; 39-3/8 inch
MAX. BLADE LENGTH
3976 mm ; 156-1/4 inch
MAX. BLADE WIDTH
27 mm ; 1 inch
WELDER CAPACITY
19 mm ; 3/4 inch

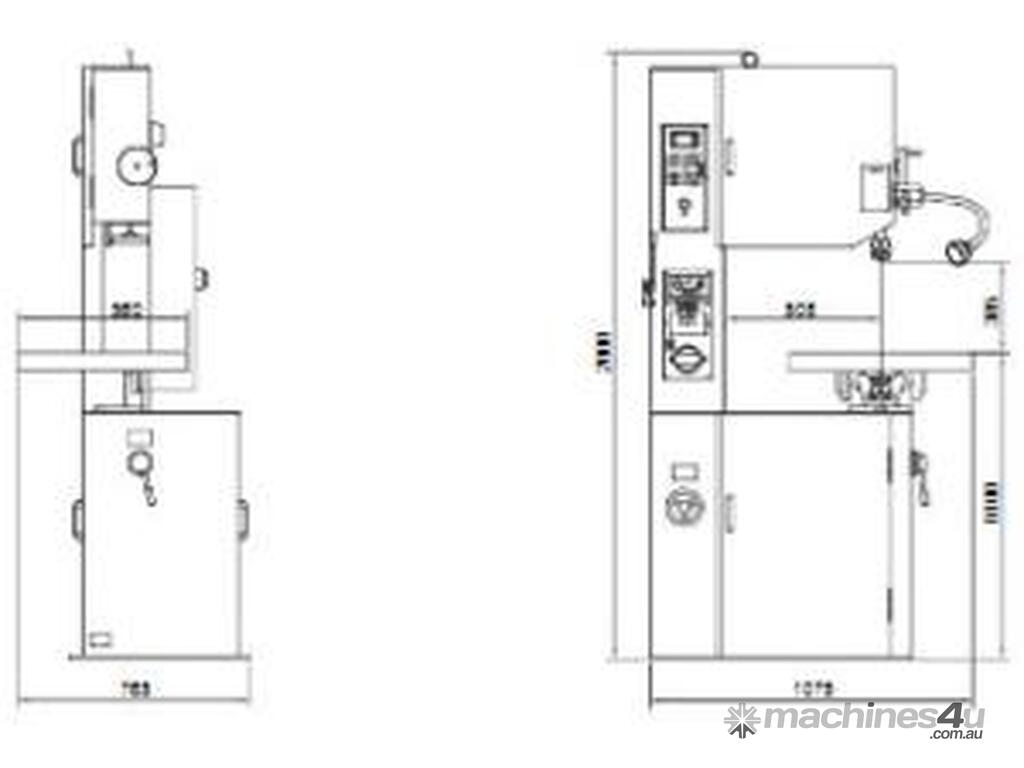

MEASUREMENT
1075 x 765 x 2000 mm
42 x 30 x 79 inch
NET WEIGHT
510 kgs
