Fuho Vertical Bandsaw - VBS2613

The 26” high speed vertical contour bandsaw is an extra heavy-duty vertical bandsaw that makes small work out of a big job. Wide speed range provides an easy operation to cut all kinds of metal and non-metal materials. The dual range transmission and variable speed pulleys also provide high torque and superior speed control.

Max Throat Capacity – 658mm
Max Work Height – 330mm
Blade Speed
60HZ – Low 15-125, HI 165-1500 M/min
50HZ – Low 50-415, HI 550-5000 F/min
Table Size – 600mm x 700mm

VBS-2613/ VBS-2613E is an extra heavy duty vertical bandsaw that makes small work out of big job. All the advanced features and the wide speed range provides an easy operation to cut every kind of metal and some non-metal materials.

Model
VBS-2613
VBS-2613x
MAX. THROAT CAPACITY
658 mm ; 26 inch
MAX. WORK HEIGHT
330 mm ; 13 inch
WHEEL DIAMETER
665 mm x 2 ; 26-1/4 inch x 2
BLADE SPEED 50/60 Hz
Low 15-125 , HI 165-1500 M/min
Low 50-415 , HI 550-5000 F/min
MAIN DRIVE MOTOR
3 HP ; 2.2 KW x 3 PH
TABLE SIZE
600 x 700 mm
23-1/2 x 27-1/2 inch
TABLE TILT
R-45°, L-10°
TABLE HEIGHT
1000 mm ; 39-3/8 inch
MAX. BLADE LENGTH
4710 mm ; 185-3/8 inch
MAX. BLADE WIDTH
27 mm ; 1 inch
WELDER CAPACITY
19 mm ; 3/4 inch

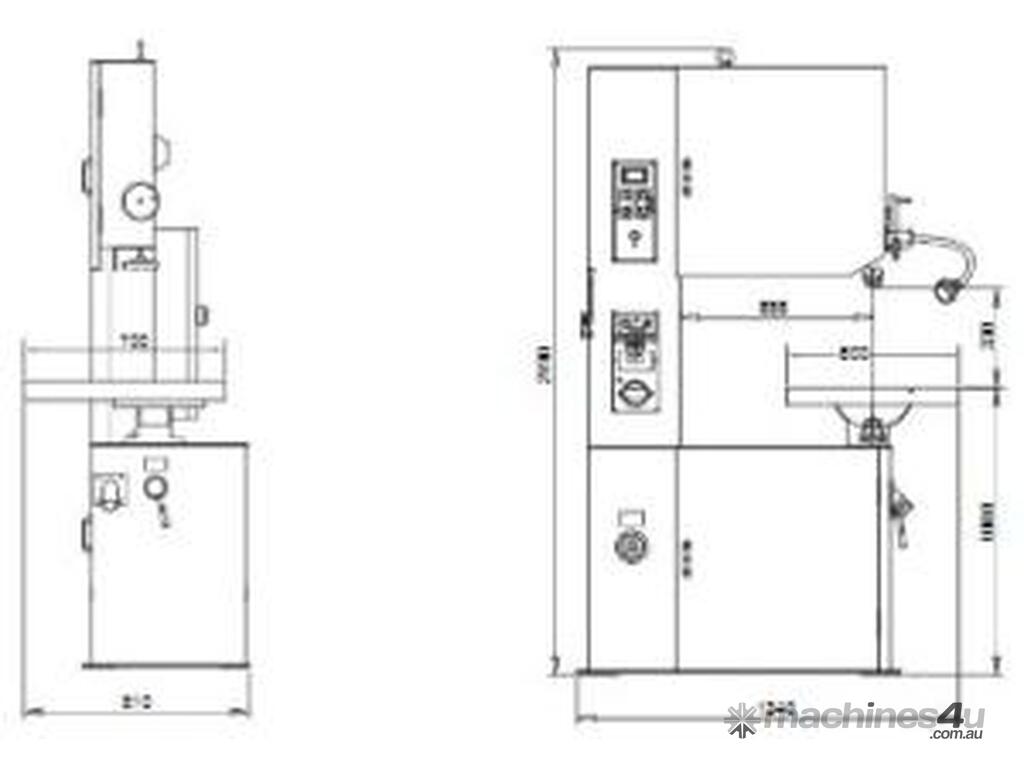

MEASUREMENT
1340 x 810 x 2190 mm
53 x 32 x 87 inch
NET WEIGHT
665 kgs
710 kgs
TABLE FEED POWER
80 kgcm, 110V
TABLE STROKE
300 mm; 12 inch
