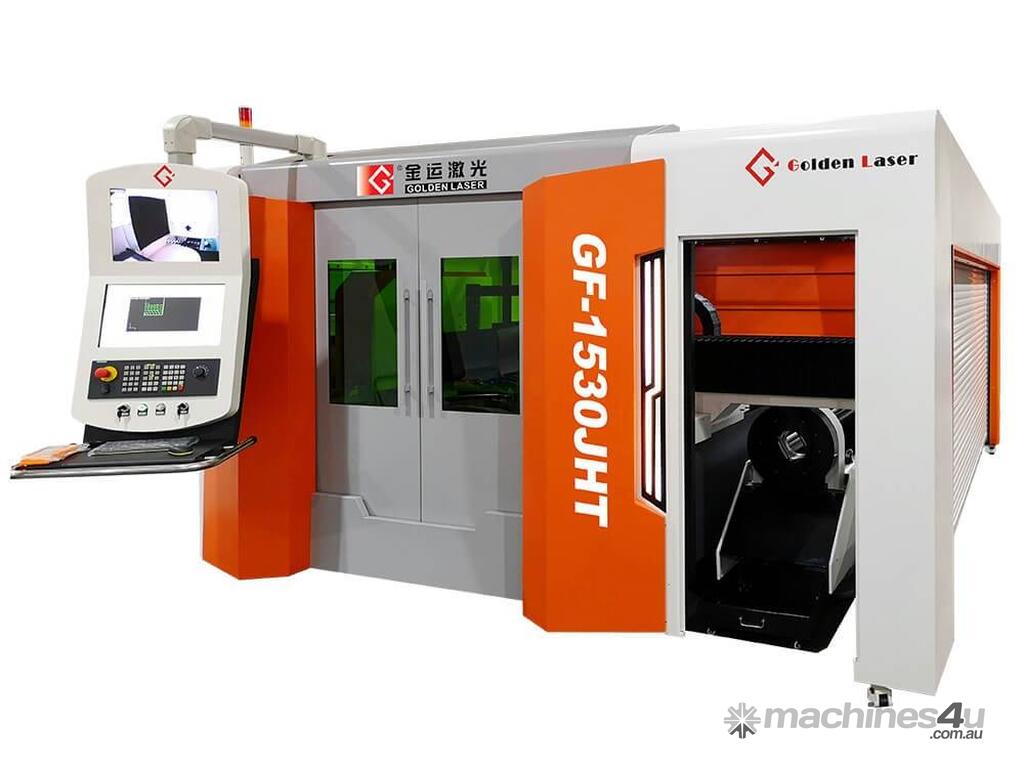

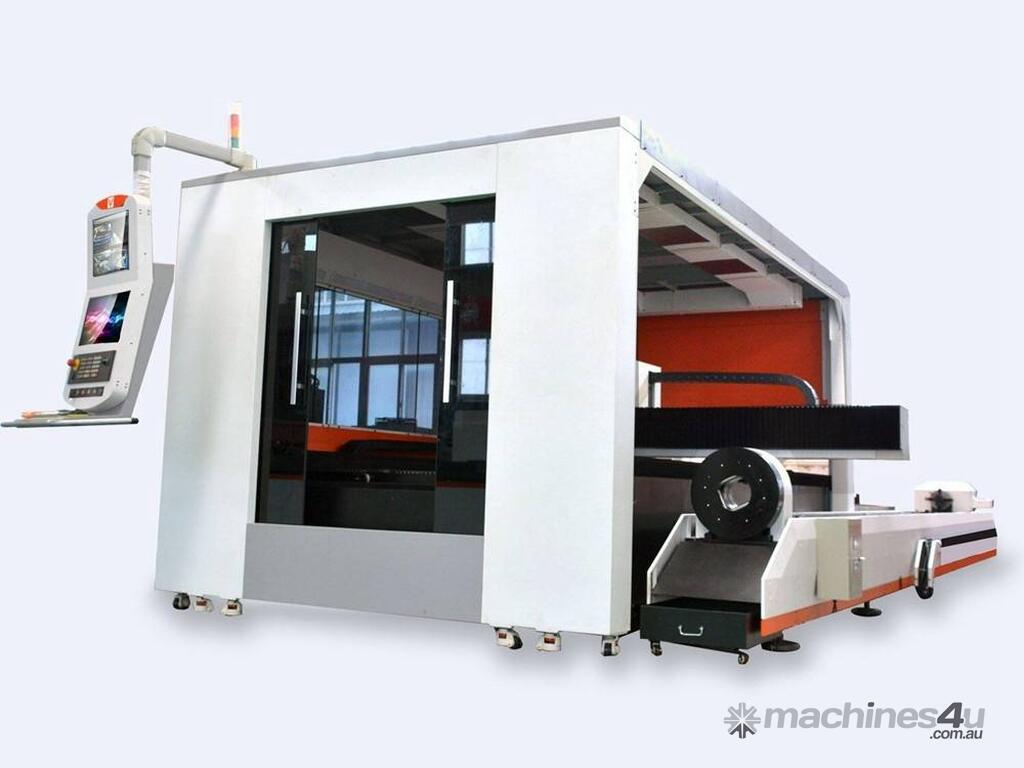

Full Closed Pallet Changer Fiber Laser Pipe and Sheet Metal Cutting Machine

Cutting format : 1.5×3m, 1.5×6m, 2×4m, 2×6m, 2.5×6m
Pipe length : 6m
Pipe diameter : 20mm-200mm
Applicable materials : Metal sheet and pipe
Applicable tube type : Round, square, rectangular, oval, waist round tube, etc.
Laser power : 1000W / 1200W / 1500W / 2000W / 2500W / 3000W
Laser source : nLIGHT / IPG / Raycus Fiber Laser

Model GF-1530JHT / GF-2040JHT / GF-2060JHT / GF-2560JHT
Laser power 1000W / 1200W / 1500W / 2000W / 2500W / 3000W / 4000W
Laser source nLIGHT / IPG / Raycus Fiber Laser
Laser head Raytools
Gas Proportional valve SMC
Sheet processing area 1.5m×3m, 2m×4m, 2m×6m, 2.5m×6m
Tube processing tube length 3m, 4m, 6m
tube diameter 20-300mm
Positioning accuracy ±0.05mm
Repeat positioning accuracy ±0.03mm
Maximum position speed 120m/min
Acceleration 1.5g
Power supply AC380V 50/60Hz
