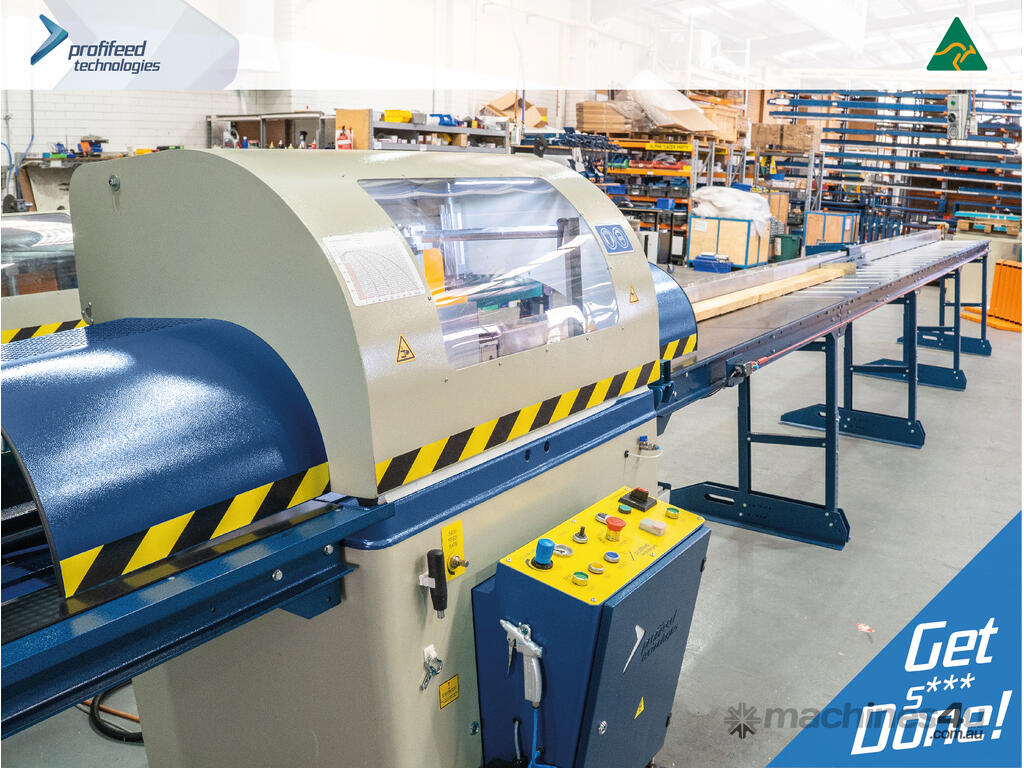

Fully Automatic Mitre Solid Timber Optimiser Saw 4.5m

Fully automatic cutting of large timber with simple-to-use automation. Put down any wood, the machine will automatically detect it and cut it into jobs tasked with high-accuracy servo motor material positioning. Excel job lists WIFI input for streamlined input of large cutting lists.

Optional fully automatic inline optimiser. Automatic measuring of timber lengths using a laser sensor and on-the-fly job list optimisation against the length measured for minimised wastage in offcuts. Automatic printing of job / part number labels for each part produced (optional).

Simple, high-speed alternative to double-headed saws. Just enter (or import) the lengths and angles you need and press GO. The machine continuously produces your angled parts, accurately and at high speed.


• Fully-automatic cutting operation with bar feeding and cutting to length.

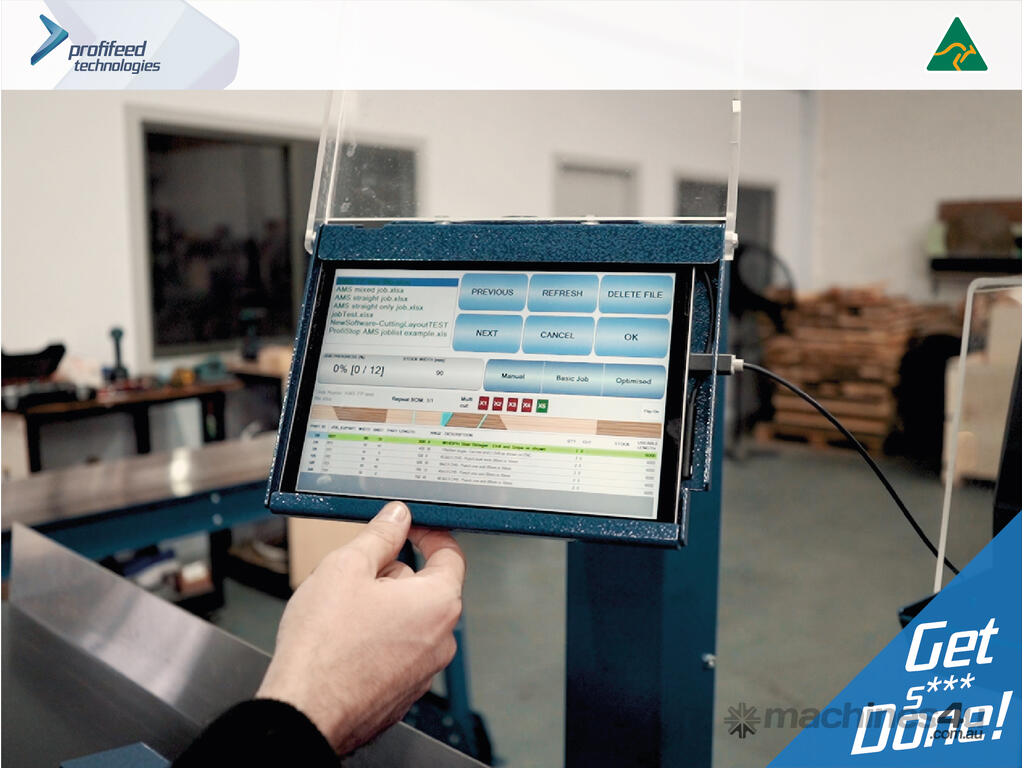

• Simple user interface for automatic operation, enter job and cut in seconds.
• Simplified part, batch, or large excel lists job cutting.
• Bundled / multi-bar cutting and counting.
• Remote WIFI excel job lists input with extensive data mapping capabilities.
• Fully adjustable saw cutting and timber feeding rates for maximum process productivity.
• Automatic optimiser mode with timber laser length measure and optimisation for minimum waste (optional).
• Automatic labels printing for parts using data from the job list (manual label application, optional).
• Inline direct-to-material printing with no operator action required (optional).
• Bar codes or QR codes printing or scanning for jobs input (optional).
• Automated servo positioning of the saw mitre angle up to ±75° (optional).

Highly suitable for:
• Frame and truss manufacture
• Mitre timber structures manufacture
• Bulk timber cutting
• Furniture manufacture
• Planters and boxes manufacture


Model: A700
Length: 4.5 m
Material Length: 3180 mm
Pushing capacity: 20 - 40 kg
Software: Optimiser
