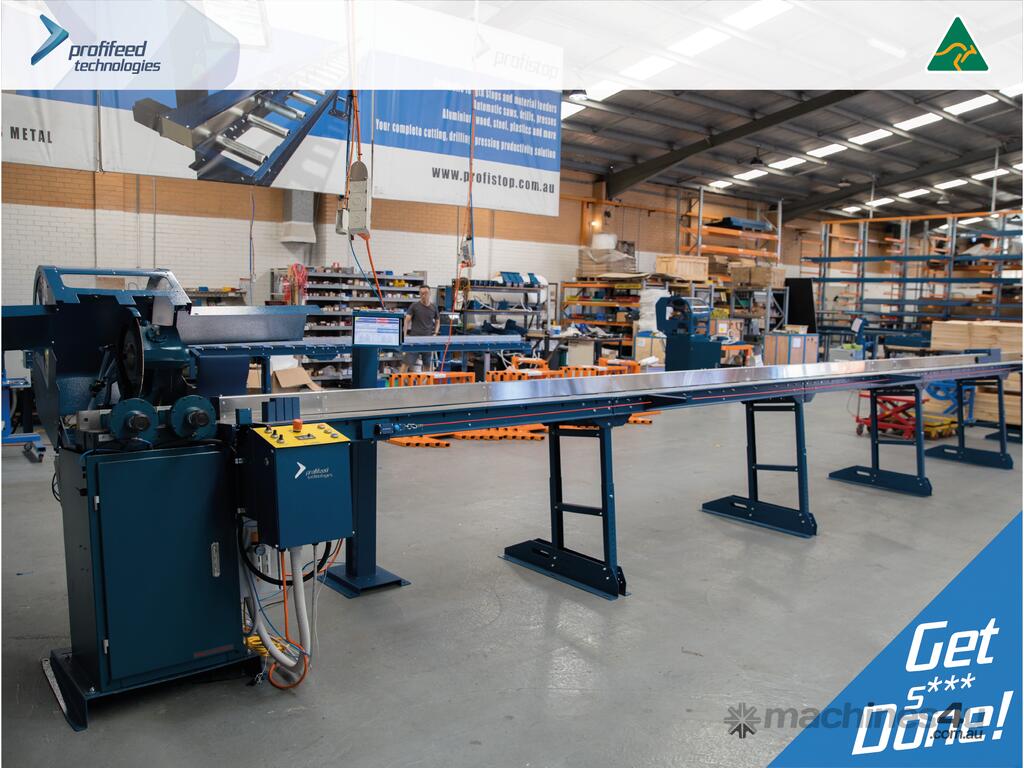

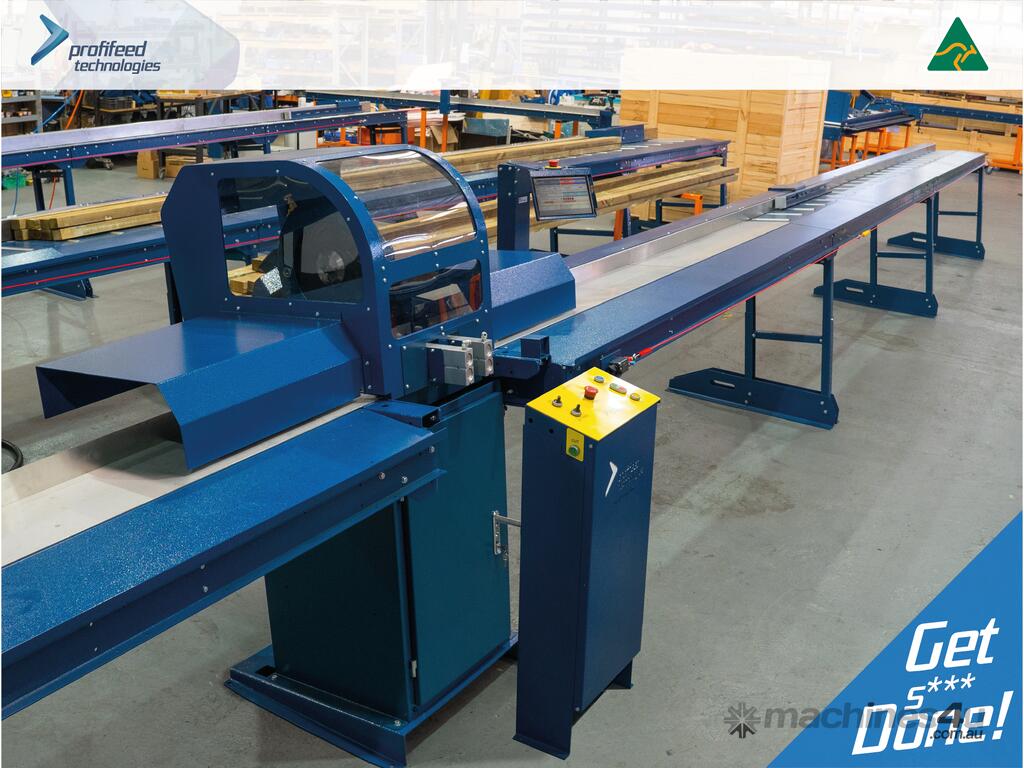

Fully Automatic Mitre Steel Optimiser Saw 6m

Fully automatic cutting of small-to-medium size steel with simple-to-use automation. Put down any steel to cut, the machine will automatically detect it and cut it into jobs tasked with high-accuracy servo motor material positioning. Excel job lists WIFI input for streamlined input of large cutting lists.

Servo motor saw actuation with industrial ball-screw actuator. Automatic detection of the steel present with the machine then setting its cut start point for minimum stroke and cutting time. No limit sensors or any operator action required.

Optional fully automatic inline optimiser. Automatic measuring of steel lengths using a laser sensor and on-the-fly job list optimisation against the length measured for minimised wastage in offcuts. Automatic printing of job / part number labels for each part produced (optional).

Simple, high-speed alternative to double-headed saws. Just enter (or import) the lengths and angles you need and press GO. The machine continuously produces your angled parts, accurately and at high speed.


• Fully-automatic cutting operation with bar feeding and cutting to length.

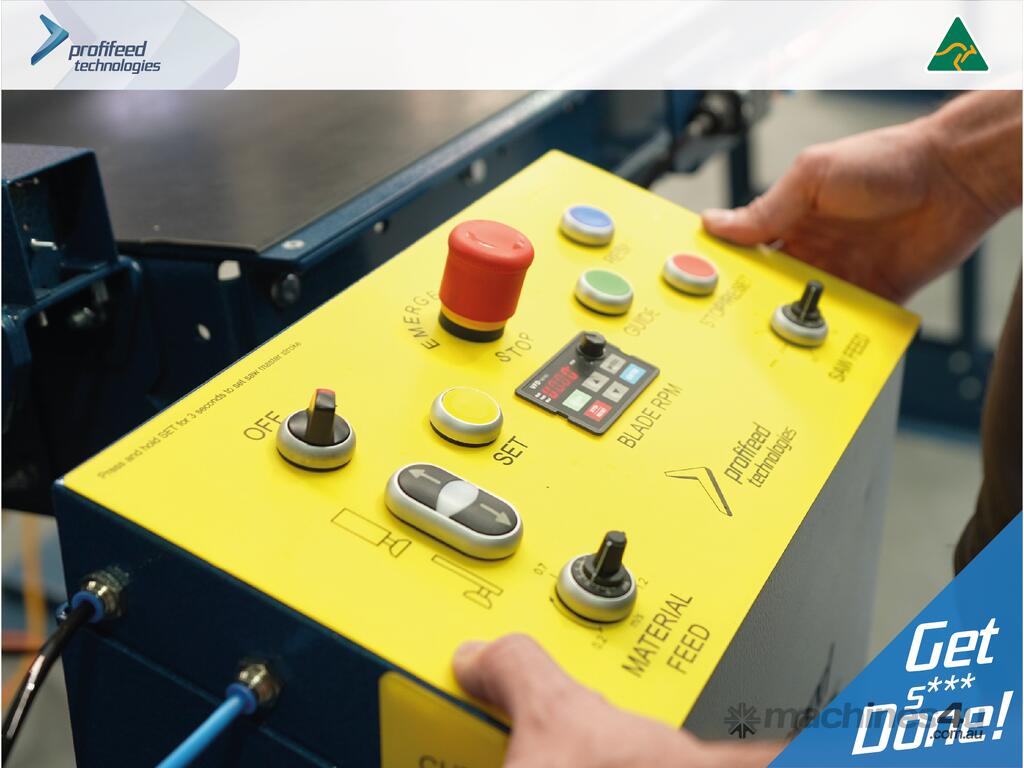

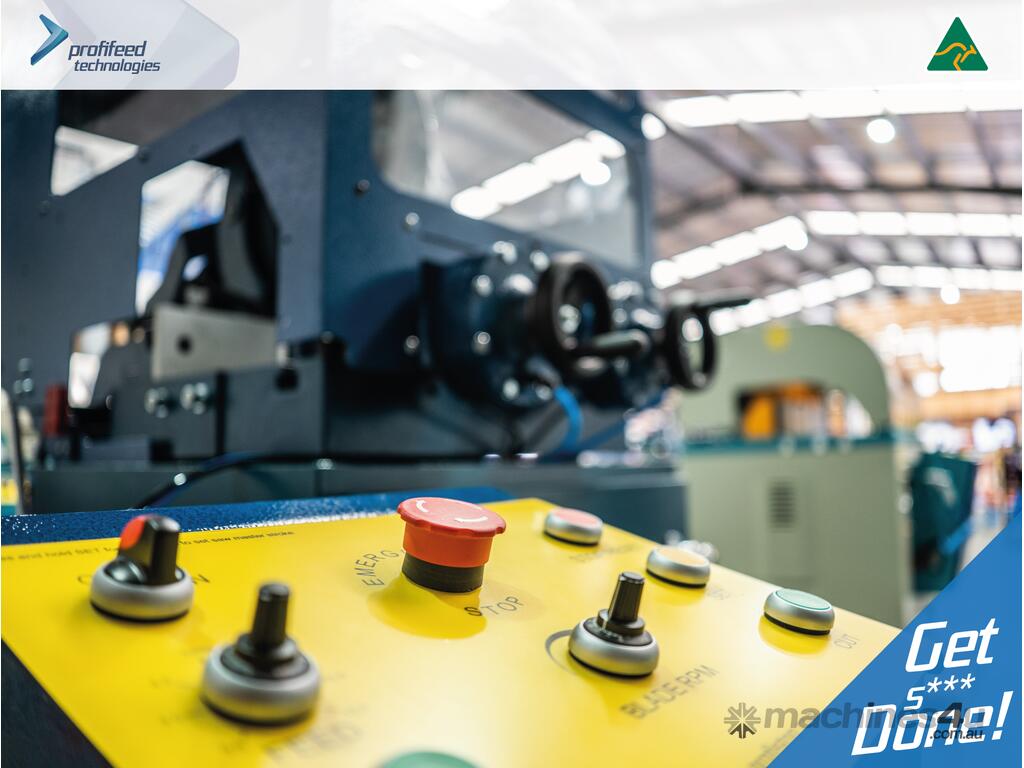

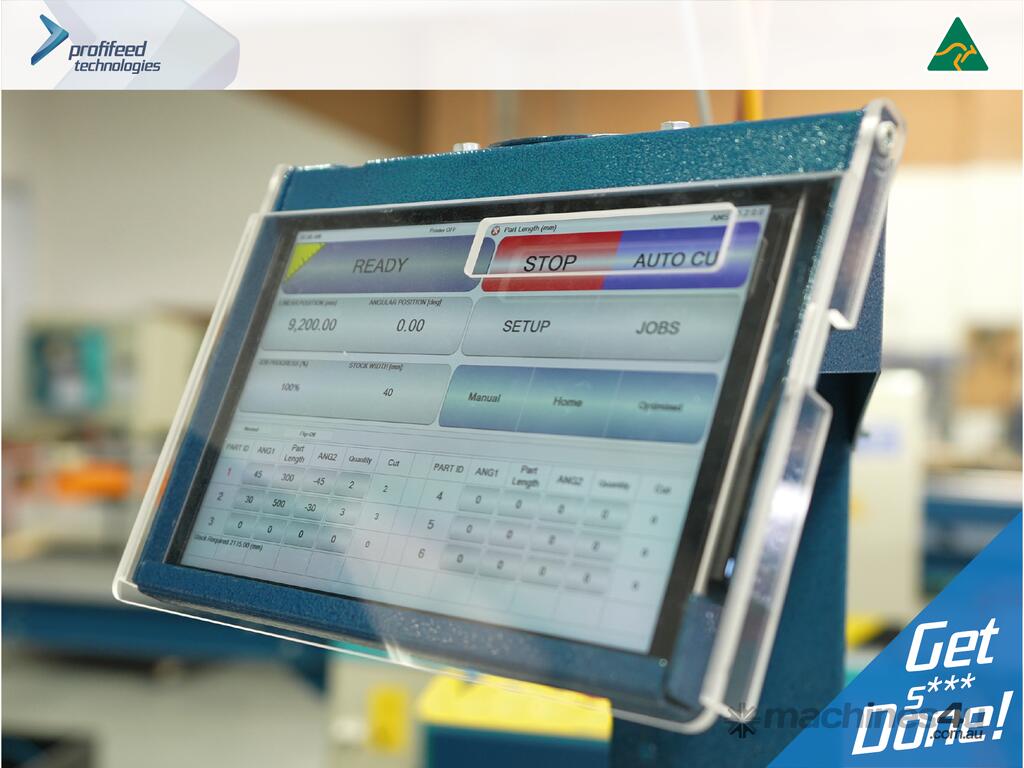

• Simple user interface for automatic operation, enter job and cut in seconds.
• Simplified part, batch, or large excel lists job cutting.
• Remote WIFI excel job lists input with extensive data mapping capabilities.
• Automatic optimiser operation with input material laser length measure and auto-optimisation for minimum waste (optional).
• Automatic labels printing for parts using data from the job list (manual label application, optional).
• In-line direct-to-material printing with no operator action required (optional).
• Bar codes or QR codes printing or scanning for jobs input (optional).
• Fully adjustable saw cutting and material feeding rates for maximum process productivity.
• Saw auto-detect of bar size size to set minimum stroke and cut time for cutting.
• Saw blade jam detect and automatic closed-loop react to de-escalate.

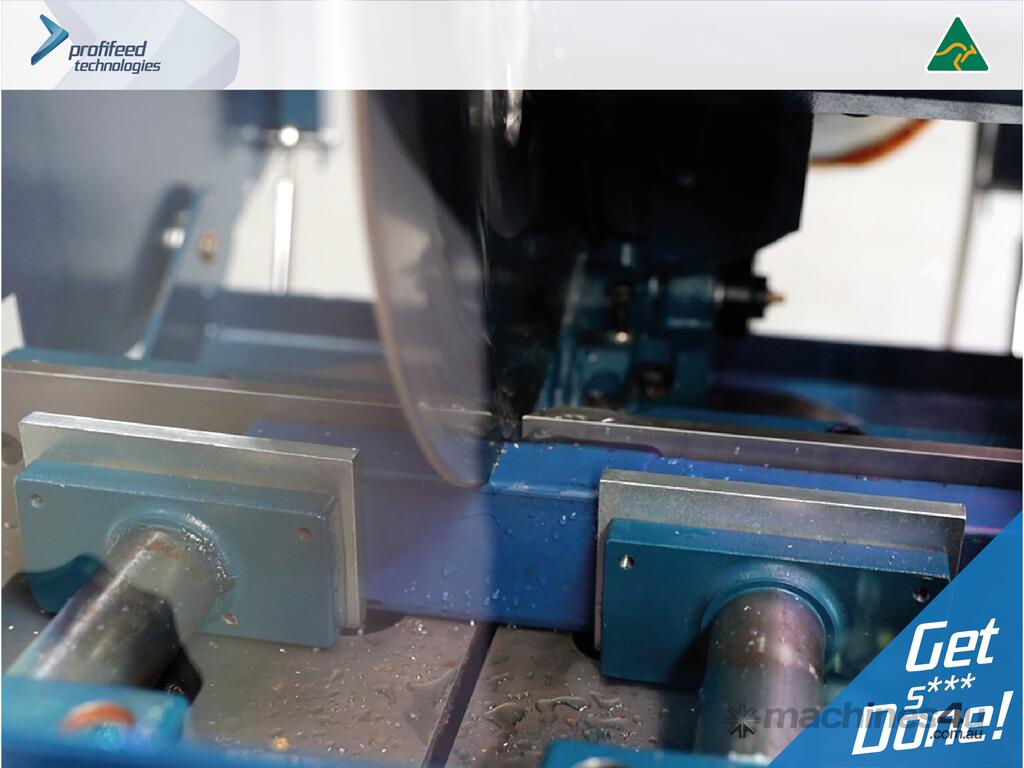

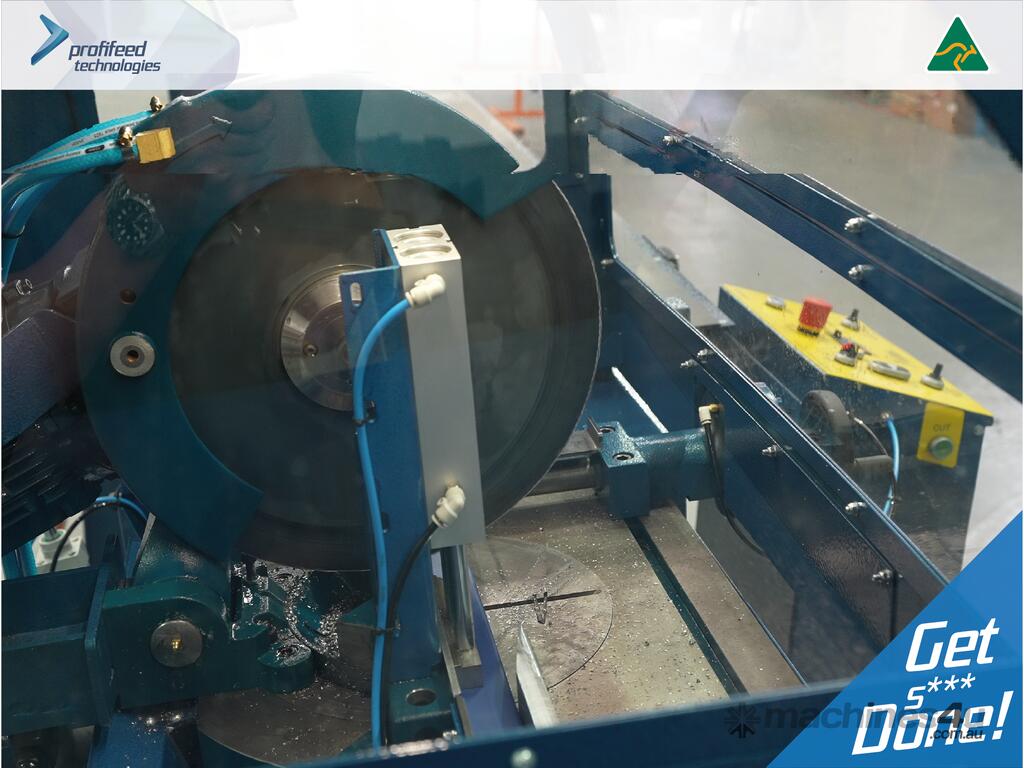

• Industrial ball-screw saw actuation system with servo motor feed control.
• High-flow, high-capacity, no leaks coolant and drainage system.
• Bundled / multi-bar cutting and counting (optional).
• Automated servo positioning of the saw mitre angle up to ±45° (optional)

Highly suitable for:
• Steel fabrications manufacture
• Agricultural manufacture
• Caravans and trailers manufacture
• Doors and gates manufacture
• Retail steel sales


Model: S400
Length: 6 m
Linear Unit: ProfiStop Alpha
Material Length: 4680 mm
Pushing capacity: 20 - 40 kg
Software: Optimiser
