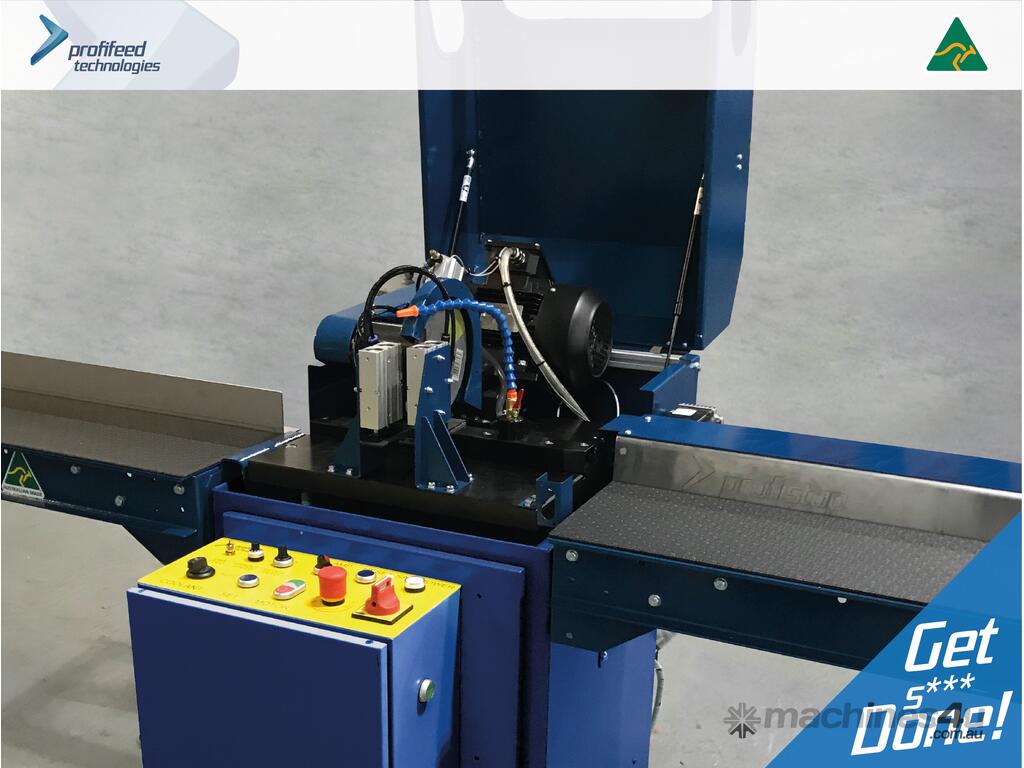

Fully Automatic Steel Optimiser Saw 3m

Fully automatic cutting of hardened and stainless steels with simple-to-use automation. Put down any steel to cut, the machine will automatically detect it and cut it into jobs tasked with high-accuracy servo motor material positioning. Excel job lists WIFI input for streamlined input of large cutting lists.

Optional fully automatic inline optimiser. Automatic measuring of steel lengths using a laser sensor and on-the-fly job list optimisation against the length measured for minimised wastage in offcuts. Automatic printing of job / part number labels for each part produced (optional).


• Fully-automatic cutting operation with bar feeding and cutting to length.

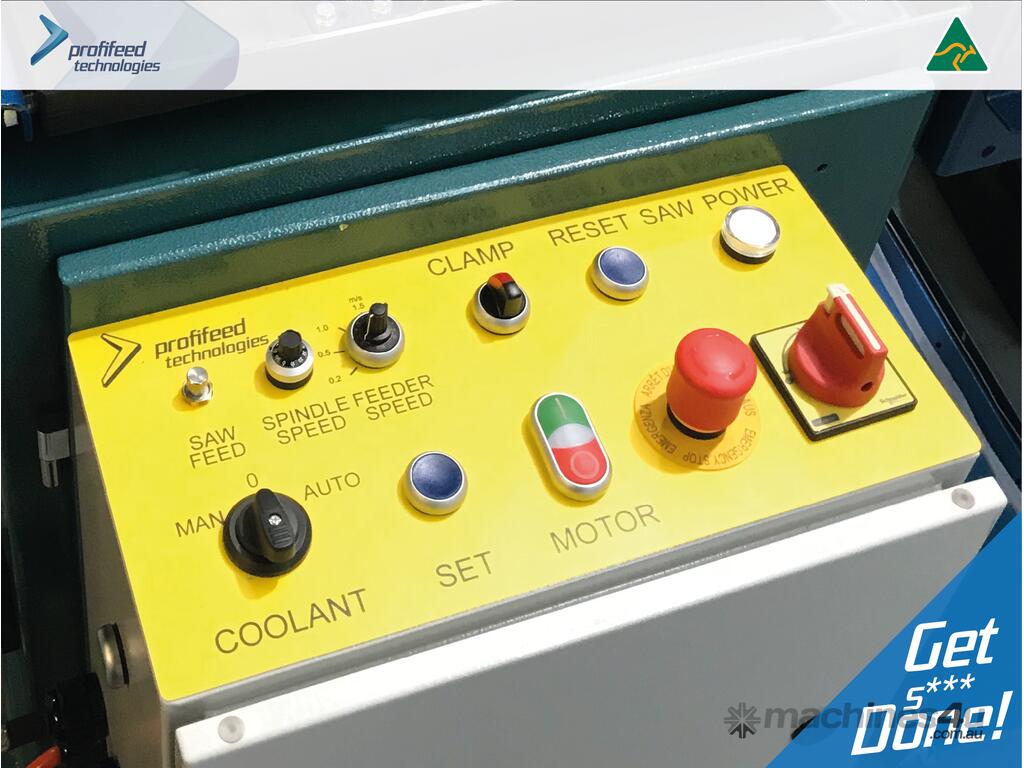

• Simple user interface for automatic operation, enter job and cut in seconds.
• Simplified part, batch, or large excel lists job cutting.
• Remote WIFI excel job lists input with extensive data mapping capabilities.
• Fully adjustable saw cutting and material feeding rates for maximum process productivity.
• Automatic optimiser operation with input material laser length measure and auto-optimisation for minimum waste (optional).
• Automatic labels printing for parts using data from the job list (manual label application, optional).
• In-line direct-to-material printing with no operator action required (optional).
• Bar codes or QR codes printing or scanning for jobs input (optional).

Highly suitable for:
• Stainless and hardened steels manufacture
• Hydraulic tubing manufacture
• Composite / matrix materials manufacture
• Carbon fibre manufacture
• Fiberglass manufacture



Model: S200
Length: 3 m
Linear Unit: ProfiStop Alpha
Material Length: 1680 mm
Pushing capacity: 20 - 40 kg
Software: Optimiser

QUALITY AUSTRALIAN-MADE MACHINES.
