G-Press GHB 110-3000 Hydraulic CNC PressBrake

**HOT SALE** Save over $5,200.00 on a brand new G-Press Pressbrake for your workshop.


G-Press is in metal fabricating in China for 10 years with following Europe standards, it's technology is from the original Gasparini Italy. Both companies establish R&D centers in their respective countries and have been exchanging ideas and improving their product.
Our factory in DongTai city which is only 200km away from SHANGHAI with 20,000 square, and the expected capacity is about 600 sets of pressbrakes, 50 sets of shearing and 10 sets automation robot bending cells. Max
capacity of Press can be 2000T

Complete with:

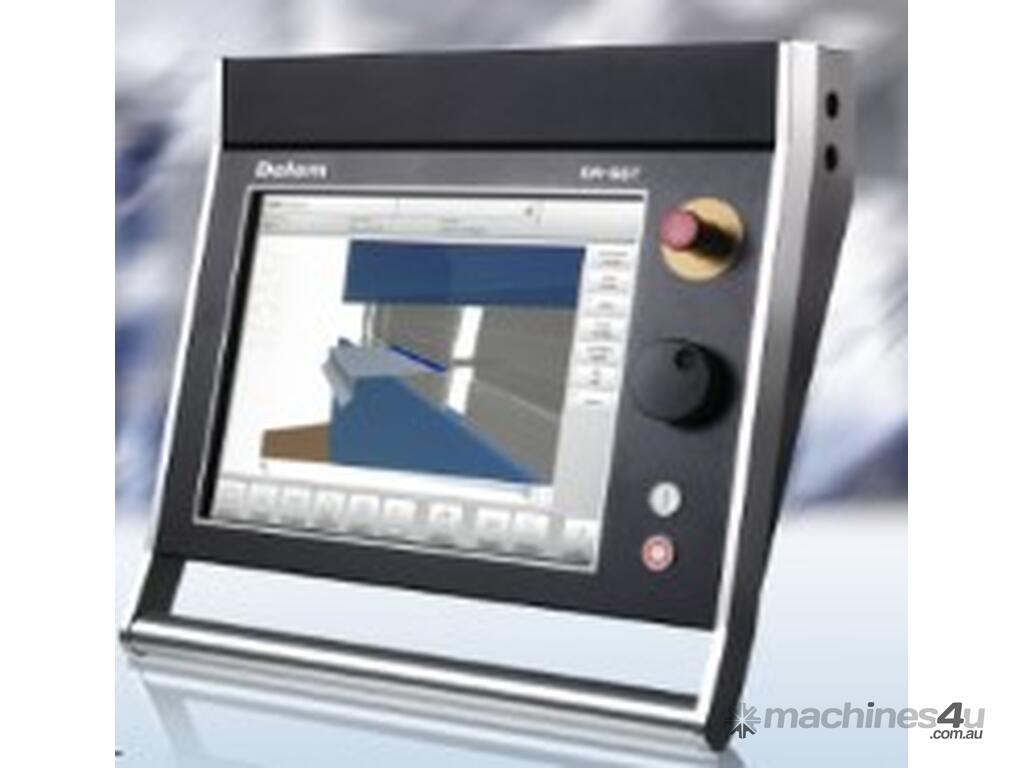

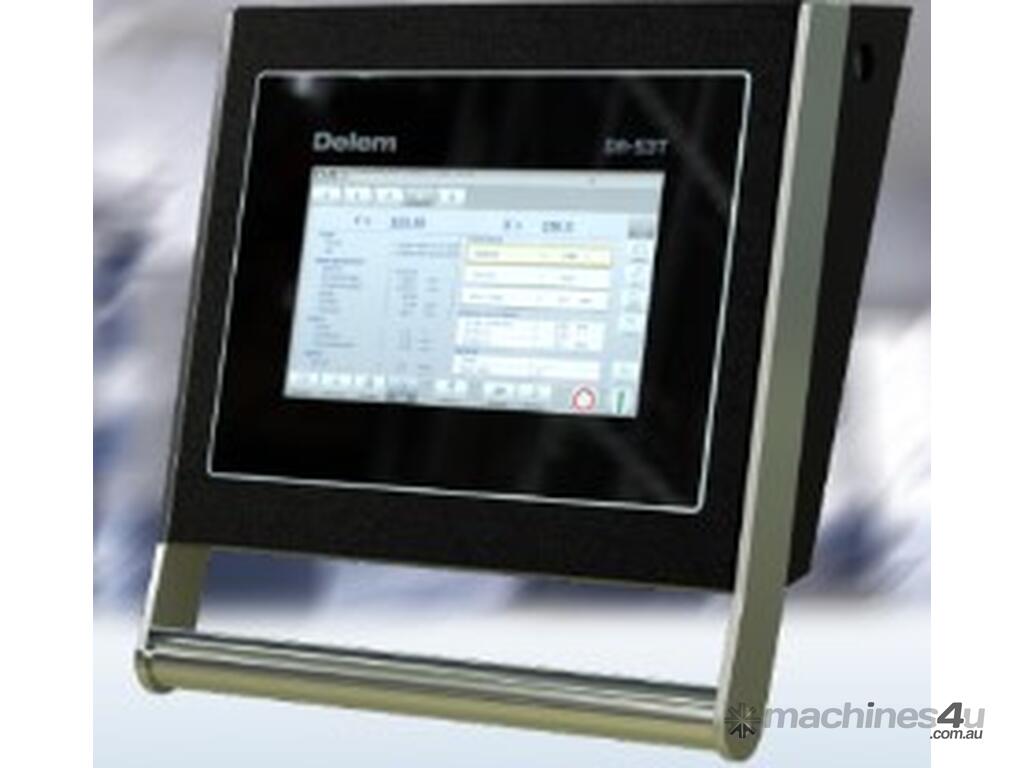

CNC control mod. ESA 640
4+1 axes : Y1-Y2-X-R +V
Machinery crowing system: B-CM

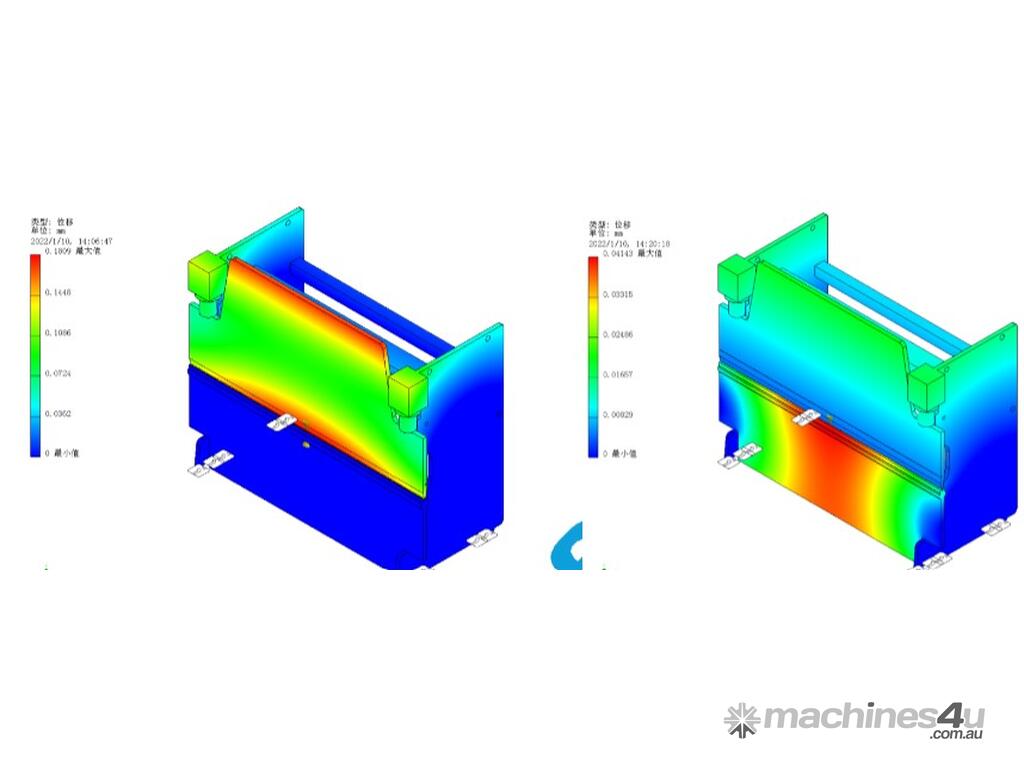

Frame proportional deflection compensation system – G-REFLEX

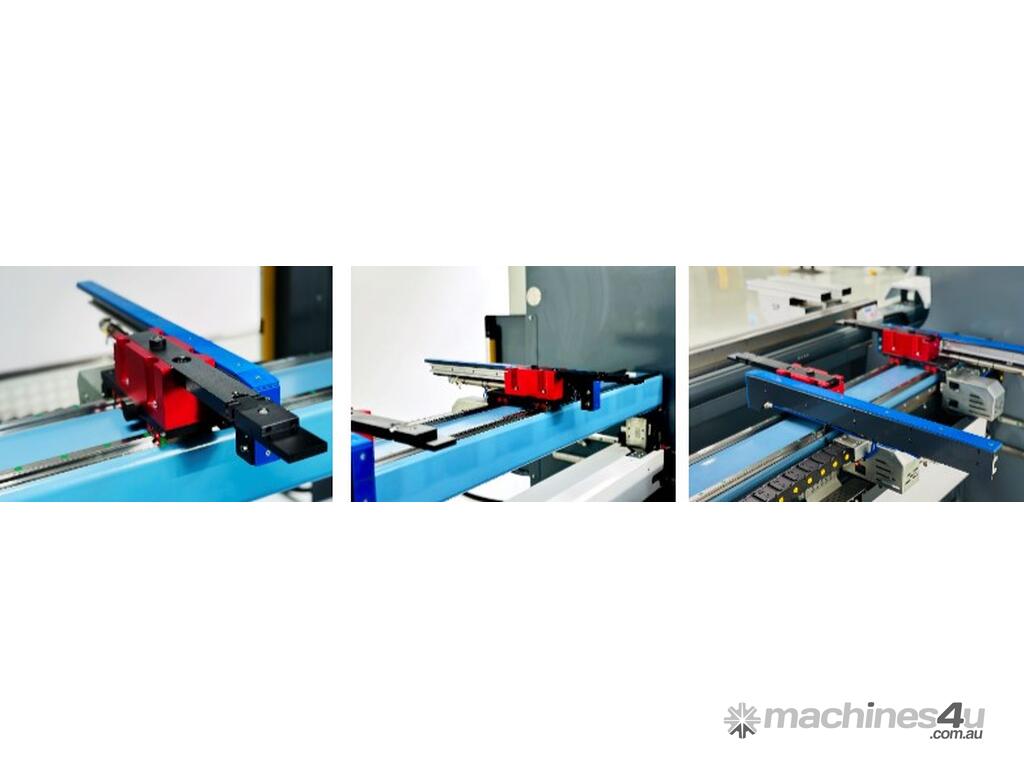

Back gauge system mod. GHP-2
CE Standard

TECHNICAL SPECIFICATIONS GHB110-3000

- Bending force: 1,100kN
- Usable bending length: 3,100mm
- Distance between side frames: 2,600mm
- Throat depth: 320mm
- Max. cylinders stroke: 200mm
- Daylight: 450mm
- Speed: Approaching 200mm/s
Working: 0-10mm/s
Return: 159mm/s
- Motor Power: 7.9kW
- Dimensions: Length 3,930mm
Height 2,880mm
Depth 1,630mm
- Weight Approx.: 8 Ton

ACCESSORIES INCLUDED

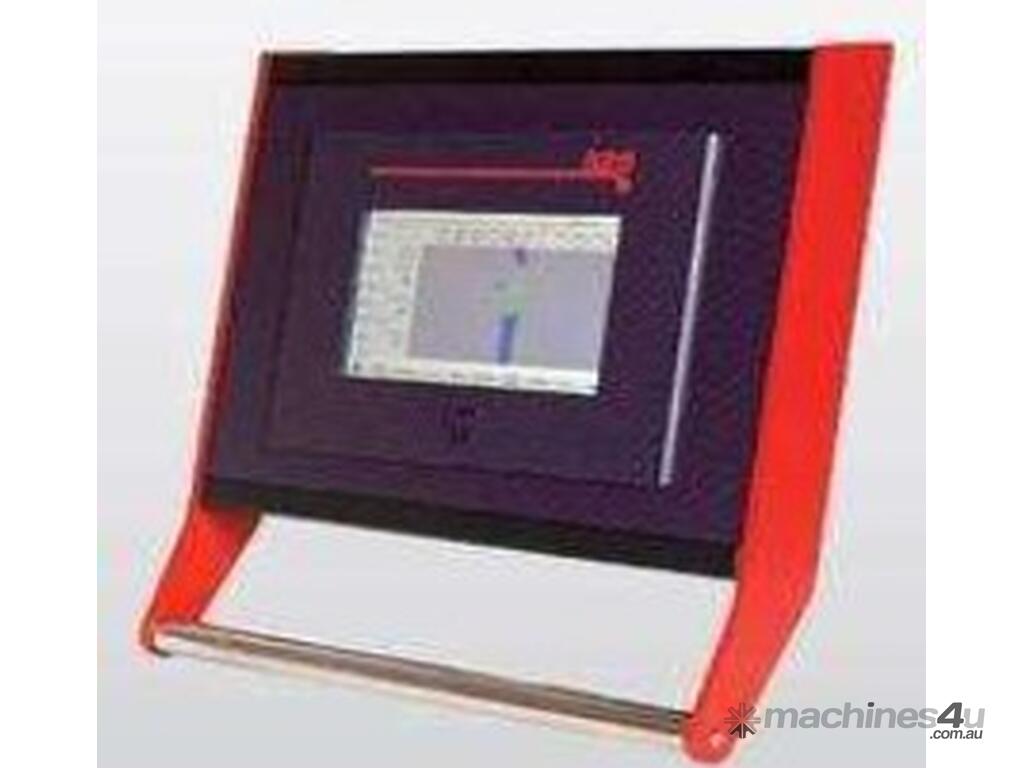

- Numerical control ESA640
- Axes Y1-Y2-X-R +V

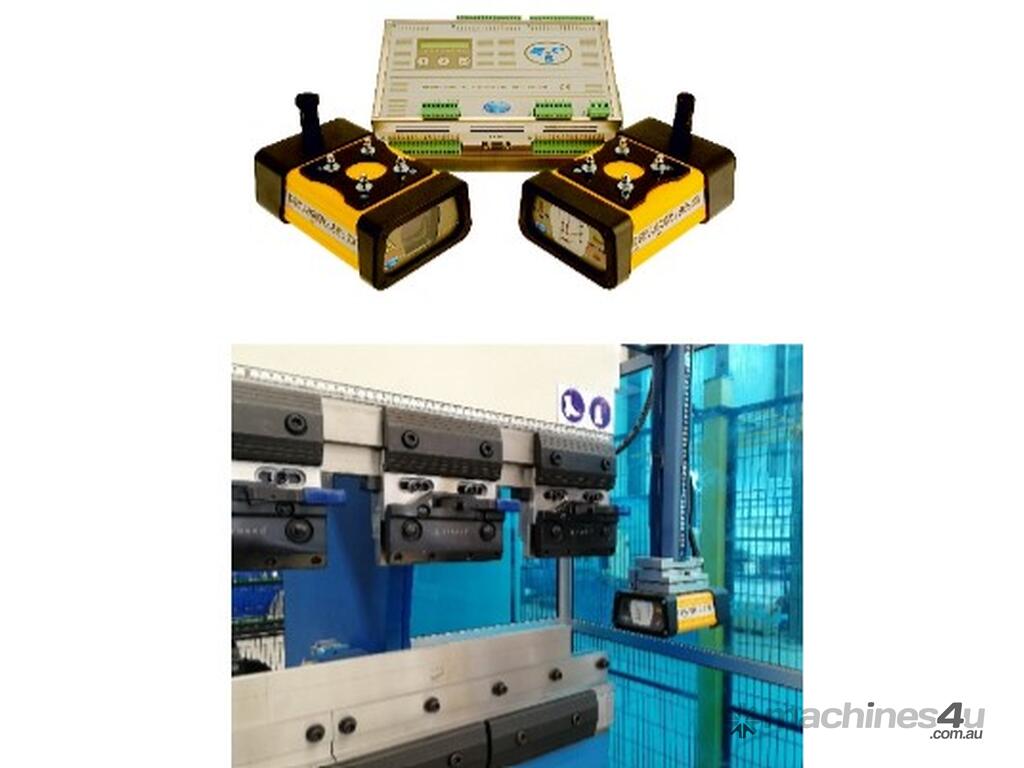

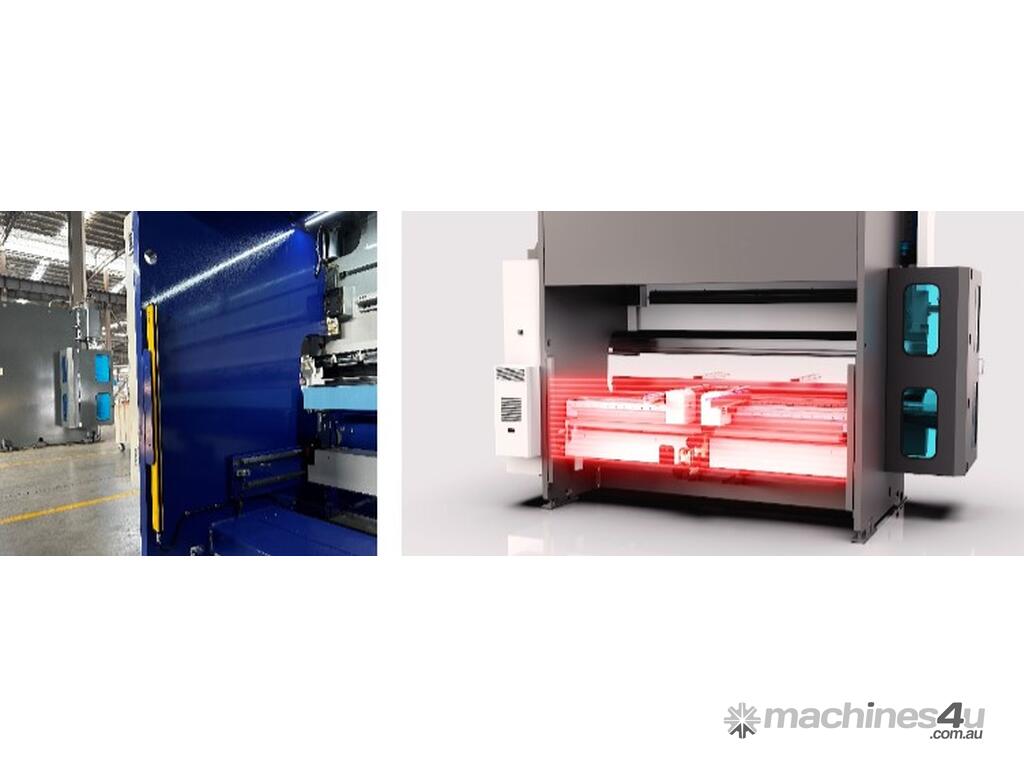

- Safety Curtain System DSP AP+MCS

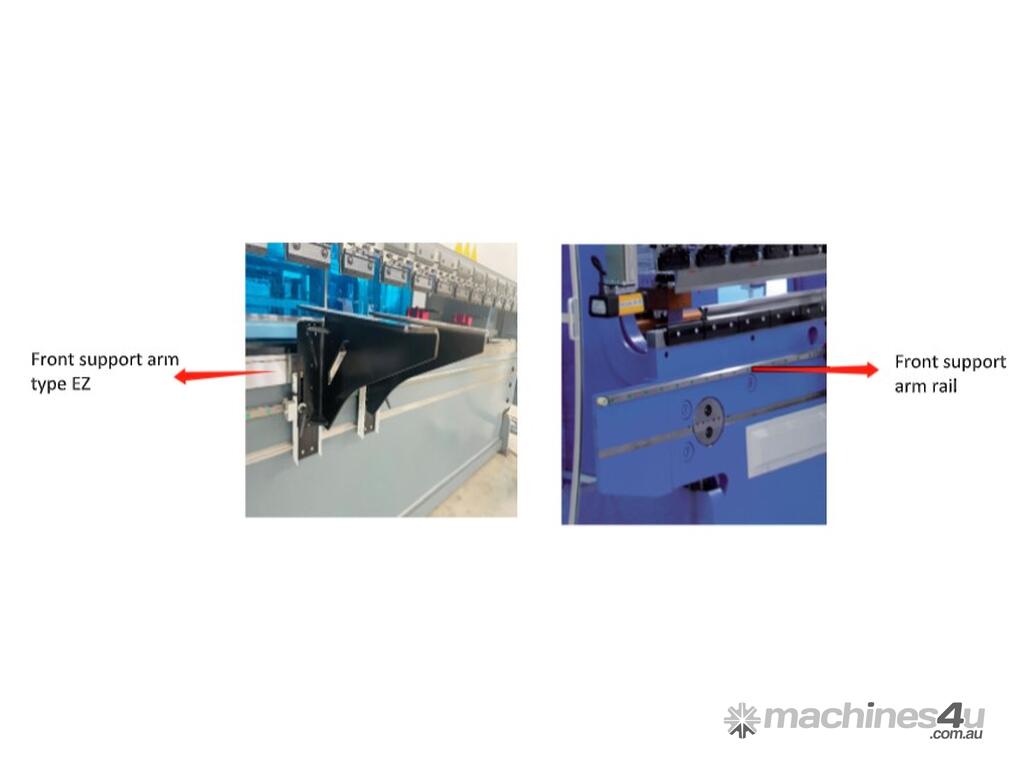

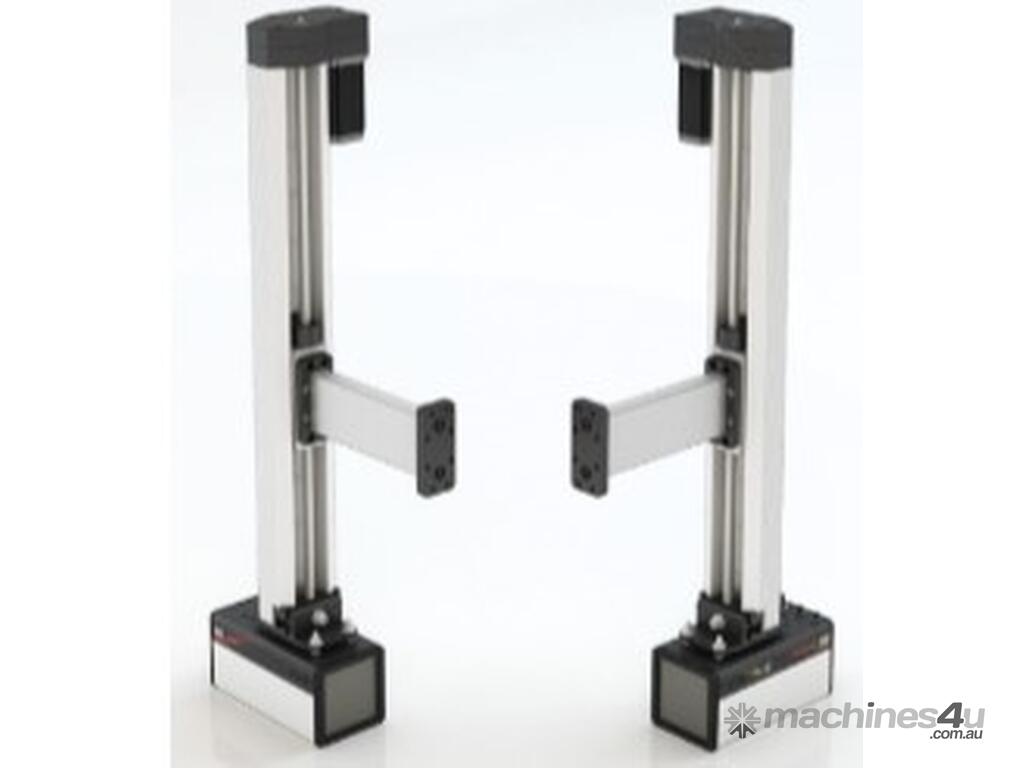

- Front Support EZ 2 Pieces

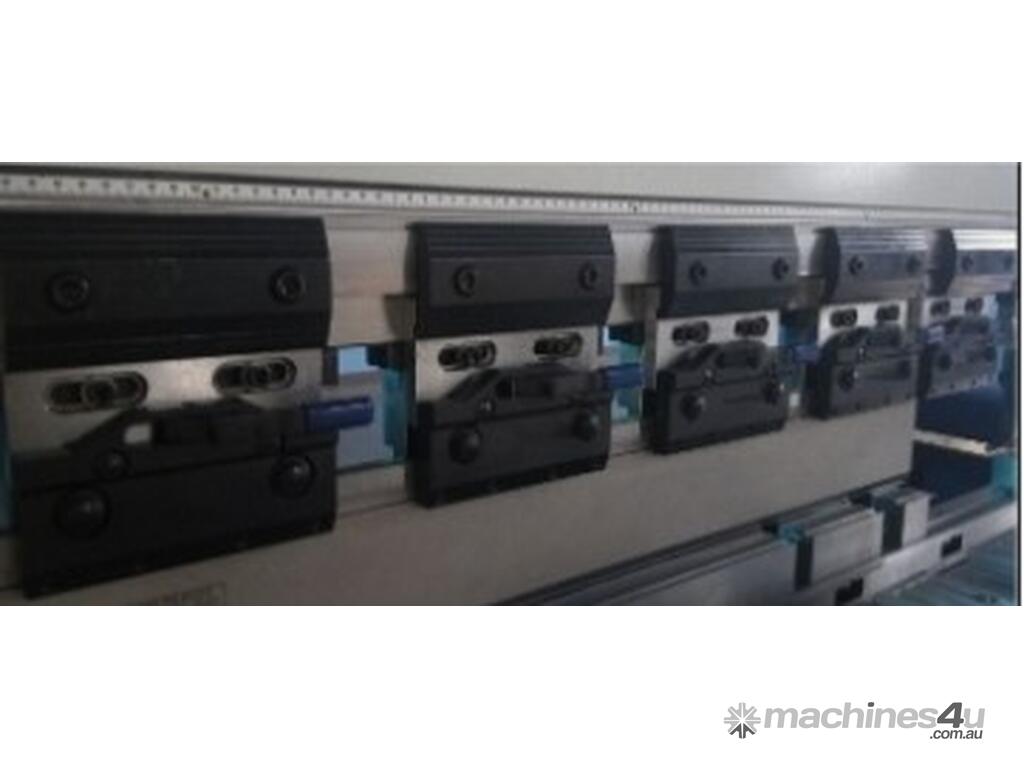

- Top tools Clamps GS-T.M Manual

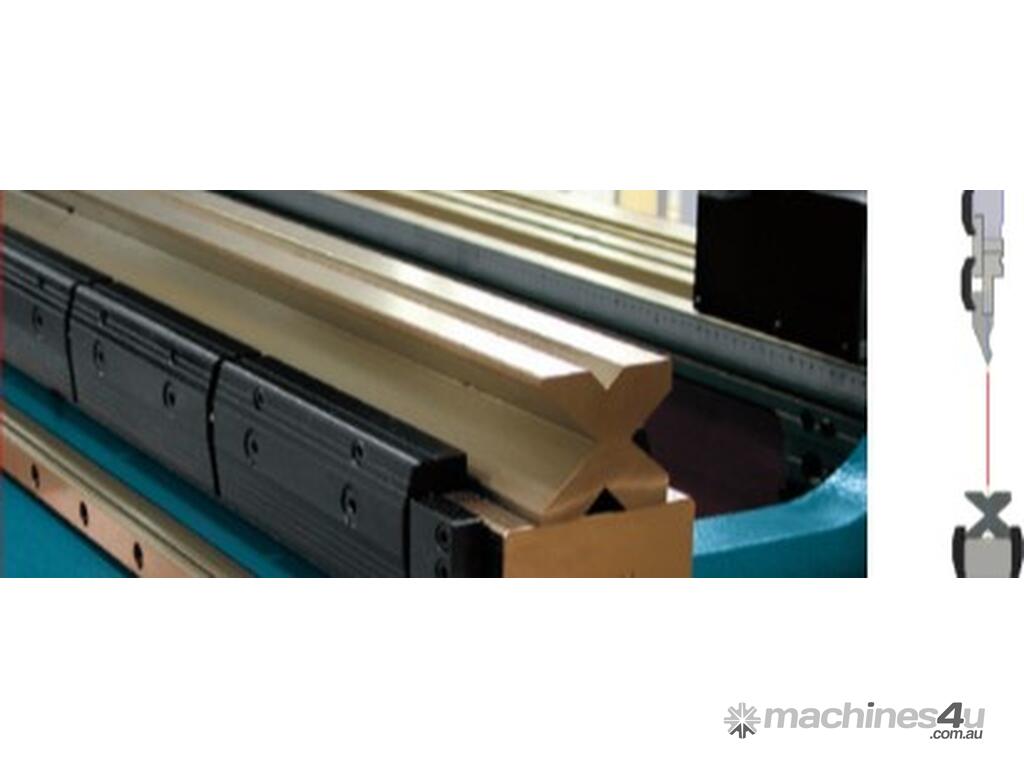

- Bottom tools Clamps GS-B.M Manual

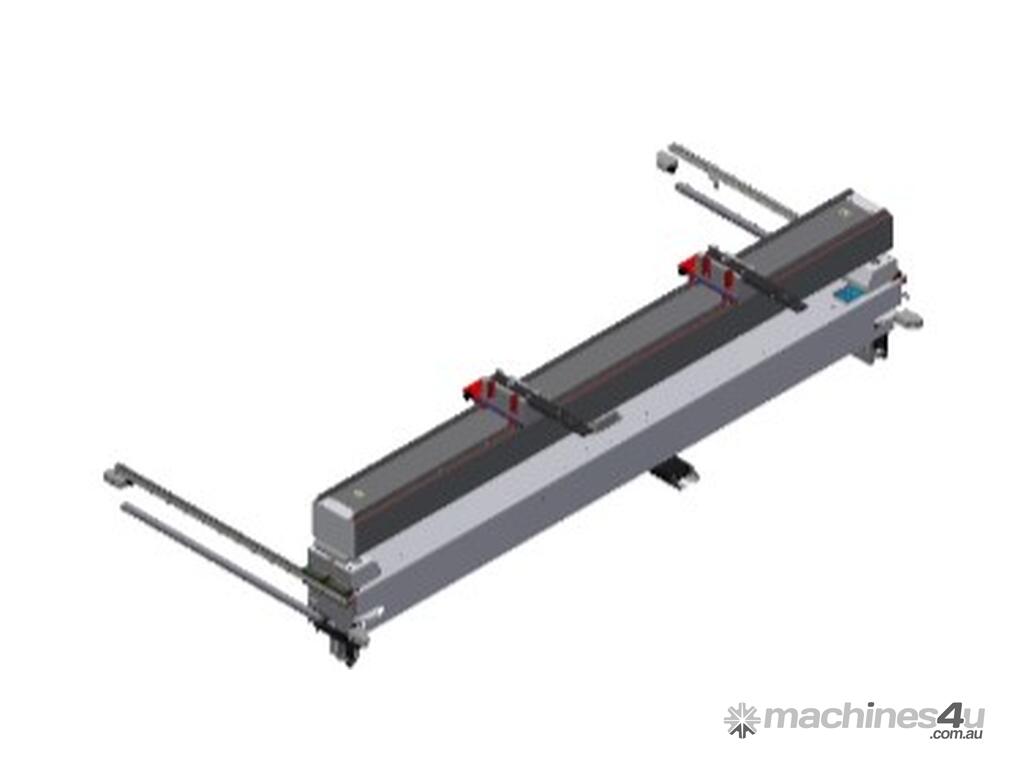

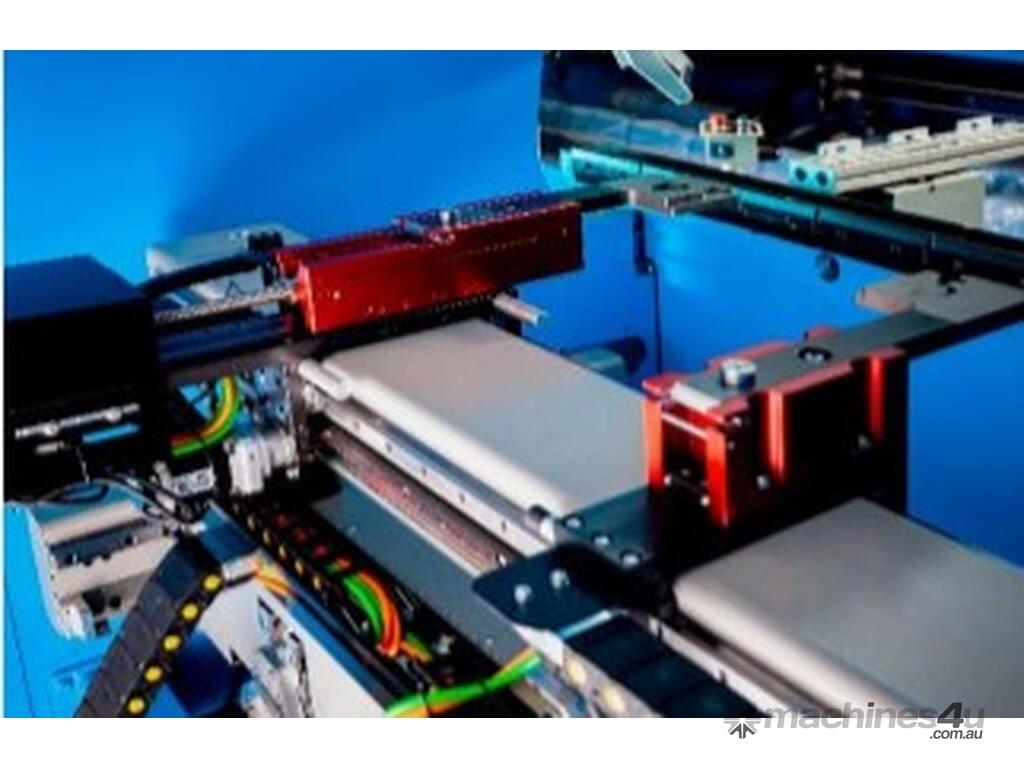

- Back gauge system GHP-2
- Back fingers 2 pieces
- Machinery compensation system B-CM
- Frame proportional deflection compensation system G-reflex
21 Heat exchange Excluded
22 Air condition Excluded

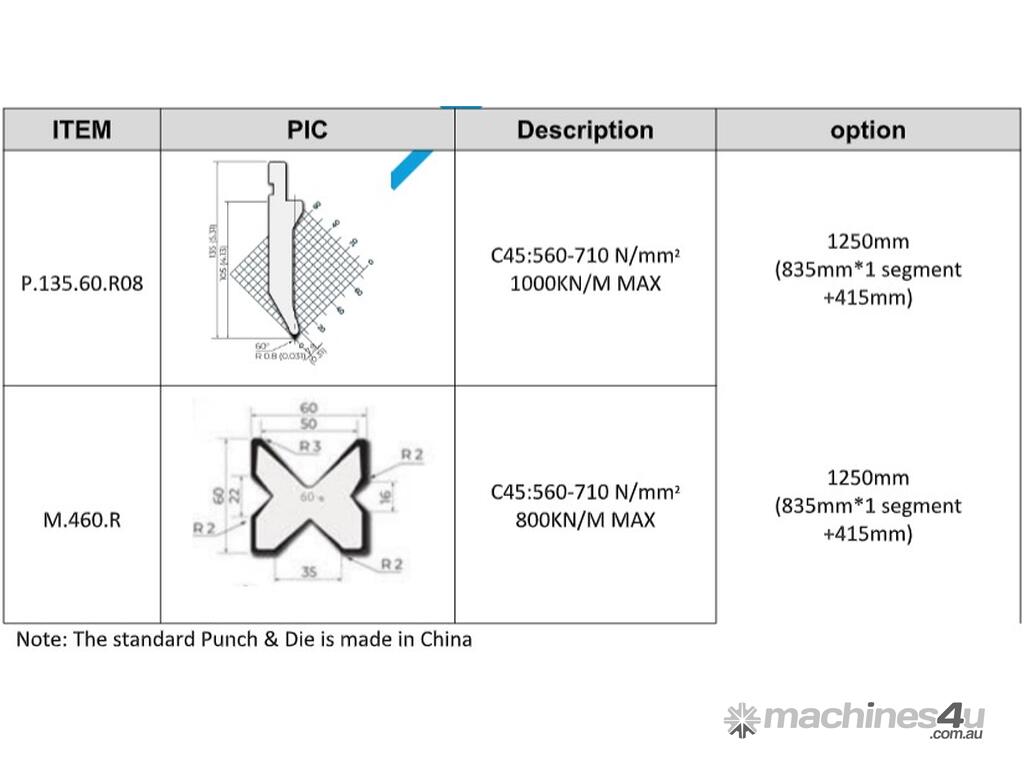

23 Standard tooling Excluded
24 Hydraulic oil Excluded
25 Maintenance tools Included
26 User Manual
