G-Press GHT 125-4000 Hydraulic CNC Pressbrake

Name: G-Press GHT 125-4000 Hydraulic CNC Pressbrake
Brand: G-Press
SKU: ght125-4000
Price: 158050 AUD
Availability: InStock

KEYSBOROUGH, VIC

Play Video

Priced From
$158,050 AUD($173,855 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$550.53
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

CNC Press Brakes

Make:

G-PRESS

Model:

GHT125-4000

Year:

2024

Member Since: Jul 2012

Silver Member

Listings: 81

Sellers stock ID:

ght125-4000

Description

G-Press is a metal fabricating company located in China for 10 years and with manufacturing concept that follows European standards. Its technology comes from the precious cooperation with the historic partner Gasparini Italy.
Annual production capacity is approximately 650 pressbrakes including also robotised bending cells.

PRESS BRAKE GHT125-4000
Description
Bending force - 1250 KN
Usable bending length - 4,100 mm
Distance between side frames - 3,600 mm
Throat depth - 500 mm
Max. cylinders stroke - 300 mm
Daylight between top beam and bench - 500 mm
Speed
approaching - 200 mm/s
working - 0-12 mm/s
return - 194 mm/s
Servo Motor power - 22kW
Overall Dimension - 5,080 mm x 3,110 mm x 2,060 mm
Approx. Weight - 11 ton

Complete with:

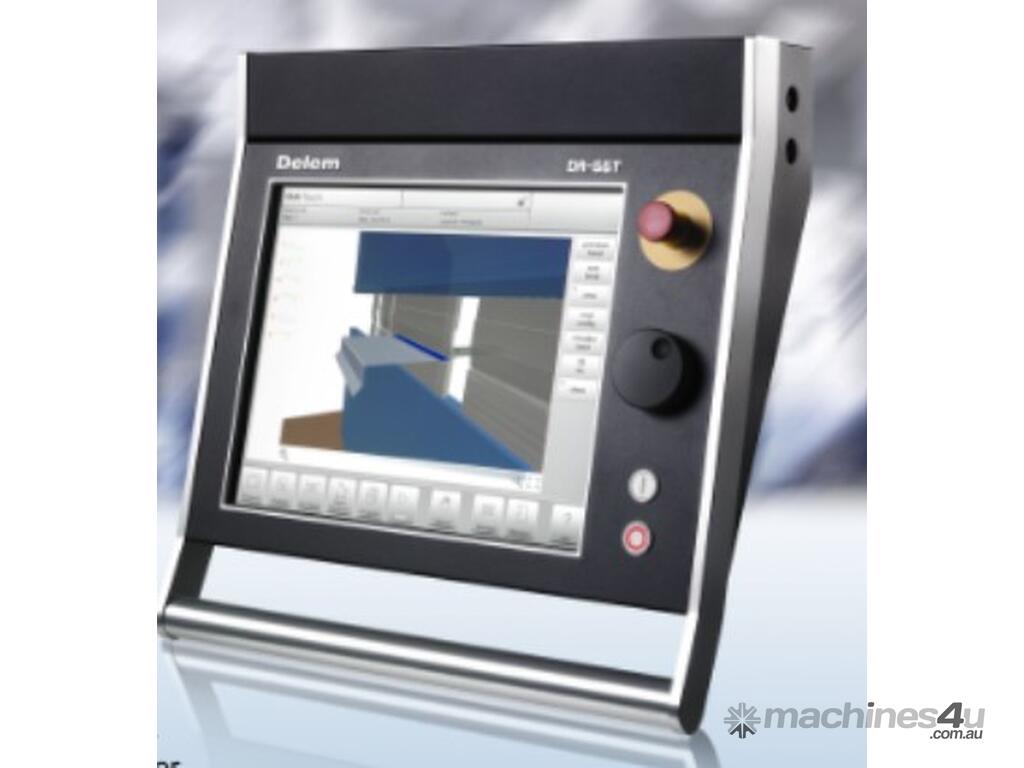

CNC control mod. DELEM DA66T
6+1 axes : Y1-Y2-X-R-Z1-Z2 +V

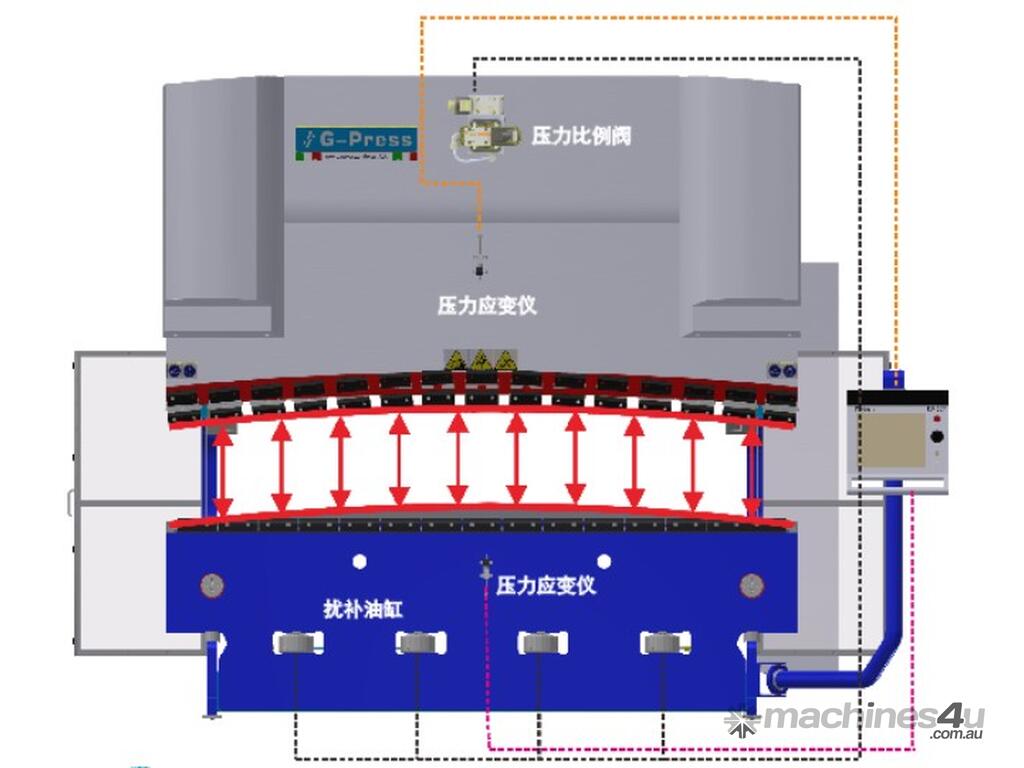

Real time Hydraulic crowing system: G-CS

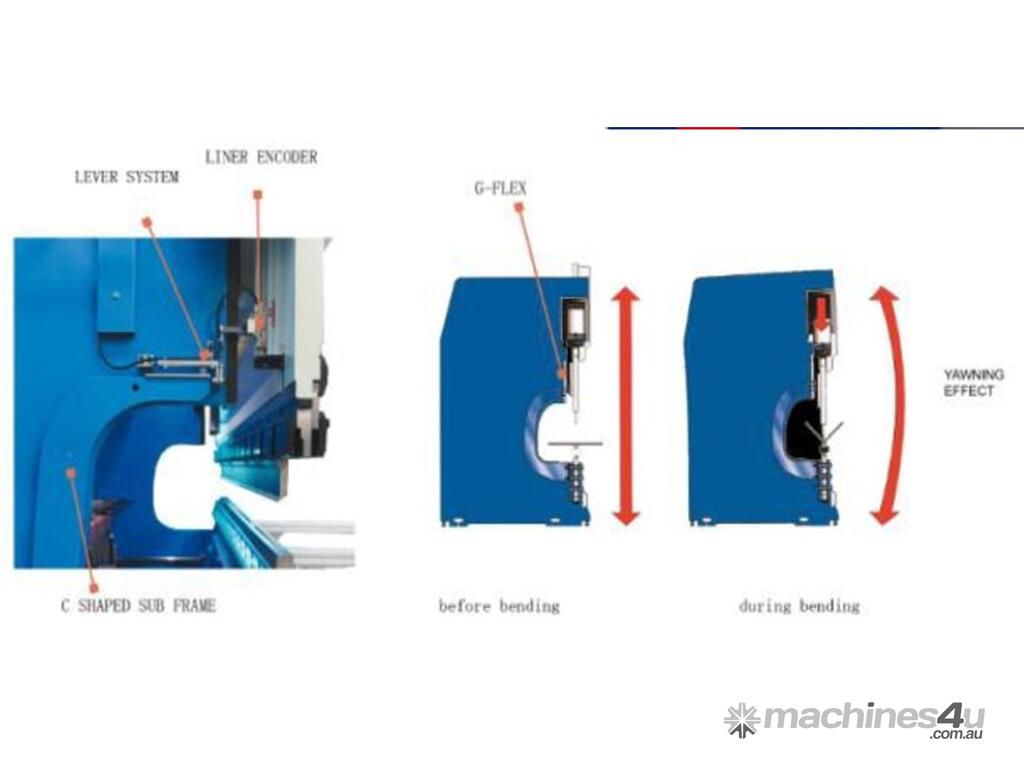

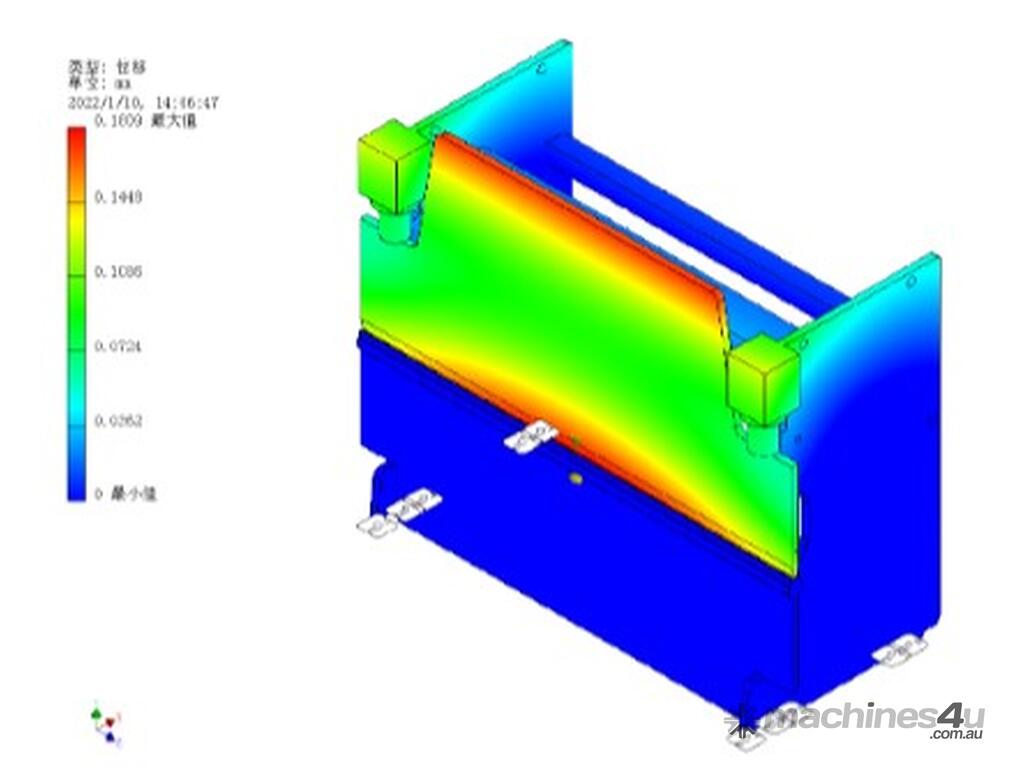

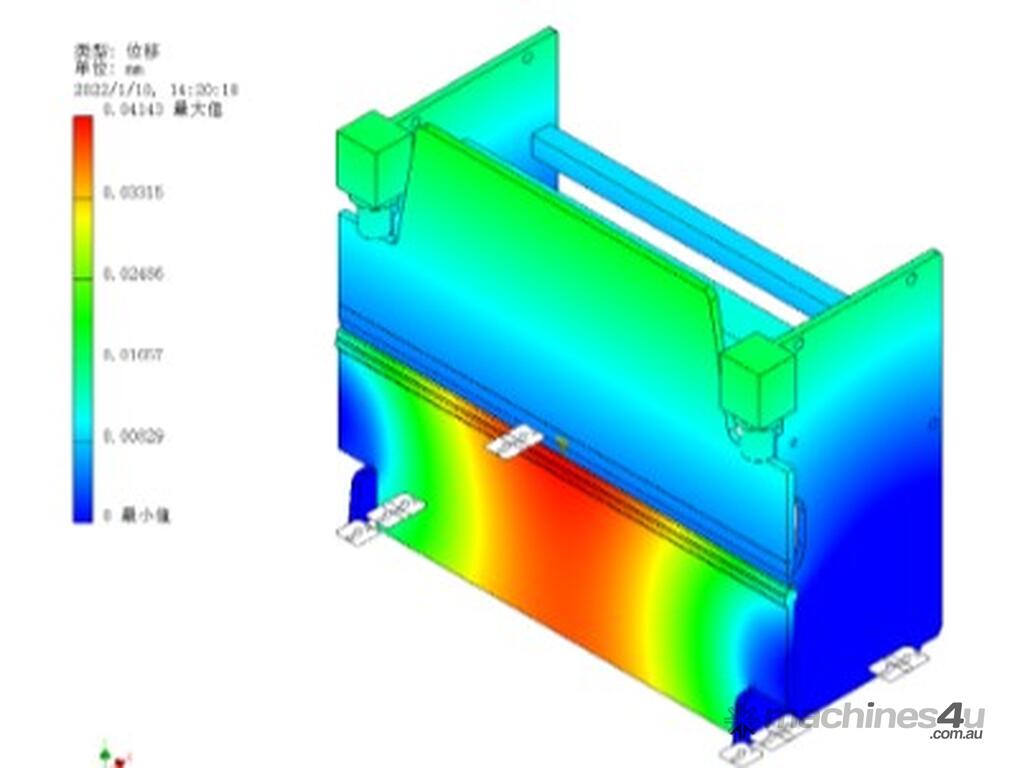

Frame deflection compensation system – G-REFLEX

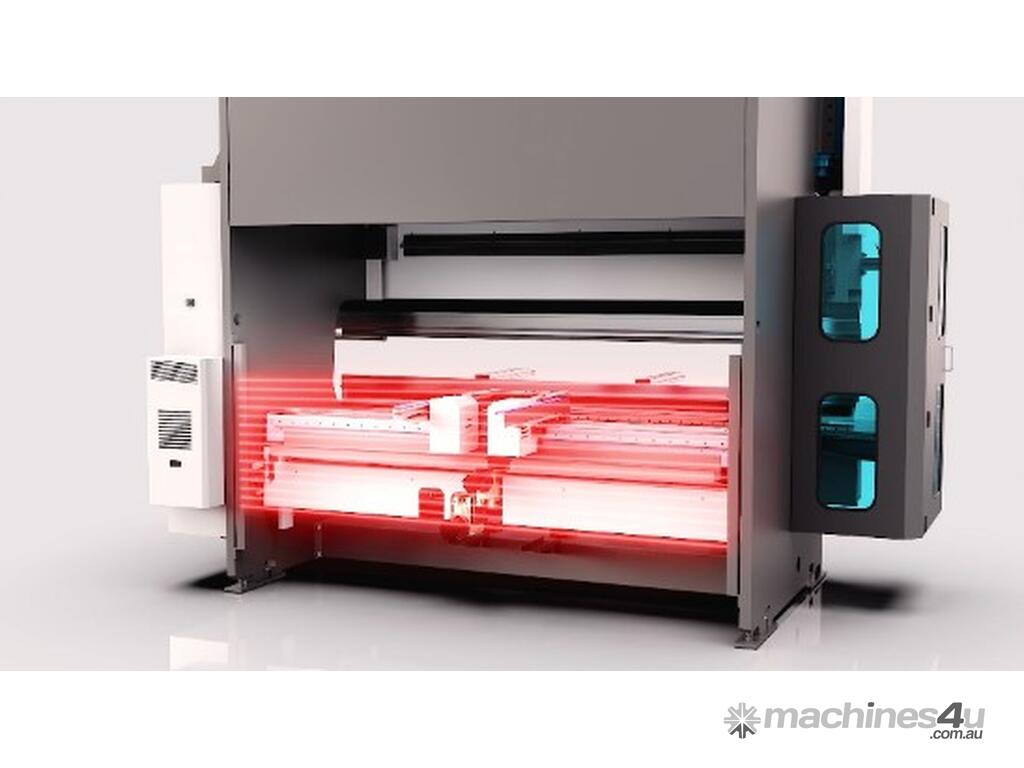

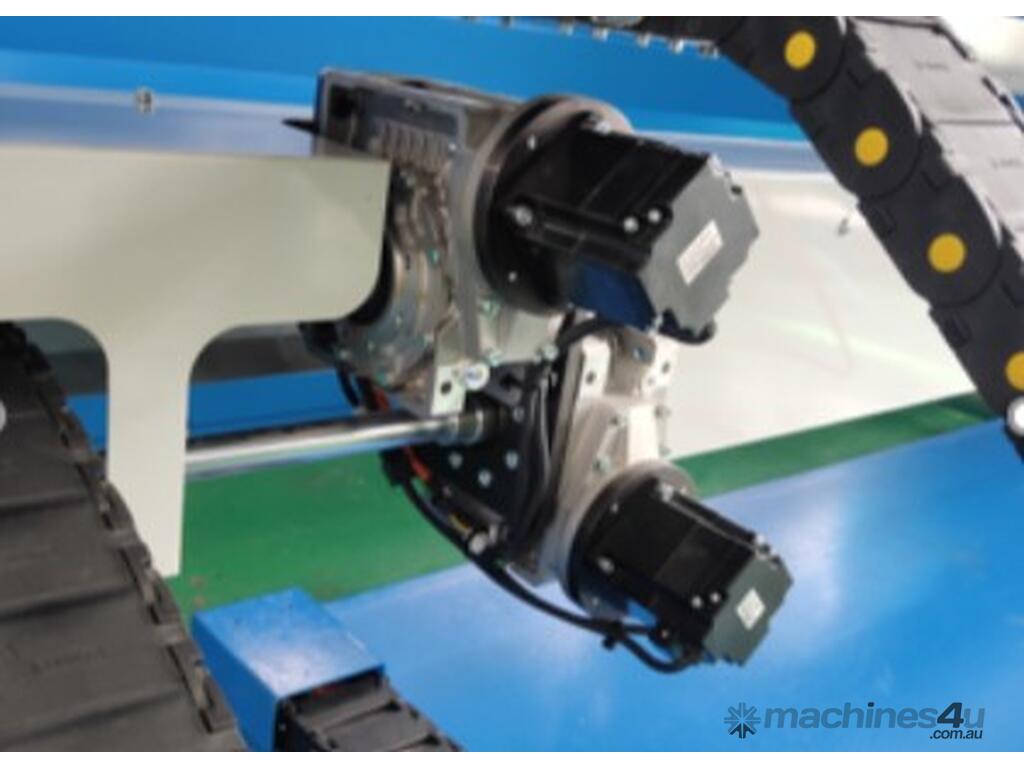

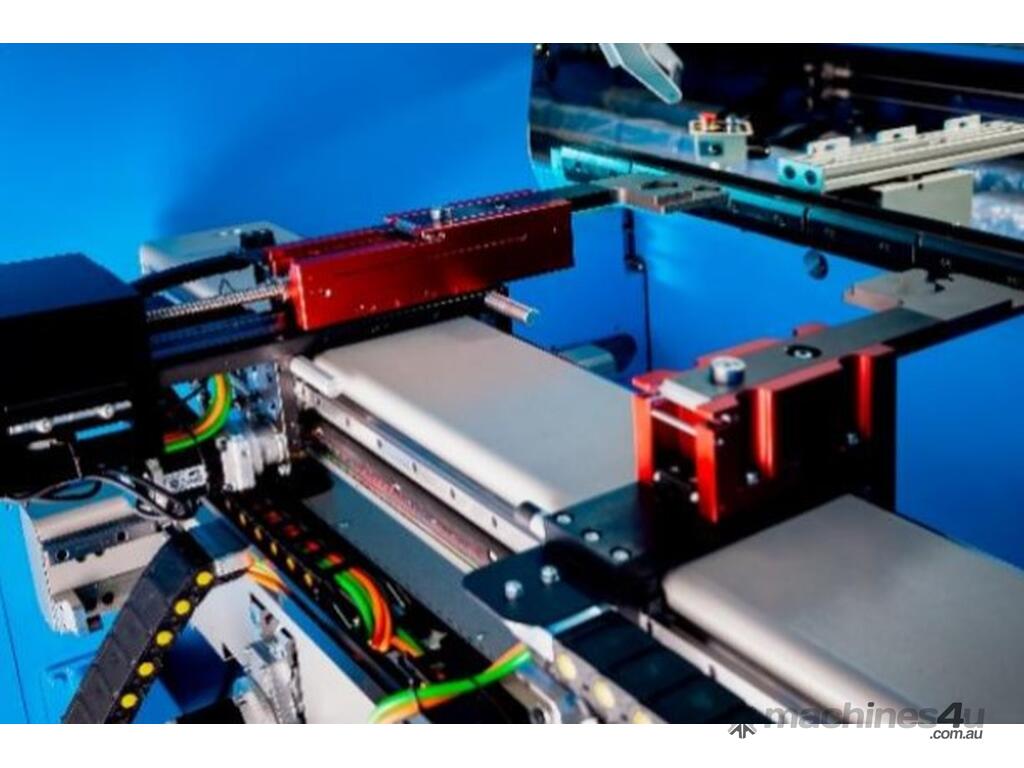

Back gauge system mod. GHP-4 with pneumatic support system

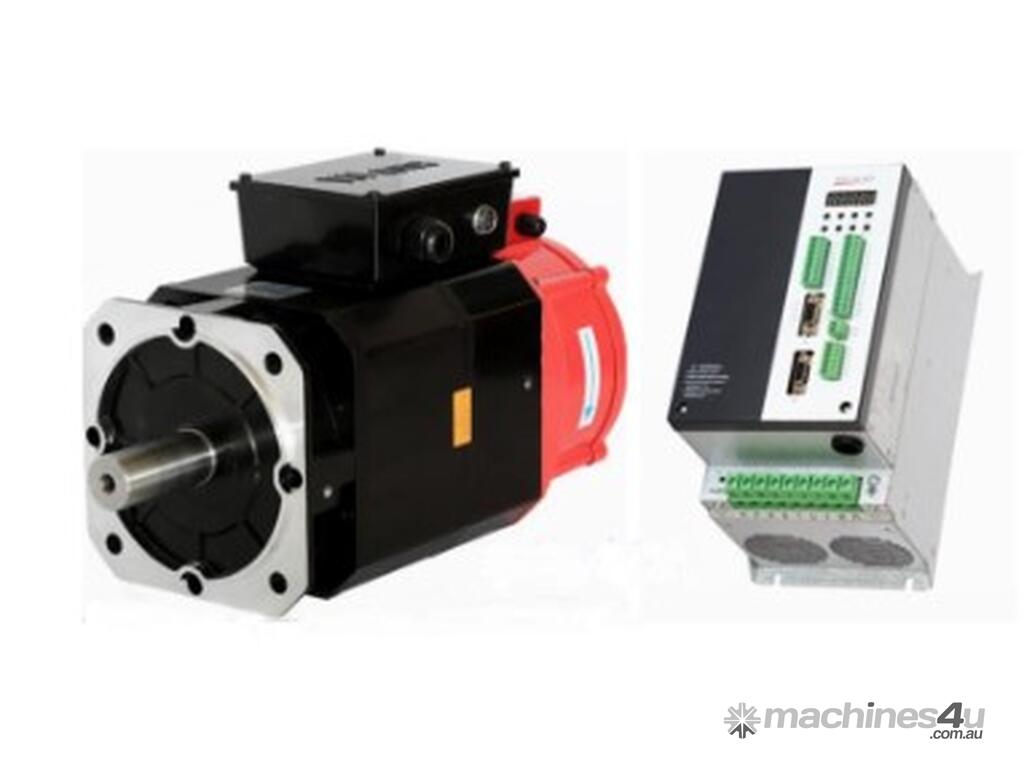

Servo Main motor

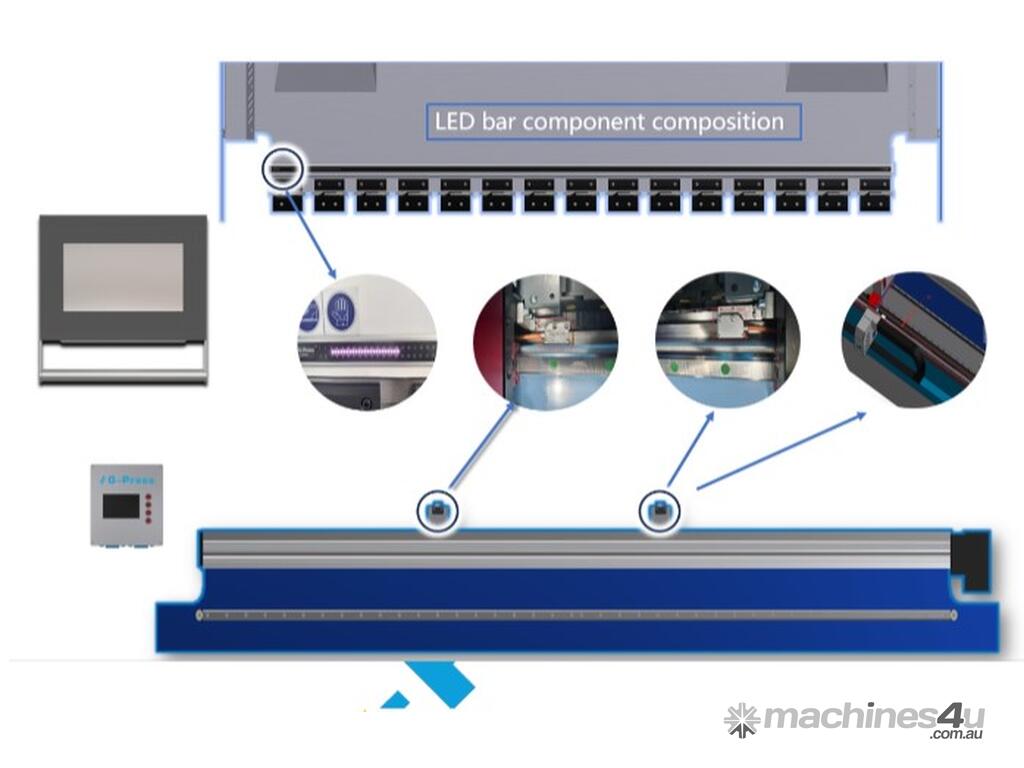

Led Bar to indicate back gauge position

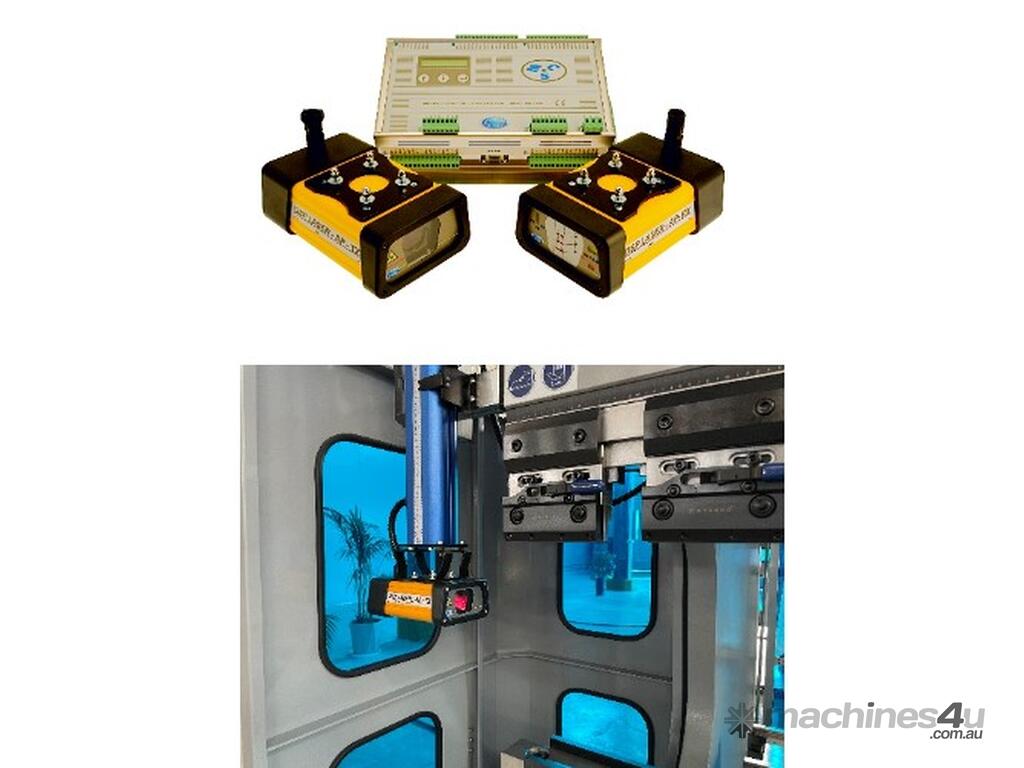

Safety devices: DSP AP+MCS
HAWE Hydraulic System
CE standard
Safety light guard DSP AP+MCS

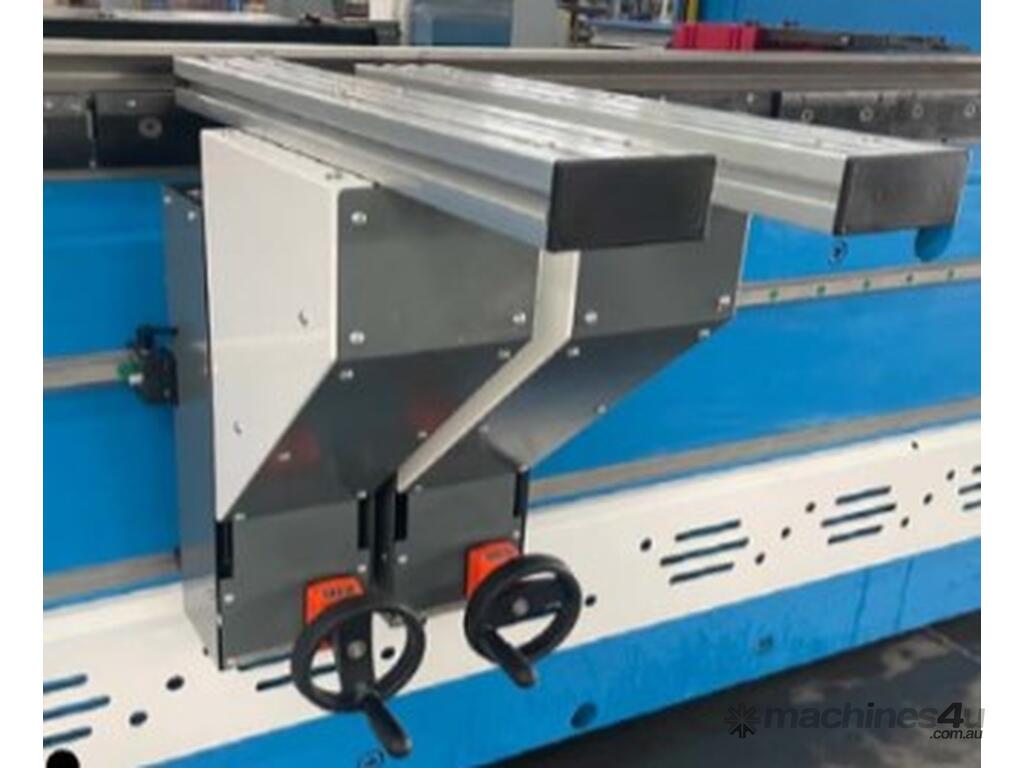

Front Support arms Model SP 2 Pieces

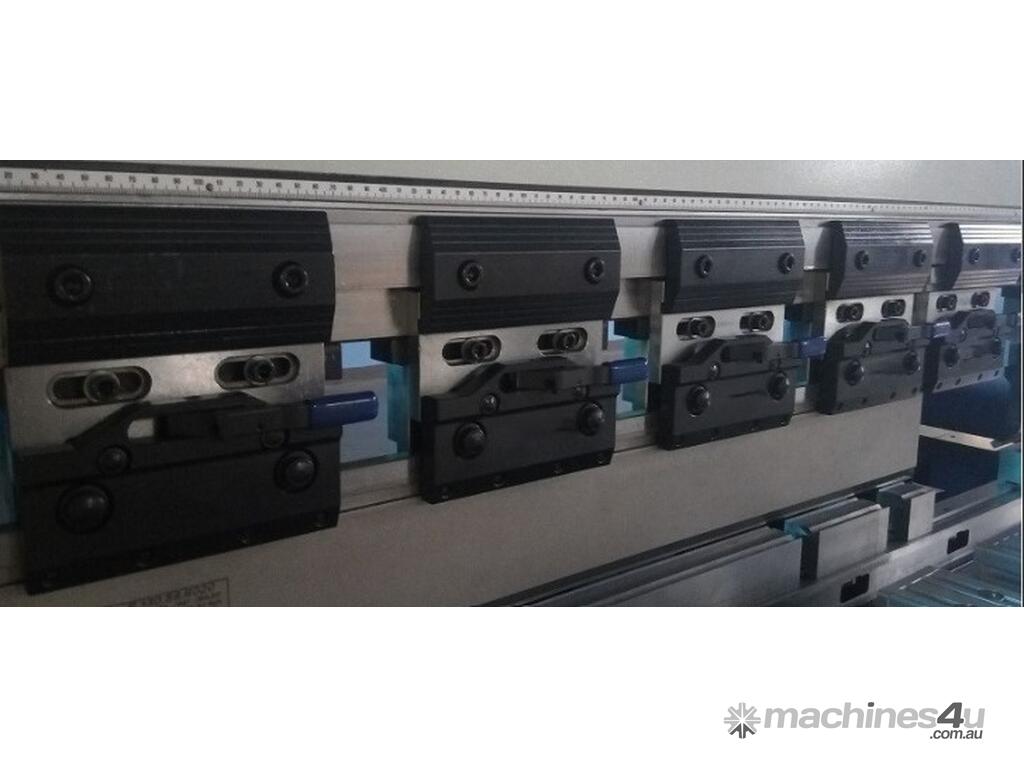

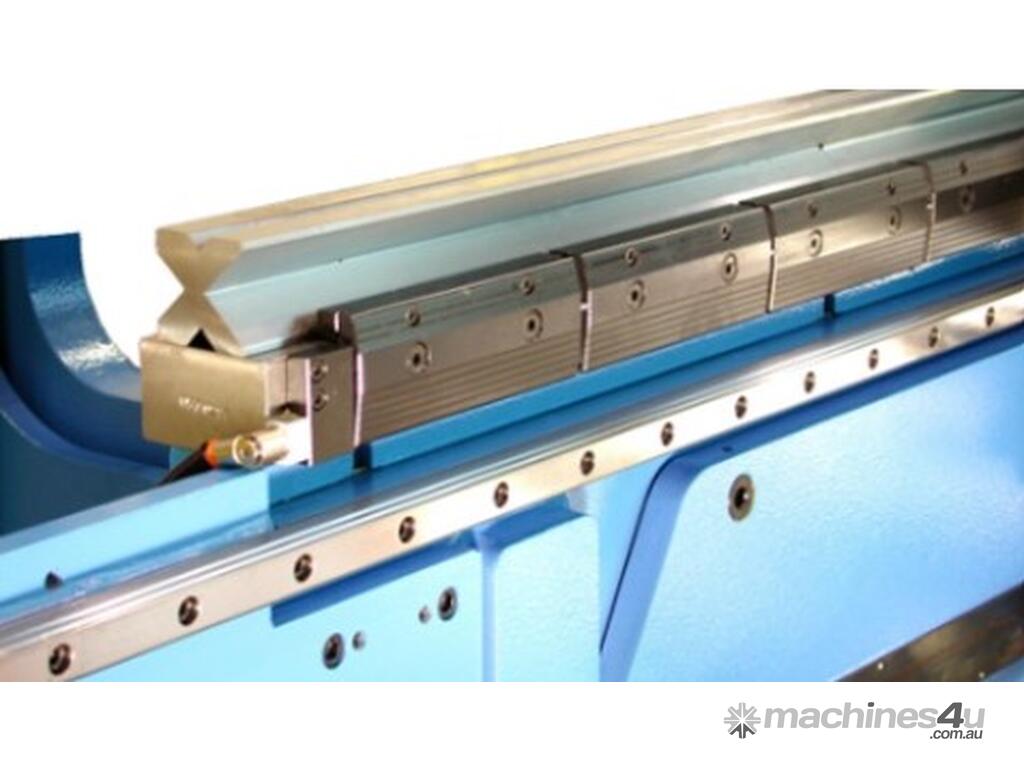

Top tools Clamps Model GS-T.M Manual

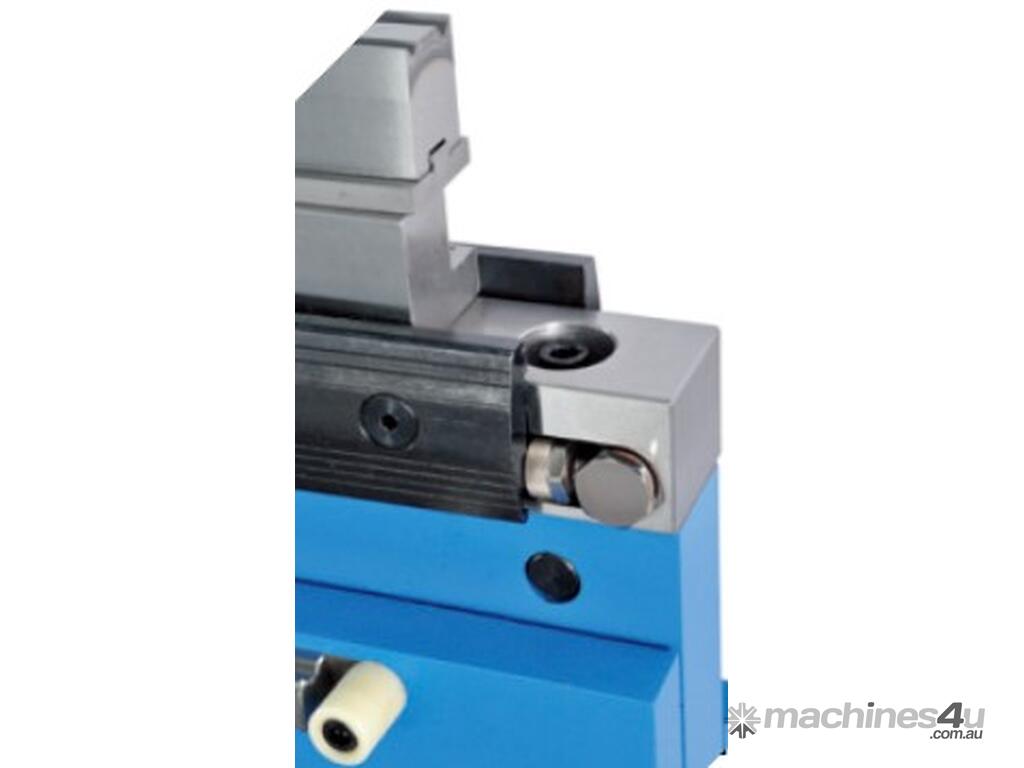

Bottom tools Clamps Model GS-B.P Pneumatic
Back gauge fingers 4 pieces

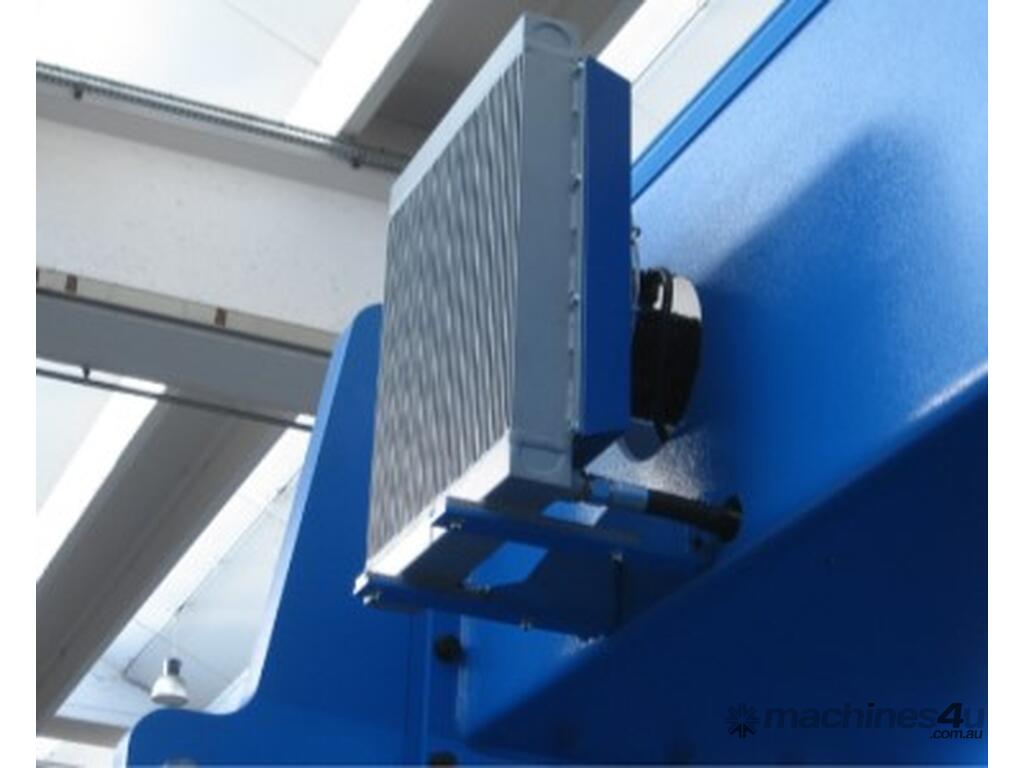

Heat exchanger Included
Air conditioner Included

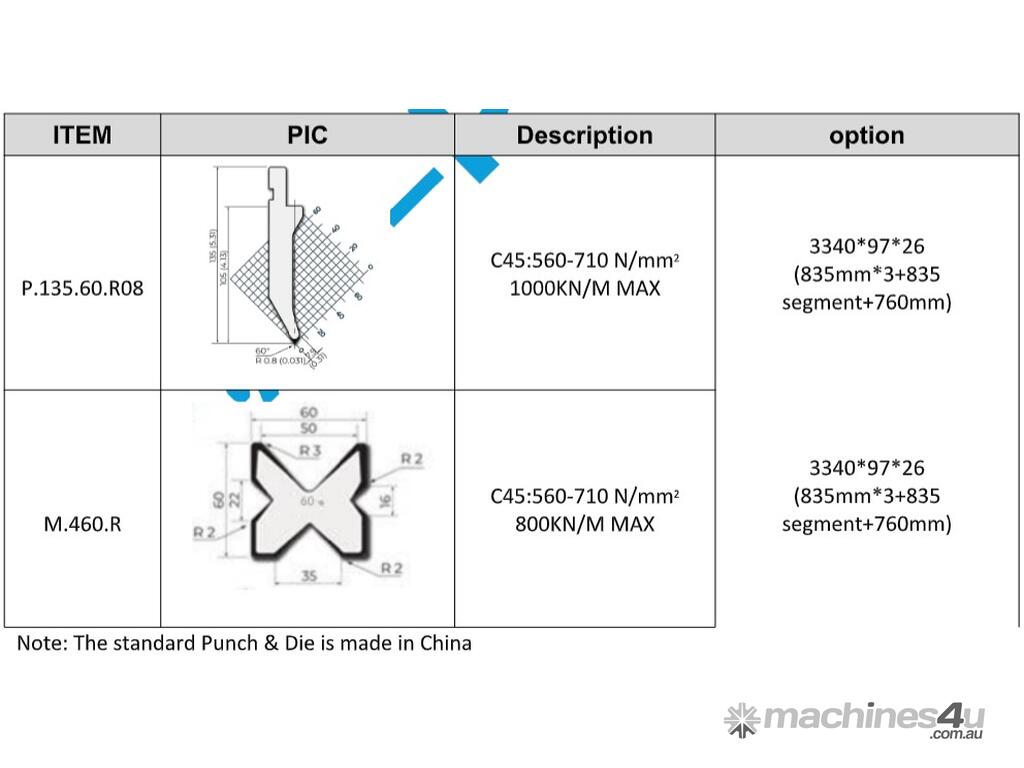

One set standard tooling Included
Hydraulic oil Excluded
Maintenance tools Included
User manual Included
