G-Press is a metal fabricating company located in China for 10 years and with manufacturing concept that follows European standards. Its technology comes from the precious cooperation with the historic partner Gasparini Italy.
Annual production capacity is approximately 650 press brakes including also robotized bending cells.

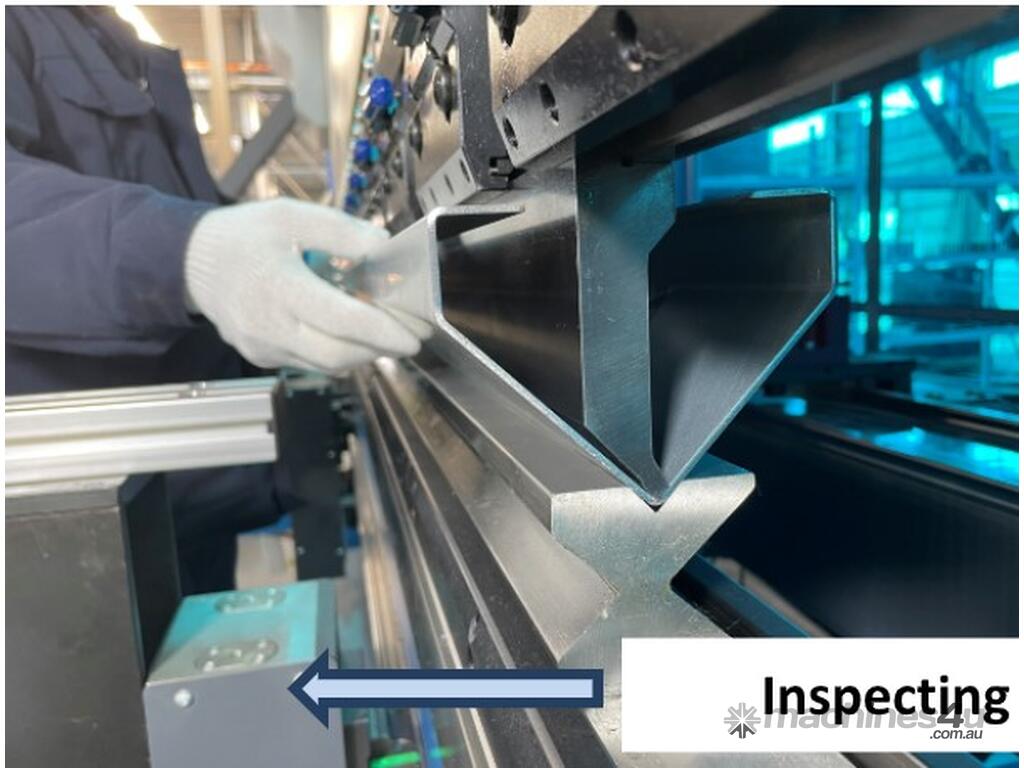

PRESS BRAKE GHT185-4000
Description
Bending force - 1850KN
Usable bending length - 4100mm
Distance between side frames - 3600mm
Throat depth - 500mm
Max. cylinders stroke - 300mm
Daylight between top beam and bench - 500mm
Speed
approaching - 200mm/s
working - 0-15mm/s
return - 185mm/s
Servo Motor power - 22kW
Overall Dimension - 5000 x 3200 x 2600mm
Approx. Weight - 18 ton
STANDARD ACCESSORIES

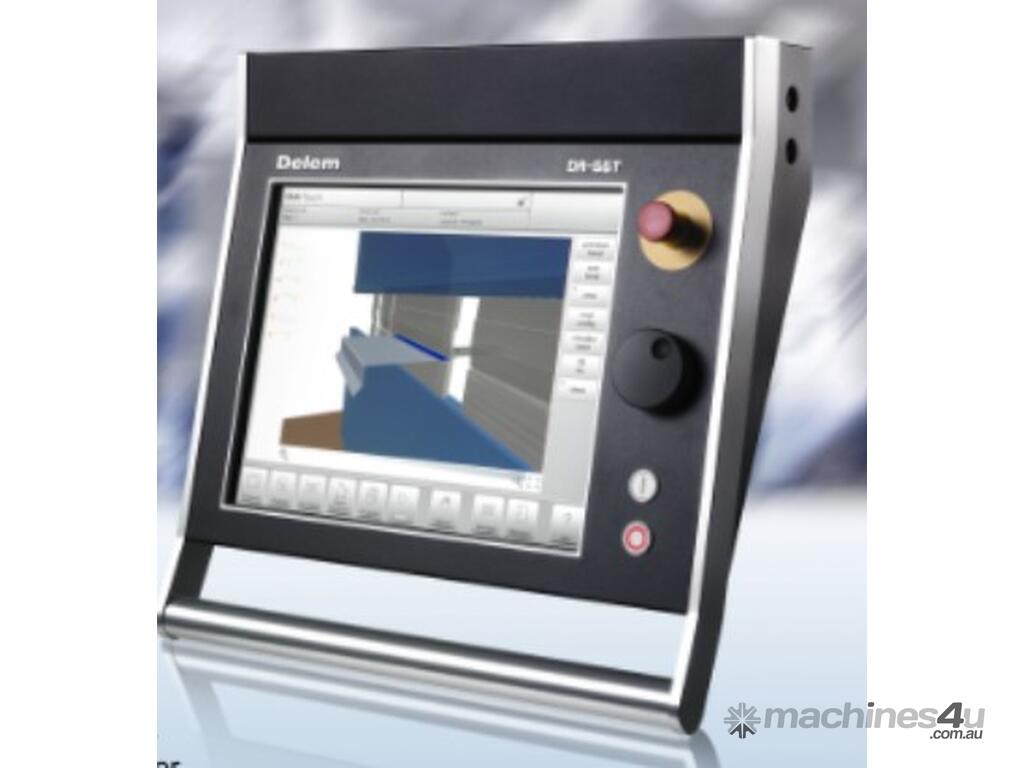

Numerical control DELEM DA66T
Axes Y1-Y2-X-R-Z1-Z2 +C

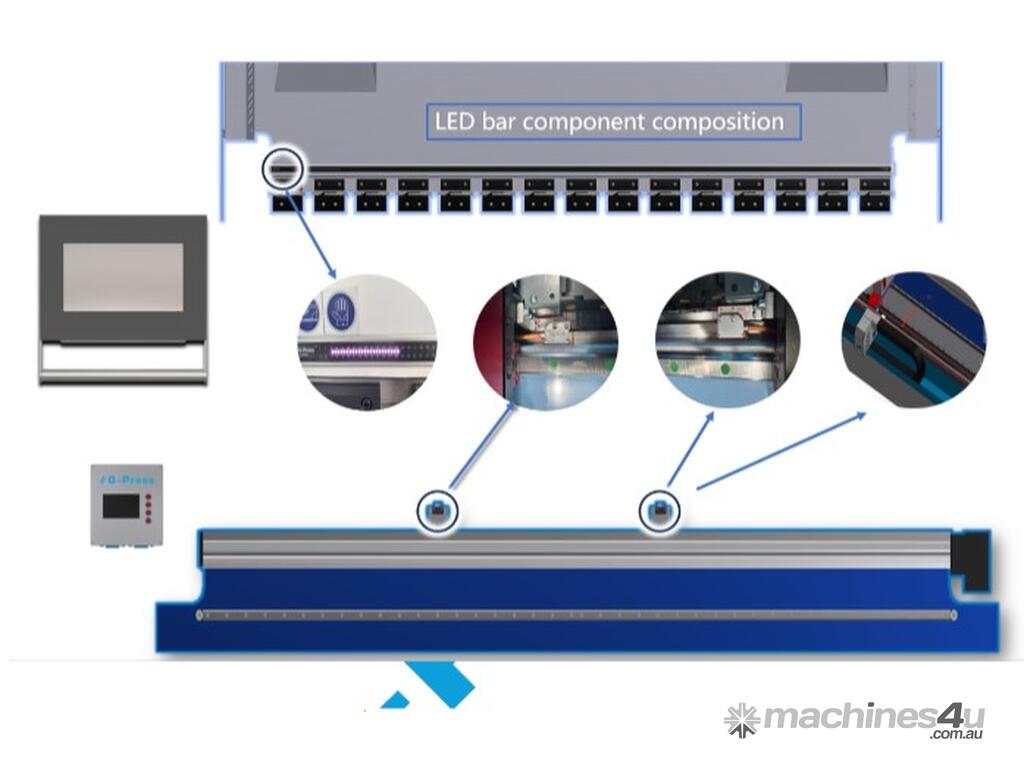

Safety light guard Lazersafe PCSS-AI+IRIS
Front Support arms Model SP 2 Pieces
Top tools Clamps Model GS-T.M Manual

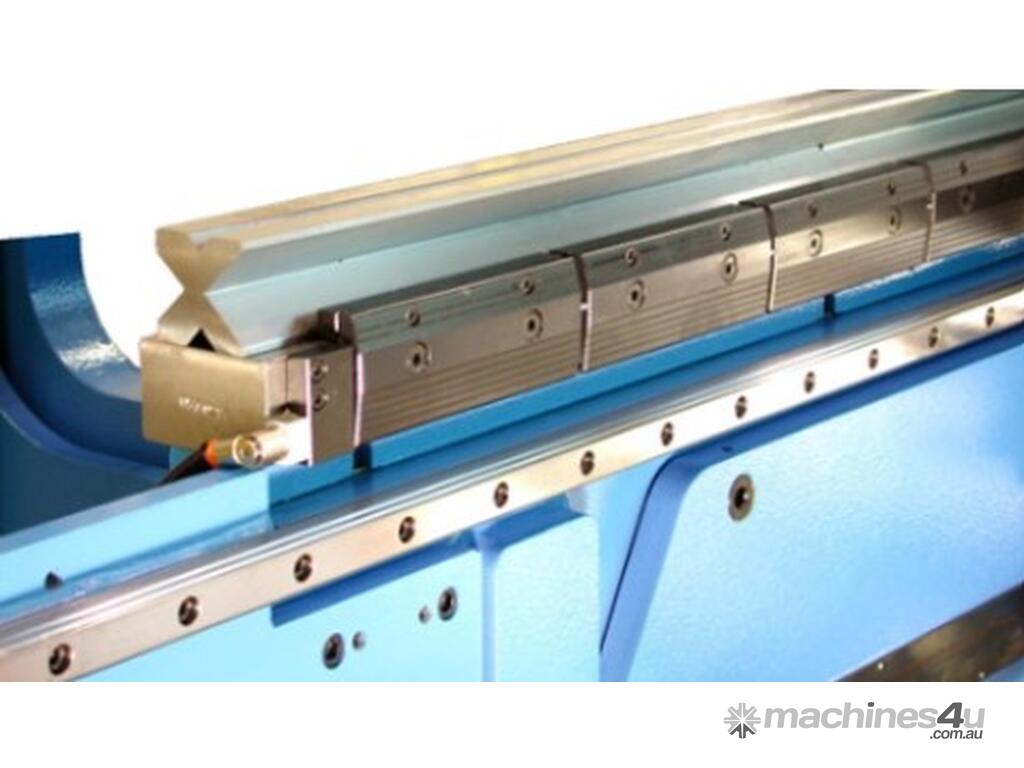

Bottom tools Clamps Model GS-B.P Pneumatic

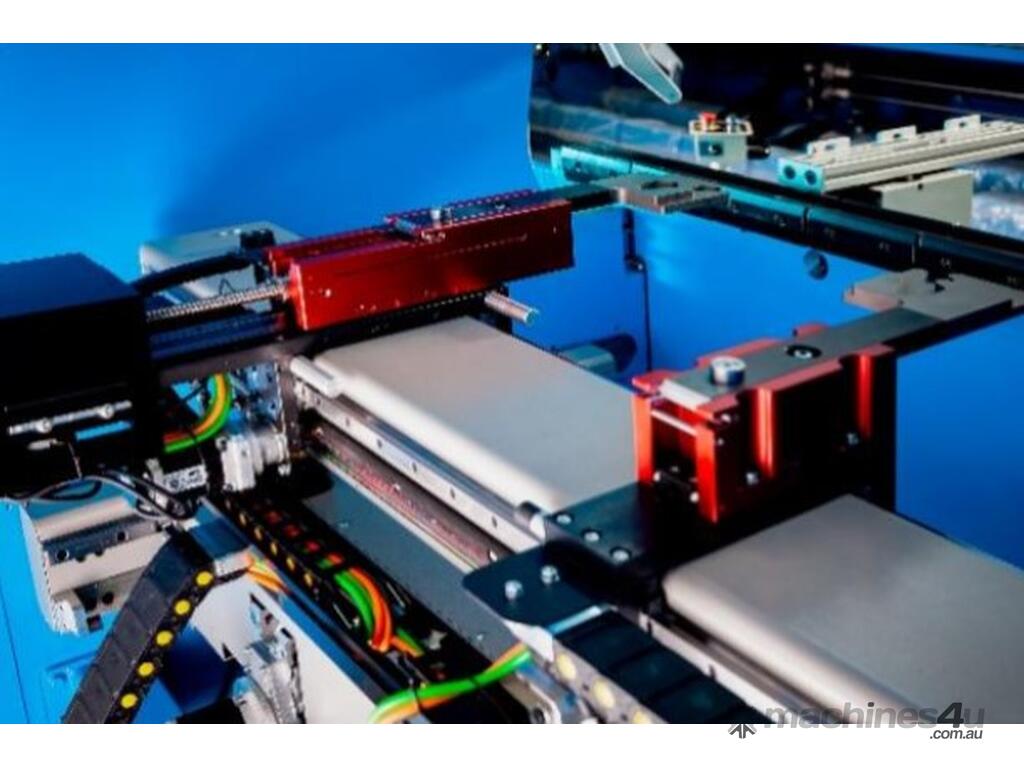

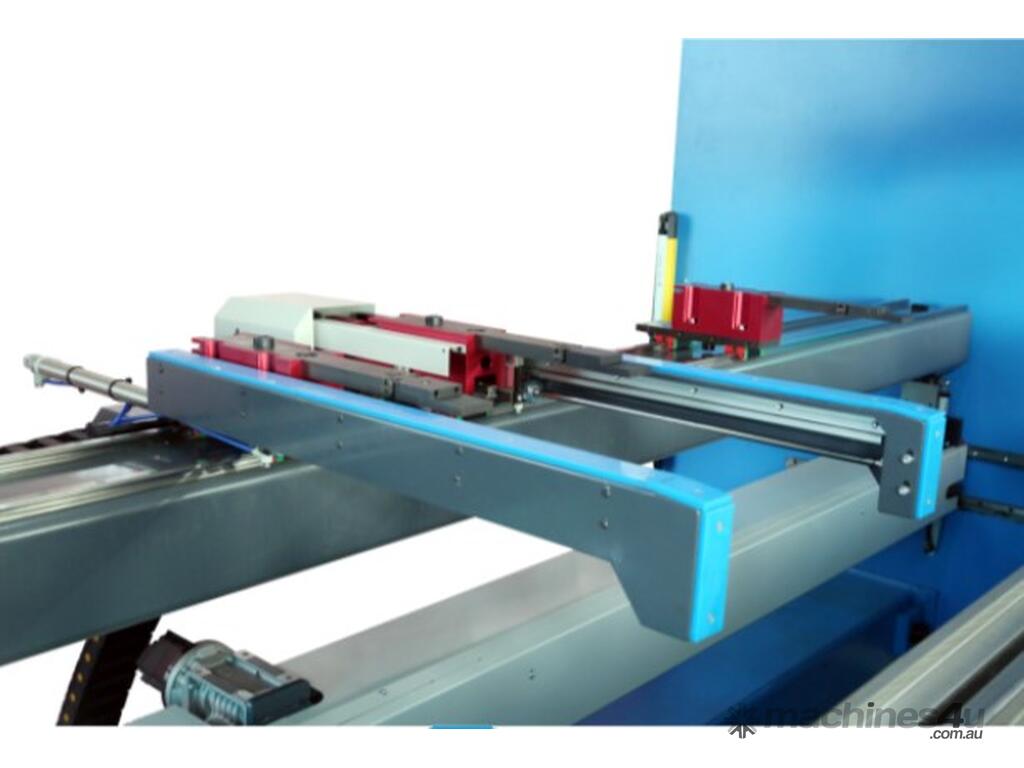

Back gauge system Model GHP-4 with pneumatic support
Back gauge fingers 4 pieces

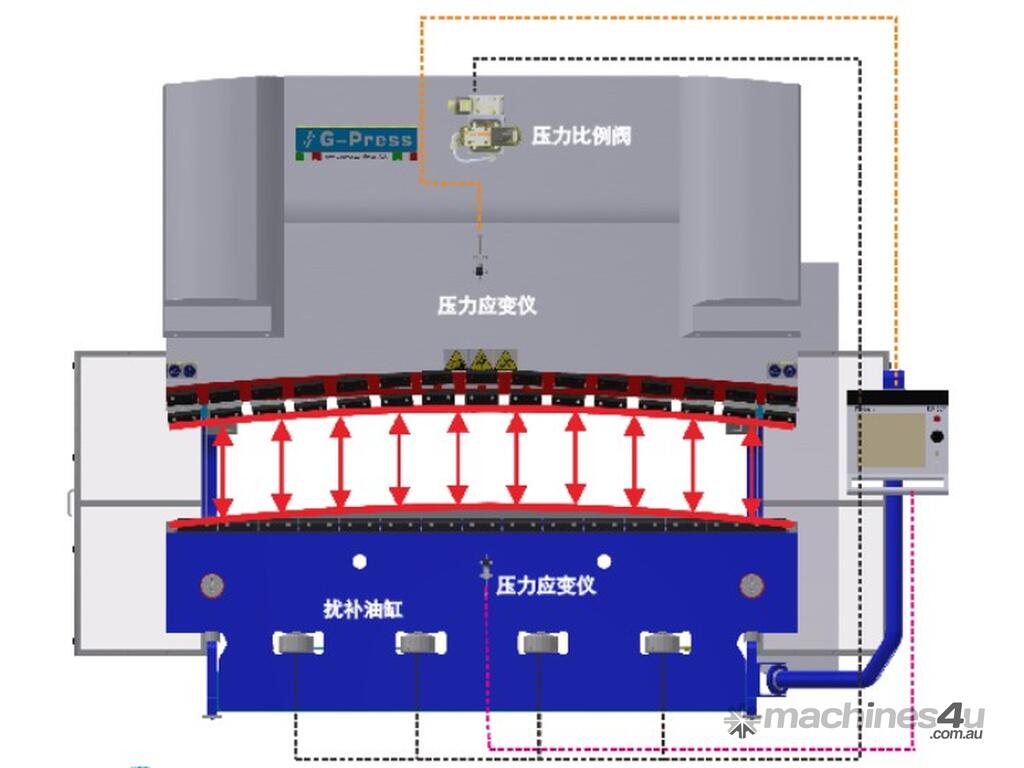

Real time hydraulic compensation system G-CS
Frame deflection compensation system G-Reflex
Heat exchanger Included
Air conditioner Included
Standard tooling Excluded
Hydraulic oil Excluded
Maintenance tools Included
User manual Included
