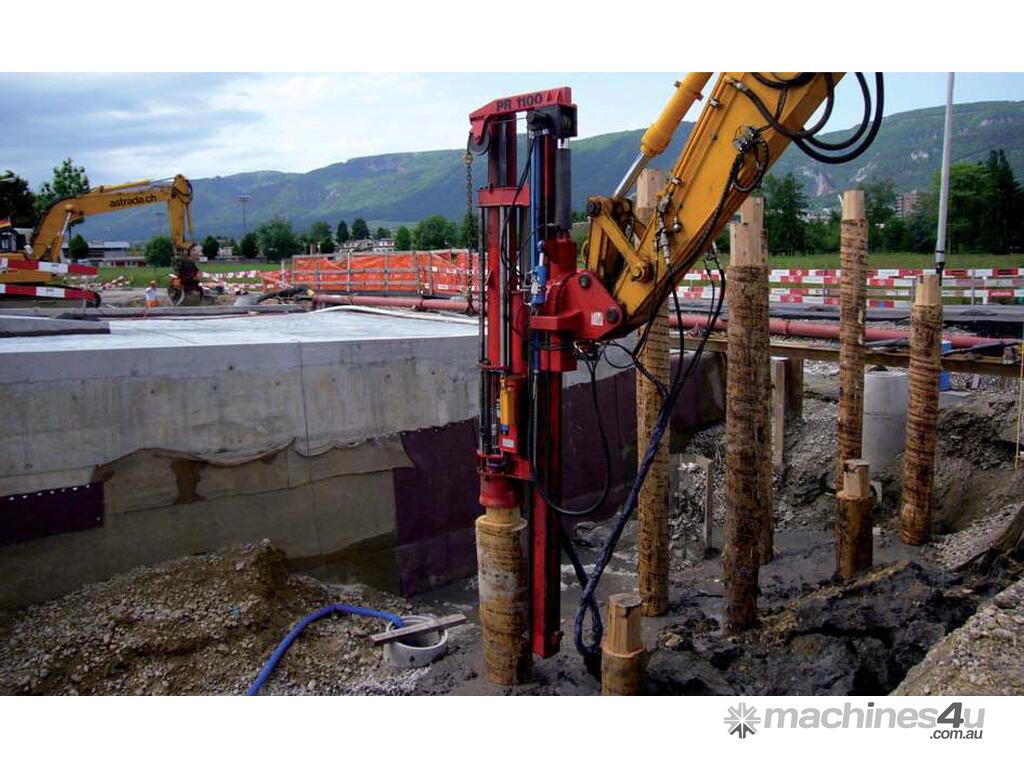

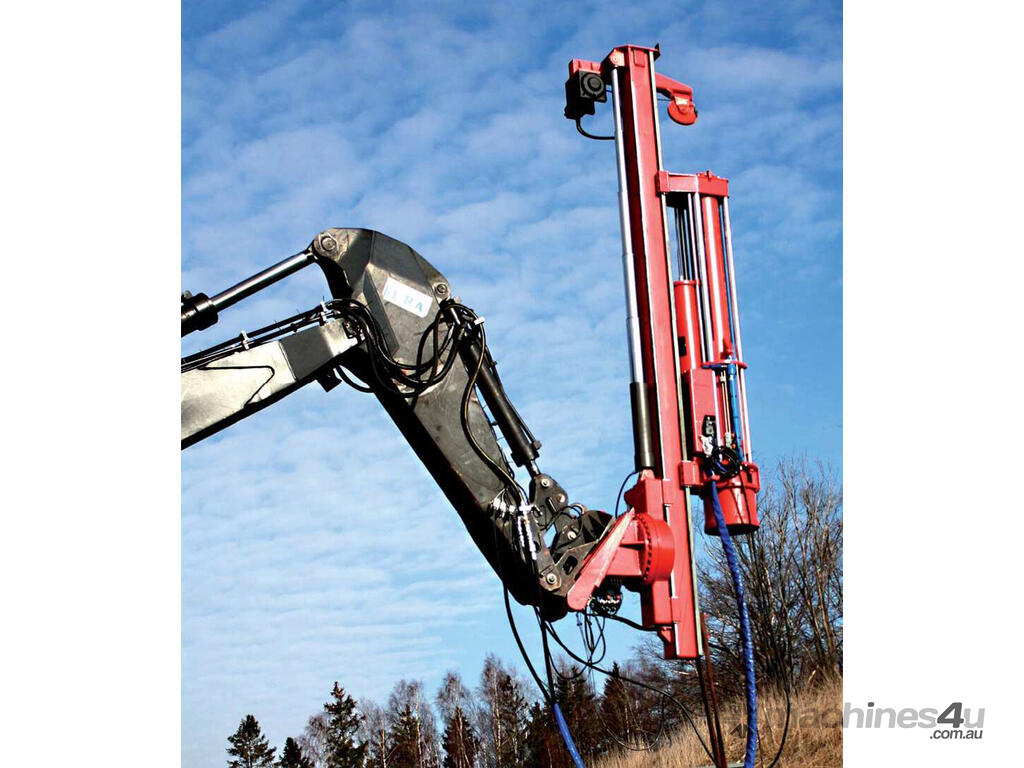

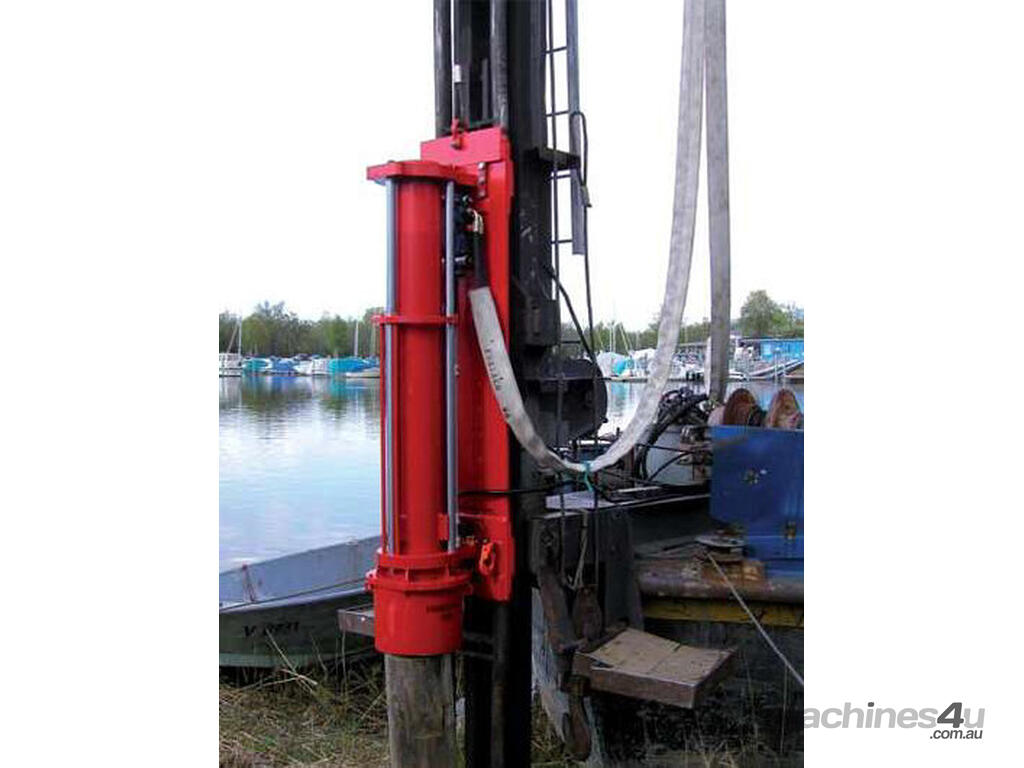

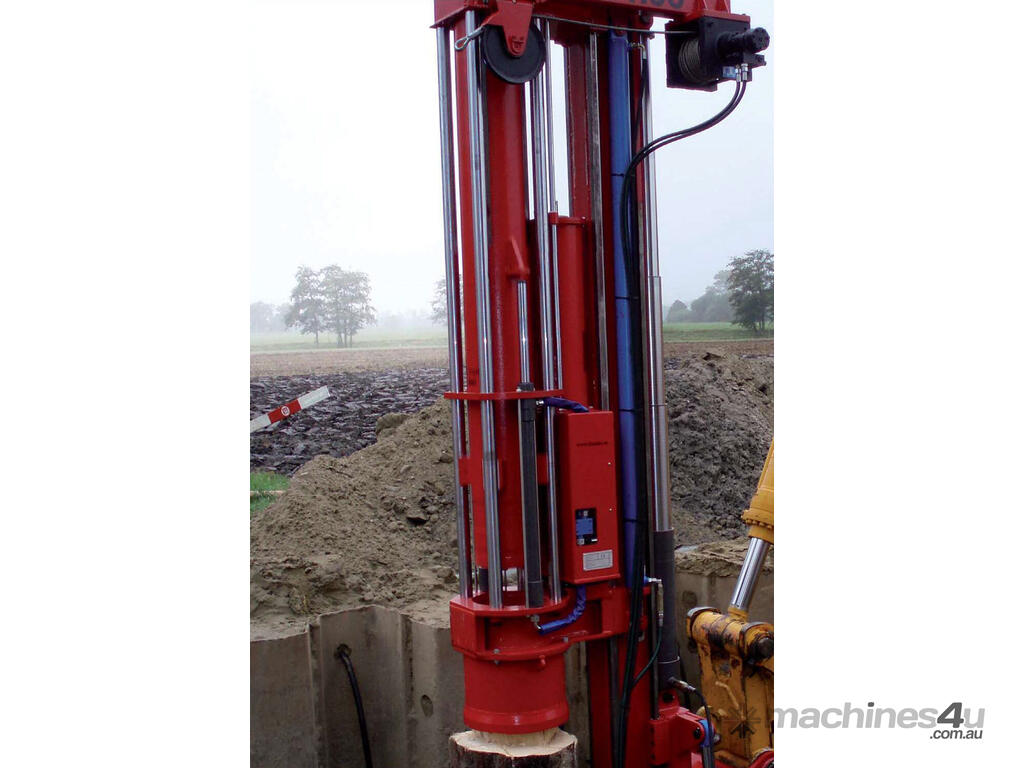

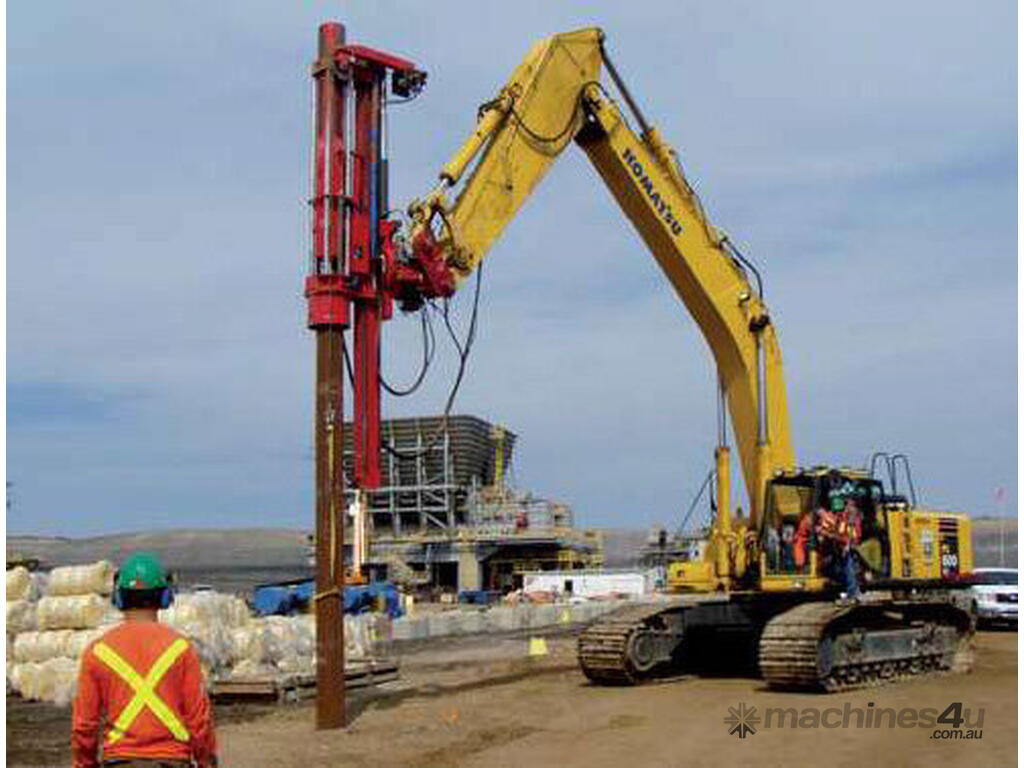

GANZ - Fambo HR 1000 Hydraulic Impact Hammer

Piston Weight: 1,000 kg
Total Weight with Standard Pile Cap: 1,800 kg
Blows per Minute (steplessly adjustable) :: 0 - 100
Energy per Blow (steplessly adjustable) :: 0 - 11,770 Nm
Drop Height (steplessly adjustable) :: 0 - 1.2 m

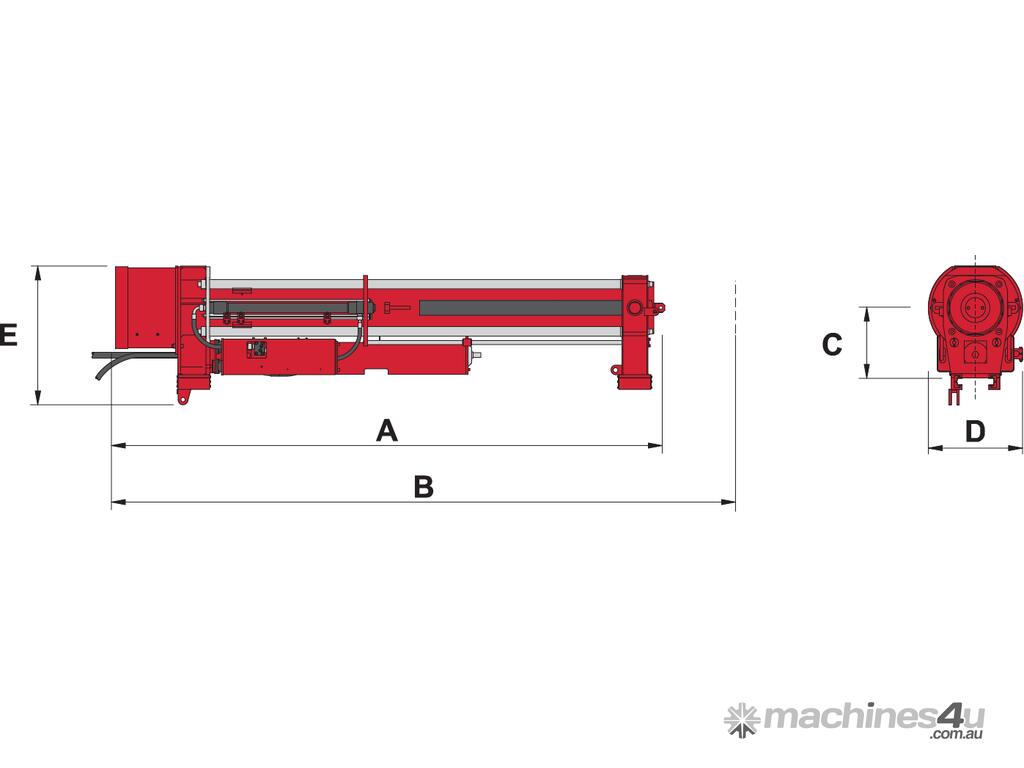

Dimensions:

Length :: 3,250 mm
Length :: 3,250 mm
Driving Axis :: 435 mm
Width :: 570 mm
Height :: 850 mm

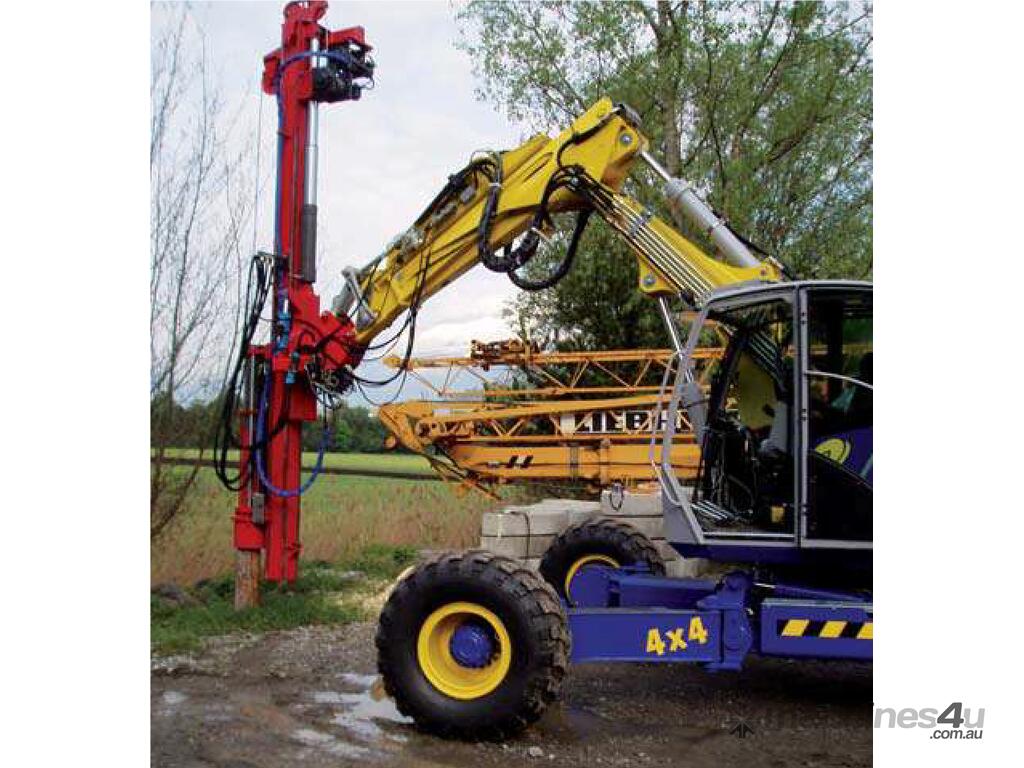

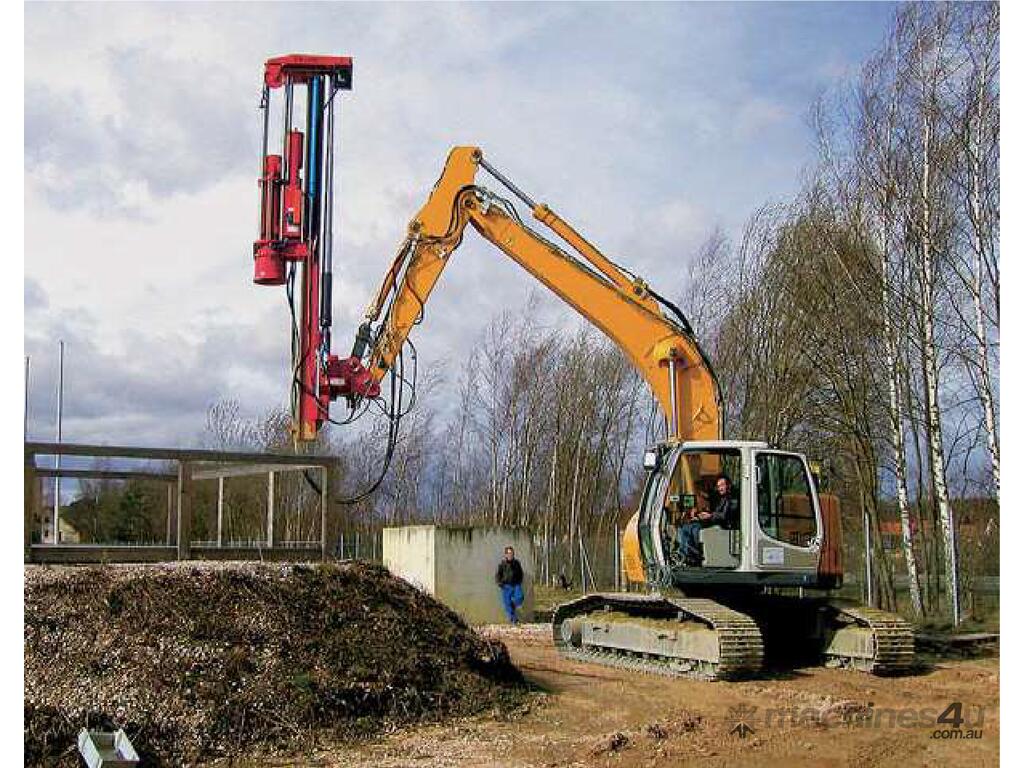

Recommended Data for Excavators:

Min. Weight: 22 t
Pressure: 200 bar
Oil Flow: 40-90 l/min
Hydraulic Pressure (required) :: 15-30 kW
Electrical Power: 24 V DC

Pile Sizes - The information refers to average values. Depending on nature of ground upwards or downwards variations may occur.:

Timber Piles -
Diameter: 30 cm Ø max.
Weight: 100 kg/m max.

Concrete Piles -
Diameter: 25 x 25 cm max.
Weight: 200 kg/m max.

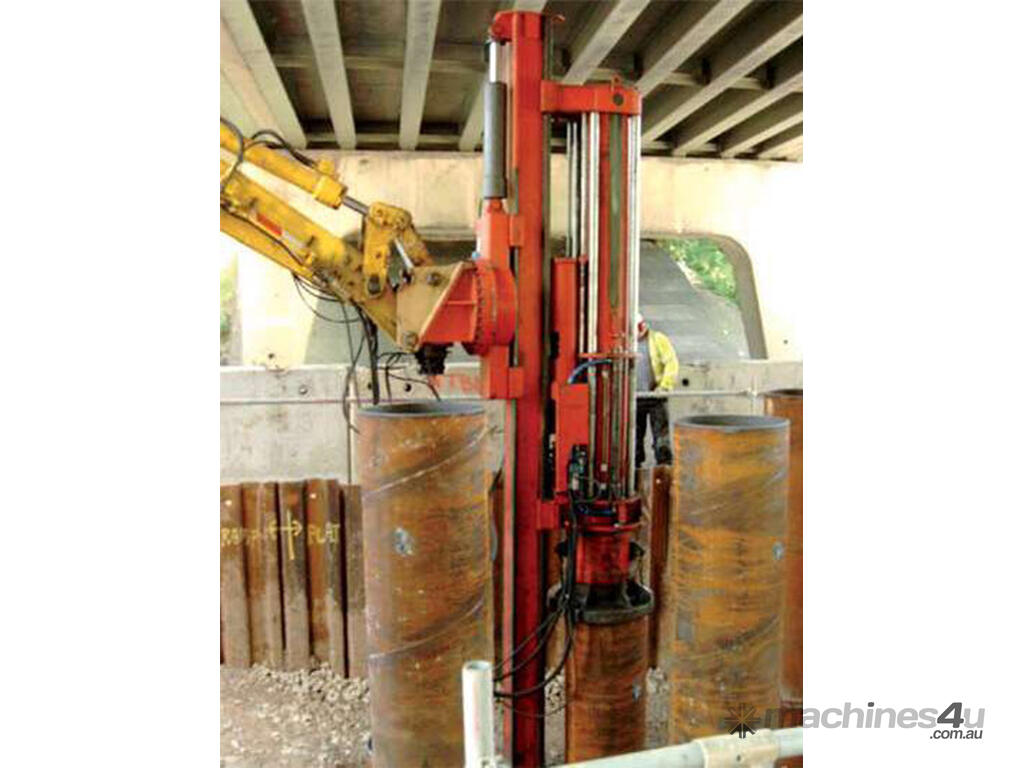

Steel Tubes:
Diameter: 30 cm max.
Weight: 175 kg/m max.

Steel Beams:
Dimensions: 240 HEA max.
Weight: 175 kg/m max.

Sheet Piles -
Weight: 175 kg/m max.
Maximum Weight: 2,500 kg

Standard Pile Cap -
Length :: 200 mm
Outer Diameter :: 420 mm
Inner Diameter :: 370 mm
Depth :: 120 mm
Weight: 141 kg

Pile Caps Universal Adapters -
Length :: 323 mm
Outer Diameter :: 522 mm
Distance :: 150 mm
Inner Diameter :: 300 mm
Hole Diameter :: 26 mm
Weight: 228 kg


At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
