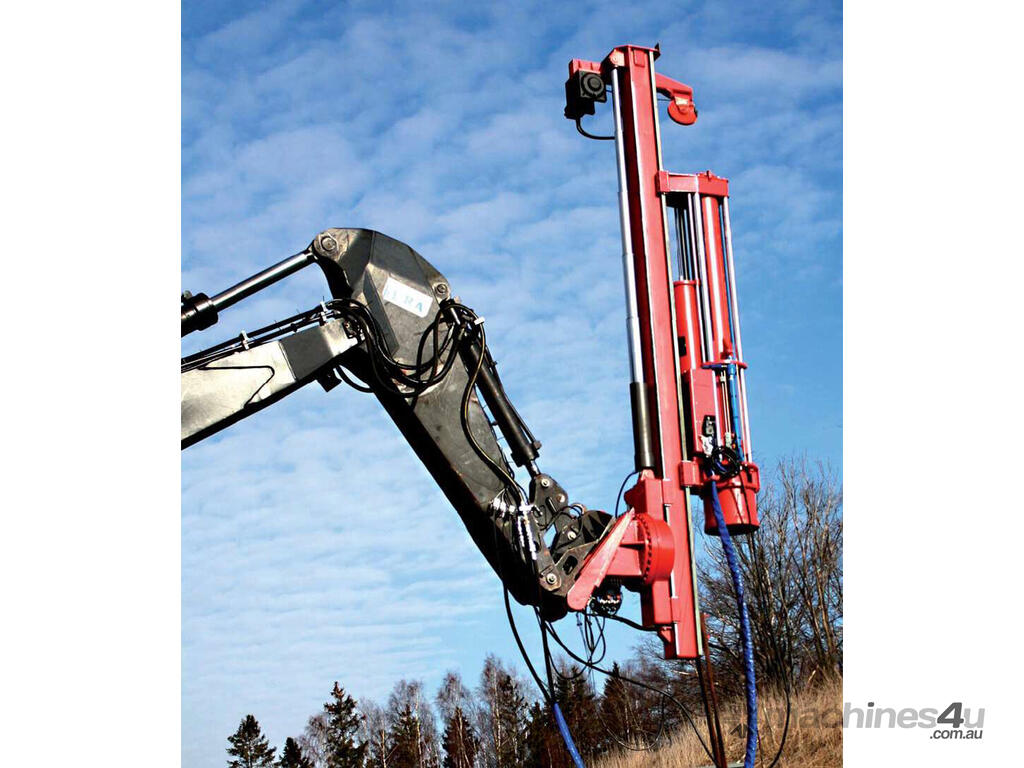

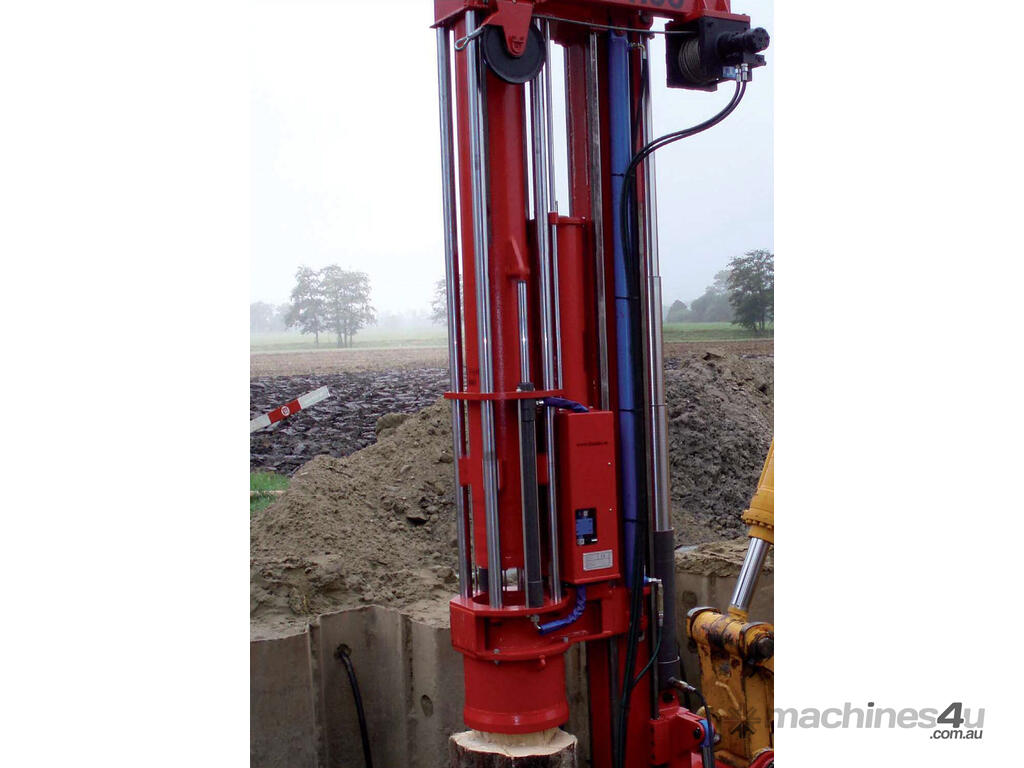

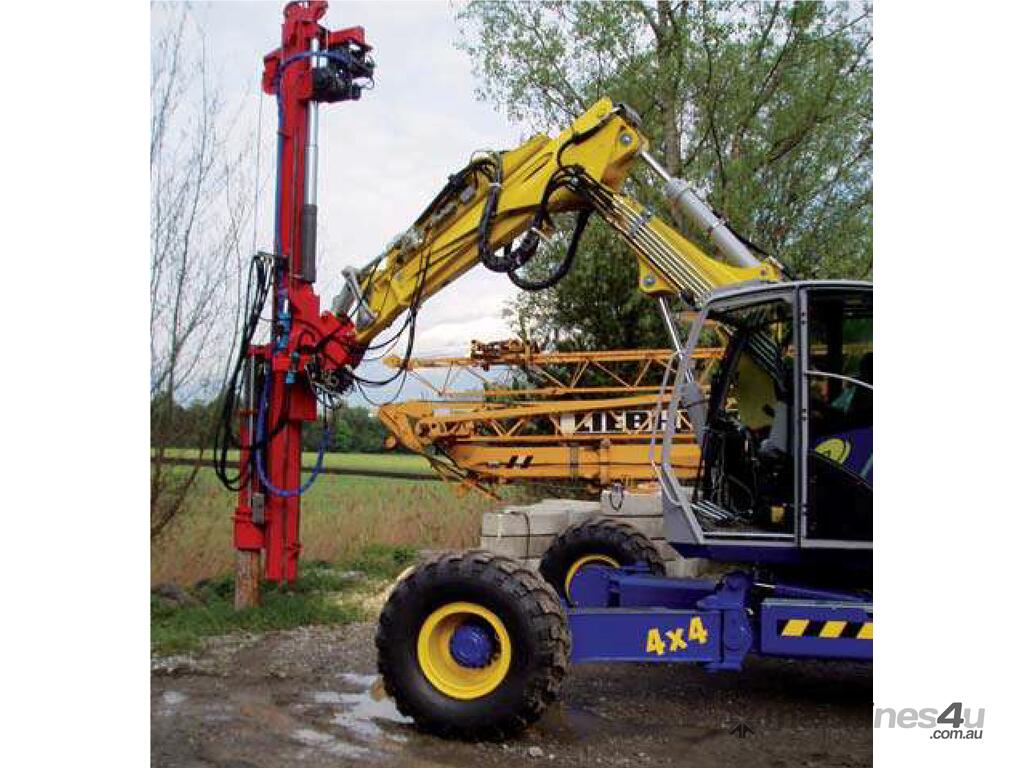

GANZ - Fambo HR 2000 Hydraulic Impact Hammer

Piston Weight: 2,000 kg
Total Weight with Standard Pile Cap: 2,800 kg
Blows per Minute (steplessly adjustable) :: 0 - 100
Energy per Blow (steplessly adjustable) :: 0 - 23,500 Nm
Drop Height (steplessly adjustable) :: 0 - 1.2 m

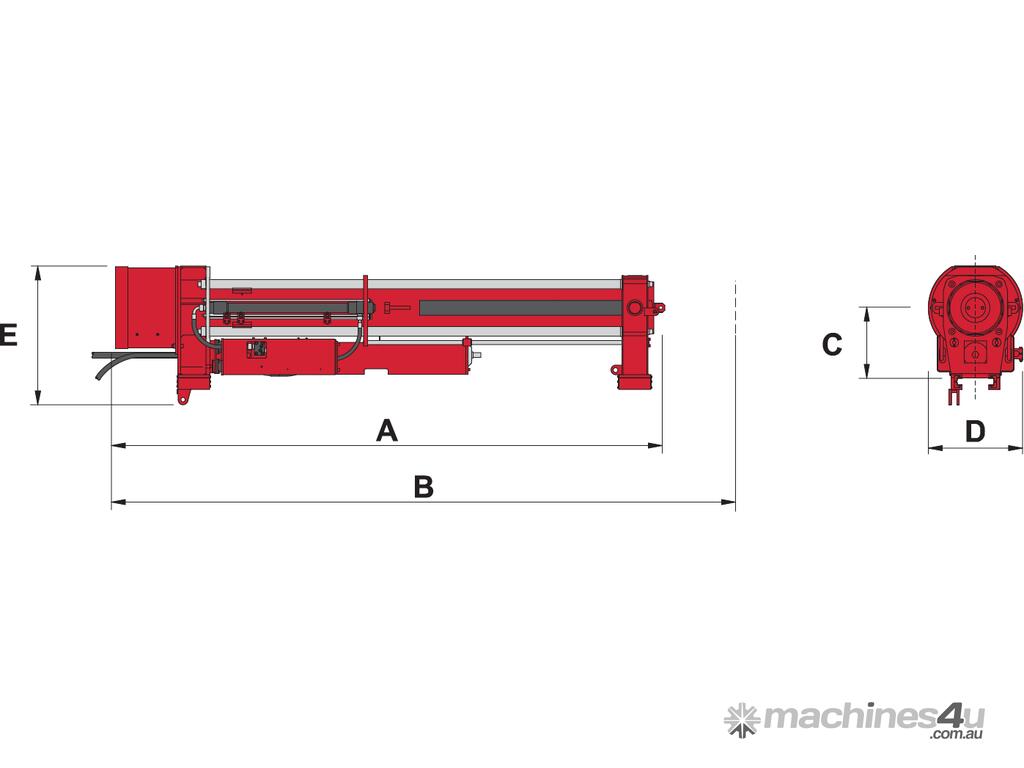

Dimensions:
Length :: 3,300 mm
Length :: 4,500 mm
Driving Axis :: 435 mm
Width :: 570 mm
Height :: 850 mm

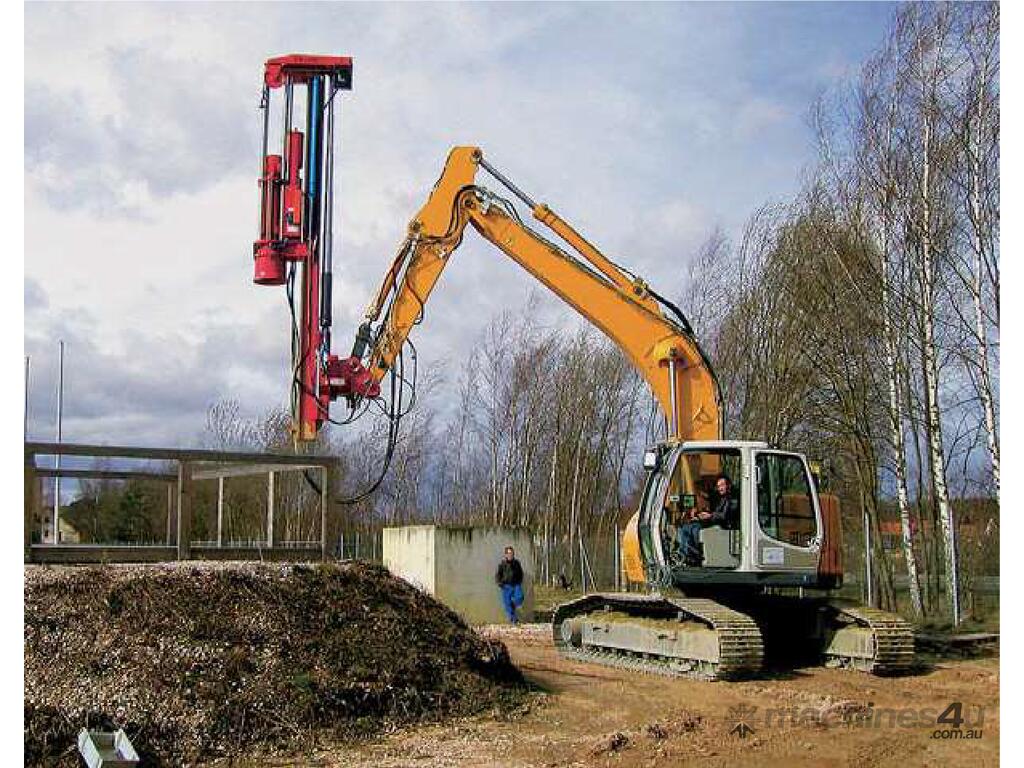

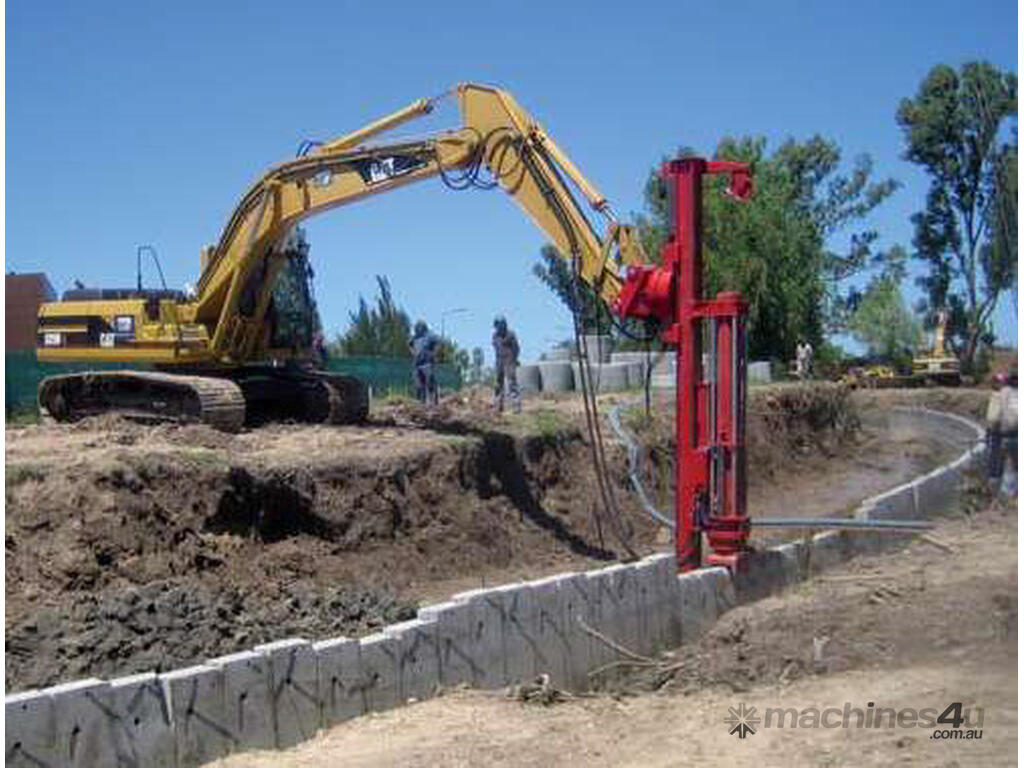

Recommended Data for Excavators:
Min. Weight: 30 t
Pressure: 310 bar
Oil Flow: 40-90 l/min
Hydraulic Pressure (required) :: 20-50 kW
Electrical Power: 24 V DC

Pile Sizes - The information refers to average values. Depending on nature of ground upwards or downwards variations may occur.:

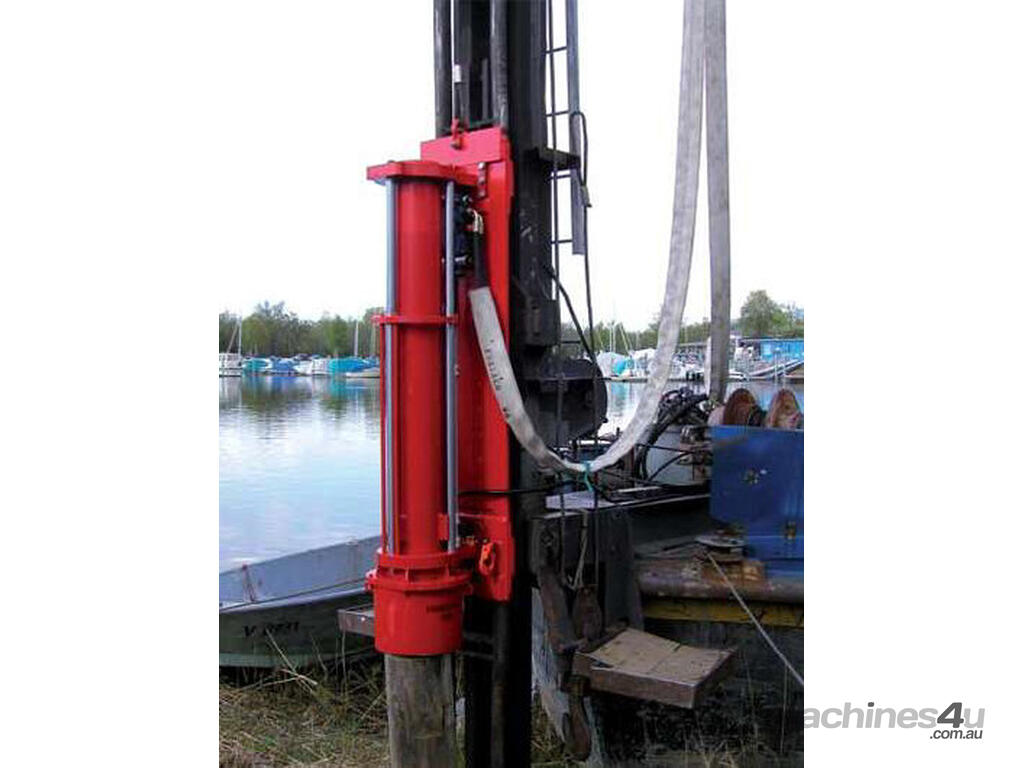

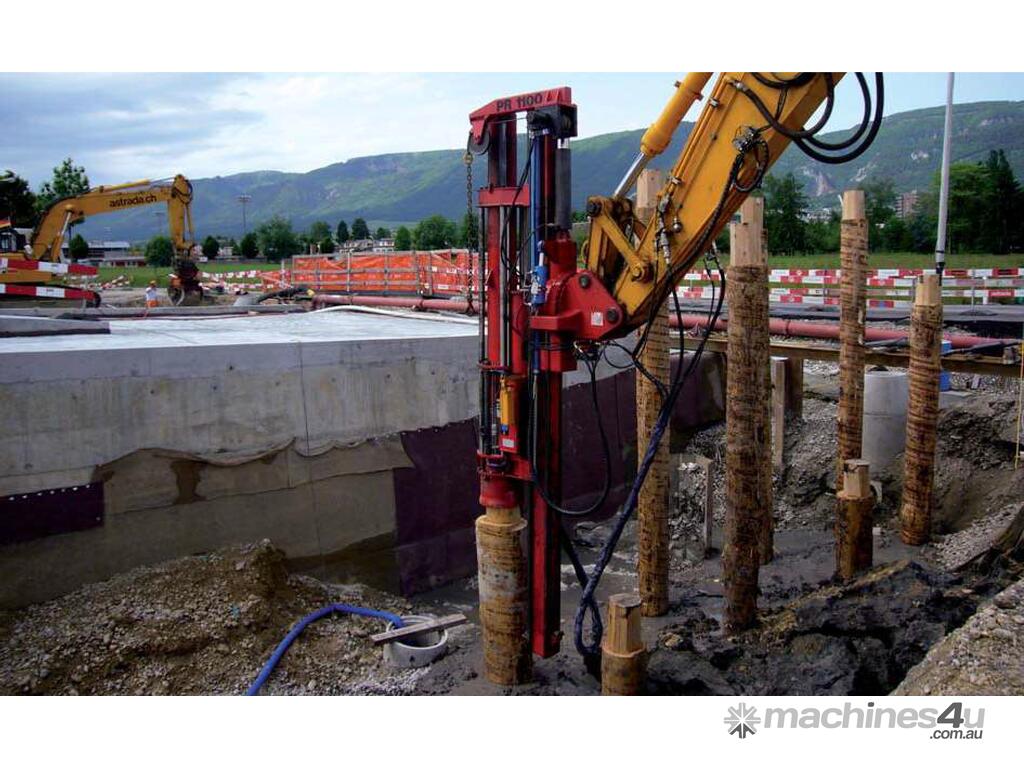

Timber Piles -
Diameter: 40 cm Ø max.
Weight: 125 kg/m max.

Concrete Piles -
Diameter: 28 x 28 cm max.
Weight: 225 kg/m max.

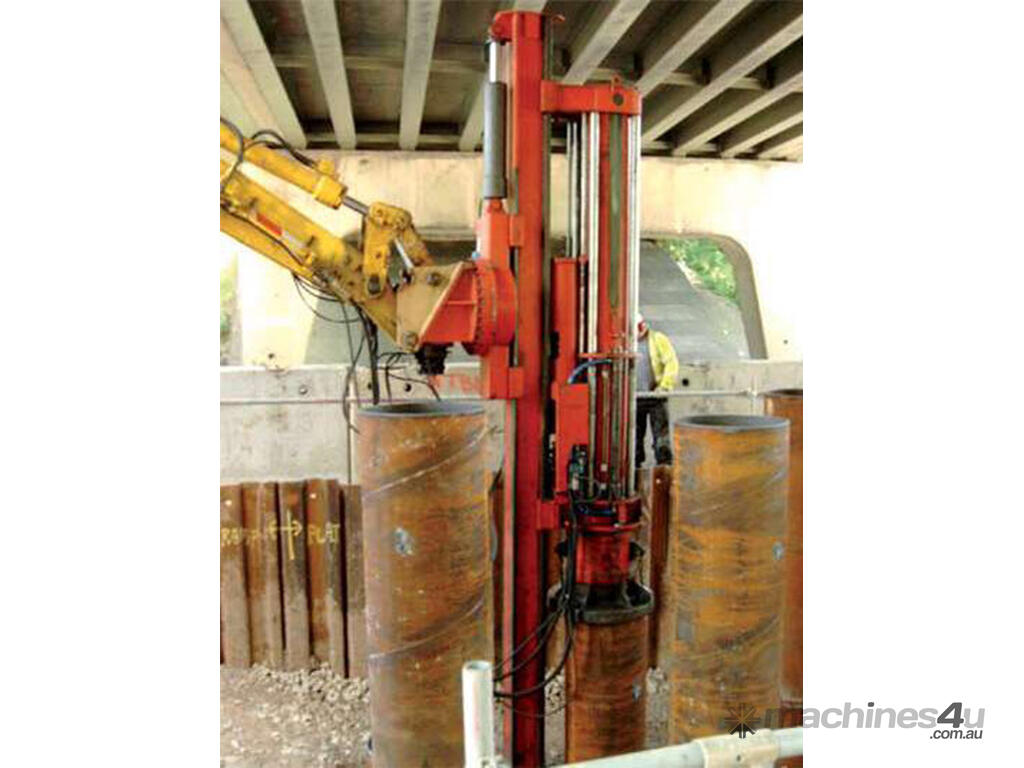

Steel Tubes:
Diameter: 40 cm Ø max.
Weight: 200 kg/m max.

Steel Beams:
Dimensions: 300 HEA max.
Weight: 200 kg/m max.

Sheet Piles -
Weight: 200 kg/m max.
Maximum Weight: 5,000 kg

Standard Pile Cap:
Length :: 200 mm
Outer Diameter :: 420 mm
Inner Diameter :: 370 mm
Depth :: 120 mm
Weight: 141 kg

Pile Caps Universal Adapters:
Length :: 323 mm
Outer Diameter :: 522 mm
Distance :: 150 mm
Inner Diameter :: 300 mm
Hole Diameter :: 26 mm
Weight: 228 kg
